Cover Caps

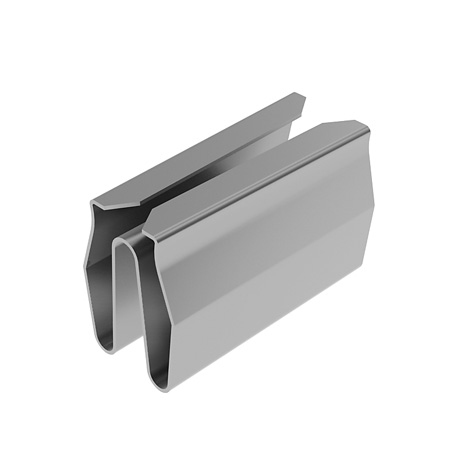

Clip 8
€0.00*
Profile:
I
Delivery Countries:WorldwideDescription:To fix pieces of aluminum cover profiles to aluminum profiles, slot 8; recommended number: 5 pcs. per 1 mMaterial:Spring steelSurface:PlainTip:Compatible Cover Cap for Piece of Aluminum Cover Profile see 091333Zolltarifnummer:73170080000

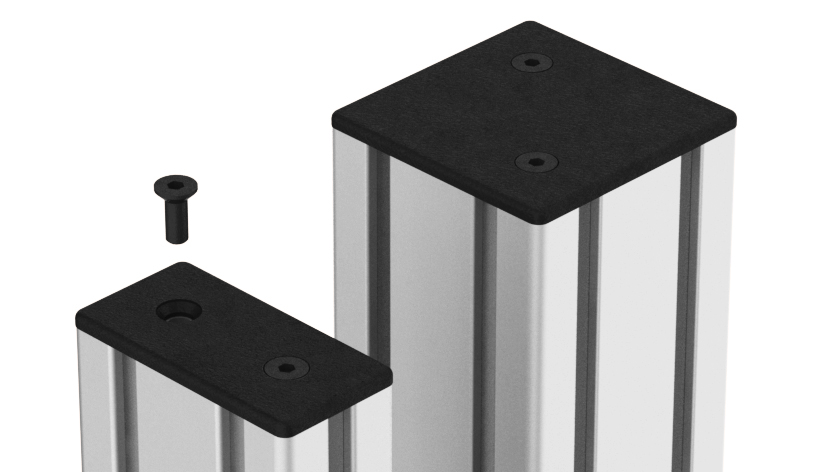

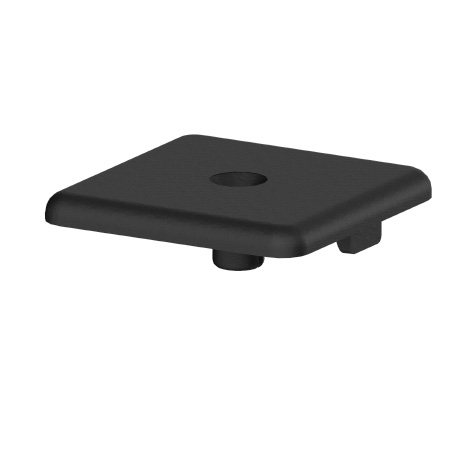

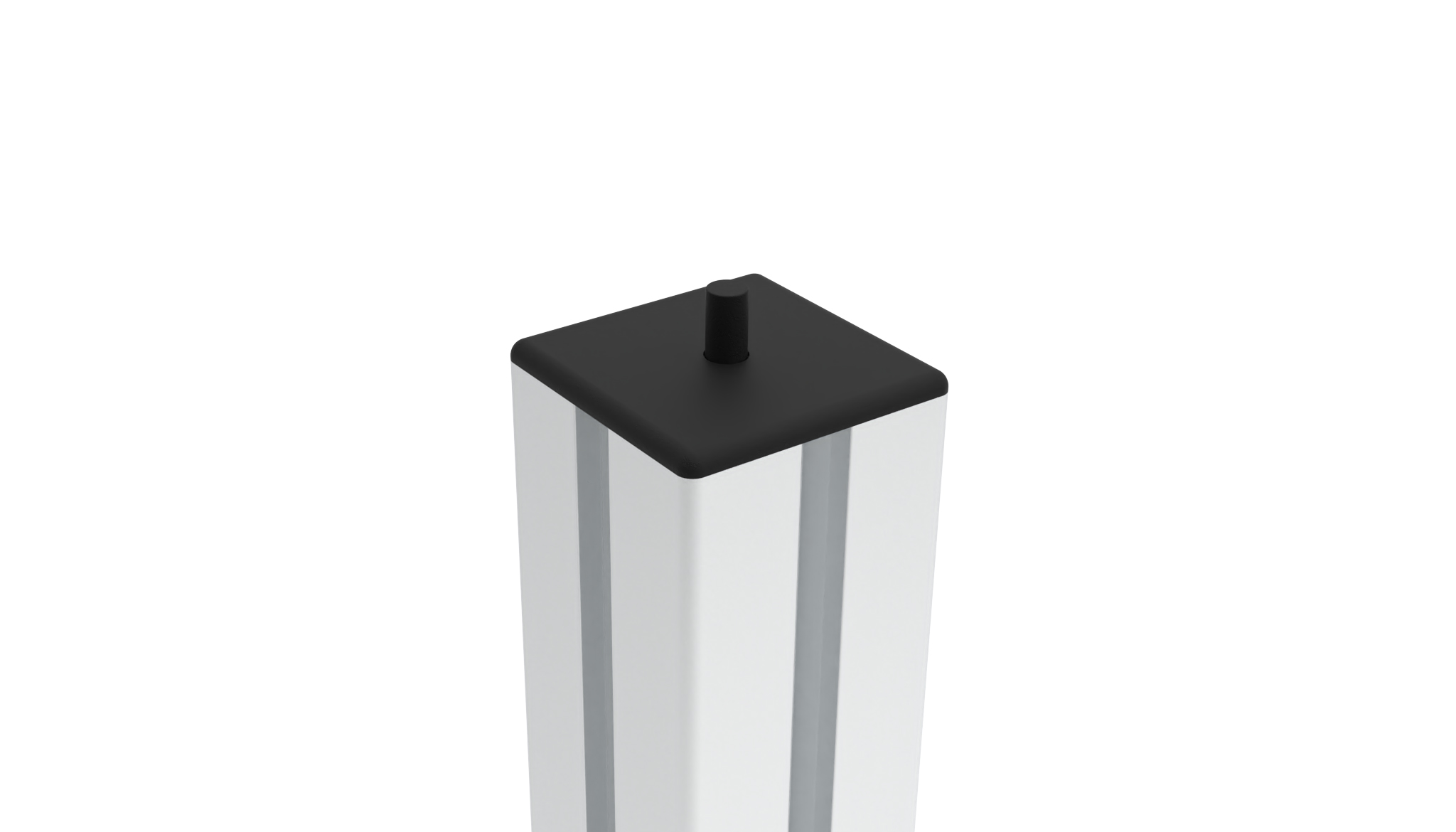

Cover Cap Fixable
€0.00*
D (mm):
10.5
|
Dimensions A x B (mm):
60 x 60
|
Feature:
1 pin for core hole
|
R (mm):
3.0
|
Screw:
1 screw
|
T (mm):
4.0
Color:BlackDelivery Countries:WorldwideDescription:Screw-on cover cap for the end of the aluminum profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Compatible screw see 4DIN7991M0416MZolltarifnummer:39269097900

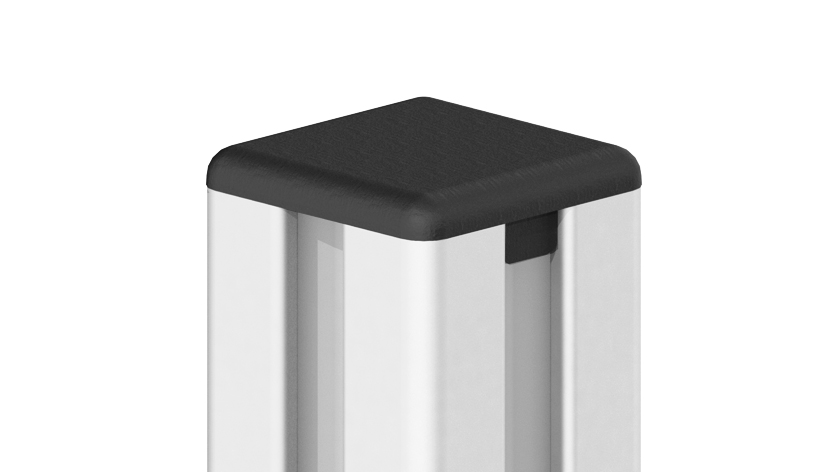

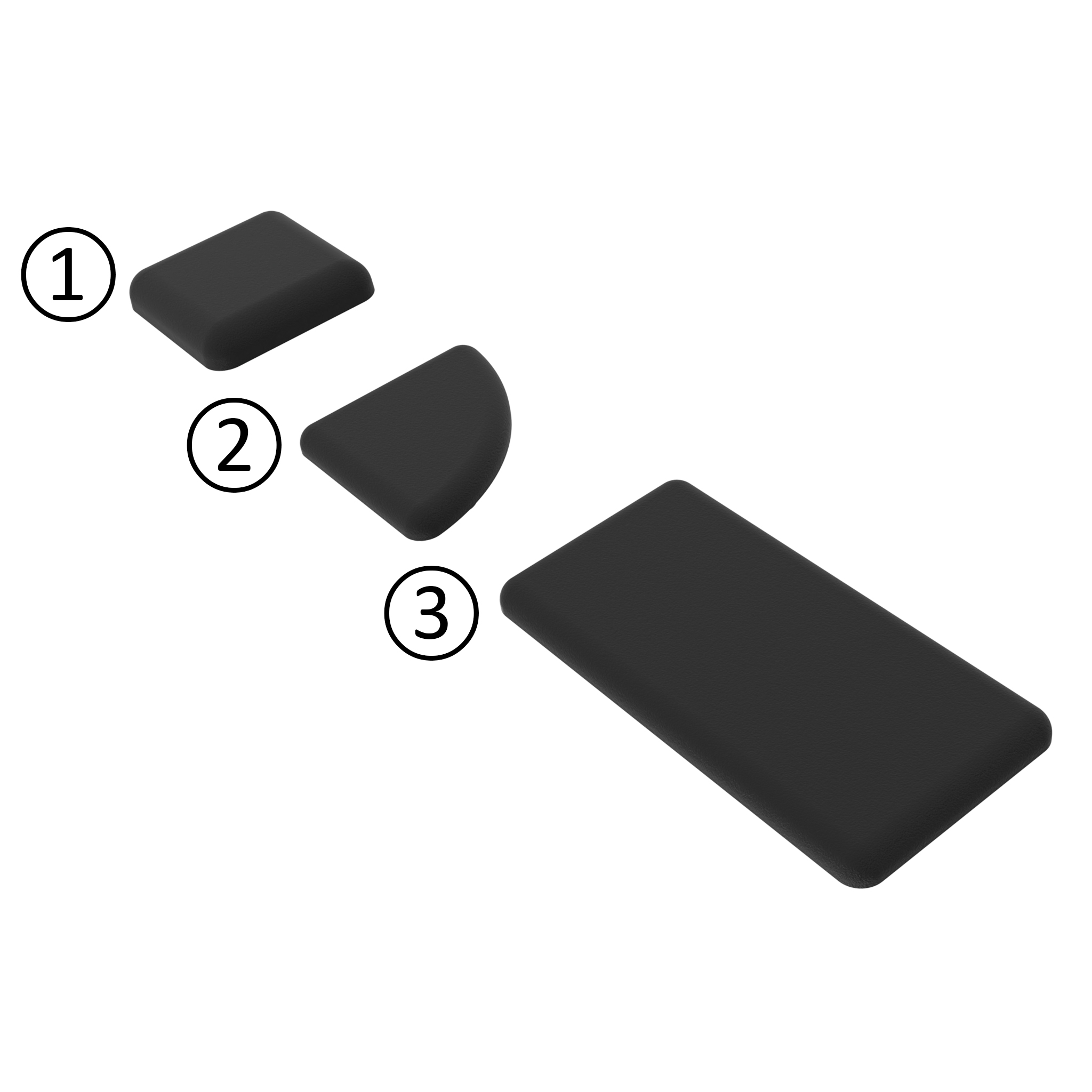

Cover Cap for 20 mm Modular Dimension
€0.00*
Color:
Gray ≈ RAL 7042
|
Dimensions A x B (mm):
10 x 20
|
Feature:
2 pins
|
Profile:
I
|
R (mm):
2.0
|
Slot N (mm):
5
|
T (mm):
2.5 / 8.5
|
ØD (mm):
3.4
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

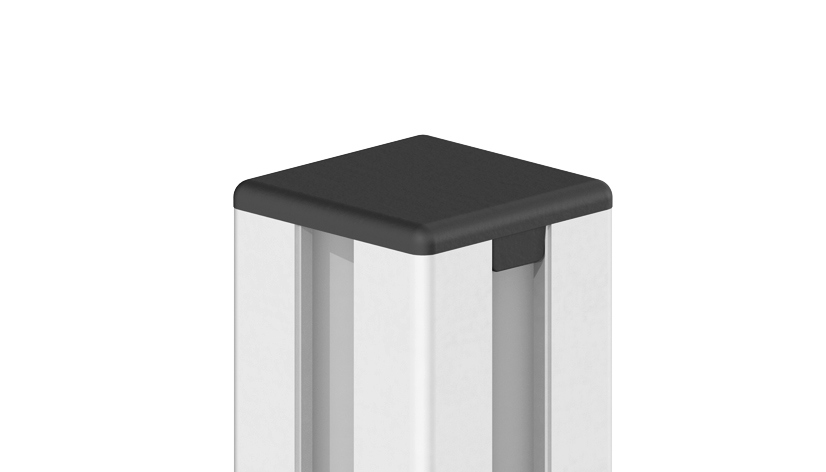

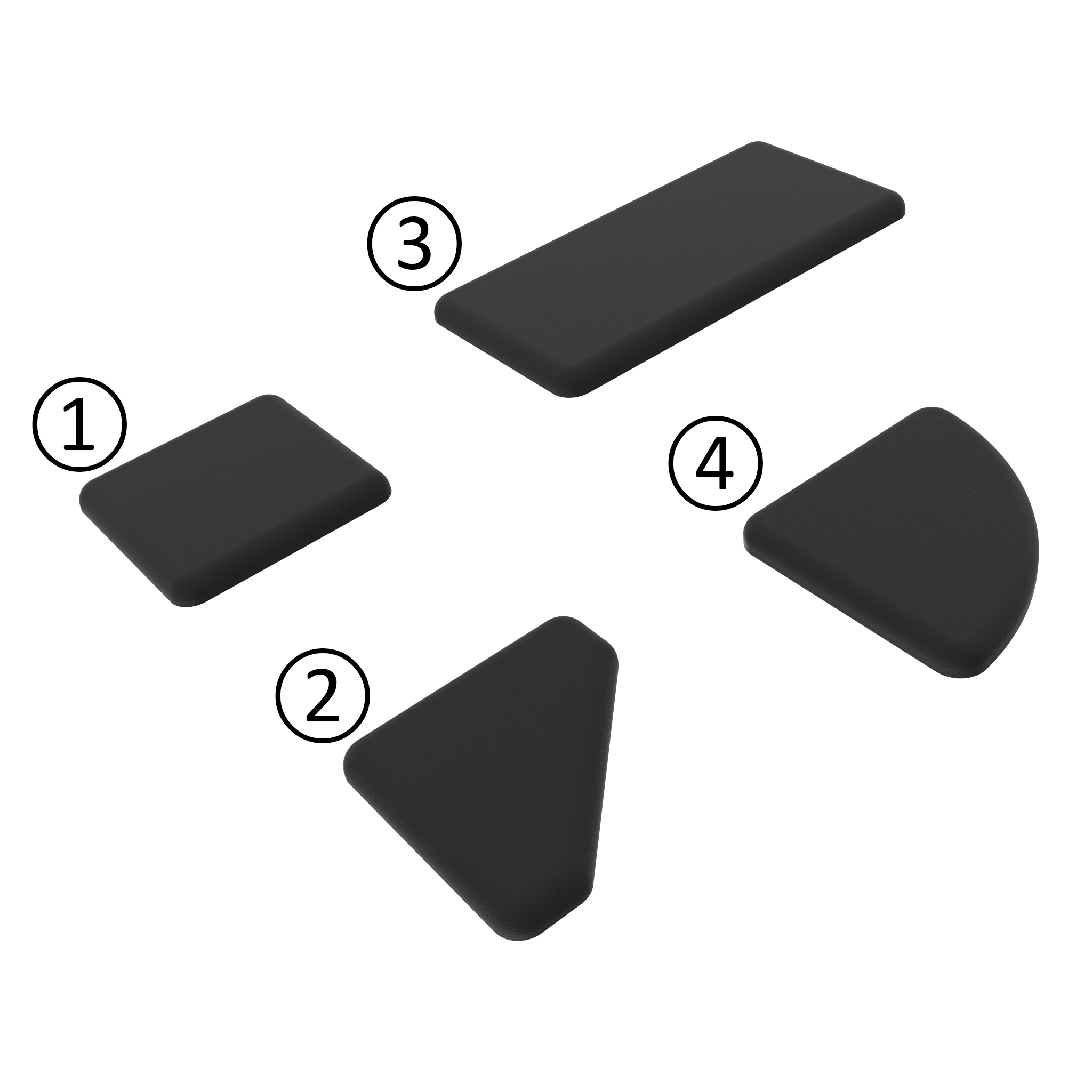

Cover Cap for 30 mm Modular Dimension
€0.00*
Color:
Black
|
Dimensions A x B (mm):
30 x 30
|
Feature:
New version 2, 1 cross
|
Profile:
B
|
R (mm):
2.0
|
Slot N (mm):
8
|
T (mm):
3.0
|
ØD (mm):
7.6 (7.3)
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

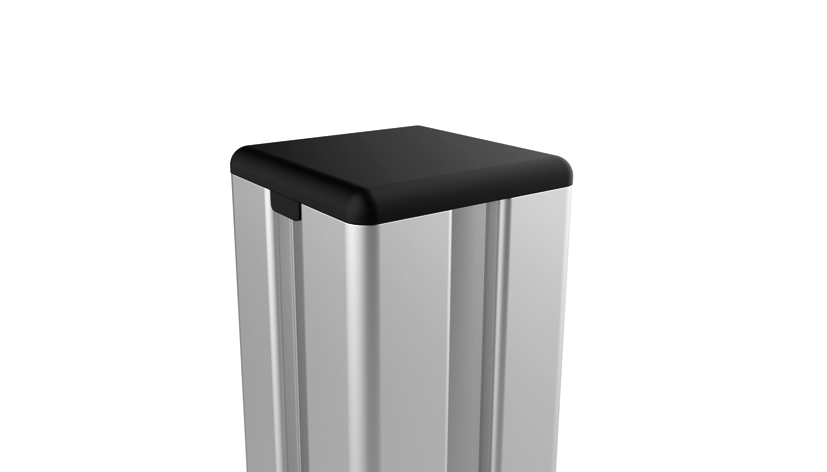

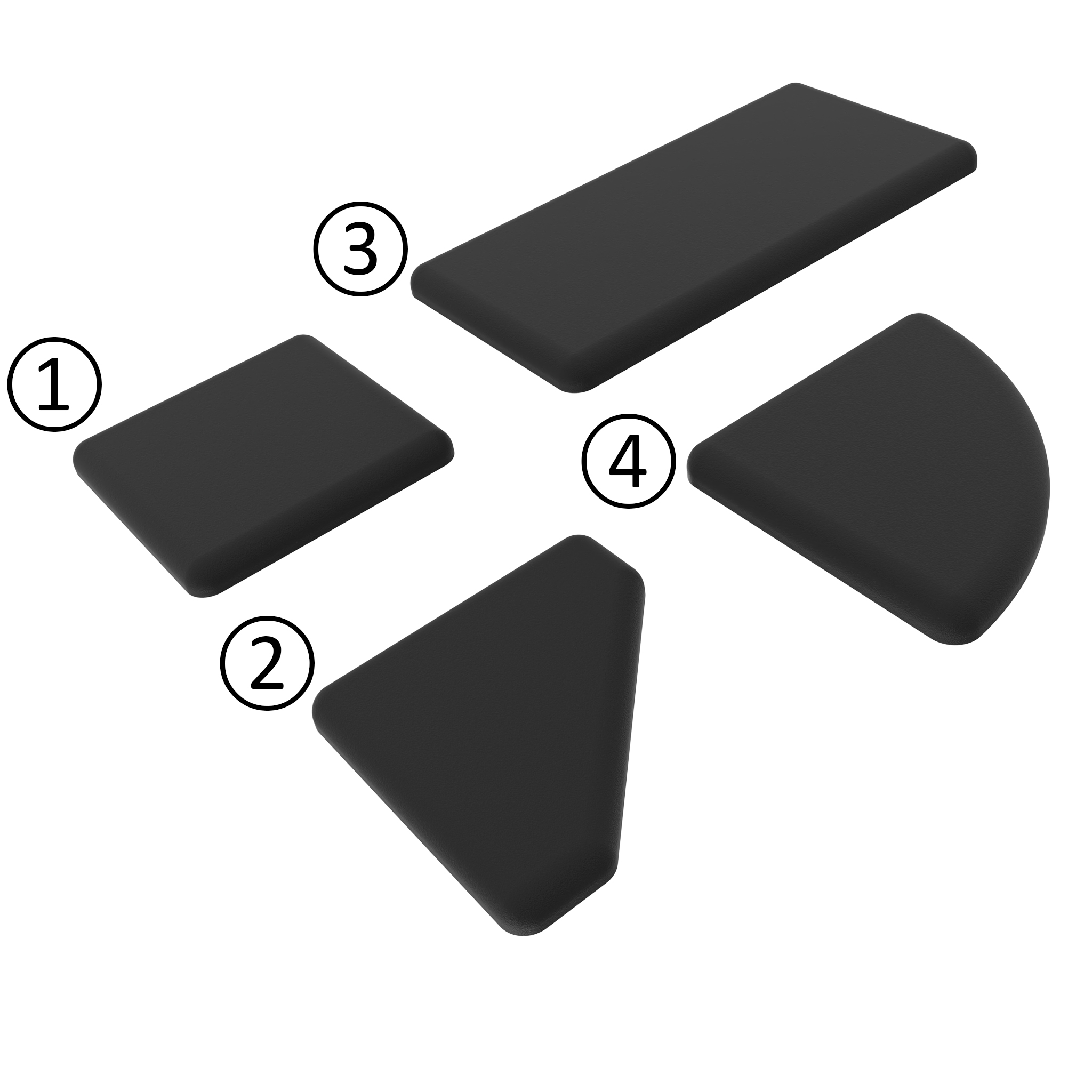

Cover Cap for 38 mm - 1.5" Modular Dimension
€0.00*
Dimensions A x B (mm):
38.1 x 19 - 1.5" x 3/4"
|
Feature:
2 crosses off center
|
R (mm):
3.0
|
T (mm):
4.0
|
ØD (mm):
6.8
Color:BlackDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

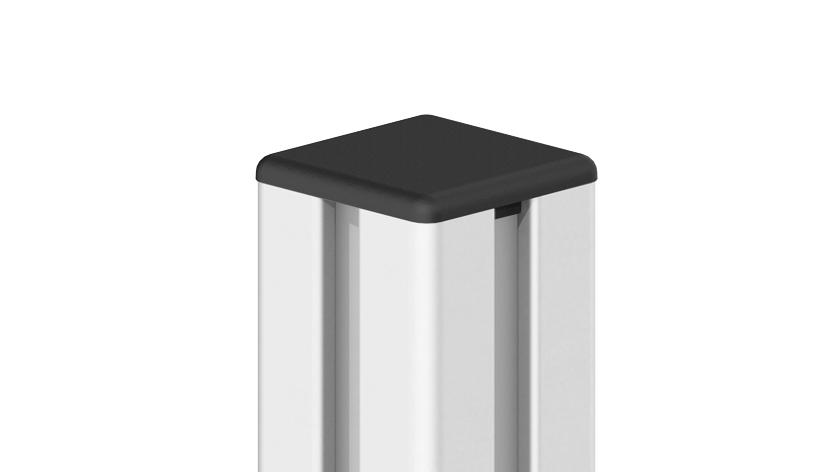

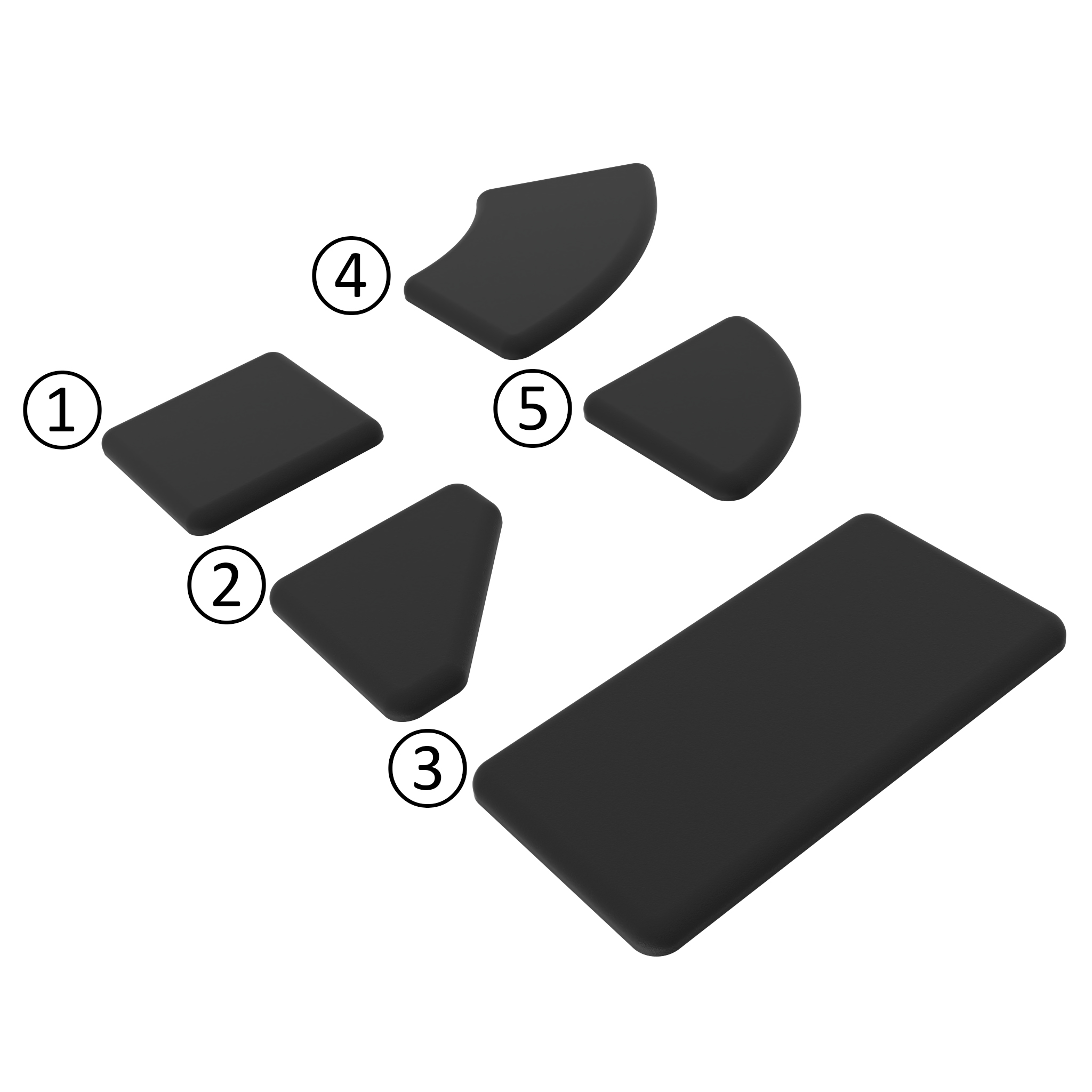

Cover Cap for 40 mm Modular Dimension
€0.00*
Color:
Black
|
Dimensions A x B (mm):
40 x 40 R40 - 90°
|
Feature:
1 cross
|
Profile:
I
|
R (mm):
2.5
|
Slot N (mm):
8
|
T (mm):
4.0
|
ØD (mm):
7.2 (6.8)
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforced, * glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

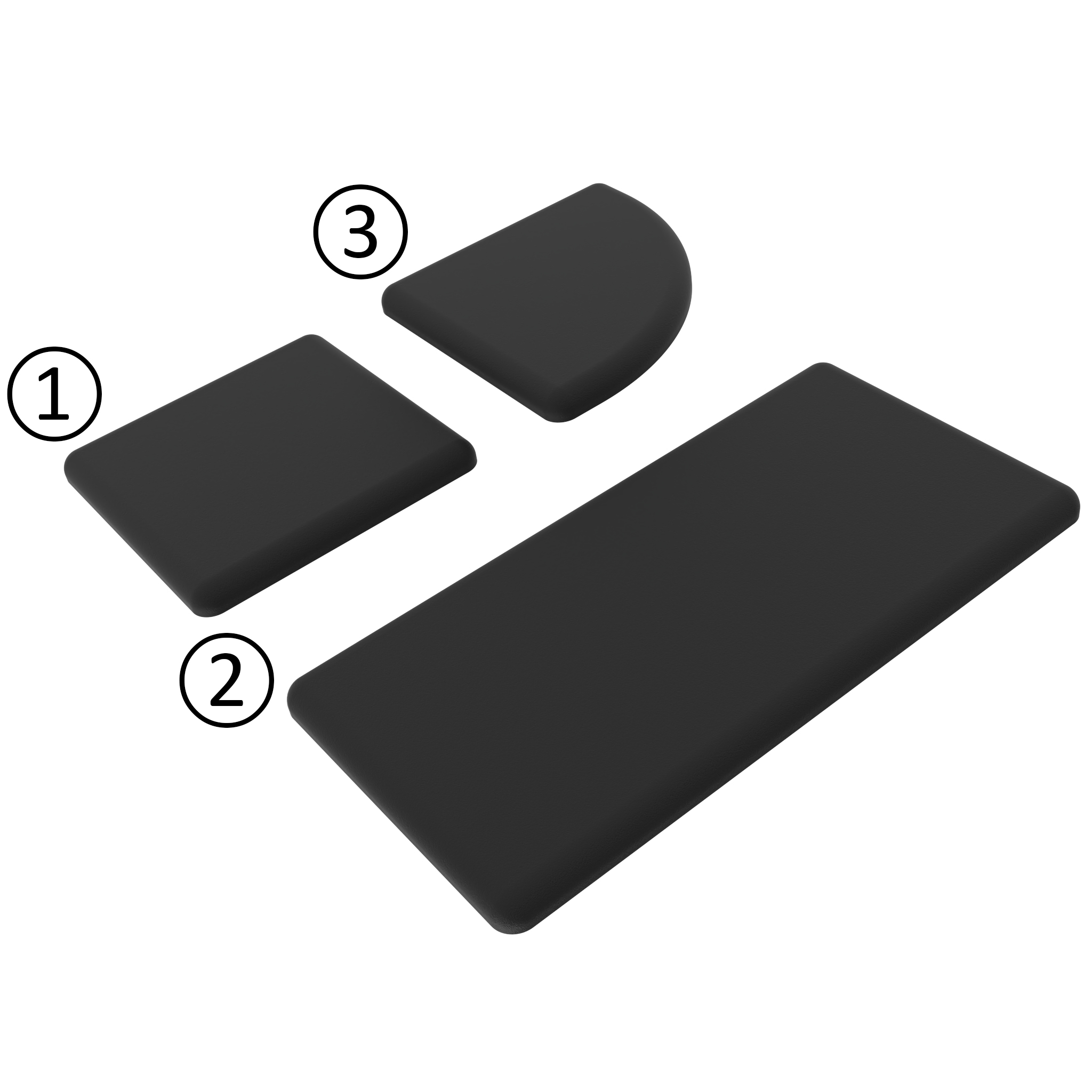

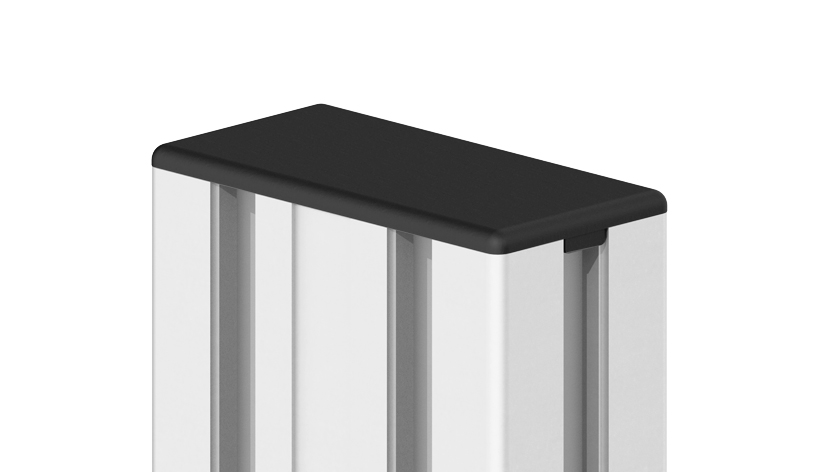

Cover Cap for 45 mm Modular Dimension
€0.00*
Color:
Gray ≈ RAL 7004
|
Dimensions A x B (mm):
45 x 60
|
Feature:
With hole Ø 18.3 mm, 4 pins 4.3
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
|
T (mm):
4.0
|
ØD (mm):
(4.0)
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

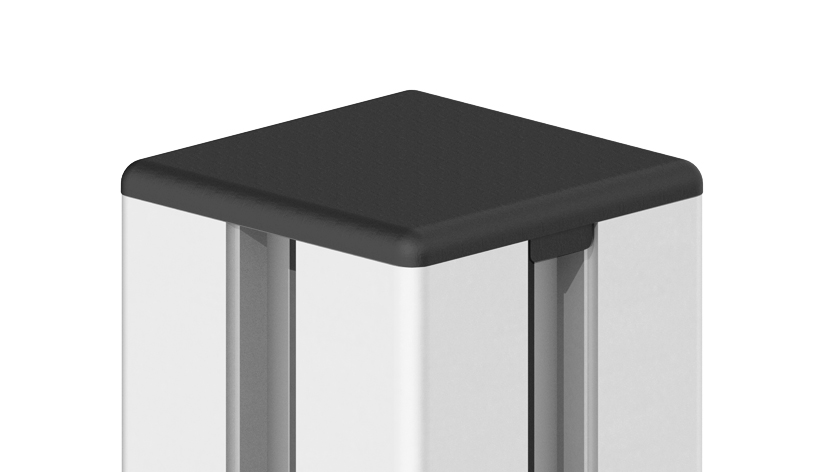

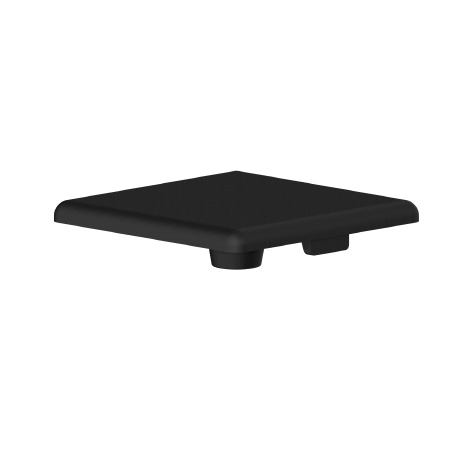

Cover Cap for 50 mm Modular Dimension
€0.00*
Color:
Black
|
Dimensions A x B (mm):
50 x 50
|
Feature:
1 pin for core hole, ESD electrostatical discharging
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
|
T (mm):
4.0
|
ØD (mm):
10.3 (10.0)
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

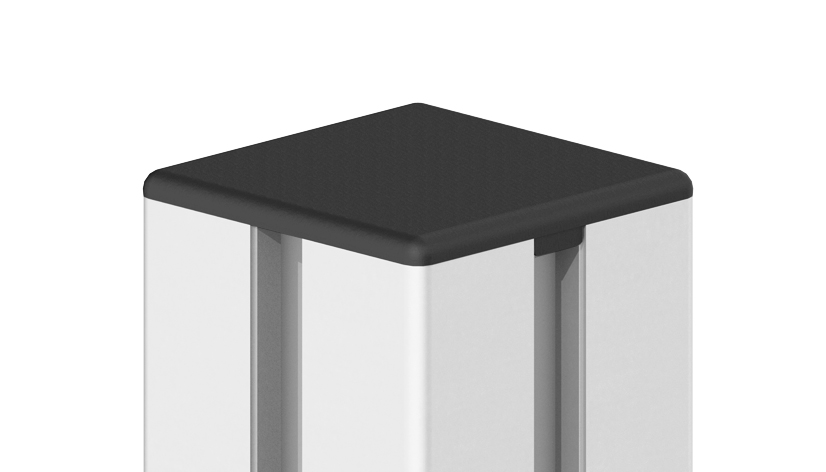

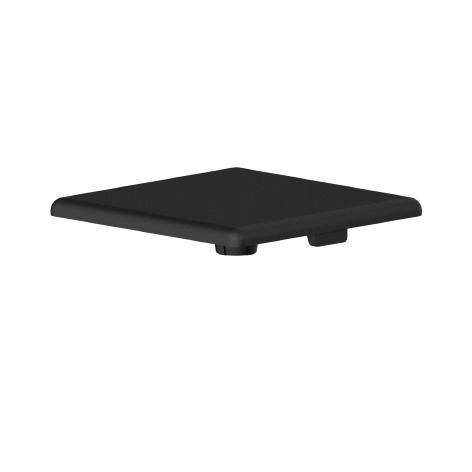

Cover Cap for 60 mm Modular Dimension
€0.00*
Color:
Black
|
Dimensions A x B (mm):
60 x 90
|
Feature:
1 cross 13.5, 2 Pins for core hole, 11.4
|
Profile:
-
|
R (mm):
2.5
|
Slot N (mm):
10
|
T (mm):
4.0
|
ØD (mm):
11.4 - 13.5
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

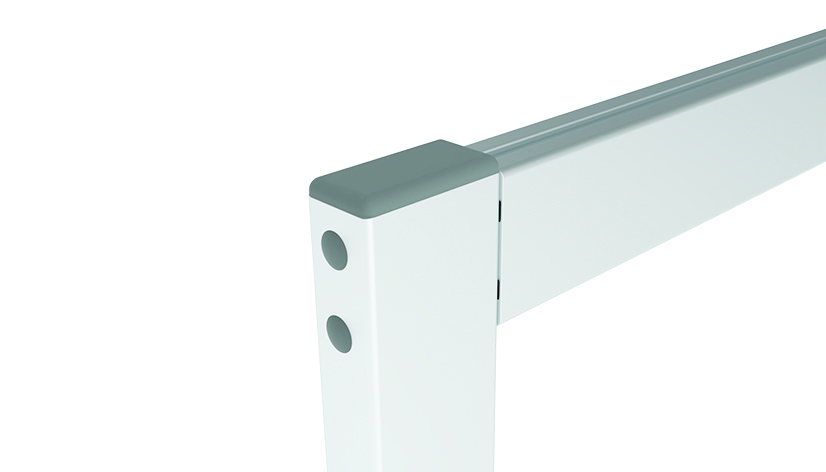

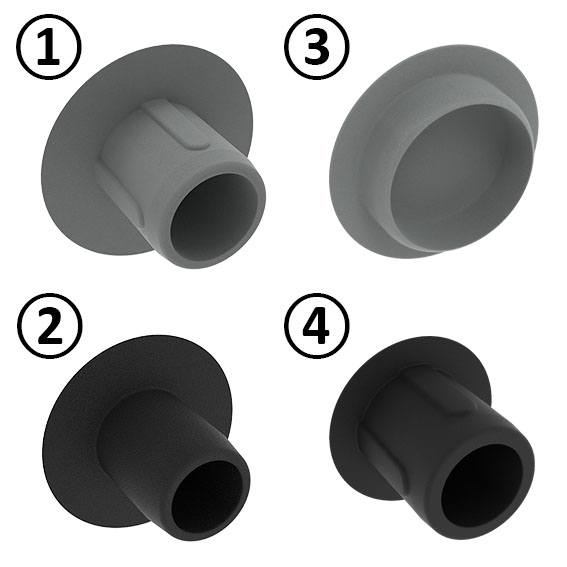

Cover Cap for Boreholes
€0.00*
Color:
Gray ≈ RAL 7042
|
Fig.:
①
|
L (mm):
5.2
|
Profile:
I
|
ØD (mm):
8.8
|
Ød (mm):
4.3
Color:Black, grayDelivery Countries:WorldwideDescription:To cover boreholesMaterial:Plastic PATip:Other colors on requestZolltarifnummer:39269097900

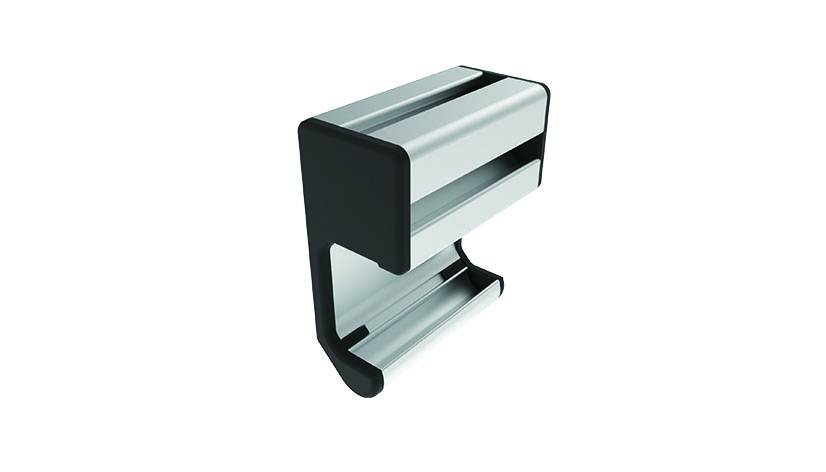

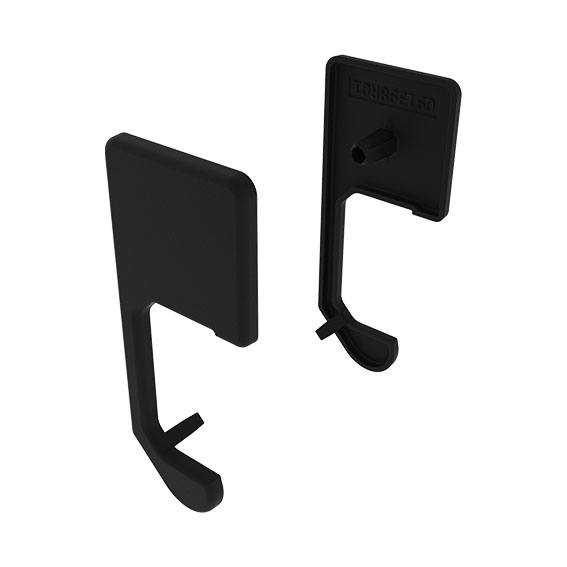

Cover Cap for C-rail Profile I (Set)
€0.00*
A x B (mm):
92.6 x 38.6
|
Profile:
I
|
Slot N (mm):
8
|
T (mm):
4.0
Color:BlackDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSet:1 cover cap left, 1 cover cap rightZolltarifnummer:39269097900

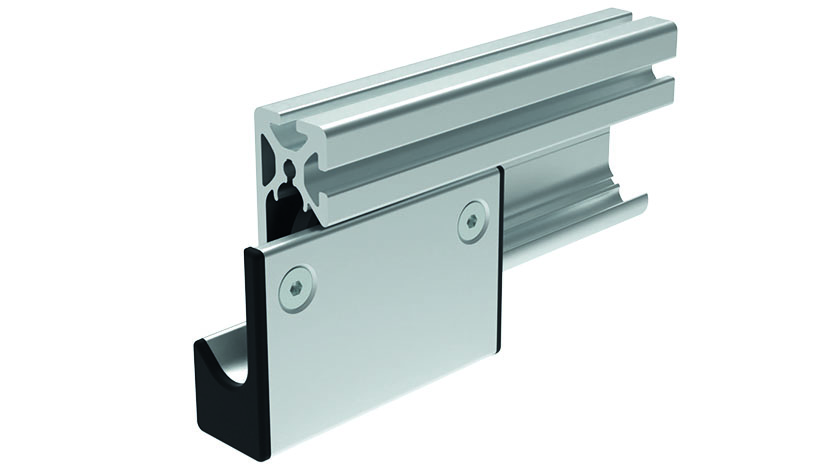

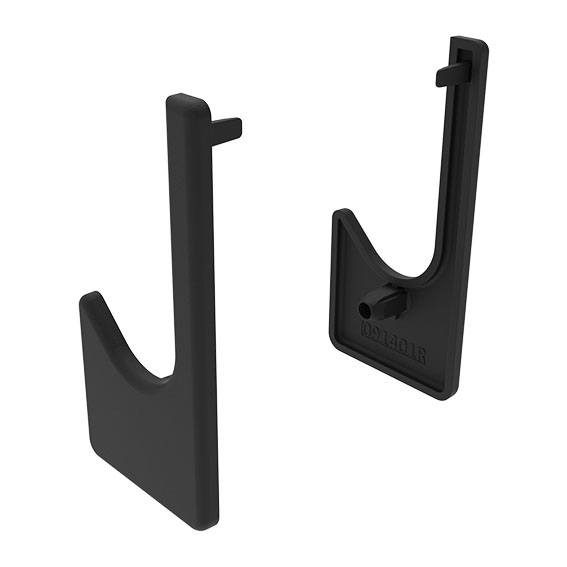

Cover Cap for C-slide Profile I (Set)
€0.00*
A x B (mm):
81.5 x 38.8
|
Slot N (mm):
8
|
T (mm):
4.0
Color:BlackDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSet:1 cover cap left, 1 cover cap rightZolltarifnummer:39269097900

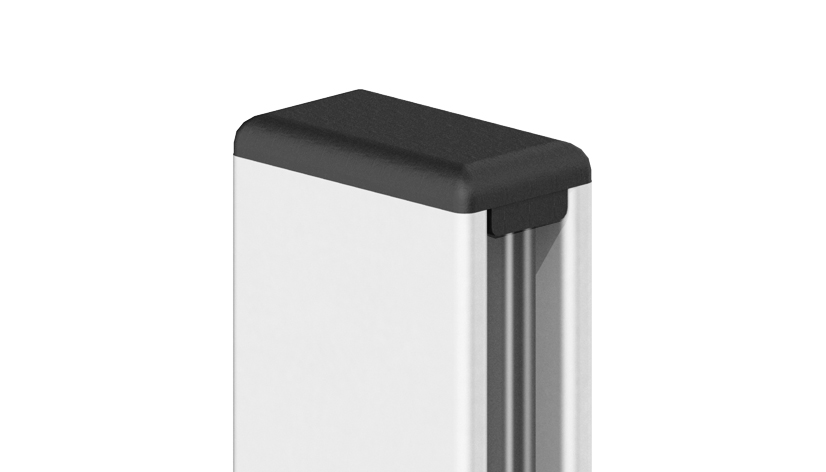

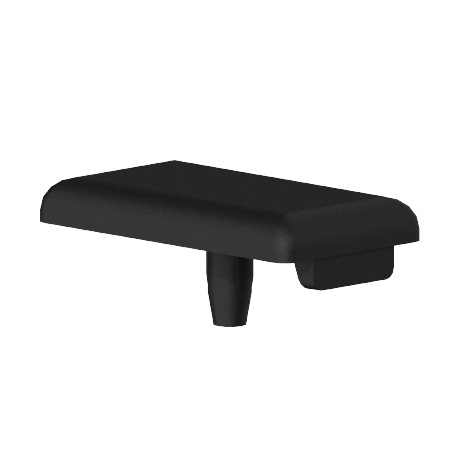

Cover Cap for Clamp Profile
€0.00*
Color:
Black
|
Dimensions A x B (mm):
18 x 32
|
Feature:
1 pin
|
Profile:
I
|
R (mm):
1.5
|
Slot N (mm):
10
|
T (mm):
4.0
|
ØD (mm):
4.3
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

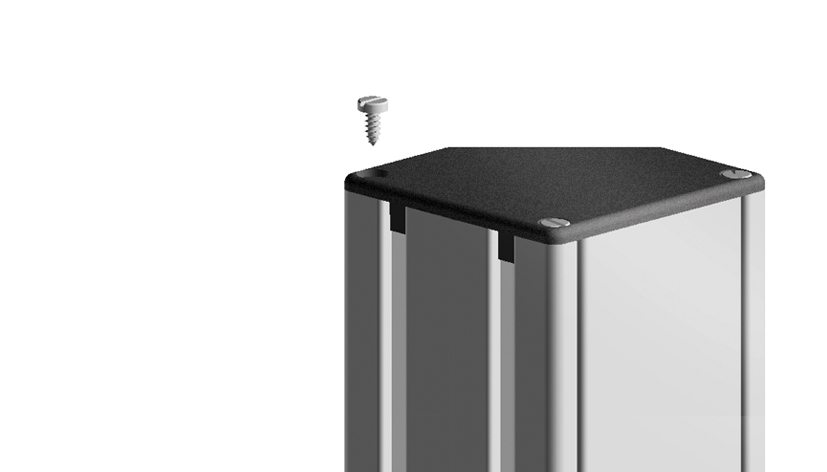

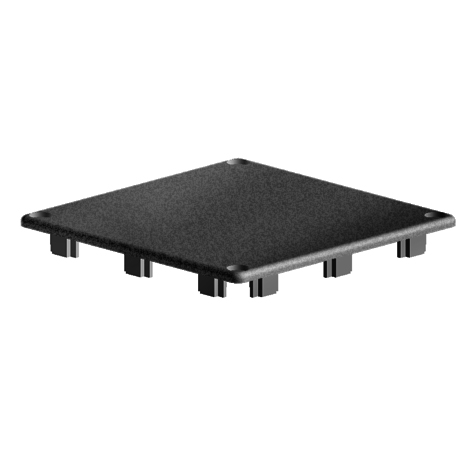

Cover Cap for Conduit Profile
€0.00*
Dimensions A x B (mm):
80 x 160
|
Feature:
9 fixation ribs
|
Hole:
20° right; 4 bore holes
|
Profile:
I
|
R (mm):
4.0
|
T (mm):
4.0
Color:BlackDelivery Countries:WorldwideDescription:To seal the end openings of conduit systems; Fastening with screw M 4Material:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

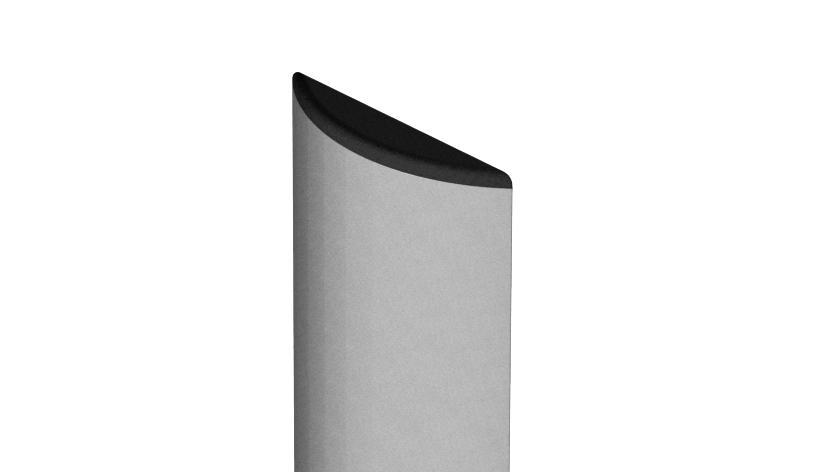

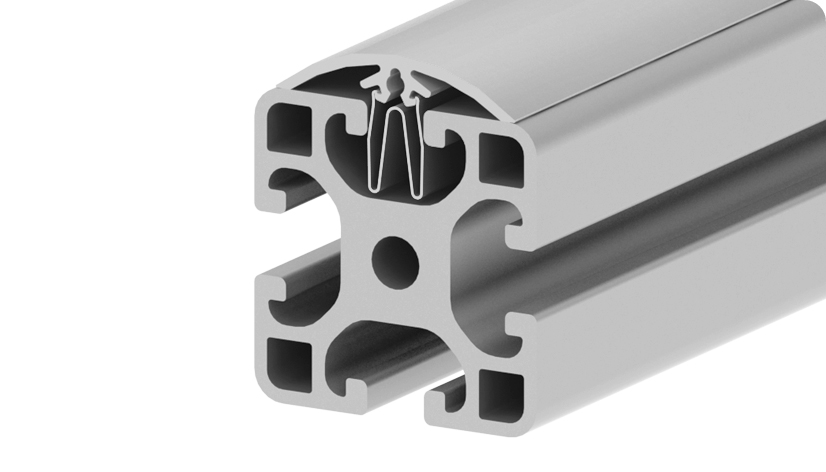

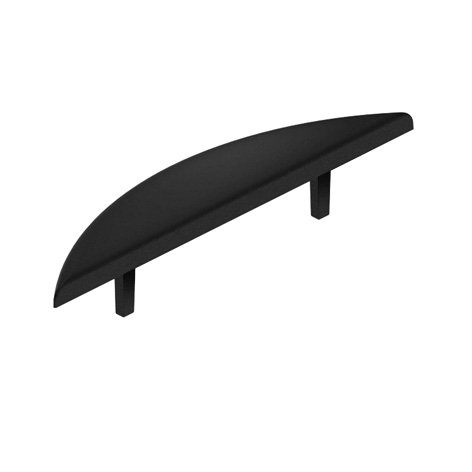

Cover Cap for Cover Profile
€0.00*
Dimensions (mm):
R80
|
L (mm):
74
|
Profile:
I
|
T (mm):
4.0
Color:BlackDelivery Countries:WorldwideDescription:To cover the end of the profile, suitable for pieces of aluminum cover profilesMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Compatible Clip 8 to fix Pieces of Aluminum Cover Profiles to Aluminum Profiles Slot 8 see 092311N08Zolltarifnummer:39269097900

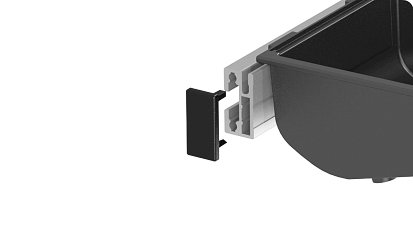

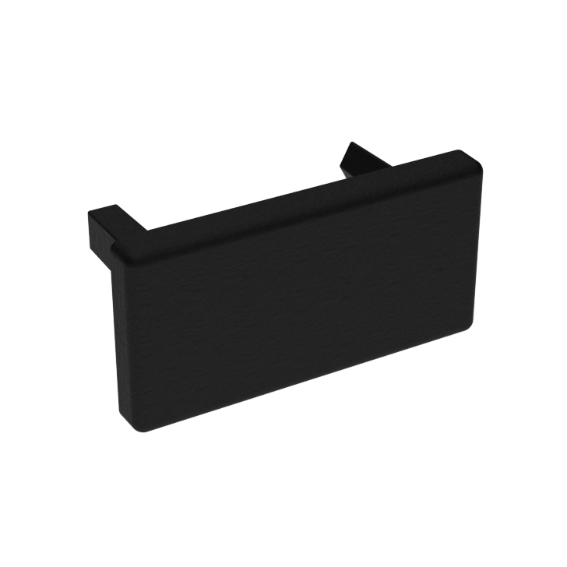

Cover Cap for Suspension Profile
€0.00*
ESD:
ESD electrostatical discharging
|
Profile:
B
Color:BlackDelivery Countries:WorldwideDescription:To seal the end openings of suspension profilesMaterial:Plastic PA, carbon fiber reinforcedSpecials:Not ESD electrostatical discharging version on requestZolltarifnummer:39269097900

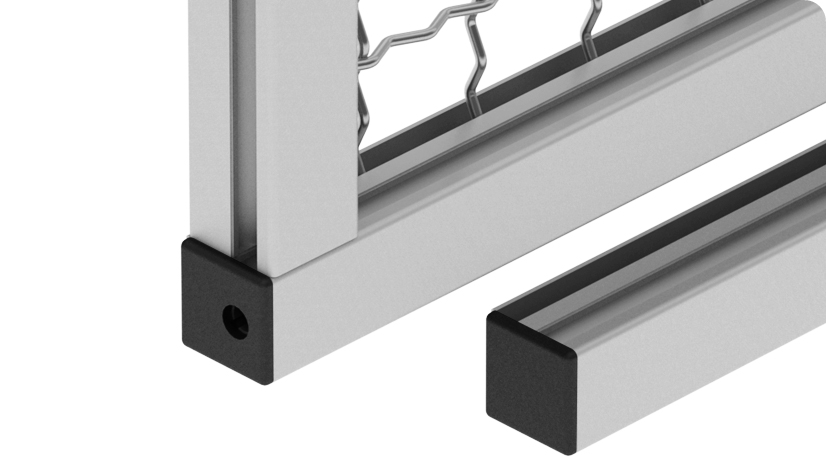

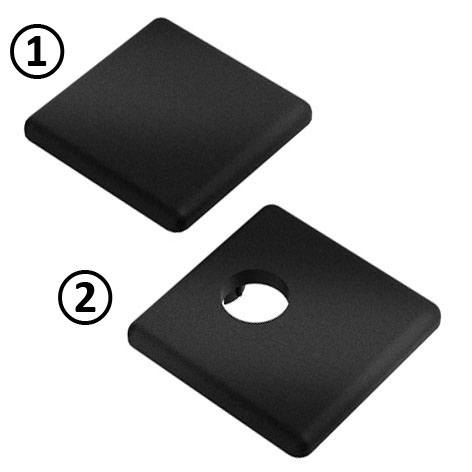

Cover Cap for Wire Mesh Frame Profile
€0.00*
Color:
Black
|
Feature:
4 pins
|
Fig.:
①
|
Profile:
B
|
R (mm):
2.0
|
T (mm):
3.0
|
Version:
Without hole
Color:Black, grayDelivery Countries:WorldwideDescription:To seal the end openings of conduit systemsMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

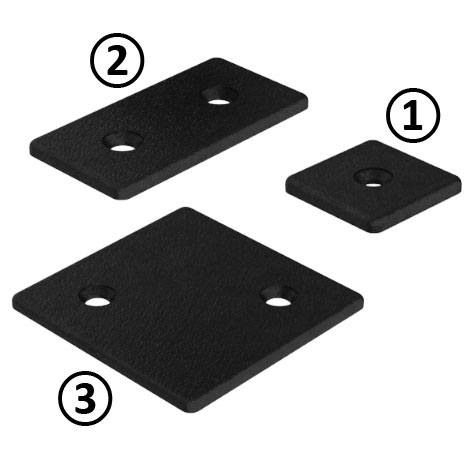

Cover Cap ZN Screw-on Type
€0.00*
Dimensions A x B (mm):
40 x 80
|
Feature:
Bore for countersunk screw
|
Fig.:
②
|
Profile:
I
|
R (mm):
3.5
|
Slot N (mm):
8
|
T (mm):
4.0
|
ØD (mm):
8.0 (6.8)
Color:BlackDelivery Countries:WorldwideDescription:Screw-on cover cap for the end of the aluminum profileMaterial:Zinc die-castSpecials:Other sizes, other colors on requestSurface:Powder coatedTip:* Compatible Self Forming Countersunk Screw S7 x 16 see 093S0716CZolltarifnummer:79070000900

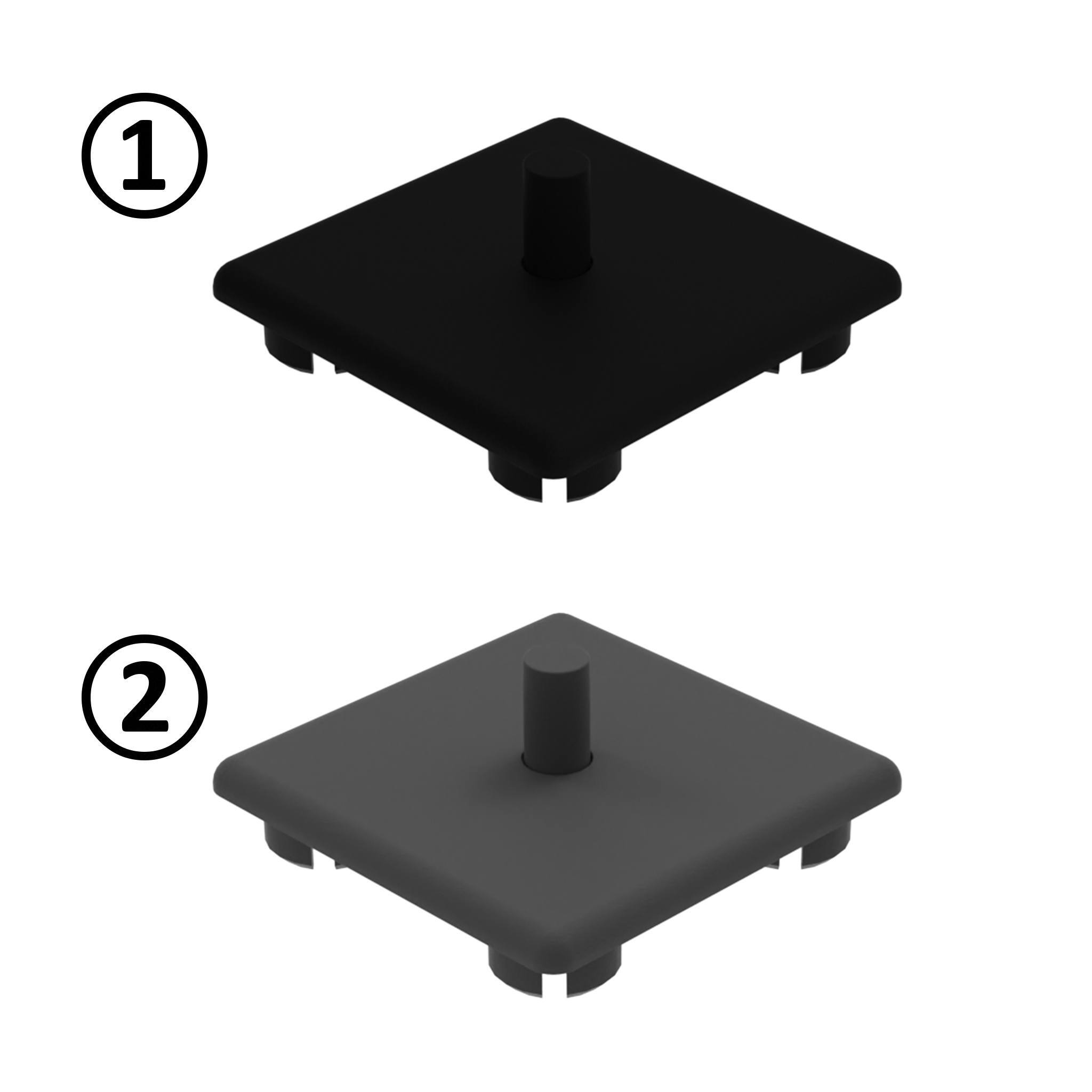

Cover Cap, with Locking Pin
€0.00*
Color:
Gray ≈ RAL 7012
|
Fig.:
②
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

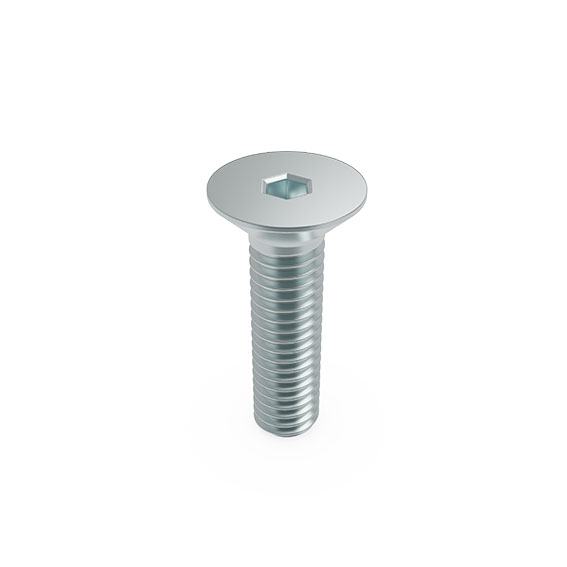

Screw for Cover Cap Fixable
€0.00*
M:
M4 x 16
Delivery Countries:WorldwideDescription:To fasten screw-on cover caps for the end of the aluminum profileMaterial:SteelSurface:Zinc platedTip:Compatible cover caps screw-on type see 091065Zolltarifnummer:73181568900
