Handles
Bridge Handle 122
€0.00*
A (mm):
122.0
|
B (mm):
26.0
|
H (mm):
40.0
|
a (mm):
142.0
|
for Nut:
SW10 (M6)
|
for Screw:
M6
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestZolltarifnummer:39269097900
Bridge Handle 152
€0.00*
A (mm):
152.0
|
B (mm):
28.0
|
Color:
Black
|
ESD:
ESD electrostatical discharging
|
H (mm):
53.5
|
a (mm):
167.0
|
for Nut:
SW10 (M6)
|
for Screw:
M6
Color:Black, yellow Delivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestZolltarifnummer:39269097900
Bridge Handle B
€0.00*
A (mm):
179.0
|
B (mm):
26.0
|
Color:
Black
|
ESD:
ESD electrostatical discharging
|
H (mm):
58.0
|
Version:
195
|
a (mm):
195.0
|
for Screw:
M6
Color:Black, grayDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestZolltarifnummer:39269097900
Bridge Handle with Cover Cap
€0.00*
A (mm):
94.0
|
B (mm):
17.0
|
H (mm):
35.0
|
a (mm):
120.0
|
for Screw:
M6
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Dimensions in brakets apply when assembledZolltarifnummer:39269097900
Comfort Handle
€0.00*
A (mm):
120.0
|
B (mm):
20.0
|
D (mm):
6.2
|
Fig.:
①
|
H (mm):
48.0
|
Version:
120
|
a (mm):
142.0
|
b (mm):
16.0
|
for Screw:
M6
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:Plastic PA, glass ball reinforcedSpecials:Other colors on requestTip:Please note: 1 set = 2 piecesTip 2:Compatible Cover Cap for Comfort and System Handle (Set) see 092301Zolltarifnummer:39269097900
Cover Cap for Comfort and System Handle (Set)
€0.00*
Fig.:
③
|
Version:
200
|
for Nut:
M8
Color:BlackDelivery Countries:WorldwideDescription:To cover the end of the handle By inserting a nut into the cover cap, mounting the handle from the back is possibleMaterial:Plastic PA, glass ball reinforcedSpecials:Other colors on requestTip:Please note: 1 set = 2 piecesTip 2:Compatible Comfort Handle see 092300 Compatible System Handle see 092013Zolltarifnummer:39269097900
Cover Cap for Handle
€0.00*
Color:
Blue ≈ RAL 5010
|
Version:
160
|
a (mm):
186.0
|
b (mm):
18.0
|
h (mm):
47.0
Color:Black, yellow, red, blue, grayDelivery Countries:WorldwideDescription:To cover the open side of the handleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Handle see 092012Zolltarifnummer:39269097900
Cover Cap for Machine Handle 135 (Set)
€0.00*
Color:BlackDelivery Countries:WorldwideDescription:For Machine handle with ergonomic designMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other colors on requestTip:Please note: 1 set = 2 piecesTip 2:Compatible Machine Handle 135 see 092009Zolltarifnummer:39269097900
Cover Cap for Strip Handle (Set)
€0.00*
Color:BlackDelivery Countries:WorldwideDescription:To cover the profile ends of strip handlesMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Strip Handle (Set) see 092024Tip 2:Please note: 1 set = 2 piecesZolltarifnummer:39269097900
Fastening Set for Handle AL 120
€0.00*
Color:
Black
|
Profile:
I
Color:Black, aluminum colorDelivery Countries:WorldwideDescription:For front mounting of the handles AL 120Material:Zinc die-castSet:2 fastenings 2 screws DIN 7991 - M5 x 10Surface:Powder coatedTip:Compatible Handles AL 200 see 092326 and 092330Zolltarifnummer:79070000900
Fastening Set for Handle AL 200
€0.00*
Color:
Black
|
Profile:
I
Color:Black, aluminum colorDelivery Countries:WorldwideDescription:For front mounting of the handles AL 200Material:Zinc die-castSet:2 fastenings, 2 screws DIN 7991 - M8 x 18Surface:Powder coatedTip:Compatible Handles AL 200 see 092328 and 092329
Front Handle
€0.00*
for Screw:
M4
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

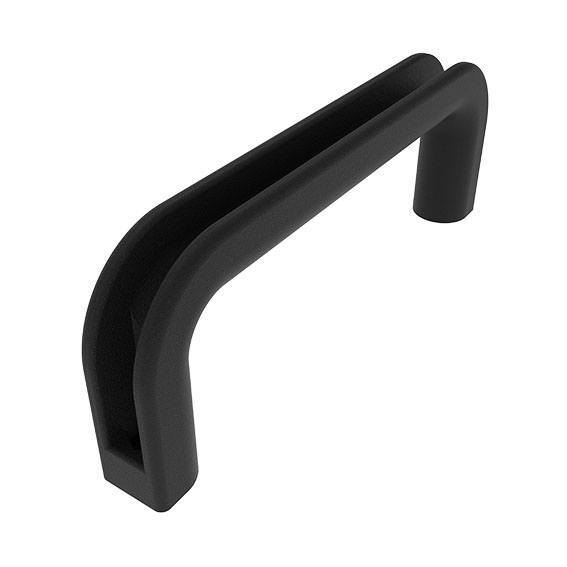

Handle
€0.00*
A (mm):
160.0
|
B (mm):
28.0
|
Color:
Black
|
H (mm):
60.0
|
SW:
14.0
|
Version:
160
|
a (mm):
188.0
|
for Screw:
M8
|
ØD (mm):
8.5
Color:Black, yellow, red, blue, grayDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestZolltarifnummer:39269097900
Handle AL 120
€0.00*
Color:
Alu color
|
Profile:
I
|
Surface:
Anodized
Color:Black, aluminum colorDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:AluminumSurface:Powder coated / anodizedTip:Compatible Fastening Set see 092330Zolltarifnummer:76169910990

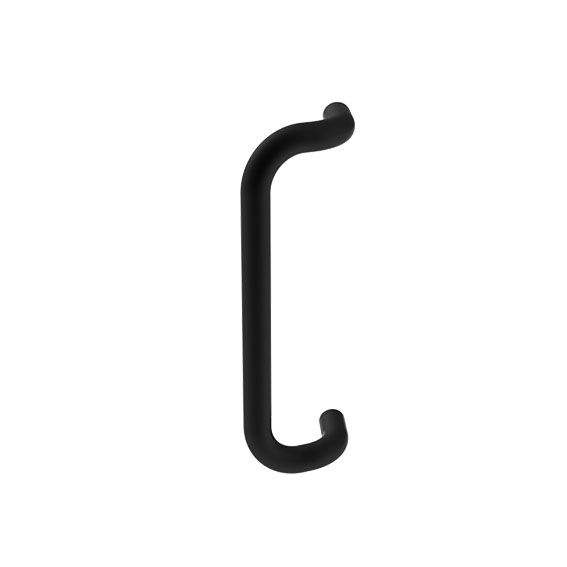

Handle AL 120 bended
€0.00*
Color:
Black
|
Profile:
I
|
Surface:
Powder coated
Color:Black, aluminum colorDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:AluminumSurface:Powder coated / anodizedTip:Compatible Fastening Set see 092330Zolltarifnummer:76169910990

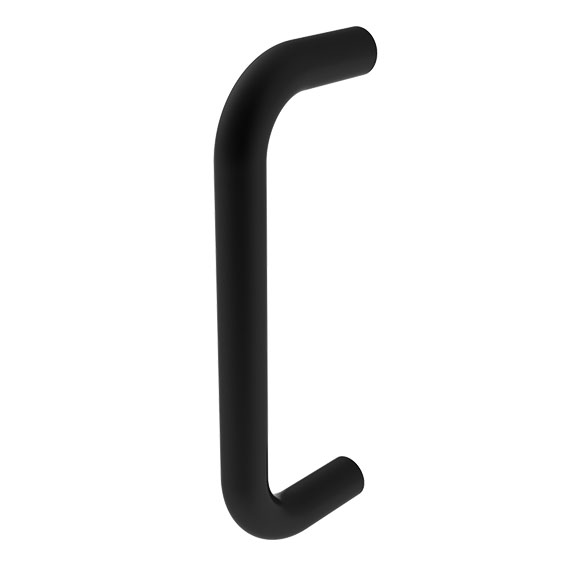

Handle AL 200
€0.00*
Color:
Black
|
Profile:
I
|
Surface:
Powder coated
Color:Black, aluminum colorDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:AluminumSurface:Powder coated / anodizedTip:Compatible Fastening Set see 092331Zolltarifnummer:76169910990
Handle AL 200 bended
€0.00*
Color:
Alu color
|
Profile:
I
|
Surface:
Anodized
Color:Black, aluminum colorDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:AluminumSurface:Powder coated / anodizedTip:Compatible Fastening Set see 092331Zolltarifnummer:76169910990
Machine Handle 135
€0.00*
for Screw:
M8
Color:BlackDelivery Countries:WorldwideDescription:Machine handle with ergonomic design and finger protection; to mount on doors, flaps and aluminum profiles; optional with cover capsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Compatible Cover Cap for Machine Handle 135 (Set) see 092010Zolltarifnummer:39269097900
Machine Handle 240
€0.00*
Version:
With cover caps
|
for Screw:
M8
Color:BlackDelivery Countries:WorldwideDescription:Large machine handle with ergonomic design and finger protection; to mount on doors, flaps and aluminum profiles; with cover capsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

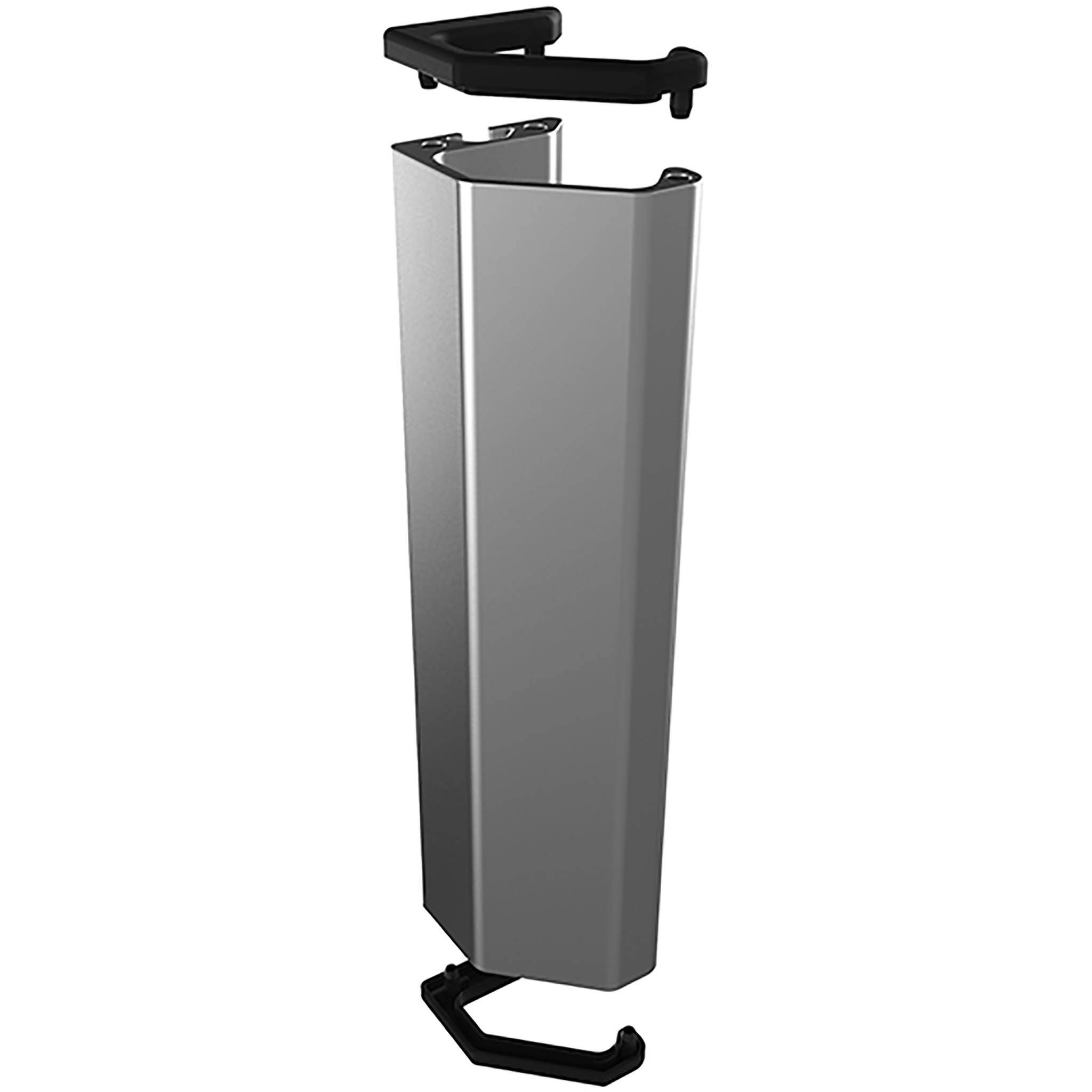

Strip Handle (Set)
€0.00*
L (mm):
160.0
|
Slot N (mm):
5
|
Version:
Strip handle 160 (set)
Color:Cover caps: BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:Strip handle: Aluminum Cover caps: Plastic PA, glass fiber reinforcedSet:1 strip handle in length L [mm], 1 cover cap left, 1 cover cap rightSpecials:Other lengths on requestSurface:Strip handle: AnodizedTip:* Please note: You are ordering in meters!Zolltarifnummer:76169990990

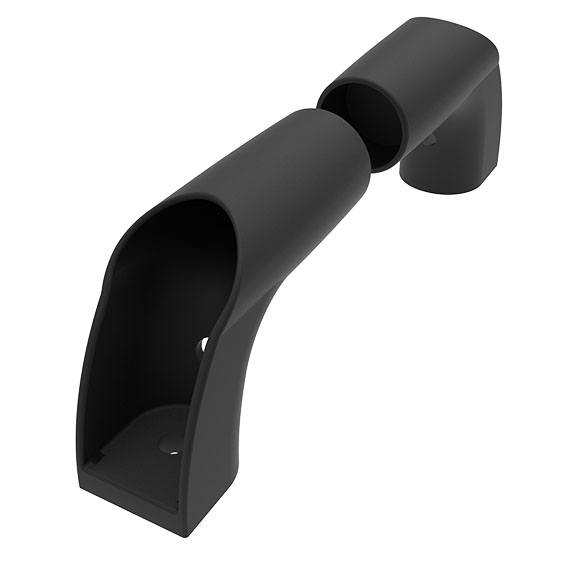

System Handle
€0.00*
Version:
Set of end pieces D28*
|
for Screw:
M8
|
ØD (mm):
28.1
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:Plastic PA, glass ball reinforcedSpecials:Other colors on requestTip:Please note: 1 set = 2 piecesTip 2:Compatible Cover Cap for Comfort and System Handle (Set) see 092305Zolltarifnummer:39269097900

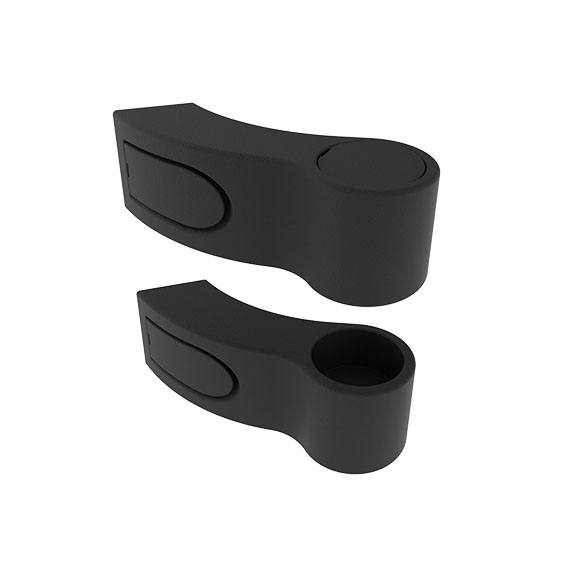

System Handle Bent
€0.00*
for Screw:
M6
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profiles, can be used as an end or middle pieceMaterial:Plastic PA, glass fiber reinforcedSet:2 system handle legs 2 cover caps for screw-on point 2 cover caps for open hole in system handle leg as end pieceTip:Please note: 1 set = 2 piecesTip 2:Compatible Cover Cap for Comfort and System Handle (Set) see 092305Zolltarifnummer:39269097900
Tubes for System Handle
€0.00*
A (mm):
-
|
B (mm):
-
|
Fig.:
③
|
L (mm):
*2000.0
|
Version:
Stainless steel
Delivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesMaterial:Carbon fiber, aluminum, stainless steel, steelSpecials:Other surfaces, other colors on requestSurface:Glossy finish, anodized, plain, plastic coveredTip:* For cut to length For the steel tube, please remove the plastic cover at the ends for installation in the end pieces
