Door Guides

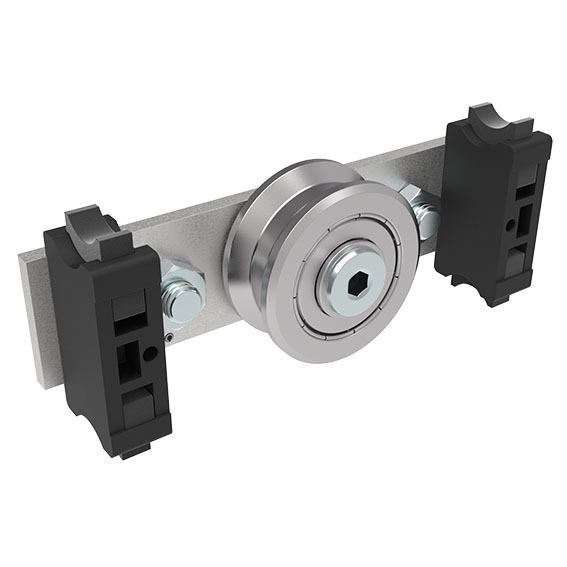

Bearing Kit 1 Roller Shaft Ø 14 for C-slide Profile I (Set)
€0.00*
Profile:
I
Color:Wiper and lubricators: BlackDelivery Countries:WorldwideDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mmMaterial:Roller: Steel Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: SteelSet:1 roller 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 1 threaded sleeve - M8 2 press nuts - M8 1 tension pin 2 wiper and lubricators 2 wood screws - 3.5 x 20Surface:Roller: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Tension pin: Zinc plated Wood screws: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit 1 Roller Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA128S01

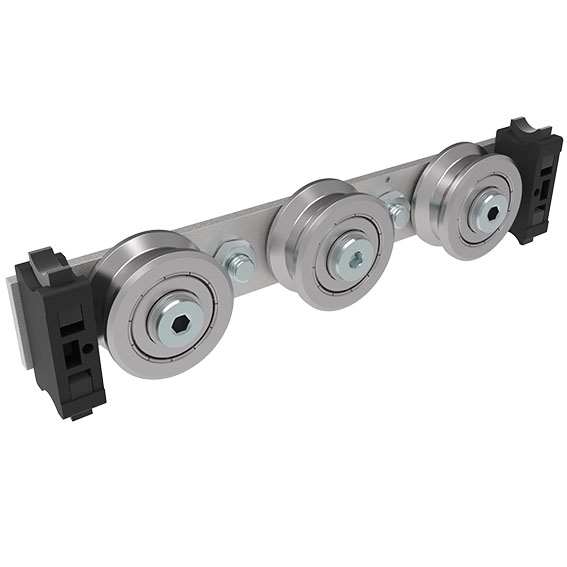

Bearing Kit 3 Rollers Shaft Ø 14 for C-slide Profile I (Set)
€0.00*
Profile:
I
Color:Wiper and lubricators: BlackDelivery Countries:WorldwideDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide loads, steel rollers with ball bearings runs directly on shaft Ø 14 mm To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Rollers: Steel Carrier plate: Steel Screws: Steel Threaded sleeves: Steel Press nuts: Steel Excentric screw: Steel Adjusting washer: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: SteelSet:3 rollers 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 2 threaded sleeve - M8 2 press nuts - M8 1 excentric screw M8 1 adjusting washer - M8 1 tension pin 2 wiper and lubricators 2 wood screws - 3.5 x 20Surface:Rollers: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeves: Zinc plated Press nuts: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Tension pin: Zinc plated Wood screws: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA208S01

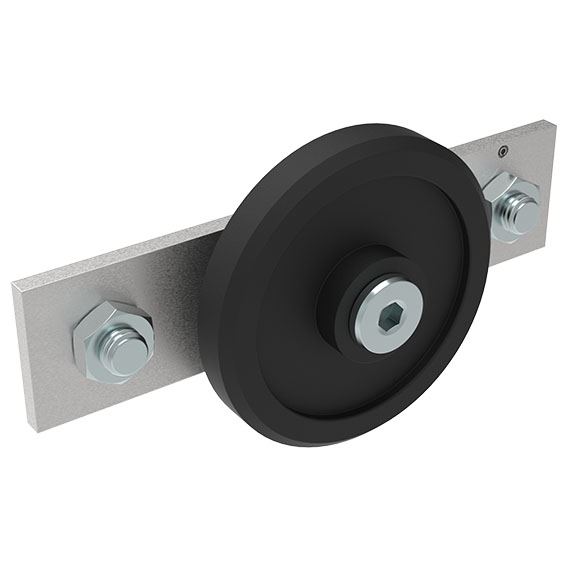

Bearing Kit PA 1 Roller Slot Ø 14 for C-slide Profile I (Set)
€0.00*
Profile:
I
Color:Roller: BlackDelivery Countries:WorldwideDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mmMaterial:Roller: Plastic PA Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: SteelSet:1 roller 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 1 threaded sleeve - M8 2 press nuts - M8 1 tension pinSurface:Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit PA 1 Roller for C-Rail-Profile I Slot Ø 14 see 093CAU081A128S01

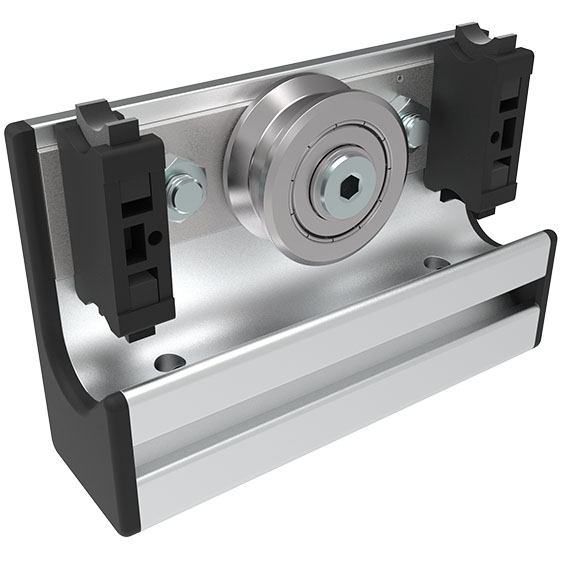

Bearing Unit 1 Roller Shaft Ø 14 for C-Rail-Profile I
€0.00*
Profile:
I
Color:Wiper and lubricators: Black Cover caps: BlackDelivery Countries:WorldwideDescription:To build sliding doors To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mmMaterial:Roller: Steel Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Roller: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Tension pin: Zinc plated Wood screws: Zinc plated Profile: Anodized

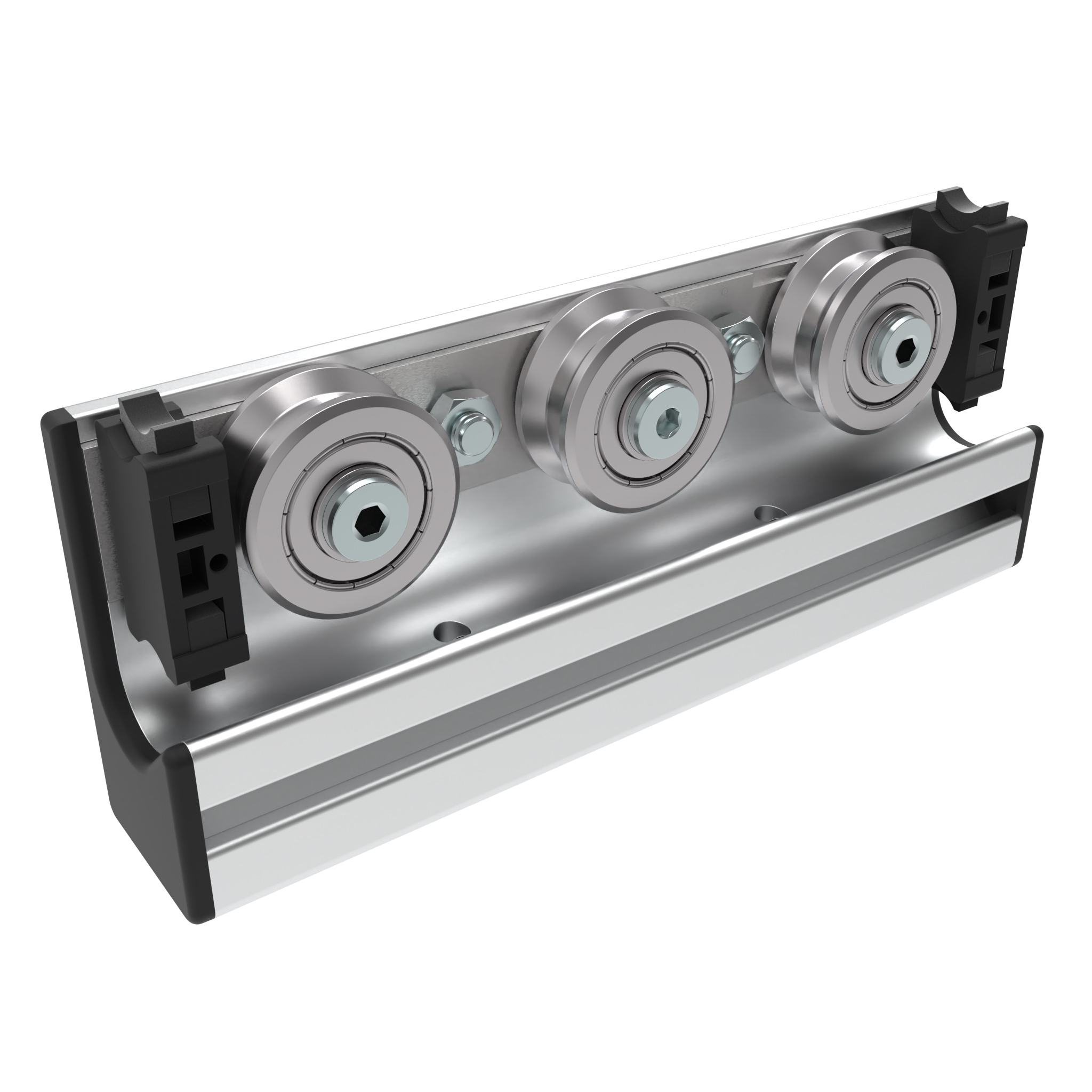

Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I
€0.00*
Profile:
I
Color:Wiper and lubricators: Black Cover caps: BlackDelivery Countries:WorldwideDescription:To build sliding doors To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Rollers: Steel Carrier plate: Steel Screws: Steel Threaded sleeves: Steel Press nuts: Steel Excentric screw: Steel Adjusting washer: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Rollers: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeves: Zinc plated Press nuts: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Wood screws: Zinc plated Profile: Anodized

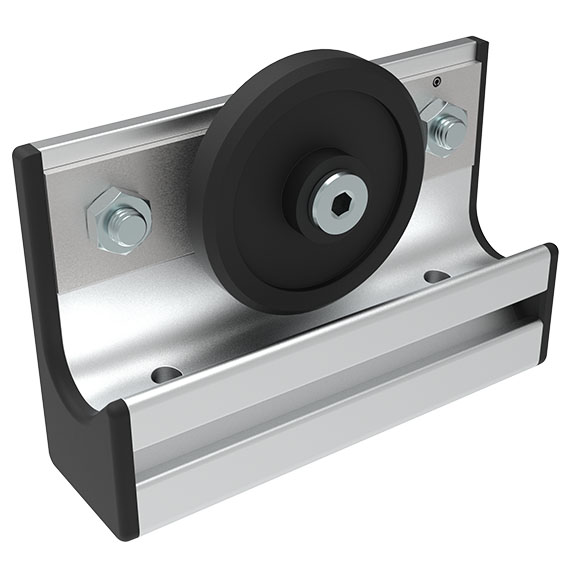

Bearing Unit PA 1 Roller for C-Rail-Profile I Slot Ø 14
€0.00*
Profile:
I
Color:Roller: Black Cover caps: BlackDelivery Countries:WorldwideDescription:To build sliding doors To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mmMaterial:Roller: Plastic PA Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Profile: Anodized

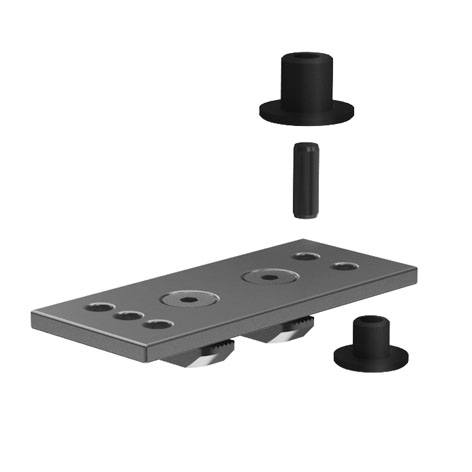

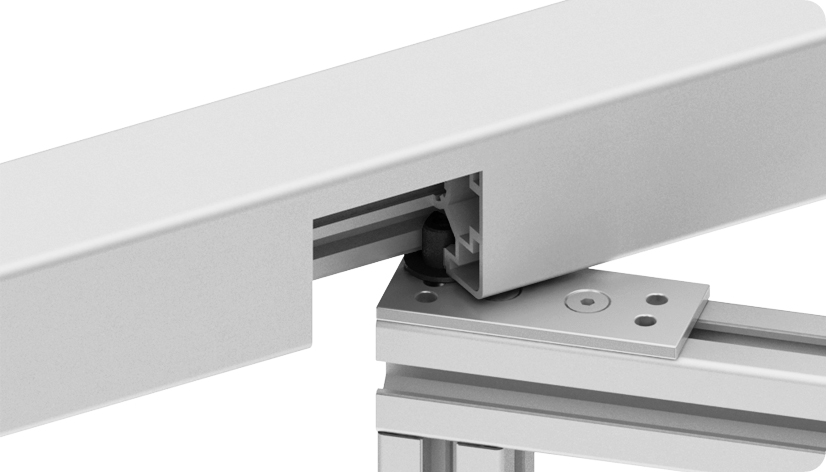

Folding Door Element (Set)
€0.00*
Profile:
B
|
ØD (mm):
4.9
Color:Guide bushes: BlackDelivery Countries:WorldwideDescription:To assemble folding doors, simultaeous turning and sliding movement; guide bush can be inserted in different positions for slot 8 and 10; high quality designMaterial:Folding door element: Aluminum Screws: Steel Hammer nuts: Steel Pin: Steel Guide bushes: POMSet:1 folding door element, 2 screws DIN EN ISO 10642 (DIN 7991) - M5 x 10, 2 hammer nuts - slot 8 - M5, 1 pin DIN EN ISO 2338 (DIN 7) - D5 x 14, 1 guide bush - slot 8, 1 guide bush - slot 10Specials:Other surfaces on requestSurface:Folding door element: Anodized Screws: Zinc plated Hammer nuts: Zinc plated Pin: Zinc plated

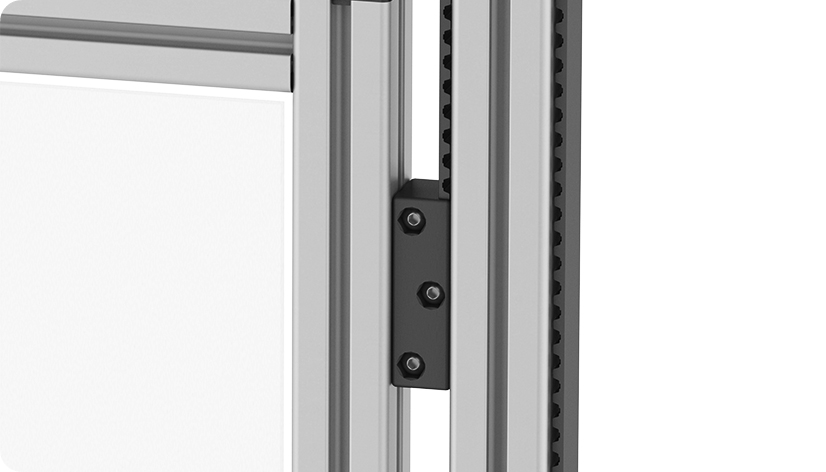

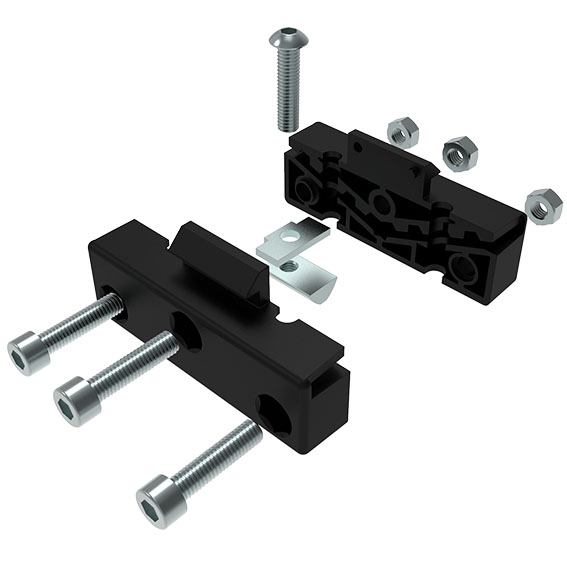

Lift Door Guide (Set)
€0.00*
Profile:
I
|
Slot N (mm):
8
Color:Housing: BlackDelivery Countries:WorldwideDescription:To assemble sliding doors with 25 mm width PUR toothed belt DIN 7721 T10 (not included in delivery)Material:Housing: Plastic POM Assembly set: SteelSet:1 two-part housing, 1 inlay sheet, 1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 25, 3 hexagon nuts DIN EN ISO 4032 (DIN 934) - M6, 3 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 T-slot nuts - Nut 8 - M 6Surface:Assembly set: Zinc plated

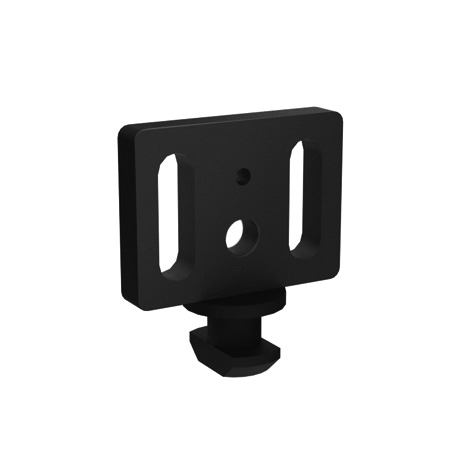

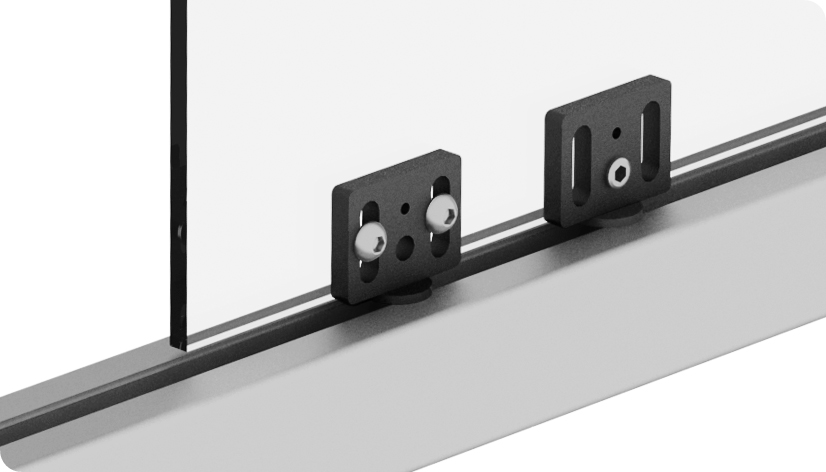

Panel Slider
€0.00*
Profile:
B
|
Slot N (mm):
10
Color:BlackDelivery Countries:WorldwideDescription:To guide guide lift or sliding doors in the slot of an aluminum profileMaterial:Plastic POM

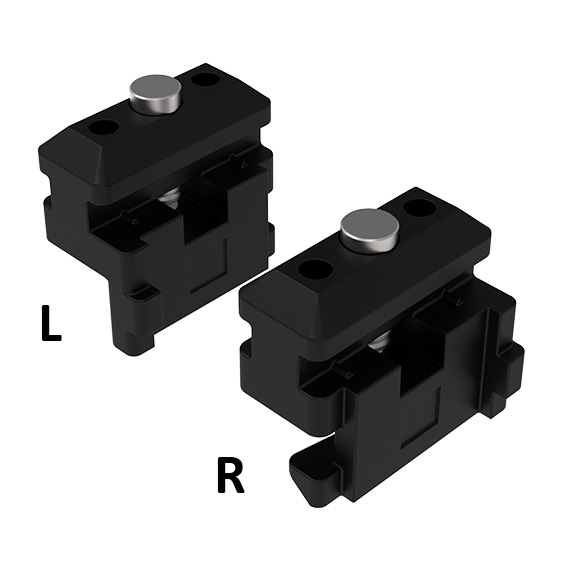

Sliding Door Guide for Clamp Profile
€0.00*
Profile:
I
|
Slot N (mm):
8
|
Version:
R: Right
|
Version:
(R) Right side version
Delivery Countries:WorldwideDescription:To assemble sliding doorsMaterial:Sliding door guide: Plastic POM Mechanism: SteelSet:2 Sliding door guides left 2 Sliding door guides rightSurface:Mechanism: Zinc plated Tip:Compatible Clamping Spring see 092090

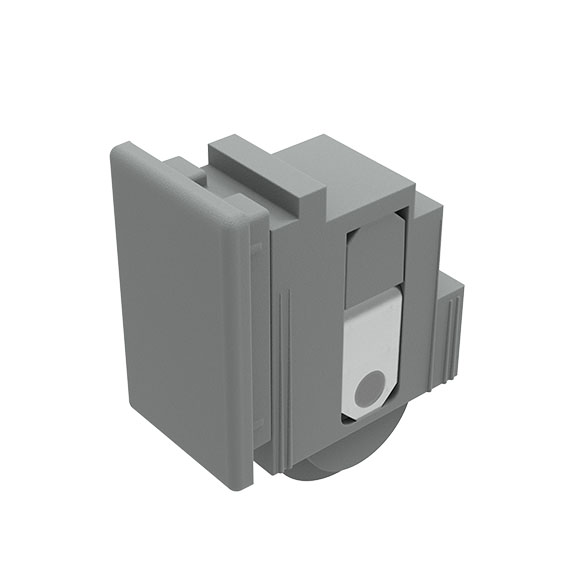

Sliding Door Guide Insert for Frame Corner Connector 18 x 32 (Set)
€0.00*
Profile:
I
Color:Guide insert: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To guide lift or sliding doors in the slot of an aluminum profile, to insert in the frame corner connector 18 x 32 for clamp profileMaterial:Guide insert: Plastic PA, glass fiber reinforcedSet:1 guide insert, 1 cover cap, 1 stopperTip:Compatible Frame Corner Connector 18 x 32 for Clamp Profile (Set) see 093WWC18321N08S01

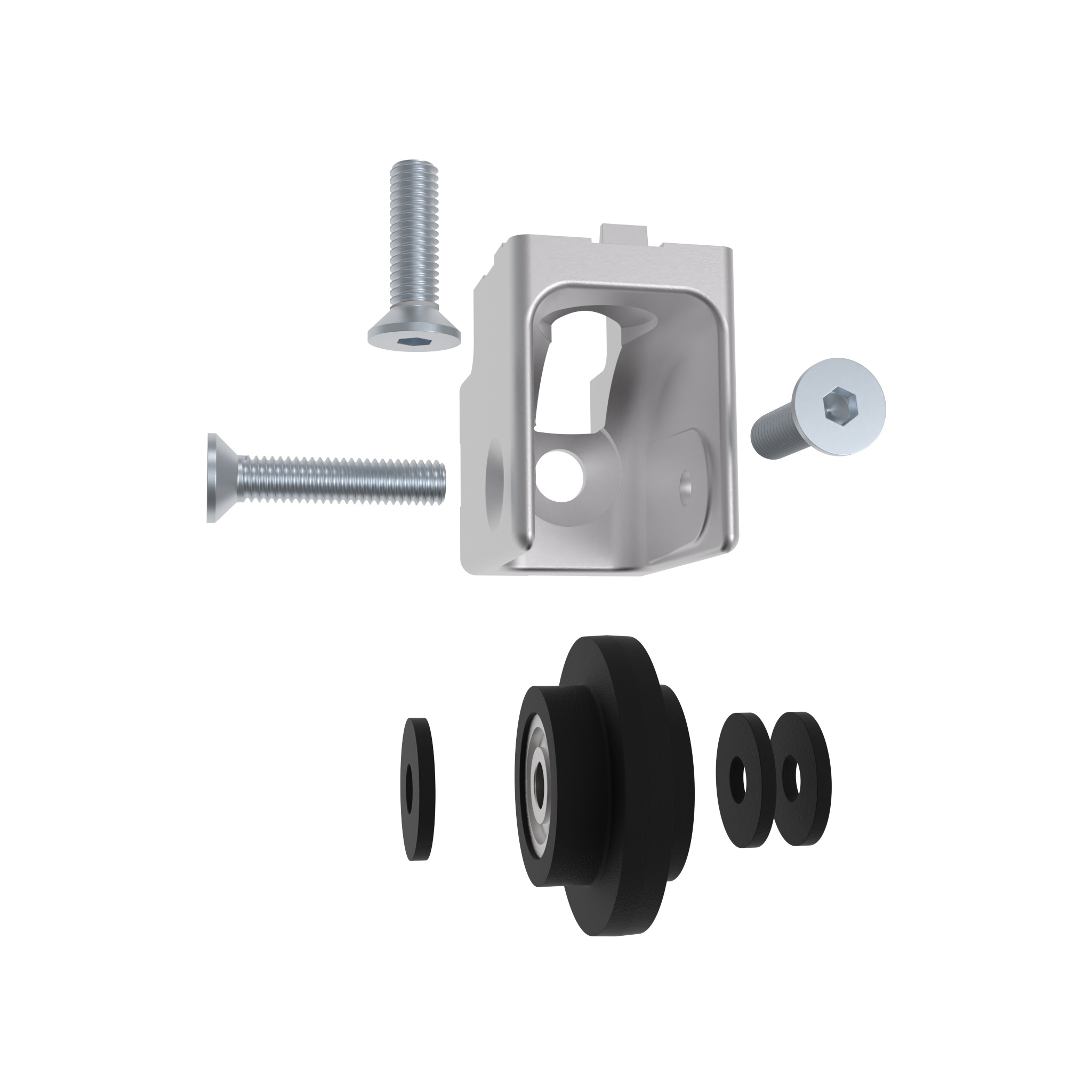

Sliding Door Guide Set 30
€0.00*
B (mm):
30
|
Profile:
B
|
Profile:
I
|
Set:
Set 2
|
Slot N (mm):
8
Color:Roller: Black Spacer: NaturalDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 22 (for profile) 3 spacersSet 2:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN EN ISO 10642 (DIN 7991) - M8 x 20 (for profile) 3 spacersSurface:Casing: Plain

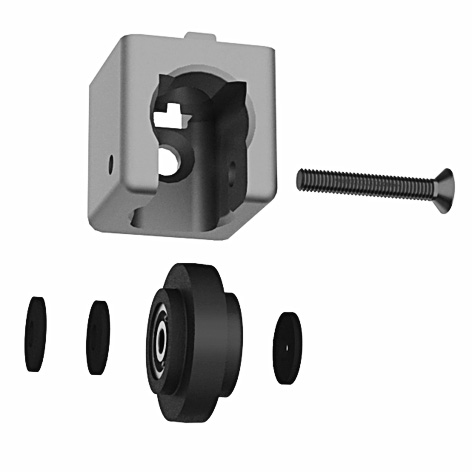

Sliding Door Guide Set 40 / 45
€0.00*
B (mm):
40
|
Profile:
B
|
Set:
Set 3
|
Set:
Set 2
|
Slot N (mm):
10
|
ØD (mm):
12.5
Color:Roller: Black Spacer: NaturalDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller, 1 screw as axle, 3 spacersSet 2:V_1 casing, 1 roller, 1 screw as axle, 4 spacers 2 self-forming screws S12 x 30 - hexalobular socket T50Set 3:1 casing, 1 roller, 1 screw as axle, 4 spacers 2 self-forming screws S12 x 30 - hexalobular socket T50Surface:Casing: Plain

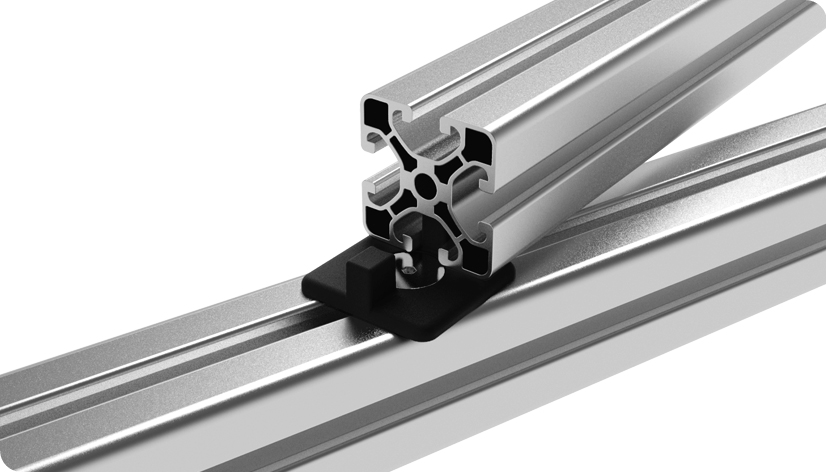

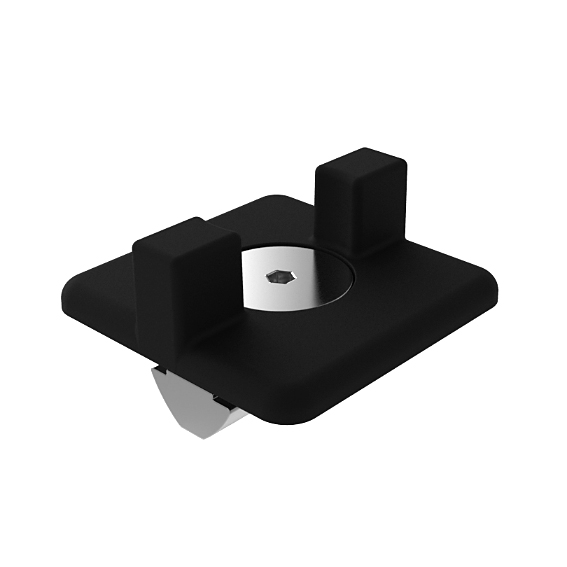

T-slot Slider (Set)
€0.00*
Max. Load (N):
60 N
|
Max. Load (N):
60
|
Profile:
I
|
Slot N (mm):
8
Color:V_T-slot slider: blackDelivery Countries:WorldwideDescription:V_For the assembly of folding doors with simultaneous rotating and sliding movement; without a T-slot also suitable for side to end mounting into the core hole for e.g. keyboard pull outsMaterial:V_T-slot slider: Plastic POM Special screw: Steel Washer: Stainless steel T-slot nut: SteelSet:1 T-slot slider, 1 special screw - M8 x 13, 1 washer DIN 988, 1 T-slot nut - slot 8 - M8Specials:Other colors on requestSurface:V_Special screw: Zinc plated Washer: Plain T-slot nut: Zinc platedTip:V_For gap distance 5 mm

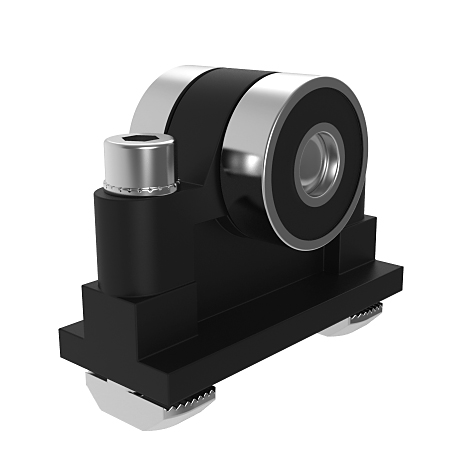

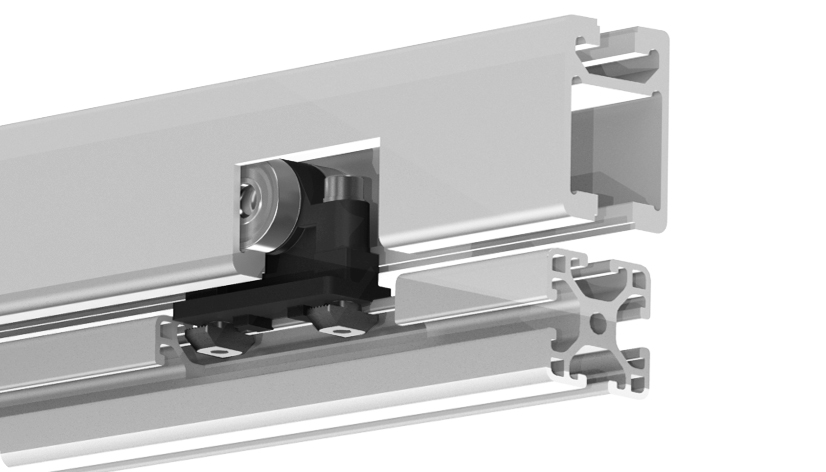

Trolley (Set)
€0.00*
Fmax (N):
150
|
Profile:
B
Color:Trolley: BlackDelivery Countries:WorldwideDescription:For moving suspended sliding doors built of slot 8 profiles in slot 10 rail profileMaterial:Trolley: Plastic PA Bearing: Steel Straight pin: Stainless steel Mounting material: SteelSet:1 Trolley with 2 mounted bearings 1 Cylinder pin DIN EN ISO 2338 (DIN 7) - Ø 8 x 20, 2 Screws DIN EN ISO 4762 (DIN 912) - M5 x 30, 2 Washers 5-FSt, 2 Hammer head nuts - slot 8 - M5Surface:Bearing: Chrome plated (RoHS-konform) Cylinder pin: Plain Mounting material: Zinc plated

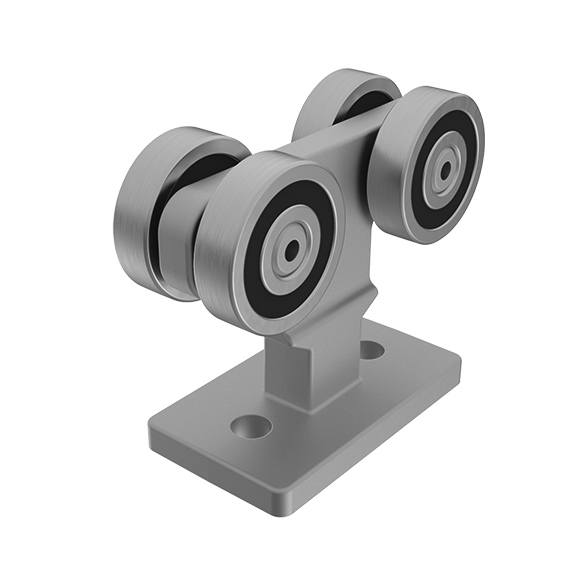

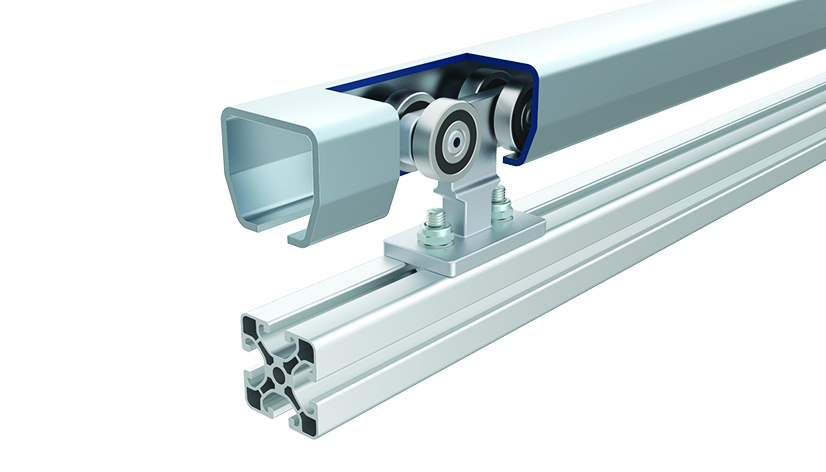

Trolley 40 for Overhead C-Rail, with Mounting Plate
€0.00*
D (mm):
8.5
Delivery Countries:WorldwideDescription:To build towing trolleys with aluminum profile 40, for hanging cables or lines optional tool hangers can be inserted into the slot of the aluminum profile; Ball bearing guide of the trolley in the overhead C-monorailMaterial:Trolley: Aluminum die-cast Ball bearings: SteelSurface:Trolley: PlainTip:Compatible Tool Hangers see 093007
