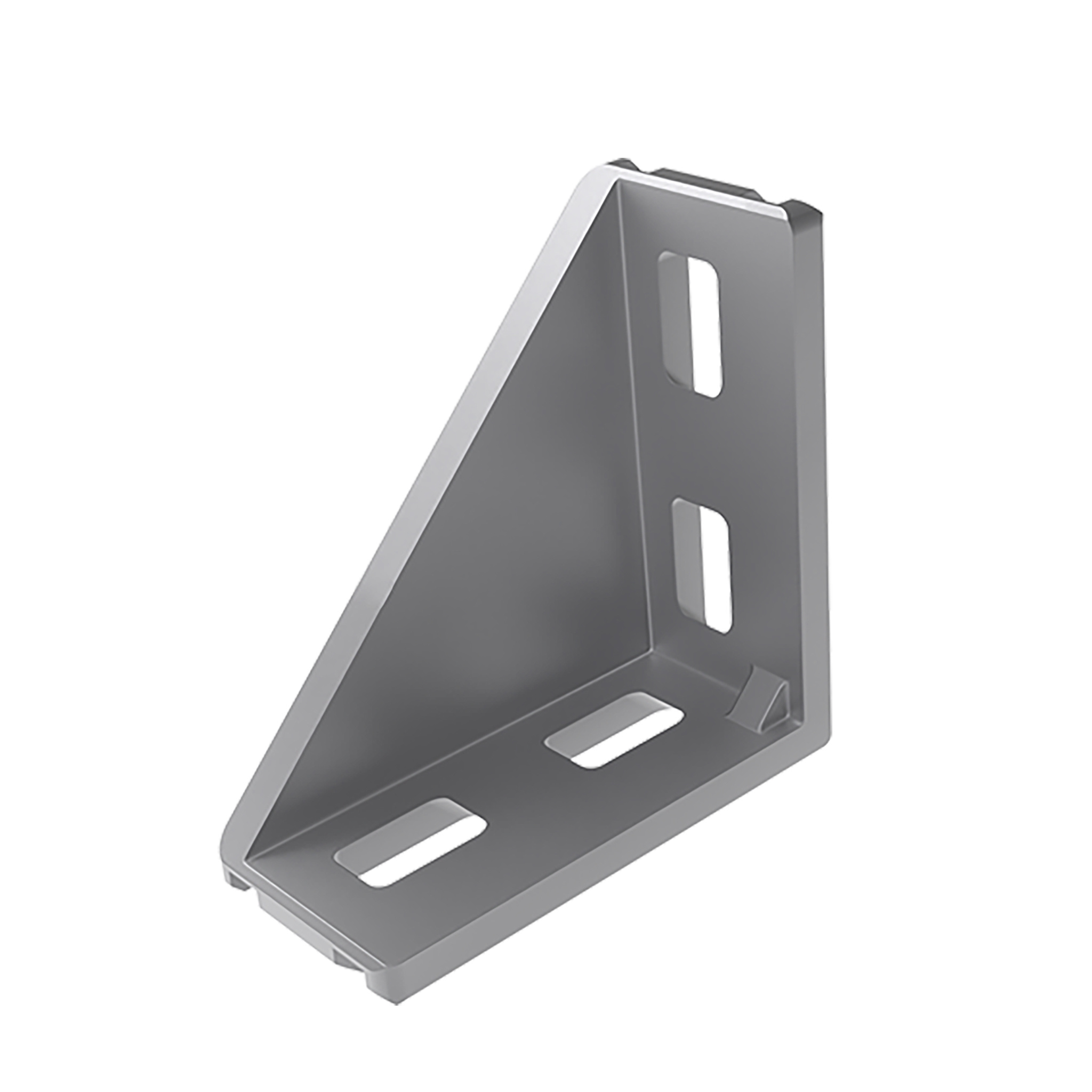

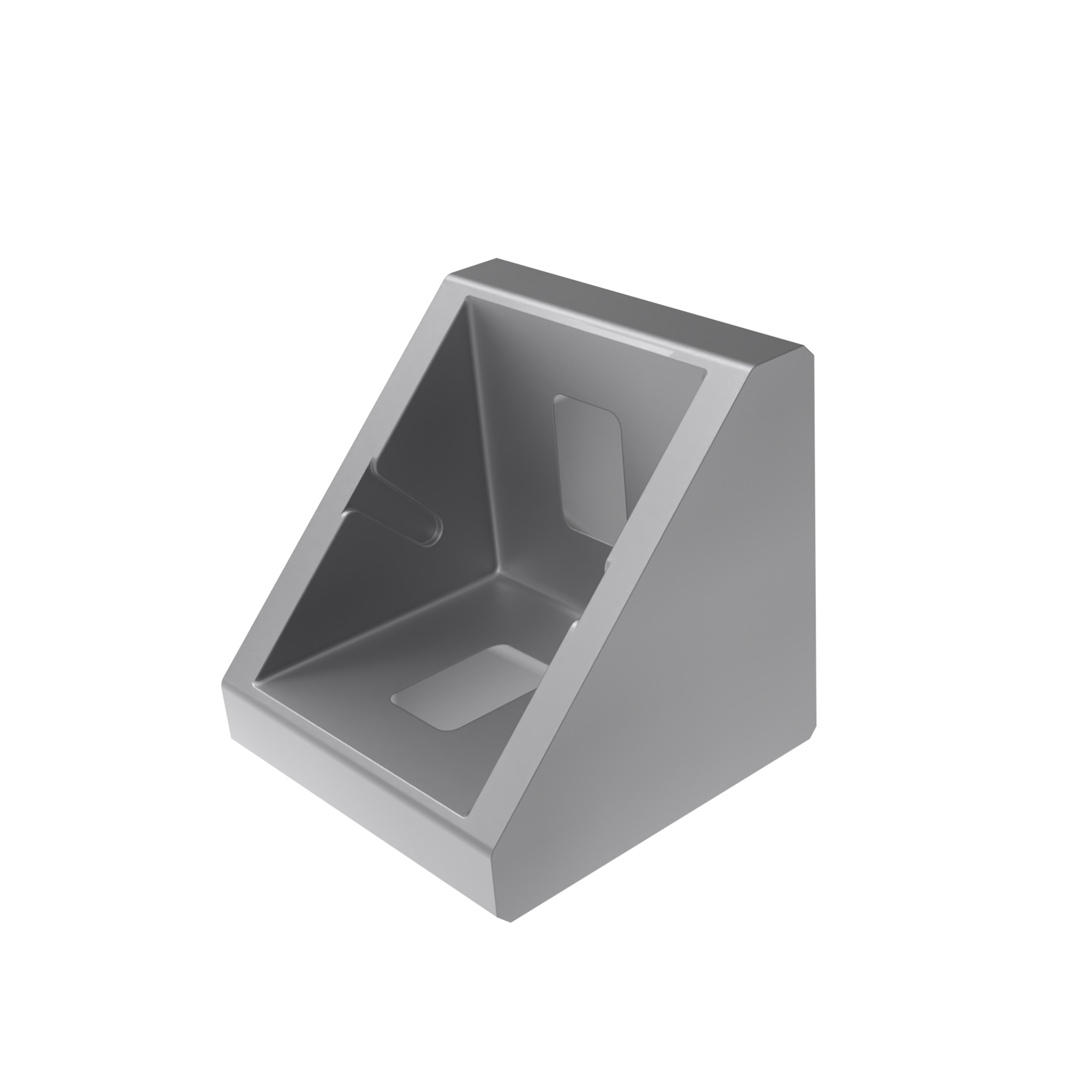

Assembly Set 1:2 hammer nuts - slot 8 - M6, 2 screws DIN 7984 - M6 x 14 Assembly Set 2:1 hammer nut - slot 8 - M6, 1 screw DIN 7984 - M6 x 14, 1 hammer nut - slot 10 - M6, 1 screw DIN 7984 - M6 x 18Assembly Set 3:2 hammer nuts - slot 10 - M6, 2 screws DIN 7984 - M6 x 18Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA303S02Zolltarifnummer:76169910990
Assembly Set:4 hammer nuts - slot 8 - M6, 4 screws DIN 7984 - M6 x 14Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA302Zolltarifnummer:76169910990

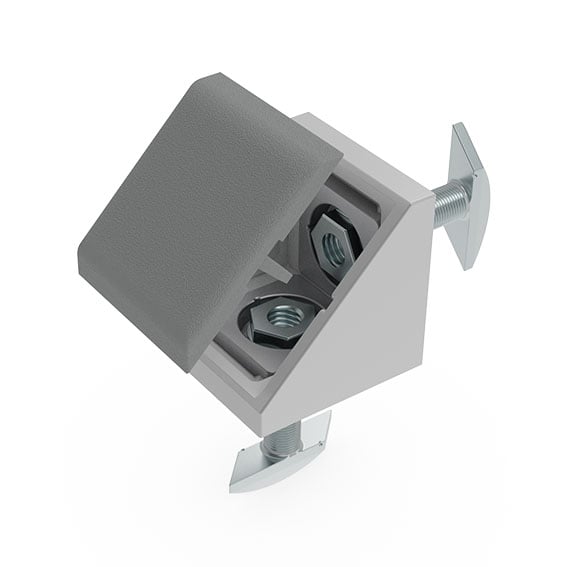

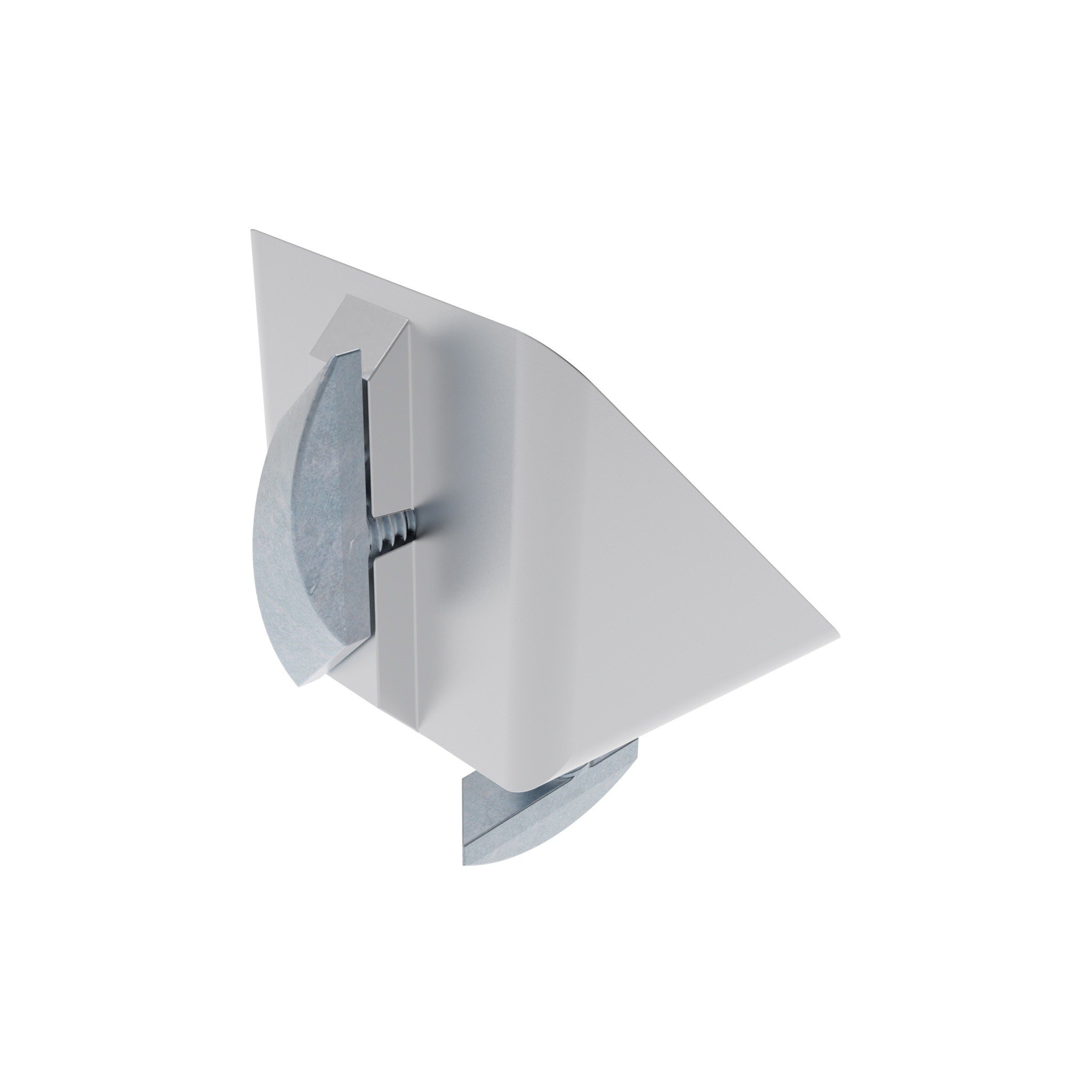

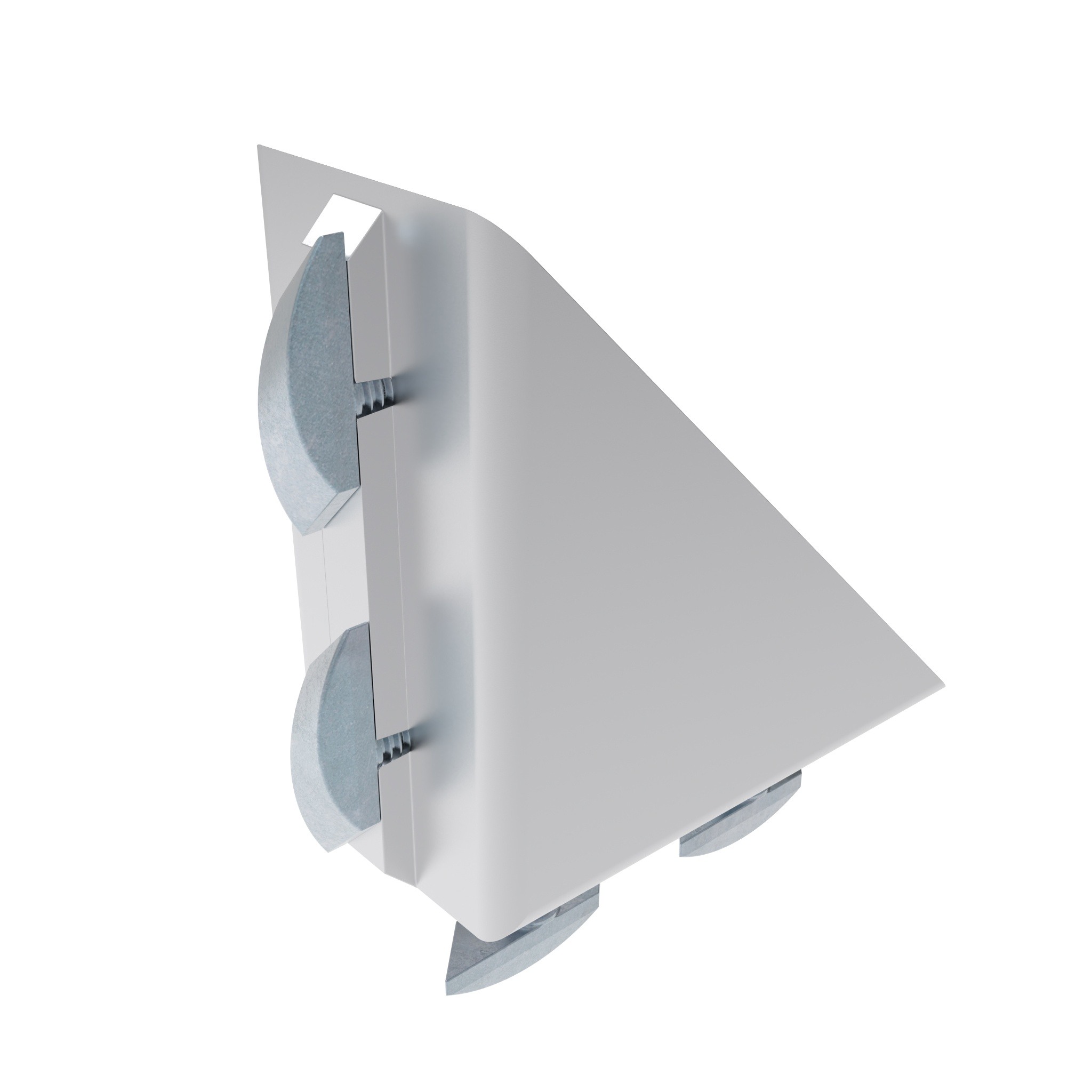

Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA406Zolltarifnummer:76169910990
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA809Zolltarifnummer:76169910990
Color:
Alu color
|
Slot N (mm):
8
|
Surface:
Powder coated
|
for Screw:
M8

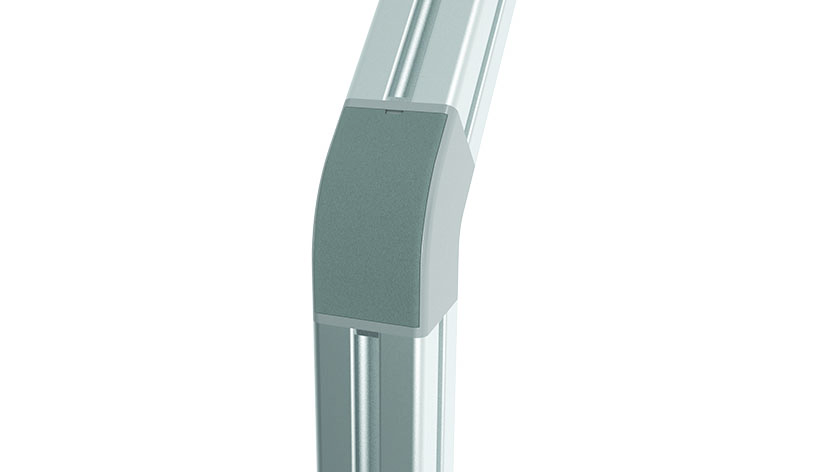

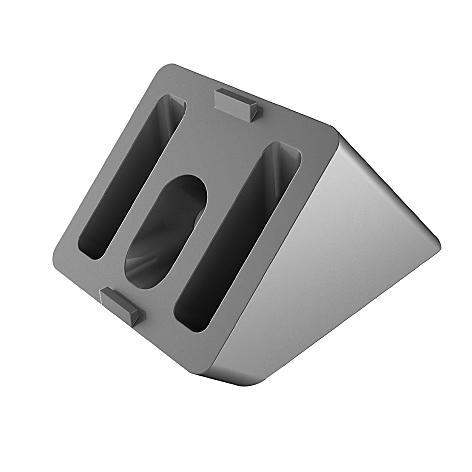

Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coatedZolltarifnummer:79070000900
D (mm):
14.4
|
L (mm):
35.0
|
Profile:
-
|
Profile Width:
45
|
SW 1:
5
|
SW 2:
-
|
Screw:
M6 x 45
|
Slot N (mm):
8
|
Version:
With assembly set, incl. screw and T-slot nut **

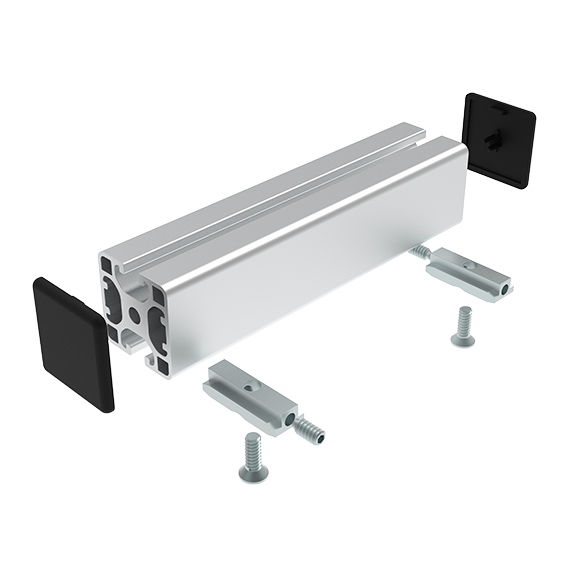

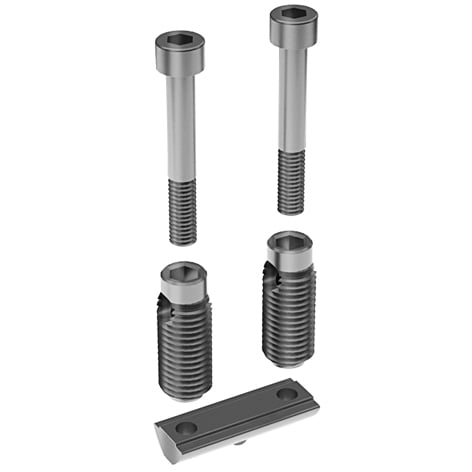

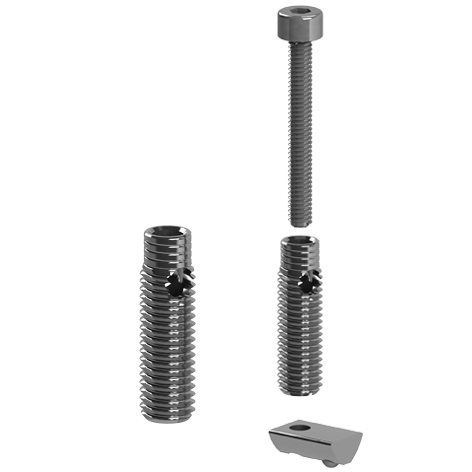

Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:SteelSurface:Zinc platedTip:* Compatible Cover Cap see 099GA081KTip 2:** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nutZolltarifnummer:73181900900
A (mm):
66.4
|
D (mm):
12.0
|
ESD:
ESD electrostatical discharging
|
L (mm):
31.0
|
Profile:
I
|
Profile Width:
80
|
SW 1:
6
|
SW 2:
5
|
Screw:
M6 x 40
|
Slot N (mm):
8
Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:SteelSurface:Zinc platedTip:Compatible Cover Cap see 099GA081KZolltarifnummer:73181900900

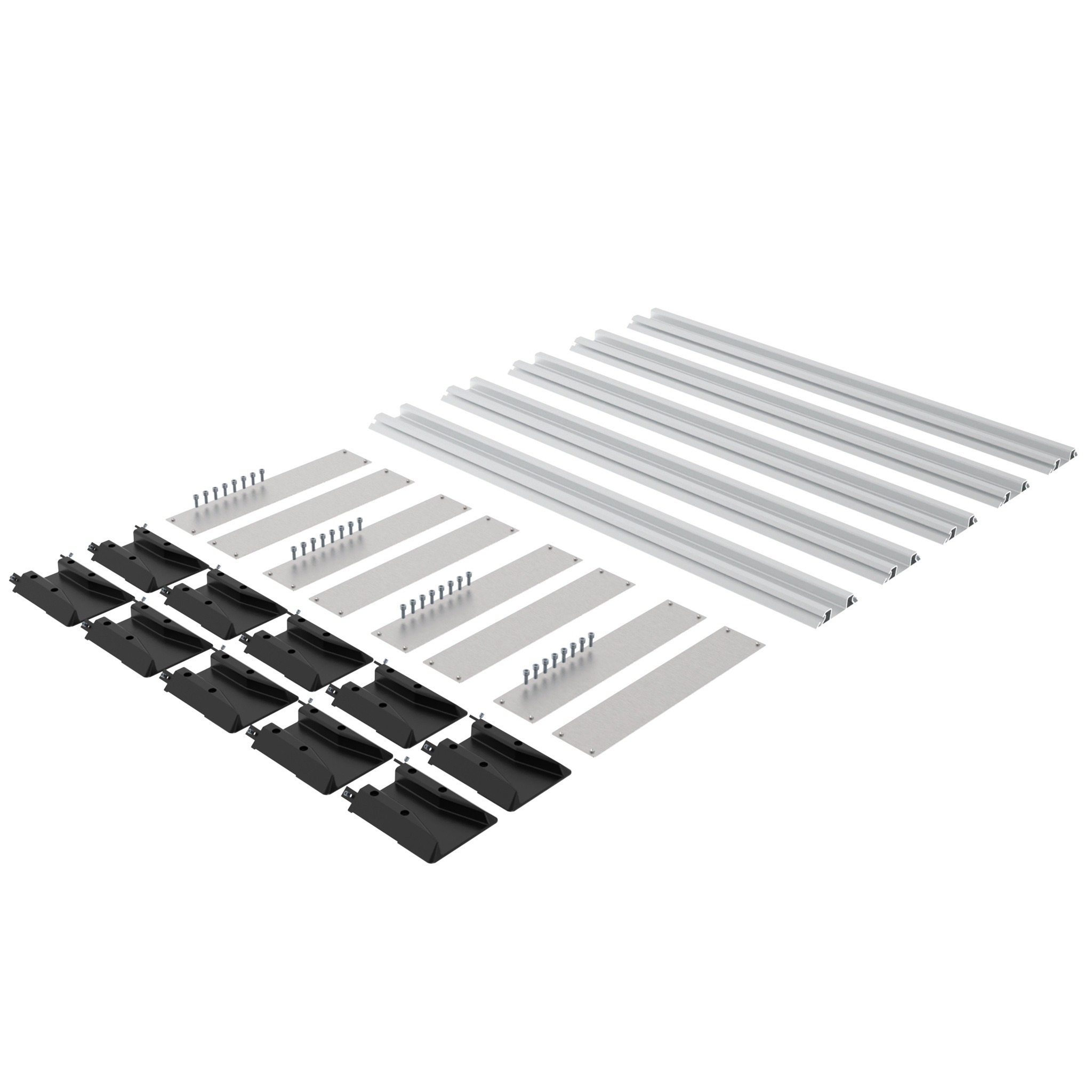

Delivery Countries:WorldwideDescription:For parallel connection of two FIFO Monorail rails, as spacer for aligning the track; To be screwed on infeed caps with enclosed screwsMaterial:Stainless steelSurface:PlainTip:Compatible FIFO Monorail Rail 40 see 02082PO.1200 Compatible FIFO Monorail Rail 55 see 02082PO55.1200 Compatible Infeed cap for FIFO Monorail Rail 40 (Set) see 02082CCS02 Compatible Infeed cap for FIFO Monorail Rail 55 (Set) see 02082CC55Zolltarifnummer:73269098900

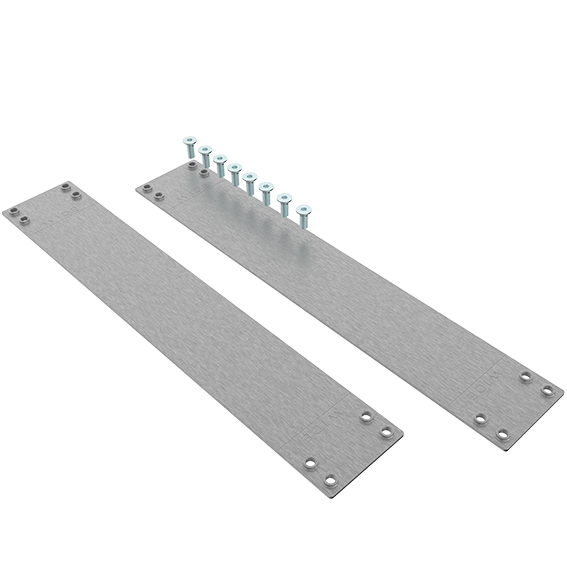

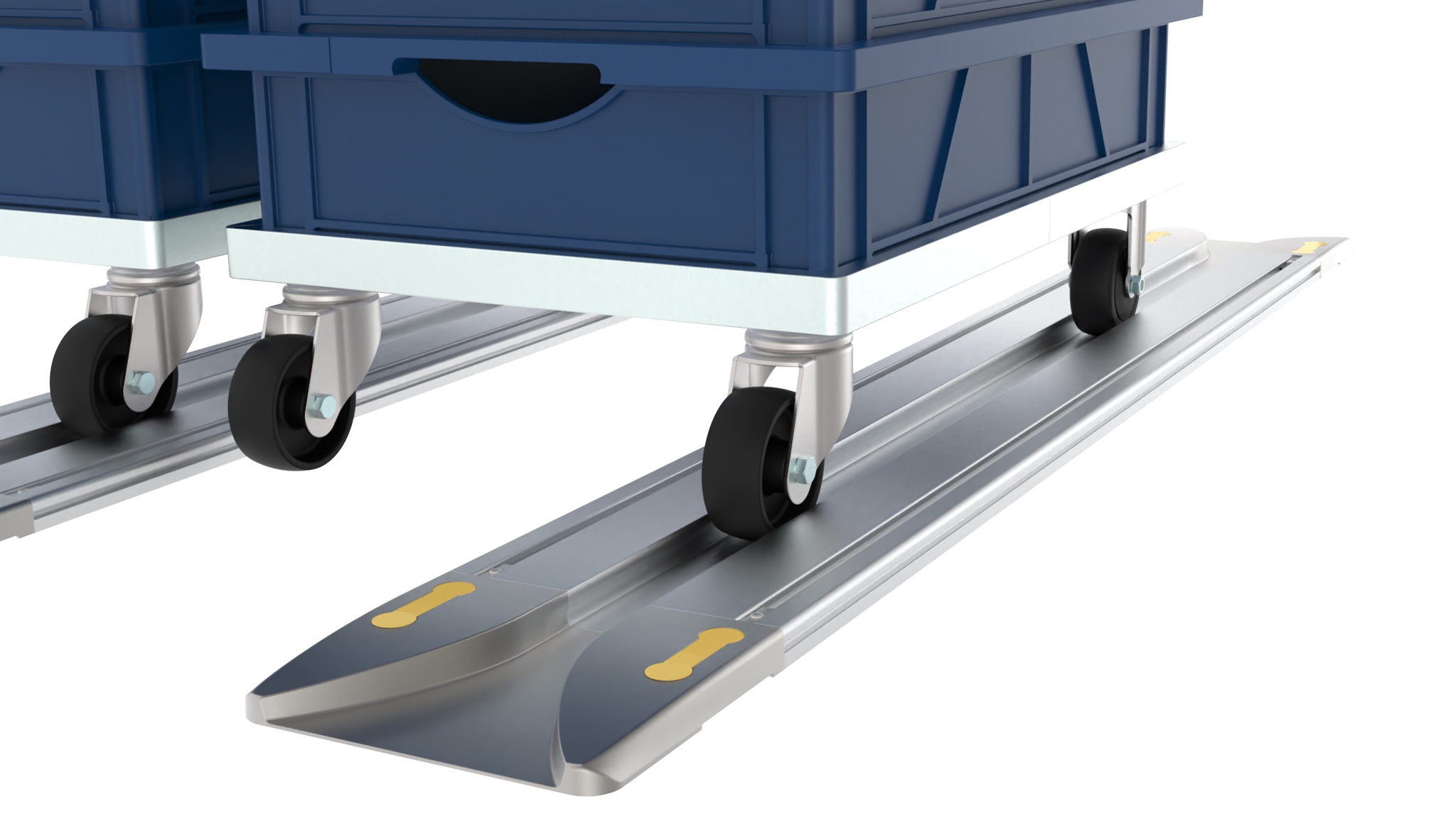

Delivery Countries:WorldwideDescription:For parallel connection of two guiding rails FIFO, as spacer for aligning the track; To be screwed on infeed caps with enclosed screwsMaterial:Stainless steelSet:2 connecting elements 8 screws DIN 7991 (ISO 10642) - M6 x 16Surface:PlainTip:Compatible Guiding Rail FIFO see 02082P.1200 Compatible Infeed Cap for Guiding Rail FIFO (set) see 02082CCS01Zolltarifnummer:73269098900

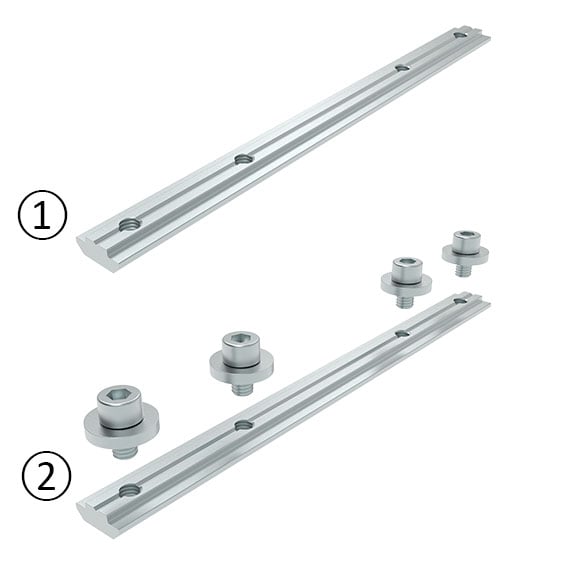

L (mm):
140.0
|
M:
M8
|
Profile:
I
|
Slot N (mm):
8

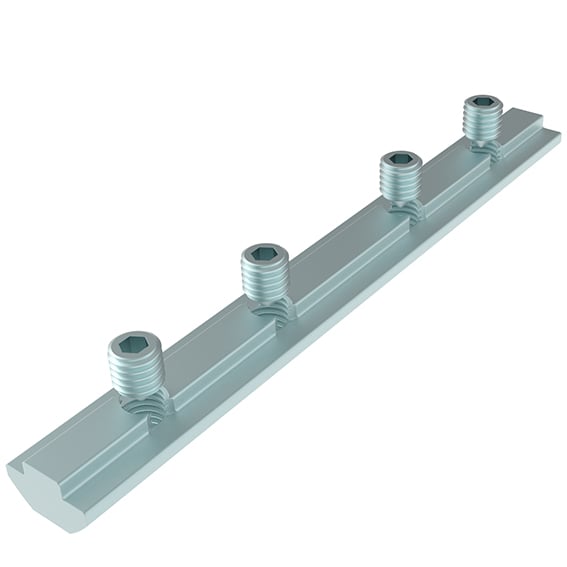

Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles without machiningMaterial:SteelSet:1 connecting strip 140 - slot 8 4 screws DIN 914 - M8 x 10Surface:Zinc platedZolltarifnummer:73181900900
A1 (mm):
80.0
|
A2 (mm):
160.0
|
Fig.:
①
|
L (mm):
180.0
|
M:
M6
|
Profile:
B
|
Slot N (mm):
8
|
Version:
-
Assembly Set:4 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 4 washers DIN 7349 - 6.4Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles without machiningMaterial:SteelSurface:Zinc platedZolltarifnummer:73181900900

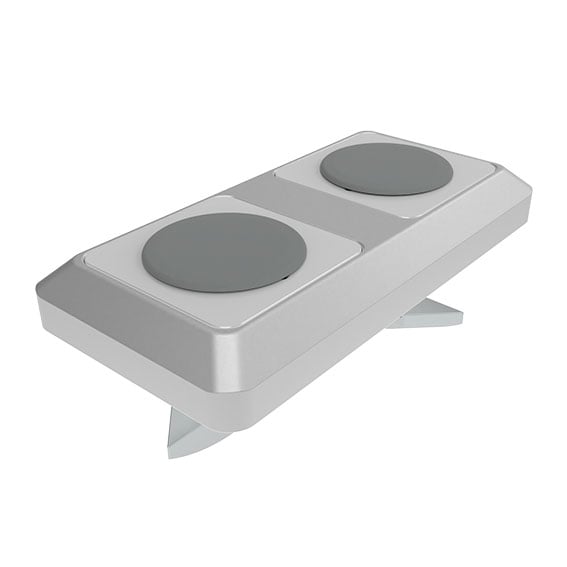

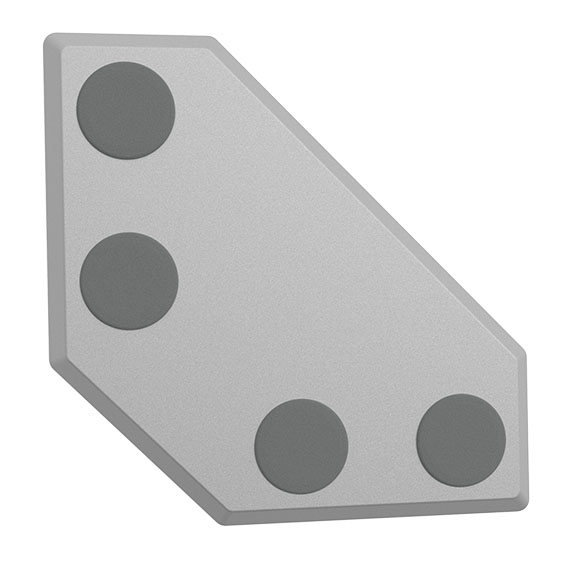

Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angle, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and counter sunk nuts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts 4 cover capsSpecials:Other surfaces, other colors on requestSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169990990

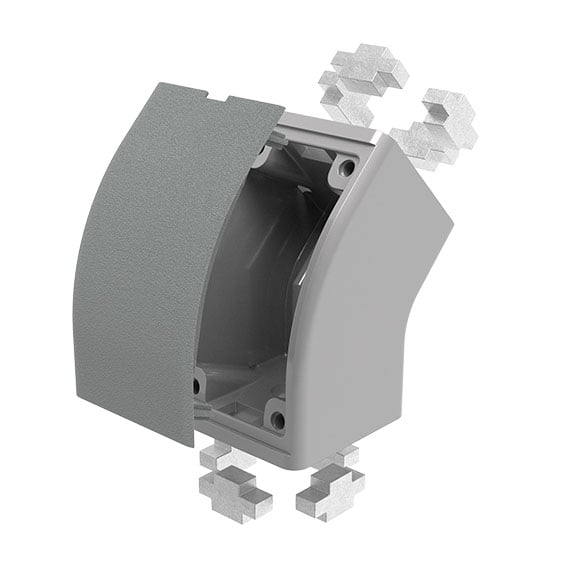

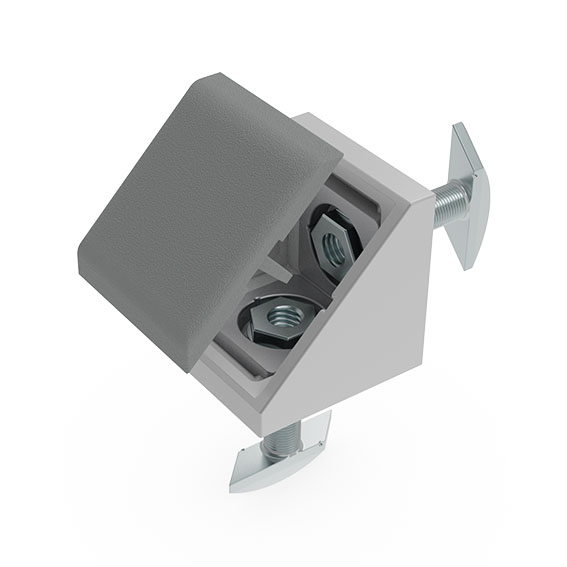

Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angle or parallel, direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts in 90° turnable inserts 2 cover capsSpecials:Other surfaces, other colors on requestSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169990990
Color:
Yellow ≈ RAL 1018
|
ESD:
-
|
Profile:
B
|
Slot N (mm):
8

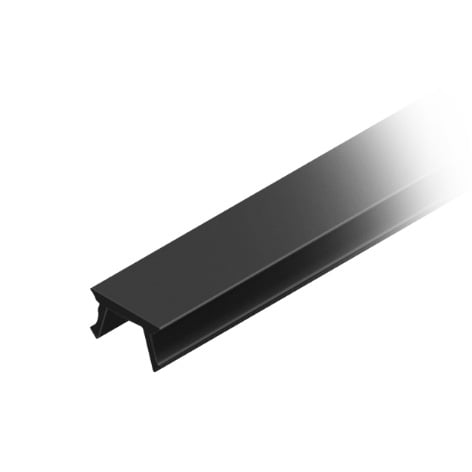

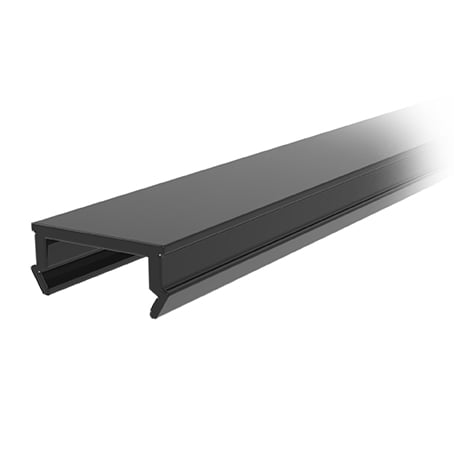

Color:Black, yellow, red, blue, gray, white, natural, aluminum colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plastic PPSpecials:Other colors on requestTip:ESD electrostatical discharging version: Notch at the bottom sideZolltarifnummer:39169050900
Color:
Black
|
ESD:
ESD electrostatical discharging
|
Profile:
I
|
Slot N (mm):
8
Color:Black, yellow, gray, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 mm width and a 4.5 mm profile webMaterial:Plastic PPSpecials:Other colors on requestZolltarifnummer:39169050900

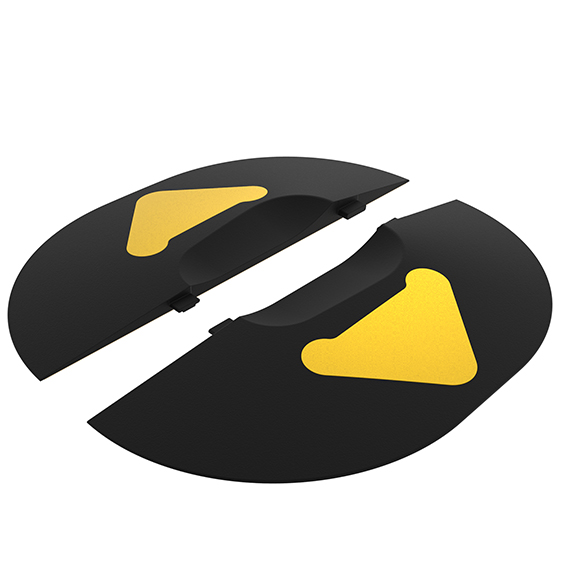

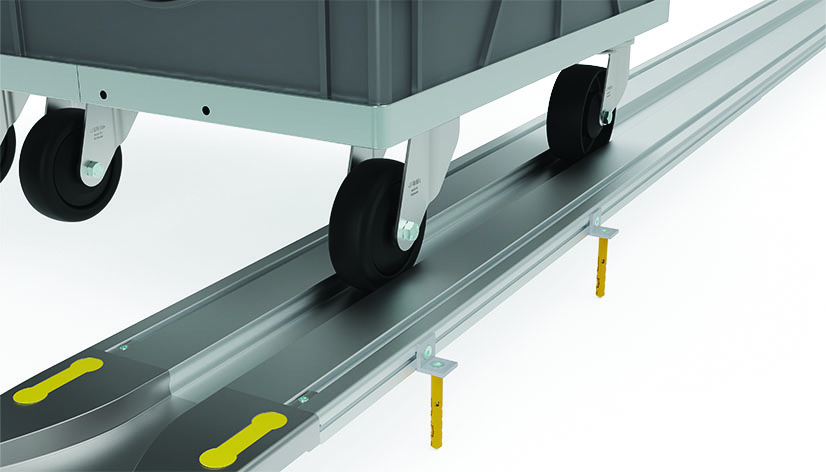

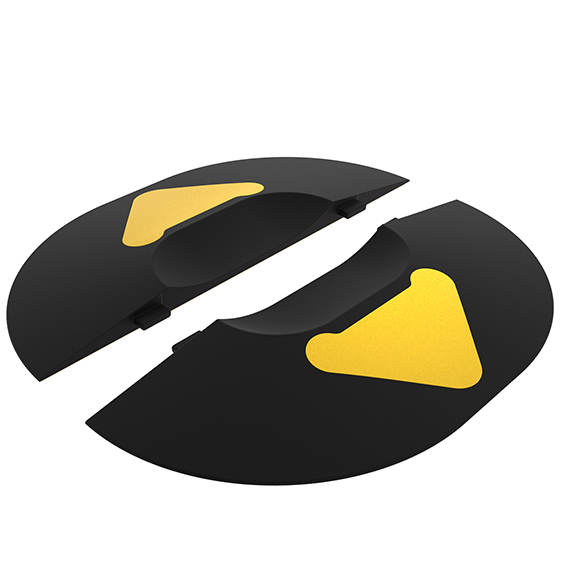

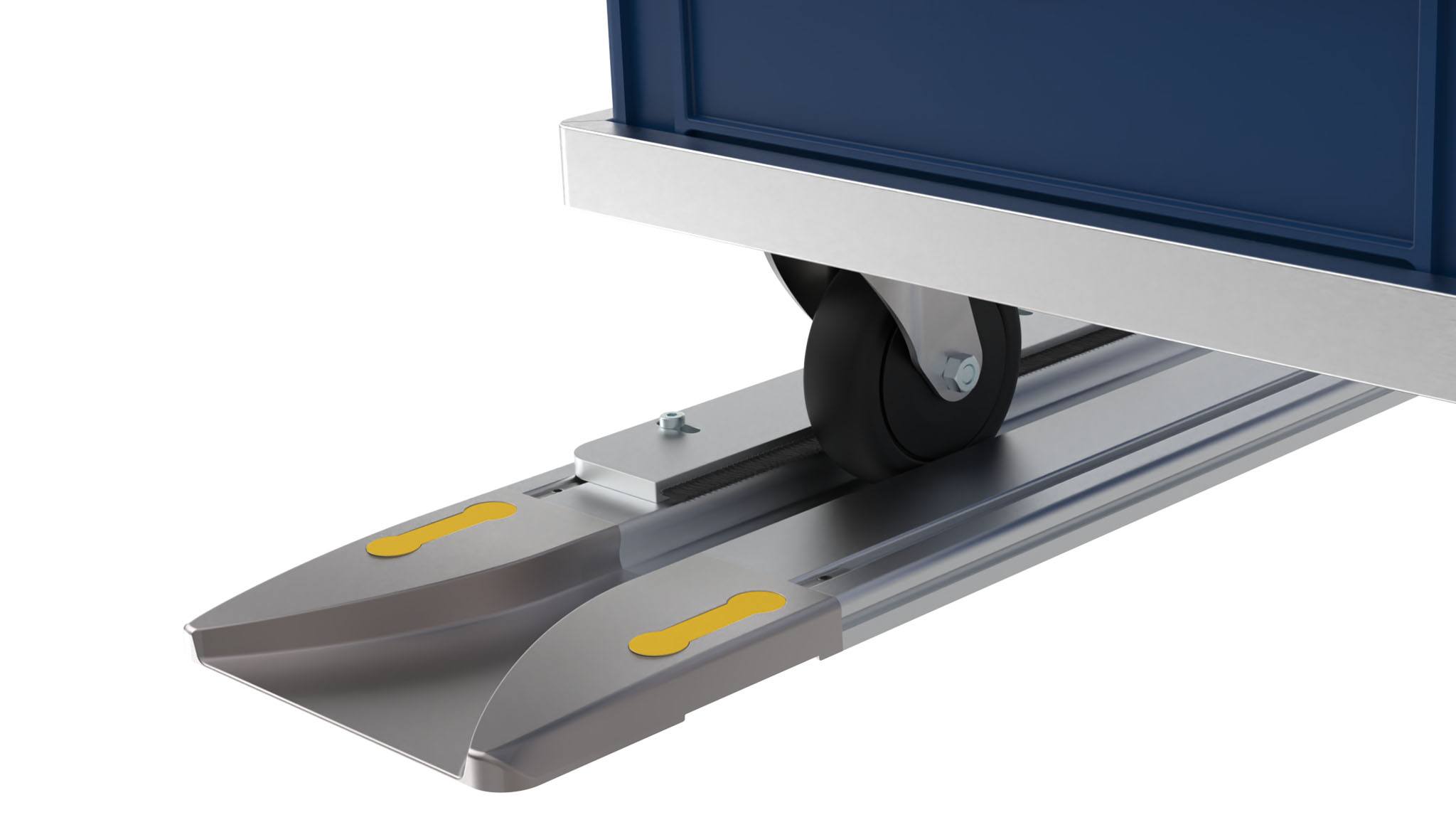

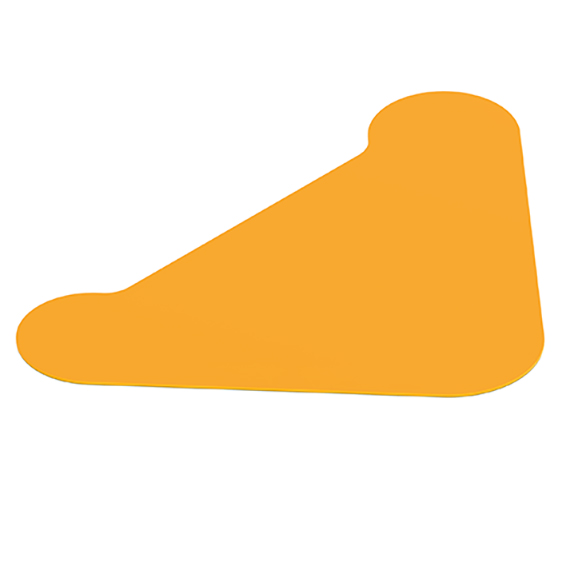

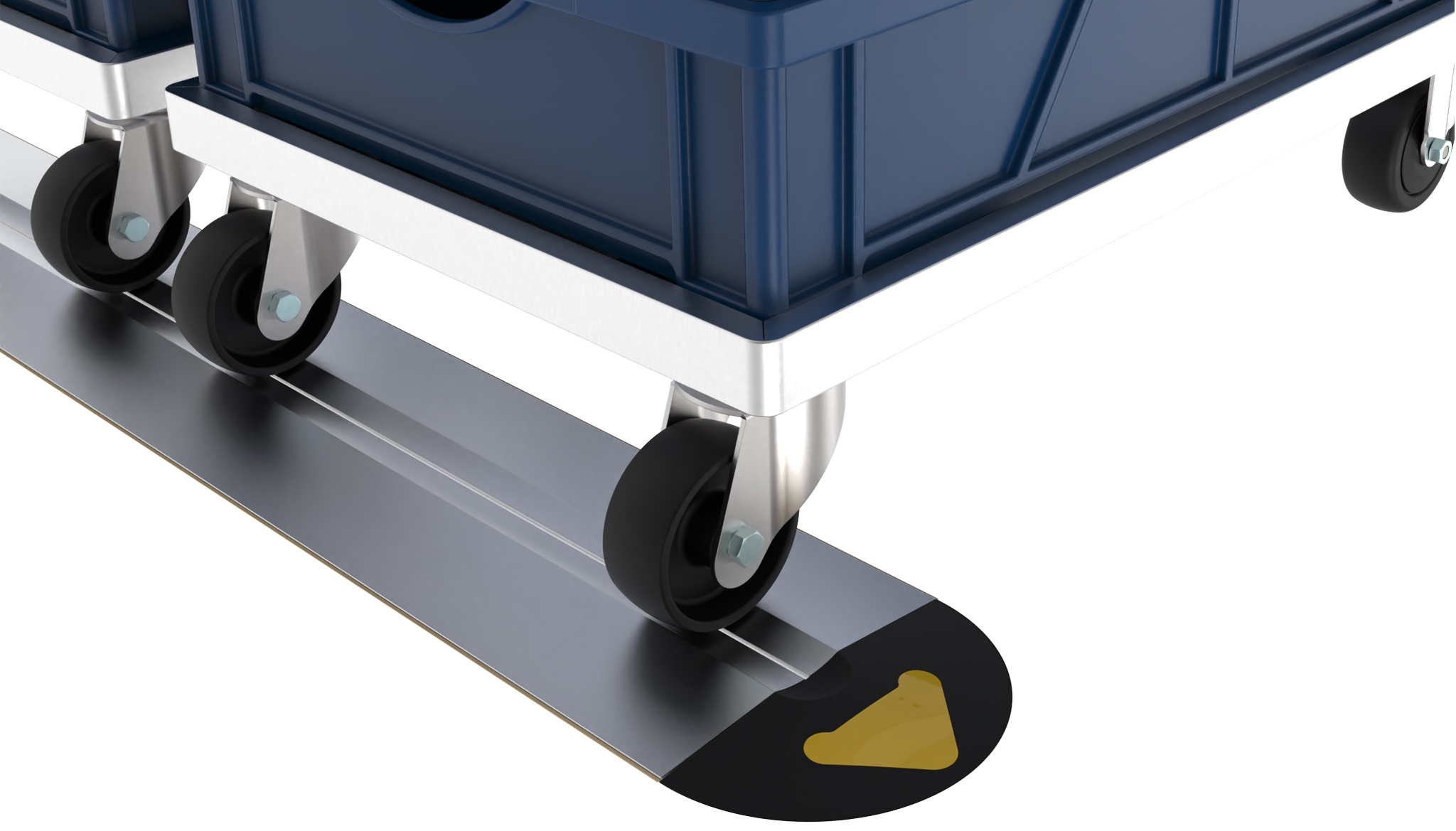

Color:End caps: Black Position markings: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:One-piece end caps; self-adhesive; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking railMaterial:End caps: Plastic PA, glass ball reinforced Position markings: Plastic PETSet:2 end caps 2 position markingsTip:Compatible Parking Rail flat / flat (set) for heavy weights see 02081ALL.0400, Compatible Position Marking as replacement see 02084S.15Zolltarifnummer:39269097900

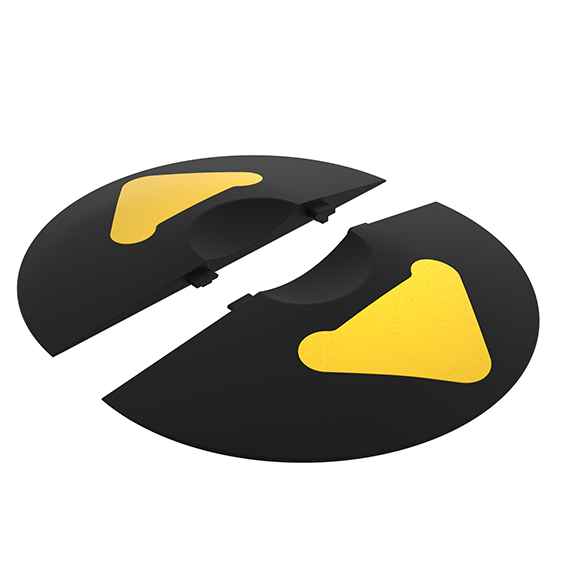

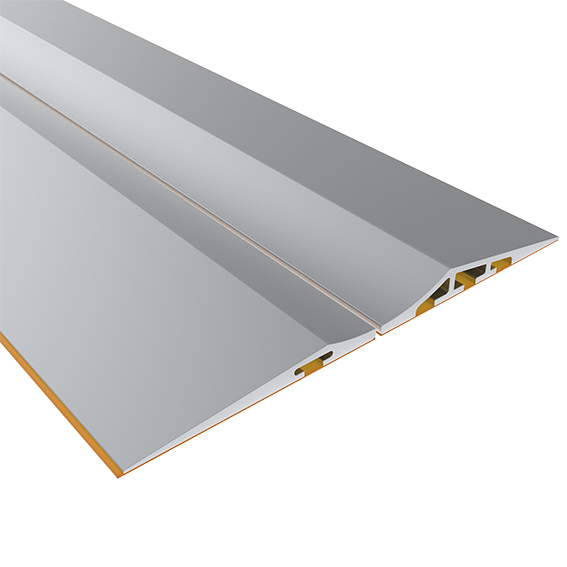

Color:End caps: Black Position markings: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:One-piece end caps; self-adhesive; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking railMaterial:End caps: Plastic PA, glass ball reinforced Position markings: Plastic PETSet:1 end cap left, 1 end cap right, 2 position markingsTip:Compatible Parking Rail flat / high (set) for medium to heavy weights see 02081ALH.0400, Compatible Position Marking as replacement see 02084S.15Zolltarifnummer:39269097900

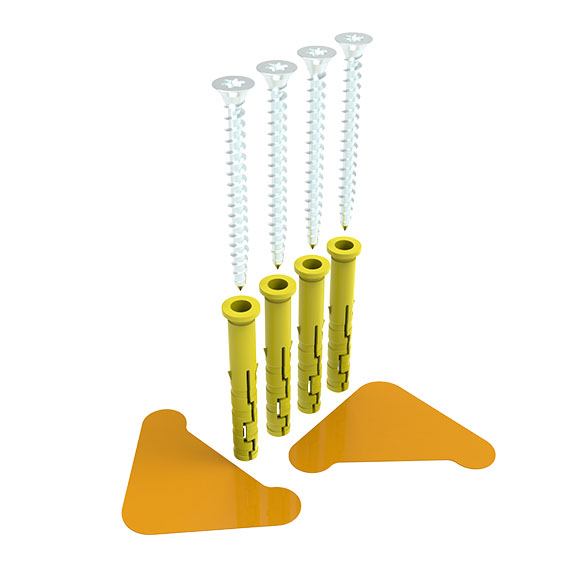

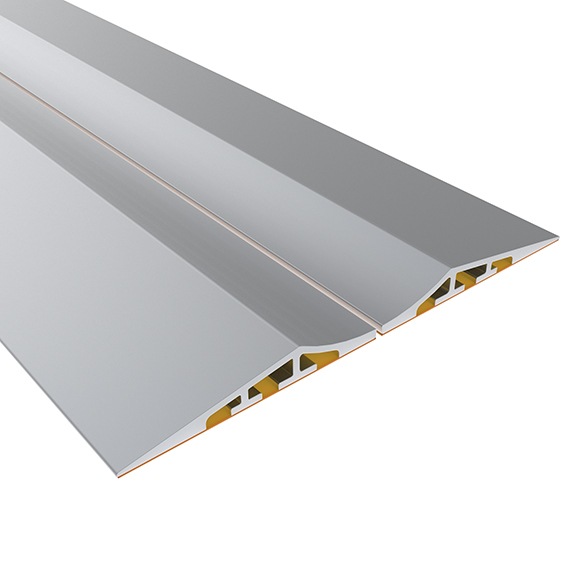

Color:End caps: Black Position markings: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:One-piece end caps; self-adhesive, screwable with optional screw-on set; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking railMaterial:End caps: Plastic PA, glass ball reinforced Position markings: Plastic PETSet:2 end caps 2 position markingsTip:Compatible Parking Rail high / high (set) for light to medium weights see 02081AHH.0400, Compatible Position Marking as replacement see 02084S.15, Compatible Screw-on set see 02084R01Zolltarifnummer:39269097900

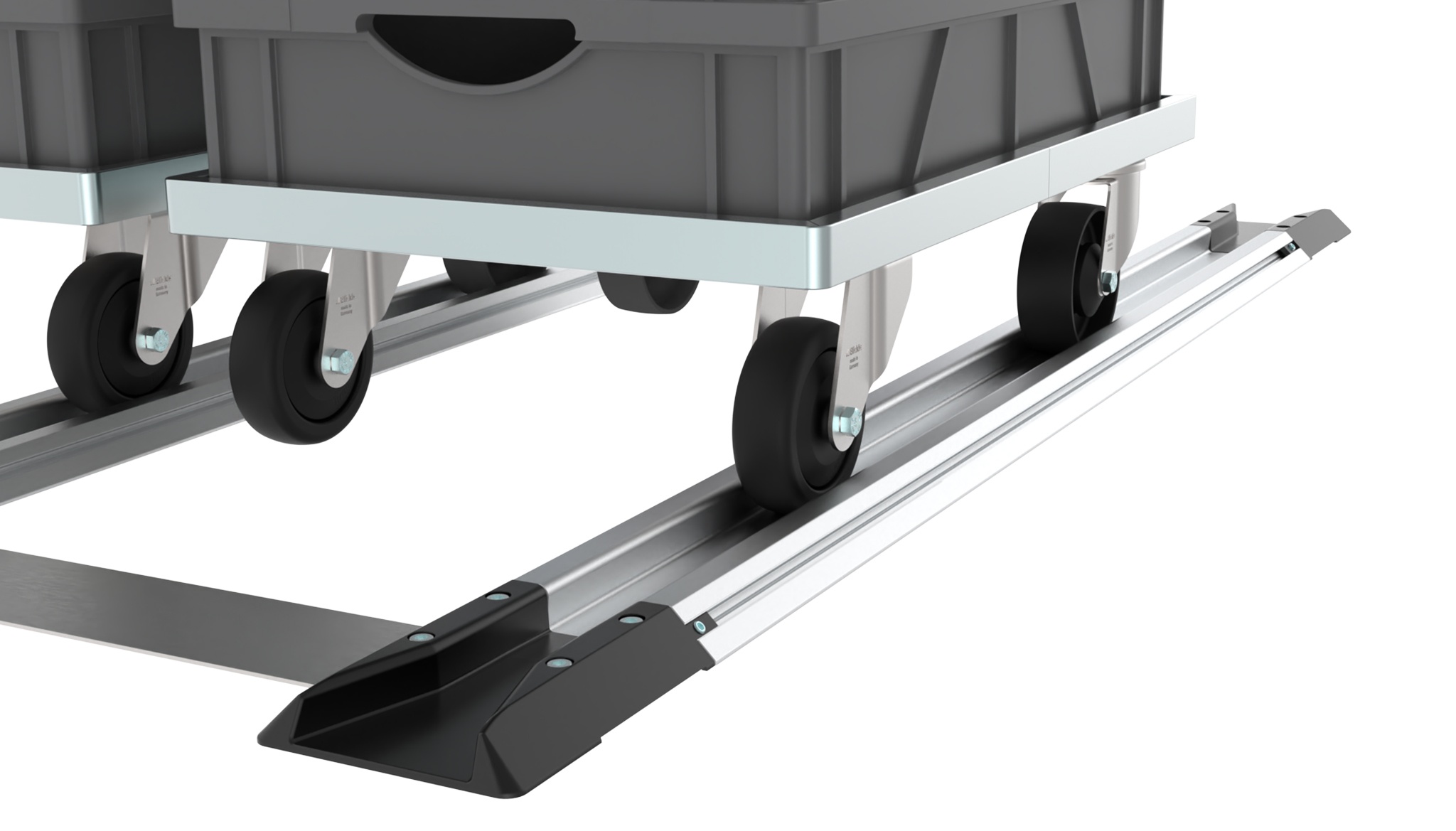

Color:End caps: Black Position markings: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:One-piece XL end caps, no spacers required for large wheel diameters; self-adhesive; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking railMaterial:End caps: Plastic PA, glass ball reinforced Position markings: Plastic PETSet:1 XL end cap left, 1 XL end cap right, 2 position markingsTip:Compatible Parking Rail flat / high (set) for medium to heavy weights see 02081ALH.0400, Compatible Position Marking as replacement see 02084S.15Zolltarifnummer:39269097900
Color:End caps: Black Position markings: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:One-piece XL end caps, no spacers required for large wheel diameters; self-adhesive, screwable with optional screw-on set; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking railMaterial:End caps: Plastic PA, glass ball reinforced Position markings: Plastic PETSet:2 XL end caps 2 position markingsTip:Compatible Parking Rail high / high (set) for light to medium weights see 02081AHH.0400, Compatible Position Marking as replacement see 02084S.15, Compatible Screw-on set see 02084R01Zolltarifnummer:39269097900
