Panel Fixation Blocks

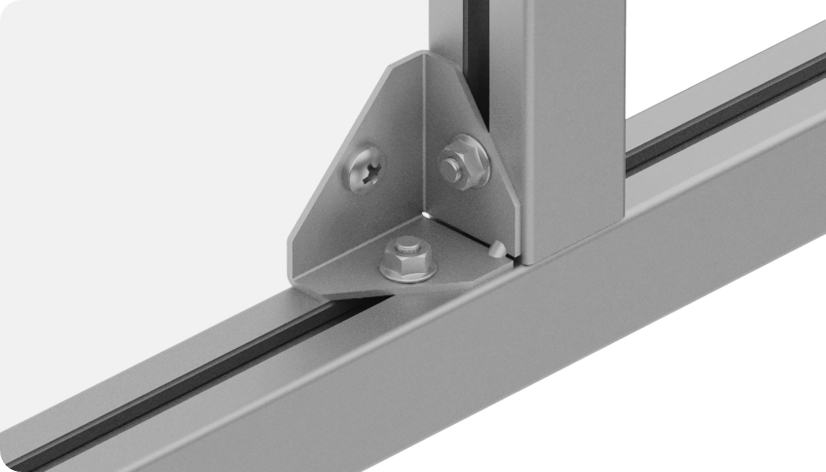

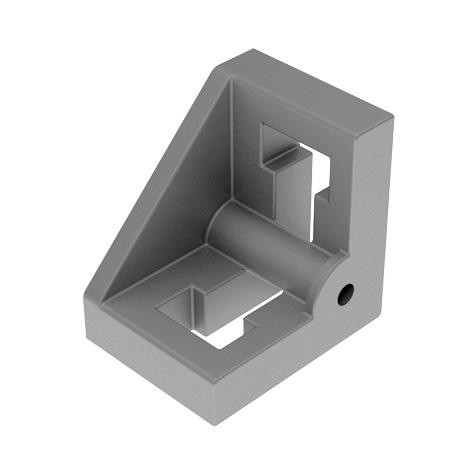

Angle Block 40/45
€0.00*
Dimensions (mm):
M5
|
Profile:
B
|
Set:
incl. assembly set
|
Slot N (mm):
10
Assembly Set:2 hammer screws M8 x 25, 2 flange nuts M8Delivery Countries:WorldwideDescription:To attach panels to aluminum profiles; especially for high load bearing on the panelsMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain

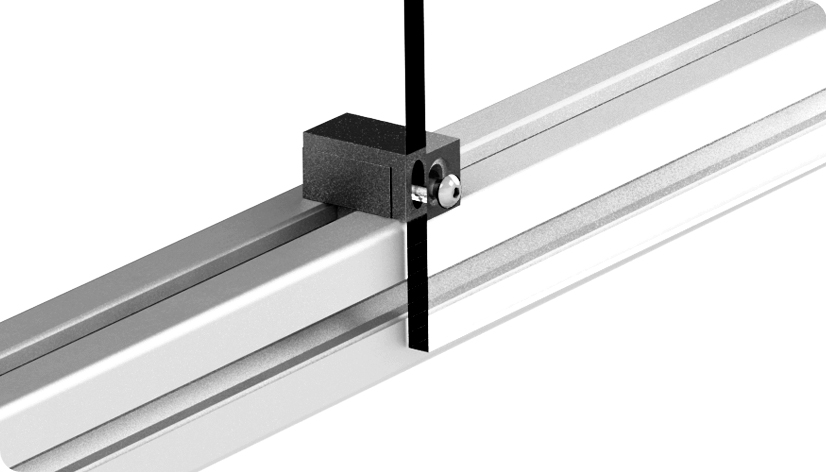

Clip Block 13, Black
€0.00*
Color:
-
|
D (mm):
-
|
Profile:
I
|
Slot N (mm):
5
Color:BlackDelivery Countries:WorldwideDescription:To attach panels to aluminum profiles without screws or toolsMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901
Clip Block 13, Gray
€0.00*
Color:
-
|
D (mm):
-
|
Profile:
I
|
Slot N (mm):
5
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To attach panels to aluminum profiles without screws or toolsMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901S03
Clip Block 14 SL
€0.00*
A1 (mm):
7.0
|
A2 (Profile) (mm):
2.2 (2.2)
|
Color:
-
|
D (mm):
-
|
L (mm):
19.5
|
Profile:
B
|
Slot N (mm):
8
Color:BlackDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profiles without screws or tools; can only be opened with the special tool SLMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Tool SL for Clip Block 14 SL see 0942SLTip 2:Compatible Spacer see 094102K
Clip Block 14, Black
€0.00*
A1 (mm):
11.5
|
A2 (Profile) (mm):
4.5 (4.5)
|
Color:
-
|
D (mm):
-
|
L (mm):
26.0
|
Profile:
I
|
Slot N (mm):
8
Color:BlackDelivery Countries:WorldwideDescription:To attach panels to aluminum profiles without screws or toolsMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102K
Clip Block 14, Gray
€0.00*
A1 (mm):
7.0
|
A2 (Profile) (mm):
2.2 (2.2)
|
Color:
Gray ≈ RAL 7004
|
D (mm):
-
|
Fig.:
-
|
L (mm):
19.5
|
Profile:
B
|
Slot N (mm):
8
Color:GrayDelivery Countries:WorldwideDescription:To attach panels to aluminum profiles without screws or toolsMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102KS01
Clip clamp , for Vario Clamping Blocks
€0.00*
Color:Transparent (colorless)Delivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PCTip:Compatible Vario Clamping Blocks see 094523M6, 094522M6CS and 094524M6

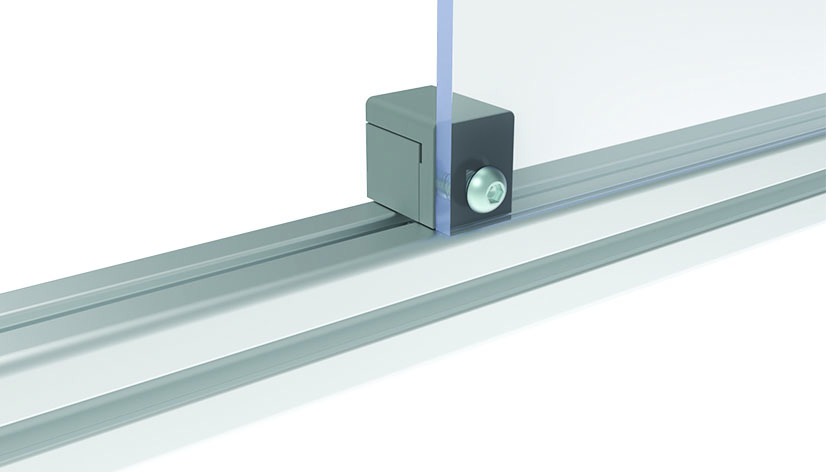

Fixation Block 18, Black
€0.00*
A1 (mm):
6.0 / 9.0* / 12.0 / 15.0*
|
A2 (Profile) (mm):
2.7 (3.0)
|
M:
M5
|
Profile:
I
|
Slot N (mm):
6
Color:BlackDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:* A1 size with spacer!
Fixation Block 18, Gray
€0.00*
A1 (mm):
6.0 / 9.0* / 12.0 / 15.0*
|
A2 (Profile) (mm):
2.7 (3.0)
|
M:
M5
|
Profile:
I
|
Slot N (mm):
6
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:* A1 size with spacer!

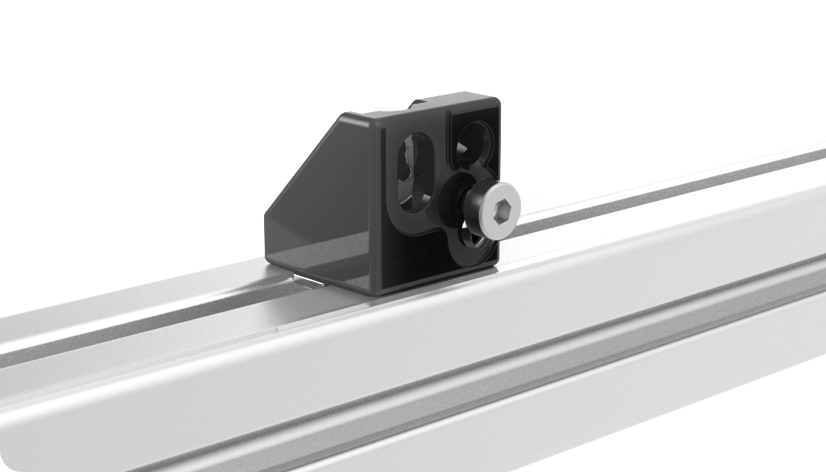

Fixation Block 25, Black
€0.00*
A1 (mm):
5.0 / 10.0* / 15.0 / 20.0*
|
A2 (Profile) (mm):
4.35 (4.5)
|
M:
M6
|
Profile:
I
|
Slot N (mm):
8
Color:BlackDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:* A1 size with spacer!
Fixation Block 25, Gray
€0.00*
A1 (mm):
5.0 / 10.0* / 15.0 / 20.0*
|
A2 (Profile) (mm):
4.35 (4.5)
|
M:
M6
|
Profile:
I
|
Slot N (mm):
8
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:* A1 size with spacer!

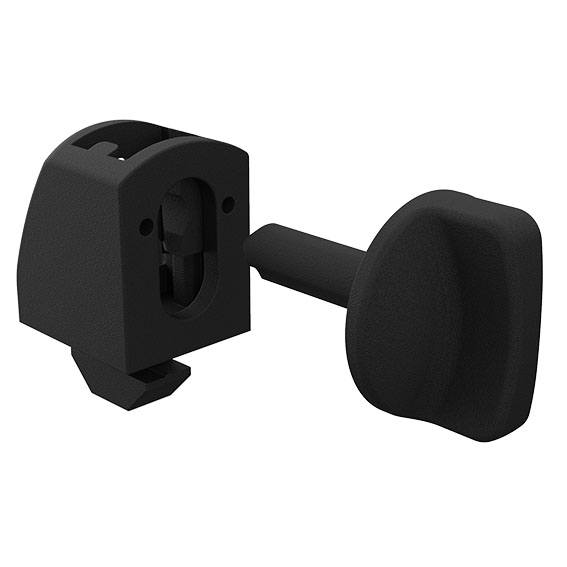

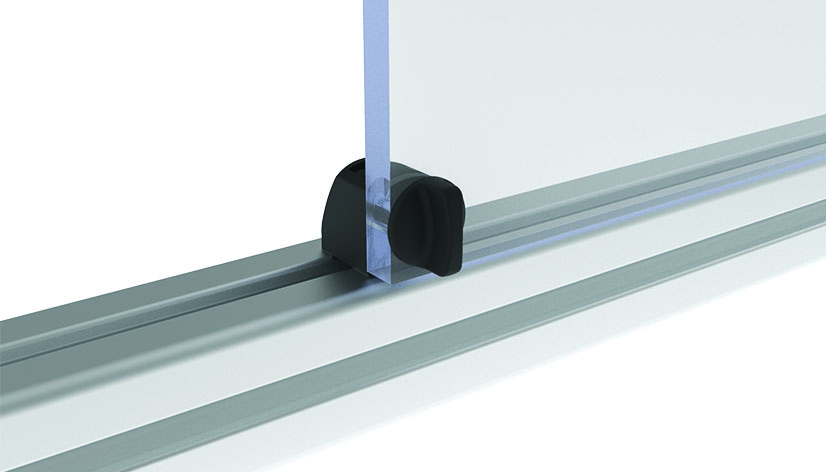

Quick Block (Set)
€0.00*
A1 (mm):
7.0
|
A2 (Profile) (mm):
1.9 (2.2)
|
Profile:
B
|
Slot N (mm):
8
|
Version:
Lockpin M
Color:BlackDelivery Countries:WorldwideDescription:To attach panels quickly 1- 12 mm to aluminum profilesMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on request

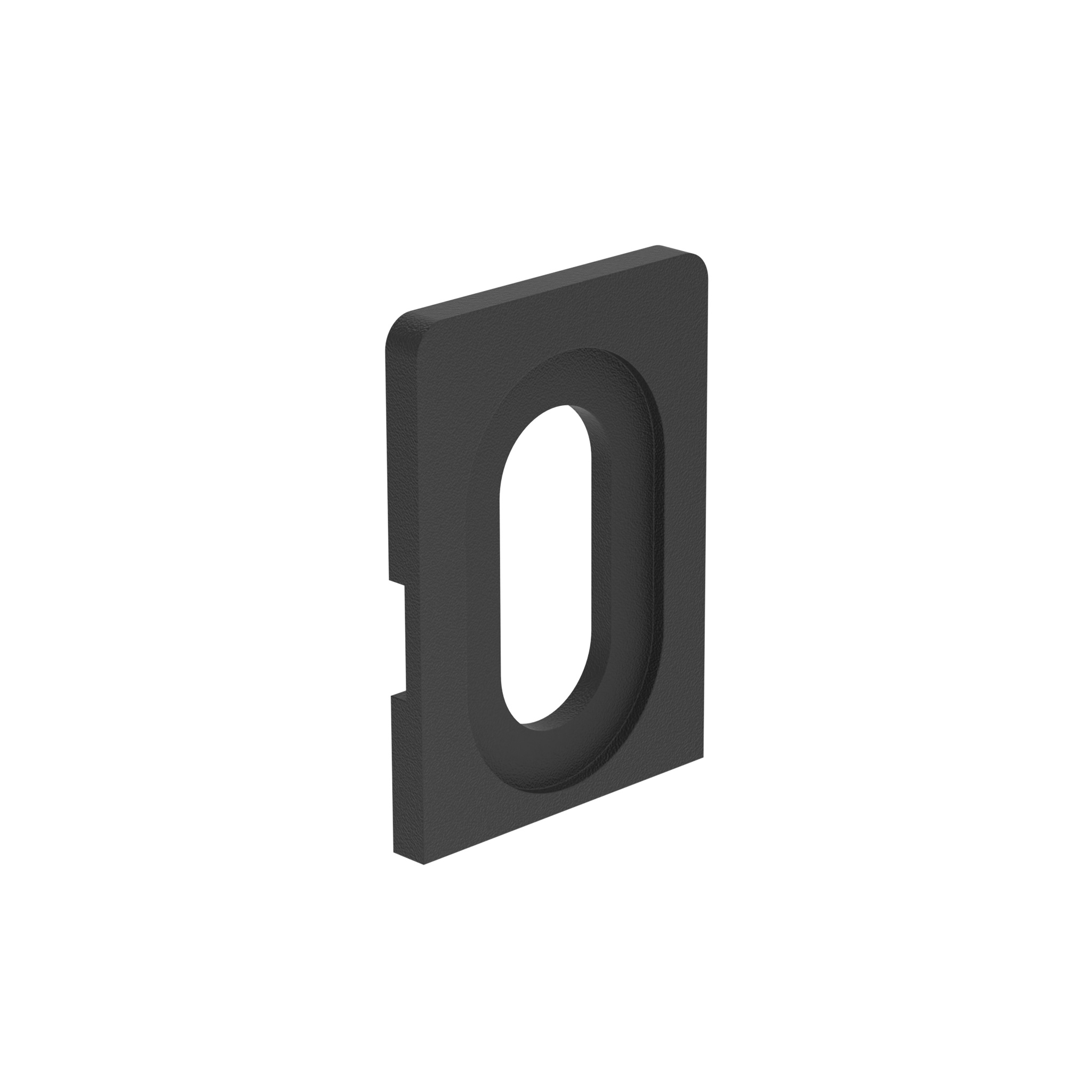

Spacer CS for Uni Blocks 18 / 25, Black
€0.00*
Color:
Black
|
D (mm):
*2.0
Color:BlackDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fibre reinforcedTip:Compatible Uni Block see 094100M4, 094100CSM6, 094003M4, 094003CSM6, 094020CLIPM6, 094003GM6 and 094010M4Tip 2:* No further spacers can be added!

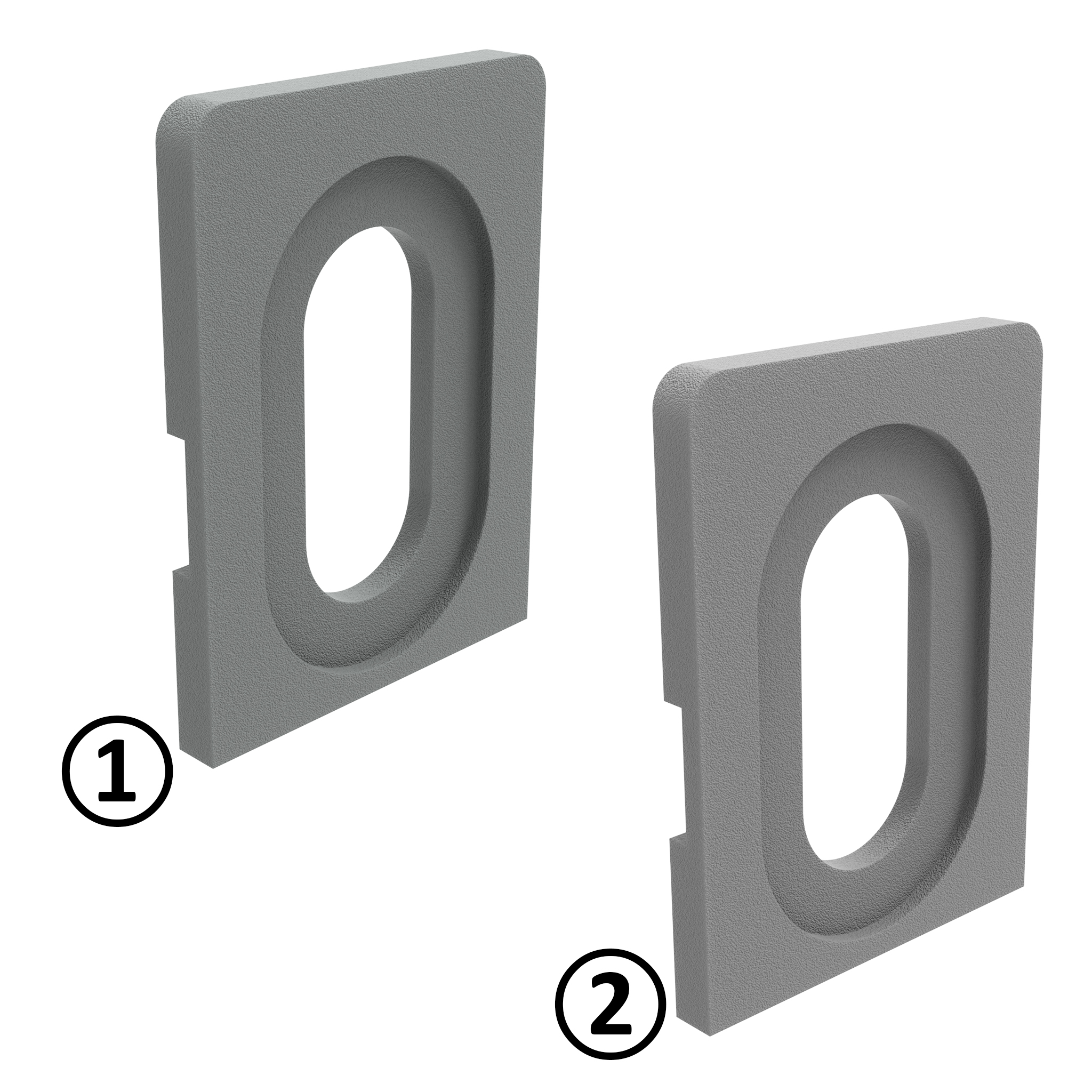

Spacer CS for Uni Blocks 18 / 25, Grau
€0.00*
Color:
Gray ≈ RAL 7042
|
D (mm):
3.0
|
Fig.:
①
Color:GrayDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fibre reinforcedTip:Compatible Uni Block see 094100CSM6S01 and 094003CSM6S01Tip 2:* No further spacers can be added!

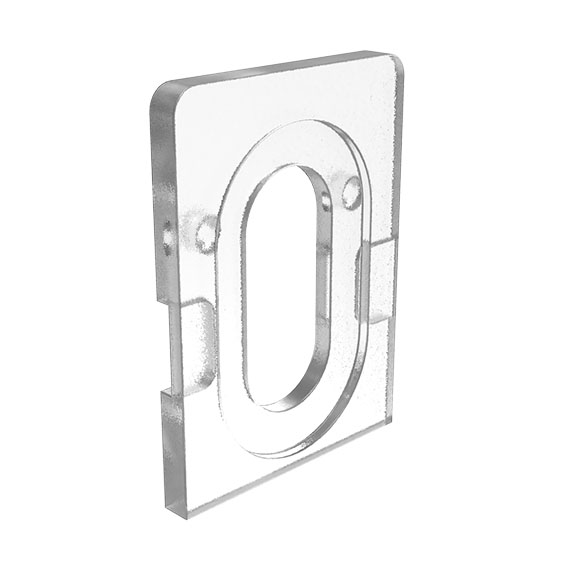

Spacer CS for Uni Blocks 25, transparent colorless
€0.00*
Color:
Transparent colorless
|
Color:
Transparent (colorless)
|
D (mm):
*2.0
Color:Transparent (colorless)Delivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PCTip:Compatible Uni Block see 094003GM6Tip 2:* No further spacers can be added!

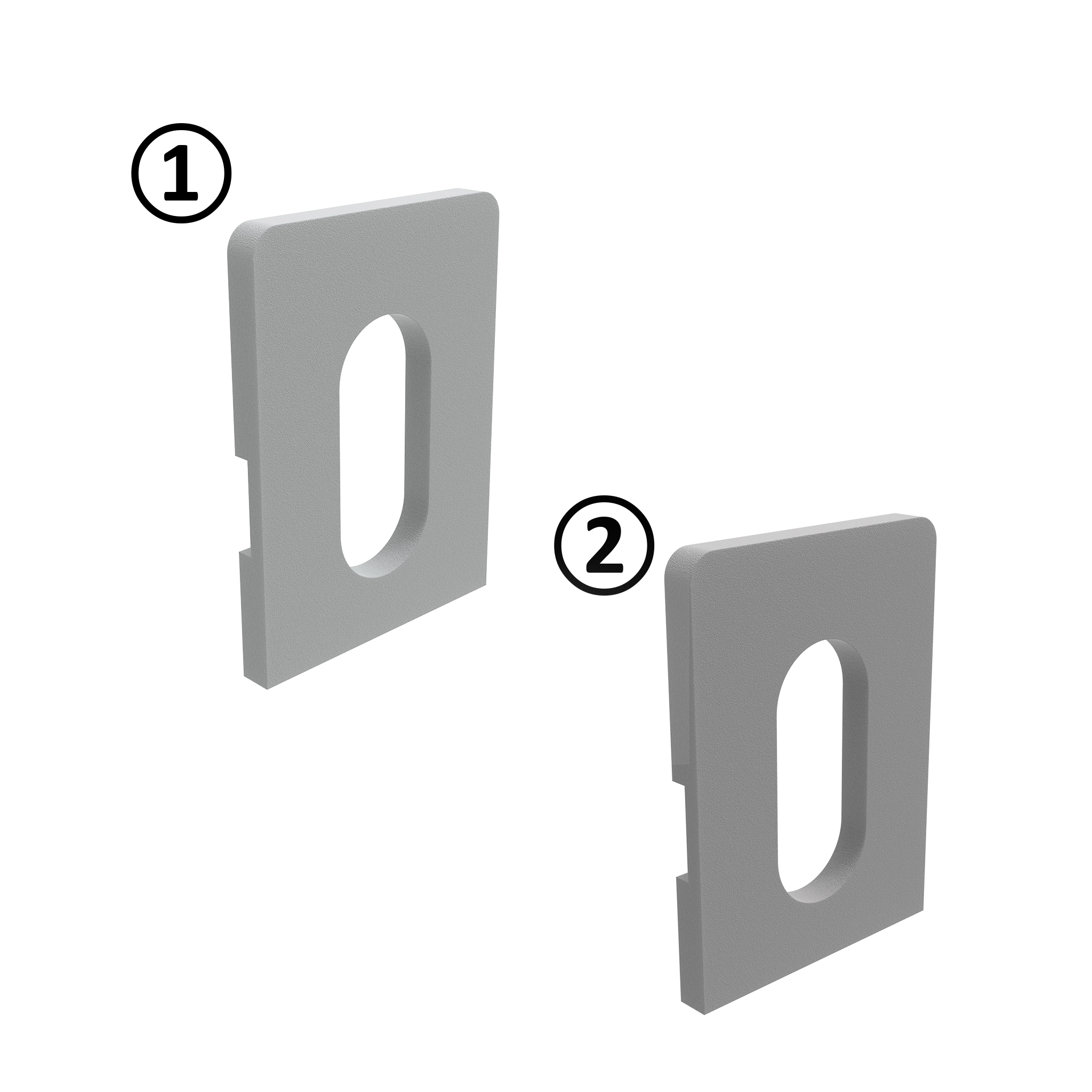

Spacer for Uni Blocks 18 / 25, Gray
€0.00*
Color:
Gray ≈ RAL 7004
|
D (mm):
3.0
|
Fig.:
①
Color:GrayDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fibre reinforcedTip:Compatible Uni Block see 094100M4S01 and 094003M4S01Tip 2:* No further spacers can be added!
Spacer, for Clip Blocks 14, Black
€0.00*
Color:
Black
|
D (mm):
*2.0
Color:BlackDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fibre reinforcedTip:Compatible Clip Block see 094204 and 094204SLTip 2:* No further spacers can be added!

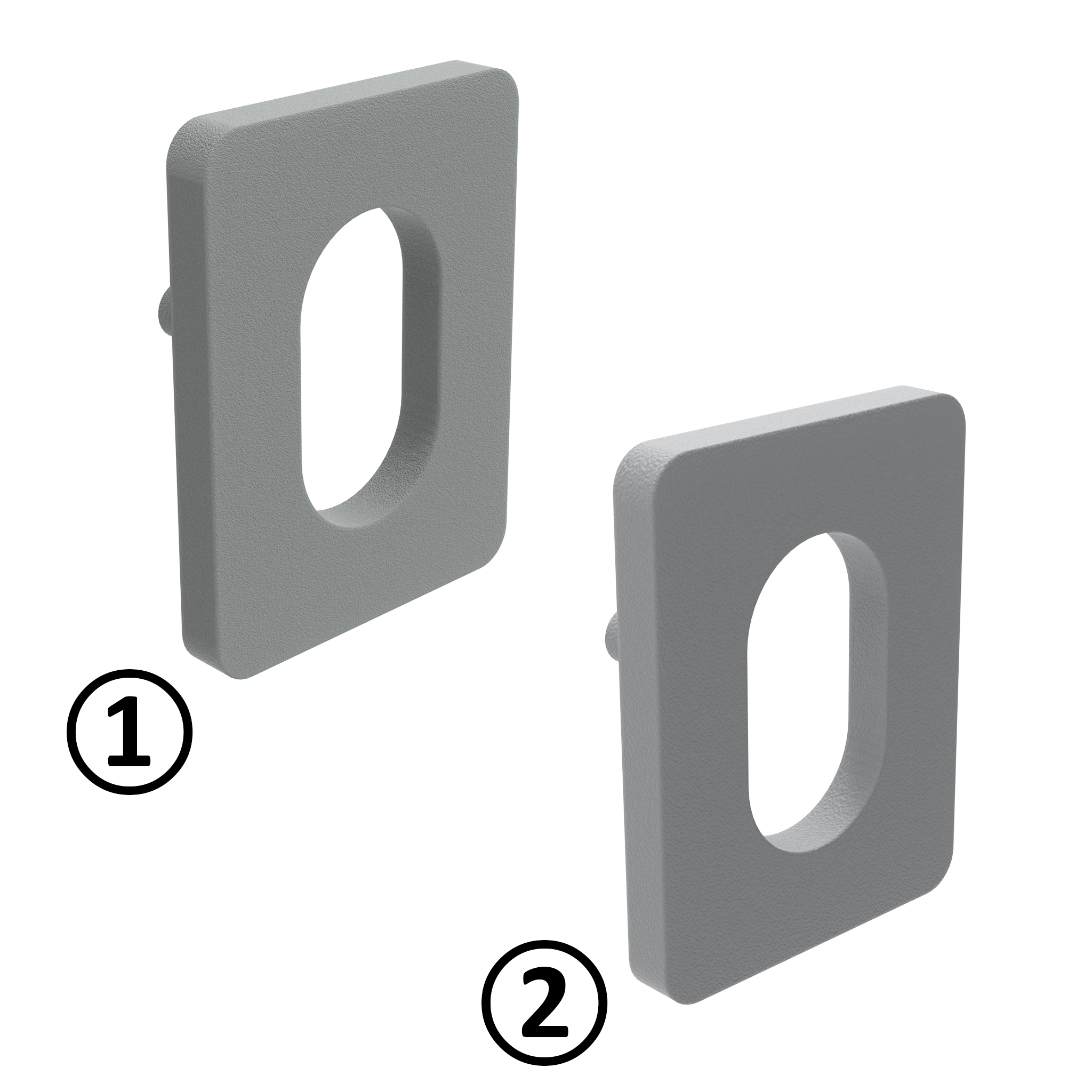

Spacer, for Clip Blocks 14, Gray
€0.00*
Color:
Gray ≈ RAL 7004
|
D (mm):
3.0
|
Fig.:
②
Color:GrayDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fibre reinforcedTip:Compatible Clip Block see 094204S01Tip 2:* No further spacers can be added!

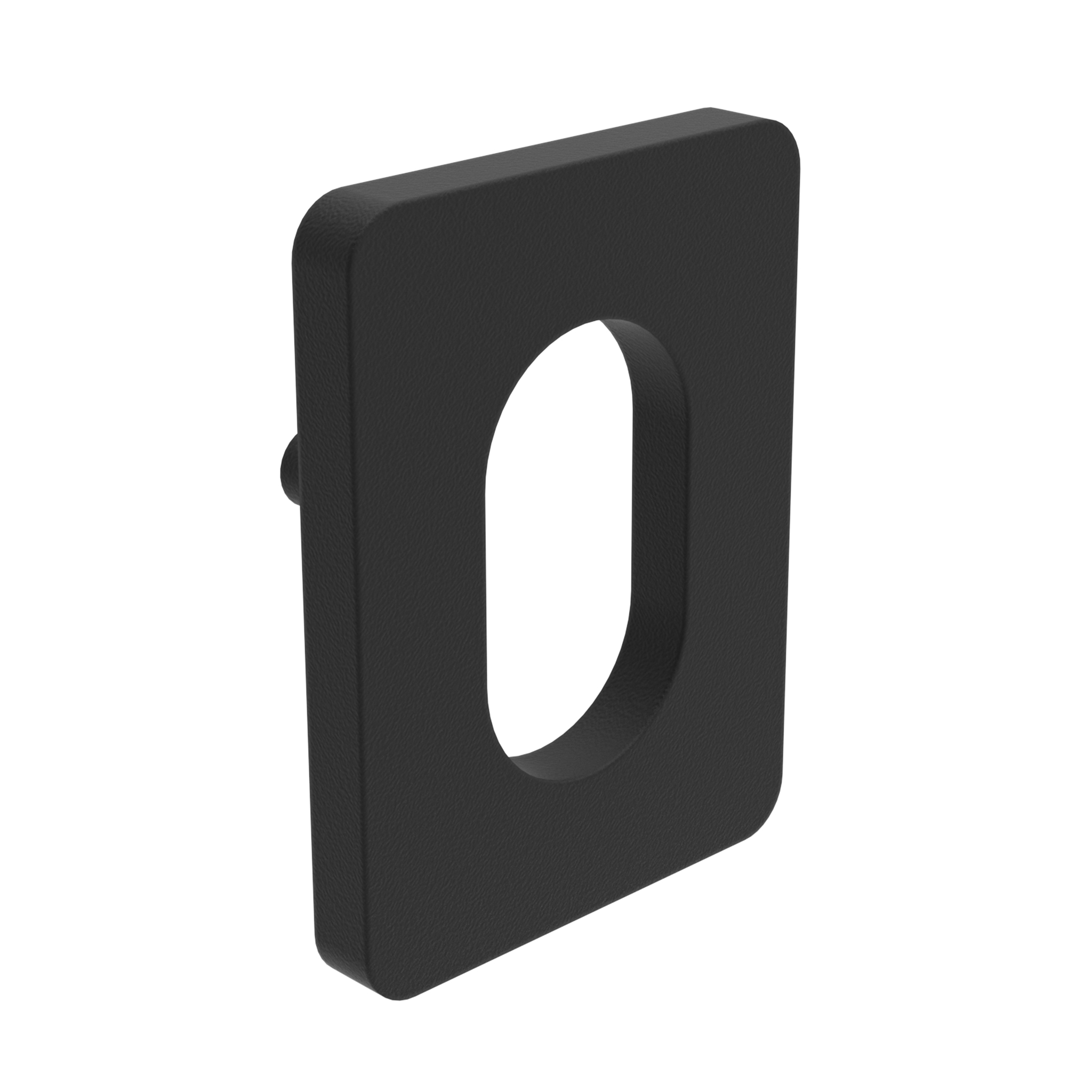

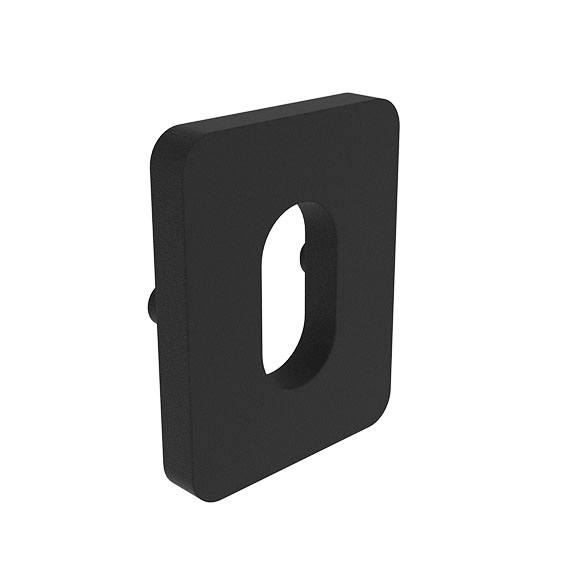

Spacer, for Uni Blocks / Clip Blocks 13, Black
€0.00*
Color:
Black
|
D (mm):
*2.0
Color:BlackDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PATip:Compatible Uni Block see 094411M4 and 094411M4S03, Compatible Clip Block see 094311 and 094311S02Tip 2:* No further spacers can be added!

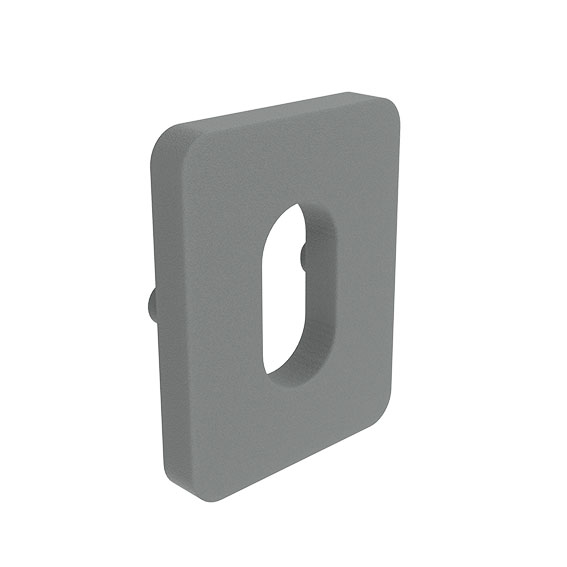

Spacer, for Uni Blocks / Clip Blocks 13, Gray
€0.00*
Color:
Gray ≈ RAL 7042
|
D (mm):
*1.0
Color:GrayDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PATip:Compatible Uni Block see 094411M4S03, Compatible Clip Block see 094311S02Tip 2:* No further spacers can be added!

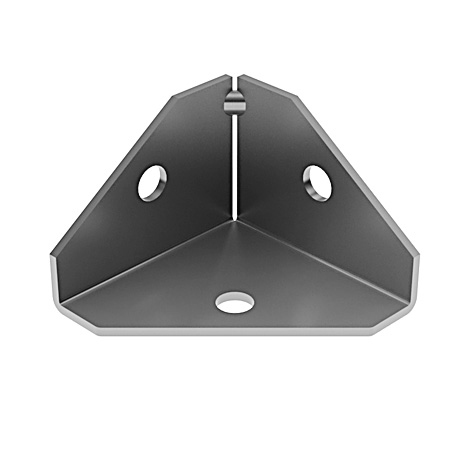

Steel Connection Angle 45 / 60
€0.00*
ESD:
ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:SteelSurface:Zinc plated

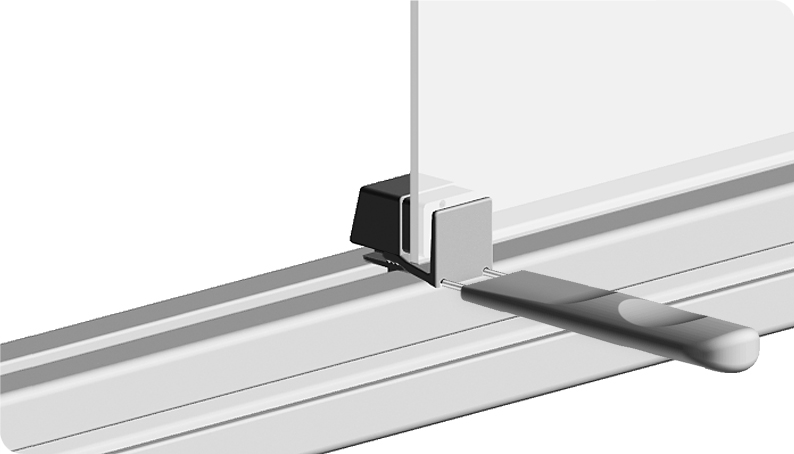

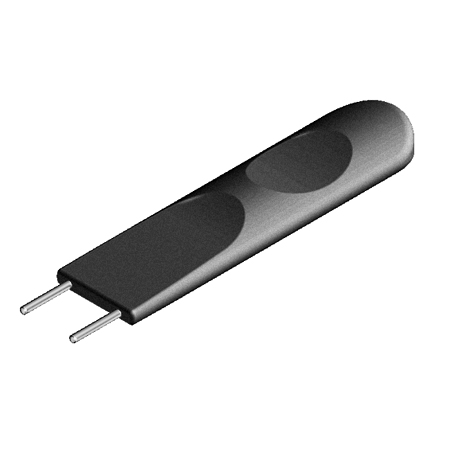

Tool for Clip Block SL
€0.00*
Profile:
I / B
Color:RedDelivery Countries:WorldwideDescription:To open the clip block SLMaterial:Plastic PA, glass ball reinforced Pins: Zinc plated steelSpecials:Other colors on requestTip:Compatible Clip Block 14 SL see 094204SL

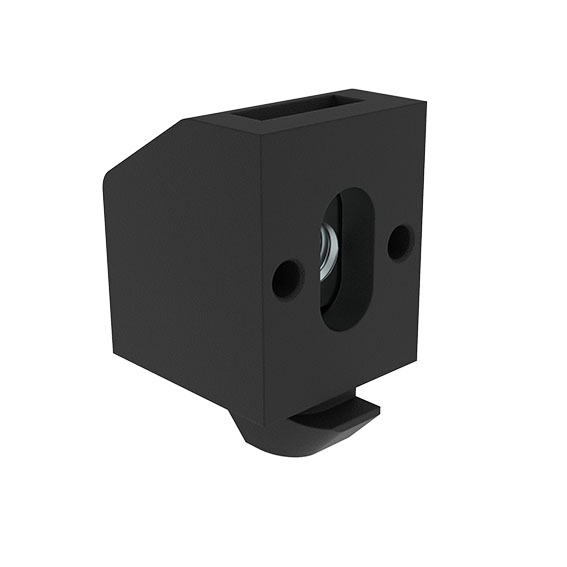

Uni Block 14, Black
€0.00*
A1 (mm):
4.0
|
A2 (Profile) (mm):
1.6 (1.8)
|
Color:
-
|
D (mm):
-
|
M:
M4
|
Profile:
I
|
Slot N (mm):
5
Color:BlackDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901

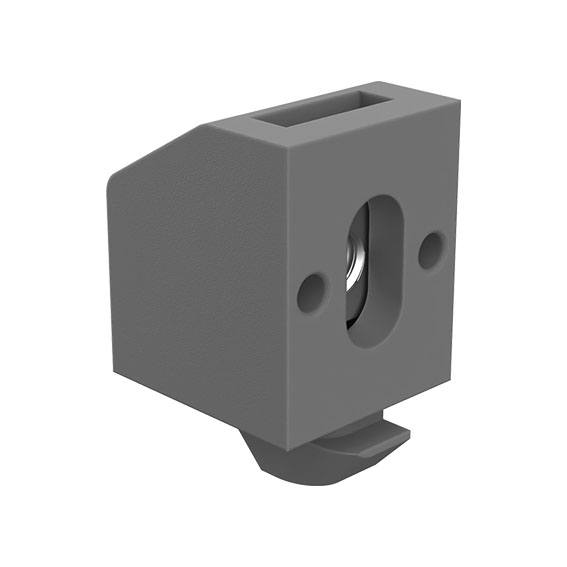

Uni Block 14, Gray
€0.00*
A1 (mm):
4.0
|
A2 (Profile) (mm):
1.6 (1.8)
|
Color:
-
|
D (mm):
-
|
M:
M4
|
Profile:
I
|
Slot N (mm):
5
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901S03
