Tubular Frame Components

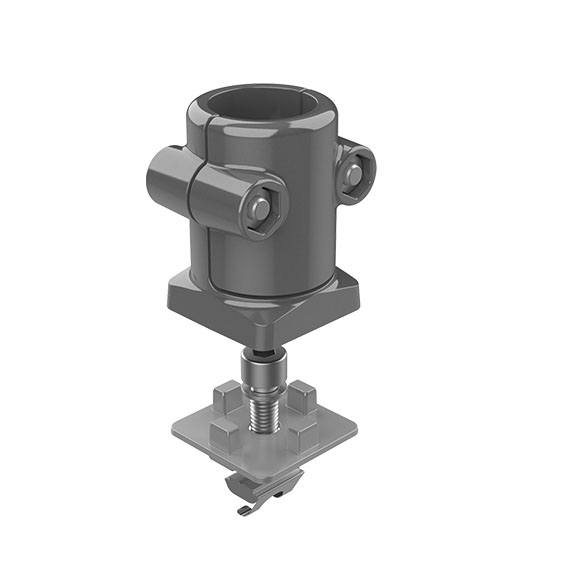

Adapter Piece D28 - 40 M8 (Set)
€0.00*
B (mm):
40
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
Color:Adapter piece: Alu color Centering plate: Alu colorDelivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)Material:Adapter piece: Alu die-cast Centering plate: Alu die-cast Screws: Steel Washer: Steel T-slot nut: SteelSet:1 adapter piece 1 centering plate 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut) 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole) 1 washer 8-FSt 1 T-slot nut - slot 10 - M8Surface:Adapter piece: Laquered Centering plate: Laquered Screws: Zinc plated Washer: Zinc plated T-slot nut: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Zolltarifnummer:76169990990

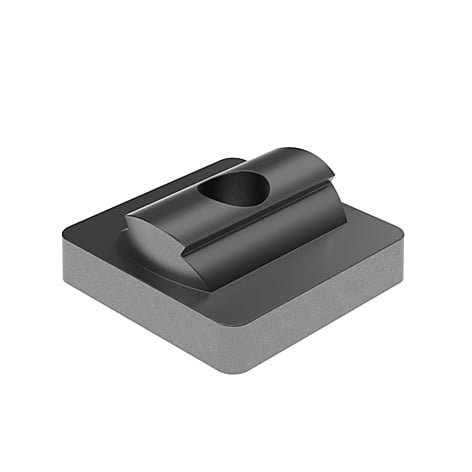

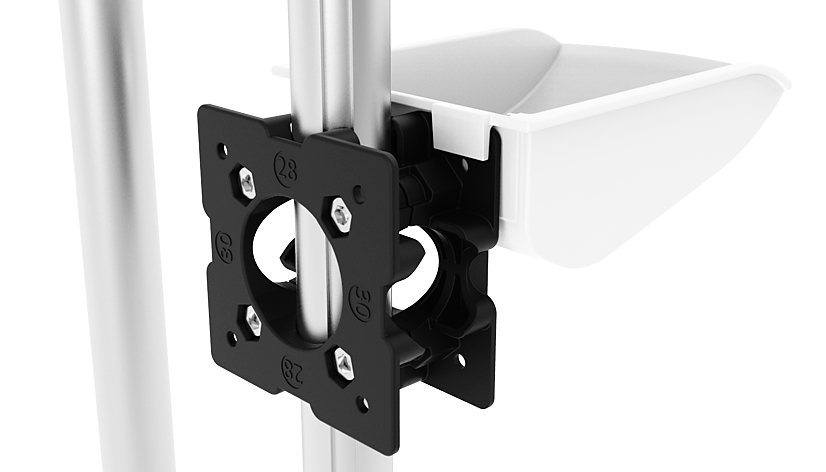

Adapter Plate D28 (Set)
€0.00*
A (mm):
45.0
|
ESD:
ESD electrostatical discharging
|
R (mm):
3.0
|
Slot N (mm):
8 / 10
Delivery Countries:WorldwideDescription:To connect tubular frame profiles with slot 8 or 10 aluminum profilesMaterial:Adapter plates: Aluminum die-cast Centering piece: Zinc die-castSet:1 adapter plate, 2 locating pins for slot 8 and 10Surface:PlainTip:Compatible Connector see 099RV2890LS01, 099RV28KS01, 099RV2845S01 - 099RV2890QS01 * Compatible Cutting Bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Zolltarifnummer:76169910990

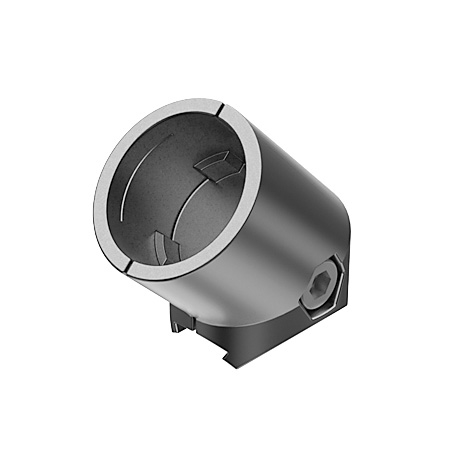

Angle Connector 2D28 (Set)
€0.00*
ESD:
ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts ISO 10511 - M6Surface:Connector: Plain Assembly set: Zinc platedZolltarifnummer:76169910990

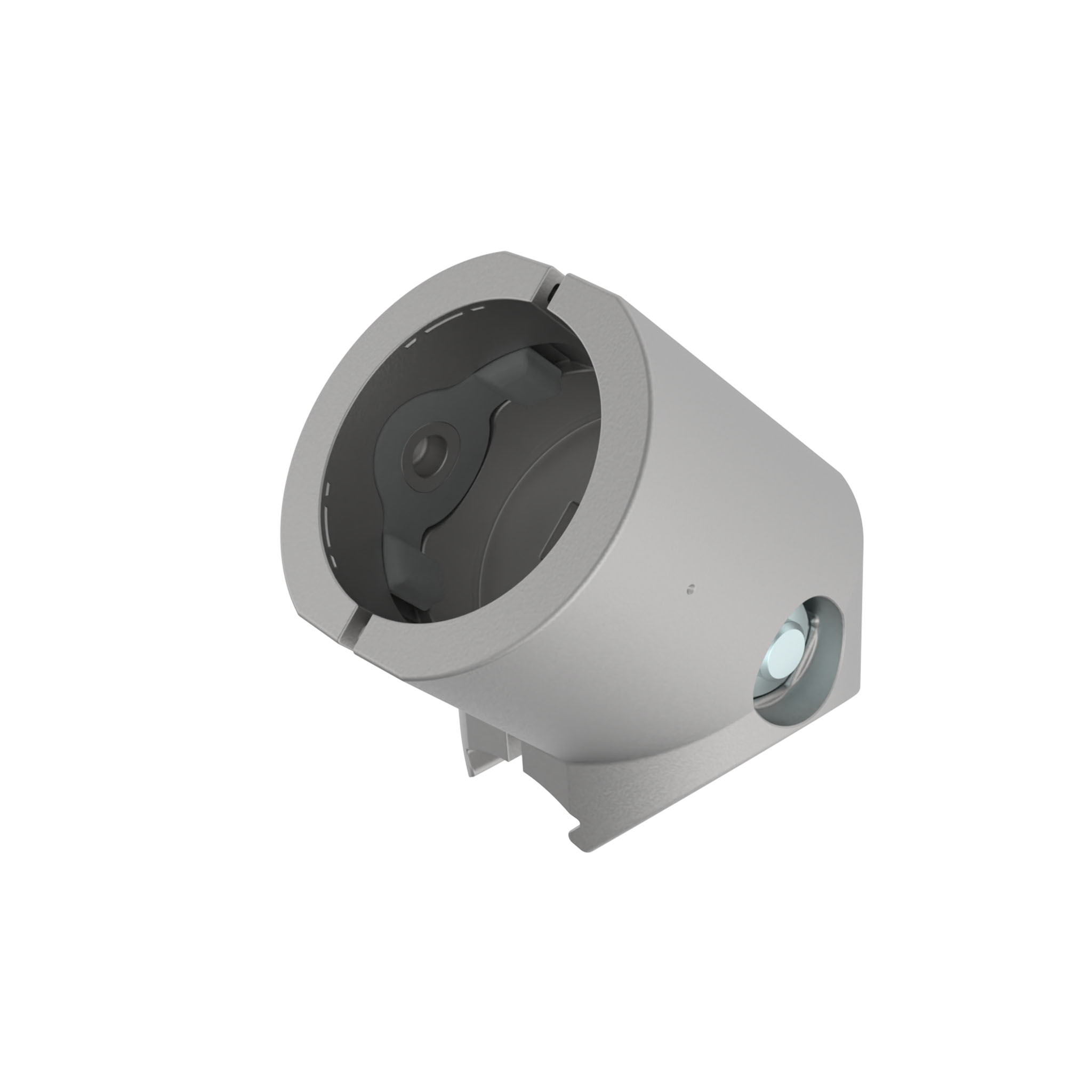

Angle Connector 2D30 (Set)
€0.00*
ESD:
ESD electrostatical discharging
|
Profile:
I
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angle; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 14, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07Zolltarifnummer:76169910990

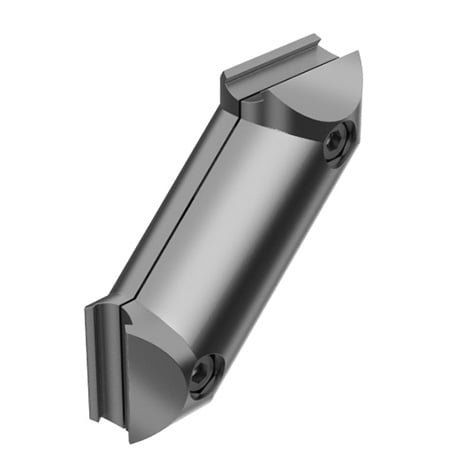

Angle Connector D28, 45° (Set)
€0.00*
ESD:
ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profileswith Ø 28 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D28 ,45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut ISO 10511 - M6Surface:Connector: Plain Assembly set: Zinc platedZolltarifnummer:76169910990
Angle Connector D30, 45° (Set)
€0.00*
ESD:
ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profileswith Ø 30 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D30, 45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Zolltarifnummer:76169910990
Bag Cutter FX for Tubes D28 / D30
€0.00*
Color:
Black
|
ESD:
ESD electrostatical discharging
Color:Bag cutter: BlackDelivery Countries:WorldwideDescription:Ready to use bag cutter, changeable blade, 360° turnable, for tubes or tubular frame profiles and perforated metal To organize work stationsMaterial:Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: SteelSpecials:Other colors on requestSurface:Counter sunk screw: Nickel plated Sleeve nut: Nickel plated Screw: Zinc plated Nut: Zinc platedTip:Compatible Trapezoidal Blade for Bag Cutter FX see 061TF91S01Zolltarifnummer:82149000000

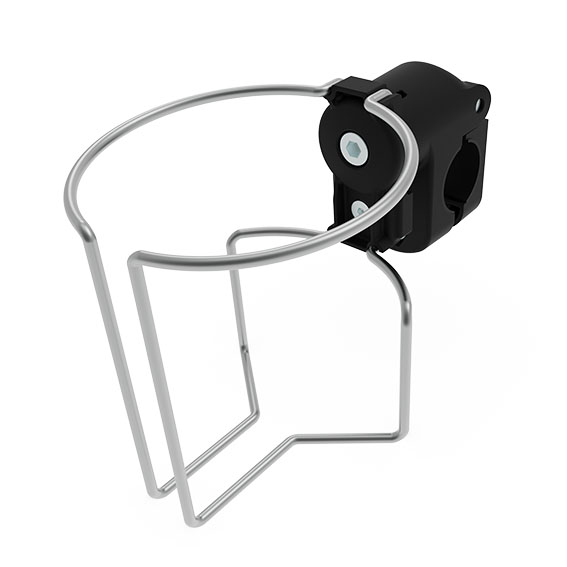

Bottle Holder FX for Tubes D28 / D30
€0.00*
Color:
Black
Color:Holder: BlackDelivery Countries:WorldwideDescription:Ready to use bottle holder, 360° turnable, for tubes or tubular frame profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc platedZolltarifnummer:83025000000

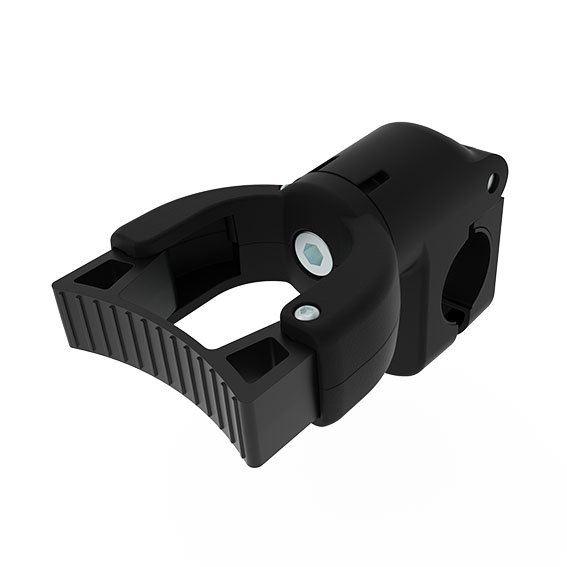

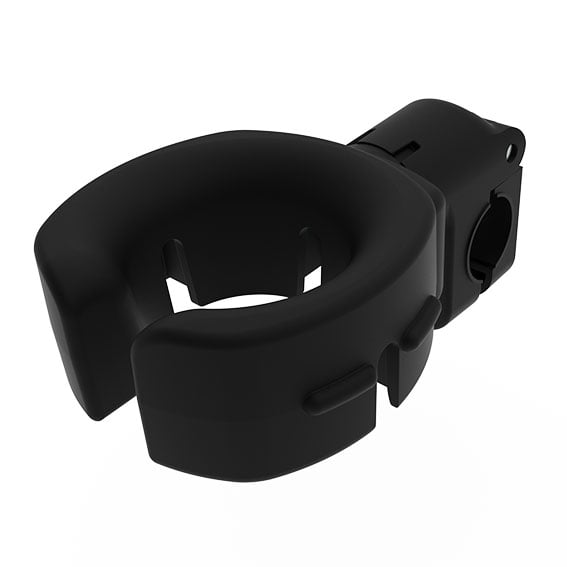

Broom Holder FLEX FX 20 - 30 for Tubes D28 / D30
€0.00*
Color:
Black
Color:Holder: Black Retaining strap: BlackDelivery Countries:WorldwideDescription:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for tubes or tubular frame profiles; To organize workstationsMaterial:Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc platedZolltarifnummer:39269097900

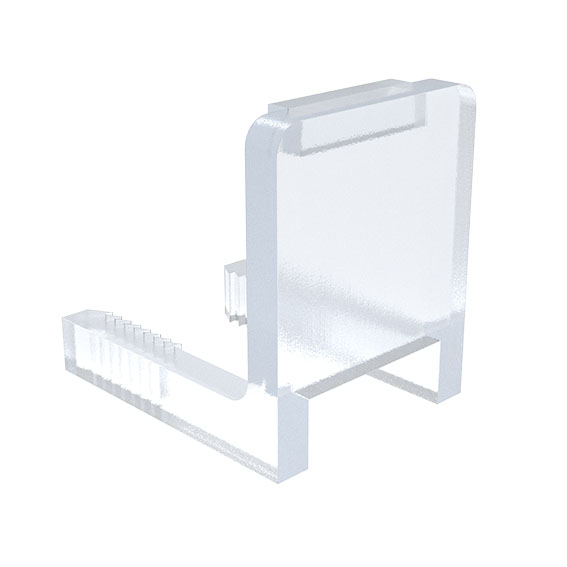

Clip clamp , for Vario Clamping Blocks
€0.00*
Color:Transparent colorlessDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PCTip:Compatible Vario Clamping Block see 094523M6, 094522M6CS and 094524M6Zolltarifnummer:39269097900

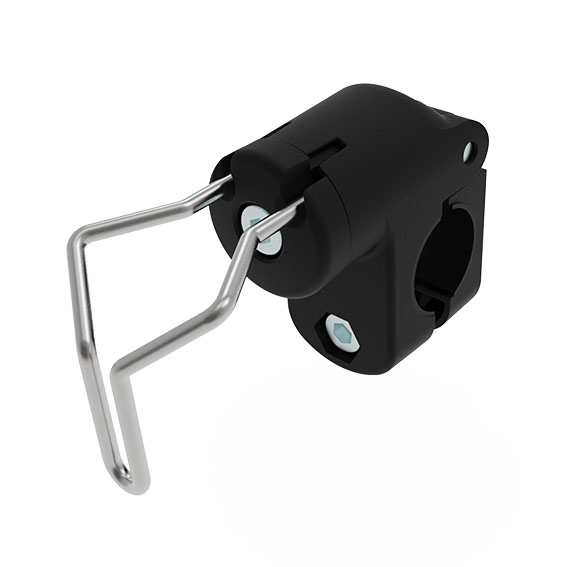

Cloth Clip FX for Tubes D28 / D30
€0.00*
Color:
Black
|
ESD:
ESD electrostatical discharging
Color:Holder: BlackDelivery Countries:WorldwideDescription:Ready to use cloth clip, 360° turnable, for tubes or tubular frame profiles; To organize workstationsMaterial:Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc platedZolltarifnummer:83025000000

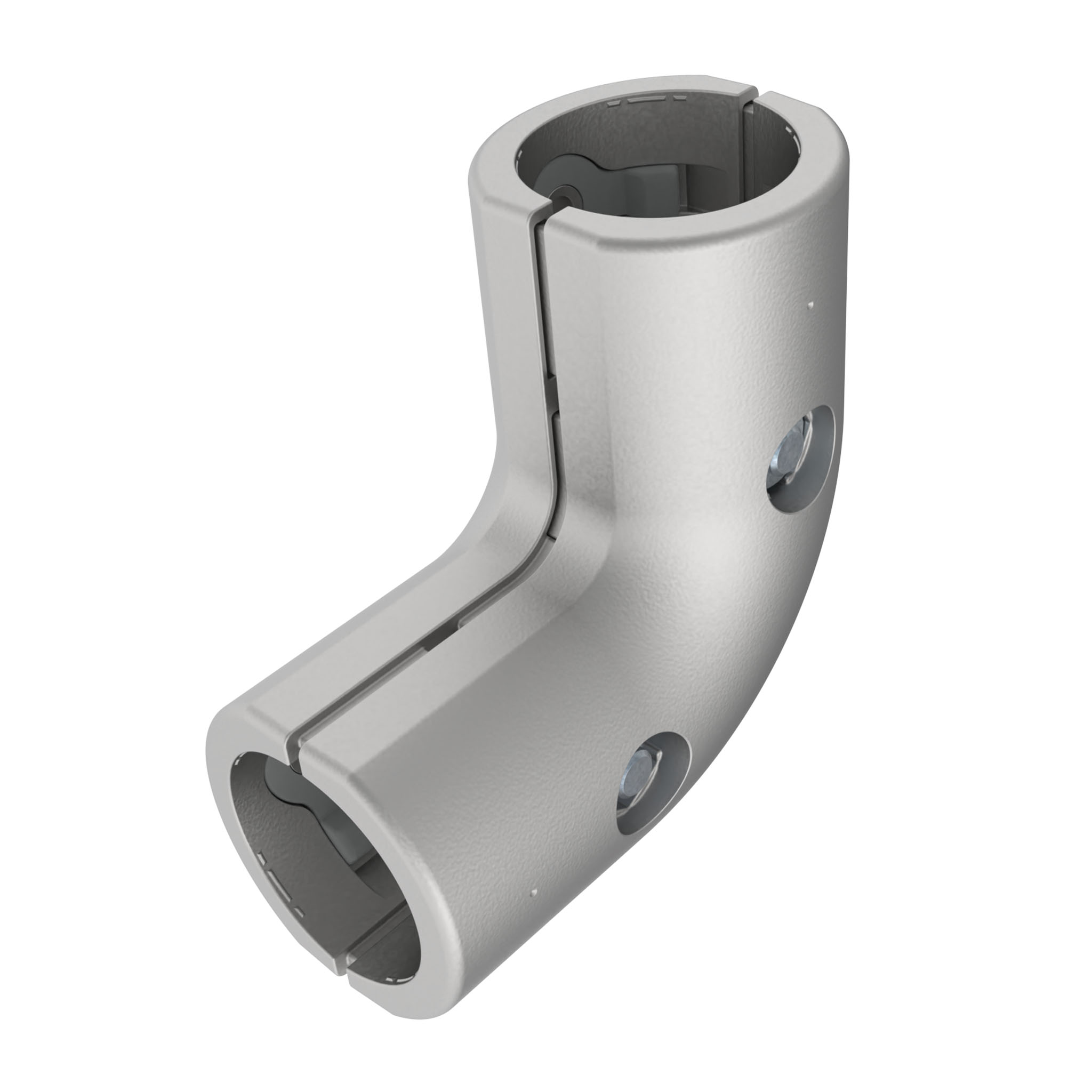

Corner Connector 2D28 (Set)
€0.00*
ESD:
ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for corner connector 2D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut ISO 10511 - M6Surface:Connector: Plain Assembly set: Zinc platedZolltarifnummer:76169910990

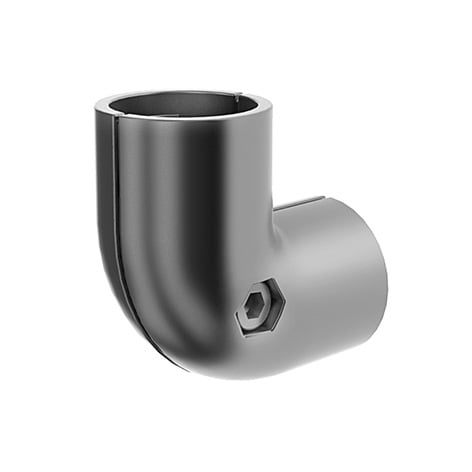

Corner Connector 2D30 (Set)
€0.00*
ESD:
ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for corner connector 2D30, 2 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Profile Connector D30 see 099RV30CC06Zolltarifnummer:76169910990

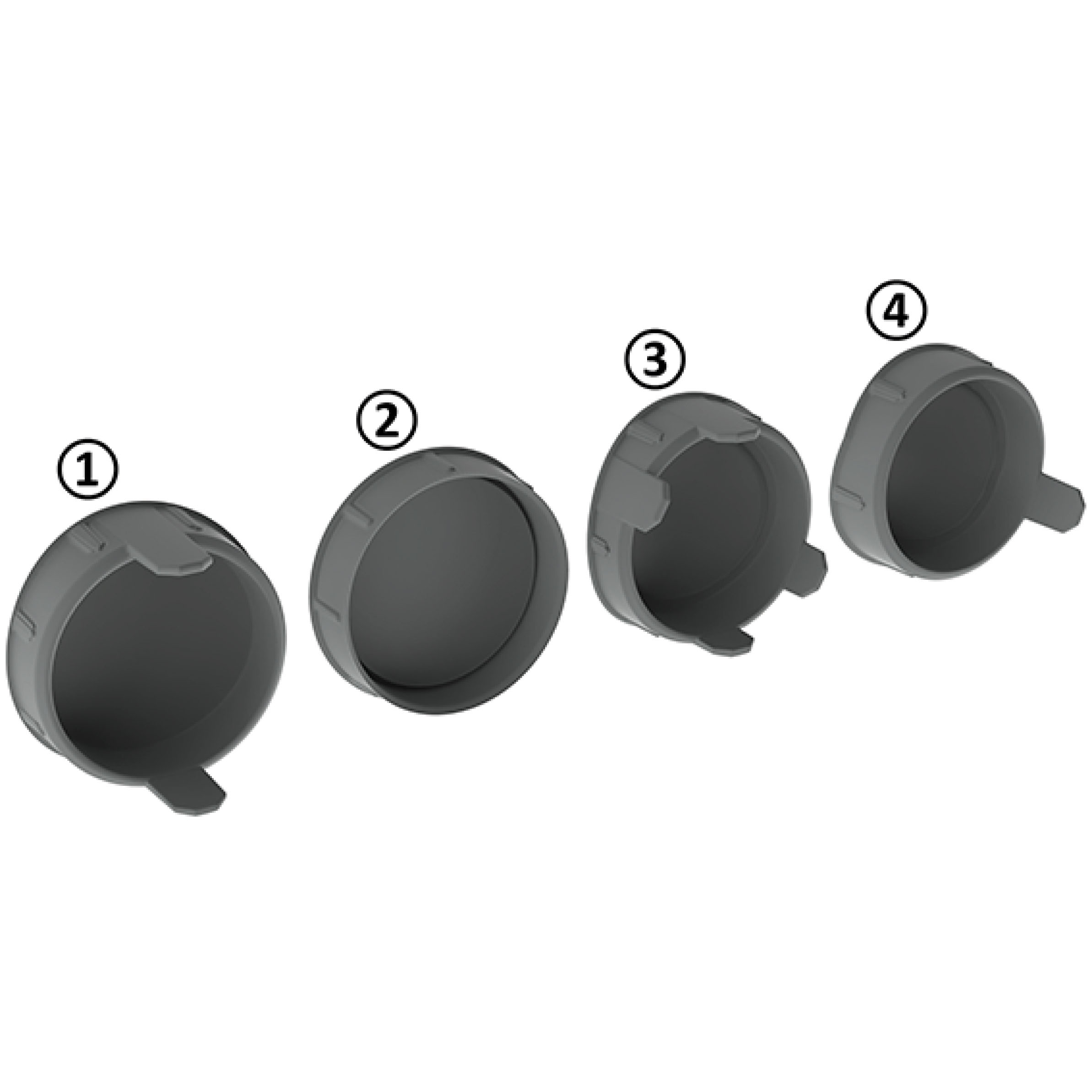

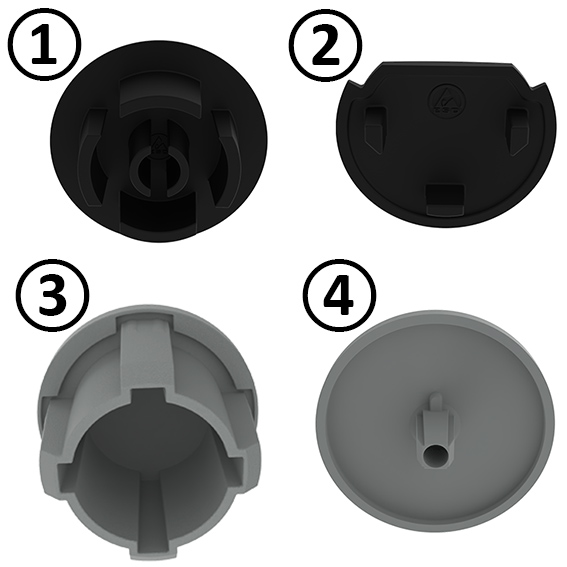

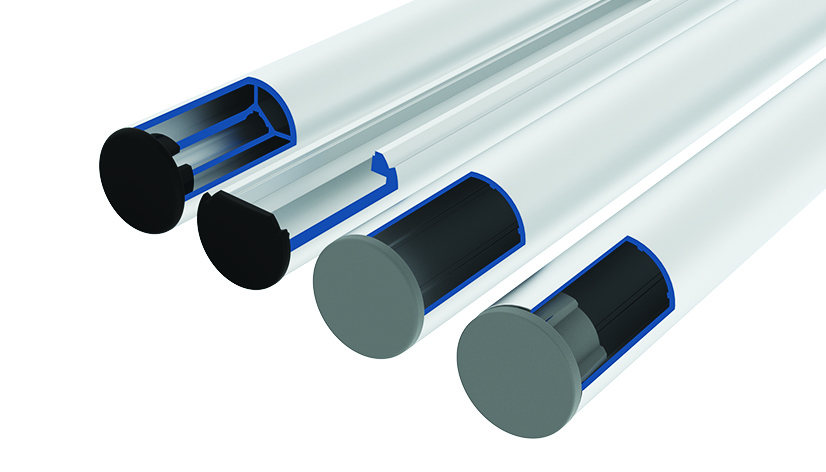

Cover Cap D28 / D30
€0.00*
Color:
Black
|
ESD:
ESD electrostatical discharging
|
Fig.:
②
|
Profile:
B
|
Slot N (mm):
10
|
ØD (mm):
28
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of a tubular frame profile with Ø 28 mm or Ø 30 mm outer diameterMaterial:Plastic PA, glass fiber reinforcedSpecials:Other sizes, other colors on requestZolltarifnummer:39269097900
Cover Cap for Tubular Frame Connectors D30
€0.00*
Fig.:
②
|
Profile:
I
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To cover the screw hole of connectors for tubular frame profiles with Ø 30 mm outer diameterMaterial:Plastic PA, glass fiber reinforcedZolltarifnummer:39269097900

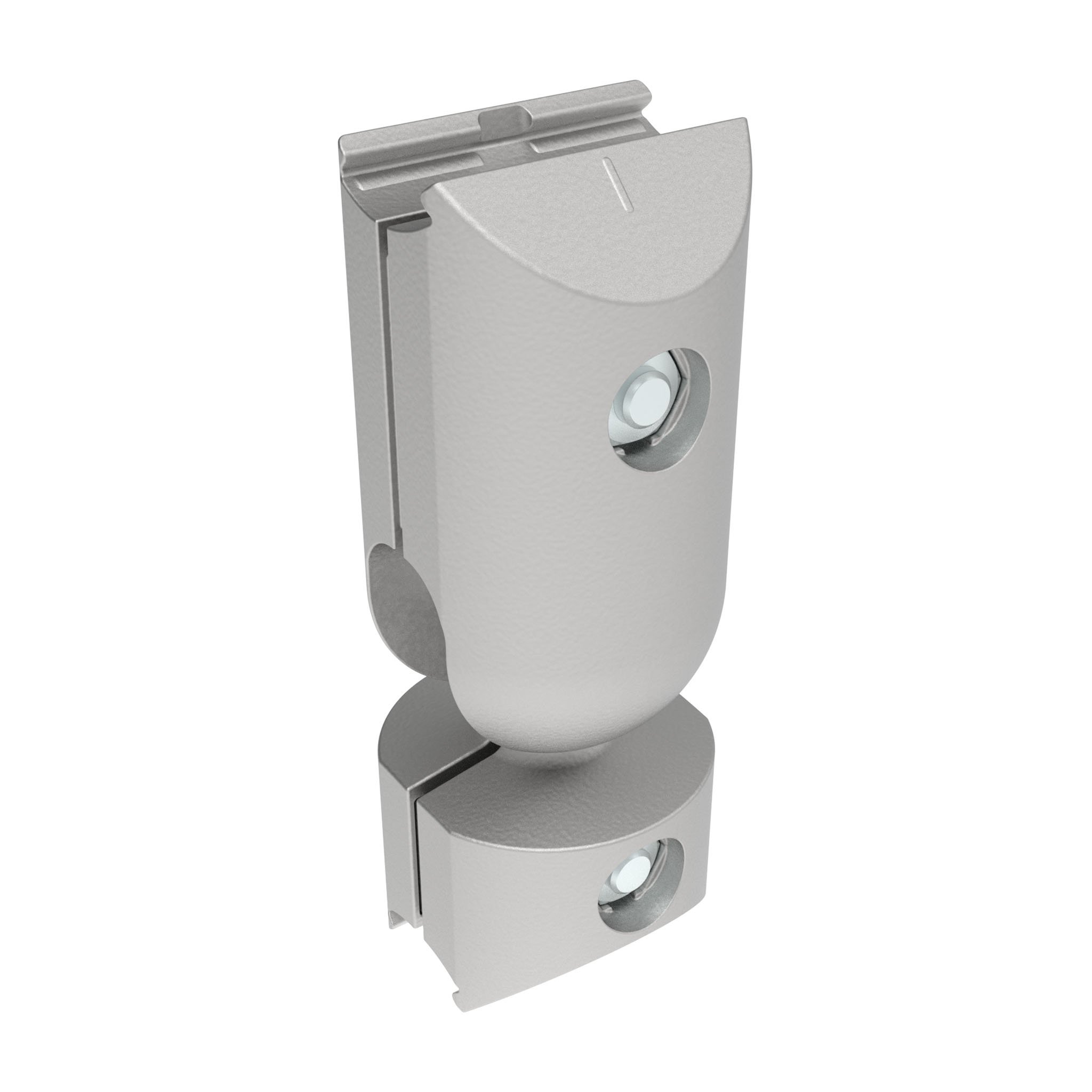

Cross Ball Connector D30 (Set)
€0.00*
ESD:
ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 cross ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Zolltarifnummer:76169910990

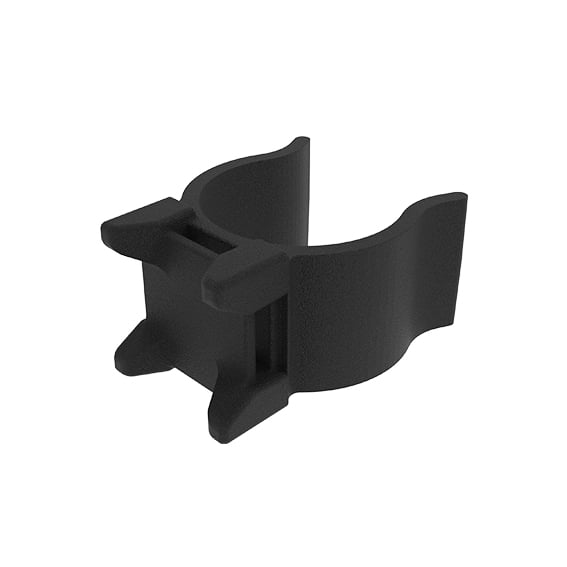

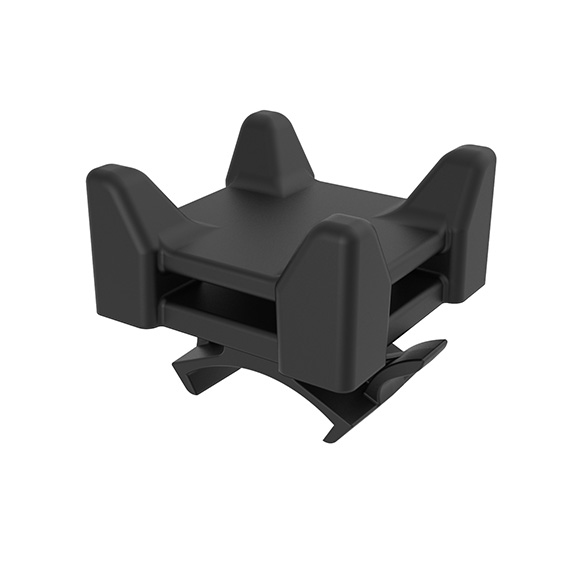

Cross Cable Binder Block D28
€0.00*
Color:BlackDelivery Countries:WorldwideDescription:To fasten cables and tubes parallel to the slot, simple click-in assemblyMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Velcro® strap for Cross Cable Binder Block D28 see 340ME8200KLZolltarifnummer:39269097900
Cross Cable Binder Block D28 Universal
€0.00*
Color:BlackDelivery Countries:WorldwideDescription:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plastic PA, carbon fiber reinforcedZolltarifnummer:39269097900

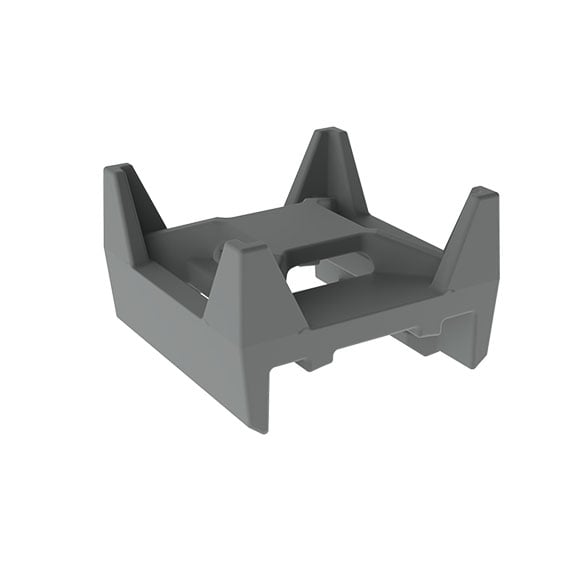

Cross Cable Binder Block D30
€0.00*
Profile:
I
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plastic PPZolltarifnummer:39269097900

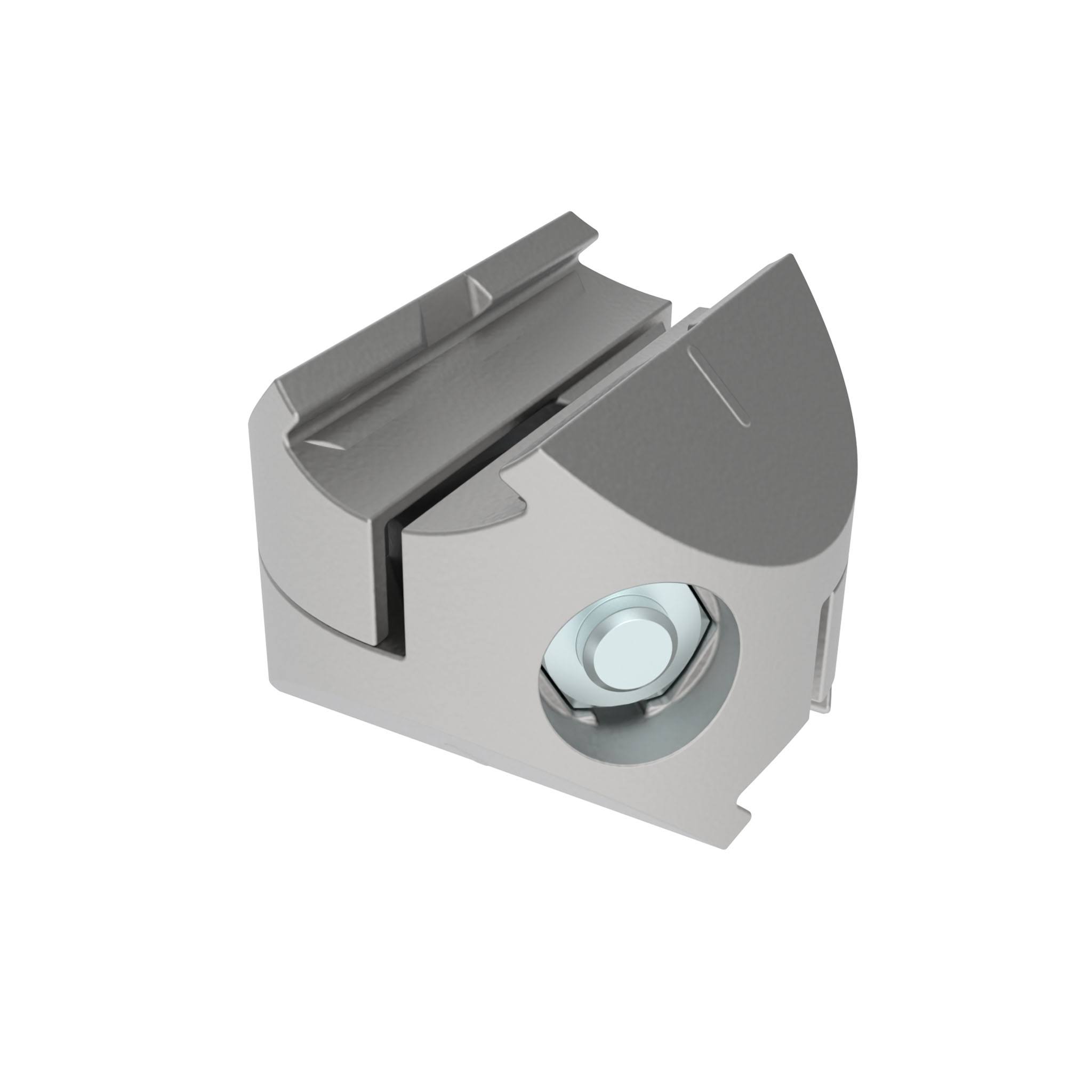

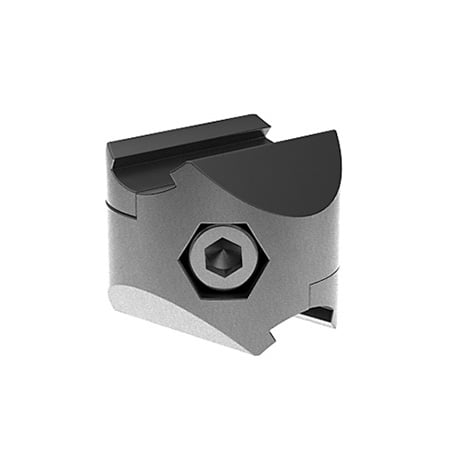

Cross Connector D28 (Set)
€0.00*
ESD:
ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To cross connect two tubular frame profileswith Ø 28 mm outer diameter; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D28, 1 screw ISO 4762 - M6 x 30, 1 self-locking nut ISO 10511 - M6Surface:Connector: Plain Assembly set: Zinc platedZolltarifnummer:76169910990
Cross Connector D30 (Set)
€0.00*
ESD:
ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Zolltarifnummer:76169910990

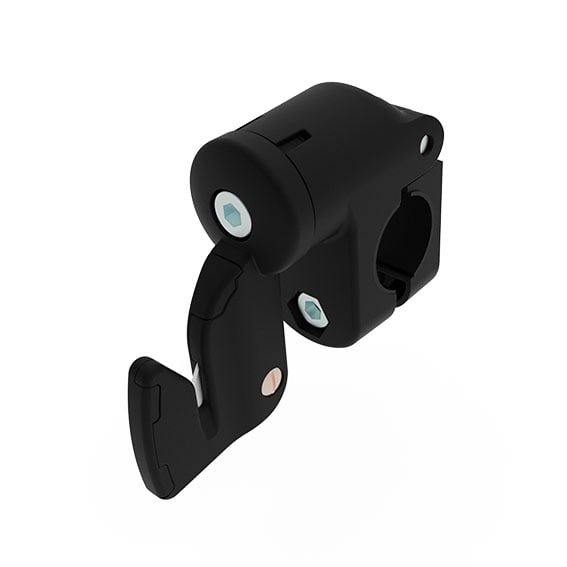

Drill / Driver Holder FX D50 for Tubes D28 / D30
€0.00*
Color:
Black
Color:Holder: Black, grayDelivery Countries:WorldwideDescription:Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc platedZolltarifnummer:39269097900

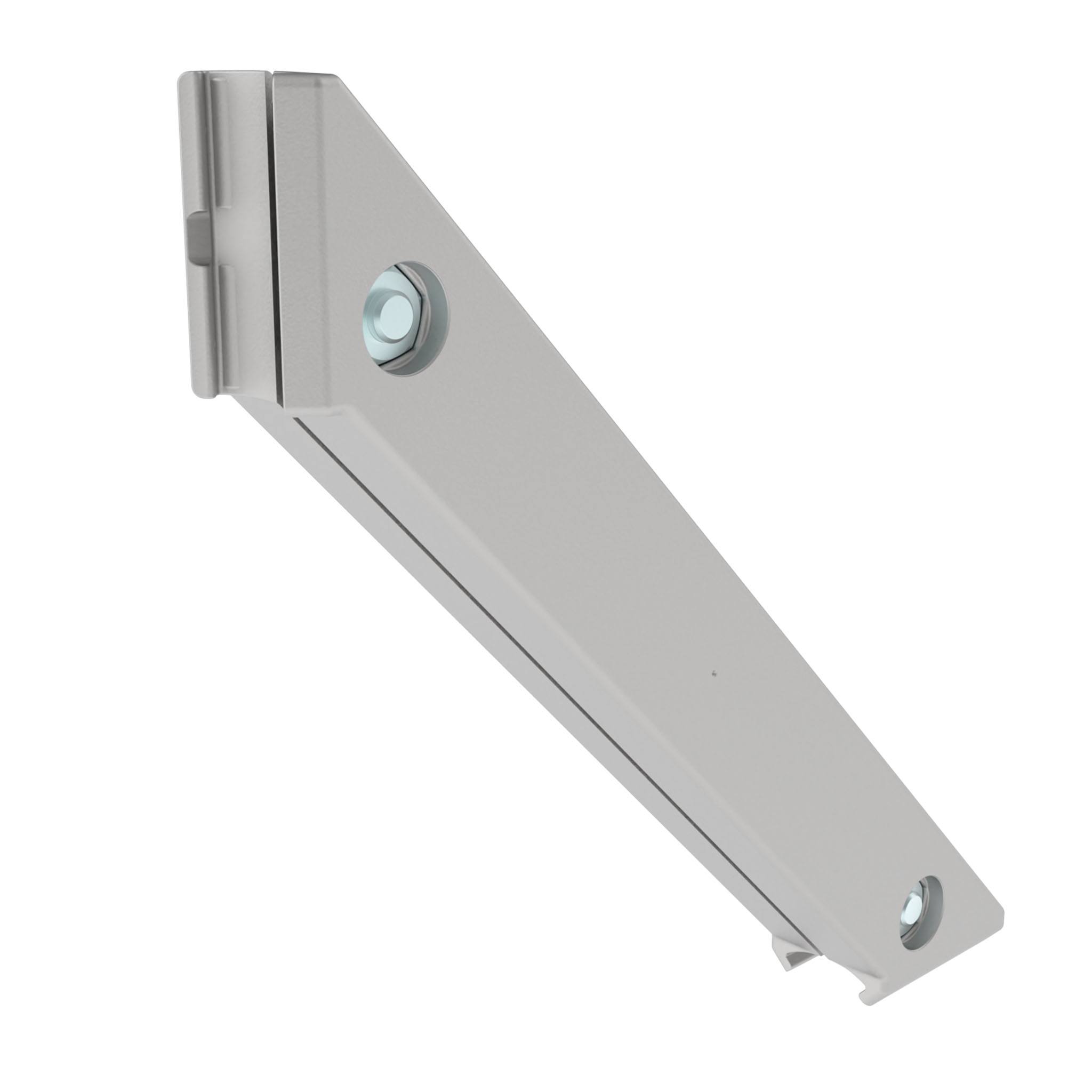

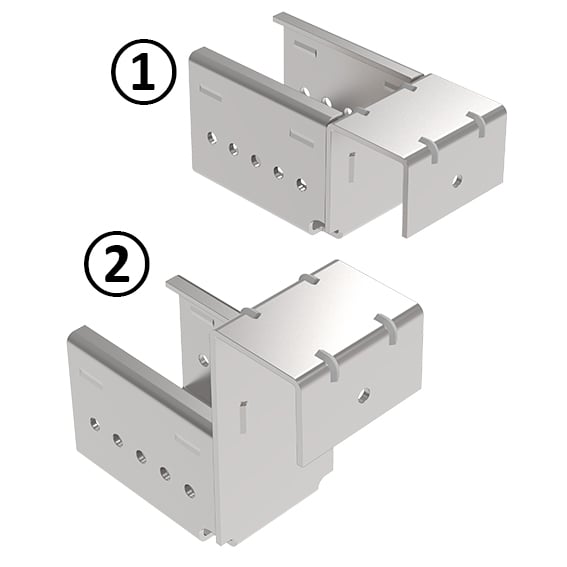

Holding Bracket AL D28
€0.00*
Fig.:
①
|
Version:
Without end stop

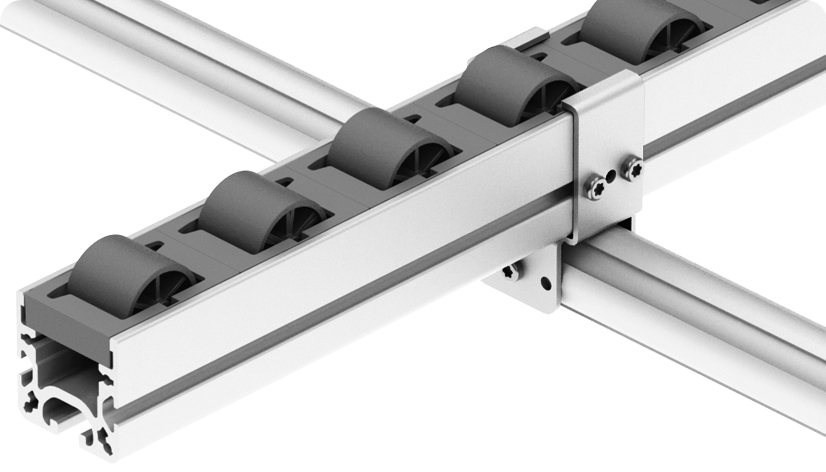

Assembly Set:5 self-drilling screws DIN 7504 Form N - 3.9 x 16Delivery Countries:WorldwideDescription:To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc platedZolltarifnummer:73269098900

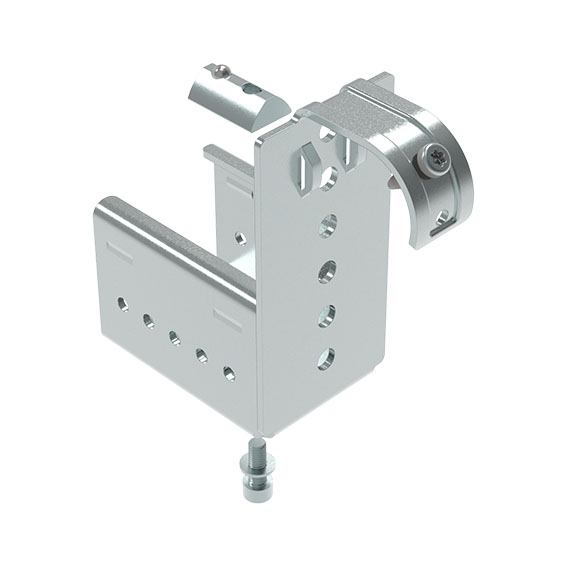

Holding Bracket AL D30
€0.00*
Fig.:
①
|
Version:
With end stop

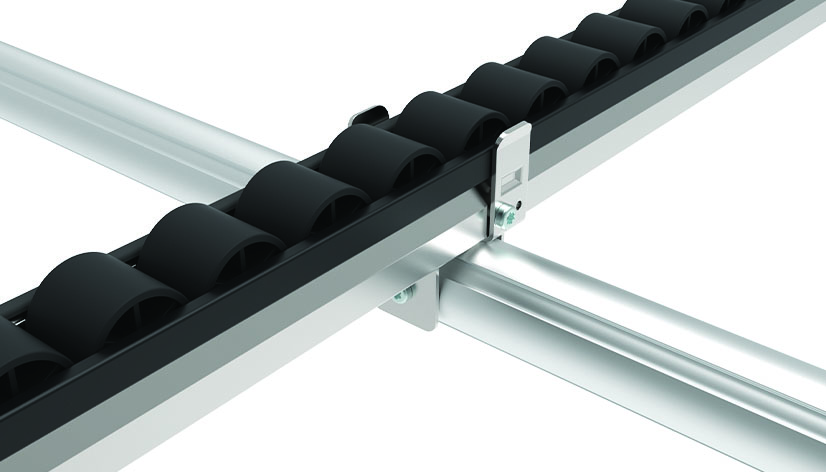

Assembly Set:1 self-drilling screw DIN 7504 Form N - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Delivery Countries:WorldwideDescription:To mount AL roller track profiles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:SteelSurface:Zinc platedZolltarifnummer:73269098900
