Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Zinc die-castSurface:Plain / powder coated
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated
Delivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated
Delivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated
Assembly Set:2 self-forming screws S8 x 25 - hexalobular socket T40 , 1 socket head screw - DIN EN ISO 4762 (DIN 912) - M6 x 12, 1 washer DIN EN ISO 7089 (DIN 125) - Form A, 1 hammer nut M6 - slot 8, 1 socket head screw - DIN EN ISO 4762 (DIN 912) - M8 x 16, 1 hammer nut M8 - slot 10Color:Centering pieces: Black Cover caps: Black / alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Centering pieces: Plastic PA, glass fiber reinforced Cover caps: Plastic PA, glass fiber reinforced Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle connector: Plain / Powder coated Assembly set: Zinc plated

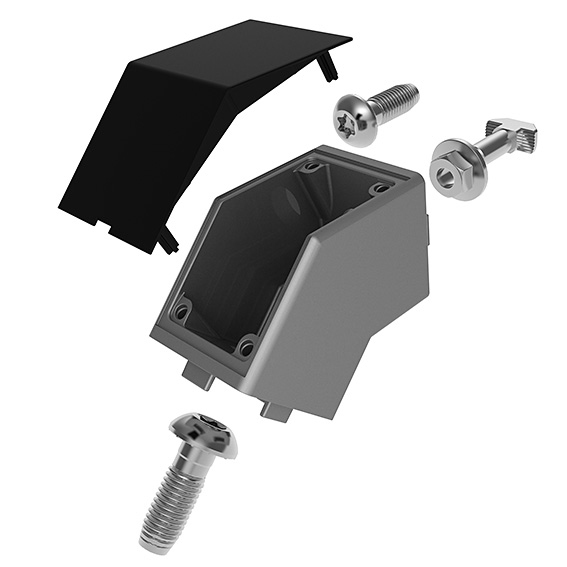

Color:Cover caps: Black / grayDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Assembly set: SteelSet:1 Angle connector, 1 Cover cap, 2 Self-forming screws S12 x 30 - hexalobular socket T50, 1 Hammer head screw M8 x 20 - slot 10, 1 Flange nut M8Surface:Angle connector: Plain / Powder coated Assembly set: Zinc plated
Assembly Set:2 self-forming screws S12 x 30 - hexalobular socket T50, 1 hammer head screw M8 x 20 - slot 10, 1 flange nut M8Color:Cover caps: Black / grayDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle connector: Plain / Powder coated Assembly set: Zinc plated

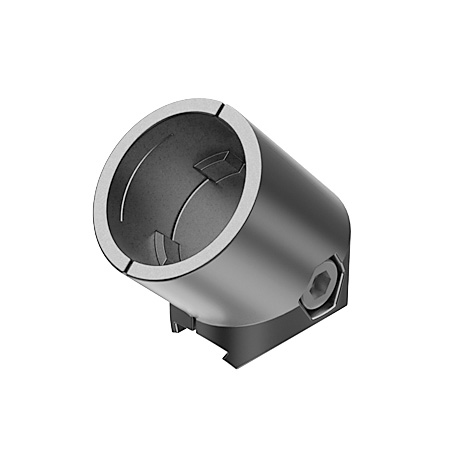

Delivery Countries:WorldwideDescription:To connect two tubular frame profileswith Ø 28 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D28 ,45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

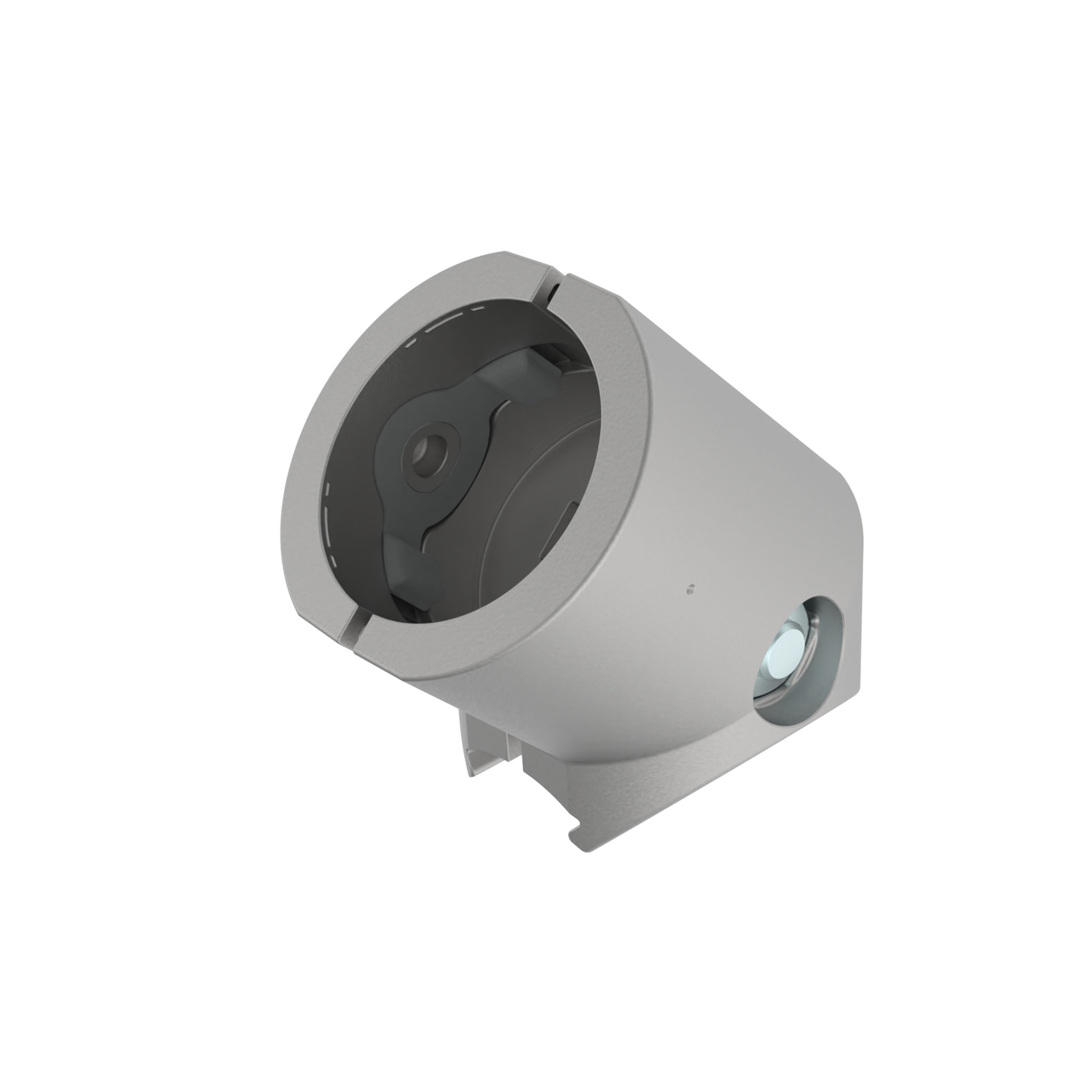

Delivery Countries:WorldwideDescription:To connect two tubular frame profileswith Ø 30 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D30, 45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Color:Angle connector: Alu color Cover cap: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Centering pieces: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforcedSet:1x angle connector, 4x centering pieces, 1x cover capSurface:Angle connector: Powder coated

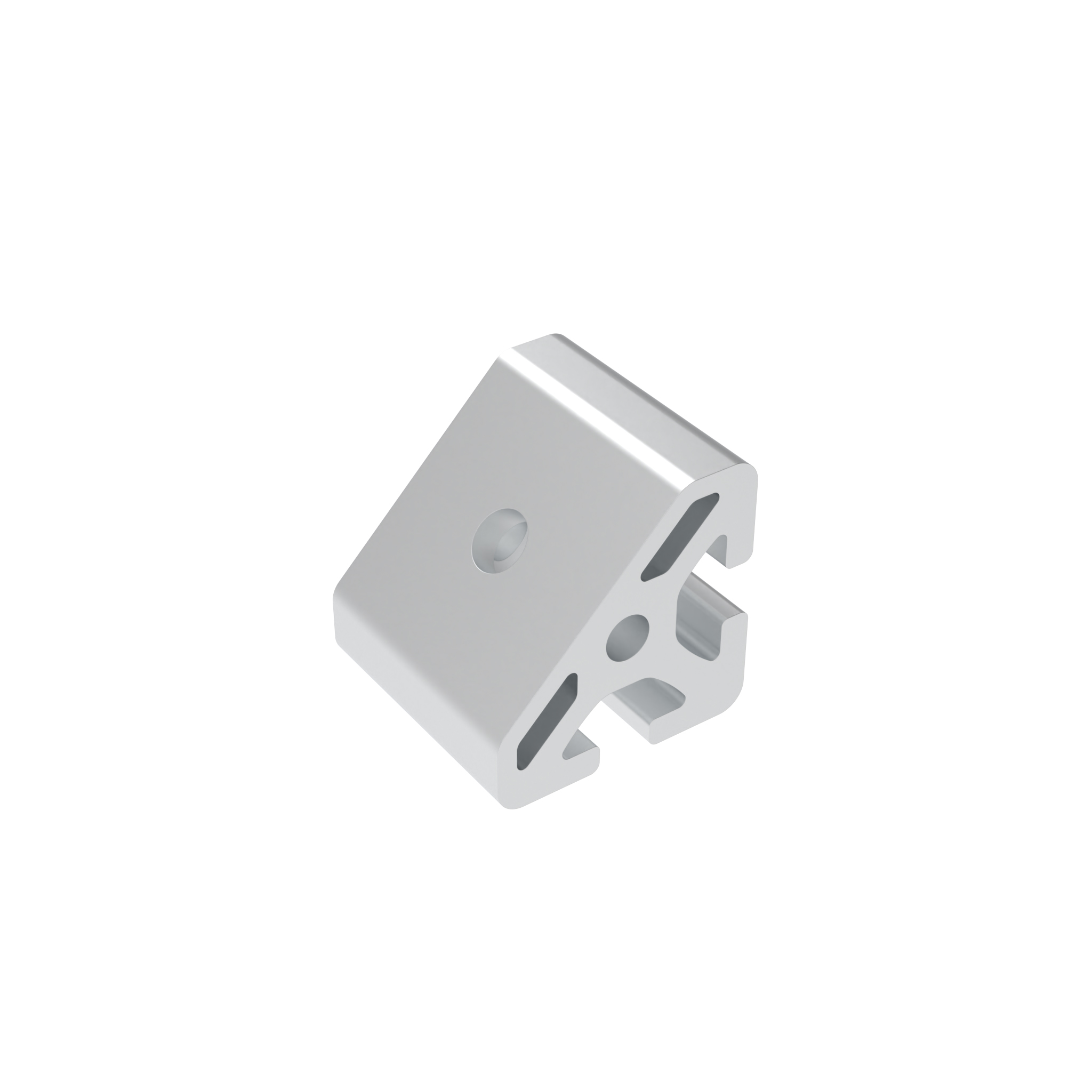

Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:AluminumSurface:AnodizedTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:AluminumSurface:AnodizedTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Color:Alu colorDelivery Countries:WorldwideDescription:To mount two profiles as bracing at a 45° angle without miter cutMaterial:AluminumSurface:AnodizedTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Color:Alu colorDelivery Countries:WorldwideDescription:To mount two profiles as bracing at a 45° angle without miter cutMaterial:AluminumSurface:AnodizedTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)

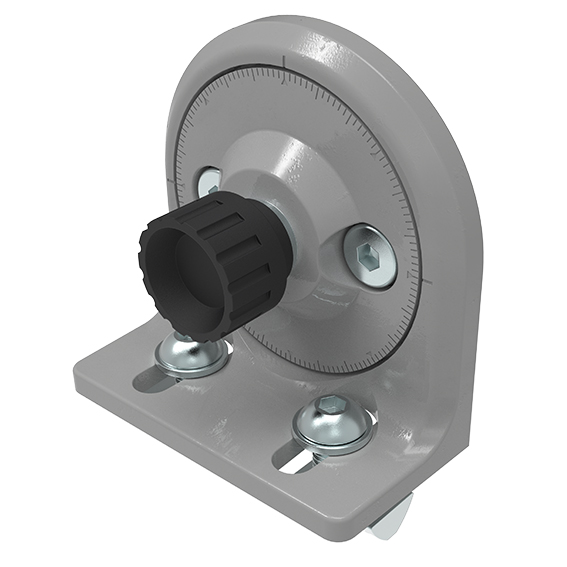

Color:Body: Alu color Knurled screw: BlackDelivery Countries:WorldwideDescription:To connect aluminum profiles at an adjustable angle, can be fixed in 2.5° steps by means of a knurled screwMaterial:Body: Aluminum die-cast Knurled screw: Plastic PA, glass fiber reinforced Assembly material: SteelSet:1 angle locking bracket incl. knurled screw, 2 screws DIN 7984 - M8 x 18, 2 screws DIN EN ISO 7380 (34805) - M8 x 18, 2 shims DIN EN ISO 7089 (DIN 125) - 8.4, 4 T-slot nuts - slot 8 - M8Surface:Body: Powder coated Assembly material: Zinc plated

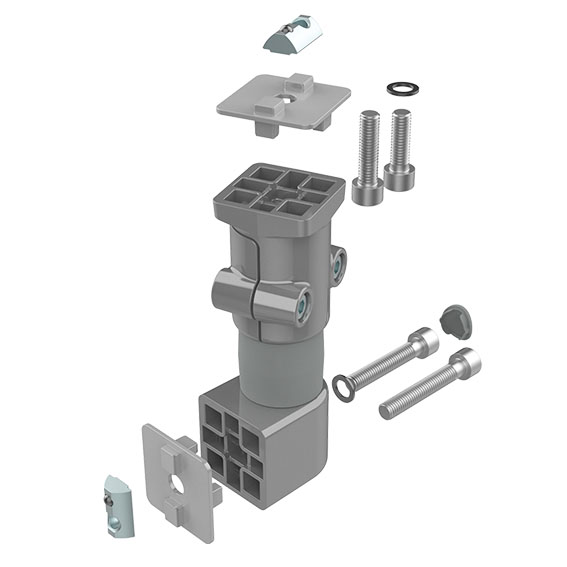

Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 1 cover cap, 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated
Color:Natural / blackDelivery Countries:WorldwideDescription:To easily and fastly secure screwsMaterial:Plastic PASpecials:Other sizes on request
Color:Opaque, blackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Polyurethane, ≈ 70 - 80 Shore ASpecials:Other colors on request
