Anti-slip Plate for ECO Feet

for Base: 40 D (mm): 38 h (mm): 2.5

Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on request

€0.00

Anti-slip Plate for Extended Swivel Feet 60 PA, Ball Joint 15

for Base: 60 D1 (mm): 52.0 D2 (mm): 21.6

€0.00

Anti-slip Plate for Heavy-duty Pivot Feet

for Base: 175 D (mm): 174 d (mm): 17.0

€0.00

Anti-slip Plate for Pivot Feet

Fig.: ① Version: - for Base: 60 D (mm): 49

€0.00

Anti-slip Plate for Swivel Feet, Ball Joint 10

for Base: 25 D (mm): 23.5

€0.00

Anti-slip Plate for Swivel Feet, Ball Joint 15

Version: - for Base: *120 D (mm): 108

€0.00

Anti-slip Plate for Swivel Feet, Ball Joint 22

for Base: 60 D (mm): 50

€0.00

Assembling Set for Duck Feet (Set)

D (mm): 37 H (mm): 16 M: M20 S (mm): 3 Material: Steel SW (mm): 30

Delivery Countries:WorldwideDescription:Assembling Set for Duck FeetMaterial:Steel / stainless steel A2Set:2x hexagon nut DIN EN ISO 4032 (DIN 934) 2x washer DIN EN ISO 7089 (DIN 125)Surface:Zinc plated / plain

€0.00

Assembly Pin for ECO Feet

Delivery Countries:WorldwideDescription:To assemble ECO feetMaterial:Stainless steel SS304Surface:PlainTip:Compatible threaded rod ST for ECO-Feet see 098EM08025M, Compatible threaded rod SS for ECO-Feet see 098EM08025E

€0.00

Assembly set for Heavy-duty Fixed Feet

Assembly Set: 1 Material: Steel

Assembly Set 1:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 16 steel, zinc plated, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 - steel, zinc plated, 1 washer DIN 7349 – 17 - steel, zinc platedAssembly Set 2:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 16 stainless steel, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 - stainless steel, 1 washer DIN 7349 – 17 - stainless steelDelivery Countries:WorldwideDescription:To assemble heavy-duty fixed feetMaterial:Steel / stainless steelSurface:Zinc plated / plainTip:Compatible threaded rod ST for heavy-duty fixed feet see 098KM16100M, Compatible threaded rod SS for heavy-duty fixed feet see 098KM16100E

€0.00

Assembly Set for Heavy-duty Pivot Feet

Assembly Set: 2 Material: Stainless steel

Assembly Set 1:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 30 stainless steel, with polyamide thread locking dot, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 mm steel, zinc plated, 1 shaped washer – steel, zinc platedAssembly Set 2:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 30 stainless steel, with polyamide thread locking dot, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 stainless steel, 1 shaped washer – stainless steelDelivery Countries:WorldwideDescription:To assemble heavy-duty pivot feetMaterial:Steel / stainless steelSurface:Zinc plated / plainTip:Compatible threaded rod ST metric for pivot feet see 098AM12066M, Compatible threaded rod SS metric for pivot feet see 098AM12066E, Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M, Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E

€0.00

Assembly Set for Pivot Feet

Assembly Set: 1 Material: Steel

Assembly Set 1:1 collar screw with shank - M8 x 18 - steel, zinc plated, 1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - steel, zinc plated, 1 bumper washer - rubber EPDMAssembly Set 2:1 collar screw with shank - M8 x 18 - stainless steel, 1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - stainless steel, 1 bumper washer - rubber EPDMDelivery Countries:WorldwideDescription:To assemble pivot feetMaterial:Steel / stainless steel, rubber EPMSurface:Zinc plated / plainTip:Compatible threaded rod ST metric for pivot feet see 098AM12066M, Compatible threaded rod SS metric for pivot feet see 098AM12066E, Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M, Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E

€0.00

Attached Visual Pocket 1/3 DIN A4 Portrait - 8.3" x 3.9"

Fig.: ③ Color: Blue ≈ RAL 5017

Color:Yellow, red, blue, greenDelivery Countries:WorldwideDescription:Strong and durable visible pocket for hanging or inserting, with pre-punched hole pattern for attaching to various load carriers using optional accessories; Tear-resistant and stretchable transparent foil with restoring capacity, scanner-compatibleMaterial:Plastic PVCTip:Compatible SLC Wire Steel Clamp see 02011E01; Compatible U-loop Steel Clamp see 02011E02; Compatible Lattice Box Clip see 02011E03; Compatible Plastic Pin see 02011E04; Compatible Plastic Tie see 02011E05

€0.00

Attached Visual Pocket DIN A4 Portrait - 8.3" x 11.7"

Fig.: ① Color: Yellow ≈ RAL 1018

€0.00

Attached Visual Pocket DIN A5 Landscape - 8.3" x 5.8"

Fig.: ① Color: Yellow ≈ RAL 1018

€0.00

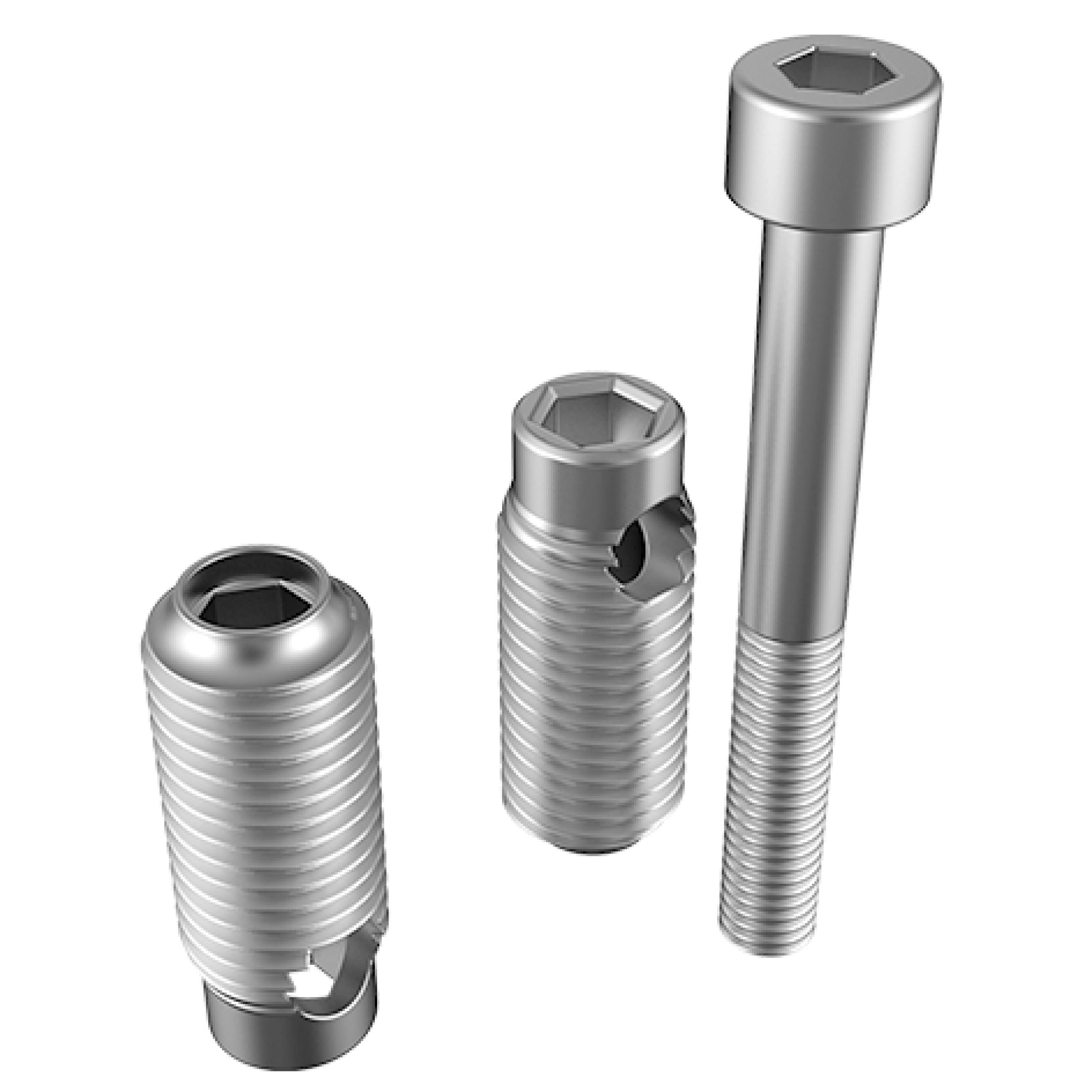

Automatic Butt Connector Stainless Steel

Version: With assembly set, incl. screw andthreaded cutting sleeve ESD: ESD electrostatical discharging D (mm): 10.0 L (mm): 27.0 Screw: M5 x 45 Slot N (mm): 6 SW 1: 4 SW 2: 5 Profile: I Profile Width: 30

Delivery Countries:WorldwideDescription:To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting threadMaterial:Stainless steelSurface:PlainTip:*Compatible Cover Cap see 099GA081K

€0.00

Automatic Butt Connector Steel

Version: With assembly set, incl. screw andthreaded cutting sleeve ESD: ESD electrostatical discharging D (mm): 13.0 L (mm): 35.0 Modular Dimension (mm): 45L Screw: M6 x 60 Slot N (mm): 10 SW 1: 5 SW 2: 6 Profile: B Profile Width: 45

Delivery Countries:WorldwideDescription:To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting threadMaterial:SteelSurface:Zinc platedTip:*Compatible Cover Cap see 099GA081K

€0.00

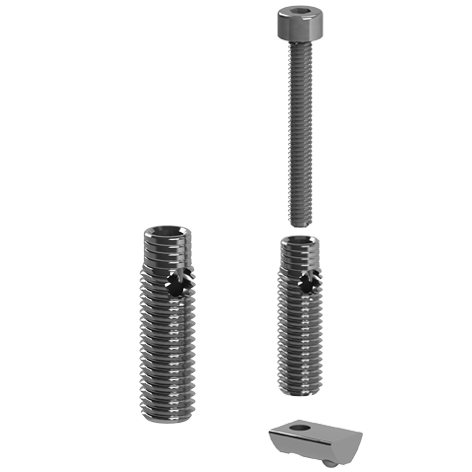

Automatic Connector Stainless Steel

Version: With assembly set, incl. screw and T-slot nut D (mm): 7.0 L (mm): 24.0 Screw: M4 x 30 Slot N (mm): 5 SW 1: 3 SW 2: 4 Profile: I Profile Width: 20

Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:Stainless steelSurface:PlainTip:*Compatible Cover Cap see 099GA081K

€0.00

Automatic Connector Steel

Version: With assembly set, incl. screw and T-slot nut** D (mm): 14.4 L (mm): 35.0 Screw: M6 x 45 Slot N (mm): 8 SW 1: 5 SW 2: - Profile: - Profile Width: 45

Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:SteelSurface:Zinc platedTip:*Compatible Cover Cap see 099GA081KTip 2:** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut

€0.00

Automatic Double Connector I, Slot 8 (Set)

ESD: ESD electrostatical discharging A (mm): 66.4 D (mm): 12.0 L (mm): 31.0 Screw: M6 x 40 Slot N (mm): 8 SW 1: 6 SW 2: 5 Profile: I Profile Width: 80

€0.00

Axle for AL Roller Tracks

ESD: ESD

Delivery Countries:WorldwideDescription:To insert roller R28, roller H26, or roller R9 into the suitable cages for roller tracks ALMaterial:SteelSpecials:Other materials, other surfaces on requestSurface:Zinc platedTip:Compatible Rollers see 062RR2891, 062RH2691, 062RR991; Compatible Cages see 062ACR2891.50, 062ACH2691.50, 062ACR991.50;

€0.00

Backstop Unit AL

ESD: ESD

Color:Cage: BlackDelivery Countries:WorldwideDescription:A preassembled backstop unit for roller track profiles AL, prevents goods from moving backwards onthe AL roller track profileMaterial:Backstop: Steel Axle: Steel Cage: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other surfaces, other colors on requestSurface:Backstop: Zinc plated Axle: Zinc plated

€0.00

Bag Cutter FX for Profiles 40 / 45, Slot 8 / 10

Color: Gray ≈ RAL 7042 ESD: - Slot N (mm): 8 / 10

Color:Bag cutter: Black, gray Centering piece: BlackDelivery Countries:WorldwideDescription:Ready to use bag cutter, changeable blade, 360° turnable, for aluminum profiles To organize work stationsMaterial:Bag cutter standard version: Plastic PA, glass ball reinforced Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fiber reinforcedSpecials:Other colors on requestSurface:Counter sunk screw: Nickel plated Sleeve nut: Nickel plated Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TM8D283F91ESDS01Tip 2:Compatible Trapezoidal Blade for Bag Cutter FX see 061TF91S01

€0.00

Bag Cutter FX for Square Holes 9 x 9 (8.7 x 8.7)

Color: Black ESD: ESD electrostatical discharging

Color:Holder: Black Bag cutter: BlackDelivery Countries:WorldwideDescription:Ready to use bag cutter, changeable blade, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NF91S01 For round tubes D28 / D30 see 6TM8D283F91ESDS01

€0.00
