Aluminum Die-cast Combi Hinge 30, Detachable, Alu Color

Version: R: Right Combination: 30 / 30 FAmax (N): 280 FRmax (N): 450 A1 (mm): 17.5 A2 (mm): 17.5 B1 (mm): 29.5 B2 (mm): 29.5

Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinFastening:From the front, using M6 countersunk screwsMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05

€0.00

Aluminum Die-cast Combi Hinge 30, Non-detachable, Alu Color

Version: Non-detachable Combination: 30 / 50 FAmax (N): 250 FRmax (N): 400 A1 (mm): 17.5 A2 (mm): 27.5 B1 (mm): 29.5 B2 (mm): 48.5

€0.00

Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color

Version: L: Left Combination: 35 / 35 FAmax (N): 250 FRmax (N): - A1 (mm): 20.0 A2 (mm): 20.0 B1 (mm): 36.0 B2 (mm): 36.0

€0.00

Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color

Version: Non-detachable Combination: 35 / 40 FAmax (N): 250 FRmax (N): 400 A1 (mm): 20.0 A2 (mm): 22.5 B1 (mm): 36.0 B2 (mm): 38.5

€0.00

Aluminum Die-cast Combi Hinge 38 - 1.5", Non-detachable, Alu Color

Combination: 38 - 1.5" / 38 - 1.5" FAmax (N): 250 FRmax (N): 400 A1 (mm): 21.5 A2 (mm): 21.5 B1 (mm): 38.5 B2 (mm): 38.5

Color:Wing: Alu colorDelivery Countries:North AmericaDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinFastening:From the front, using M6 countersunk screwsMaterial:Wings: Aluminum die-cast Pin: Stainless steelSurface:Wings: Powder coated Pin: Plain

€0.00

Aluminum Die-cast Combi Hinge 40, Detachable, Alu Color

Version: R: Right Combination: 40 / 25 FAmax (N): 250 FRmax (N): 410 A1 (mm): 15.0 A2 (mm): 22.5 B1 (mm): 26.0 B2 (mm): 38.5

€0.00

Aluminum Die-cast Combi Hinge 40, Non-detachable, Alu Color

Version: Non-detachable Combination: 40 / 60 FAmax (N): - FRmax (N): 400 A1 (mm): 22.5 A2 (mm): 32.5 B1 (mm): 38.5 B2 (mm): 57.5

€0.00

Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color

Version: L: Left Combination: 45 / 30 FAmax (N): 280 FRmax (N): 450 A1 (mm): 25.0 A2 (mm): 17.5 B1 (mm): 43.5 B2 (mm): 29.5

€0.00

Aluminum Die-cast Combi Hinge 45, Non-detachable, Alu Color

Version: Non-detachable Combination: 45 / 50 FAmax (N): 250 FRmax (N): 400 A1 (mm): 25.0 A2 (mm): 27.5 B1 (mm): 43.5 B2 (mm): 48.5

€0.00

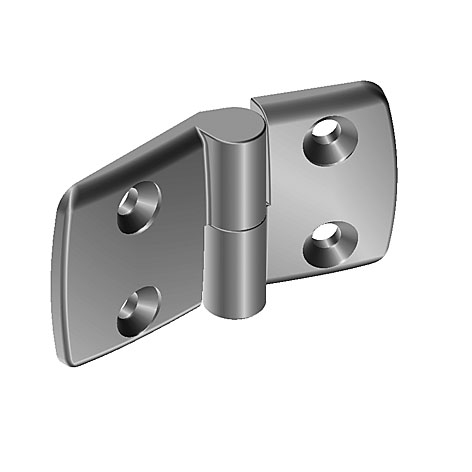

Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color

Version: L: Left Combination: 50 / 30 FAmax (N): 280 FRmax (N): 450 A1 (mm): 27.5 A2 (mm): 17.5 B1 (mm): 48.5 B2 (mm): 29.5

€0.00

Aluminum Die-cast Combi Hinge 50, Non-detachable, Alu Color

Version: Non-detachable Combination: 50 / 50 FAmax (N): 250 FRmax (N): 400 A1 (mm): 27.5 A2 (mm): 27.5 B1 (mm): 48.5 B2 (mm): 48.5

€0.00

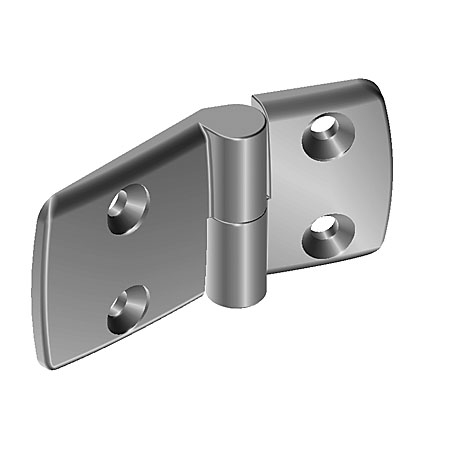

Aluminum Die-cast Combi Hinge 60, Detachable, Alu Color

Version: R: Right Combination: 60 / 45 FAmax (N): - FRmax (N): 550 A1 (mm): 25.0 A2 (mm): 32.5 B1 (mm): 43.5 B2 (mm): 57.5

€0.00

Aluminum Die-cast Combi Hinge 60, Non-detachable, Alu Color

Version: Non-detachable Combination: 60 / 60 FRmax (N): 400 A1 (mm): 32.5 A2 (mm): 32.5 B1 (mm): 57.5 B2 (mm): 57.5

€0.00

Aluminum Die-cast Hinge 45

FRmax (N): 350 A1 (mm): 25.0 A2 (mm): 25.0 B1 (mm): 40.0 B2 (mm): 40.0

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Aluminum die-cast Pin: Stainless steelSpecials:Other surfaces, other colors on requestSurface:Nickel-plated

€0.00

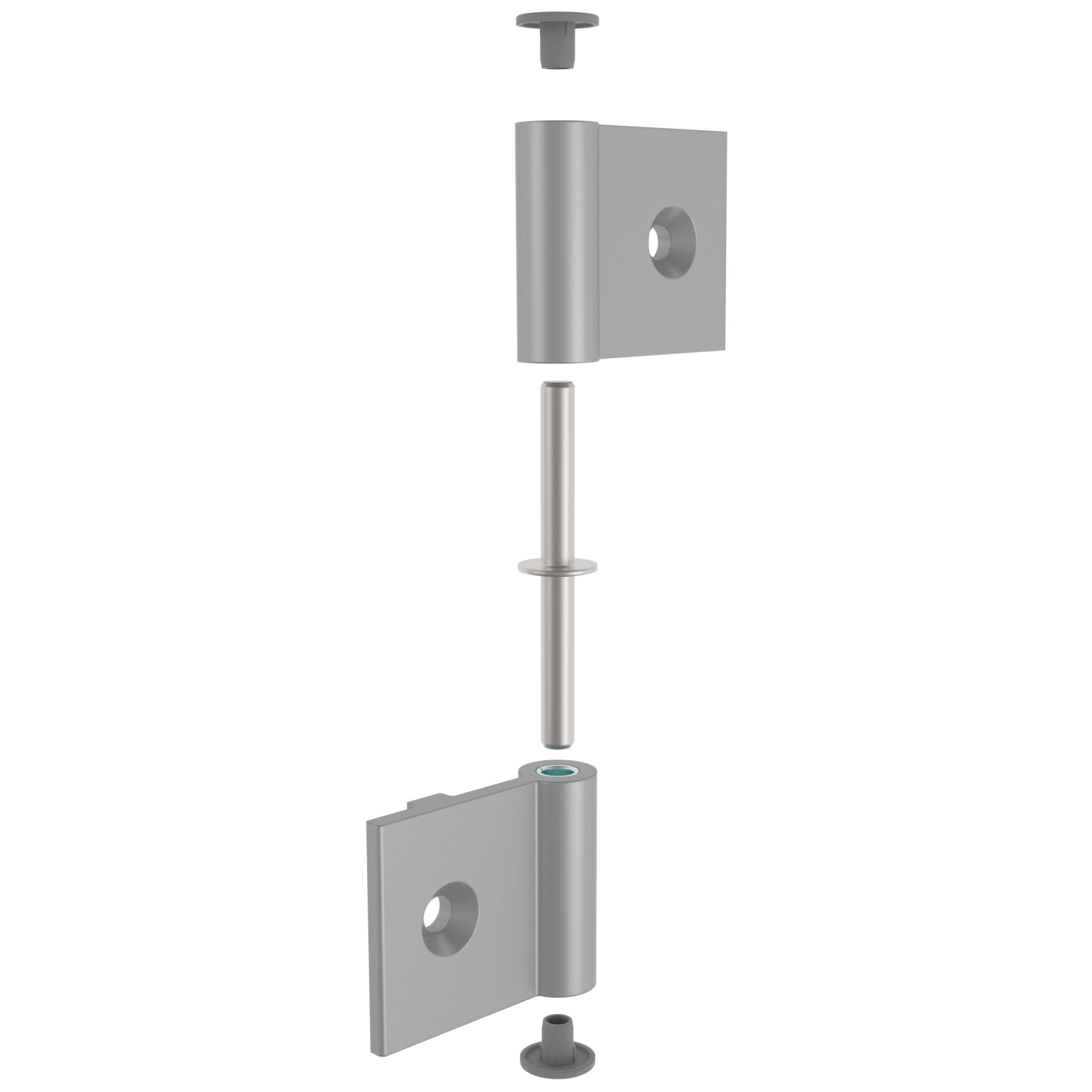

Aluminum Hinge 40 Light

Version: incl. assembly set A1 (mm): 43.0 A2 (mm): 43.0 B1 (mm): 27.5 B2 (mm): 27.5 Slot N (mm): 8 Profile: I

Assembly Set:2 countersunk screws DIN EN ISO 10642 (DIN 7991) - M6 x 14, 2 self-aligning T-Slot nuts M6 - slot 8Color:Holder: Black Reflector: Transparent (colorless)Delivery Countries:WorldwideDescription:For panels and aluminum profiles; left or right side assemblyFastening:From the front, using M6 countersunk screwsMaterial:Wings: Aluminum Bolt: Stainless steel Cover cap: Plastic TPESurface:Wings: Anodized Bolt: Plain

€0.00

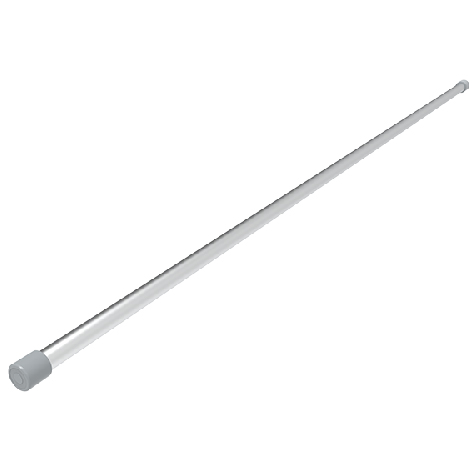

Aluminum Tube (Set)

Color:Cover caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To hang up message frames with pipe clamps, several message frames can be attached next to another Helpful visualization even in greater hightsMaterial:Tube: Aluminum Cover caps: Plastic TPESet:1 aluminum tube 2 cover capsSurface:Tube: AnodizedTip:Compatible Tube Clamp see 02042PC Compatible Knotted Chain 02042KC

€0.00

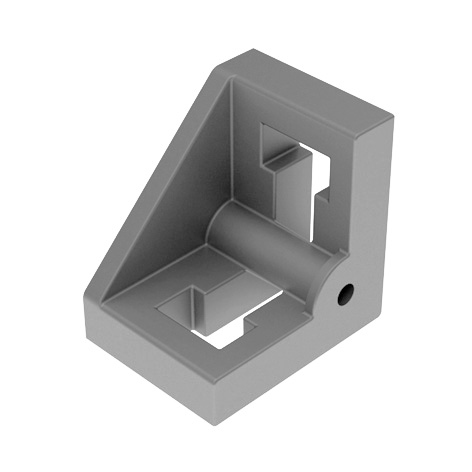

Angle Block 40/45

Dimensions (mm): M5 Set: incl. assembly set Slot N (mm): 10 Profile: B

Assembly Set:2 hammer screws M8 x 25, 2 flange nuts M8Delivery Countries:WorldwideDescription:To attach panels to aluminum profiles; especially for high load bearing on the panelsMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain

€0.00

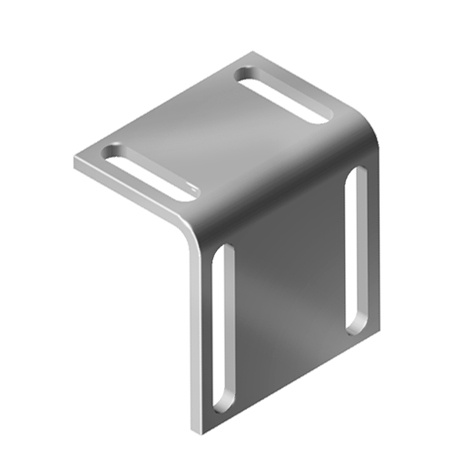

Angle Bracket for Ball Catch 30

Dimensions (mm): 50 x 50 x 35

Delivery Countries:WorldwideDescription:To position the ball catchMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

€0.00

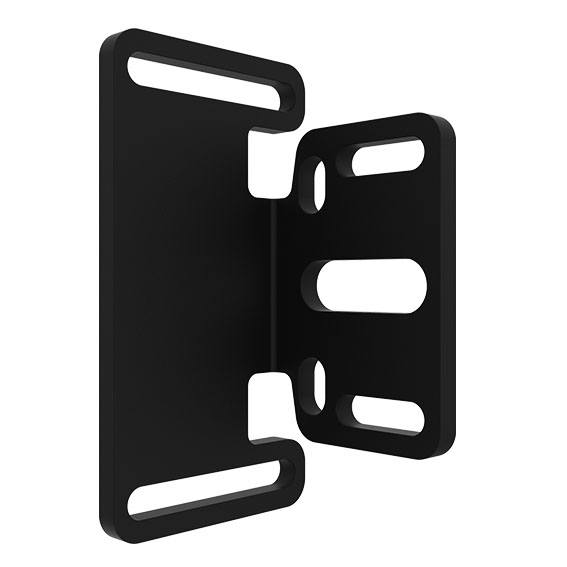

Angle Bracket for Ball Catch 30 / Safety Switch AZ 16

Profile: I

Color:BlackDelivery Countries:WorldwideDescription:To flexibly position the housing or ball pin of the ball catch 30 or a safety switch Schmersal AZ 16Material:SteelSpecials:Other sizes, other surfaces on requestSurface:Powder coatedTip:Compatible Ball Catch 093043, 093043S02, 093045, 093045S03

€0.00

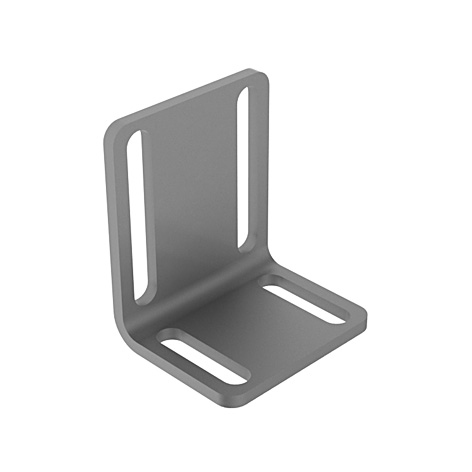

Angle Bracket for Magnetic Catch 30

Delivery Countries:WorldwideDescription:To versatile position the magnetic catch 30 Material:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

€0.00

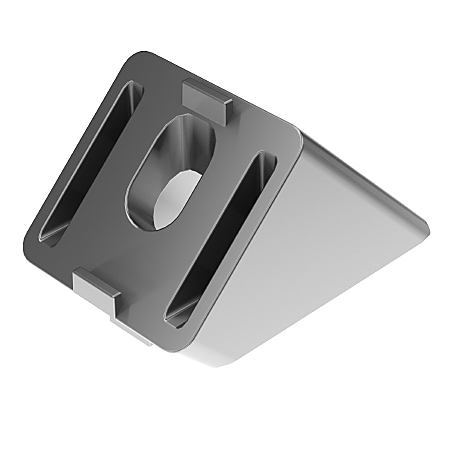

Angle Connector 20, 45°

Color: Alu color for Screw: M5 Slot N (mm): 5 Surface: Powder coated

Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated

€0.00

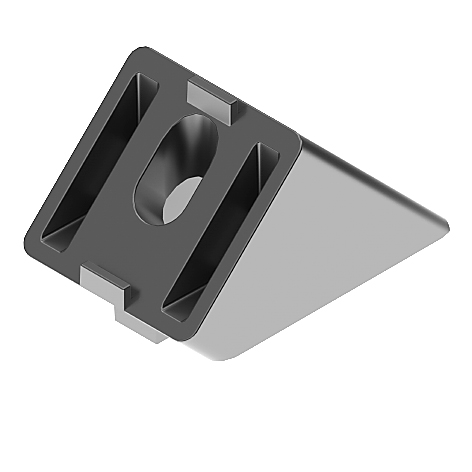

Angle Connector 25 - 1", 45°

Color: Alu color for Screw: 1/4"-20 Slot N (mm): 6.5 (0.256“) Surface: Powder coated

€0.00

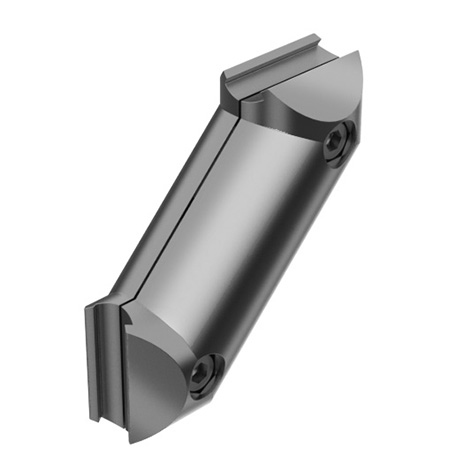

Angle Connector 2D28 (Set)

ESD: ESD electrostatical discharging

Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00

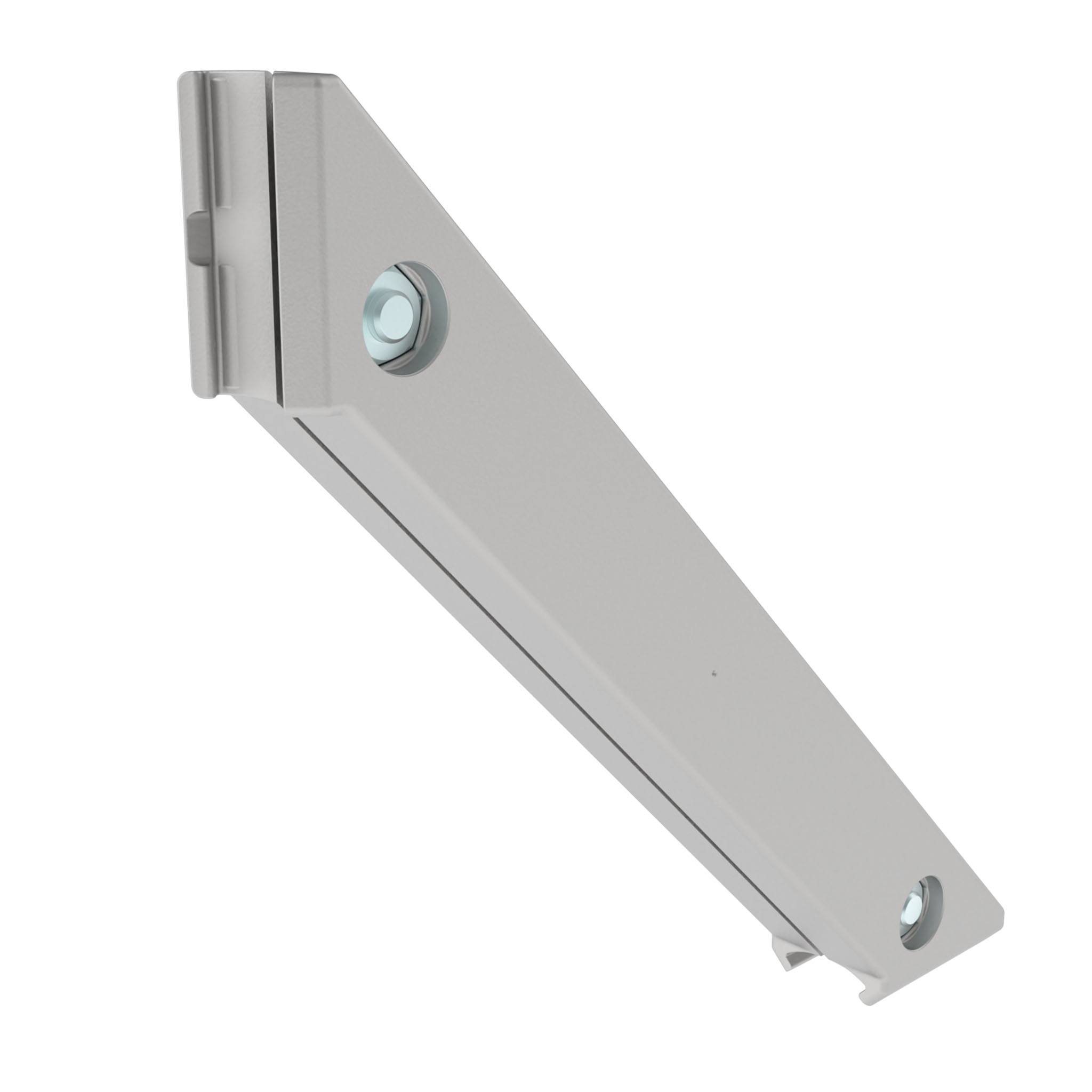

Angle Connector 2D30 (Set)

ESD: ESD electrostatical discharging Profile: I

Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angle; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 14, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07

€0.00
