Alu Connection Angle 20

Version: - Color: - B (mm): 5.3 Slot N (mm): 5 Surface: Plain Profile: -

Assembly Set 1:2 hammer nuts - slot 6 - M4, 2 screws DIN 7984 - M4 x 8Assembly Set 2:4 hammer nuts - slot 6 - M4, 4 screws DIN EN ISO 7380-1 (DIN 34805-1) - M4 x 8Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA203

€0.00

Alu Connection Angle 20 x 40

Version: - Color: - Slot N (mm): 5 Surface: Plain Profile: -

Assembly Set:4 hammer nuts - slot 6 - M4, 4 screws DIN EN ISO 7380-1 (DIN 34805-1) - M4 x 8Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA202

€0.00

Alu Connection Angle 30

Version: - Color: - Slot N (mm): 6 Surface: Plain Profile: -

Assembly Set 1:2 hammer nuts - slot 8 - M6, 2 screws DIN 7984 - M6 x 14 Assembly Set 2:1 hammer nut - slot 8 - M6, 1 screw DIN 7984 - M6 x 14, 1 hammer nut - slot 10 - M6, 1 screw DIN 7984 - M6 x 18Assembly Set 3:2 hammer nuts - slot 10 - M6, 2 screws DIN 7984 - M6 x 18Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA303S02

€0.00

Alu Connection Angle 30 x 60

Version: - Color: - Slot N (mm): 8 Surface: Plain Profile: -

Assembly Set:4 hammer nuts - slot 8 - M6, 4 screws DIN 7984 - M6 x 14Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA302

€0.00

Alu Connection Angle 40

Version: - Color: Alu color Slot N (mm): 10 Surface: Powder coated Profile: -

Assembly Set:2 hammer head screws - slot 10 - M8 x 20, 2 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA404

€0.00

Alu Connection Angle 40 x 80

Version: incl. assembly set Color: - Slot N (mm): 10 Surface: Plain Profile: B

Assembly Set:4 hammer head screws - slot 10 - M8 x 25, 4 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA403

€0.00

Alu Connection Angle 40 x 80 x 160 (Set)

Slot N (mm): 8 Profile: I

Color:Angle: Alu color Cover cap: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSet:1 angle, 1 cover cap - plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 screws DIN EN ISO 7380 (DIN 34805) - M8 x 16 4 square washersSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Screws and T-nuts: Zinc plated

€0.00

Alu Connection Angle 43 x 42

Version: - Slot N (mm): 10 Profile: -

Assembly Set:2 hammer head screws - slot 10 - M8 x 25, 2 flange nuts M8Delivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Angle: Plain Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA422

€0.00

Alu Connection Angle 45

Version: incl. assembly set Color: - Slot N (mm): 10 Surface: Plain Profile: B

Assembly Set:2 hammer head screws - slot 10 - M8 x 25, 2 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Flat Cover Cap see 093WA421S02

€0.00

Alu Connection Angle 45 T

Version: - Slot N (mm): 10 Profile: -

Assembly Set:2 hammer head screws - slot 10 - M8 x 25, 2 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain Assembly set: Zinc platedTip:Compatible Flat Cover Cap see 093WA421S02

€0.00

Alu Connection Angle 45 x 90

Version: - Color: - Slot N (mm): - Surface: Plain Profile: -

Assembly Set:4 hammer head screws - M8 x 25, 4 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA451

€0.00

Alu Connection Angle 60

Version: - Color: - Slot N (mm): 8 Surface: Plain Profile: -

Assembly Set 1:8 hammer nuts - slot 8 - M6, 8 screws DIN 7984 - M6 x 14Assembly Set 2:4 hammer nuts - slot 8 - M6, 4 screws DIN 7984 - M6 x 14, 1 hammer screw - slot 10 - M8 x 20, 1 flange nut - M8, 2 plastic adapers - slot 8 to slot 10Assembly Set 3:2 hammer head screws - M8 x 20, 2 flange nuts - M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA603

€0.00

Alu Connection Angle 80

Version: - Color: - Slot N (mm): 10 Surface: Plain Profile: -

Assembly Set:8 hammer head screws - slot 10 - M8 x 25, 8 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA806

€0.00

Alu Connection Angle 90

Version: - Color: - Slot N (mm): 10 Surface: Plain Profile: -

Assembly Set:8 hammer head screws - M8 x 25, 8 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA901

€0.00

Alu Connection Angle B45 M Length/Cross (Set)

Slot N (mm): 10 Profile: B

Color:Angle: Alu color Cover cap: Gray≈ RAL 7004 Ring: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated

€0.00

Alu Connection Angle I40 M (Set)

Slot N (mm): 8 Profile: I

Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA406

€0.00

Alu Connection Angle I40 M Length/Cross (Set)

Slot N (mm): 8 Profile: I

Color:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated

€0.00

Alu Connection Angle I40 x 80 M (Set)

Slot N (mm): 8 Profile: I

€0.00

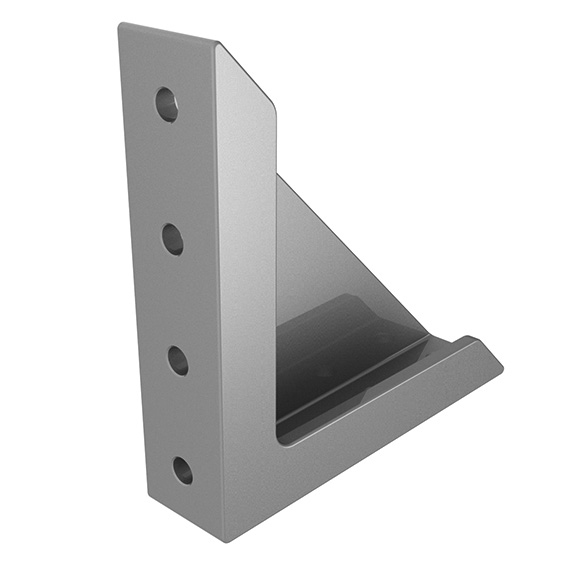

Alu Support Bracket 40 x 160

B (mm): 40 L (mm): 160 Slot N (mm): 8 Profile: I

Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles or to securely fix aluminum profiles to the floorMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Powder coatedTip:Compatible Fixation T-Slot Nut (Set) for Support Bracket 160 see 096000S83

€0.00

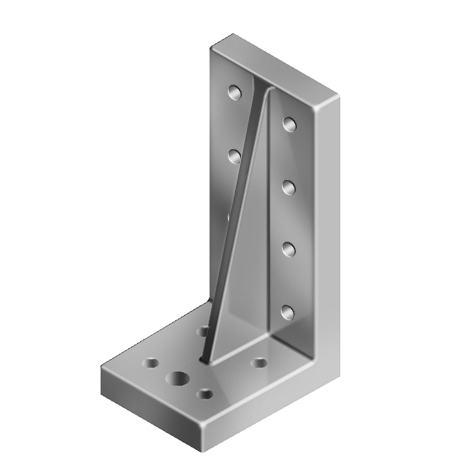

Alu Support Bracket 80 x 100 x 180

Color: Alu color Surface: Powder coated

Color:- / alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles or to securely fix aluminum profiles to the floorMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated

€0.00

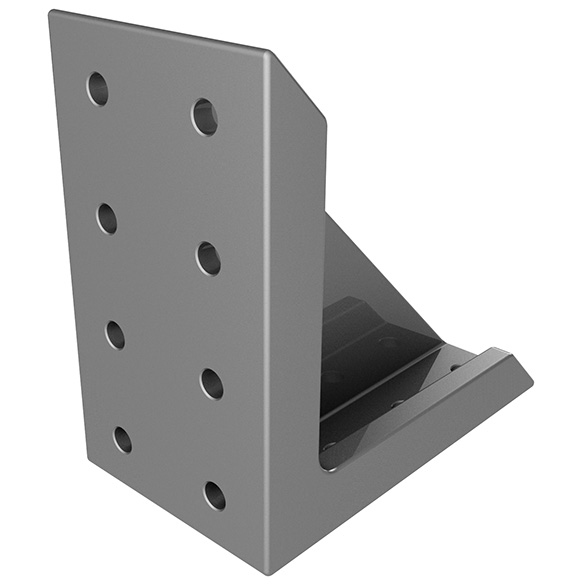

Alu Support Bracket 80 x 160

B (mm): 80 L (mm): 160

€0.00

Aluminum Die-Cast Combi Hinge 20 MINI, Non-detachable, Alu color

Version: Non-detachable Combination: 20 / 20 FAmax (N): 215 FRmax (N): 275

Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M4 countersunk screwsMaterial:Wings: Aluminum die-cast Pin: Stainless steelSurface:Wings: Powder coated Pin: Plain

€0.00

Aluminum Die-cast Combi Hinge 25, Detachable, Alu Color

Version: R: Right Combination: 25 / 25 FAmax (N): 250 FRmax (N): 410 A1 (mm): 15.0 A2 (mm): 15.0 B1 (mm): 26.0 B2 (mm): 26.0

Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinFastening:From the front, using M6 countersunk screwsMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05

€0.00

Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color

Version: Non-detachable Combination: 25 / 30 FAmax (N): 225 FRmax (N): 325 A1 (mm): 15.0 A2 (mm): 17.5 B1 (mm): 26.0 B2 (mm): 29.5

€0.00
