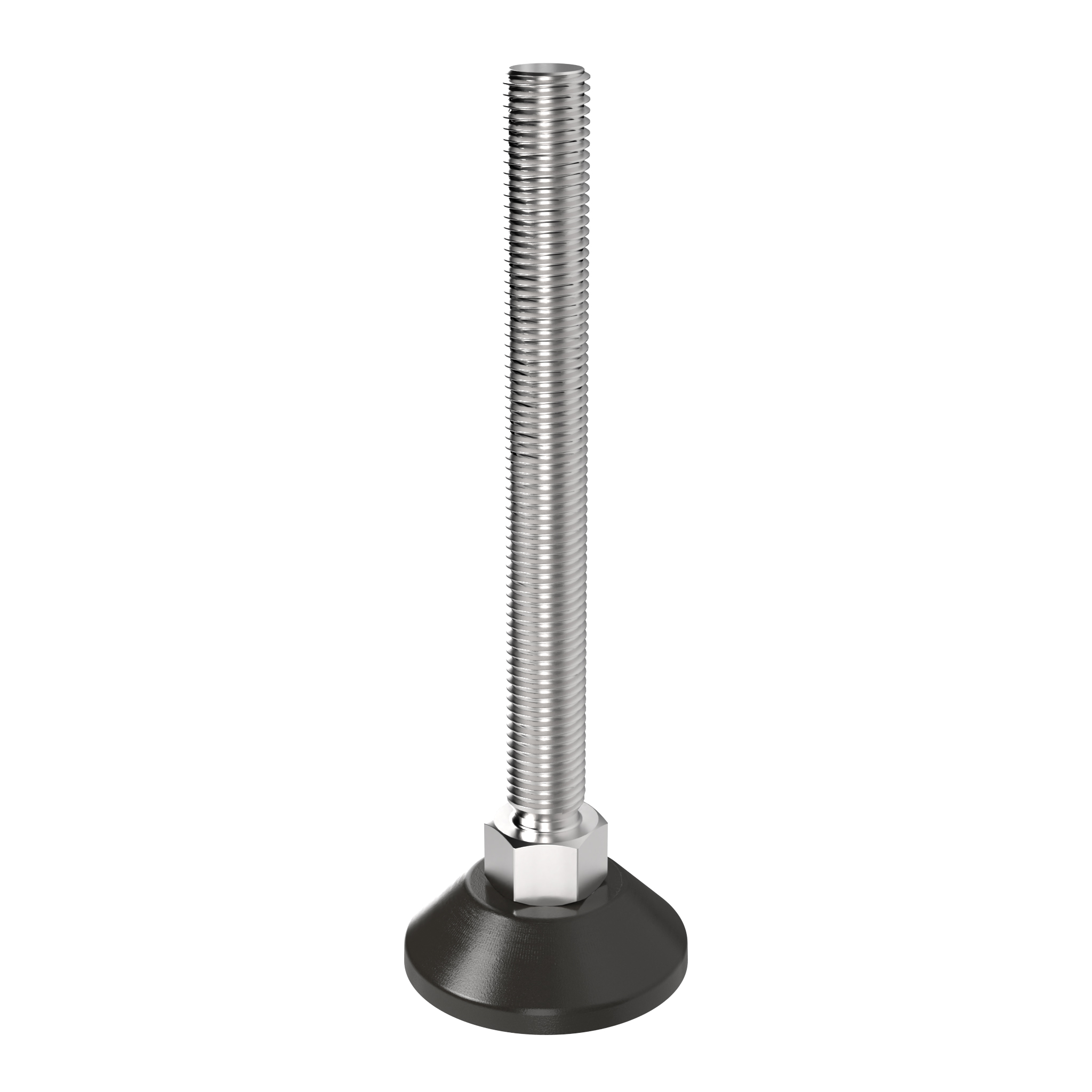

Trapezoid Pivot Foot, ZN / SS

Version: without anti-slip plate Base: 60 Fmax (N): 14200 D (mm): 59 F (mm): 31 H (mm): 18 M x L (mm): M16 x 150 SW (mm): 22

Color:Base: BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Base: Powder coated Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.

€0.00

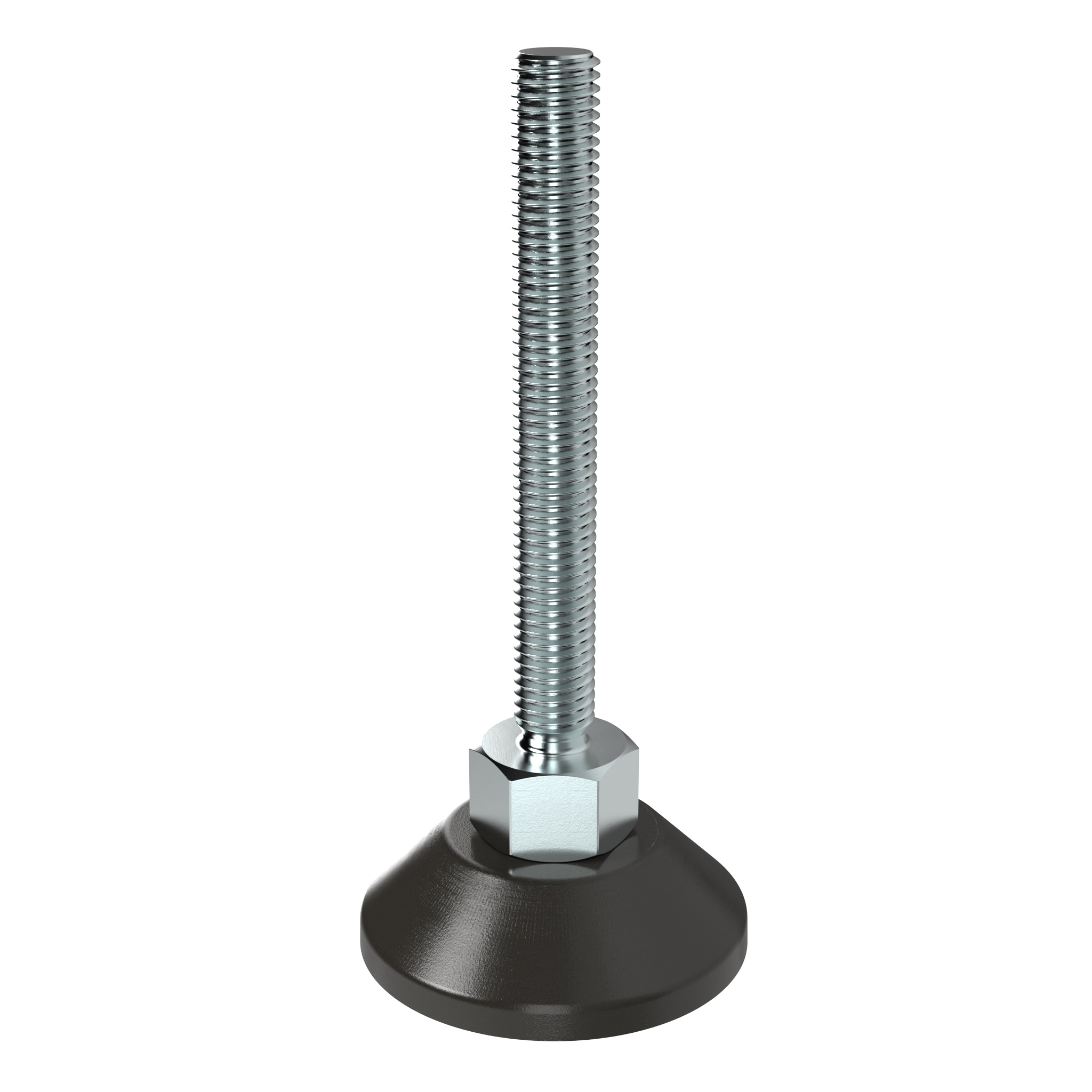

Trapezoid Pivot Foot, ZN / ST

Version: without anti-slip plate Base: 80 Fmax (N): 33 D (mm): 76 F (mm): 33 H (mm): 20 M x L (mm): M20 x 100 SW (mm): 22

Color:Base: BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Base: Powder coated Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.

€0.00

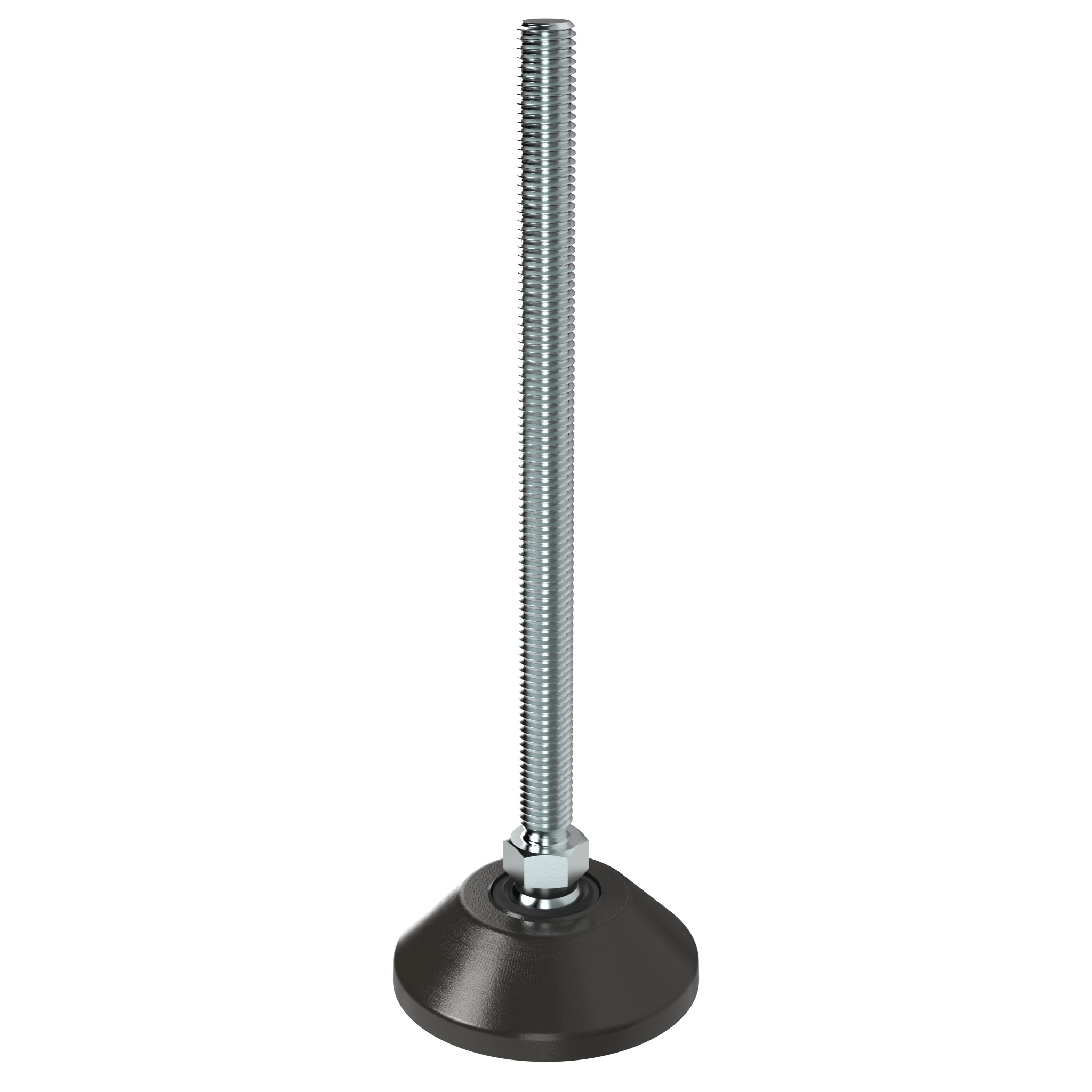

Trapezoid Swivel Foot, ZN / ST - Ball Joint 15

Version: without anti-slip plate Base: 80 Fmax (N): 14200 D (mm): 76 F (mm): 29.5 H (mm): 20 M x L (mm): M16 x 66 SW (mm): 17

Color:Base: BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Base: Powder coated Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.

€0.00

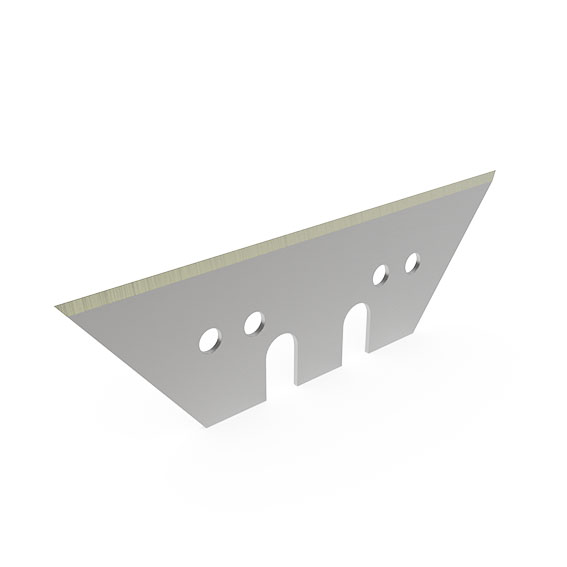

Trapezoidal Blade for Bag Cutter FX

Delivery Countries:WorldwideDescription:To replace the blade on the bag cutterMaterial:Carbon steelTip:Compatible Bag Cutter FX for Profiles 40 / 45, Slot 8 / 10 see 6TM840NF91S01 Compatible Bag Cutter FX for Tubes D28 / D30 see 6TM8D283F91ESDS01 Compatible Bag Cutter FX for Square Holes 9 x 9 (8.7 x 8.7) see 6TP38F91ESDS01

€0.00

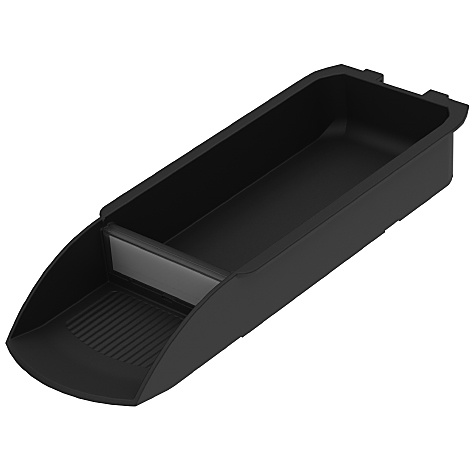

Tray Container 110 x 270 x 40 (Set)

ESD: ESD electrostatical discharging

Color:Tray container: Black Label window: Transparent (colorless)Delivery Countries:WorldwideDescription:To store and provide small parts, with sorting area; simple assembly by swiveling into the suspension profile, optional adapter allows for horizontally pivoting fixation; the clearly visible label area enables secure parte identification; stackableMaterial:Tray container standard version: Plastic PA, glass fiber reinforced Tray container ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Label window: Plastic PC Label: Carton 250 g/m²Set:1 tray container, 1 label window, 1 labelSpecials:Other colors on requestTip:Compatible Swivel Adapter for Profile Slot see 061MA2291NS01

€0.00

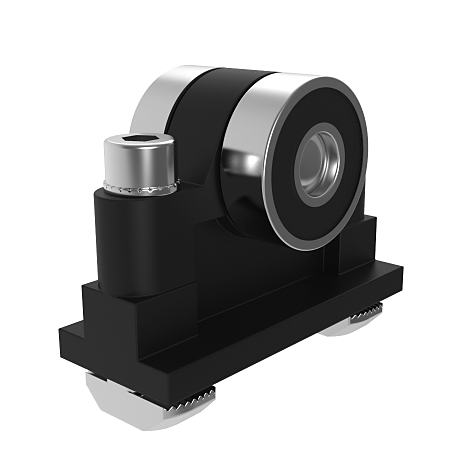

Trolley (Set)

Fmax (N): 150 Profile: B

Color:Trolley: BlackDelivery Countries:WorldwideDescription:For moving suspended sliding doors built of slot 8 profiles in slot 10 rail profileMaterial:Trolley: Plastic PA Bearing: Steel Straight pin: Stainless steel Mounting material: SteelSet:1 Trolley with 2 mounted bearings 1 Cylinder pin DIN EN ISO 2338 (DIN 7) - Ø 8 x 20, 2 Screws DIN EN ISO 4762 (DIN 912) - M5 x 30, 2 Washers 5-FSt, 2 Hammer head nuts - slot 8 - M5Surface:Bearing: Chrome plated (RoHS-konform) Cylinder pin: Plain Mounting material: Zinc plated

€0.00

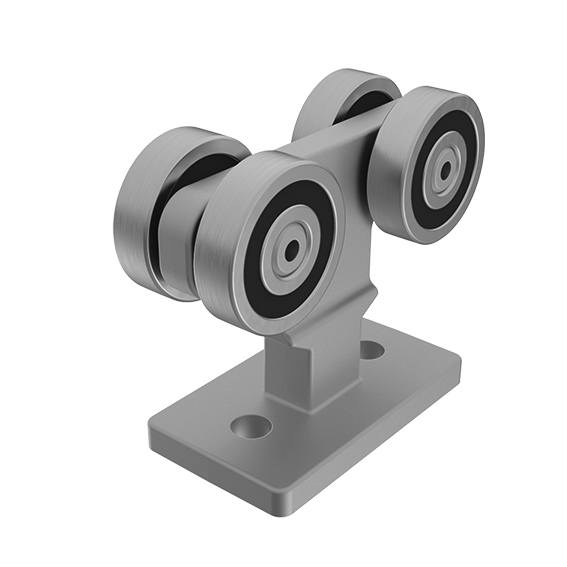

Trolley 40 for Overhead C-Rail, with Mounting Plate

D (mm): 8.5

Delivery Countries:WorldwideDescription:To build towing trolleys with aluminum profile 40, for hanging cables or lines optional tool hangers can be inserted into the slot of the aluminum profile; Ball bearing guide of the trolley in the overhead C-monorailMaterial:Trolley: Aluminum die-cast Ball bearings: SteelSurface:Trolley: PlainTip:Compatible Tool Hangers see 093007

€0.00

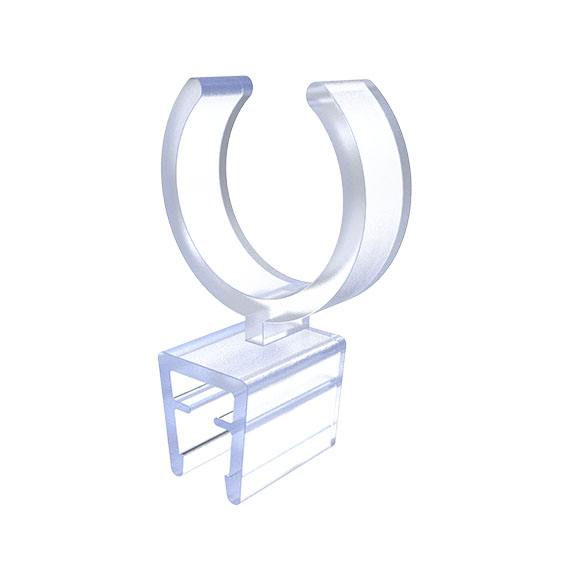

Tube Clamp

D (mm): Ø 28 - 30

Color:Transparent (colorless)Delivery Countries:WorldwideDescription:Durable mounting of message frames, Easy to attach to tubes and tubular frame profiles with Ø 28 mm - 30 mm outer diameterMaterial:Plastic PATip:Compatible Aluminum Tube (set) see 02042AT Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

€0.00

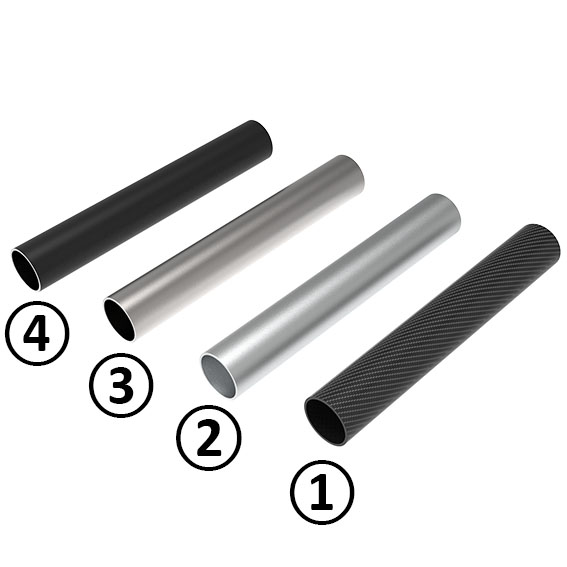

Tubes for System Handle

Fig.: ③ Version: Stainless steel A (mm): - B (mm): - L (mm): *2000.0

Delivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:End pieces for system handleMaterial:Carbon fiber, aluminum, stainless steel, steelSpecials:Other surfaces, other colors on requestSurface:Glossy finish, anodized, plain, plastic coveredTip:*For cut to length For the steel tube, please remove the plastic cover at the ends for installation in the end pieces

€0.00

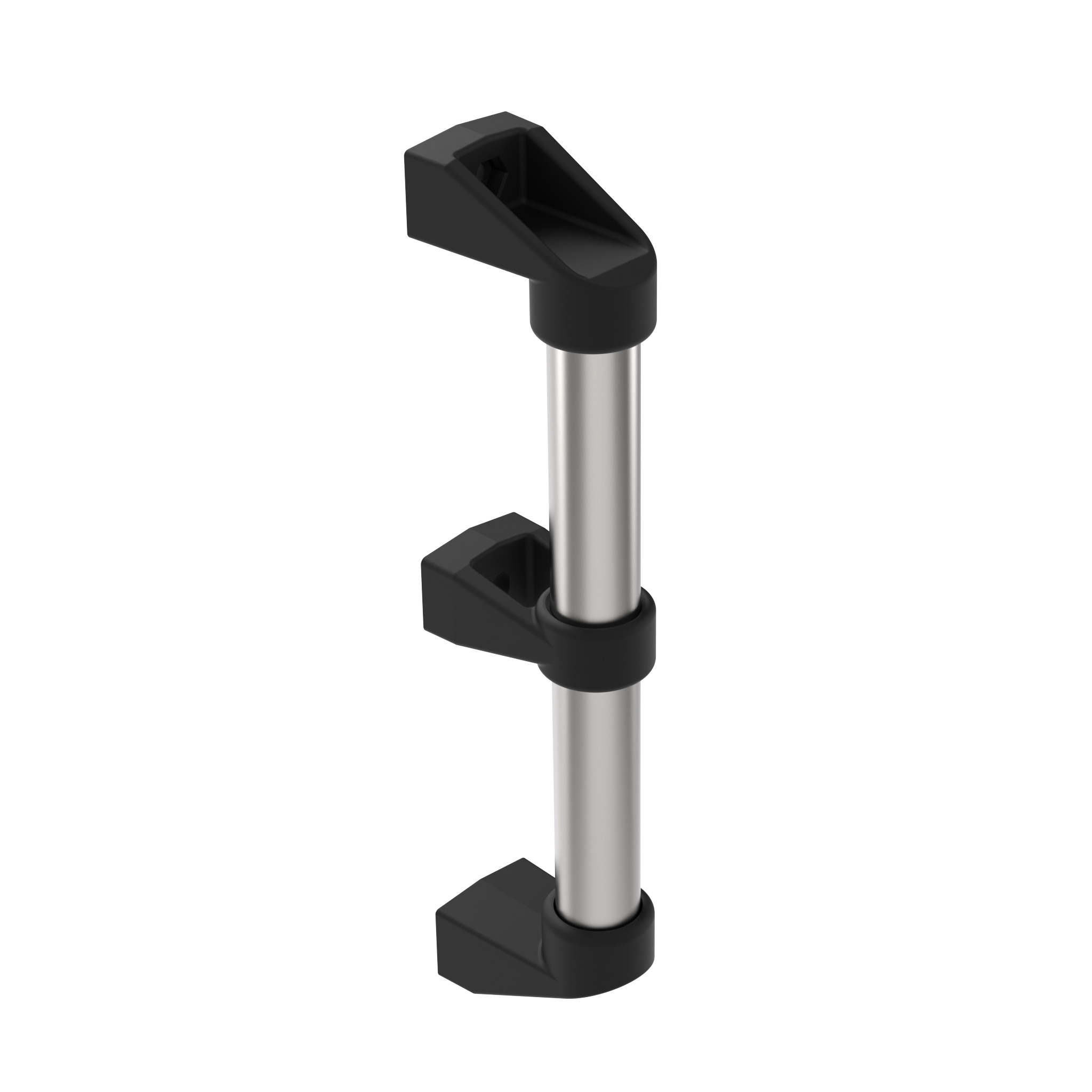

Tubular Handle

A (mm): 300.0 L (mm): 266.0

Color:Handle bar: ChromeDelivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:To mount on doors, flaps and aluminum profilesFastening:From the front, using socket head screws; from the back using inserted hexagon nuts or hexagon cap screwsMaterial:Handle bar: Steel Handle shank: Plastic PASet:2 x End piece, 1 x Middle pieceSurface:Handle bar: Chrome plated

€0.00

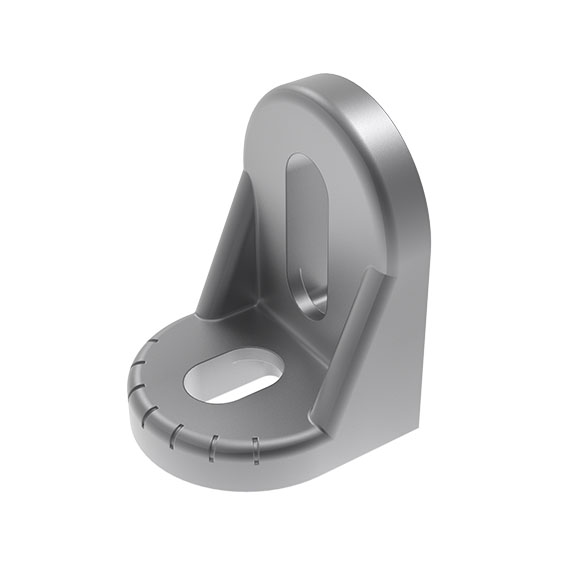

Turning Angle 30

Version: With assembly set 1 Color: Alu color Slot N (mm): 8 Surface: Powder coated

Assembly Set 1:1 screw DIN 7984 - M6 x 14, 1 screw DIN 7984 - M8 x 16, 1 washer DIN EN ISO 7089 (DIN 125) - M6, 1 hammer nut - slot 10 - M8, 1 hammer nut - slot 8 - M6, 2 centering pieces - slot 8 to slot 10Assembly Set 2:2 screws DIN 7984 - M8 x 16, 2 hammer nuts - slot 10 - M8, 4 centering pieces - slot 8 to slot 10Color:Turning angle: Alu color Centering piece: BlackDelivery Countries:WorldwideDescription:To connect aluminum profiles at various angles from 0° to 180°Material:Angle: Aluminum die-cast Centering piece: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Turning angle: Plain / powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02

€0.00

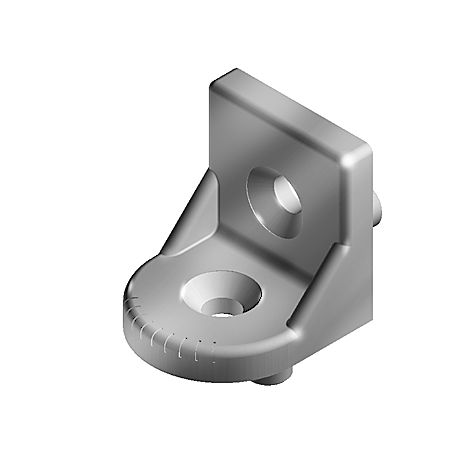

Turning Angle 45

Version: - Slot N (mm): 8 / 10

Assembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M8 x 18, 2 hammer nuts - slot 10 - M8, 4 Centering bolt slot 8, 4 Centering bolt slot 10Color:Turning angle: Alu color Centering bolts: BlackDelivery Countries:WorldwideDescription:To connect aluminum profiles at various angles from 0° to 180°Material:Turning Angle: Aluminum die-cast Centering bolts: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Turning angle: Plain / powder coated Assembly set: Zinc platedTip:*With 4 centering bolts slot 8 and 4 centering bolts slot 10

€0.00

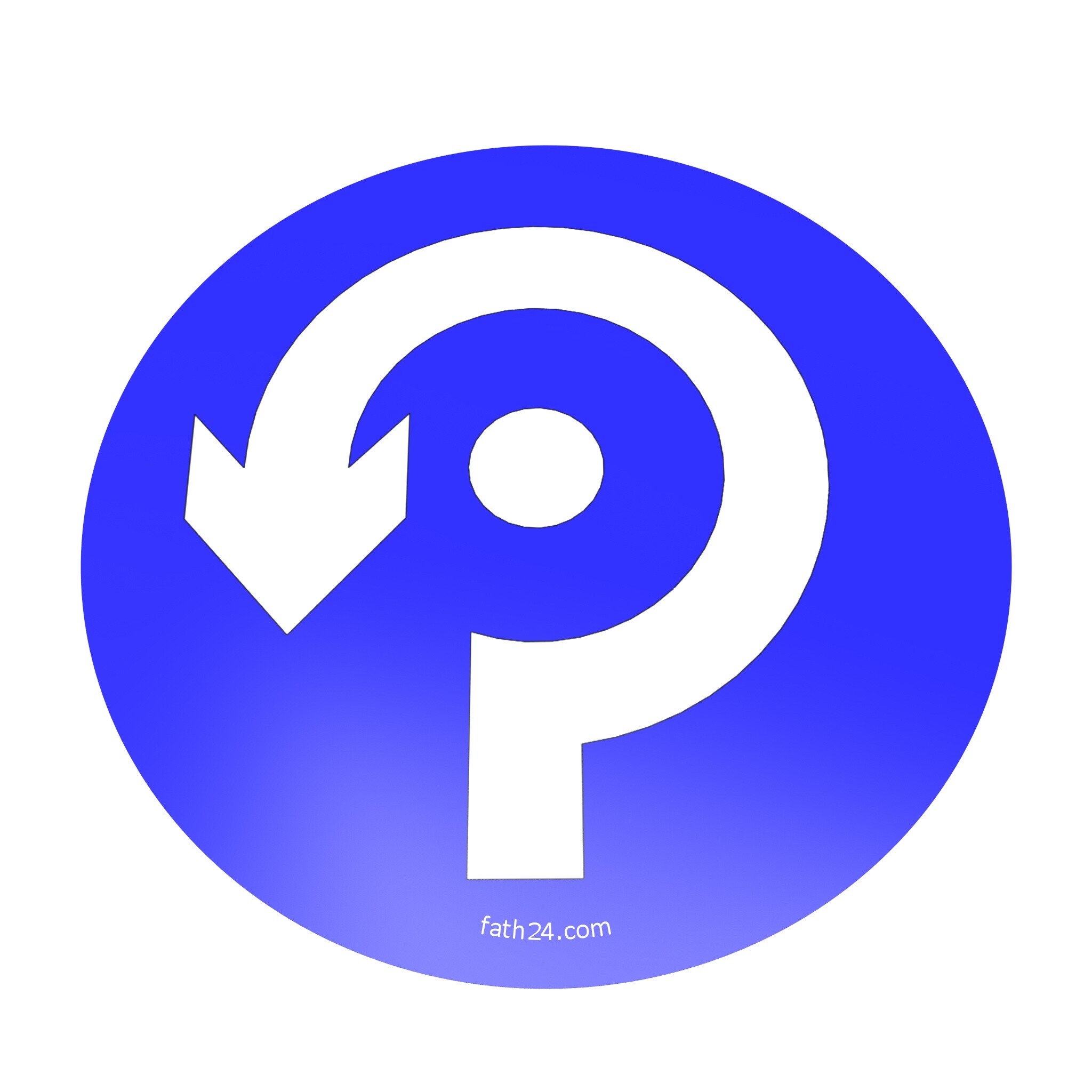

Turning Circle Floor Sign

Color:Blue / whiteDelivery Countries:WorldwideDescription:For fast and reliable safety marking according to ASR A1.3 / DIN EN ISO 7010, self-adhesive; Easy recognition from long distance; Forklift-resistant and slip-proof floor sign with outstanding adhesive strength, suitable for almost all industrial floorsFastening:Self-adhesive surface on the backsideMaterial:Plastic PVC

€0.00

Twin Slam Latch COMPACT

Lock: Universal* Slot N (mm): 8 / 10

Color:BlackDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly; Safe against disassembling in the locked position; Provides selective access by use of a single post; With separate locating pins for slot 8 and slot 10Fastening:From the front, using M6 socket head or pan head screwsMaterial:Aluminum die-castSpecials:Other combinations of slam latches on requestSurface:Powder coatedTip:*Universal: One key fits all slam latches Unique: Each slam latch has a different key Compatible Emergency Opener for Slam Latch see 0957409 et sq.; Compatible Replacement Cover Cap (Set) see 0957420RS01.

€0.00

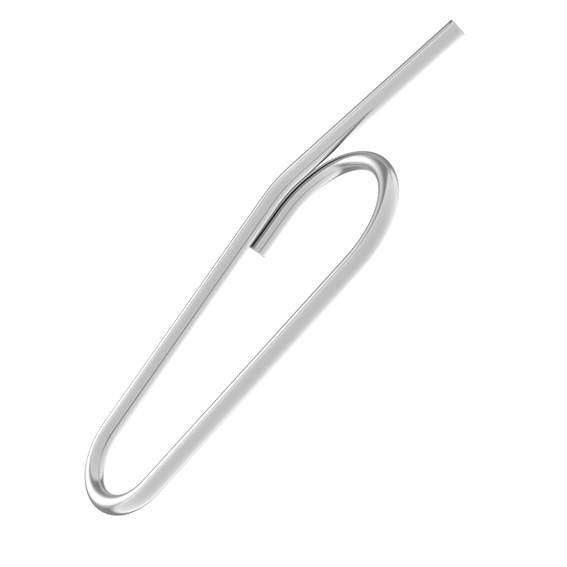

U-loop Steel Clamp for Visual Pocket

Delivery Countries:WorldwideDescription:Universal U-loop for hanging up attached visual pockets in foils or on rods of lattice boxes and mesh panelsMaterial:SteelSurface:Zinc platedTip:Compatible Attached Visual Pockets see 02011A5LH15, 02011A4PH15 and 02011A1/3H15

€0.00

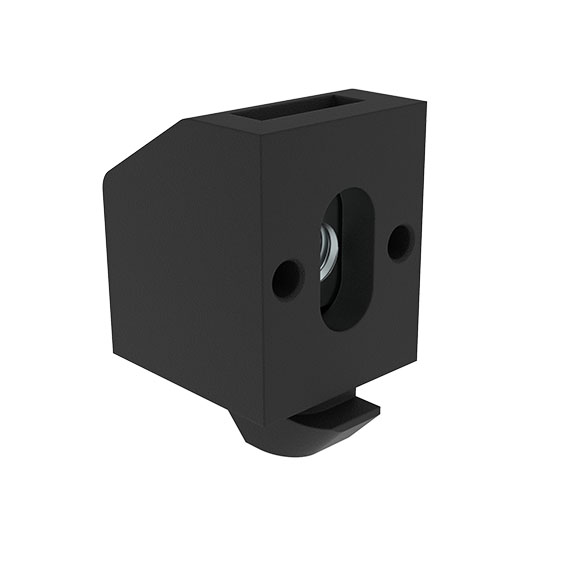

Uni Block 14, Black

A1 (mm): 4.0 A2 (Profile) (mm): 1.6 (1.8) M: M4 Slot N (mm): 5 Profile: I

Color:BlackDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901

€0.00

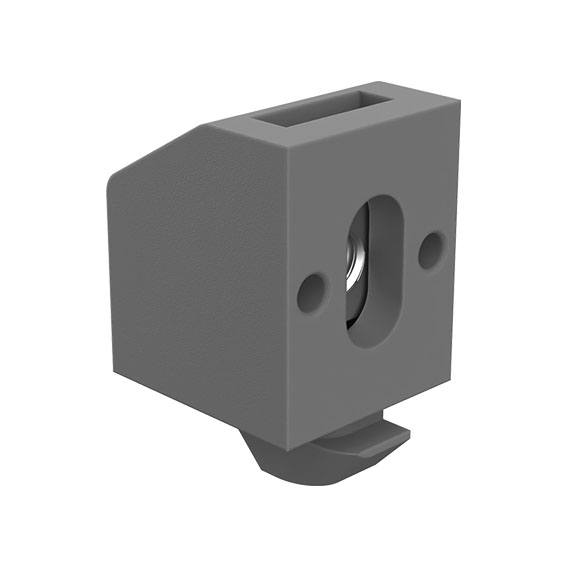

Uni Block 14, Gray

A1 (mm): 4.0 A2 (Profile) (mm): 1.6 (1.8) M: M4 Slot N (mm): 5 Profile: I

Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901S03

€0.00

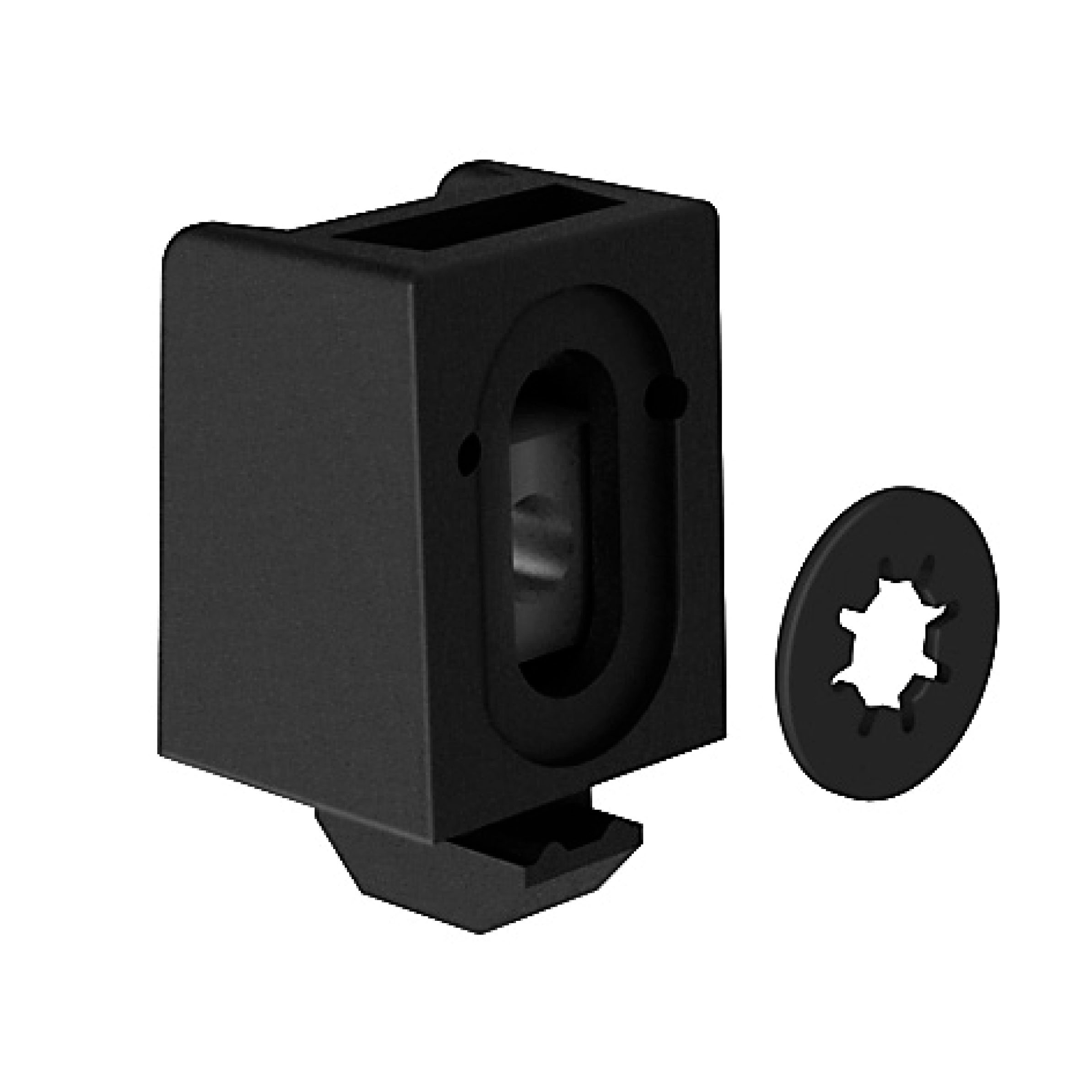

Uni Block 18 CS, Black

A1 (mm): 7.0 A2 (Profile) (mm): 2.7 (3.0) M: M6 Slot N (mm): 6 Profile: I

Color:BlackDelivery Countries:WorldwideDescription:To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102CS

€0.00

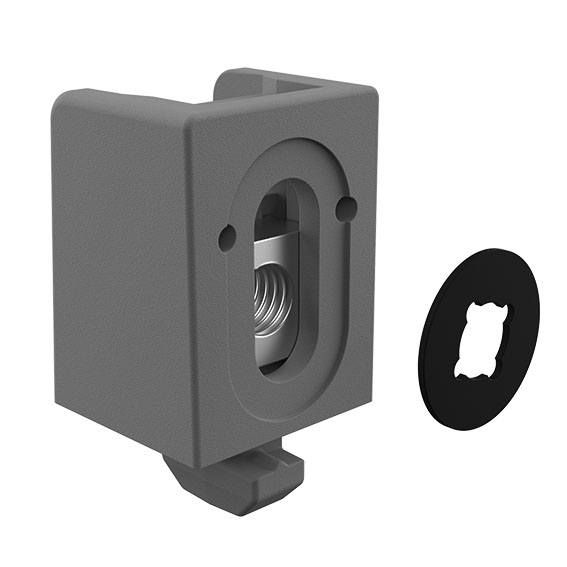

Uni Block 18 CS, Gray

Color: Gray ≈ RAL 7004 A1 (mm): 7.0 A2 (Profile) (mm): 1.9 (2.2) M: M6 Slot N (mm): 8 Profile: B

Color:GrayDelivery Countries:WorldwideDescription:To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102CSS03

€0.00

Uni Block 18, Black

A1 (mm): 7.0 A2 (Profile) (mm): 1.9 (2.2) M: M6 Slot N (mm): 8 Profile: B

€0.00

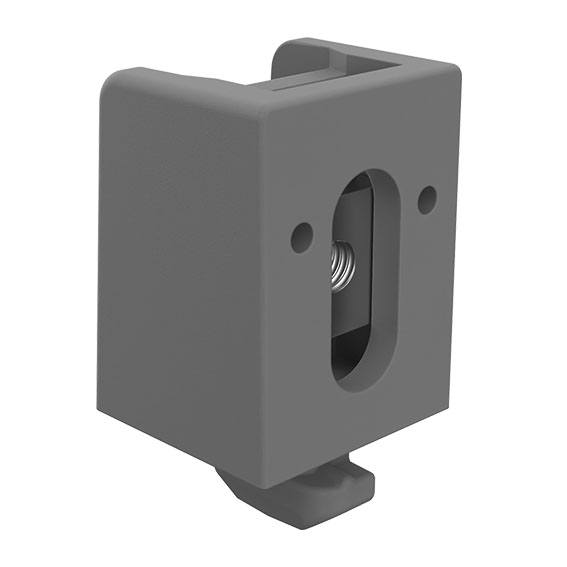

Uni Block 18, Gray

Color: Gray ≈ RAL 7042 A1 (mm): 7.0 A2 (Profile) (mm): 2.7 (3.0) M: M5 Slot N (mm): 6 Profile: I

Color:GrayDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102S10

€0.00

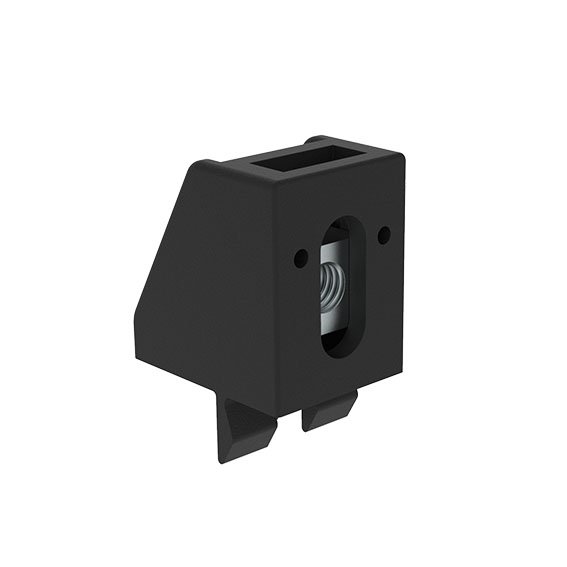

Uni Block 25 Clip

A1 (mm): 12.0 A2 (Profile) (mm): 4.4 (4.5) M: M6 Slot N (mm): 8 Profile: I

Color:BlackDelivery Countries:WorldwideDescription:To attach panels simply to aluminum profiles; the clip feature makes it possible to pre-mount the block to the panelMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized clips, other colors on requestTip:Compatible Spacer see 094102CS

€0.00

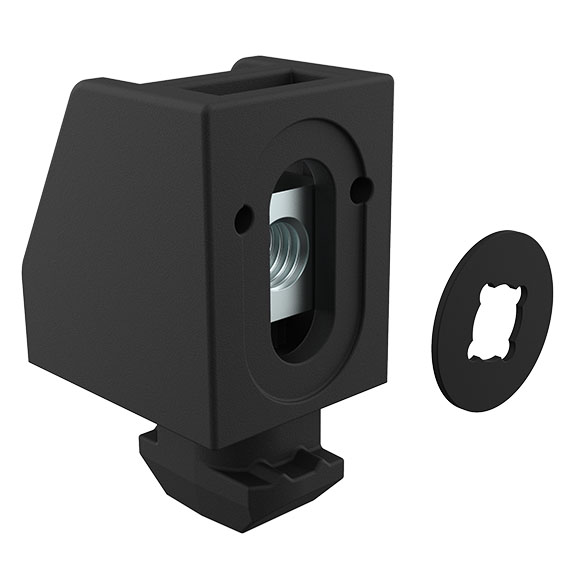

Uni Block 25 CS, Black

A1 (mm): 12.0 A2 (Profile) (mm): 4.4 (4.5) M: M6 Slot N (mm): 8 Profile: I

€0.00

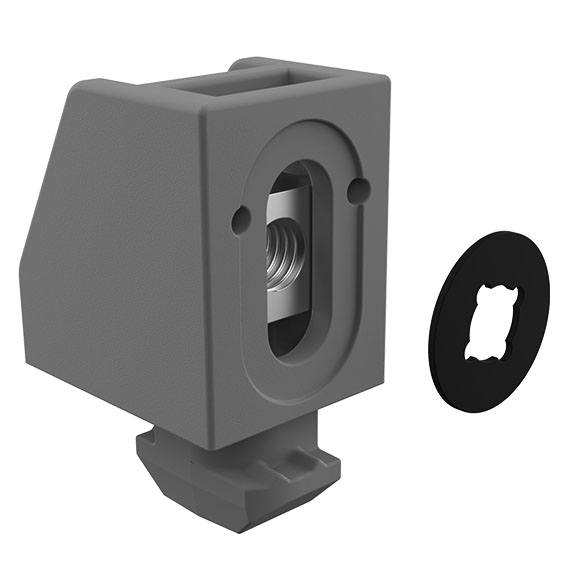

Uni Block 25 CS, Gray

Color: Gray ≈ RAL 7042 A1 (mm): 14.0 A2 (Profile) (mm): 4.6 (4.5) M: M6 Slot N (mm): 8 Profile: I

€0.00
