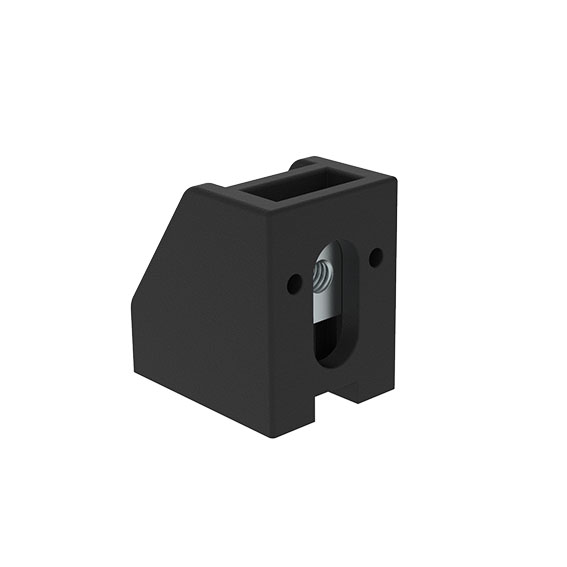

Uni Block 25 EH

M: M5

Color:BlackDelivery Countries:WorldwideDescription:To join panels and aluminum profiles of various dimensionsMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Compatible Spacer see 094102CS

€0.00

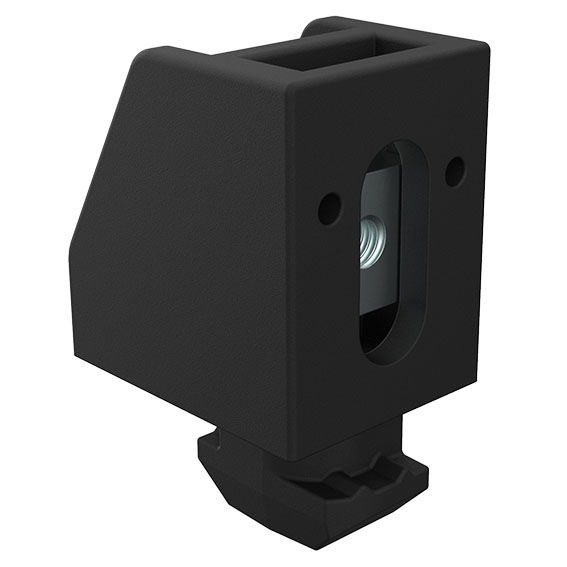

Uni Block 25, Black

A1 (mm): 14.0 A2 (Profile) (mm): 4.6 (4.5) M: M5 Material: - Slot N (mm): 8 Profile: I

Color:BlackDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102CS

€0.00

Uni Block 25, Gray

Color: Gray ≈ RAL 7042 A1 (mm): 14.0 A2 (Profile) (mm): 4.6 (4.5) M: M6 Slot N (mm): 8 Profile: I

Color:GrayDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102S10

€0.00

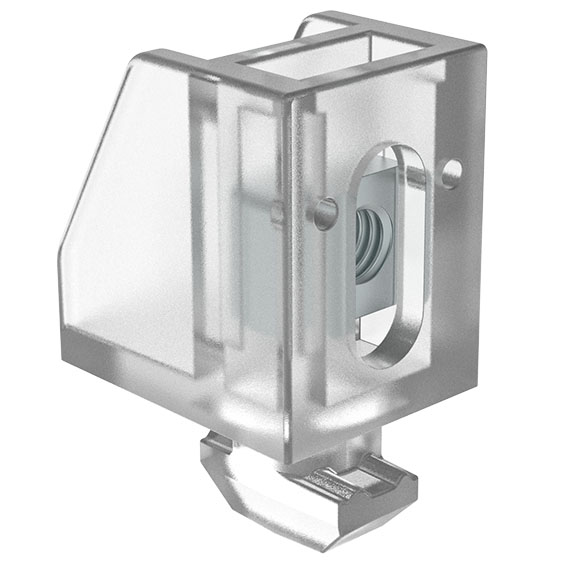

Uni Block 25, transparent colorless

A1 (mm): 14.0 A2 (Profile) (mm): 6.0 (6.0) M: M6 Slot N (mm): 10 Profile: B

Color:Transparent (colorless)Delivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PC Nut: Zinc plated steelSpecials:Customized hammer on requestTip:Compatible Spacer see 094102CSG

€0.00

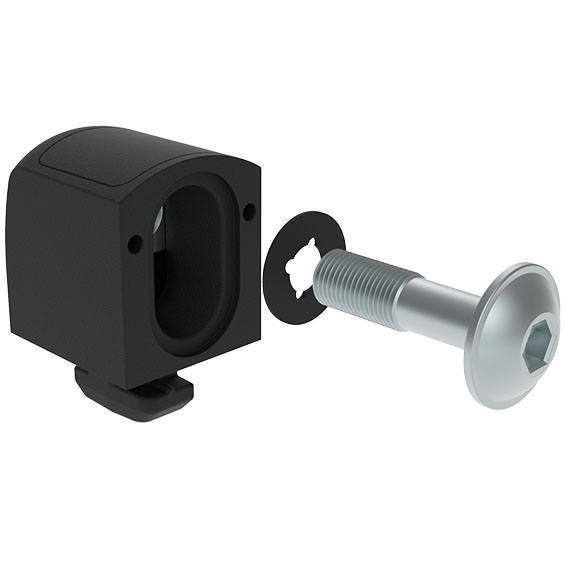

Uni Block 26 CS (Set)

A1 (mm): 14.0 A2 (Profile) (mm): 6.3 (6.0) Slot N (mm): 10 Profile: B

Color:BlackDelivery Countries:WorldwideDescription:To attach panels with a thickness of 2 - 8 mm safely to aluminum profiles; with screw retainer to comply withMachinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on request

€0.00

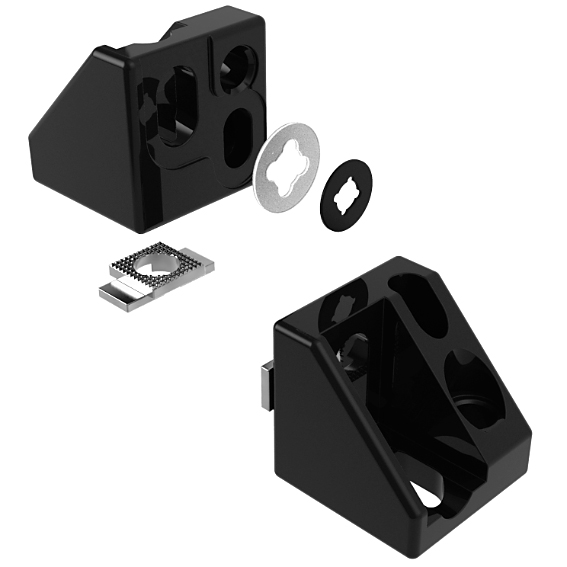

Uni Block ZN 40 CS

A1 max. (mm): 22.0 A1 min. (mm): 7.9 H (mm): 4.0 M: M6 Slot N (mm): 10

Color:BlackDelivery Countries:WorldwideDescription:To attach panels to aluminum profiles; especially for high load bearing (up to 2000 N) on the panels; with screw retainer to comply with Machinery Directive 2006/42/ECMaterial:Zinc die-castSurface:Zinc plated (RoHS compliant)

€0.00

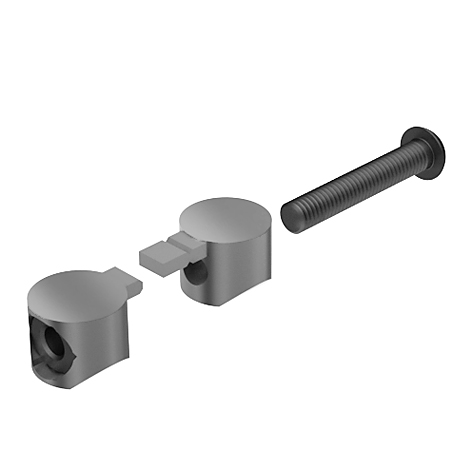

Universal Butt Connector I

A (mm): 32.0 D (mm): 11.8 H (mm): 8.5 K (mm): - L (mm): 5.4 Screw: M4 Slot N (mm): 5

Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles Of the same type; assembly set includedMaterial:Zinc die-castSurface:Zinc platedTip:*Without nut, thread integrated

€0.00

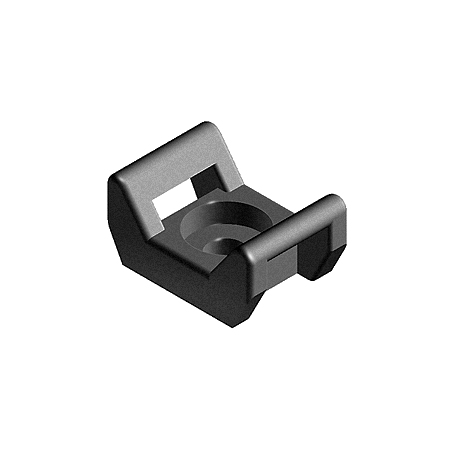

Universal Cable Binding Block

Color:BlackDelivery Countries:WorldwideDescription:To fix cables to aluminum profiles; to be mounted with a hammer nutMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Hammer Nuts see 096H0610 et seq.

€0.00

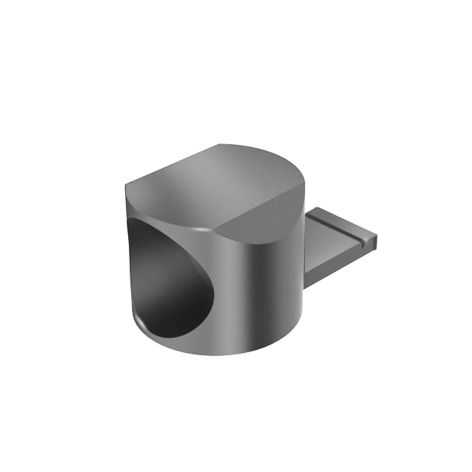

Universal Connector B

Assembly Set: - for Screw: M8 A (mm): 13.8 D (mm): 19.7 H (mm): 16.0 Slot N (mm): 10 Profile: -

Assembly Set:1 screw DIN EN ISO 4762 (DIN 912) -M8 x 30, 1 T-slot nut, slot 10, with spring leafDelivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:Universal connector: Zinc die-cast Assembly set: SteelSurface:Universal connector: Plain Assembly set: Zinc plated

€0.00

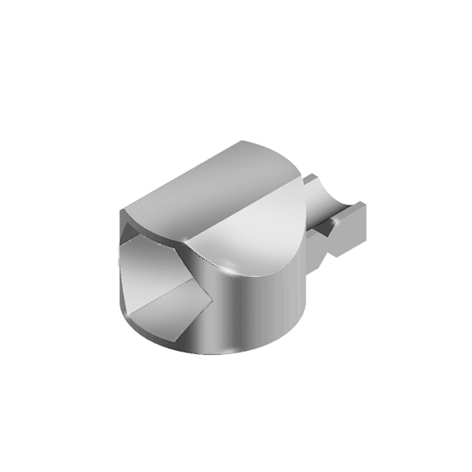

Universal Connector I

Assembly Set: With assembly set 2 for Screw: - A (mm): 9.3 D (mm): 15.7 H (mm): 12.5 Material: Zinc die-cast Modular Dimension (mm): 30 Slot N (mm): 6 Surface: Zinc plated Profile: I

Assembly Set 1:1 T-slot nut - slot 5 - M4, 1 screw DIN EN ISO 4762 (DIN 912) - M4 x 14Assembly Set 2:1 T-slot nut - slot 6 - M6, 1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 22Assembly Set 3:1 T-slot nut - slot 8 - M8, 1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 30Assembly Set 4:Stainless steel: 1 T-slot nut - slot 8 - M8, 1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 30Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:Zinc die-cast / stainless steelSurface:Zinc plated / plain

€0.00

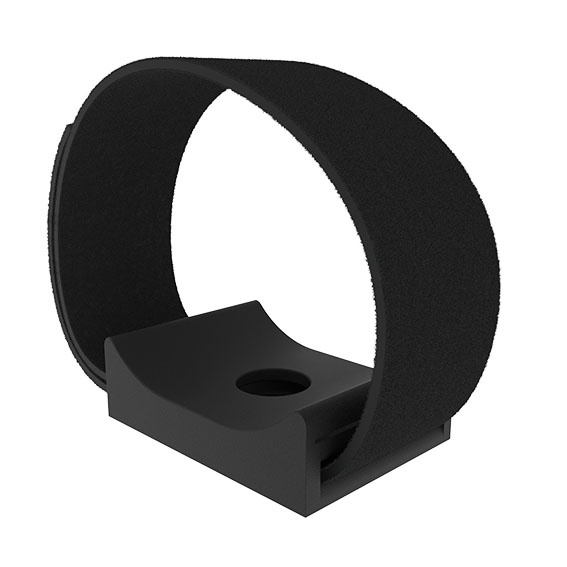

Universal Hook-and-loop Block

Color:Cable binding block: Black Hook-and-loop strap: BlackDelivery Countries:WorldwideDescription:To fix cables to aluminum profiles; to be mounted with a hammer nutFastening:From the front, using M4 or M5 countersunk screwsMaterial:Cable binding block: Plastic PA, glass fiber reinforced Hook-and-loop strap: Plastic PP (UL94-V2)Tip:Compatible Hammer Nuts see 096H0610 et seq.

€0.00

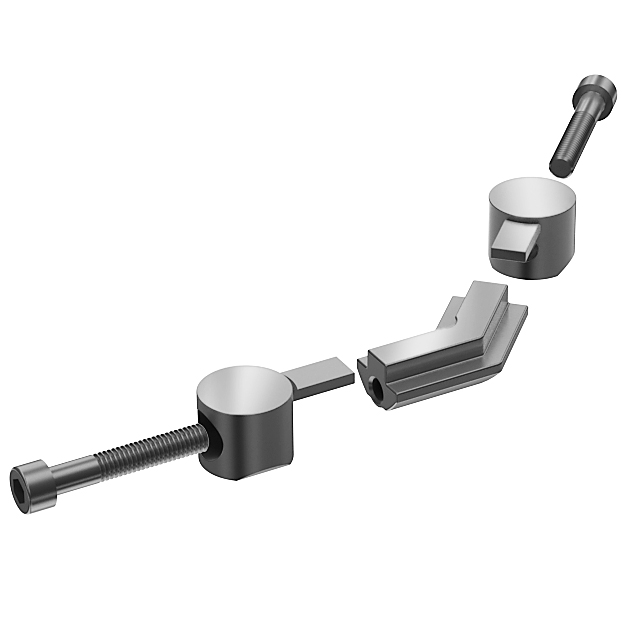

Universal Mitre Connector I (Set)

Slot N (mm): 8

Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles with a mitre cutMaterial:Zinc die-castSet:1 mitre connector, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 35Surface:Zinc plated

€0.00

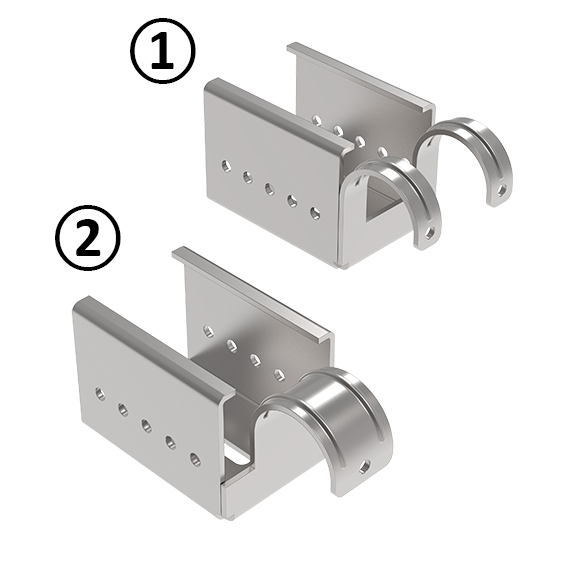

Variable Holding Bracket AL D28

Fig.: ② Version: Type M with assembly set 1

Assembly Set 1:5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Assembly Set 2:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Delivery Countries:WorldwideDescription:Transition between roller track profiles with varying inclination, to mount roller track profiles AL at different angles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

€0.00

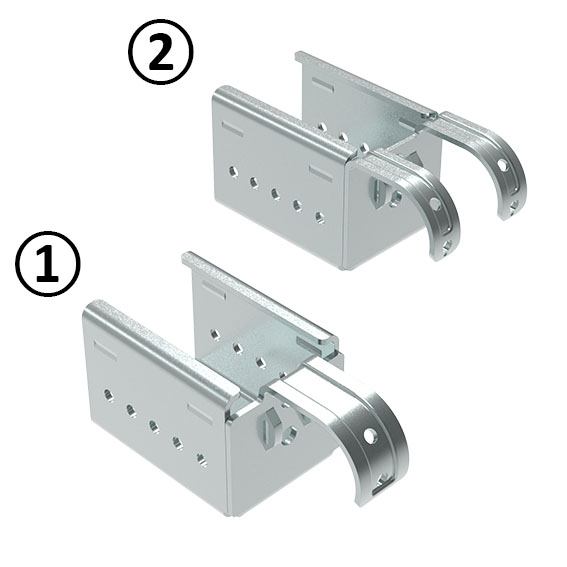

Variable Holding Bracket AL D30

Fig.: ① Version: Type M with assembly set 1

Assembly Set:1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Assembly Set 2:2 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Delivery Countries:WorldwideDescription:Transition between roller track profiles with varying inclination, to mount roller track profiles AL at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:SteelSurface:Zinc plated

€0.00

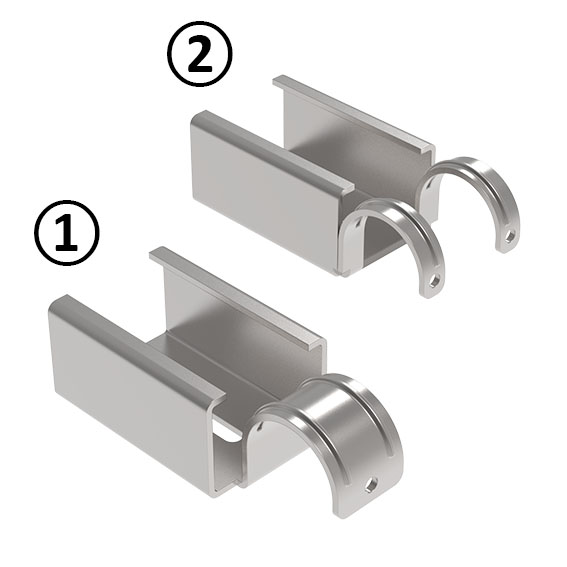

Variable Holding Bracket XST D28

Fig.: ① Version: Typ M

Delivery Countries:WorldwideDescription:Transition between roller tracks with varying inclination, to mount roller tracks XST and guiding rails XST central, at different angles, to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outFastening:With 3 or 4 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Material:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

€0.00

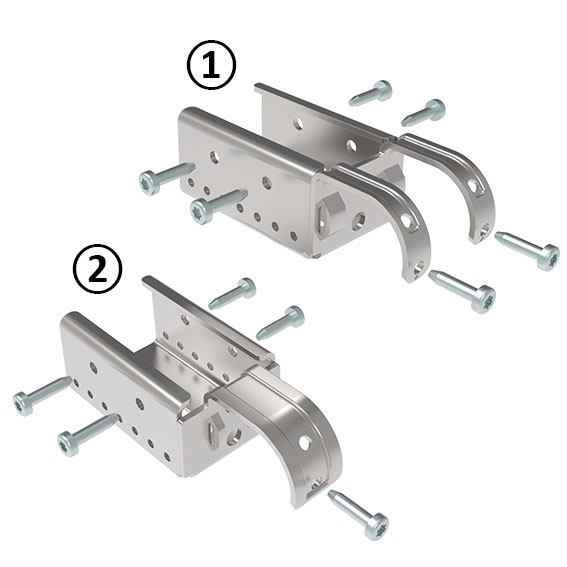

Variable Holding Bracket XST D30

Fig.: ① Version: Typ F

Delivery Countries:WorldwideDescription:Transition between roller track profiles with varying inclination, to mount roller track profiles XST and guiding rails XST central at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outFastening:with 5 or 6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Material:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

€0.00

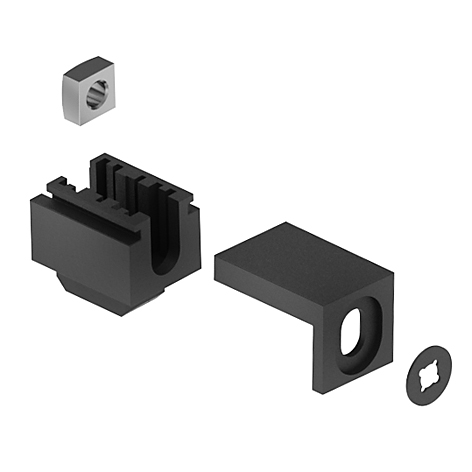

Vario Block 18 CS

A1 (mm): 9.5 / 12* / 12.5 / 15* A2 (Profile) (mm): 2.2 (2.2) M: M5 Slot N (mm): 8 Profile: B

Color:Block: BlackDelivery Countries:WorldwideDescription:To attach panels simply to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: SteelSpecials:Other colors on requestSurface:Nut: Zinc platedTip:*A1 size with spacer!

€0.00

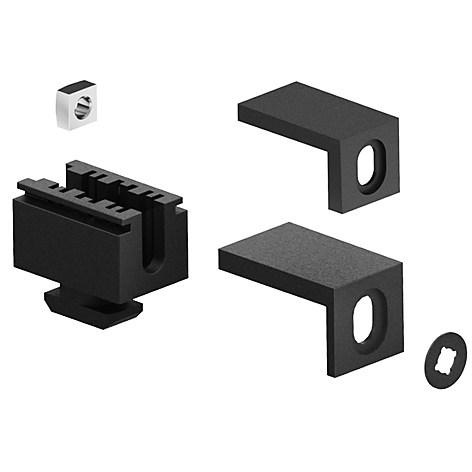

Vario Block 25 CS

A1 (mm): - A2 (Profile) (mm): 6.0 (6.0) M: M5 Slot N (mm): 10 Profile: B

€0.00

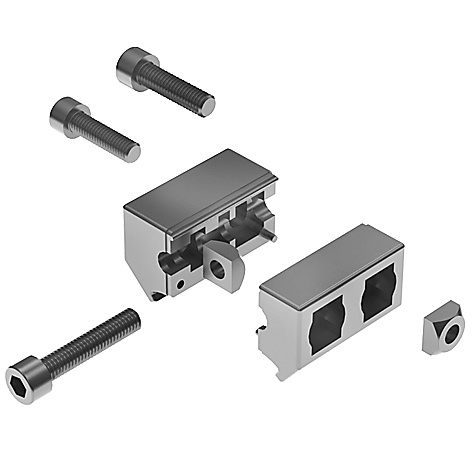

Vario Block AL D28 (Set)

Profile: B

Delivery Countries:WorldwideDescription:To attach panels firmly to tubular frame profiles with Ø 28 mm outer diameter, ESD electrostatical dischargingMaterial:AluminumSet:1 vario block AL - 2-part, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 22, 2 square nuts DIN 557 - M6Specials:Other surfaces, other colors on requestSurface:PlainTip:Compatible Slide Rail D28 see 092060S01

€0.00

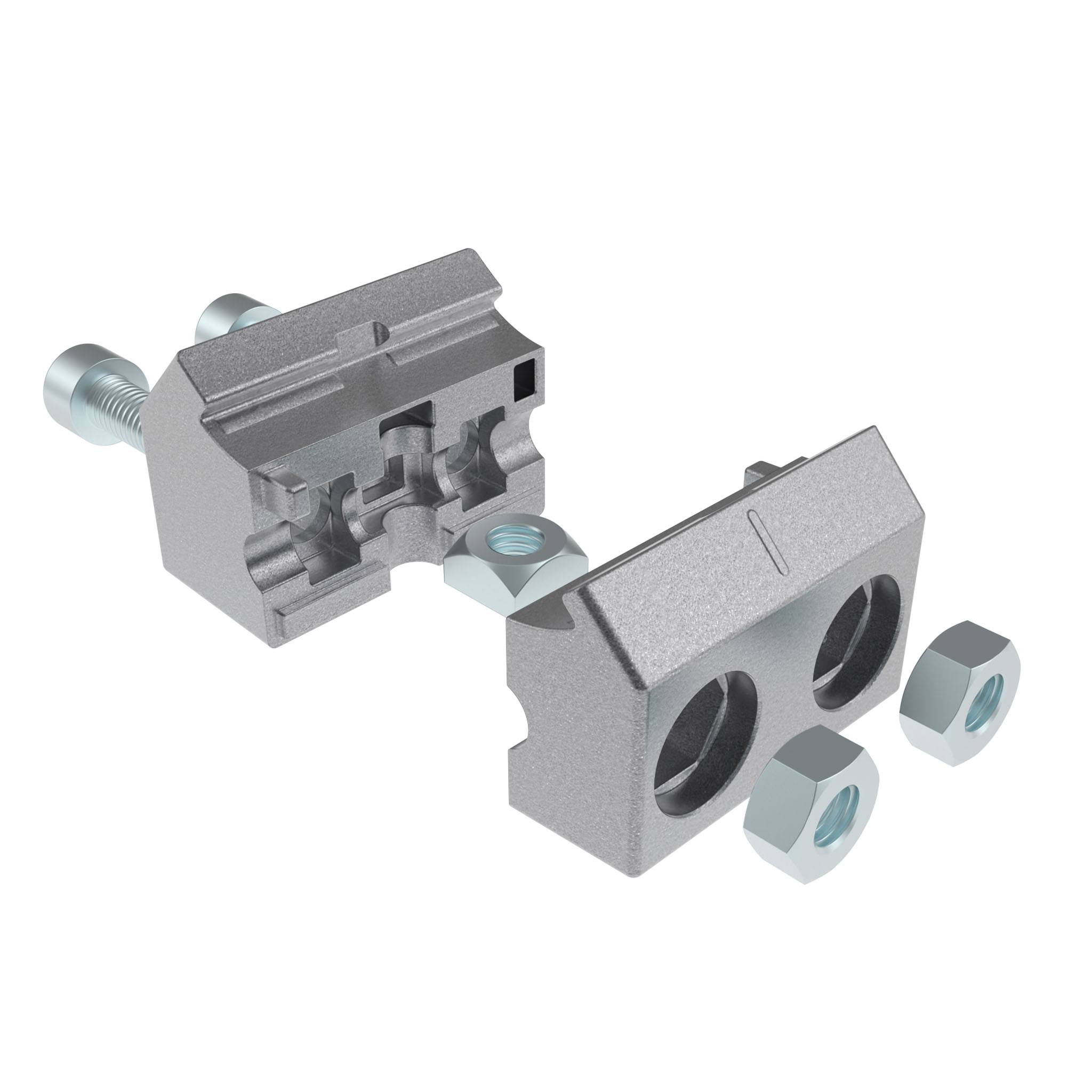

Vario Block AL D30

Profile: I

Delivery Countries:WorldwideDescription:To attach panels firmly to tubular frame profiles with Ø 30 mm outer diameter; ESD electrostatical dischargingMaterial:Vario block AL: Aluminum die-cast Assembly set: SteelSet:1 vario block AL - 2-part, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 square nut DIN 557 - M6 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Specials:Other surfaces, other colors on requestSurface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07

€0.00

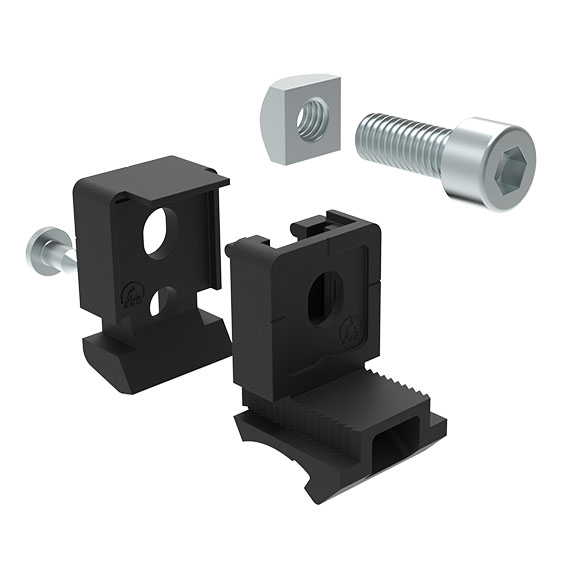

Vario Block D28 (Set)

Profile: B

Color:Block: BlackDelivery Countries:WorldwideDescription:To attach panels safely to tubular frame profiles with Ø 28 mm outer diameter; optional screwless mounting with clip clampMaterial:Block: Plastic PA, carbon fiber reinforced Screws and Nut: SteelSet:1 vario block AL - 2-part, 1 screw DIN EN ISO 7049 (DIN 7981) - 4.2 x 9.5, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16, 1 square nut DIN 557 - M6Specials:Other colors on requestSurface:Screws and Nut: Zinc platedTip:Compatible Clip clamp see 09452RA20

€0.00

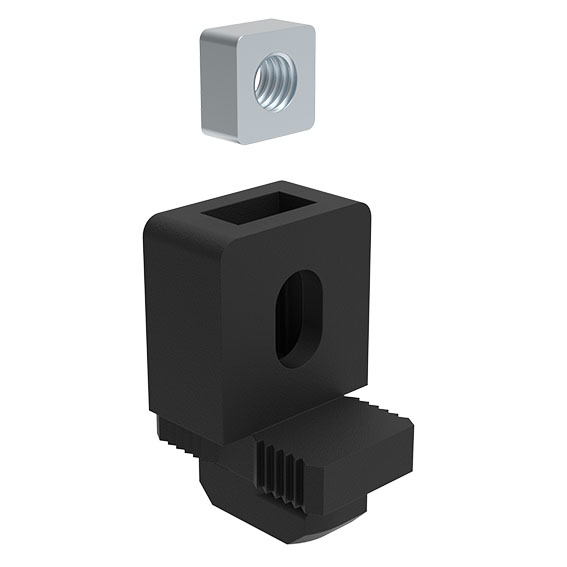

Vario Clamping Block 18

A1 (mm): 2.5 / 8.5 A2 (Profile) (mm): 2.2 (2.2) M: M6 Slot N (mm): 8 Profile: B

Color:Block: BlackDelivery Countries:WorldwideDescription:To attach panels safely to aluminum profiles; optional screwless mounting with clip clampMaterial:Block: Plastic PA, glass fiber reinforced Nut: SteelSpecials:Other colors on requestSurface:Nut: Zinc platedTip:Compatible Clip clamp see 09452RA20

€0.00

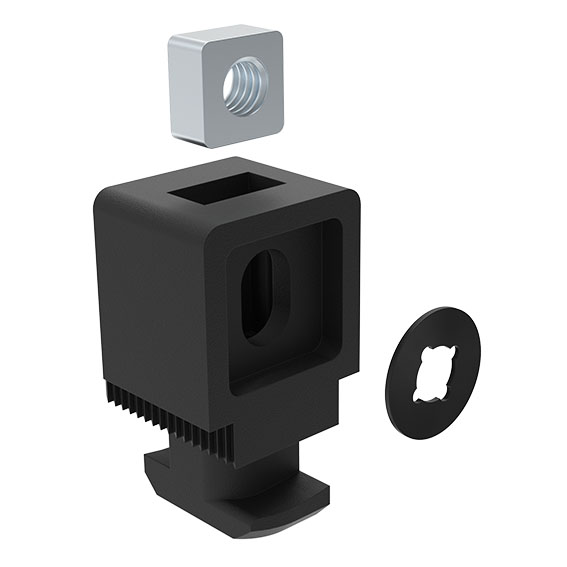

Vario Clamping Block 25 CS

A1 (mm): 8.5 A2 (Profile) (mm): 5.8 (6.0) M: M6 Slot N (mm): 10 Profile: B

Color:Block: BlackDelivery Countries:WorldwideDescription:To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC; optional screwless mounting with clip clampMaterial:Block: Plastic PA, glass fiber reinforced Nut: SteelSpecials:Other colors on requestSurface:Nut: Zinc platedTip:Compatible Clip clamp see 09452RA20

€0.00

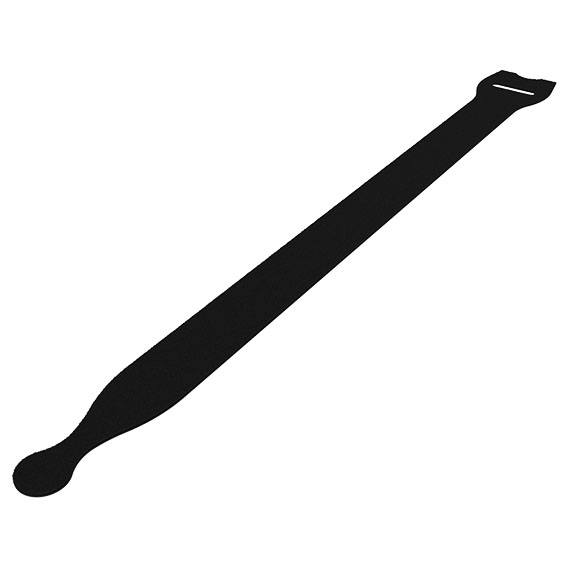

Velcro® strap for Cross Cable Binder Block D28

ØD (mm): ≤ 50

Color:BlackDelivery Countries:WorldwideDescription:To fasten cables and tubes parallel to the slotMaterial:Velcro® strap: Plastic PE (hook), Plastic PA (loop)Tip:Compatible Cross Cable Binder Block D28 see 093291

€0.00
