Product Portrait


GUIDING RAILS FIFO

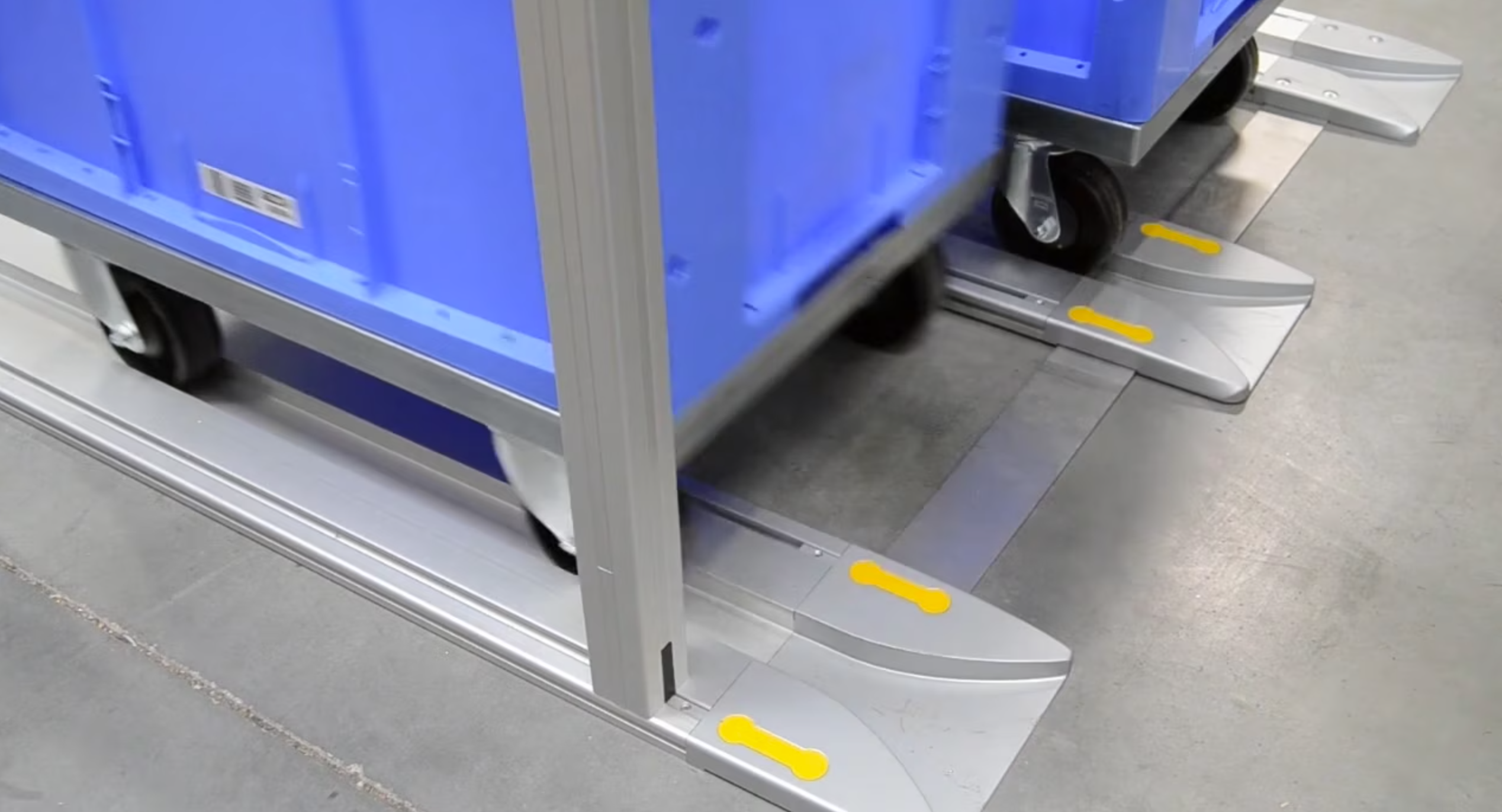

Build a FIFO Station based on need while saving space with FATH Guiding Rails FIFO

Due to the modularity, the FIFO station can be flexibly adapted in length and width. - you can set it up exactly according to individual requirements and expand it at any time. The Guiding Rails FIFO are bolted together with connecting plates directly at the infeed caps. This connecting element ensures stability and specifies the track width. The number of tracks can be selected as required.

For the desired track length, the individual Guiding Rails FIFO are joined together with a longitudinal connector. Available are the standard lengths 1200, 1800 and 2400 mm and on request in the length you require.

The FATH Guiding Rails FIFO are laid in a floating manner. The FIFO track does not have to be screwed to the floor to rest securely, which protects the hall floor. The rails are held by the dead weight of the dollies. For special requirements, bolting to the floor is optionally possible, the holes are integrated in the insertion caps.

One guide rail per track is sufficient for the safe placement of the dollies. The side on which the Dolly is guided can be freely selected. For three tracks, for example, only three Guiding Rails are required. This reduces costs, saves space and offers additional flexibility.

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Modular system – scalable at any time
  • Extra wide, break-proof insertion caps
  • Upward-facing profile slots for cost-effective enclosure
  • Floating installation without screwed joints
  • Space-saving thanks to onesided rail guide
  • Easy and fast threading of dollies

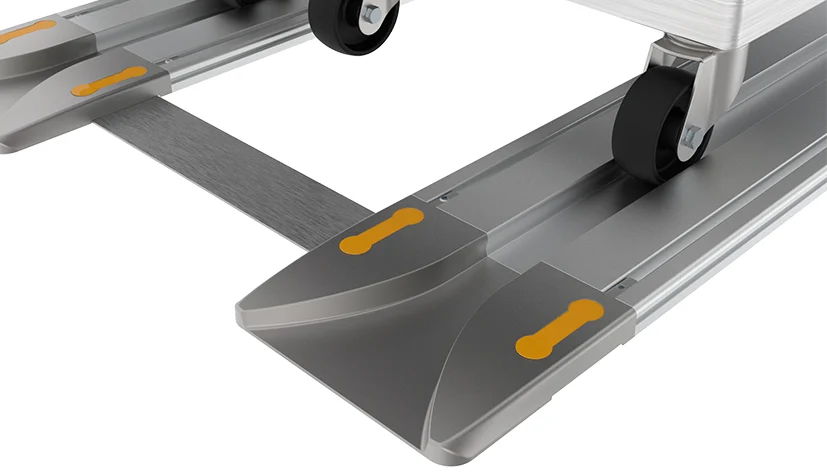

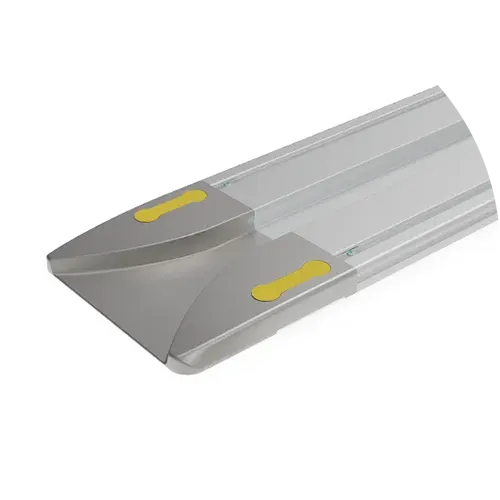

INNOVATIVE: EXTRA WIDE INSERTION CAPS FOR EASY THREADING OF DOLLIES

FATH has redesigned the infeed caps for even more efficiency in handling the Dollies. The extra wide designed opening acts like a funnel and makes loading the FIFO station much easier. Even if the rollers are not visible at all under the boxes, they can be threaded effortlessly into the rail. Employees can perform this step intuitively – the workflows are fluid and easy on the back.

The insertion caps are mounted at the front and rear end of each track. This allows the FIFO principle (First-In-First-Out) to be implemented perfectly - for an optimized internal flow of goods.

Icon-Plus-white.svg?ts=1743167971ANOTHER STRONG PLUS:

The FATH infeed caps for the FIFO station are manufactured using the aluminum die-casting process and, unlike conventional plastic caps, are break-resistant.

The FATH Guiding Rails FIFO are available in two designs:

The design is unique on the market:

rectangular joints allow a costeffective enclosure, for example for marking tracks. Due to the 8 profile slot incorporated in the Guiding Rails FIFO, superstructures with all common 40 x 40mm profiles can be easily mounted. A post for the signage is simply placed from above at a 90° angle and securely anchored in the slot. Integration on protective enclosures is also possible without complications.

Skip product gallery

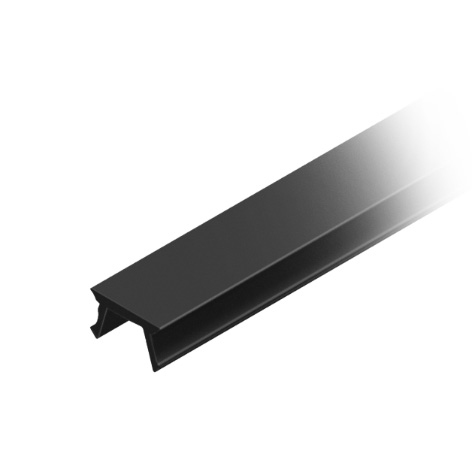

Cover Profile Slot 8 - 4.5
Color: Black | ESD: ESD electrostatical discharging | Profile: I | Slot N (mm): 8
Color:Black, yellow, gray, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 mm width and a 4.5 mm profile webMaterial:Plastic PPSpecials:Other colors on requestZolltarifnummer:39169050900

€0.00*

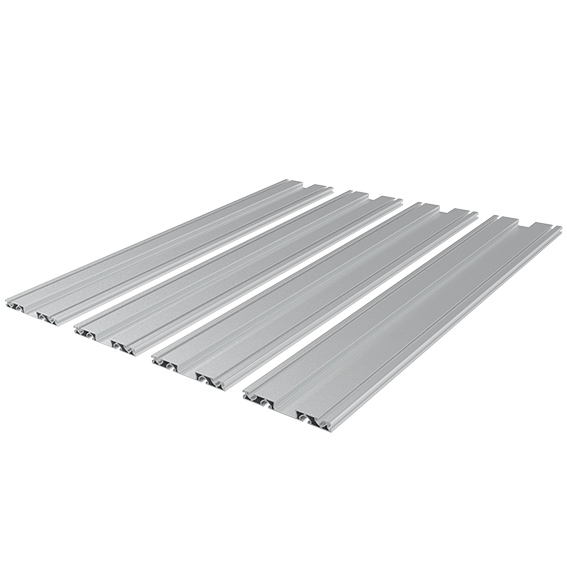

Guiding Rail FIFO (Set)
L (mm): 2400.0 | Profile: I
Delivery Countries:WorldwideDescription:For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm with 2 slots at the top, bottom and sides; to extend two guiding rails, connect them face to face with connecting strip in the slots; sign posts can be mounted in the slot from aboveMaterial:AluminumSurface:AnodizedTip:For cut: To order, please replace "xxxx" in the part number by the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mm Compatible connecting strip see 096060S20 Compatible infeed cap for FIFO monorail rail (set) see 2082CCS02 Compatible monorail angle connector for post see 093WS30145S01 Compatible mounting set for posts support struts see 93WS30145S02 Compatible cover profiles see 092080Zolltarifnummer:76042990900

€0.00*

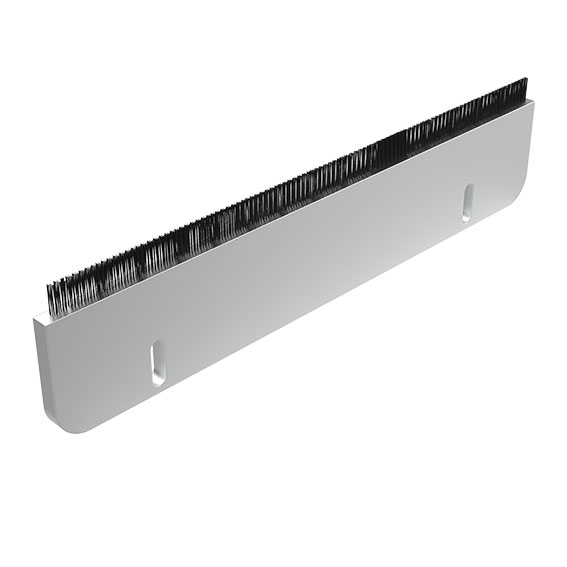

Brush Brake for Guiding Rail FIFO
Color:Bristles: BlackDelivery Countries:WorldwideDescription:For braking and stopping dollies in guiding rails; Variable fixable via slot of the guide rail FIFOMaterial:Body : Aluminum Bristles: Plastics PASurface:Body : AnodizedTip:Compatible Guiding Rail FIFO see 02082P.1200Zolltarifnummer:96035000000

€0.00*

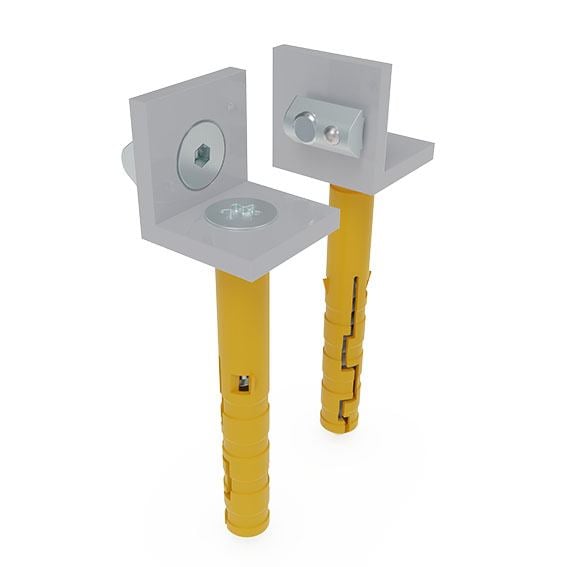

Floor Mounting for Guiding Rail FIFO (Set)
Color:Angle: Alu color Anchors: YellowDelivery Countries:WorldwideDescription:To additionally mount guiding rails FIFO to the floorMaterial:Angle: Steel Screw: Steel T-slot nut: Steel Anchors: PlasticSet:2 steel connection angle 20, 2 screws DIN 7991 - M5 x 8; 2 T-slot nuts - slot 5 - M5, 2 screws 5 x 60, 2 anchors 8 x 60Surface:Angle: Powder coated Screws: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:73269098900

€0.00*

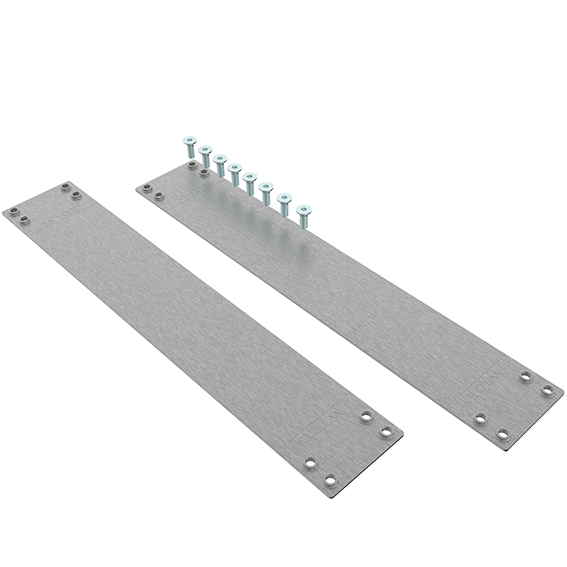

Connecting Element for Guiding Rail FIFO (Set)
Delivery Countries:WorldwideDescription:For parallel connection of two guiding rails FIFO, as spacer for aligning the track; To be screwed on infeed caps with enclosed screwsMaterial:Stainless steelSet:2 connecting elements 8 screws DIN 7991 (ISO 10642) - M6 x 16Surface:PlainTip:Compatible Guiding Rail FIFO see 02082P.1200 Compatible Infeed Cap for Guiding Rail FIFO (set) see 02082CCS01Zolltarifnummer:73269098900

€0.00*
Screw Cover Infeed Cap for Guiding Rail FIFO

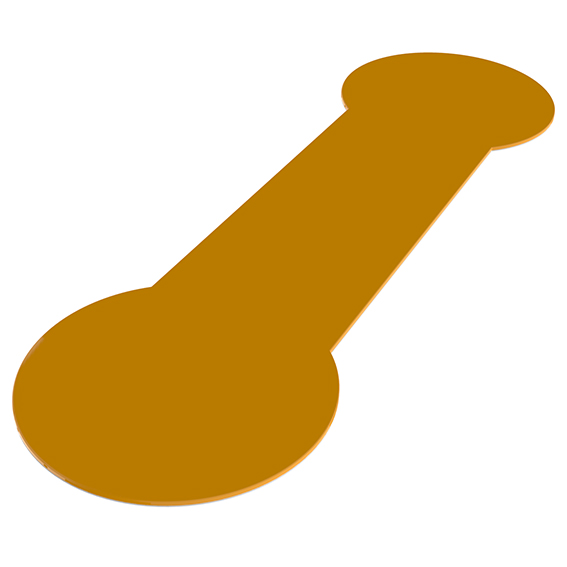

Color:Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:To cover the screw holes of infeed caps for guiding rail FIFO; Yellow screw cover with signal effect to indicate the infeed position for the wheels of floor dollys; Included in the infeed cap set, here separately available as replacementMaterial:Plastic PCZolltarifnummer:39269097900

€0.00*

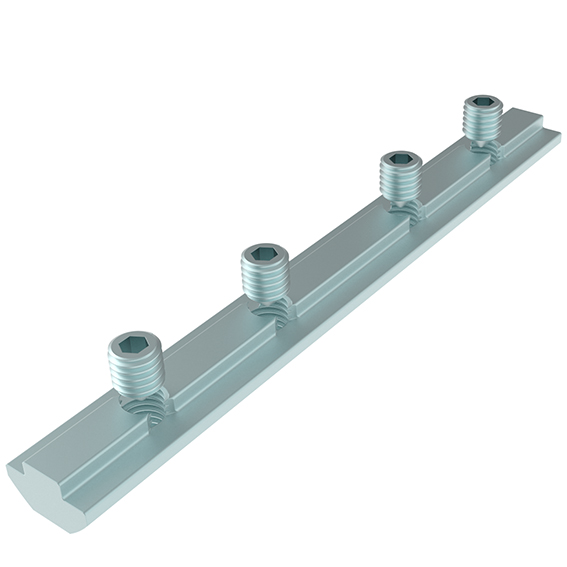

Connecting Strip 140 I, Slot 8 (Set)
L (mm): 140.0 | M: M8 | Profile: I | Slot N (mm): 8
Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles without machiningMaterial:SteelSet:1 connecting strip 140 - slot 8 4 screws DIN 914 - M8 x 10Surface:Zinc platedZolltarifnummer:73181900900

€0.00*

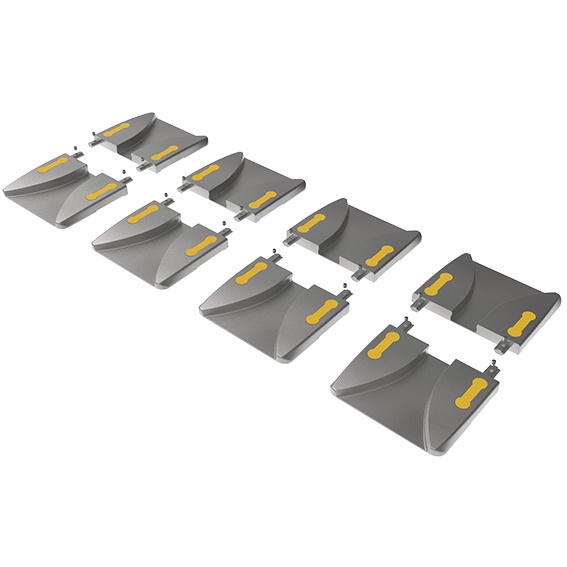

Infeed Cap for Guiding Rail FIFO (Set)
Color:Screw Covers: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:For easier loading and unloading of a FIFO stations with floor dollys; Robust design, mounting directly in the slot of guiding rails FIFO with enclosed hexagon socket set screws Yellow screw cover with signal effect to indicate the infeed position for the wheels of floor dollysMaterial:Infeed caps: Aluminum die-cast Screw covers: Plastic PC Hexagon socket set screws: SteelSet:8 infeed caps 16 screw covers 16 hexagon socket set screws ISO 4027 - M6 x 8Surface:Infeed caps: Alu color powder coated Hexagon socket set screws: Zinc platedTip:Compatible Guiding Rails FIFO see 02082P.1200 Compatible Connecting Element for Guiding Rail FIFO see 02082D Compatible Fastening Set see 02082FS Compatible Screw Cover Infeed Cap for Guiding Rail FIFO as spare part see 02082S.15Zolltarifnummer:76169990990

€0.00*

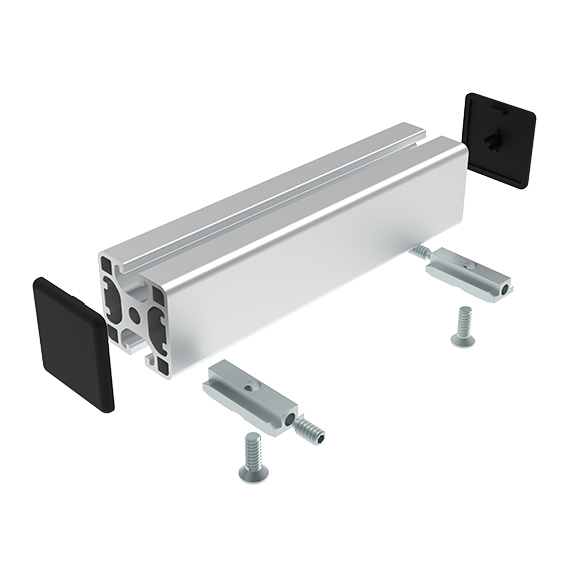

Adjustable Caster End Stop for Guiding Rail FIFO (Set)
L (mm): 178.0 | Profile: I
Color:Cover caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To stop dollies in guiding rails FIFO; Easy installation with enclosed connectorsMaterial:Profile: Aluminum Cover Cap: Plastic PA Connector: SteelSet:1 profile piece 2 cover caps 2 connectorsSurface:Profile: Anodized Connector: Zinc platedTip:Compatible Guiding Rail FIFO see 02082P.1200Zolltarifnummer:76169990990

€0.00*

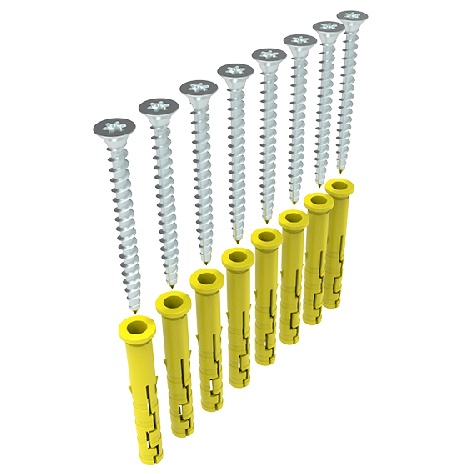

Mounting Set Infeed Cap for Guiding Rail FIFO
Color:Anchor: YellowDelivery Countries:WorldwideDescription:To mount infeed caps for guiding rails FIFO to the floorMaterial:Anchor: Plastic Screws: SteelSet:8 anchors 8 x 60 8 screws 5 x 60Surface:Screws: GalvanizedZolltarifnummer:73269098900

€0.00*

CONNECTORS FOR GUIDING RAILS FIFO

Skip product gallery
Zinc Connection Angle 40 x 80 flat
Color: - | Profile: - | Slot N (mm): - | Surface: Plain | Version: -
Assembly Set:1 Cover cap - Plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 Screws ISO 7380 - M8 x 16Color:Angle: Alu color Cover cap: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA802Zolltarifnummer:79070000900

€0.00*
Plate Connector I ZN 40 (Set)
A x B (mm): 40 x 80 | Color: - | Profile: I | Slot N (mm): 8 | Surface: Plain
Color:Alu colorDelivery Countries:WorldwideDescription:To tee connect two aluminum profilesMaterial:Plate Connector: Zinc die-cast Assembly set: SteelSet 1:1 self-tapping screw SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 2:2 self-tapping screws SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 3:2 self-tapping screws SF7 x 22, 2 double T-slot nut - Nut 8 - M8, 4 shaft screws M8Surface:Plate Connector: Plain / powder coated Assembly set: Zinc platedZolltarifnummer:79070000900

€0.00*
Zinc Connection Angle 40 flat
Color: Alu color | Profile: - | Slot N (mm): 10 | Surface: Powder coated | Version: -
Assembly Set:1 Cover cap - Plastic PA - black, 2 T-slot nuts - slot 8 - M8, 2 Screws ISO 7380 - M8 x 16Color:Angle: - / alu color Cover cap: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA401Zolltarifnummer:79070000900

€0.00*

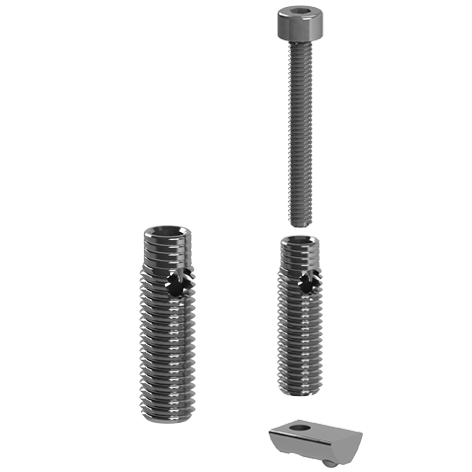

Automatic Connector Steel
D (mm): 14.4 | L (mm): 35.0 | Profile: - | Profile Width: 45 | SW 1: 5 | SW 2: - | Screw: M6 x 45 | Slot N (mm): 8 | Version: With assembly set, incl. screw and T-slot nut **
Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:SteelSurface:Zinc platedTip:* Compatible Cover Cap see 099GA081KTip 2:** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nutZolltarifnummer:73181900900

€0.00*

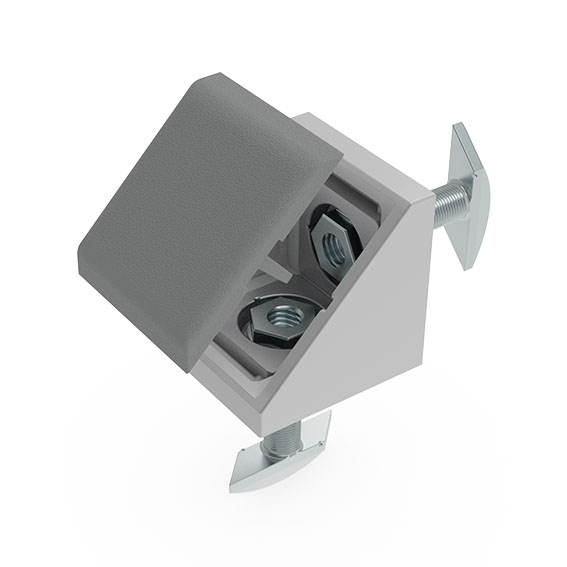

Alu Connection Angle I40 M Length/Cross (Set)
Profile: I | Slot N (mm): 8
Color:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169910990

€0.00*

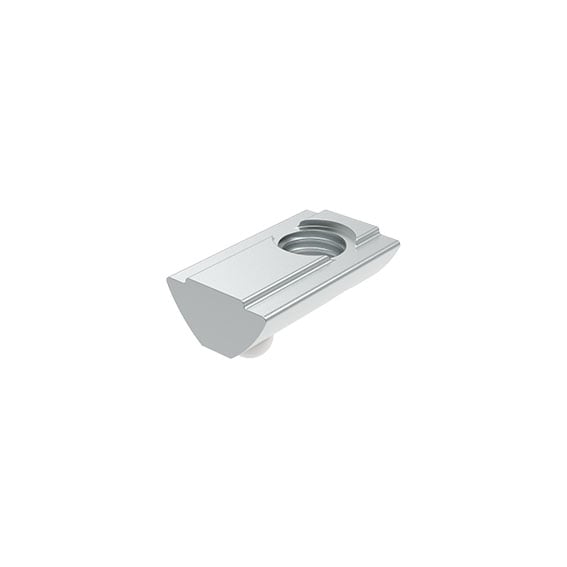

Roll-in T-slot Nut 13.5 x 7.2 mm with Spring Loaded Ball
ESD: - | M: M6 | Material: Stainless steel | Profile: I
Delivery Countries:WorldwideDescription:Self-aligning roll-in T-slot nut with spring loaded ballMaterial:Steel / stainless steel SS304 / SS303 Specials:ESD electrostatical discharging, different lengths with multiple threads in different sizes available on requestSurface:Zinc plated / plainZolltarifnummer:73181900900

€0.00*

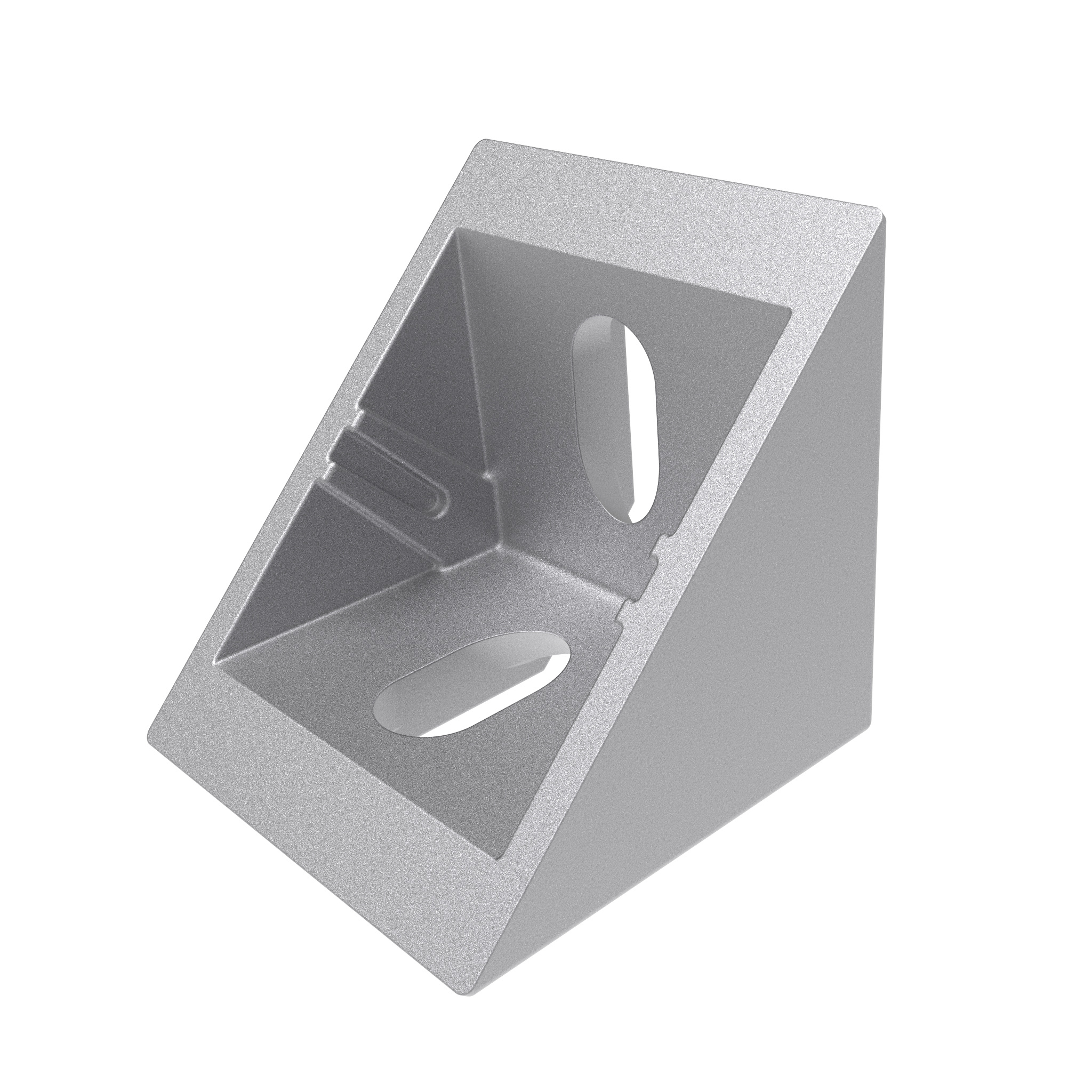

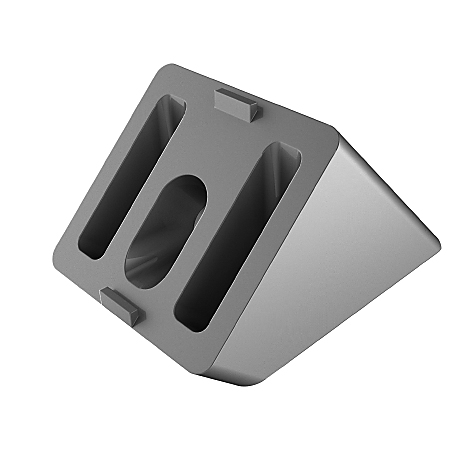

Angle Connector 40, 45°
Color: Alu color | Slot N (mm): 8 | Surface: Powder coated | for Screw: M8
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coatedZolltarifnummer:79070000900

€0.00*

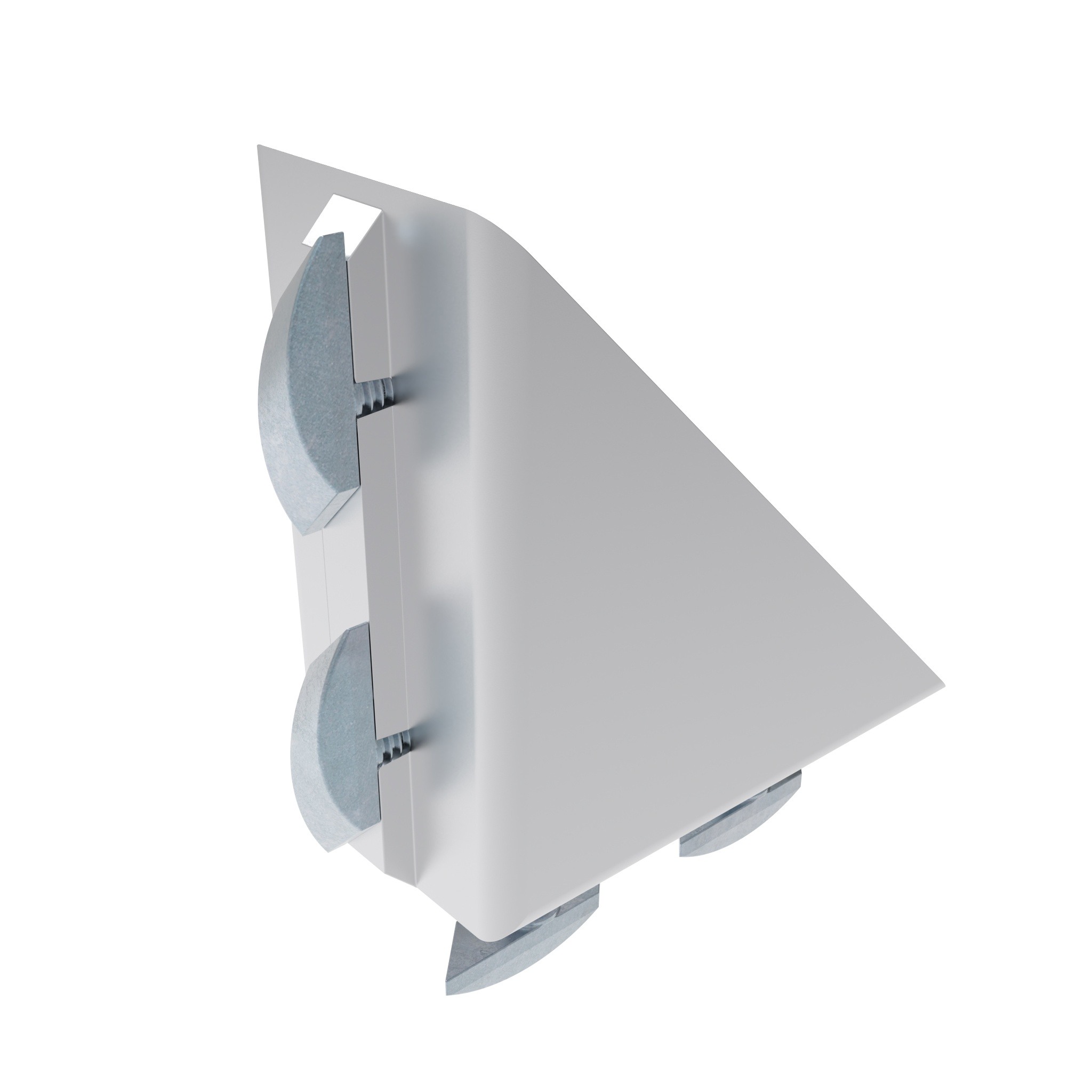

Alu Connection Angle I40 x 80 M (Set)
Profile: I | Slot N (mm): 8
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA809Zolltarifnummer:76169910990

€0.00*

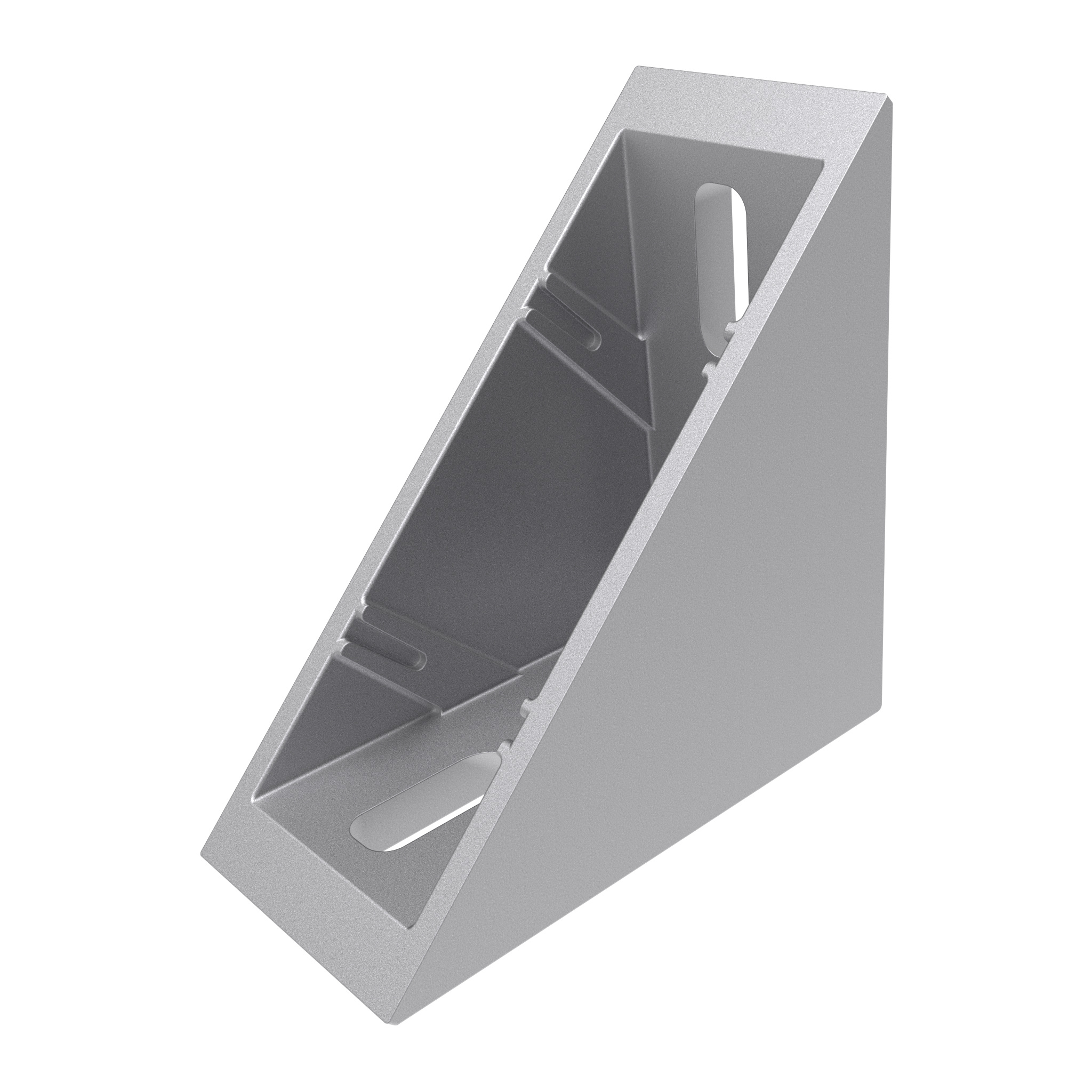

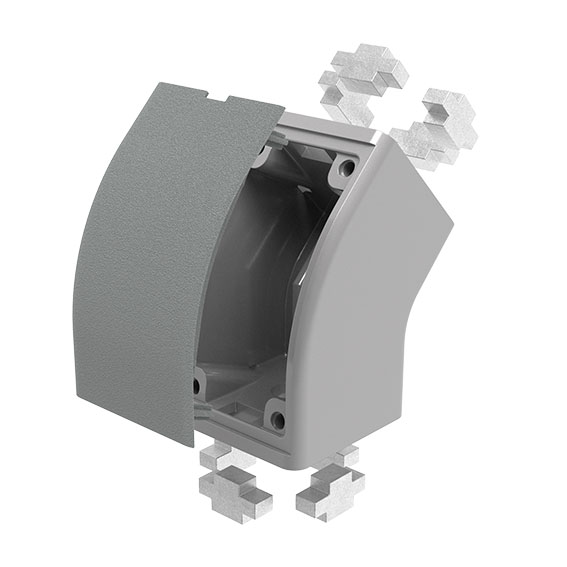

Angle Connector I 40, 45° (Set)
Slot N (mm): 8 / 10
Color:Angle connector: Alu color Cover cap: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Centering pieces: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforcedSet:1x angle connector, 4x centering pieces, 1x cover capSurface:Angle connector: Powder coatedZolltarifnummer:76169910990

€0.00*

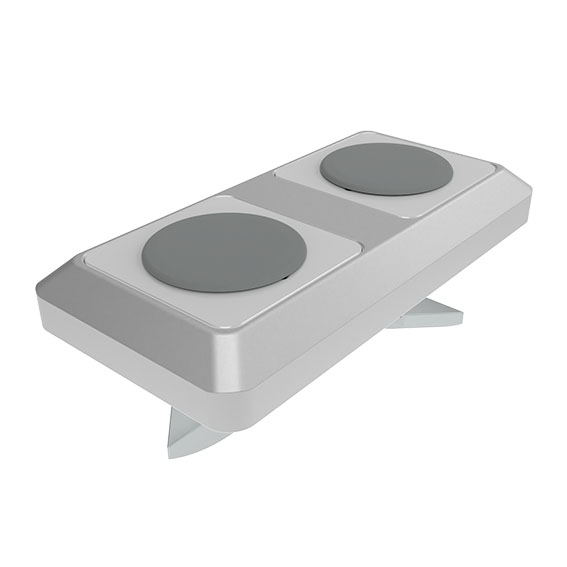

Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set)
Profile: I | Slot N (mm): 8
Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angle or parallel, direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts in 90° turnable inserts 2 cover capsSpecials:Other surfaces, other colors on requestSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169990990

€0.00*

CAD Downloads


TO CAD DOWNLOAD

FURTHER PRODUCT RECOMMENDATIONS

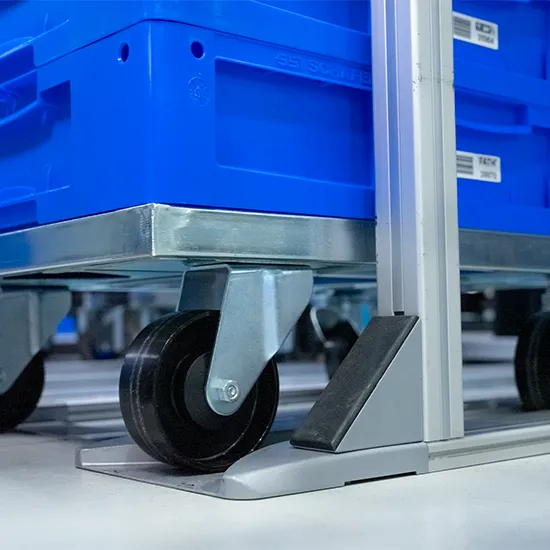

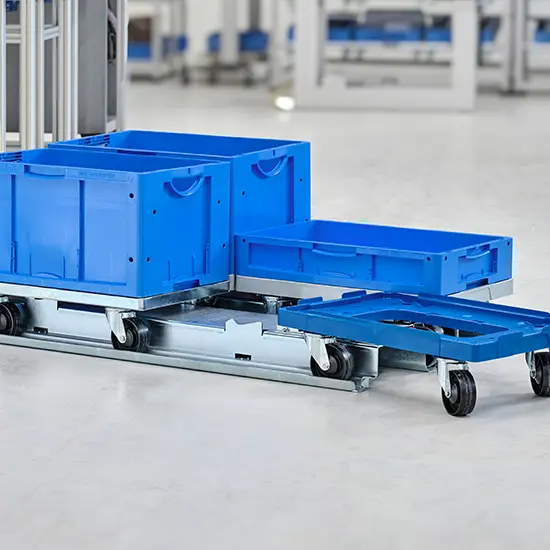

PERFECT INTERACTION: FATH GUIDING RAILS FIFO AND FATH DOLLIES

In combination with the FATH Dollies, material supply becomes even more efficient. The Dollies are designed to fit all KLT/Euro containers 600 x 400 mm and offer a high load capacity of up to 250 kg.

As empties, they can be stacked to save space and stored in the smallest of spaces. Versions are available with and without side guides. All FATH castors for Dollies are equipped with high-quality wheels from the manufacturer Blickle Germany.



More about the FATH Dollies
