Plastic Hinges

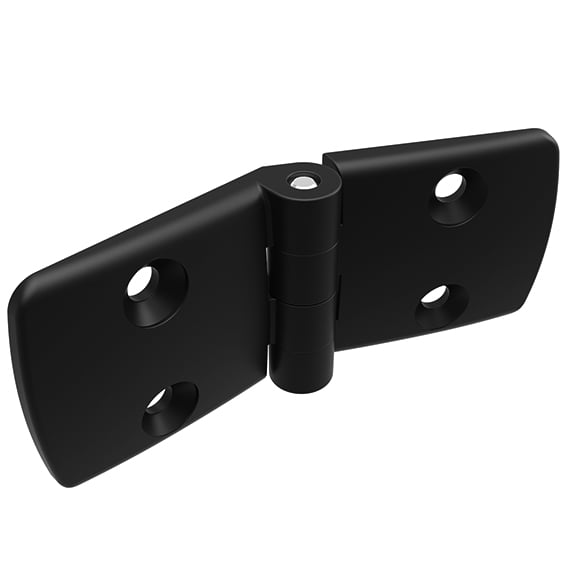

Heavy-duty Plastic Hinge 30, Black
€0.00*
A1 (mm):
17.5
|
A2 (mm):
32.5
|
B1 (mm):
30.0
|
B2 (mm):
60.0
|
Combination:
30 / 60
|
FAmax (N):
130.0
|
Slot N (mm):
8 / 10
|
Version:
With assembly set 2
Assembly Set 1:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16, 2 hammer nuts slot 8 - M6Assembly Set 2:1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 16, 1 hammer nut slot 8 - M6, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 18, 1 hammer nut slot 10 - M6Color:Wings: BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSpecials:ESD electrostatical discharging, other sizes, other colors on requestSurface:Bolt: Plain Assembly set: Zinc plated

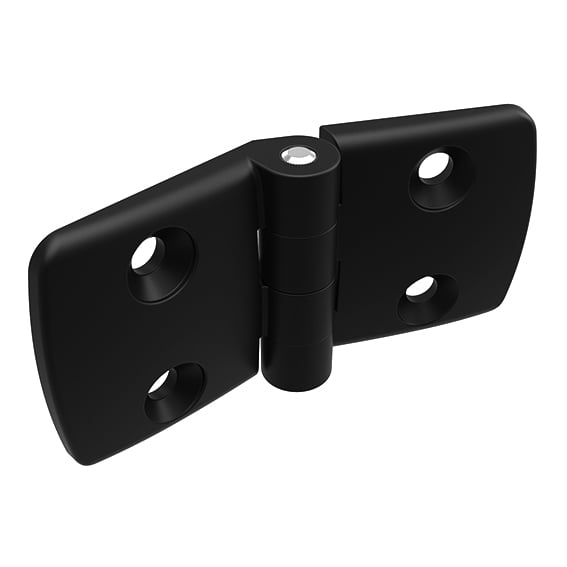

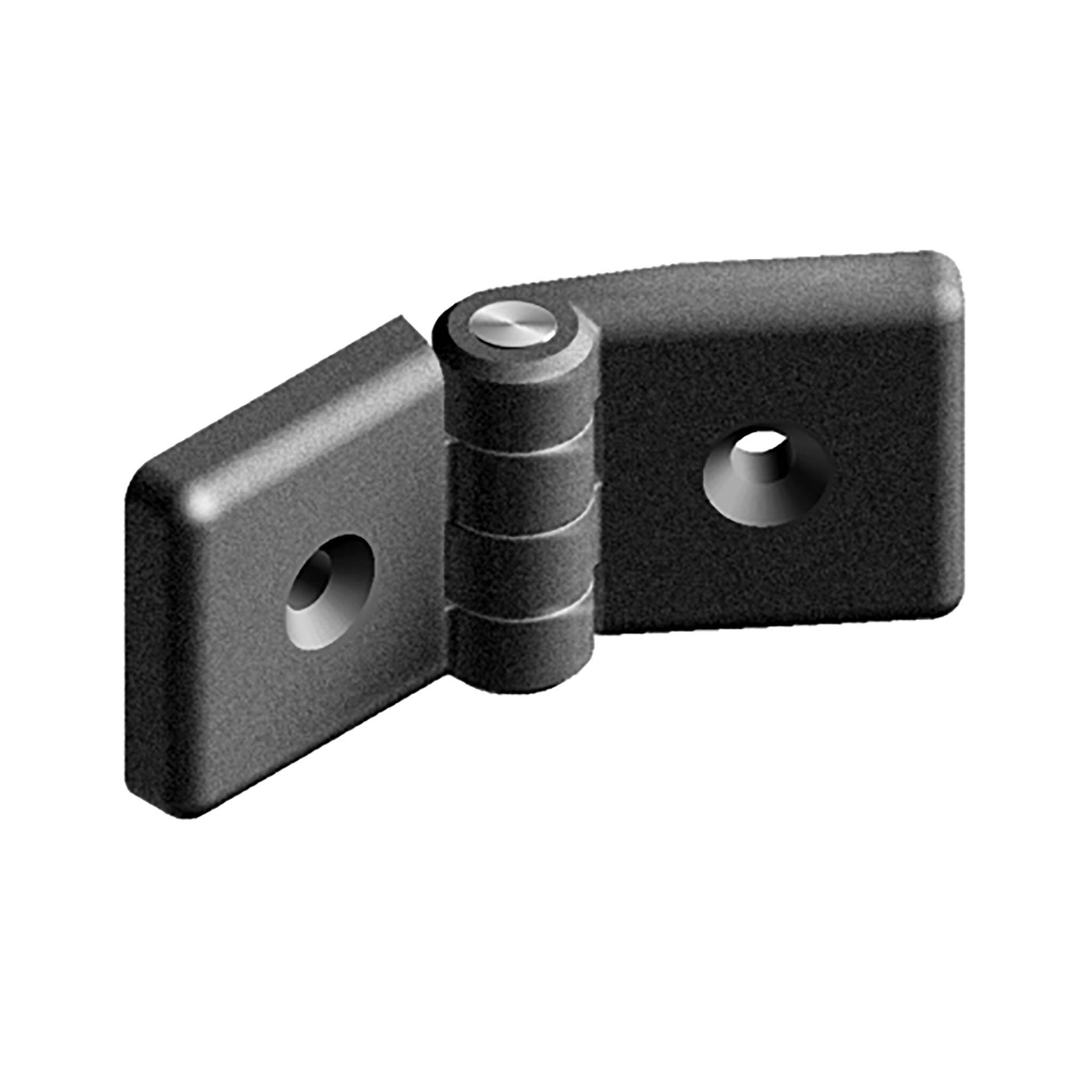

Heavy-duty Plastic Hinge 40, Black
€0.00*
A1 (mm):
22.5
|
A2 (mm):
22.5
|
B1 (mm):
39.0
|
B2 (mm):
39.0
|
Combination:
40 / 40
|
FAmax (N):
150.0
|
Slot N (mm):
8 / 10
|
Version:
-
Assembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Color:Wings: BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSpecials:ESD electrostatical discharging, other sizes, other colors on requestSurface:Bolt: Plain Assembly set: Zinc plated
Heavy-duty Plastic Hinge 45
€0.00*
A1 (mm):
25.0
|
A2 (mm):
25.0
|
B1 (mm):
45.0
|
B2 (mm):
45.0
|
Combination:
45 / 45
|
FAmax (N):
150.0
|
Slot N (mm):
-
|
Version:
-
Assembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Color:Wings: BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSpecials:ESD electrostatical discharging, other sizes, other colors on requestSurface:Bolt: Plain Assembly set: Zinc plated
Heavy-duty Plastic Hinge 60
€0.00*
A1 (mm):
32.5
|
A2 (mm):
32.5
|
B1 (mm):
60.0
|
B2 (mm):
60.0
|
FAmax (N):
130.0
|
Slot N (mm):
10
|
Version:
60 / 60
Assembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Color:Wings: BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSpecials:ESD electrostatical discharging, other sizes, other colors on requestSurface:Bolt: Plain Assembly set: Zinc plated

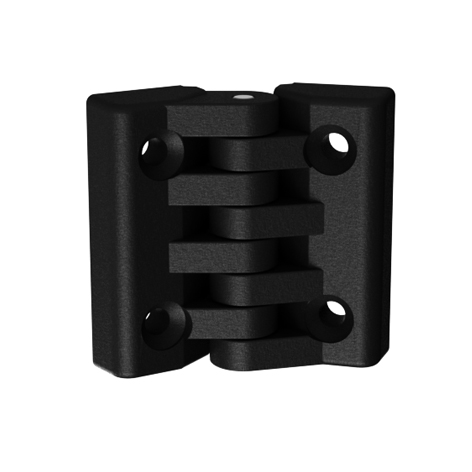

Heavy-duty Plastic Hinge 65 x 64
€0.00*
FAmax (N):
1520
|
FRmax (N):
2850
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on request
Light Plastic Hinge 35 - 40, Black
€0.00*
FAmax (N):
300
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on request

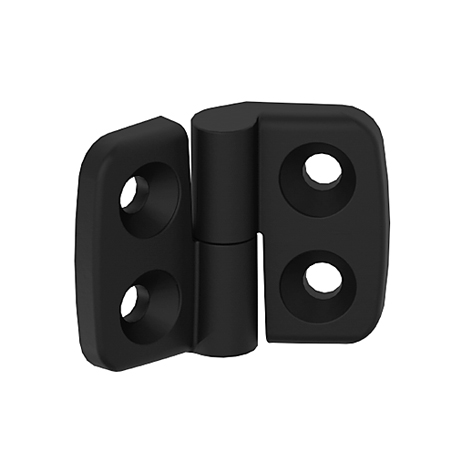

Plastic Combi Hinge 20 MINI, Detachable
€0.00*
Combination:
20 / 20
|
Version:
R: Right
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

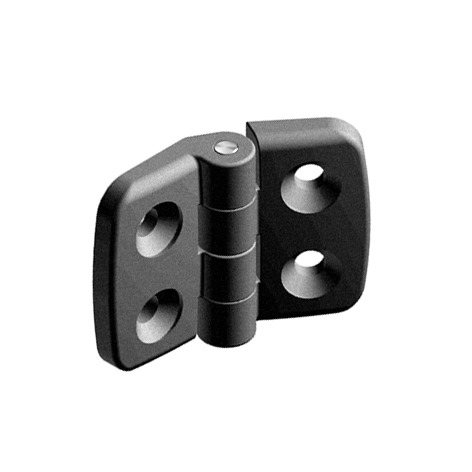

Plastic Combi Hinge 20 MINI, Non-detachable
€0.00*
Combination:
20 / 20
|
FRmax (N):
400
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Plastic Combi Hinge 25, Detachable, Black
€0.00*
A1 (mm):
15.0
|
A2 (mm):
22.5
|
B1 (mm):
26.0
|
B2 (mm):
38.5
|
Combination:
25 / 40
|
FAmax (N):
350
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Plastic Combi Hinge 25, Non-detachable, Black
€0.00*
A1 (mm):
17.5
|
A2 (mm):
15.0
|
B1 (mm):
29.5
|
B2 (mm):
26.0
|
Combination:
30 / 25
|
FAmax (N):
400
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Plastic Combi Hinge 30, Detachable, Black
€0.00*
A1 (mm):
17.5
|
A2 (mm):
17.5
|
B1 (mm):
29.5
|
B2 (mm):
29.5
|
Combination:
30 / 30
|
FAmax (N):
-
|
FRmax (N):
750
|
Slot N (mm):
-
|
Version:
L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

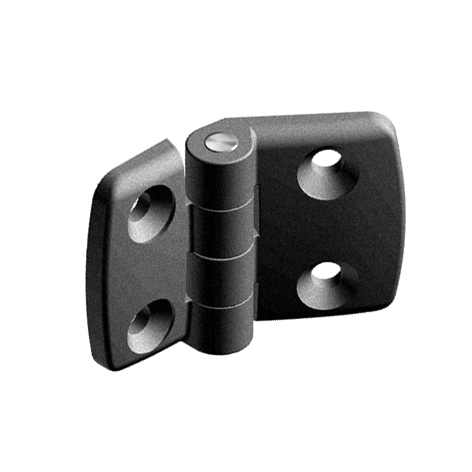

Plastic Combi Hinge 30, Non-detachable, Black
€0.00*
A1 (mm):
17.5
|
A2 (mm):
17.5
|
B1 (mm):
29.5
|
B2 (mm):
29.5
|
Combination:
30 / 30
|
FAmax (N):
400
|
FRmax (N):
-
|
Slot N (mm):
8
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

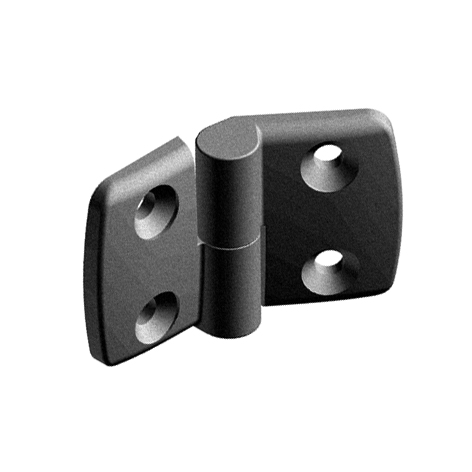

Plastic Combi Hinge 35, Detachable, Black
€0.00*
A1 (mm):
20.0
|
A2 (mm):
20.0
|
B1 (mm):
36.0
|
B2 (mm):
36.0
|
Combination:
35 / 35
|
FAmax (N):
400
|
FRmax (N):
750
|
Slot N (mm):
8
|
Version:
R: Right
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

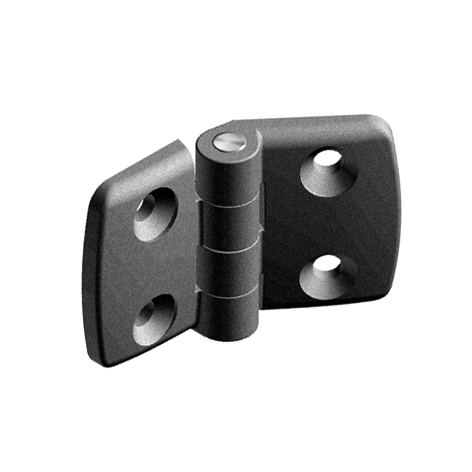

Plastic Combi Hinge 35, Non-detachable, Black
€0.00*
A1 (mm):
20.0
|
A2 (mm):
22.5
|
B1 (mm):
36.0
|
B2 (mm):
38.5
|
Combination:
35 / 40
|
FAmax (N):
450
|
FRmax (N):
750
|
Slot N (mm):
-
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Plastic Combi Hinge 40, Detachable, Black
€0.00*
A1 (mm):
22.5
|
A2 (mm):
22.5
|
B1 (mm):
38.5
|
B2 (mm):
38.5
|
Combination:
40 / 40
|
FAmax (N):
350
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
R: Right
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Plastic Combi Hinge 40, Non-detachable, Black
€0.00*
A1 (mm):
22.5
|
A2 (mm):
22.5
|
B1 (mm):
38.5
|
B2 (mm):
38.5
|
Combination:
40 / 40
|
FAmax (N):
450
|
FRmax (N):
750
|
Slot N (mm):
-
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Plastic Combi Hinge 45, Detachable, Black
€0.00*
A1 (mm):
25.0
|
A2 (mm):
32.5
|
B1 (mm):
43.5
|
B2 (mm):
57.5
|
Combination:
45 / 60
|
FAmax (N):
-
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

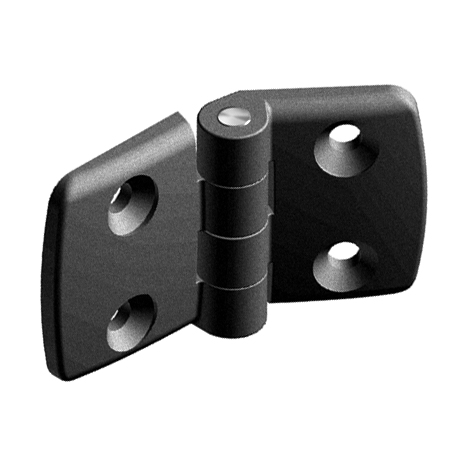

Plastic Combi Hinge 45, Non-detachable, Black
€0.00*
A1 (mm):
25.0
|
A2 (mm):
25.0
|
B1 (mm):
43.5
|
B2 (mm):
43.5
|
Combination:
45 / 45
|
FAmax (N):
450
|
FRmax (N):
750
|
Slot N (mm):
10
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Plastic Combi Hinge 50, Detachable, Black
€0.00*
A1 (mm):
27.5
|
A2 (mm):
27.5
|
B1 (mm):
48.5
|
B2 (mm):
48.5
|
Combination:
50 / 50
|
FAmax (N):
320
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Plastic Combi Hinge 50, Non-detachable, Black
€0.00*
A1 (mm):
27.5
|
A2 (mm):
32.5
|
B1 (mm):
48.5
|
B2 (mm):
57.5
|
Combination:
50 / 60
|
FAmax (N):
-
|
FRmax (N):
850
|
Slot N (mm):
-
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Plastic Combi Hinge 60, Detachable, Black
€0.00*
A1 (mm):
32.5
|
A2 (mm):
32.5
|
B1 (mm):
57.5
|
B2 (mm):
57.5
|
Combination:
60 / 60
|
FAmax (N):
-
|
FRmax (N):
900
|
Slot N (mm):
10
|
Version:
L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Plastic Combi Hinge 60, Non-detachable, Black
€0.00*
A1 (mm):
32.5
|
A2 (mm):
32.5
|
B1 (mm):
57.5
|
B2 (mm):
57.5
|
Combination:
60 / 60
|
FAmax (N):
175
|
FRmax (N):
850
|
Slot N (mm):
10
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

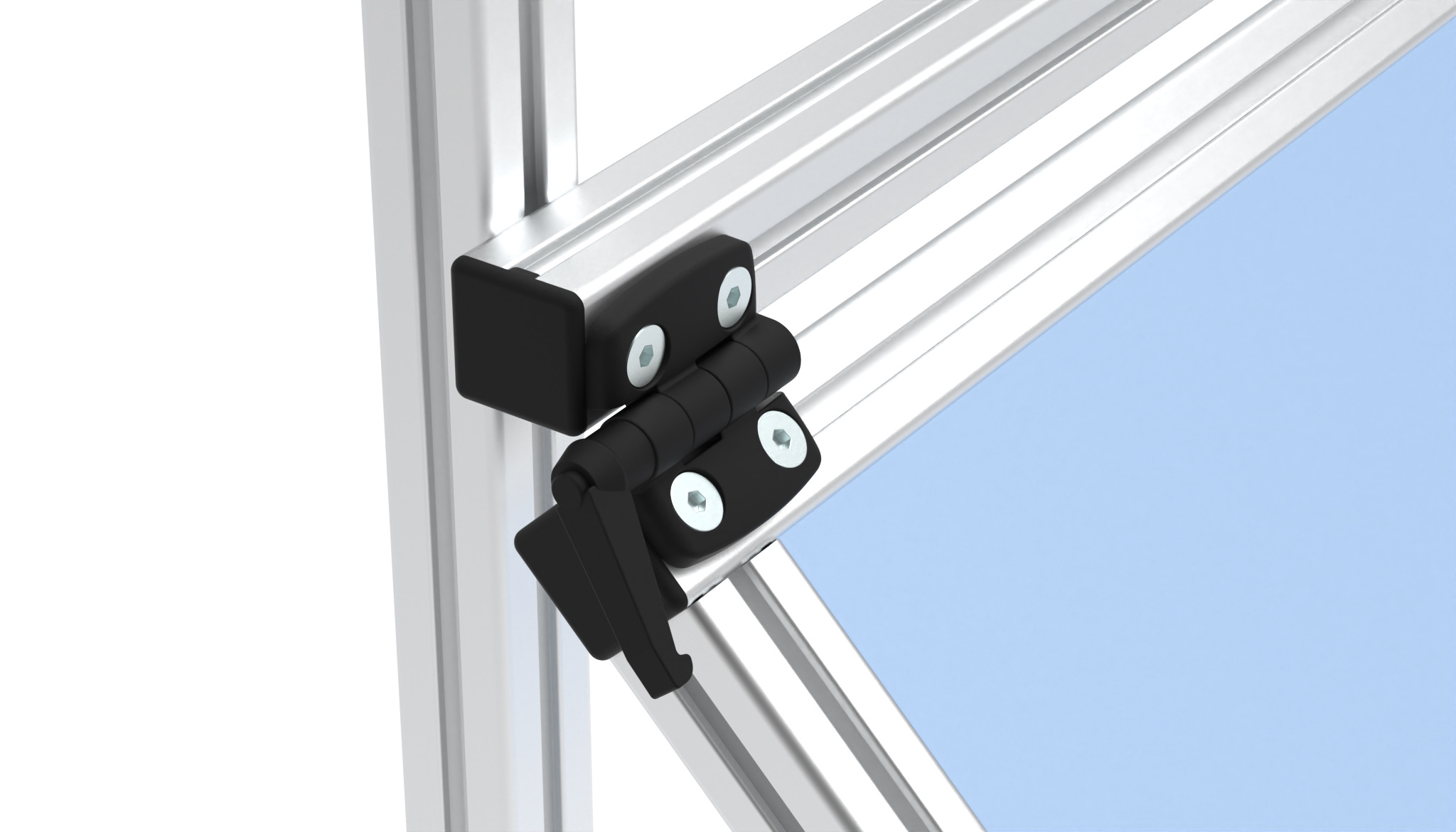

Plastic Combi Hinge with Locking Lever
€0.00*
A1 (mm):
22.5
|
A2 (mm):
22.5
|
B1 (mm):
38.5
|
B2 (mm):
38.5
|
Combination:
40 / 40
|
FAmax (N):
450
|
FRmax (N):
750
|
Slot N (mm):
8
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; can be locked at any positionMaterial:Hinge: Plastic PA, glass fiber reinforced KIPP locking lever: Plastic PA, glass fiber reinforced Mechanism: Steel, zinc plated (RoHS conform)Specials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request

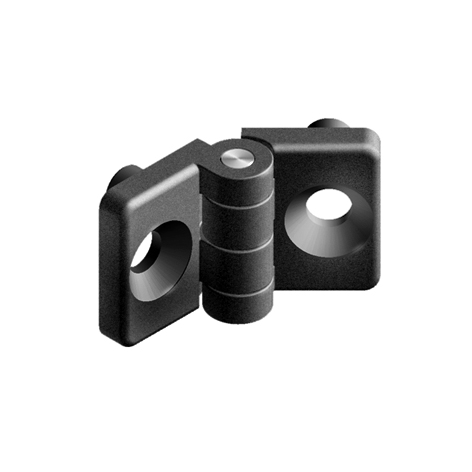

Plastic Hinge 20 MINI, Black
€0.00*
FRmax (N):
300
|
Slot N (mm):
6
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on request
