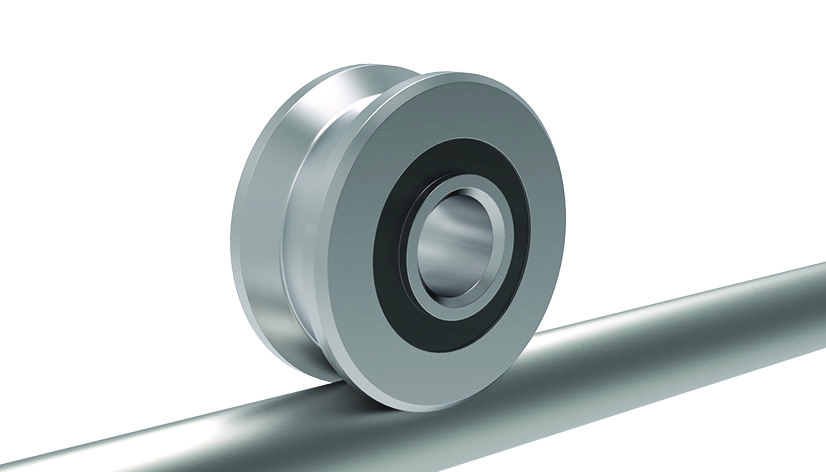

Sliders and Rollers

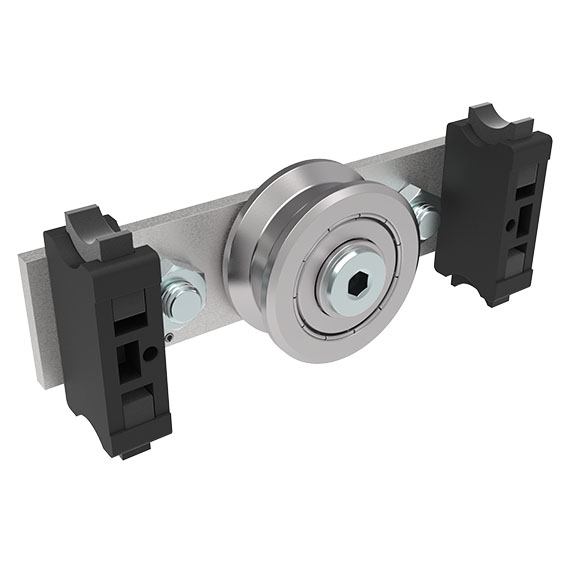

Bearing Kit 1 Roller Shaft Ø 14 for C-slide Profile I (Set)
€0.00*
Profile:
I
Color:Wiper and lubricators: BlackDelivery Countries:WorldwideDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mmMaterial:Roller: Steel Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: SteelSet:1 roller 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 1 threaded sleeve - M8 2 press nuts - M8 1 tension pin 2 wiper and lubricators 2 wood screws - 3.5 x 20Surface:Roller: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Tension pin: Zinc plated Wood screws: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit 1 Roller Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA128S01

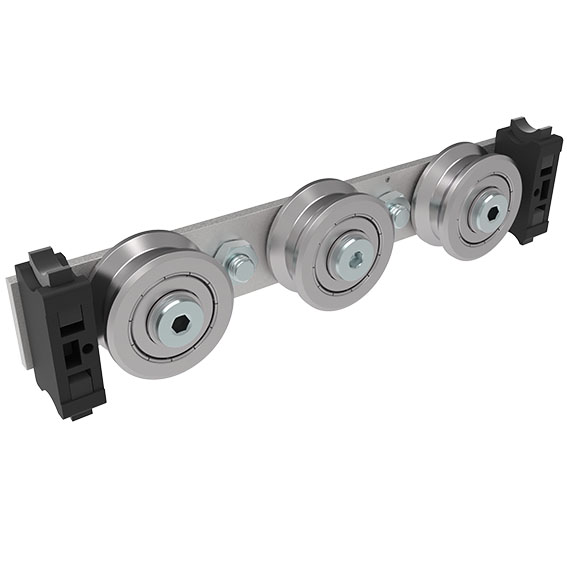

Bearing Kit 3 Rollers Shaft Ø 14 for C-slide Profile I (Set)
€0.00*
Profile:
I
Color:Wiper and lubricators: BlackDelivery Countries:WorldwideDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide loads, steel rollers with ball bearings runs directly on shaft Ø 14 mm To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Rollers: Steel Carrier plate: Steel Screws: Steel Threaded sleeves: Steel Press nuts: Steel Excentric screw: Steel Adjusting washer: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: SteelSet:3 rollers 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 2 threaded sleeve - M8 2 press nuts - M8 1 excentric screw M8 1 adjusting washer - M8 1 tension pin 2 wiper and lubricators 2 wood screws - 3.5 x 20Surface:Rollers: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeves: Zinc plated Press nuts: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Tension pin: Zinc plated Wood screws: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA208S01

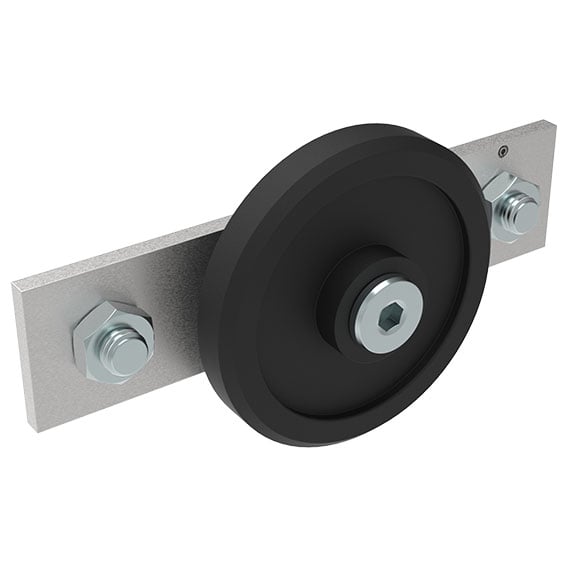

Bearing Kit PA 1 Roller Slot Ø 14 for C-slide Profile I (Set)
€0.00*
Profile:
I
Color:Roller: BlackDelivery Countries:WorldwideDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mmMaterial:Roller: Plastic PA Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: SteelSet:1 roller 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 1 threaded sleeve - M8 2 press nuts - M8 1 tension pinSurface:Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit PA 1 Roller for C-Rail-Profile I Slot Ø 14 see 093CAU081A128S01

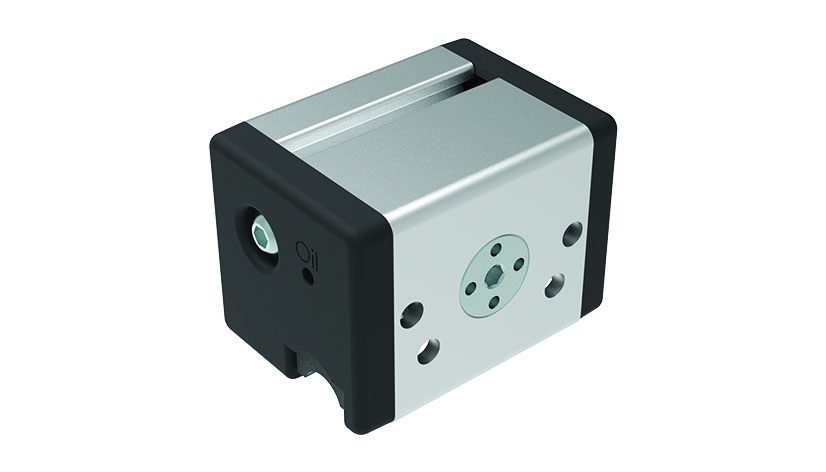

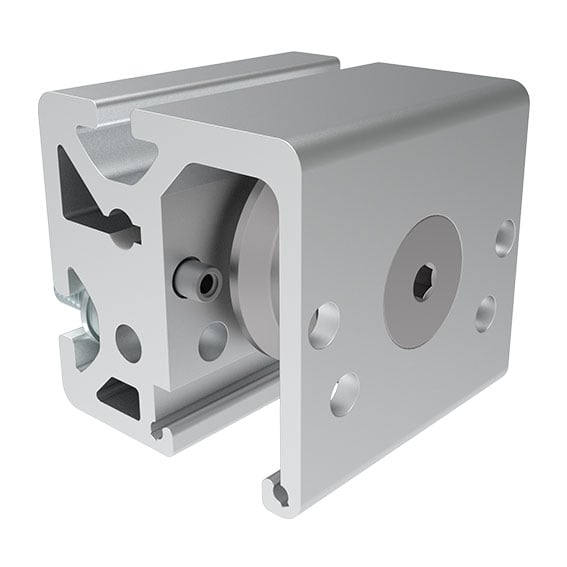

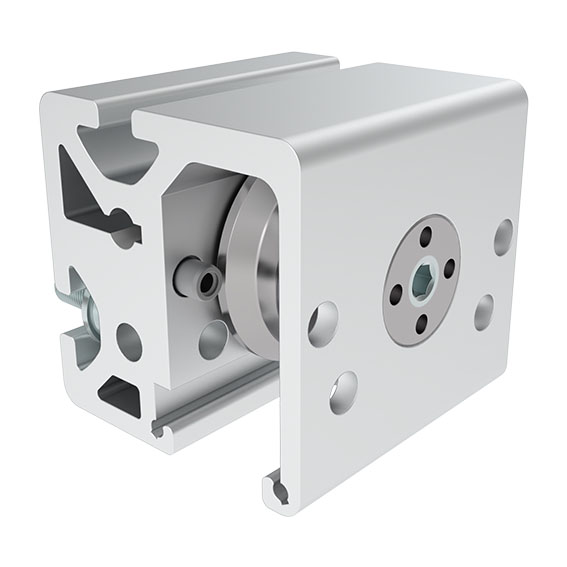

Bearing Unit 1 Roller Centric Shaft Ø 14
€0.00*
Profile:
I
Delivery Countries:WorldwideDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8Material:Roller: Steel Screws: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01
Bearing Unit 1 Roller Eccentric Shaft Ø 14
€0.00*
Profile:
I
Delivery Countries:WorldwideDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8 To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Roller: Steel Screws: Steel Excentric screw: Steel Adjusting washer: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01

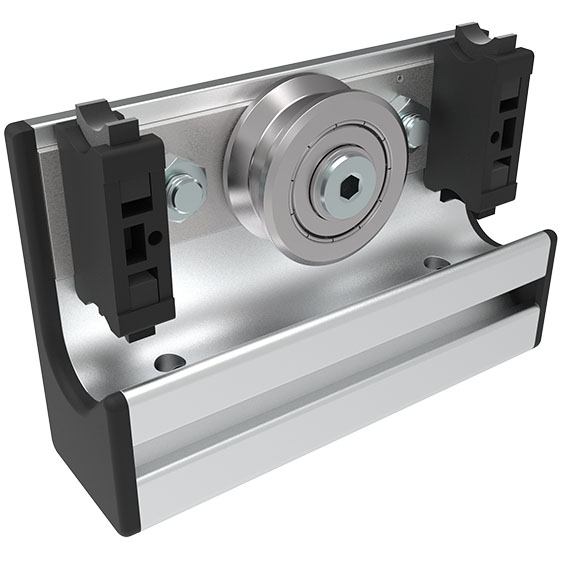

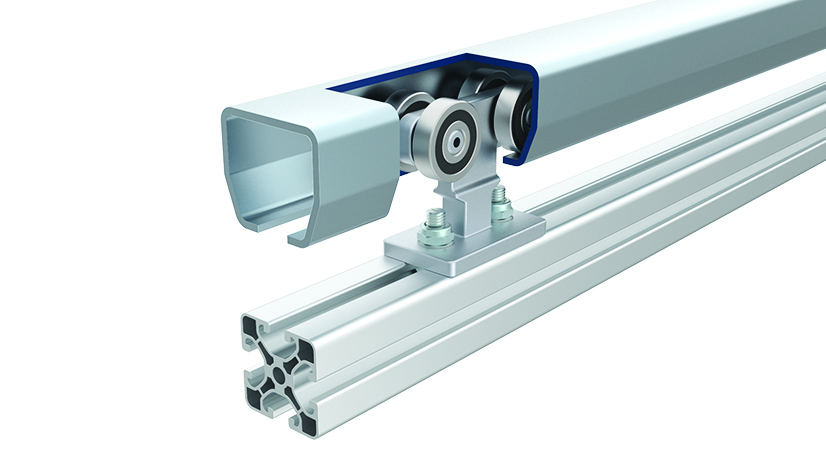

Bearing Unit 1 Roller Shaft Ø 14 for C-Rail-Profile I
€0.00*
Profile:
I
Color:Wiper and lubricators: Black Cover caps: BlackDelivery Countries:WorldwideDescription:To build sliding doors To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mmMaterial:Roller: Steel Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Roller: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Tension pin: Zinc plated Wood screws: Zinc plated Profile: Anodized

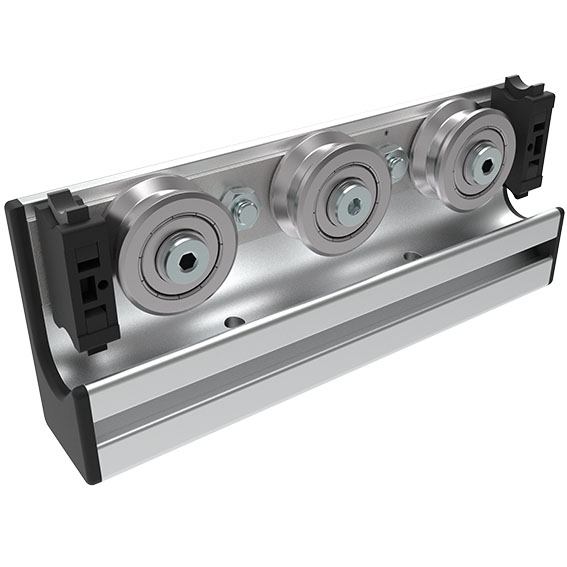

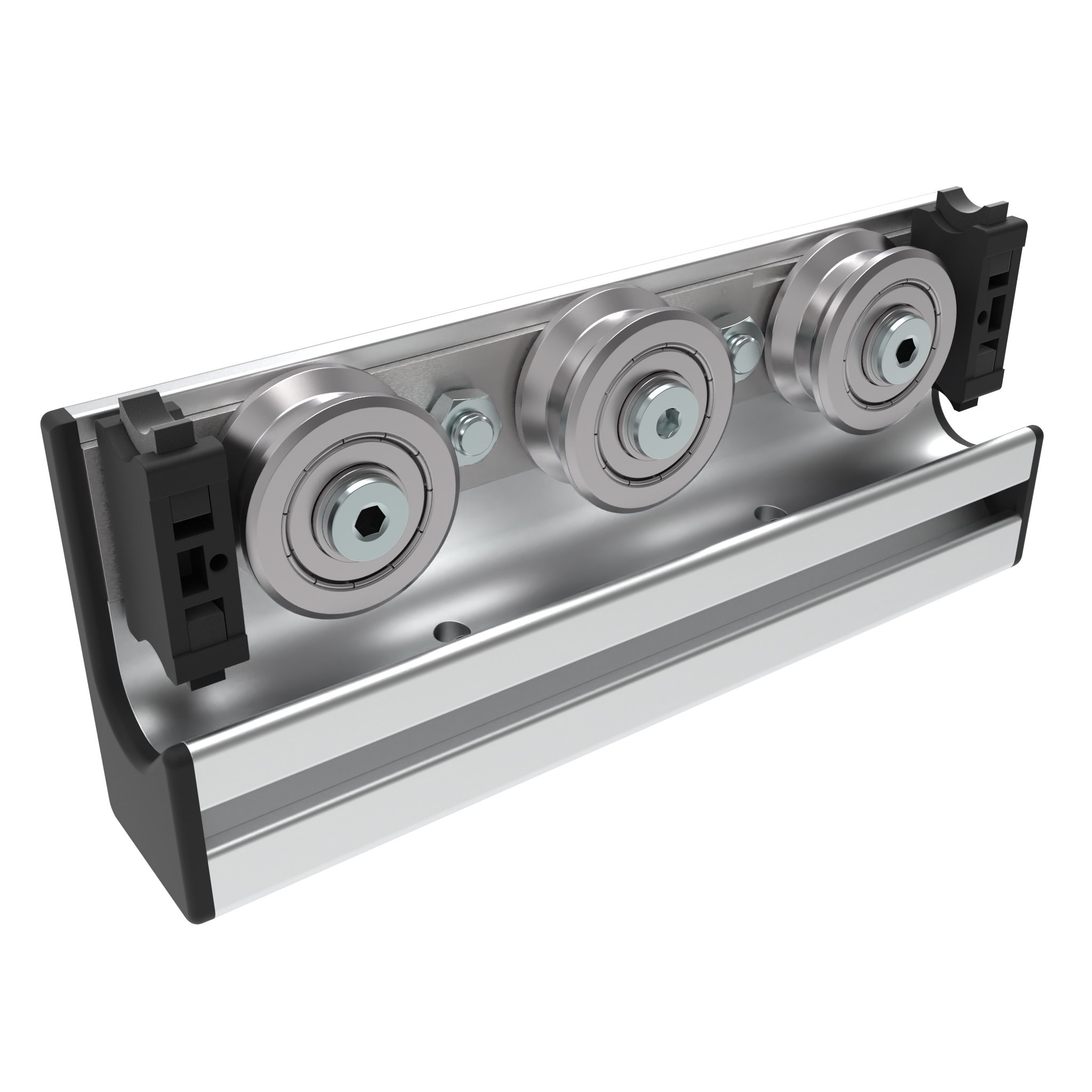

Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I
€0.00*
Profile:
I
Color:Wiper and lubricators: Black Cover caps: BlackDelivery Countries:WorldwideDescription:To build sliding doors To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Rollers: Steel Carrier plate: Steel Screws: Steel Threaded sleeves: Steel Press nuts: Steel Excentric screw: Steel Adjusting washer: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Rollers: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeves: Zinc plated Press nuts: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Wood screws: Zinc plated Profile: Anodized

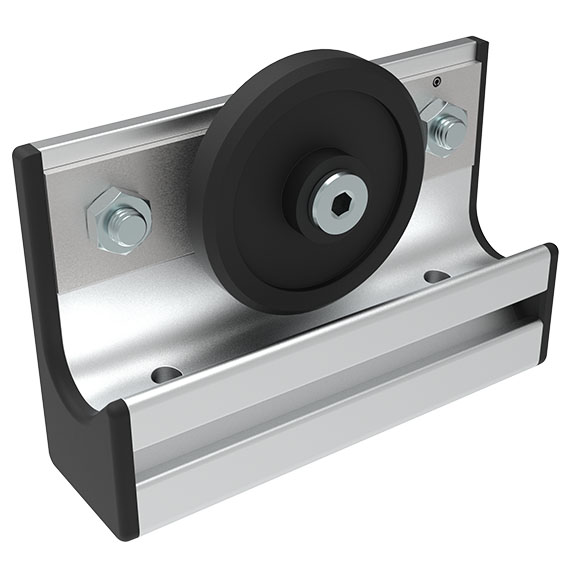

Bearing Unit PA 1 Roller for C-Rail-Profile I Slot Ø 14
€0.00*
Profile:
I
Color:Roller: Black Cover caps: BlackDelivery Countries:WorldwideDescription:To build sliding doors To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mmMaterial:Roller: Plastic PA Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Profile: Anodized

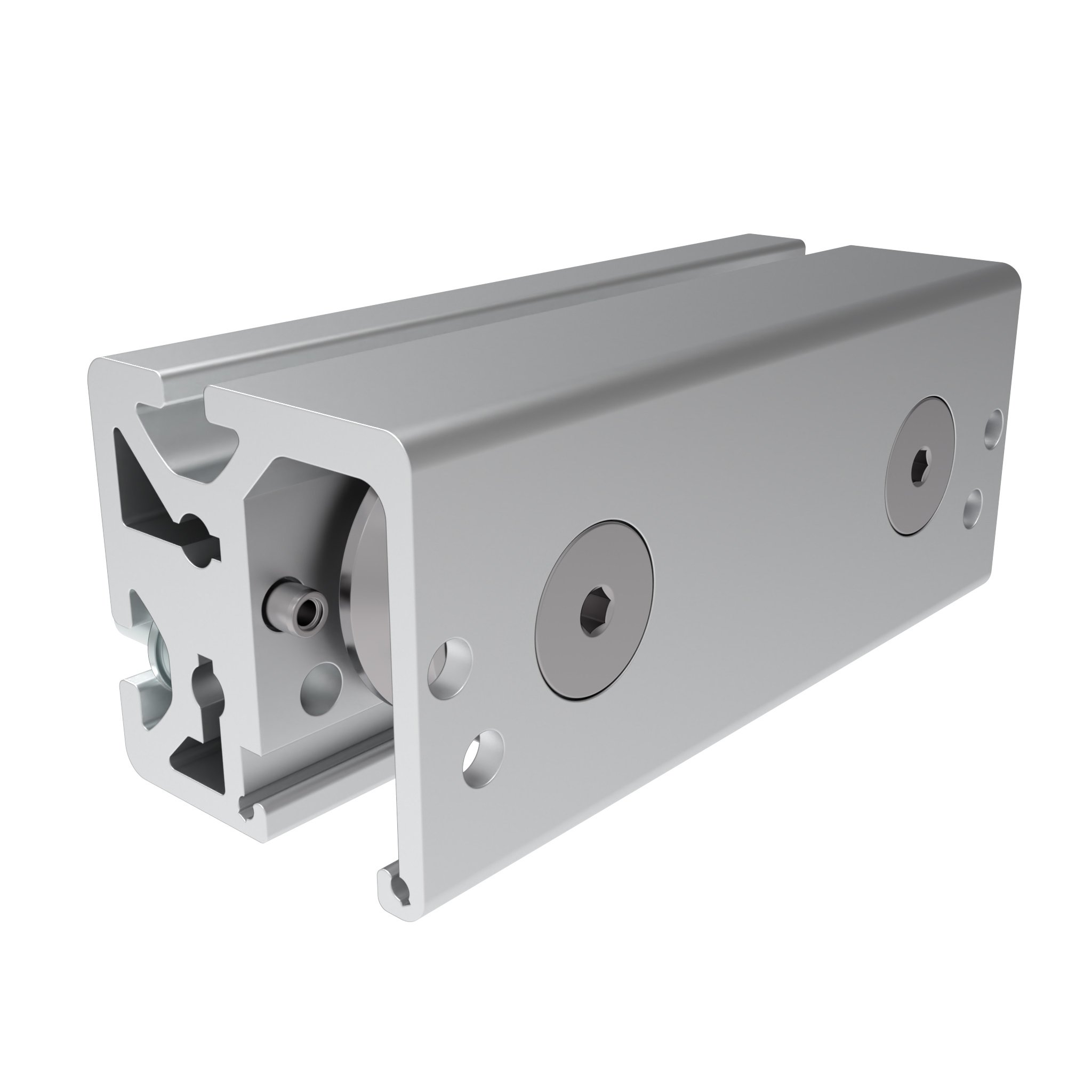

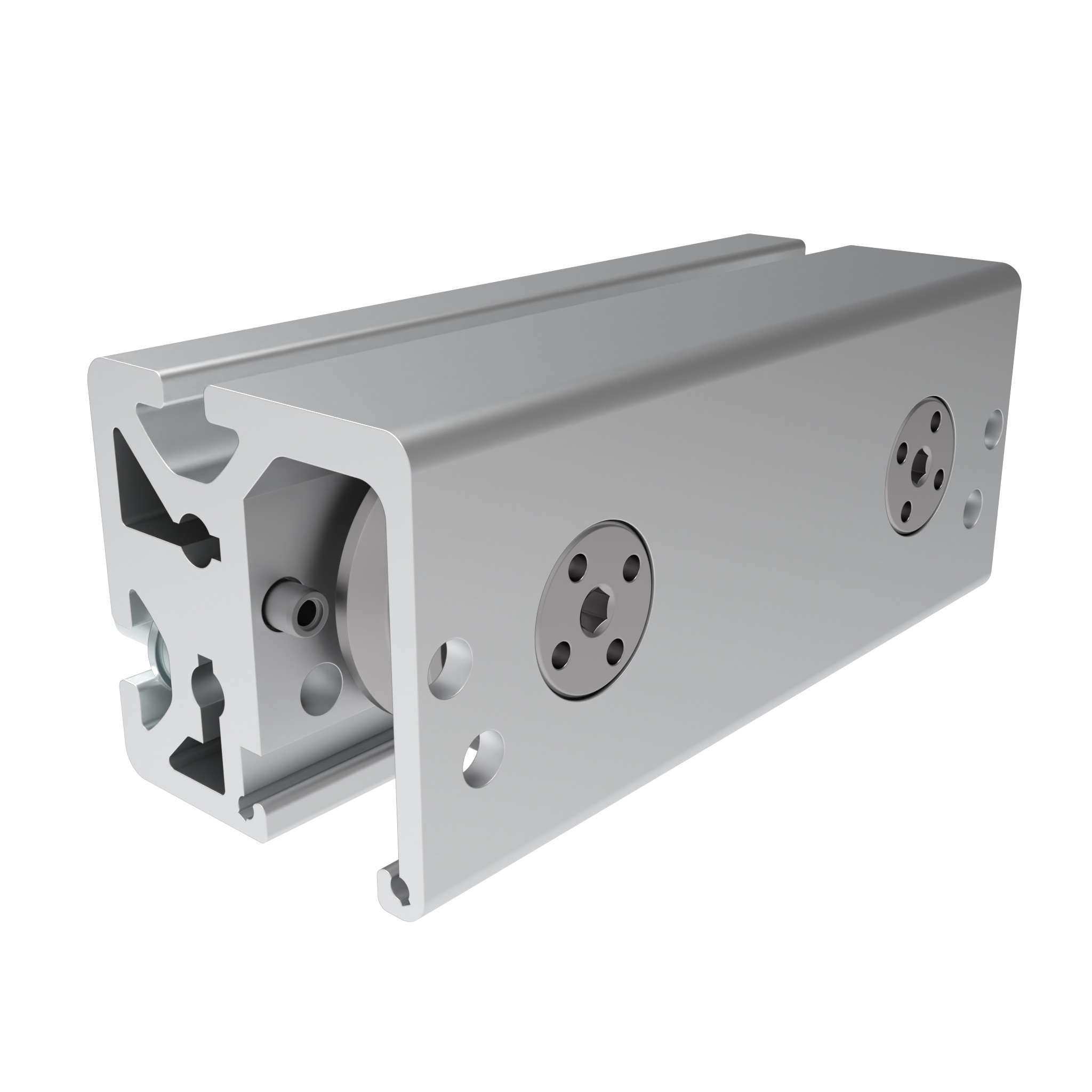

Double Bearing Unit 2 Rollers Centric Shaft Ø 14
€0.00*
Profile:
I
Delivery Countries:WorldwideDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8Material:Roller: Steel Screws: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01
Double Bearing Unit 2 Rollers Eccentric Shaft Ø 14
€0.00*
Profile:
I
Delivery Countries:WorldwideDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8 To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Roller: Steel Screws: Steel Excentric screw: Steel Adjusting washer: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01

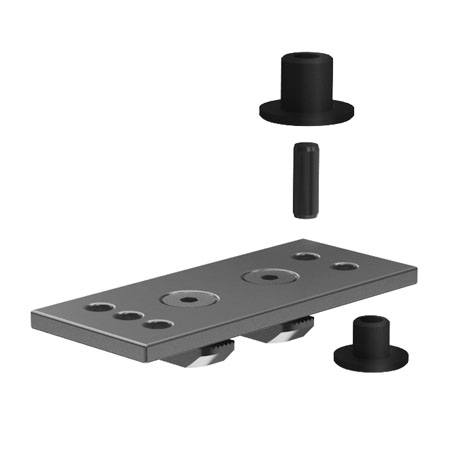

Folding Door Element (Set)
€0.00*
Profile:
B
|
ØD (mm):
4.9
Color:Guide bushes: BlackDelivery Countries:WorldwideDescription:To assemble folding doors, simultaeous turning and sliding movement; guide bush can be inserted in different positions for slot 8 and 10; high quality designMaterial:Folding door element: Aluminum Screws: Steel Hammer nuts: Steel Pin: Steel Guide bushes: POMSet:1 folding door element, 2 screws DIN 7991 - M5 x 10, 2 hammer nuts - slot 8 - M5, 1 pin ISO 2338 - D5 x 14, 1 guide bush - slot 8, 1 guide bush - slot 10Specials:Other surfaces on requestSurface:Folding door element: Anodized Screws: Zinc plated Hammer nuts: Zinc plated Pin: Zinc plated

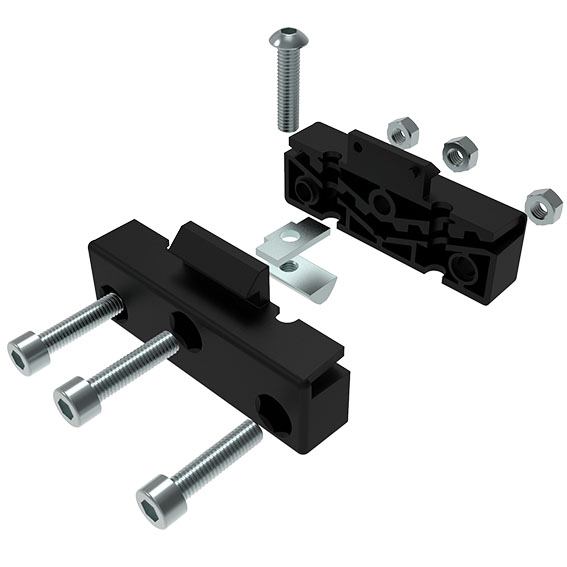

Lift Door Guide (Set)
€0.00*
Profile:
I
|
Slot N (mm):
8
Color:Housing: BlackDelivery Countries:WorldwideDescription:To assemble sliding doors with 25 mm width PUR toothed belt DIN 7721 T10 (not included in delivery)Material:Housing: Plastic POM Assembly set: SteelSet:1 two-part housing, 1 inlay sheet, 1 screw ISO 7380 - M6 x 25, 3 hexagon nuts DIN 934 - M6, 3 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 T-slot nuts - Nut 8 - M 6Surface:Assembly set: Zinc plated

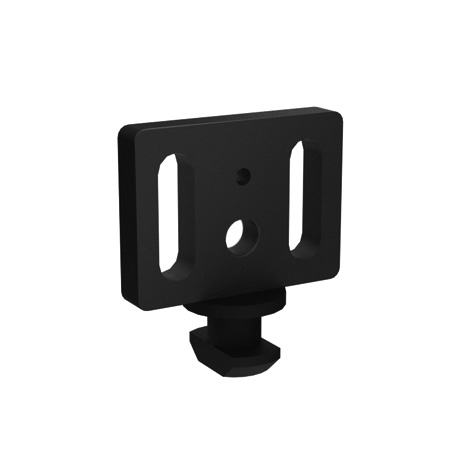

Panel Slider
€0.00*
Profile:
B
|
Slot N (mm):
10
Color:BlackDelivery Countries:WorldwideDescription:To guide guide lift or sliding doors in the slot of an aluminum profileMaterial:Plastic POM

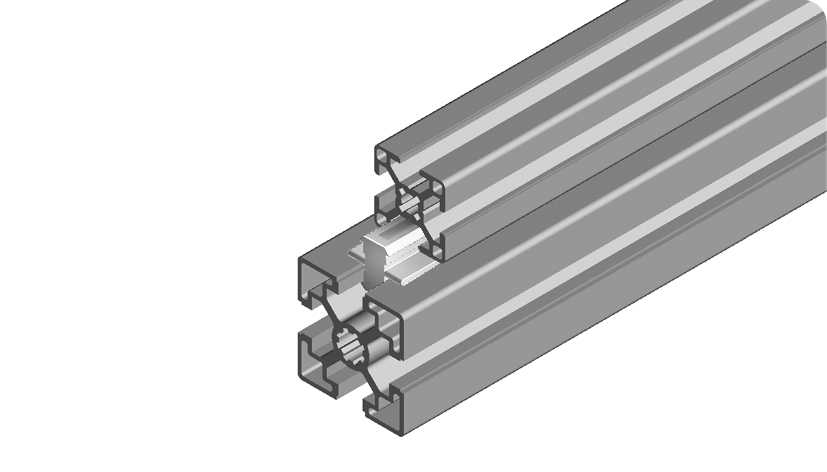

Profile Slider 8 + 10
€0.00*
Profile:
B
|
Slot N (mm):
8 / 10
Color:NaturalDelivery Countries:WorldwideDescription:To guide slidingly profiles with slots 8 and 10, also combinable; economical and wear-resistant solution, for example for sliding doorsMaterial:Plastic POM
Profile Slider Center Ridge
€0.00*
A (mm):
27.6
|
B (mm):
39.0
|
C (mm):
6.5
|
D (mm):
19.0
|
E (mm):
3.5
|
Profile:
B
|
Slot N (mm):
10
Delivery Countries:WorldwideDescription:To guide slidingly profiles with slot 10; economic and wear-resistant solution, e.g. for sliding doorsMaterial:Plastic POMSurface:Natural

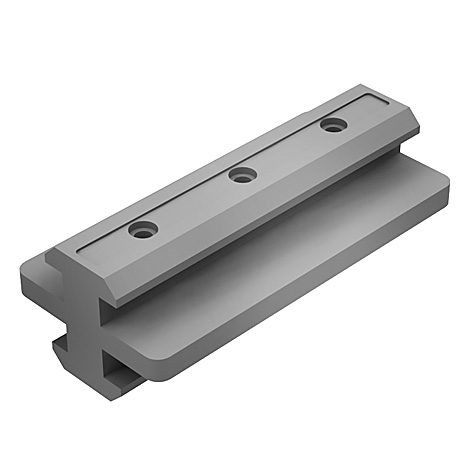

Profile Slider Center Slot
€0.00*
A (mm):
18.0
|
B (mm):
26.0
|
C (mm):
3.0
|
D (mm):
15.0
|
E (mm):
2.8
|
Profile:
B
|
Slot N (mm):
8
Delivery Countries:WorldwideDescription:To guide slidingly profiles with slot; economic and wear-resistant solution, e.g. for sliding doorsMaterial:Plastic POMSurface:Natural

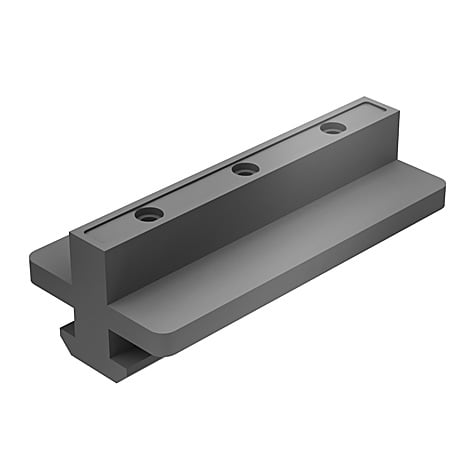

Profile Slider Flats
€0.00*
A (mm):
11.5
|
B (mm):
26.0
|
C (mm):
3.0
|
D (mm):
15.0
|
E (mm):
2.8
|
Profile:
B
|
Slot N (mm):
8
Delivery Countries:WorldwideDescription:To guide slidingly profiles with slot; economic and wear-resistant solution, e.g. for panelsMaterial:Plastic POMSurface:Natural

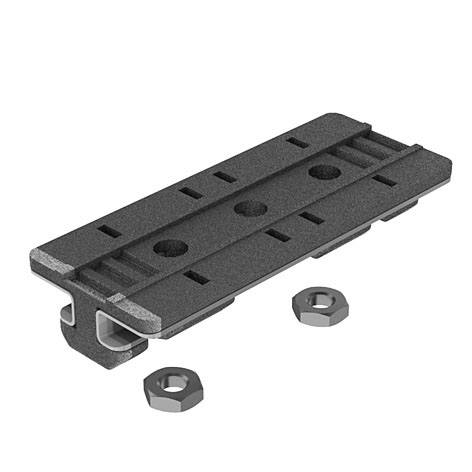

Profile Slider ZN 40 x 80 (Set)
€0.00*
Profile:
I
Color:Slide shoe: NaturalDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, delivered with hexagon nuts M6 forthe fixation of add-on elementsMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: SteelSet:1 sliding carriage, 2 slide shoes, 2 hexagon nuts DIN 439 B - M6Surface:Sliding carriage: Zinc plated Fixation: Zinc platedTip:Compatible Profile Sliders ZN 40 x 80 sets with assembly set for loose bearing and fixed bearing see 093PS0840L and 093PS0840F

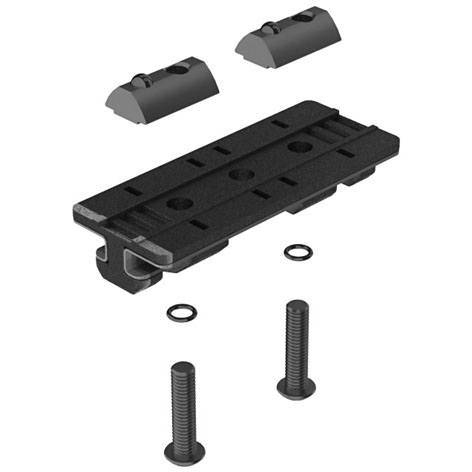

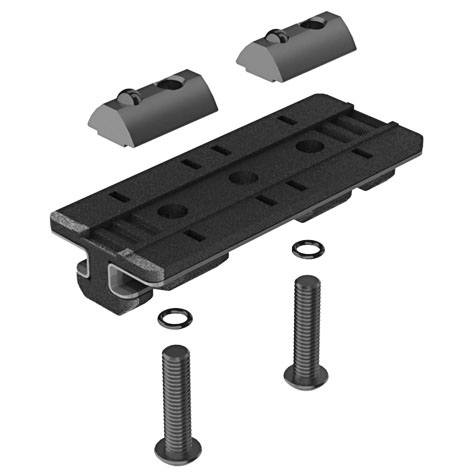

Profile Slider ZN 40 x 80 Fixed Bearing (Set)
€0.00*
Profile:
I
|
Version:
Fixed bearing
Color:Slide shoe: Natural O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, fixed bearing*Material:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 2 button head screws ISO 7380 - M6 x 25, 2 O-rings DIN 3771 - 5 x 1.5, 2 T-slot nuts - slot 8 - M6Surface:Sliding carriage: Zinc plated Fixation: Zinc platedTip:* Profile tracks with several profile sliders ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.; Compatible Profile Slider ZN 40 x 80 loose bearing see 093PS0840L

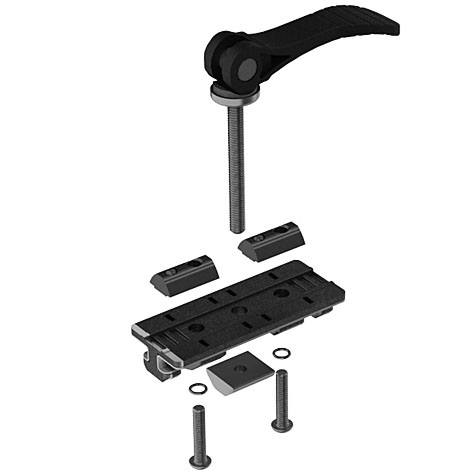

Profile Slider ZN 40 x 80 Fixed Bearing with Cam Lever (Set)
€0.00*
Profile:
I
|
Version:
Fixed bearing with cam lever
Color:Slide shoe: Natural Cam lever handle: Black O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, fixed bearing*, the additional clamping feature for the slide carriage extends the range of applications, e.g as quickly adjustable end stopMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Cam lever handle: Plastic, glass fiber reinforced Cam lever mechanics: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 1 cam lever with external thread M6 x 55**, 1 special T-slot nut - slot 8 - M6, 2 button head screws ISO 7380 - M6 x 25, 2 O-rings DIN 3771 - 5 x 1.5, 2 T-slot nuts - slot 8 - M6Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Cam lever mechanics: Zinc platedTip:* Profile tracks with several profile slides: ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided, Compatible Profile Slider ZN 40 x 80 Loose bearing see 093PS0840L, Loose bearing with cam lever see 093PS0840LS02Tip 2:** Use of the M6 cam lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 cam lever, e.g.: 40 mm profile + 20 mm profile, cut thread length to: 35 mm 40 mm profile + 10 mm panel, cut thread length to: 25 mm

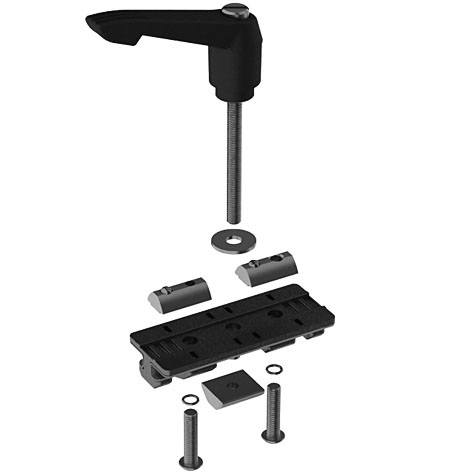

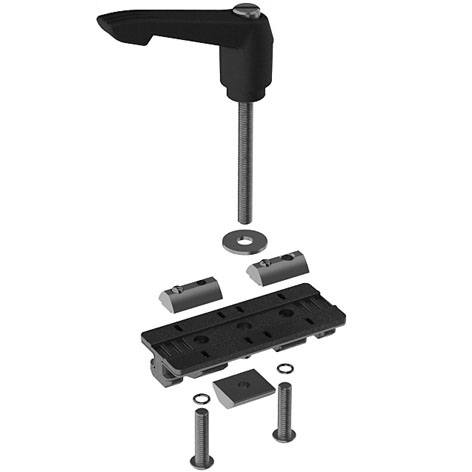

Profile Slider ZN 40 x 80 Fixed Bearing with Locking Lever (Set)
€0.00*
Profile:
I
|
Version:
Fixed bearing with clamp lever
Color:Slide shoe: Natural Clamp lever handle: Black O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8,fixed bearing*; the additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop; retention force at maximum tightening torque (15 Nm) 600 NMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Clamp lever handle: Plastic, glass fiber reinforced Clamp lever mechanics: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 1 clamp lever with external thread M6 x 55**, 1 special T-slot nut - slot 8 - M6, 1 shim DIN 9021 6.4 mm, 2 button head screws ISO 7380 - M6 x 25, 2 O-rings DIN 3771 - 5 x 1.5, 2 T-slot nuts - slot 8 - M6Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Clamp lever mechanics: Oxide finishTip:* Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided. Compatible Profile Slider ZN 40 x 80 Loose bearing see 093PS0840L Loose bearing with clamp lever see 093PS0840LS01Tip 2:** Use of the M6 clamp lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 clamp lever, e.g.: 40 mm profile + 20 mm profile, cut thread length to: 35 mm 40 mm profile + 10 mm panel, cut thread length to: 25 mm
Profile Slider ZN 40 x 80 Loose Bearing (Set)
€0.00*
Profile:
I
|
Version:
Loose bearing
Color:Slide shoe: Natural O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, loose bearing*Material:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 2 button head screws ISO 7380 - M5 x 25, 2 O-rings DIN 3771 - 5 x 1.5, 2 T-slot nuts - slot 8 - M5Surface:Sliding carriage: Zinc plated Fixation: Zinc platedTip:* Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.; Compatible Profile Slider ZN 40 x 80 Fixed Bearing see 093PS0840F
Profile Slider ZN 40 x 80 Loose Bearing with Cam Lever (Set)
€0.00*
Profile:
I
|
Version:
Loose bearing with cam lever
Color:Slide shoe: Natural Cam lever handle: Black O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, loose bearing*, the additional clamping feature for the slide carriage extends the range of applications, e.g as quickly adjustable end stopMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Cam lever handle: Plastic, glass fiber reinforced Cam lever mechanics: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 1 cam lever with external thread M6 x 55**, 1 special T-slot nut - slot 8 - M6, 2 button head screws ISO 7380 - M5 x 25, 2 O-rings DIN 3771 - 5 x 1.5, 2 T-slot nuts - slot 8 - M5Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Cam lever mechanics: Zinc platedTip:* Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided. Compatible Profile Slider ZN 40 x 80 Fixed Bearing see 093PS0840F Fixed bearing with cam lever see 093PS0840FS02Tip 2:** Use of the M6 cam lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 cam lever, e.g.: 40 mm profile + 20 mm profile, cut thread length to: 35 mm 40 mm profile + 10 mm panel, cut thread length to: 25 mm
Profile Slider ZN 40 x 80 Loose Bearing with Locking Lever (Set)
€0.00*
Profile:
I
|
Version:
Loose bearing with clamp lever
Color:Slide shoe: Natural Clamp lever handle: Black O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, loose bearing*, the additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop; retention force at maximum tightening torque (15 Nm) 600 NMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Clamp lever handle: Plastic, glass fiber reinforced Clamp lever mechanics: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 1 clamp lever with external thread M6 x 55**, 1 special T-slot nut - slot 8 - M6, 1 shim DIN 9021 6.4 mm, 2 button head screws ISO 7380 - M5 x 25, 2 O-rings DIN 3771 - 5 x 1.5, 2 T-slot nuts - slot 8 - M5Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Clamp lever mechanics: Oxide finishTip:* Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided. Compatible Profile Slider ZN 40 x 80 Loose bearing see 093PS0840L Fixed bearing with clamp lever see 093PS0840FS01Tip 2:** Use of the M6 clamp lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 clamp lever, e.g.: 40 mm profile + 20 mm profile, cut thread length to: 35 mm 40 mm profile + 10 mm panel, cut thread length to: 25 mm
