Product Portrait


Combi Hinges

FATH Combi Hinges: components with high-quality stainless steel axle

FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leafs 25, 30, 35, 40, 45, 50 and 60, adapted to your application. Altogether this results in a variety of more than 350 combinations which we are featuring on the following pages. For assembly on aluminum profiles we supply our hinges with guiding pins on the rear side – depending on the material, these are either part of the mold (PA) or are produced separately and supplied with the hinges (die-cast aluminum).

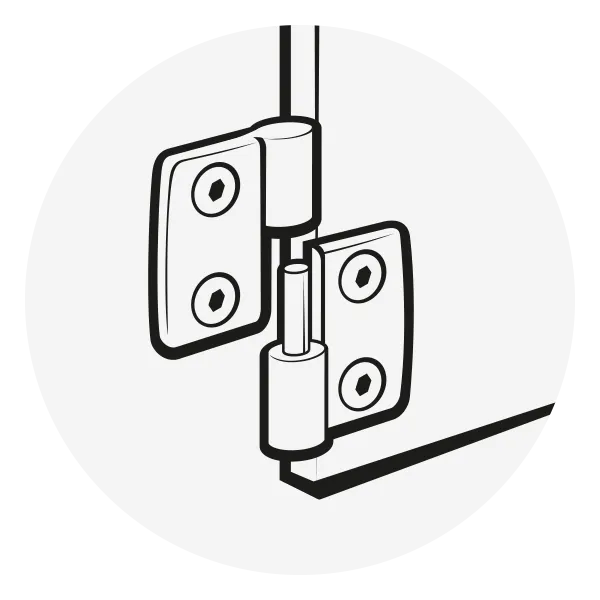

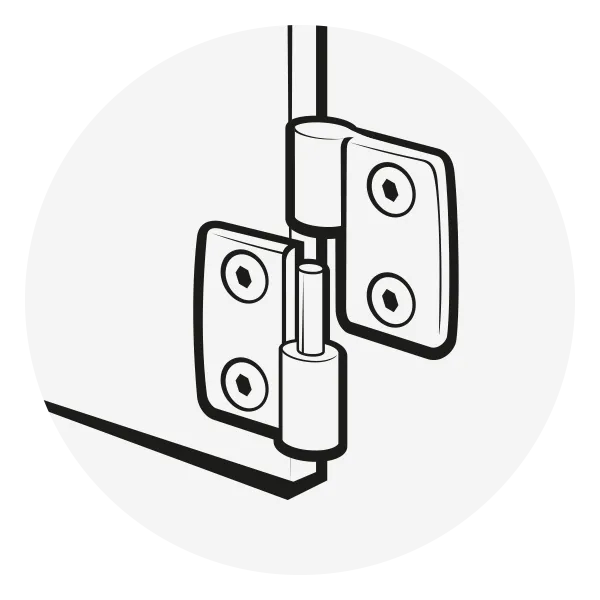

A little trick

It is actually quite simple: when you want a door or flap to be non detachable, you can also use detachable hinges.Just take a right and a left one and because of their opposite positions the door/flap cannot be lifted off.

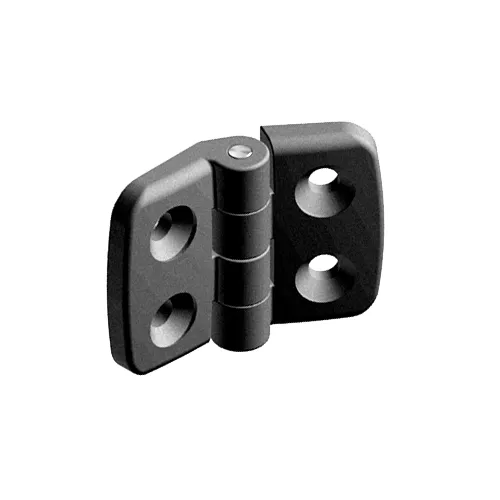

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Freely combinable leaf dimensions from 25 to 60 mm
  • Flexible use due to optional slot guiding pins
  • Three material / surface versions for different applications
  • Elegant FATH design and high-quality stainless steel axle

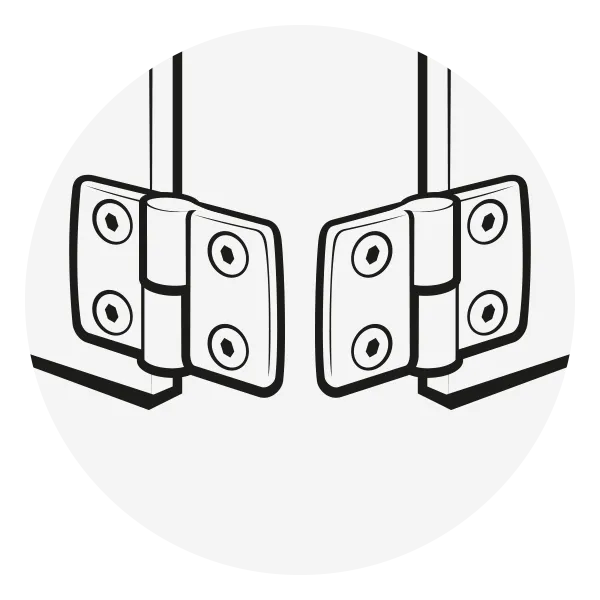

General information about FATH Hinges:

Every hinge has a left and a right version. When ordering, please indicate which way you want the door or flap to open.

Left hinge

The wing with the fixed axle is on the left side, opening the door/flap from the right to the left.

Right hinge

The wing with the fixed axle is on the right side, opening the door/flap from the left to the right.

Fixed hinge

The fixed hinge cannot be taken apart and can be used for left or right hand opening.

WOULD YOU LIKE TO FIND OUT ABOUT OTHER HINGES FROM FATH?

In our product world you will also find other materials, system hinges and special hinges - for example for swing doors or with a locking lever for fixing in the desired position.


Discover all Hinges

VERSIONS

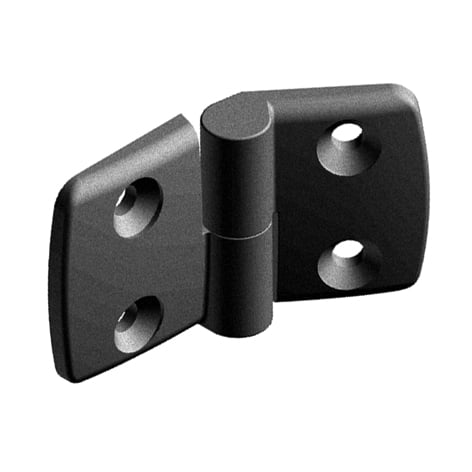

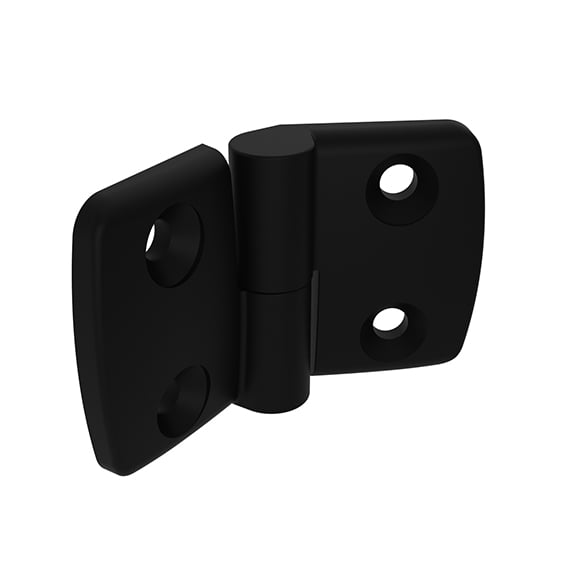

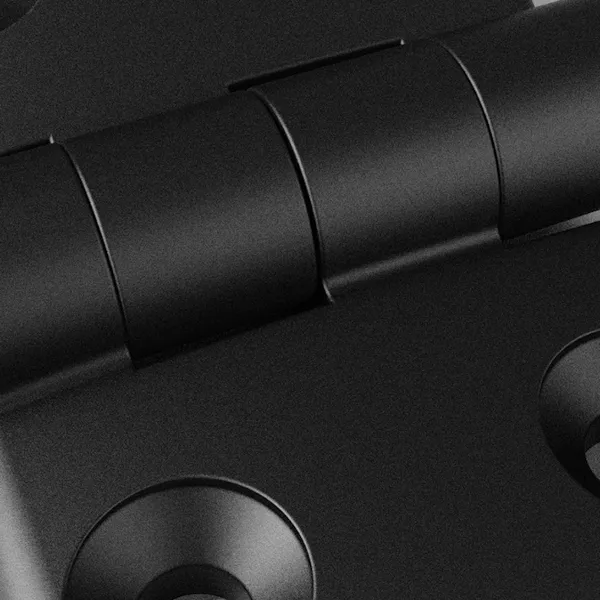

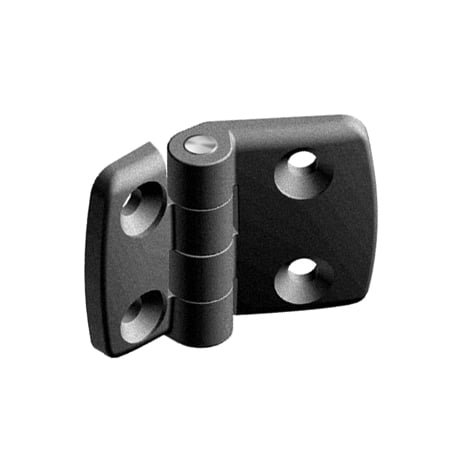

Plastic Combi Hinges PA

These hinge leaves are made of glass fiber reinforced polyamide in black with a textured finish. They represent a cost-effective and sturdy basic solution. As an option, for assembly on aluminum profiles with T-slots, we supply our PA hinge leaves with integrated guiding pins. These can be removed with pliers, a cutter or with a file.

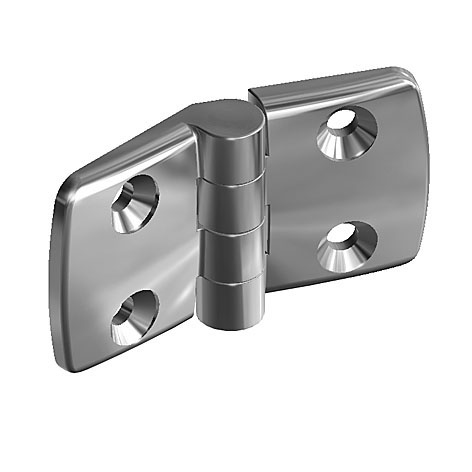

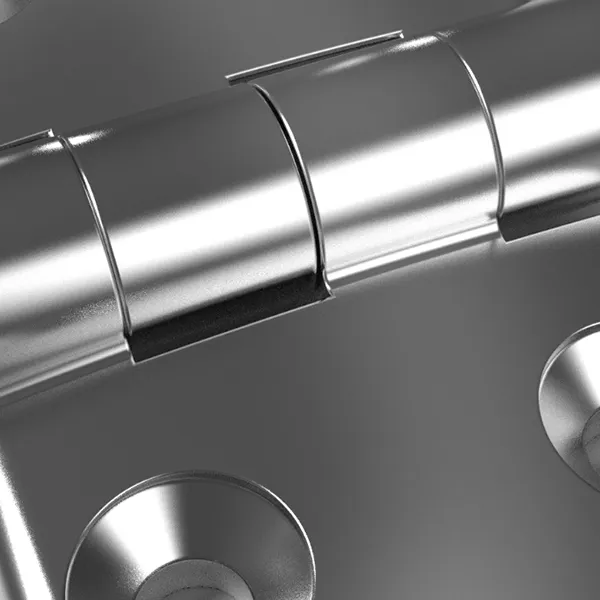

Stainless Steel Combi Hinges

FATH stainless steel combi hinges not only look gorgeous due to their polished surface, they are also exceptionally resistant to environmental factors. After assembly of the bolts in the bore holes, we close the end faces of the hinge using a special process. Stainless steel hinges are flat on the rear side.

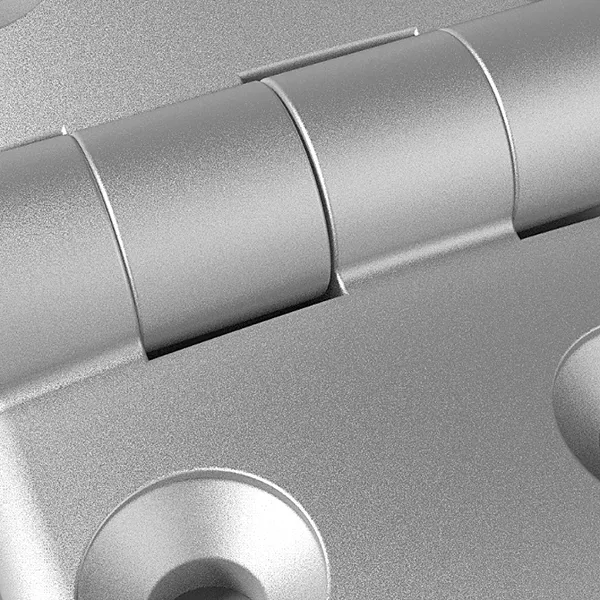

Die-cast Aluminum Combi Hinges

Providing a matt alu color surface, these hinges particularly fit with anodized aluminum profiles. All aluminum die-cast hinge leaves have supports for optional centering pins.

Skip product gallery

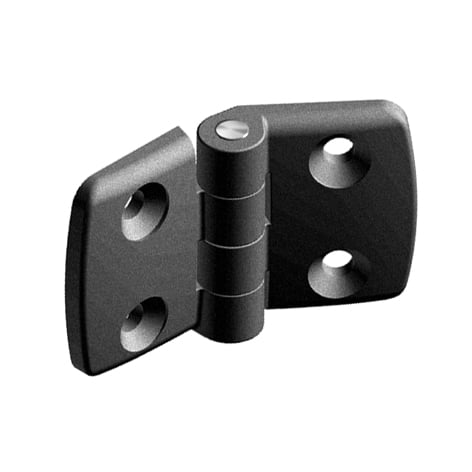

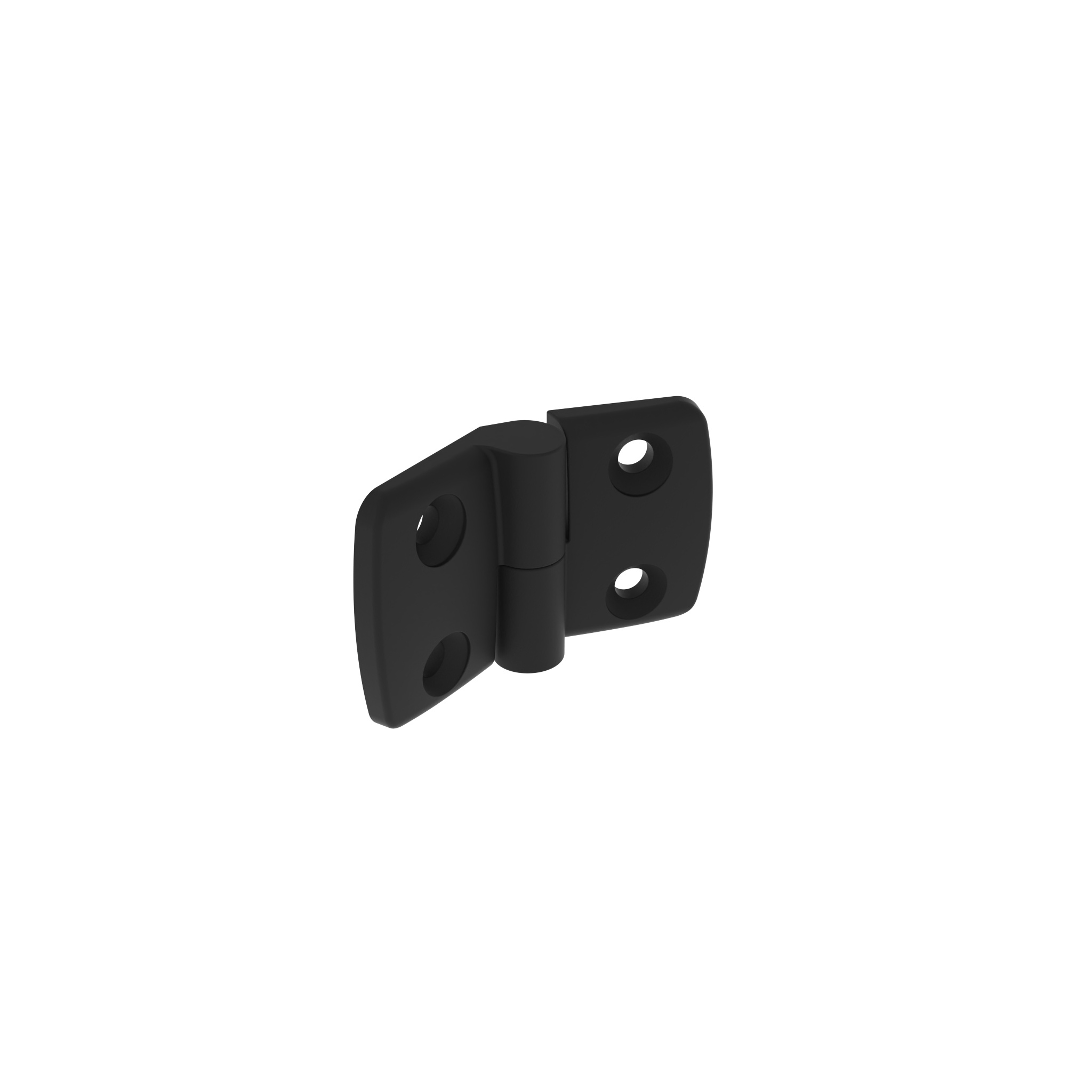

Plastic Combi Hinge 40, Detachable, Black
A1 (mm): 22.5 | A2 (mm): 22.5 | B1 (mm): 38.5 | B2 (mm): 38.5 | Combination: 40 / 40 | FAmax (N): 350 | FRmax (N): - | Slot N (mm): - | Version: R: Right
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*

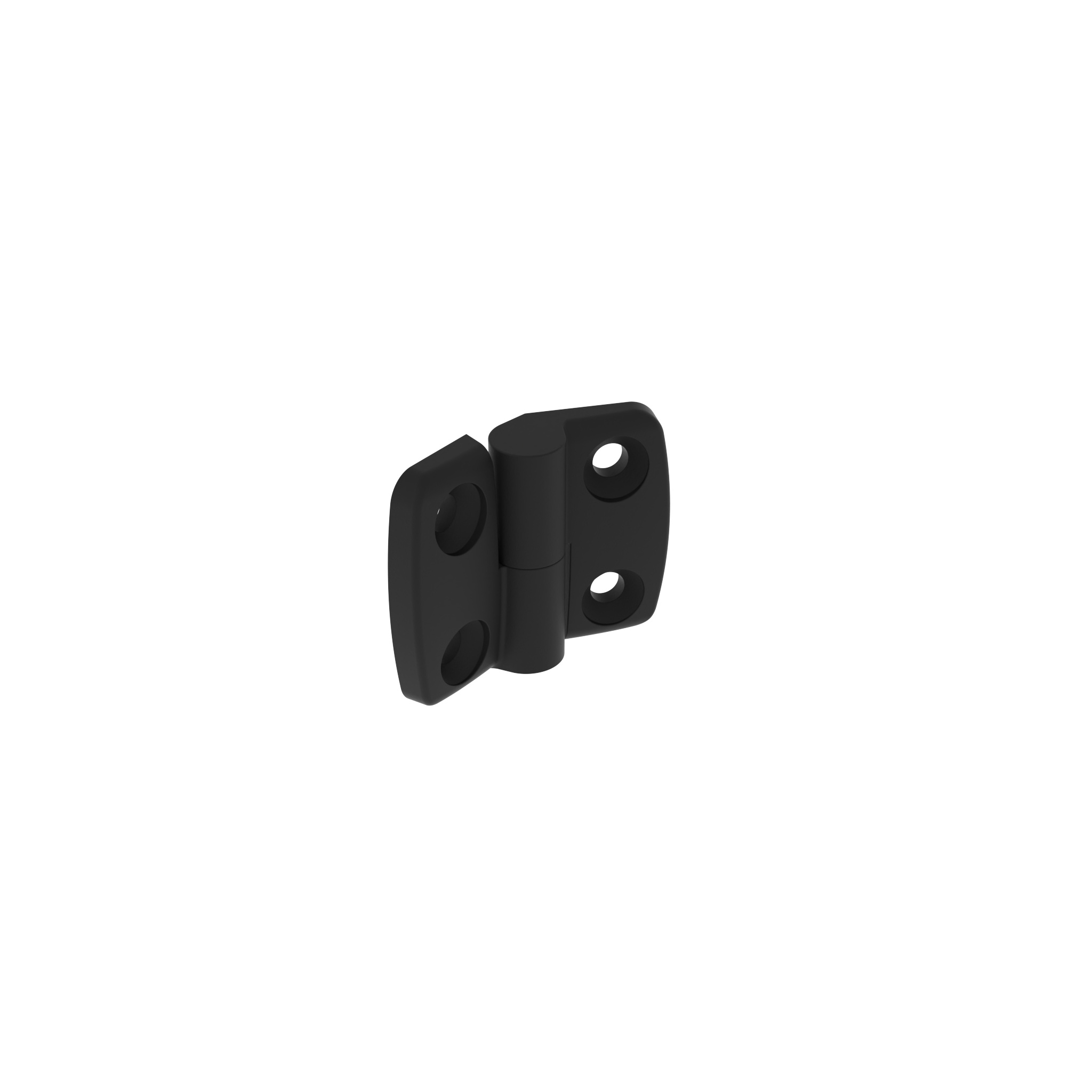

Plastic Combi Hinge 30, Detachable, Black
A1 (mm): 17.5 | A2 (mm): 17.5 | B1 (mm): 29.5 | B2 (mm): 29.5 | Combination: 30 / 30 | FAmax (N): - | FRmax (N): 750 | Slot N (mm): - | Version: L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*

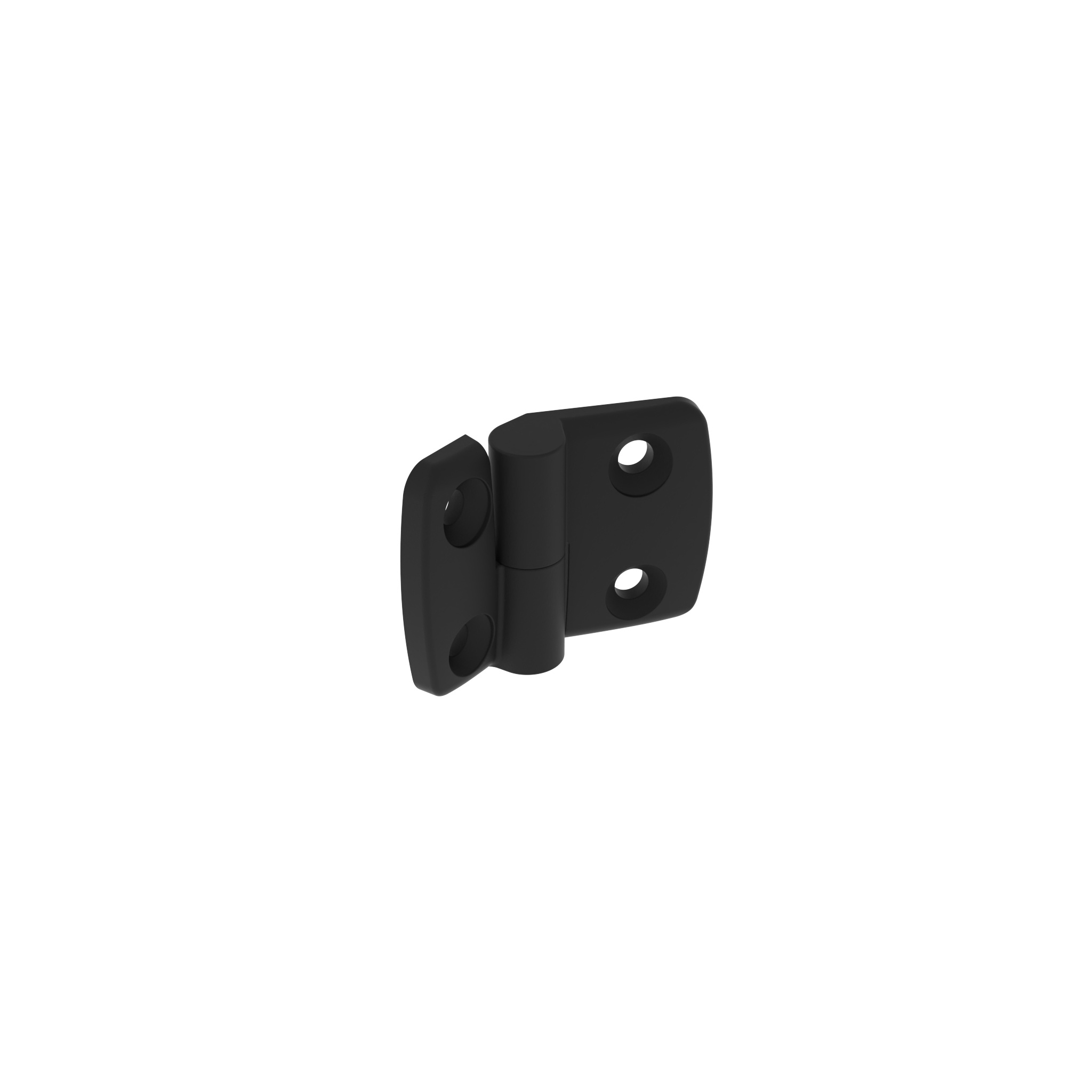

Plastic Combi Hinge 25, Detachable, Black
A1 (mm): 15.0 | A2 (mm): 22.5 | B1 (mm): 26.0 | B2 (mm): 38.5 | Combination: 25 / 40 | FAmax (N): 350 | FRmax (N): - | Slot N (mm): - | Version: L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*
Plastic Combi Hinge 25, Detachable, Black
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*

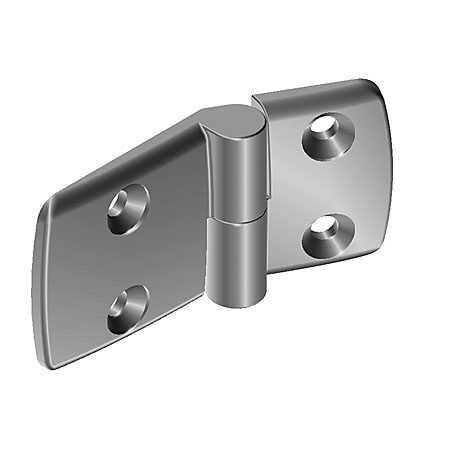

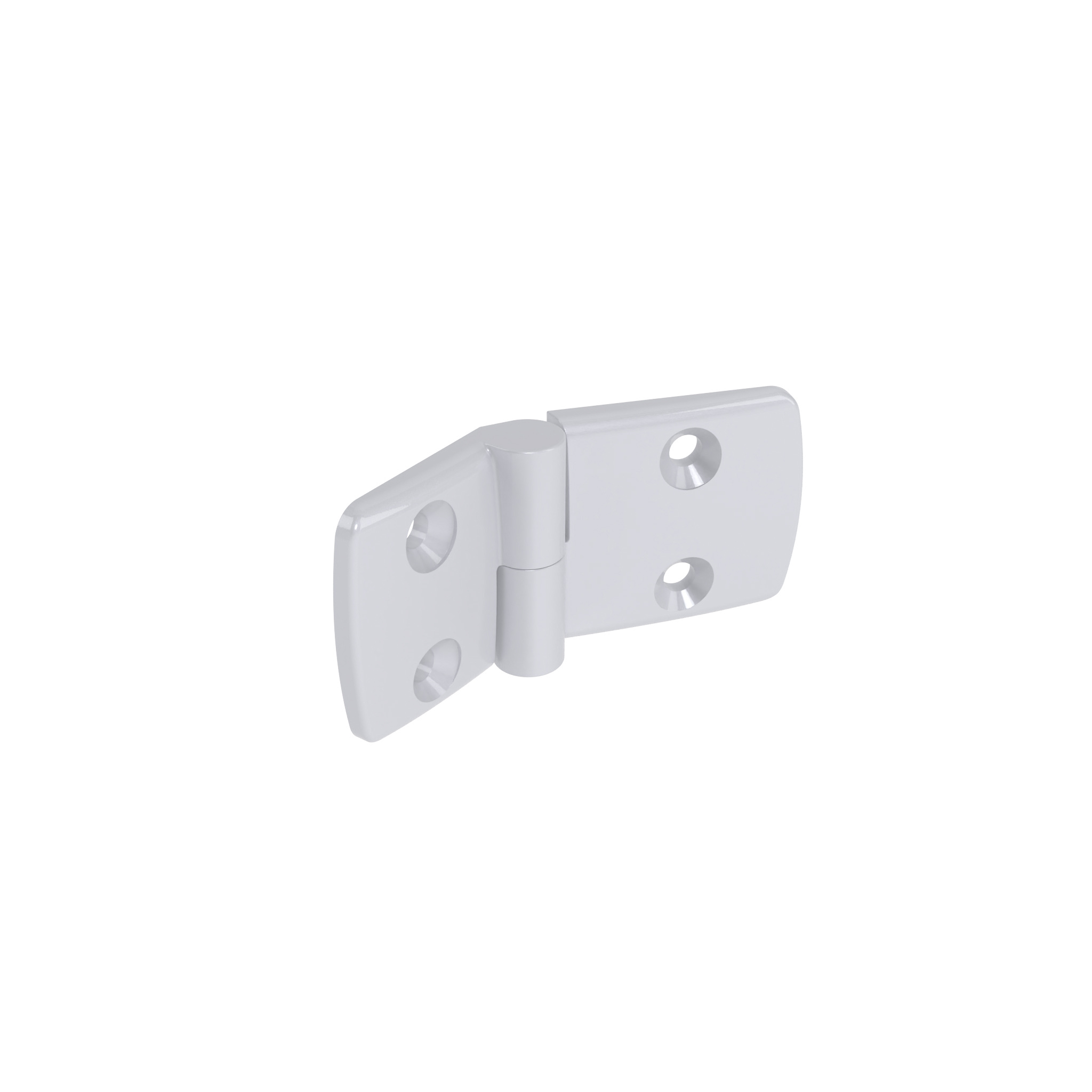

Aluminum Die-cast Combi Hinge 60, Detachable, Alu Color
A1 (mm): 25.0 | A2 (mm): 32.5 | B1 (mm): 43.5 | B2 (mm): 57.5 | Combination: 60 / 45 | FAmax (N): - | FRmax (N): 550 | Version: R: Right
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

€0.00*
Plastic Combi Hinge 30, Detachable, Black
A1 (mm): 17.5 | A2 (mm): 17.5 | B1 (mm): 29.5 | B2 (mm): 29.5 | Combination: 30 / 30 | FAmax (N): - | FRmax (N): 750 | Slot N (mm): 6 | Version: R: Right
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*

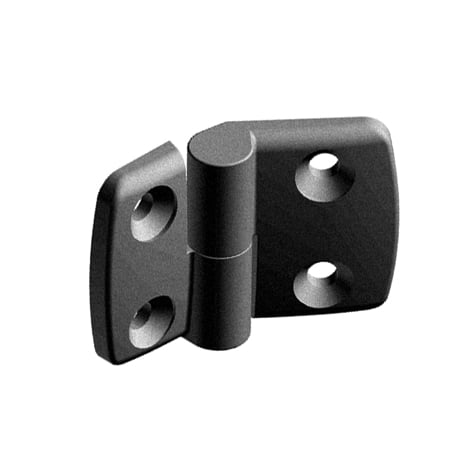

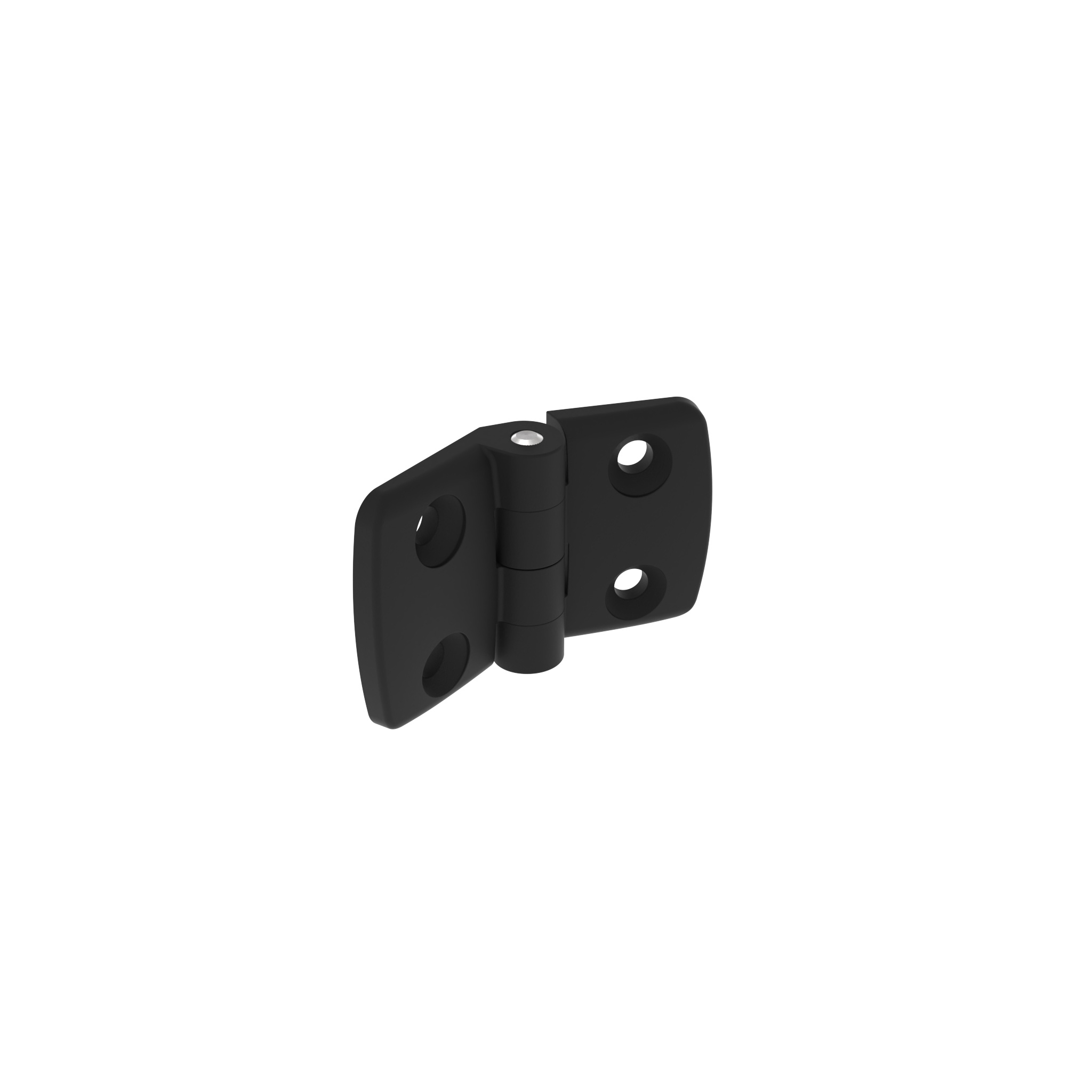

Plastic Combi Hinge 40, Non-detachable, Black
A1 (mm): 22.5 | A2 (mm): 22.5 | B1 (mm): 38.5 | B2 (mm): 38.5 | Combination: 40 / 40 | FAmax (N): 450 | FRmax (N): 750 | Slot N (mm): - | Version: Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*

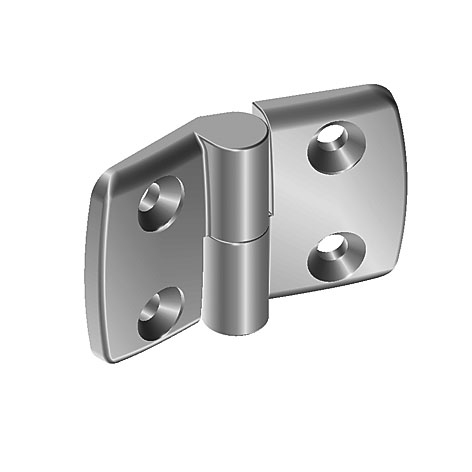

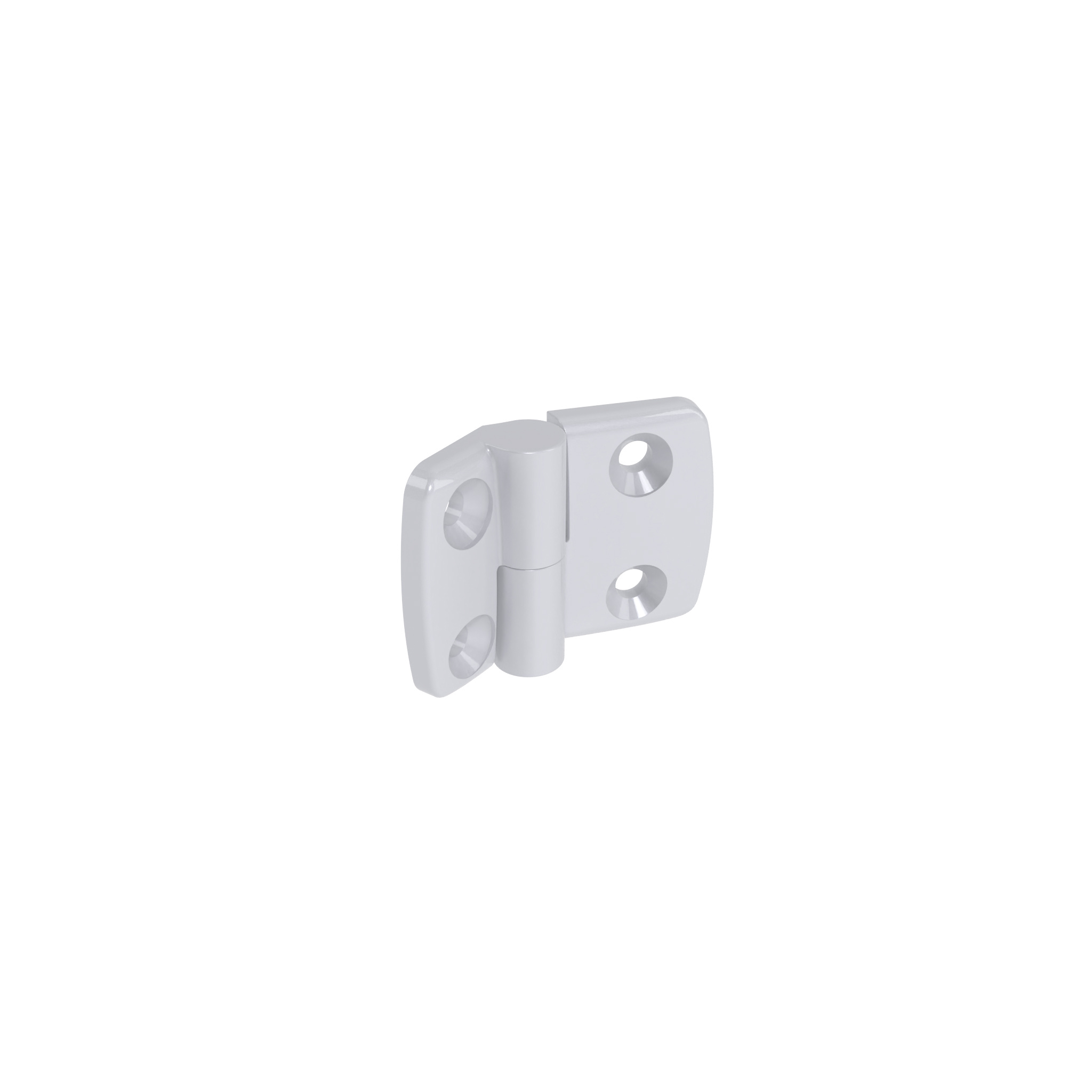

Aluminum Die-cast Combi Hinge 40, Detachable, Alu Color
A1 (mm): 15.0 | A2 (mm): 22.5 | B1 (mm): 26.0 | B2 (mm): 38.5 | Combination: 40 / 25 | FAmax (N): 250 | FRmax (N): 410 | Version: R: Right
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

€0.00*

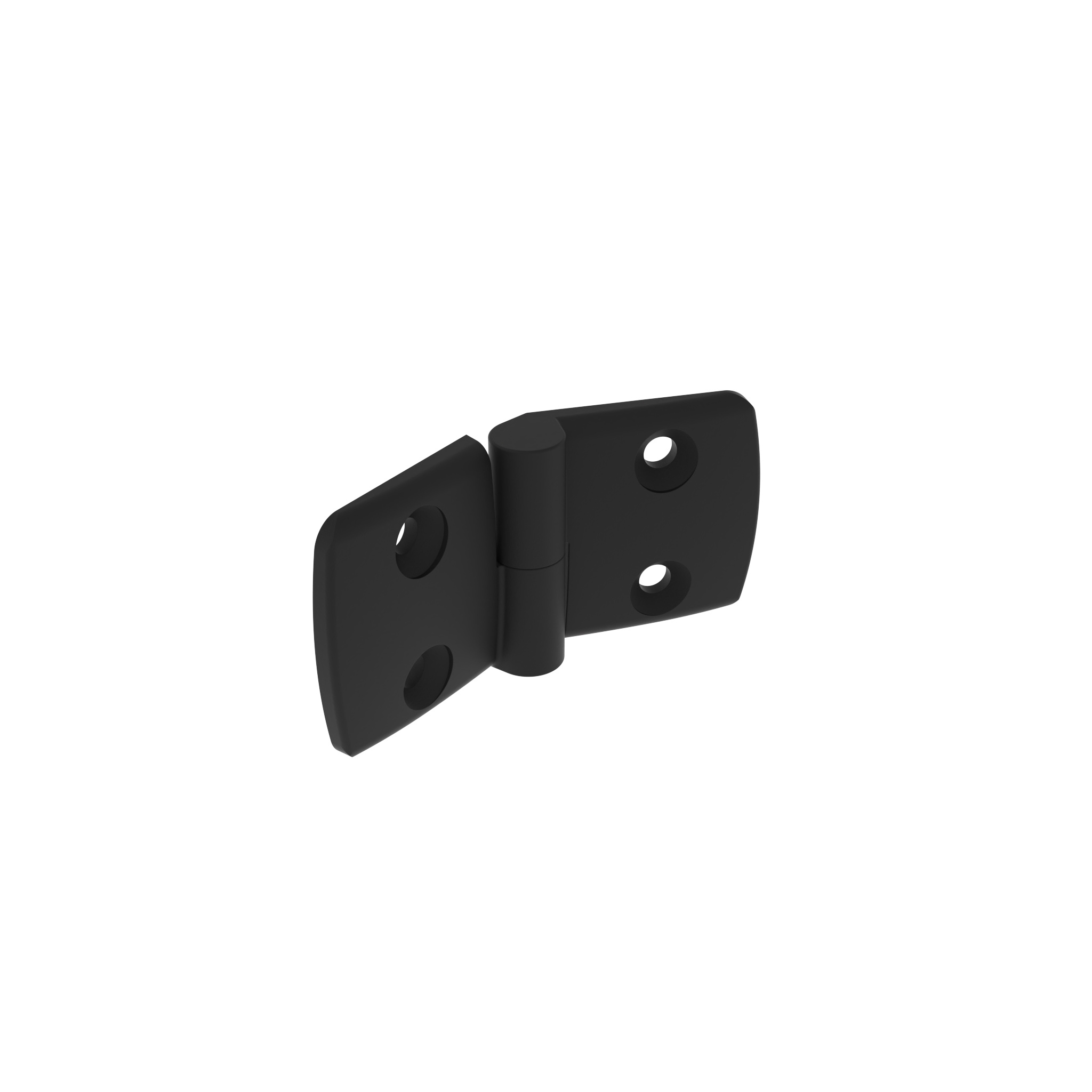

Plastic Combi Hinge 50, Detachable, Black
A1 (mm): 27.5 | A2 (mm): 27.5 | B1 (mm): 48.5 | B2 (mm): 48.5 | Combination: 50 / 50 | FAmax (N): 320 | FRmax (N): - | Slot N (mm): - | Version: L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*

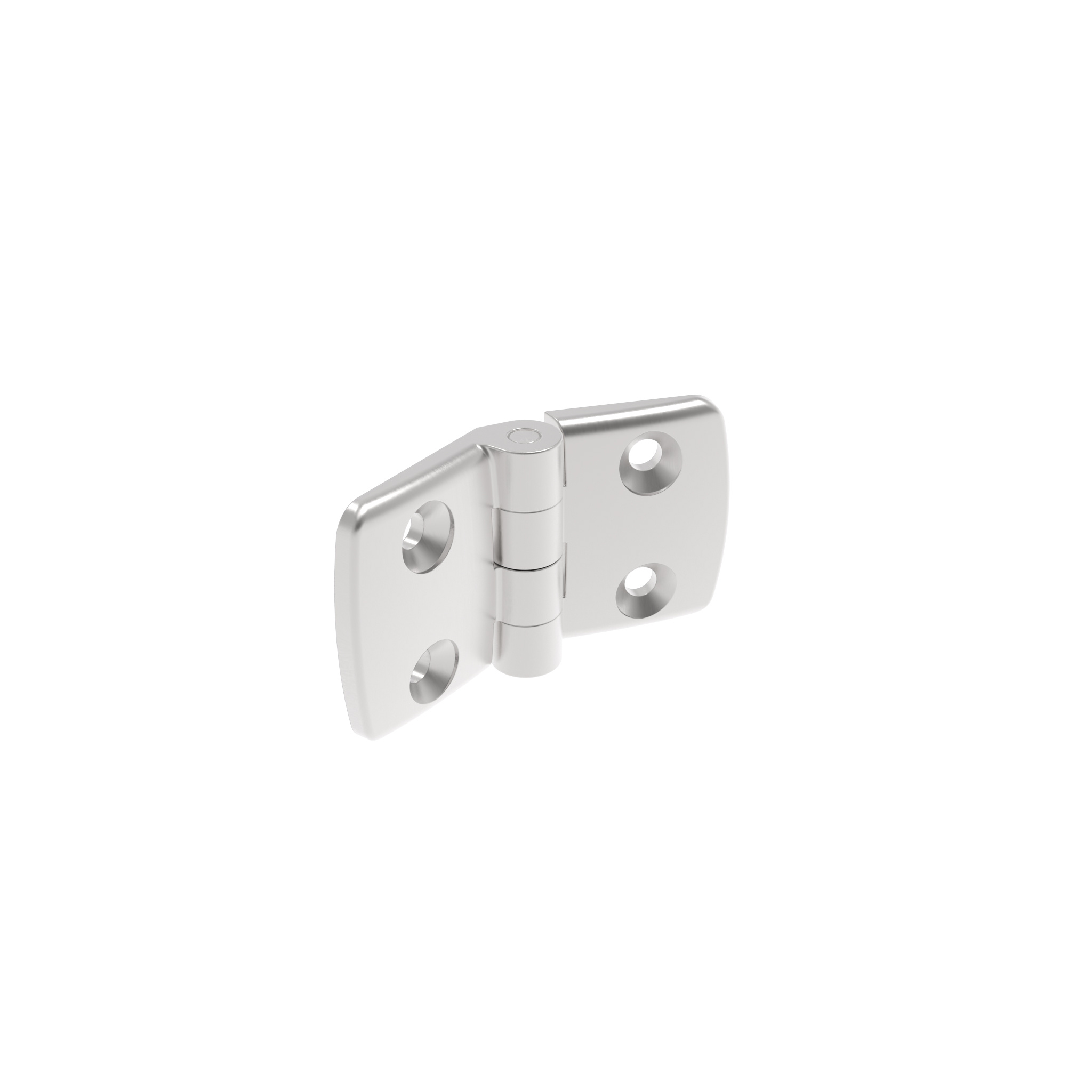

Stainless Steel Combi Hinge 45, Non-detachable
A1 (mm): 25.0 | A2 (mm): 25.0 | B1 (mm): 42.5 | B2 (mm): 42.5 | Combination: 45 / 45 | FAmax (N): 675 | FRmax (N): 900 | Version: Non-detachable
Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:PlainZolltarifnummer:83021000900

€0.00*

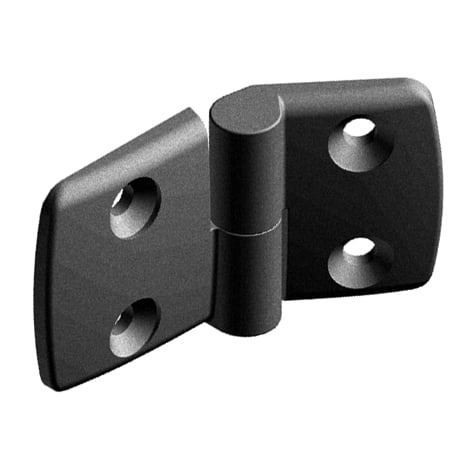

Plastic Combi Hinge 25, Non-detachable, Black
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*

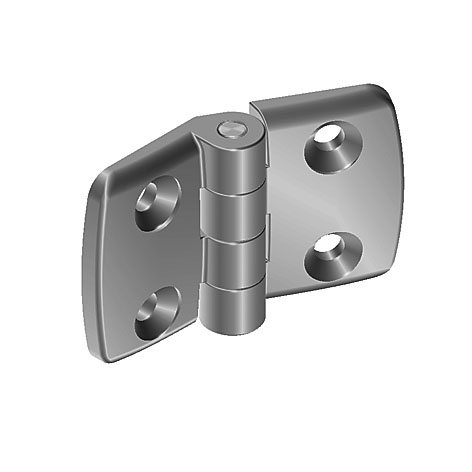

Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color
A1 (mm): 20.0 | A2 (mm): 22.5 | B1 (mm): 36.0 | B2 (mm): 38.5 | Combination: 35 / 40 | FAmax (N): 250 | FRmax (N): 400 | Version: Non-detachable
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

€0.00*

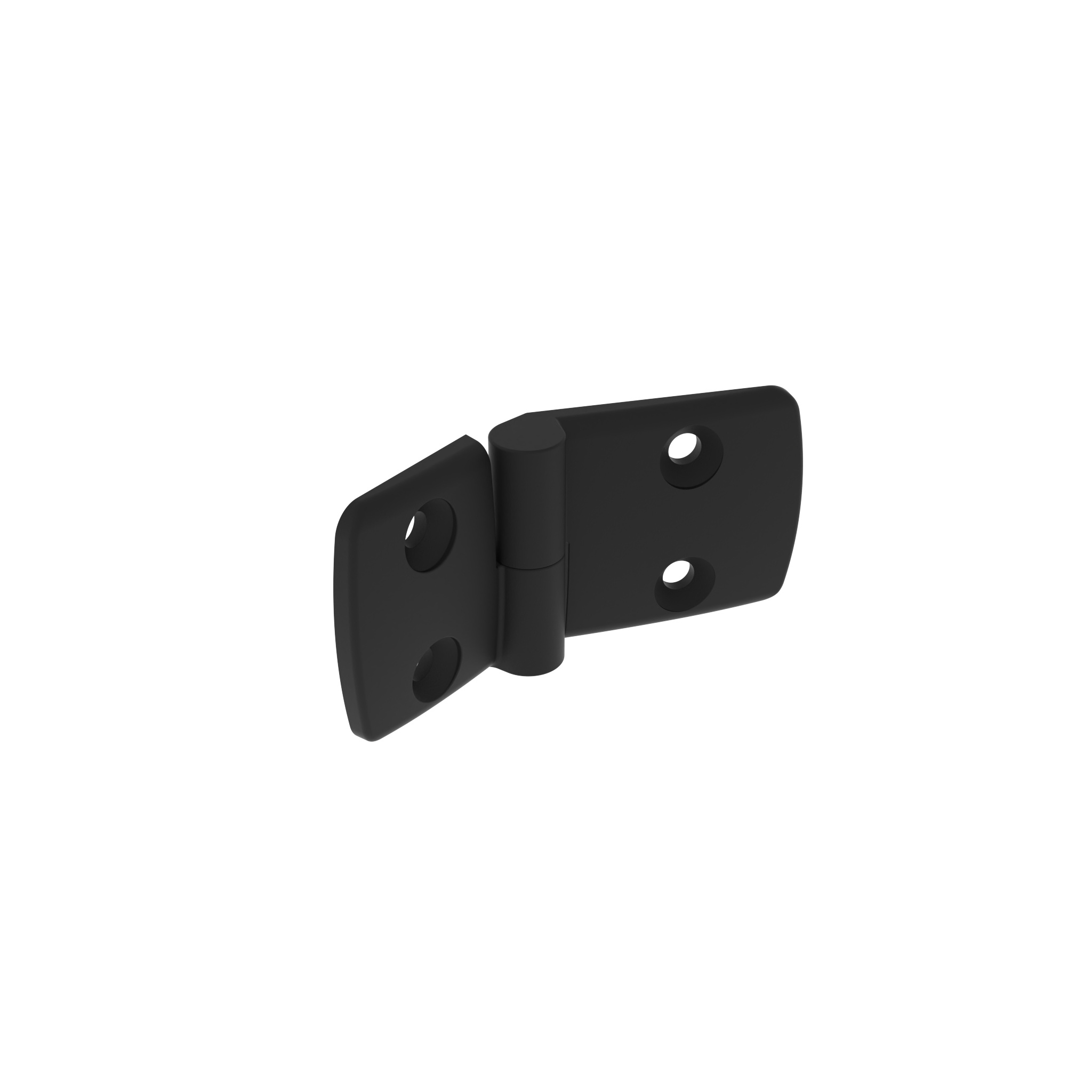

Plastic Combi Hinge 45, Detachable, Black
A1 (mm): 25.0 | A2 (mm): 32.5 | B1 (mm): 43.5 | B2 (mm): 57.5 | Combination: 45 / 60 | FAmax (N): - | FRmax (N): - | Slot N (mm): - | Version: L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*

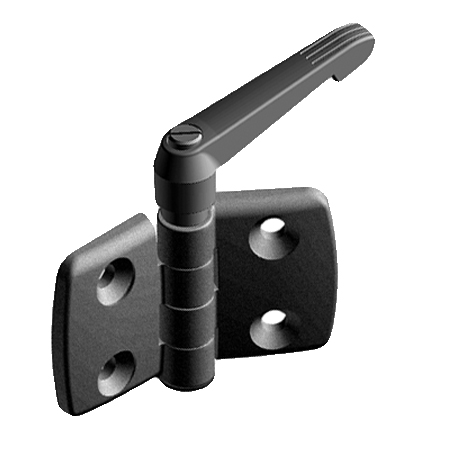

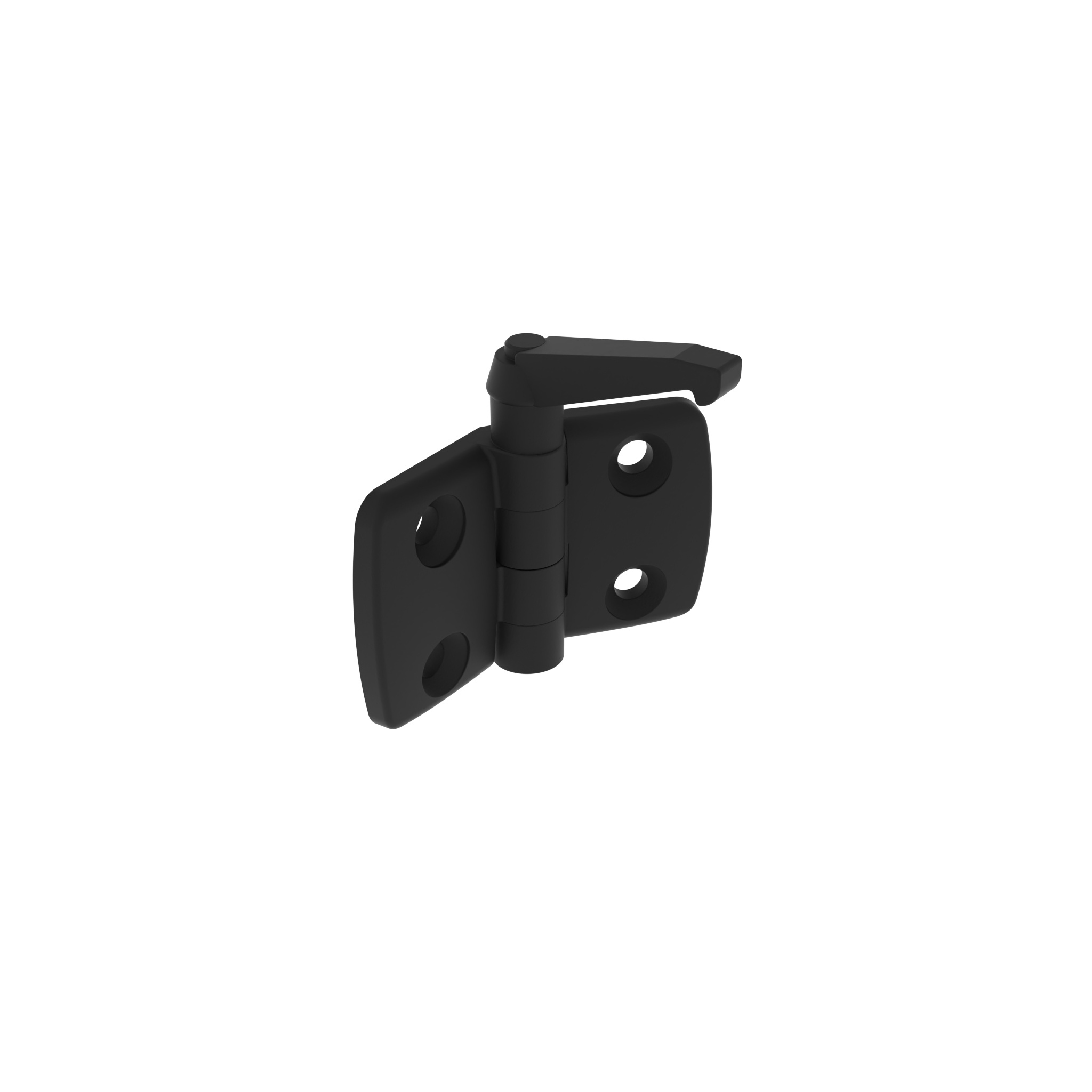

Plastic Combi Hinge with Locking Lever
A1 (mm): 22.5 | A2 (mm): 22.5 | B1 (mm): 38.5 | B2 (mm): 38.5 | Combination: 40 / 40 | FAmax (N): 450 | FRmax (N): 750 | Slot N (mm): 8 | Version: Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; can be locked at any positionMaterial:Hinge: Plastic PA, glass fiber reinforced KIPP locking lever: Plastic PA, glass fiber reinforced Mechanism: Steel, zinc plated (RoHS conform)Specials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on requestZolltarifnummer:39263000900

€0.00*

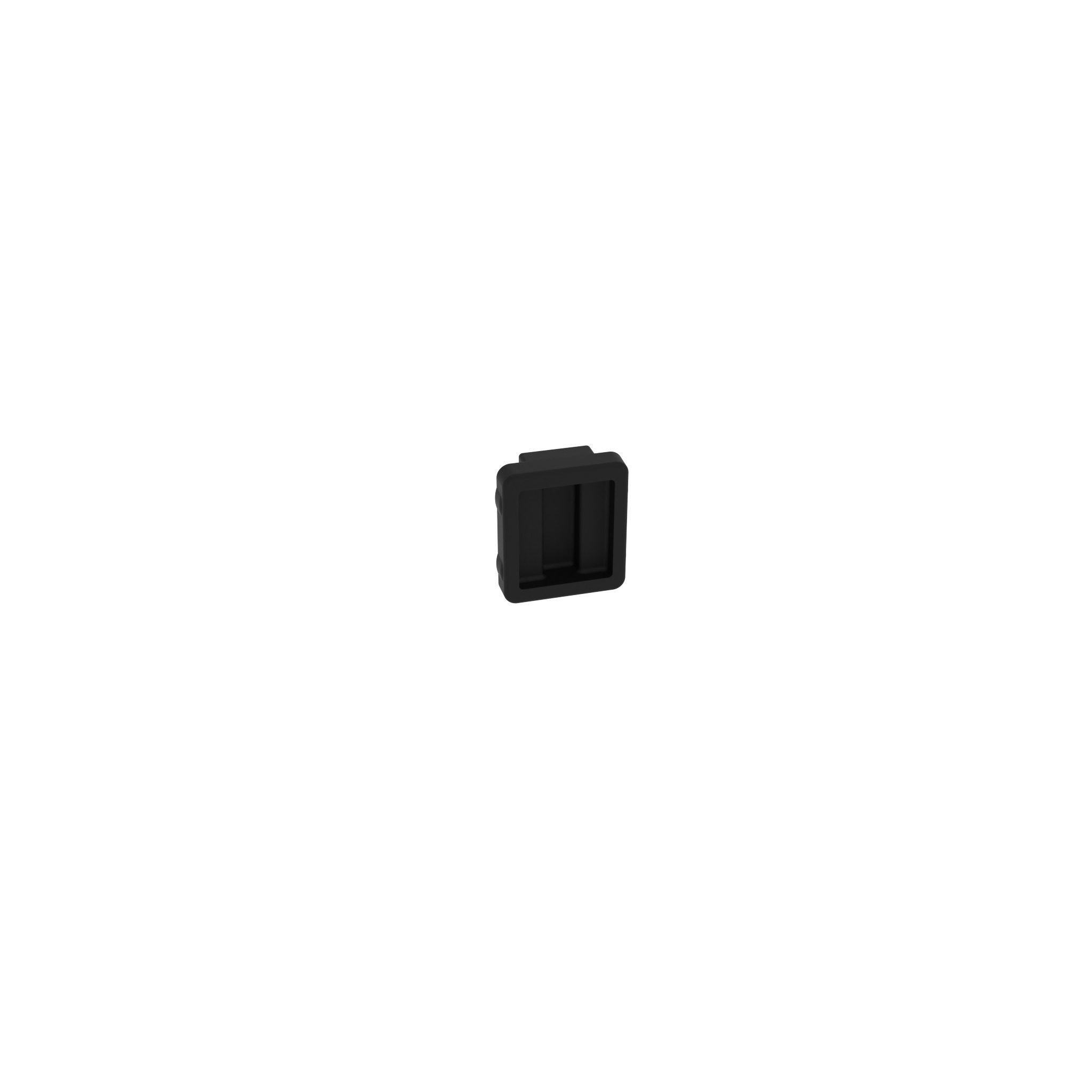

Centering Bolt for Aluminum Die-Cast Combi Hinge
Slot N (mm): 8
Color:BlackDelivery Countries:WorldwideDescription:For aluminum die-cast combi hinges, each wing with a hole for centering boltsMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Aluminum Die-cast Combi Hinge see 095A2525L et sq.Zolltarifnummer:39269097900

€0.00*
Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color
A1 (mm): 20.0 | A2 (mm): 20.0 | B1 (mm): 36.0 | B2 (mm): 36.0 | Combination: 35 / 35 | FAmax (N): 250 | FRmax (N): - | Version: L: Left
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

€0.00*

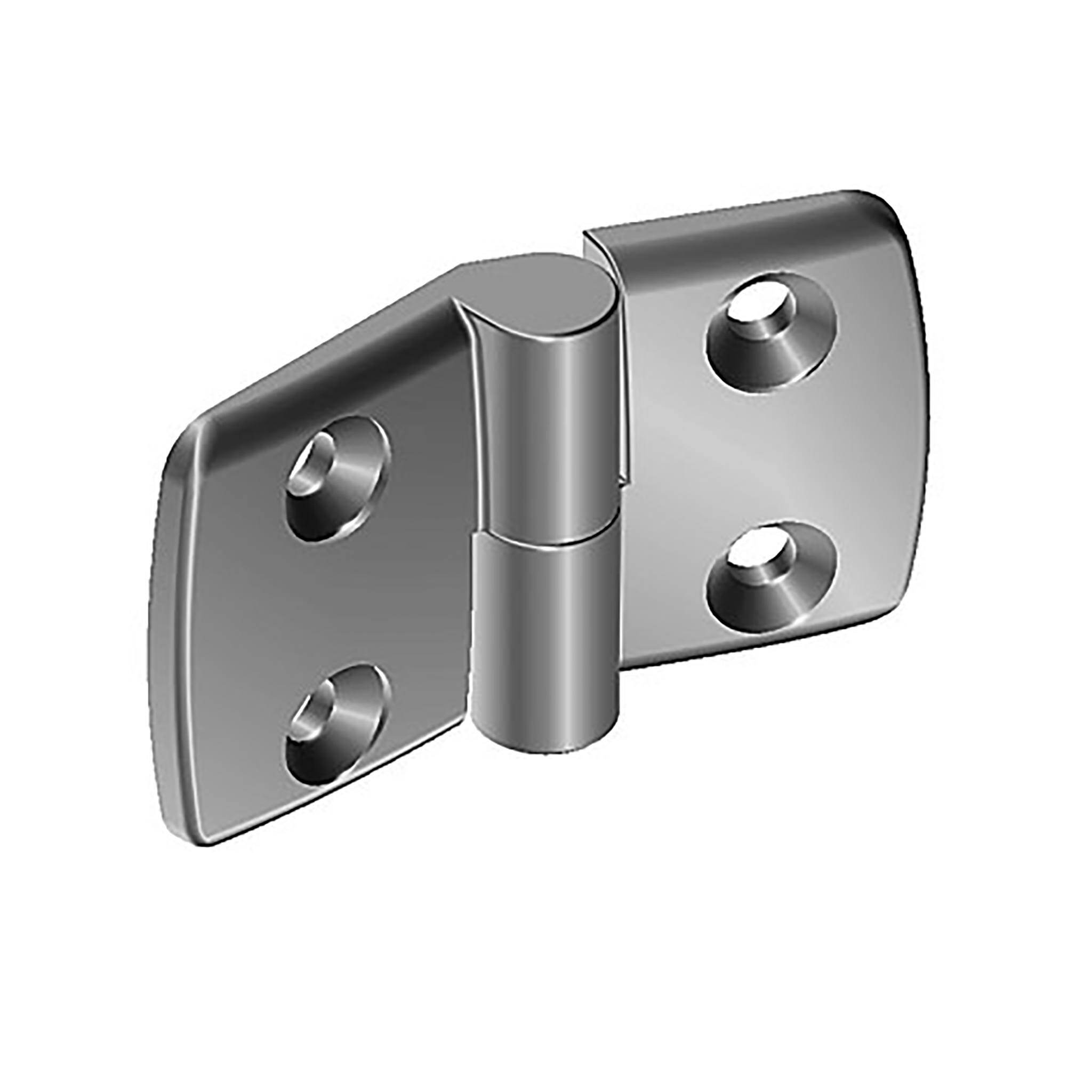

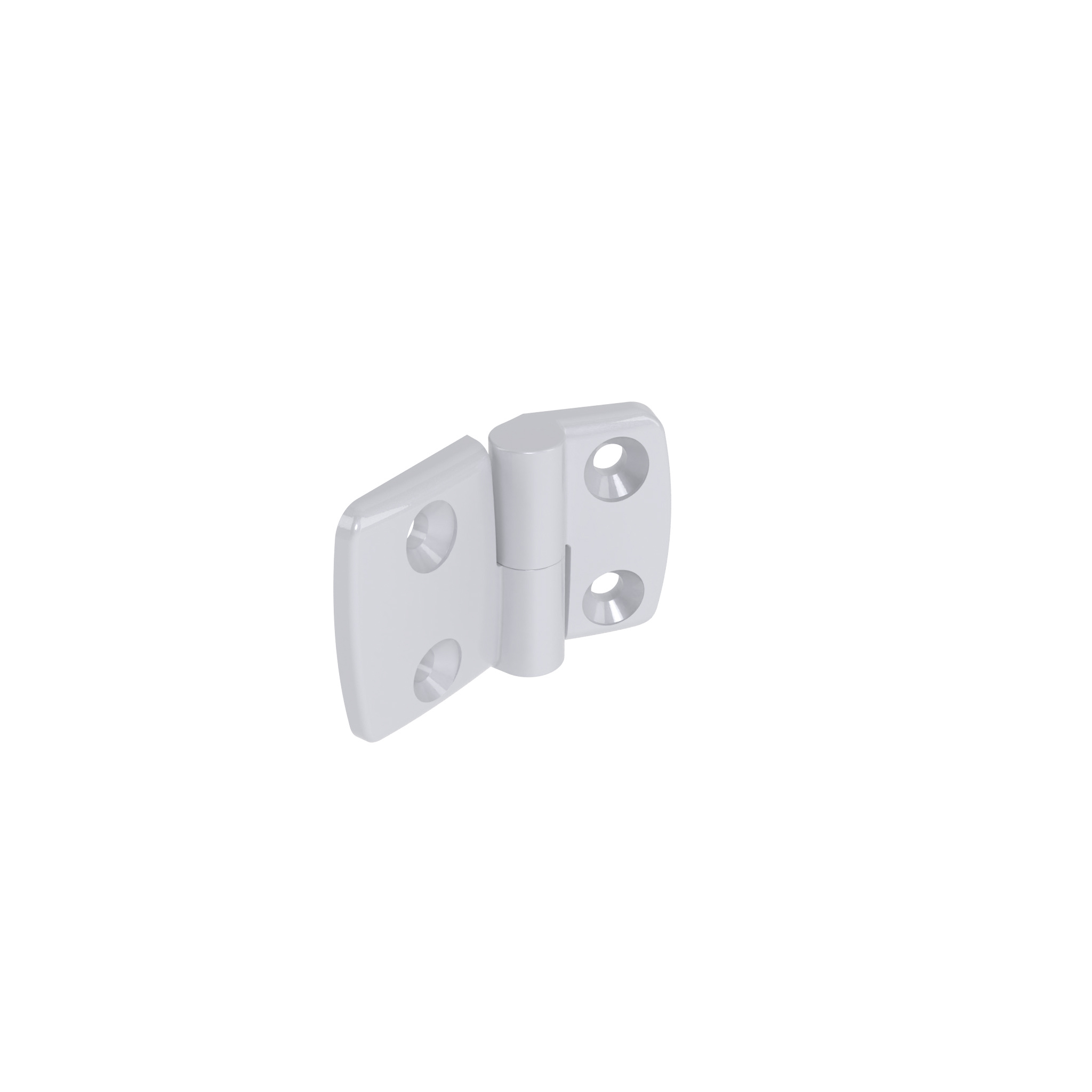

Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color
A1 (mm): 25.0 | A2 (mm): 17.5 | B1 (mm): 43.5 | B2 (mm): 29.5 | Combination: 45 / 30 | FAmax (N): 280 | FRmax (N): 450 | Version: L: Left
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

€0.00*

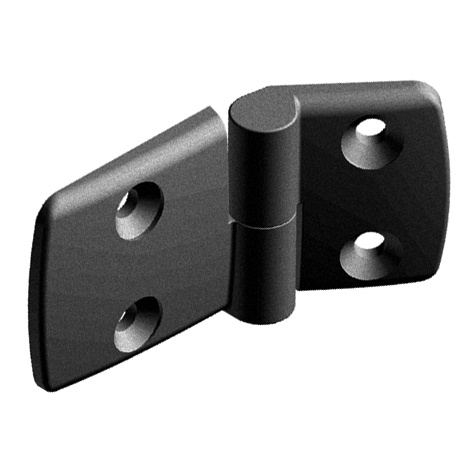

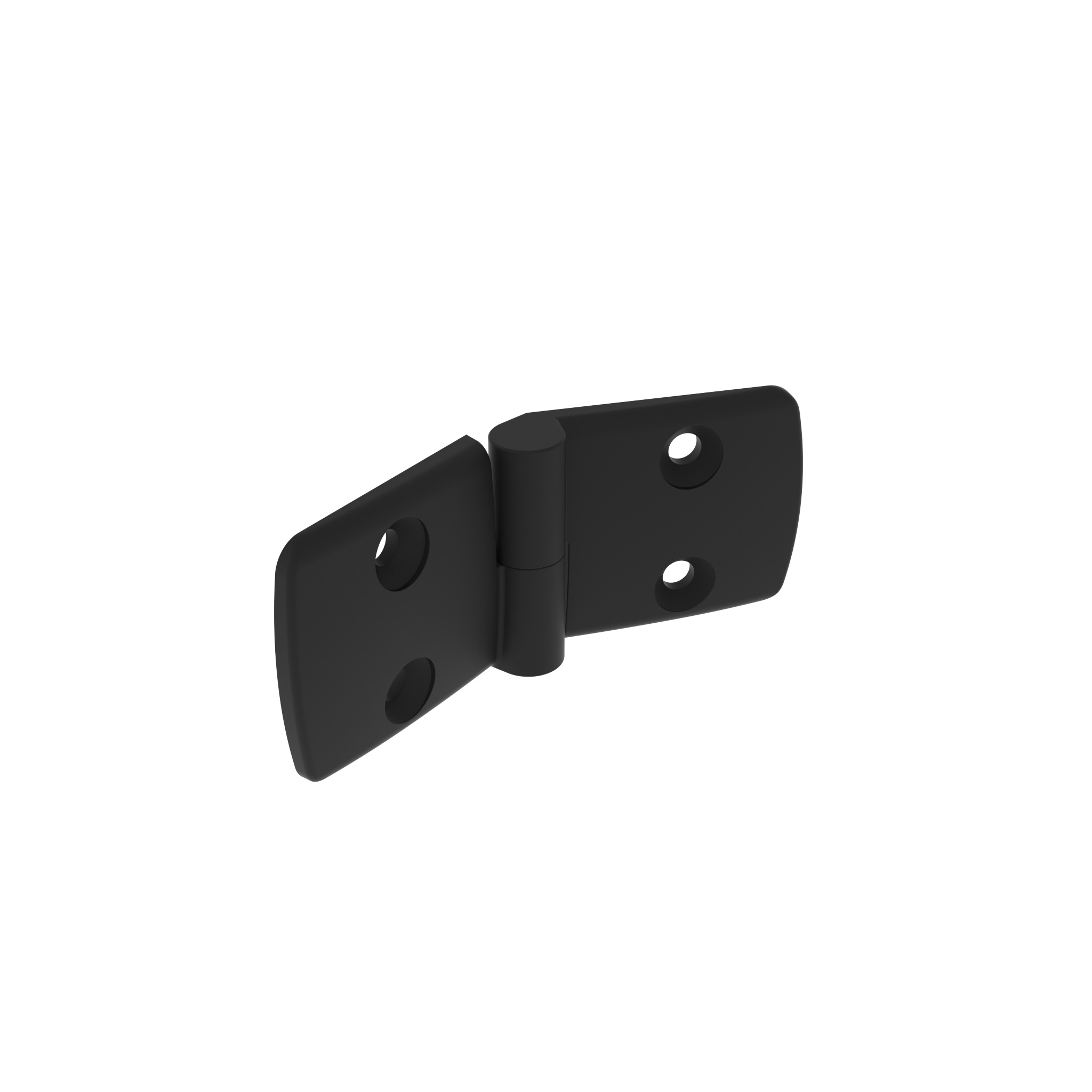

Plastic Combi Hinge 60, Detachable, Black
A1 (mm): 32.5 | A2 (mm): 32.5 | B1 (mm): 57.5 | B2 (mm): 57.5 | Combination: 60 / 60 | FAmax (N): - | FRmax (N): 900 | Slot N (mm): 10 | Version: L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*


Combi hinges, as well as most of the other FATH hinges, are supplied with a stainless steel axle as standard.

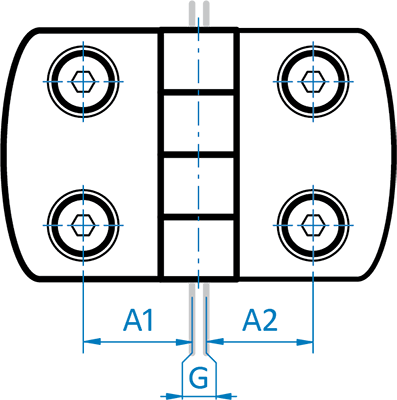

The gap clearance (G) of the combi hinges 25 to 60 is 5 mm, combi hinges MINI 20 have a 3 mm gap clearance. Combi hinges are made for mounting with self-centering countersunk screws.
