Precisely tailored to aluminum profiles with slot: FATH Swivel and Fixed Casters in many versions for virtually any application

FATH has developed these swivel and fixed casters in cooperation with market leader Blickle specifically for use with aluminum profile systems. All housings and adapter plates are alu color powder coated and thus perfectly match the surface of anodized aluminum profiles.

FATH swivel and fixed casters are mounted either in conventional form with special adapter plates or with integrated mounting plates. This ensures fast, anti-twist installation on aluminum profiles with modular dimensions of 38 mm – 1.5", 40 mm and 45 mm and on heavy-duty rollers on aluminum profiles with modular dimensions of 80 mm and 90 mm – positive-locking without lateral protrusion.

All swivel casters are equipped with double brakes; the locking mechanism prevents the wheel from rolling and turning. The fixed casters are supplied without brakes. The heavy-duty swivel casters can also be supplied without double brakes if required. Choose from a wide range of versions to suit your requirements.

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Three different wheel diameters / mounting heights
  • Two different mountings
  • Four different materials, three of which are also in ESD version
  • Extra large 200 mm rollers for heavy loads
  • All swivel casters with double brake

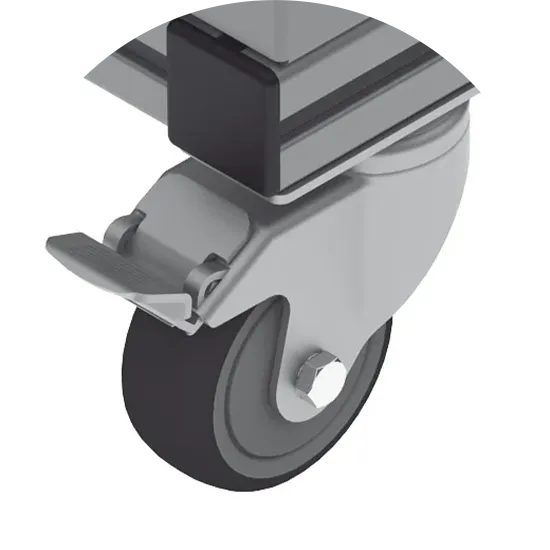

  • Can be installed without protrusion

Extra large rollers for heavy loads

The latest addition to the family of FATH Swivel and Fixed Casters: Six extra large swivel and fixed casters with a wheel size of 200 mm have been developed for very heavy loads.

These robust variants also roll optimally on floors with uneven surfaces, run smoothly and stay on track. The heavy-duty casters are available with plastic wheel bodies or with aluminum rims for extreme loads. The swivel casters are available with and without double brakes, the fixed casters have no brakes. The swivel housings or fixed housings of the heavy-duty casters are mounted directly to the aluminum profile with modular dimensions 80 mm und 90 mm.

VERSIONS

Skip product gallery

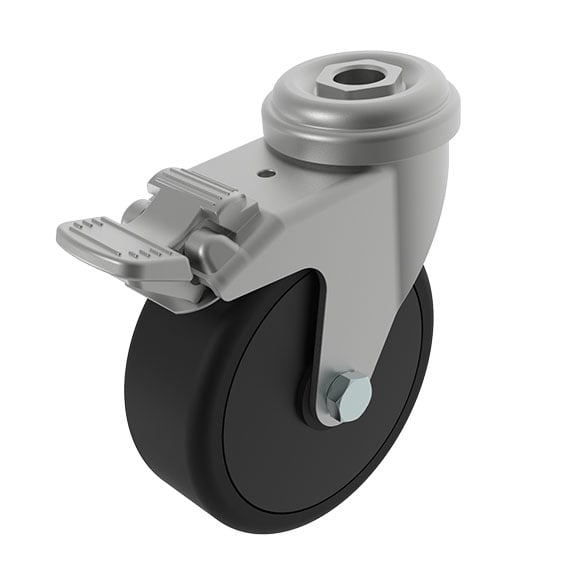

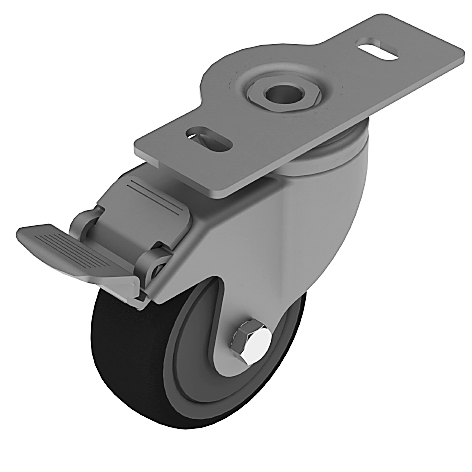

Swivel Caster Ø 75 with System Brake
D (mm): 75 | ESD: ESD | H (mm): 98 | Max. Load (N): 490 | Swivel Caster Tread: TPE, gray ≈ RAL 7031 | Wheel Body: PP, black
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles or with an additional transport and base plateMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedZolltarifnummer:73269098900

€0.00*

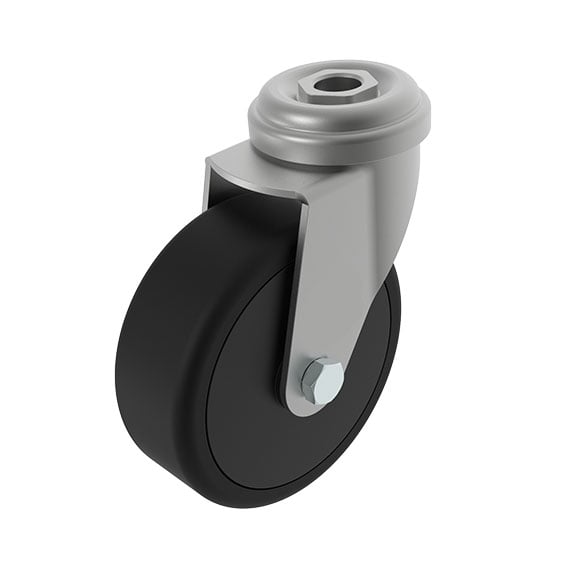

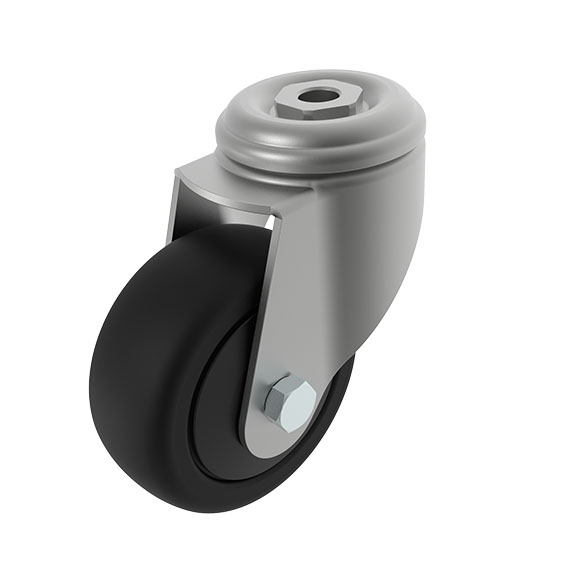

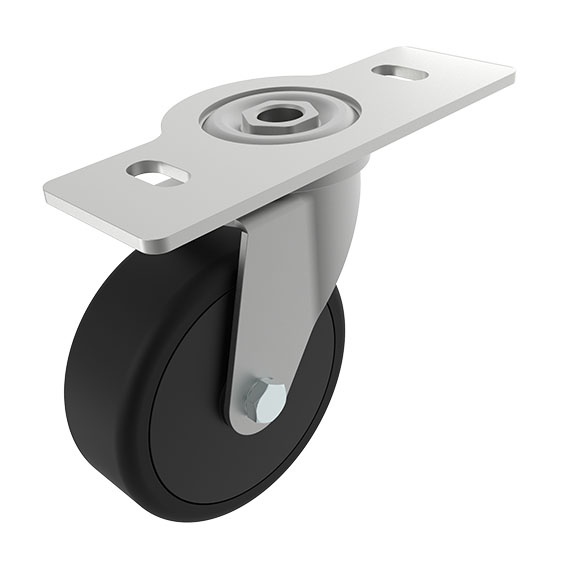

Swivel Caster Ø 75
D (mm): 75 | ESD: ESD | H (mm): 98 | Max. Load (N): 490 | Swivel Caster Tread: TPE, gray ≈ RAL 7031 | Wheel Body: PP, black
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles or with an additional transport and base plateMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedZolltarifnummer:73269098900

€0.00*
Swivel Caster Ø 80 / 100 / 125 with Mounting Plate 40 / 45
D (mm): 80 | ESD: - | H (mm): 111 | Max. Load (N): 800 | Swivel Caster Tread: Solid rubber, gray ≈ RAL 7001 | Wheel Body: PA, black
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate needed; swivel caster either in standard version or as ESD electrostatical discharging versionMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedZolltarifnummer:73269098900

€0.00*

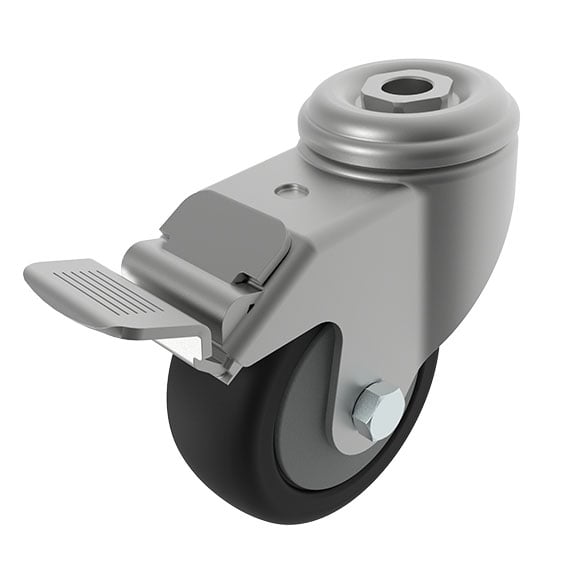

Swivel Caster Ø 80 / 100 / 125 with System Brake
Bearing: Ball bearing | D (mm): 125 | ESD: ESD | H (mm): 158 | Max. Load (N): 800 | Swivel Caster Tread: TPE, gray ≈ RAL 7031 | Wheel Body: PP, black
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate S; no additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedTip:Compatible Adapter Plate for Swivel Casters Ø 80 / 100 / 125 see 098SA40N08Zolltarifnummer:73269098900

€0.00*
Swivel Caster Ø 80 / 100 / 125
D (mm): 100 | ESD: ESD | H (mm): 133 | Max. Load (N): 700 | Swivel Caster Tread: TPE, gray ≈ RAL 7031 | Wheel Body: PP, black
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate S; no additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedTip:Compatible Adapter Plate for Swivel Casters Ø 80 / 100 / 125 see 098SA40N08Zolltarifnummer:73269098900

€0.00*
Swivel Caster Ø 80 / 100 / 125 with System Brake and Mounting Plate 40 / 45
Bearing: Ball bearing | D (mm): 100 | ESD: - | H (mm): 136 | Max. Load (N): 1100 | Swivel Caster Tread: Solid rubber, gray ≈ RAL 7001 | Wheel Body: PA, black
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate needed; swivel caster either in standard version or as ESD electrostatical discharging versionMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedZolltarifnummer:73269098900

€0.00*

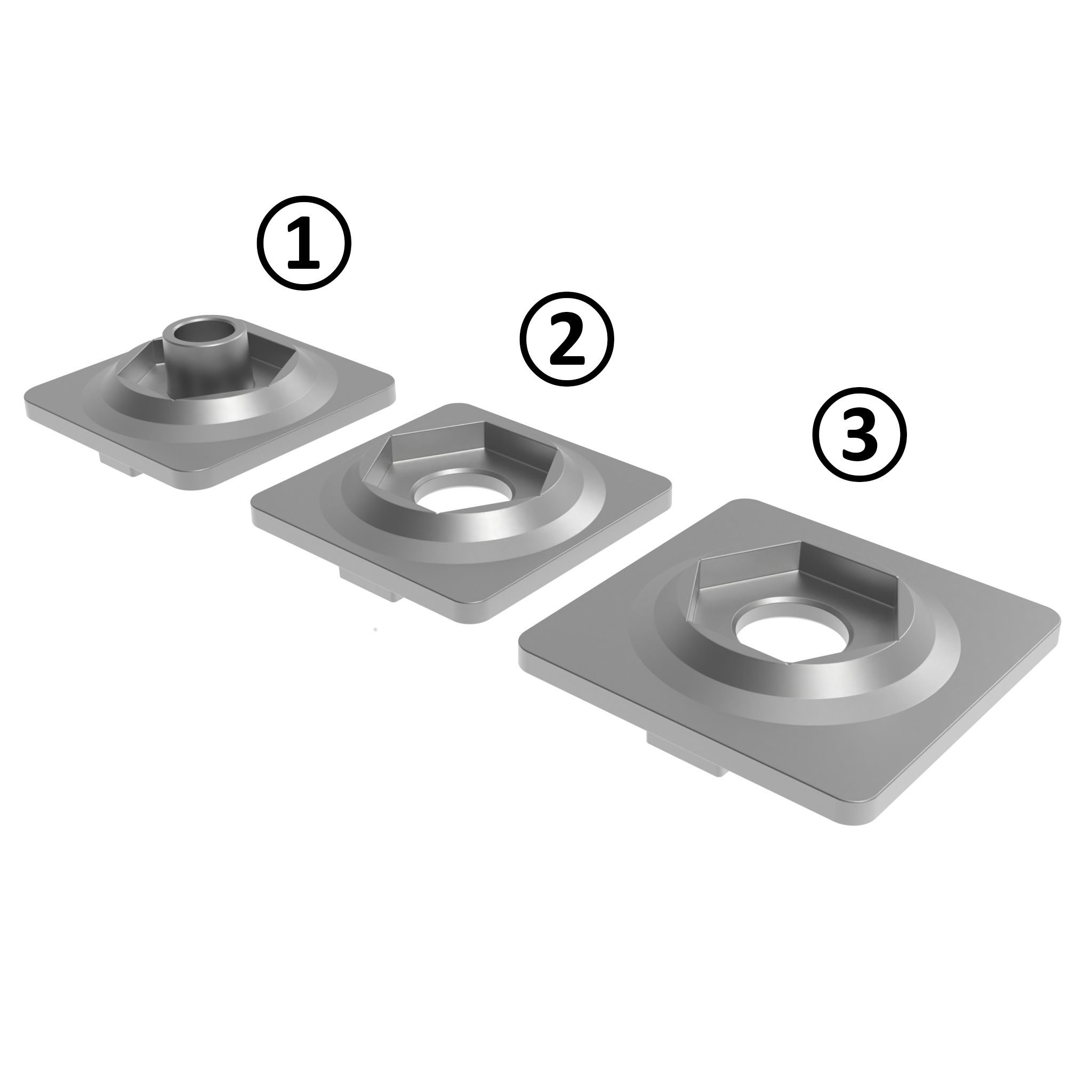

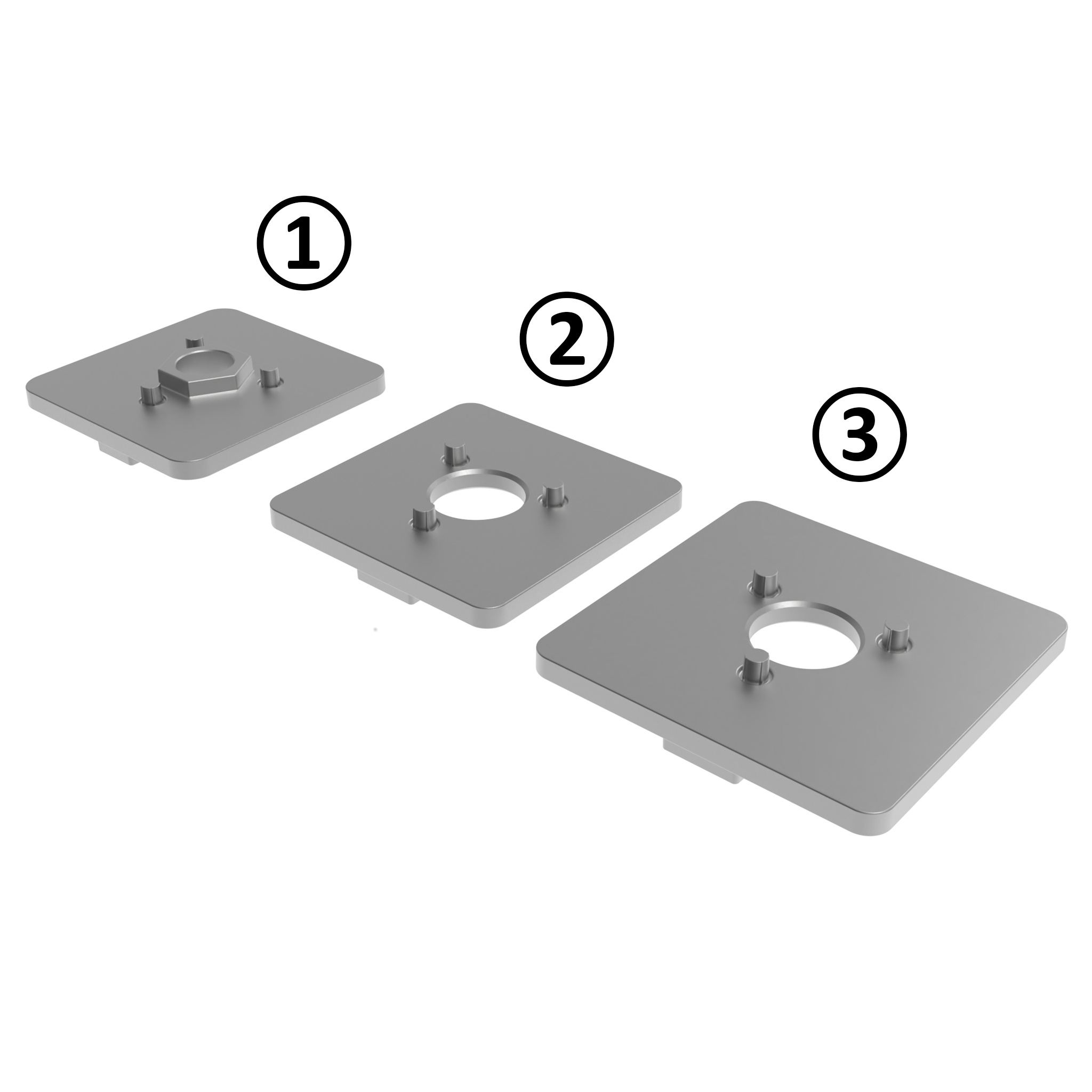

Adapter Plate for Swivel Casters Ø 80 / 100 / 125
Fig.: | Profile Width: 45 | Slot N (mm): 10
Color:Alu colorDelivery Countries:WorldwideDescription:For positive-locking and anti-twist installation of swivel casters to aluminum profilesMaterial:Zinc die-castSurface:Powder coatedTip:Compatible Swivel Caster Ø 80 / 100 / 125 see 098S080TN, 098S080TDNZolltarifnummer:79070000900

€0.00*

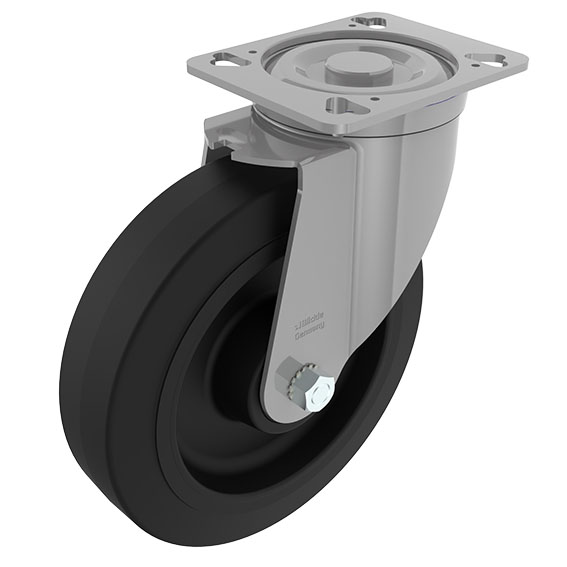

Heavy-duty Swivel Caster Ø 200 with Mounting Plate 40 / 45
B (mm): 50 | D (mm): 200 | ESD: - | H (mm): 235 | Max. Load (N): 7800 | Swivel Caster Tread: PU, yellow | Wheel Body: Aluminum, gray
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedZolltarifnummer:73269098900

€0.00*

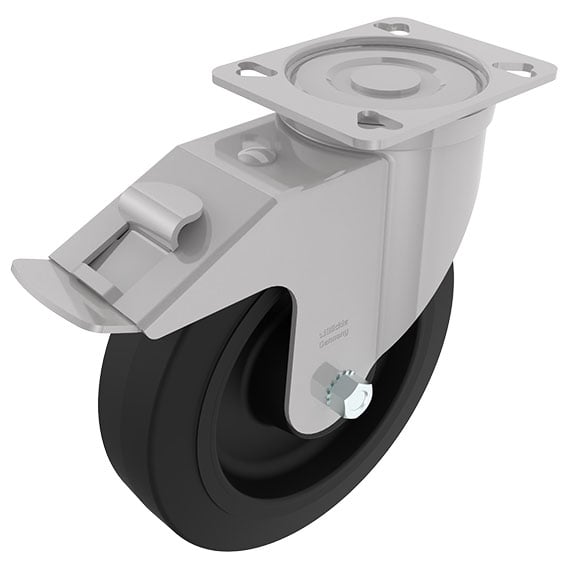

Heavy-duty Swivel Caster Ø 200 with System Brake and Mounting Plate 40 / 45
B (mm): 50 | D (mm): 200 | ESD: - | H (mm): 235 | Max. Load (N): 5800 | Swivel Caster Tread: PA, white | Wheel Body: PA, white
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedZolltarifnummer:73269098900

€0.00*
Skip product gallery
Fixed Caster Ø 80 / 100 / 125 with Mounting Plate 40 / 45
Bearing: Ball bearing | D (mm): 125 | ESD: ESD | Fixed Caster Tread: TPU, gray ≈ RAL 7024 | H (mm): 161 | Max. Load (N): 1200 | Wheel Body: PA, black
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet fixed caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles 38 - 1.5", 40 mm and 45 mm without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedZolltarifnummer:73269098900

€0.00*

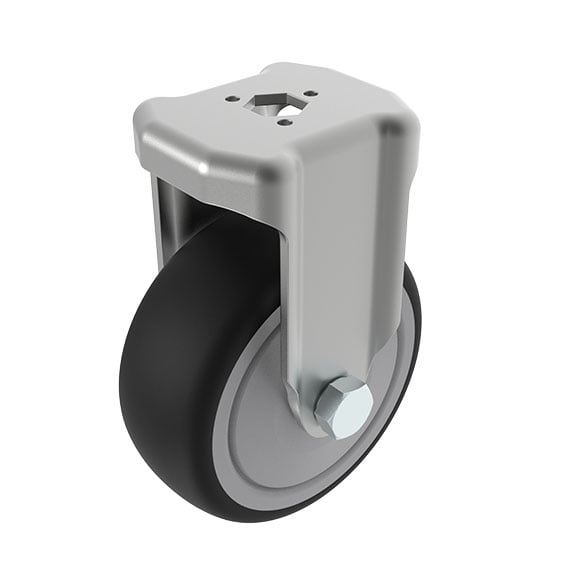

Fixed Caster Ø 80 / 100 / 125
Bearing: Ball bearing | D (mm): 125 | ESD: - | Fixed Caster Tread: TPU, gray ≈ RAL 7024 | H (mm): 158 | Max. Load (N): 1200 | Wheel Body: PA, gray
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet fixed caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate F; no additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedTip:Compatible Adapter Plate for Fixed Casters Ø 80 / 100 / 125 see 098FA40N08Zolltarifnummer:73269098900

€0.00*

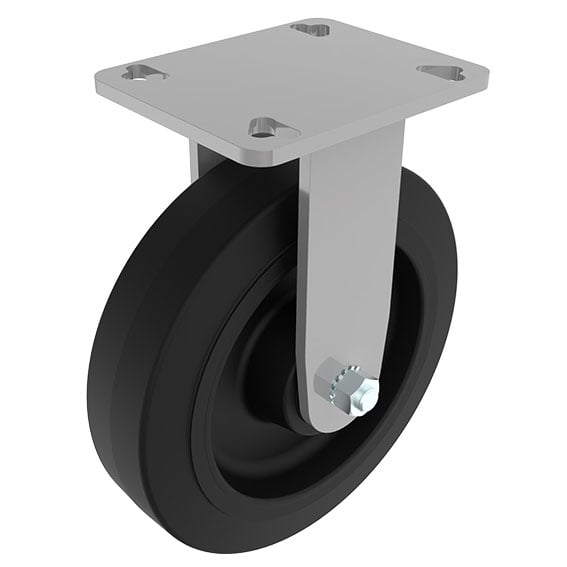

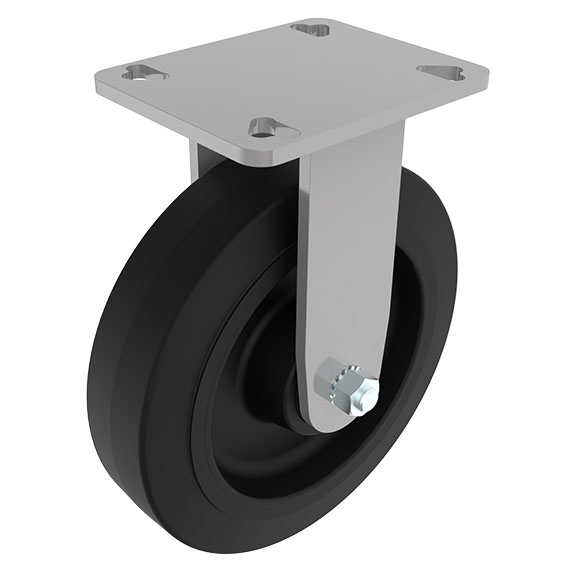

Heavy-duty Fixed Caster Ø 200 with Mounting Plate 40 / 45
B (mm): 50 | D (mm): 200 | ESD: ESD | Fixed Caster Tread: PU, gray | H (mm): 235 | Max. Load (N): 7800 | Wheel Body: Aluminum, gray
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet fixed caster, trackless With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang No additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedZolltarifnummer:73269098900

€0.00*

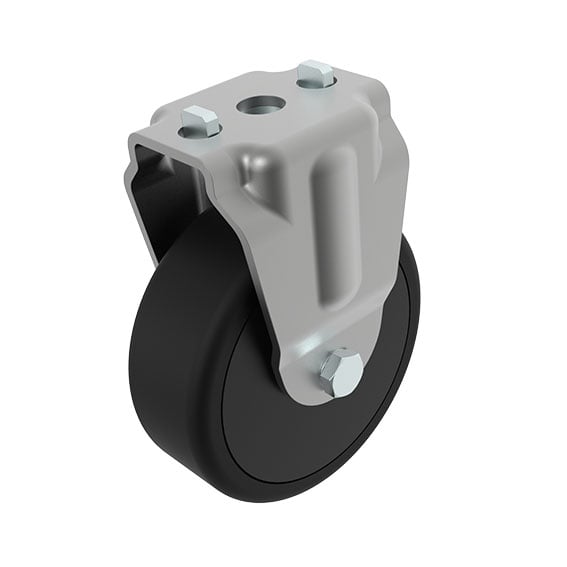

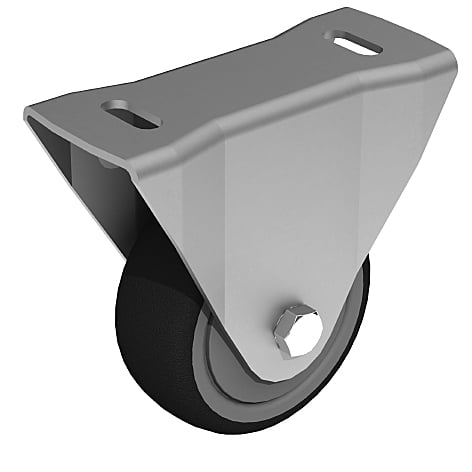

Fixed Caster Ø 75
D (mm): 75 | ESD: - | Fixed Caster Tread: PP, gray | H (mm): 98 | Max. Load (N): 700 | Wheel Body: TPE, gray ≈ RAL 7001
Color:Housing: Alu color Tread: See table Wheel body: GrayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles, with optional locating pin slot 8 secured against rotationMaterial:Housing: Steel Tread: See table Wheel body: See table Locating pin: SteelSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated Locating pin: Zinc platedZolltarifnummer:73269098900

€0.00*
Adapter Plate for Fixed Casters Ø 80 / 100 / 125
Fig.: | Profile Width: 45 | Slot N (mm): 10
Color:Alu colorDelivery Countries:WorldwideDescription:For positive-locking and anti-twist installation of fixed casters to aluminum profilesMaterial:Zinc die-castSurface:Powder coatedTip:Compatible Fixed Caster Ø 80 / 100 / 125 see 098F080TNZolltarifnummer:79070000900

€0.00*

would YOU ALSO like to LEARN more about the Swivel and Fixed Casters with Lifting Foot?

Click here to view all versions.


To Products

ACCESSORIES

Recommendend Mounting Material

Skip product gallery

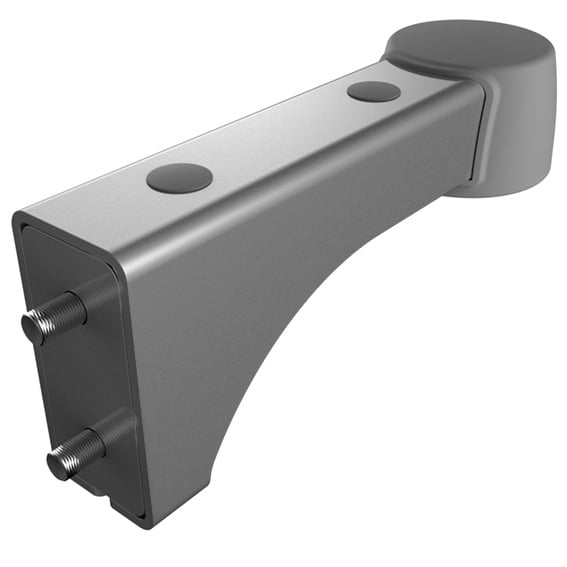

Swivel Caster Arm I 40 x 80 (Set)
Color:Arm: Alu color Bumper: Gray ≈ RAL 7042 Cover cap: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To mount 360° rotating swivel casters with bolt hole pattern in the back - also with double system brake; higher stability against overturning due to lower center of gravity, icl. side impact protection; Swivel caster arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Steel Bumper: Plastic TPE, ≈ 70 Shore A Screw: Steel Cover cap: PlasticSet:1 caster arm, 1 bumper, 2 screw ISO 7380 - M8 x 16, 1 screw DIN 7991 - M10 x 25, 2 cover capSpecials:Other surfaces, other colors on requestSurface:Arm: Powder coated Screw: Zinc platedTip:Compatible Swivel Caster D80, D100 or D125 see 098S080xxx, 098S100xxx or 098S125xxxZolltarifnummer:73269098900

€0.00*

RECOMMENDED MOUNTING MATERIAL

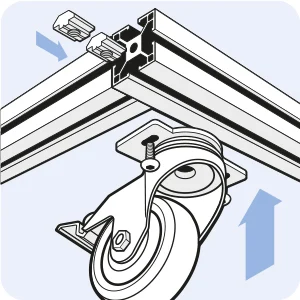

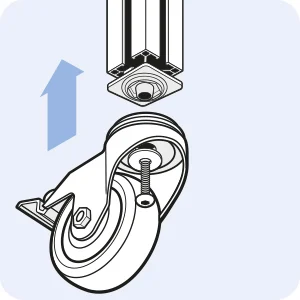

On the face side in a core hole, using the adapter plate

I40

1 screw - M8 x 40;
1 washer DIN EN ISO 7093 - 8.4

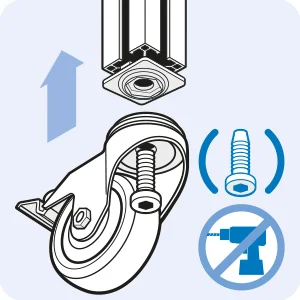

B 40, B 45

1 screw - M12 x 40 oder
1 self-tapping screw - S12 x 40

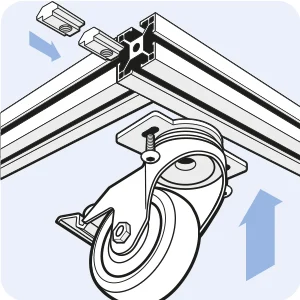

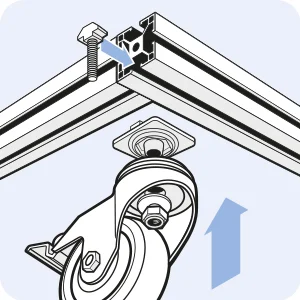

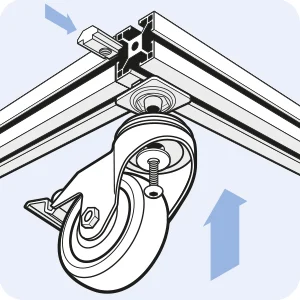

Along the T-slot, using the adapter plate

I 40

1 screw M8 x 25;
1 washer DIN EN ISO 7093 - 8.4;
1 T-slot nut slot 8 - M8

I 40

1 hammer screw M8 x 30;
1 washer DIN EN ISO 7093 - 8.4;
1 nut DIN EN ISO 10511 - M8

B 40, B 45

T-bolt M12 x 30;
1 nut DIN EN ISO 10511 - M12

Along the T-slot, using the bolt holes

I 40

2 screws M8 x 14;
2 T-slot nut slots 8 - M8

B 40, B 45

2 screws M8 x 14;
2 T-slot nut slotsNut 10 - M8
