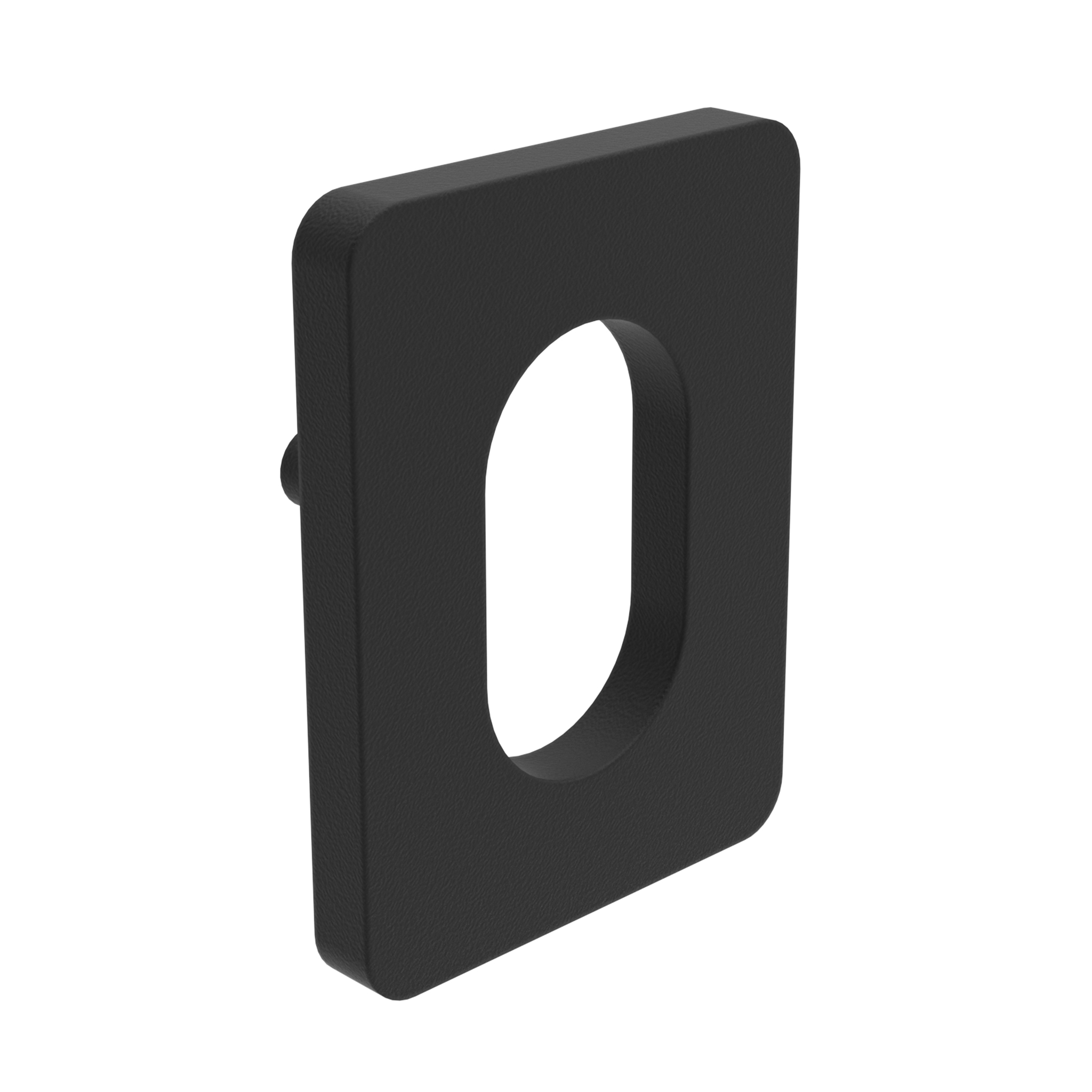

Spacer, for Clip Blocks 14, Black

Color: Black D (mm): *2.0

Color:BlackDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Clip Block see 094204 and 094204SLTip 2:* No further spacers can be added!

€0.00

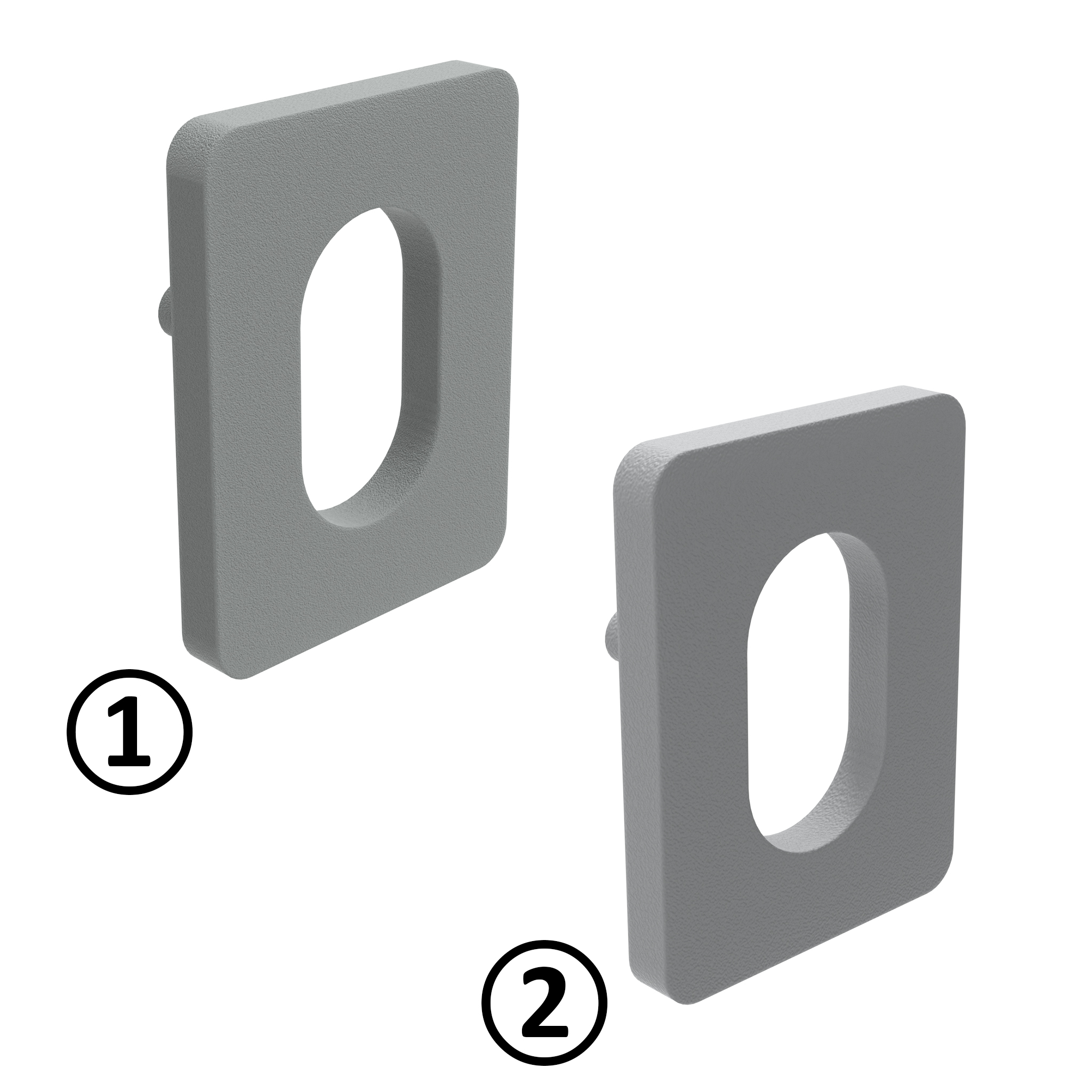

Spacer, for Clip Blocks 14, Gray

Fig.: ② Color: Gray ≈ RAL 7004 D (mm): 3.0

Color:GrayDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Clip Block see 094204S01Tip 2:* No further spacers can be added!

€0.00

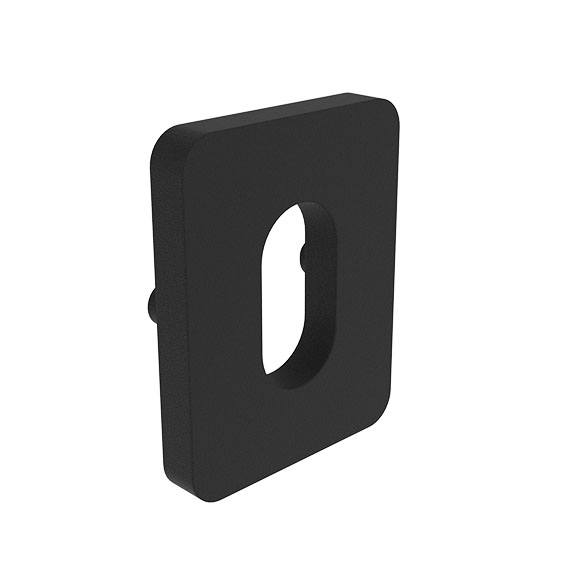

Spacer, for Uni Blocks / Clip Blocks 13, Black

Color: Black D (mm): *2.0

Color:BlackDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PATip:Compatible Uni Block see 094411M4 and 094411M4S03, Compatible Clip Block see 094311 and 094311S02Tip 2:*Please note: You need each two pieces 093048!

€0.00

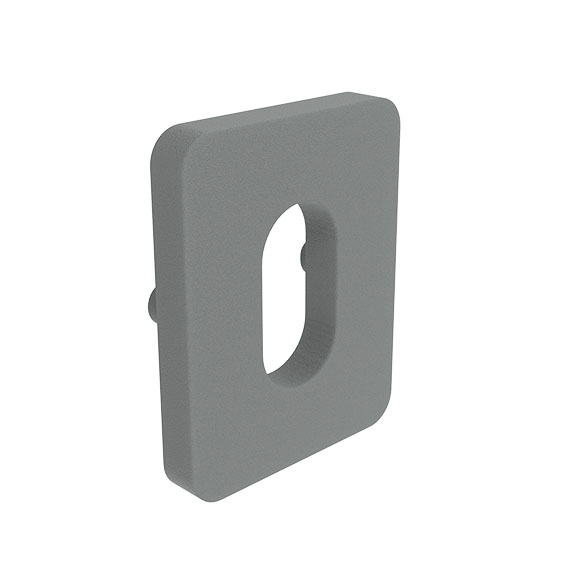

Spacer, for Uni Blocks / Clip Blocks 13, Gray

Color: Gray ≈ RAL 7042 D (mm): *1.0

Color:GrayDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PATip:Compatible Uni Block see 094411M4S03, Compatible Clip Block see 094311S02Tip 2:*Please note: You need each two pieces 093048!

€0.00

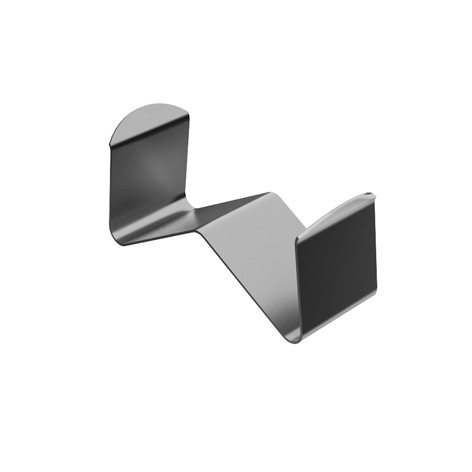

Spring for T-slot Nut

for T-Slot Nut L (mm): 20.0 b (mm): 7.8 h (mm): 10.0 Slot N (mm): 10 Profile: B

Delivery Countries:WorldwideDescription:Spring leaf as mounting and positioning aid, for T-slot nuts and roll-in T-slot nutsMaterial:Spring steel SS301Surface:Plain

€0.00

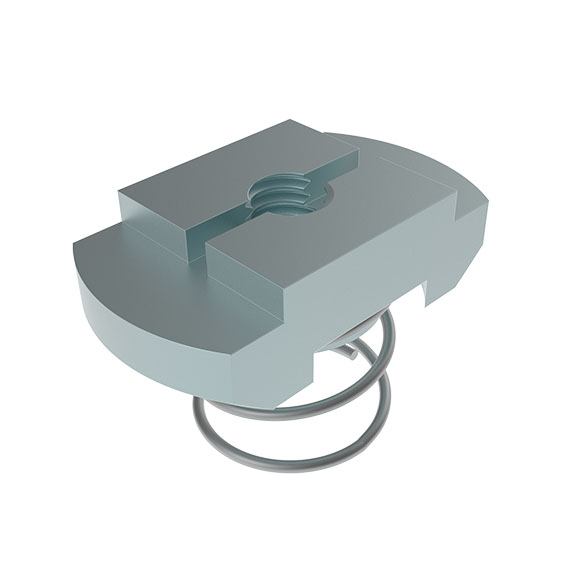

Spring Nut

M: M4 Profile: -

Delivery Countries:WorldwideDescription:To fasten components to profilesMaterial:Nut: Zinc plated steel Spring: SteelSurface:Nut: Zinc plated

€0.00

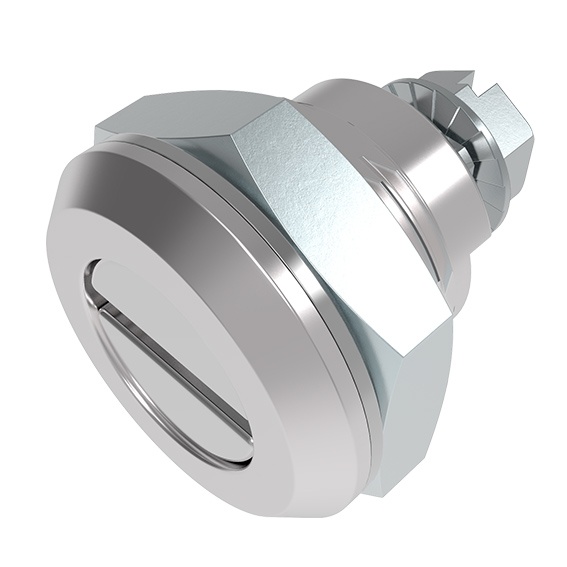

Spring Style Quarter Turn Lock 22.5 / 13

Insert type: Slotted recess 2 x 4

Color:Seal: BlackDelivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:For easy and secure latching and locking of doors and flaps; Wide range of cams and accessoriesMaterial:Insert: Stainless steel SS316 Housing: Stainless steel SS316 Cam: Steel Seal: Rubber NBR Nut: Stainless steel SS316 Screw: Stainless steel SS316Surface:Cam: Zinc platedTip:Compatible Cams see 0810247 et sq. Accessories see 0890032 et sq.

€0.00

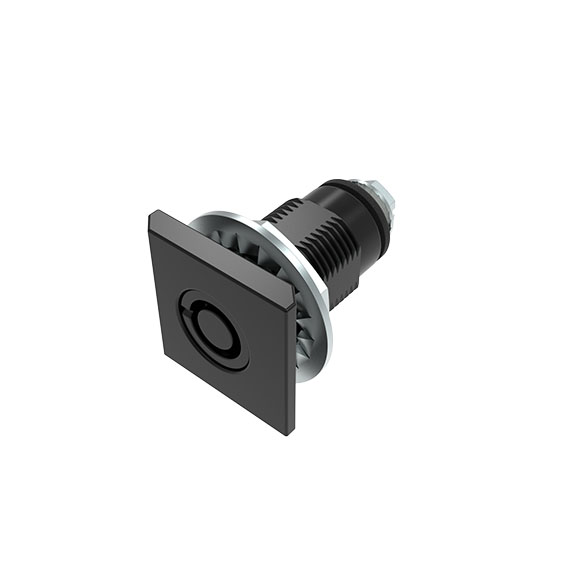

Square Face Compression Latch 22.5 / 32

Insert type: Slotted recess

Color:Insert: Black Housing: Black Seals: BlackDelivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:For easy, secure and compressive latching and locking of doors and flapsMaterial:Insert: Zinc die-cast Shaft: Steel Retaining spring: Stainless steel SS316 Housing: Zinc die-cast Cam: Steel Seals: Rubber NBR Washer: Steel Nut: Steel Screw: SteelSurface:Insert: Powder coated Shaft: Zinc plated Retaining spring: Zinc plated Housing: Powder coated Cam: Zinc plated Washer: Zinc plated Nut: Zinc plated Screw: Zinc platedTip:Compatible Cams see 0810247 et sq. Accessories see 0890032 et sq.

€0.00

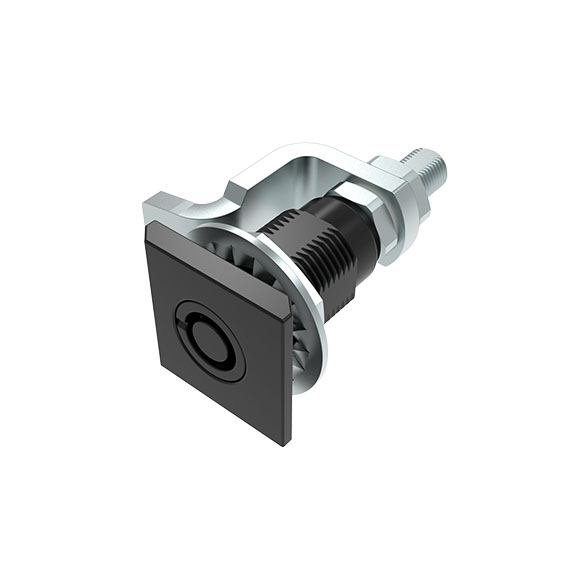

Square Face Compression Latch 22.5 / 32, Long Shaft, incl. Cam Offset (Set)

Insert type: Triangular 8.0 mm H (mm): 25.4 - 41.1 / 52.6 - 68.3

Color:Insert: Black Housing: Black Seals: BlackDelivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:For easy, secure and compressive latching and locking of doors and flapsMaterial:Insert: Zinc die-cast Shaft: Steel Retaining spring: Stainless steel SS316 Housing: Zinc die-cast Cam: Steel Seals: Rubber NBR Washer: Steel Nut: Steel Assembly material: SteelSurface:Insert: Powder coated Shaft: Zinc plated Retaining spring: Zinc plated Housing: Powder coated Cam: Zinc plated Washer: Zinc plated Nut: Zinc plated Assembly material: Zinc plated

€0.00

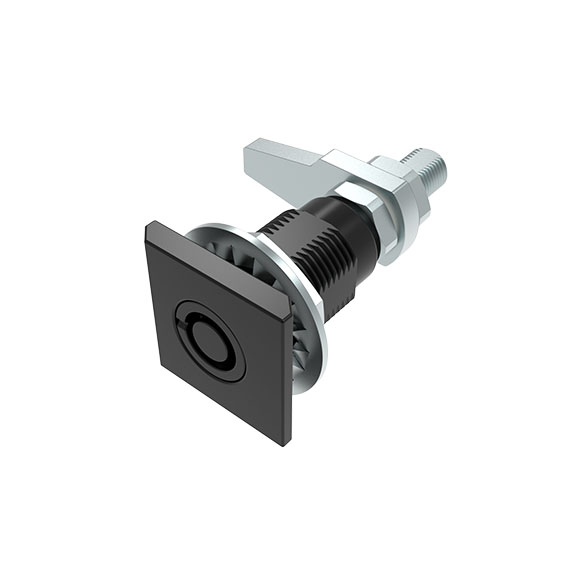

Square Face Compression Latch 22.5 / 32, Long Shaft, incl. Cam Straight (Set)

Insert type: Slotted recess H (mm): 38.9 - 54.6

Color:Insert: Black Housing: Black Seals: BlackDelivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:For easy, secure and compressive latching and locking of doors and flapsMaterial:Insert: Zinc die-cast Shaft: Steel Retaining spring: Stainless steel SS316 Housing: Zinc die-cast Cam: Steel Seals: Rubber NBR Washer: Steel Nut: Steel Assembly material: SteelSurface:Insert: Powder coated Shaft: Zinc plated Retaining spring: Zinc plated Housing: Powder coated Cam: Zinc plated Washer: Zinc plated Nut: Zinc plated Assembly material: Zinc plated

€0.00

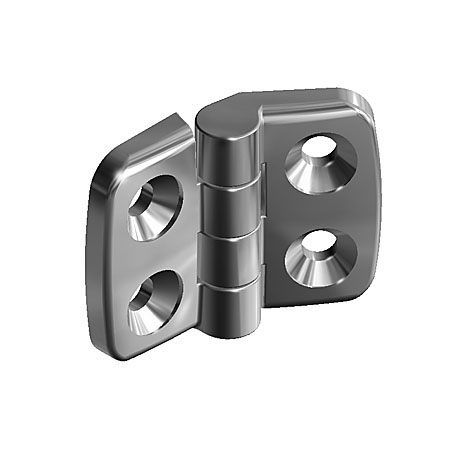

Stainless Steel Combi Hinge 20 MINI, Non-detachable

Version: Non-detachable Combination: 20 / 20 FAmax (N): 450 A1 (mm): 11.5 A2 (mm): 11.5 B1 (mm): 19.0 B2 (mm): 19.0

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M4 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00

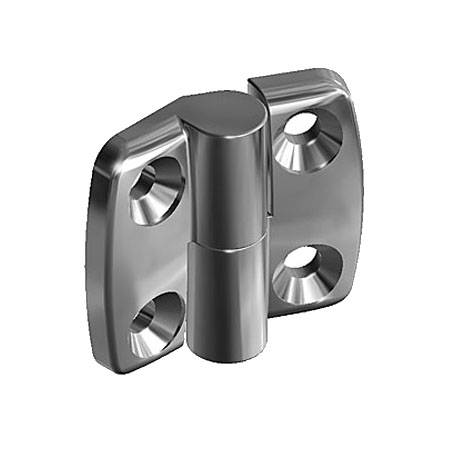

Stainless Steel Combi Hinge 25, Detachable

Version: L: Left Combination: 25 / 25 FAmax (N): 625 FRmax (N): 900 A1 (mm): 15.0 A2 (mm): 15.0 B1 (mm): 26.0 B2 (mm): 26.0

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00

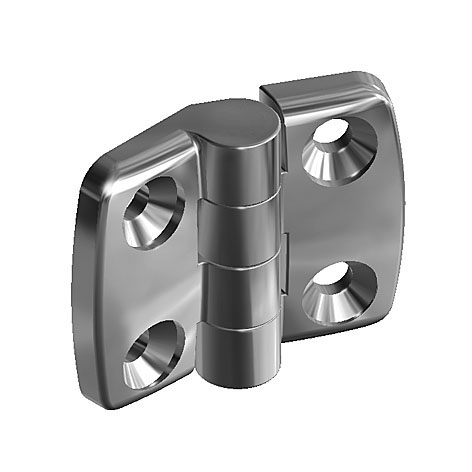

Stainless Steel Combi Hinge 25, Non-detachable

Version: Non-detachable Combination: 25 / 25 FAmax (N): 560 A1 (mm): 15.0 A2 (mm): 15.0 B1 (mm): 26.0 B2 (mm): 26.0

€0.00

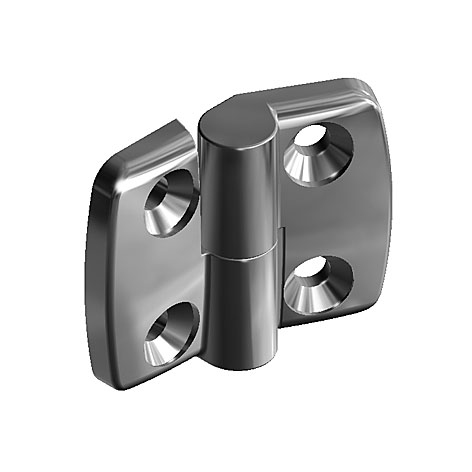

Stainless Steel Combi Hinge 30, Detachable

Version: R: Right Combination: 30 / 30 FAmax (N): 710 FRmax (N): 1000 A1 (mm): 17.5 A2 (mm): 17.5 B1 (mm): 29.5 B2 (mm): 29.5

€0.00

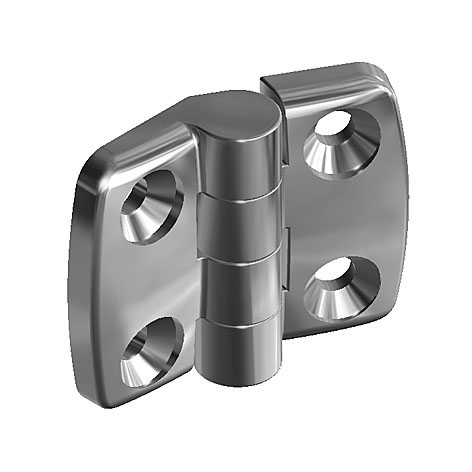

Stainless Steel Combi Hinge 30, Non-detachable

Version: Non-detachable Combination: 30 / 30 FAmax (N): 575 A1 (mm): 17.5 A2 (mm): 17.5 B1 (mm): 29.5 B2 (mm): 29.5

€0.00

Stainless Steel Combi Hinge 40, Detachable

Version: L: Left Combination: 40 / 40 FRmax (N): 1200 A1 (mm): 22.5 A2 (mm): 22.5 B1 (mm): 38.5 B2 (mm): 38.5

€0.00

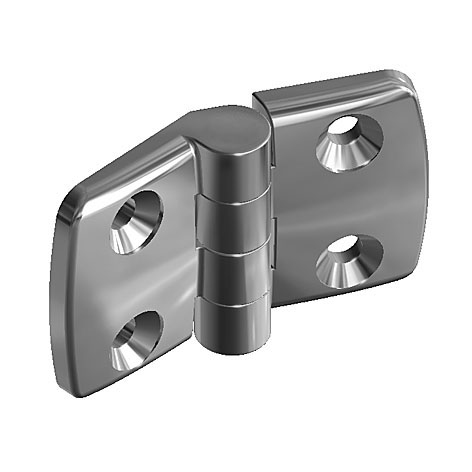

Stainless Steel Combi Hinge 40, Non-detachable

Version: Non-detachable Combination: 40 / 40 FAmax (N): 675 FRmax (N): 900 A1 (mm): 22.5 A2 (mm): 22.5 B1 (mm): 38.5 B2 (mm): 38.5

€0.00

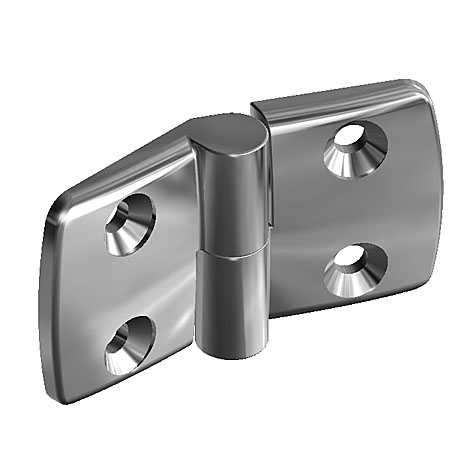

Stainless Steel Combi Hinge 45, Detachable

Version: R: Right Combination: 45 / 45 FAmax (N): 450 FRmax (N): 1200 A1 (mm): 25.0 A2 (mm): 25.0 B1 (mm): 42.5 B2 (mm): 42.5

€0.00

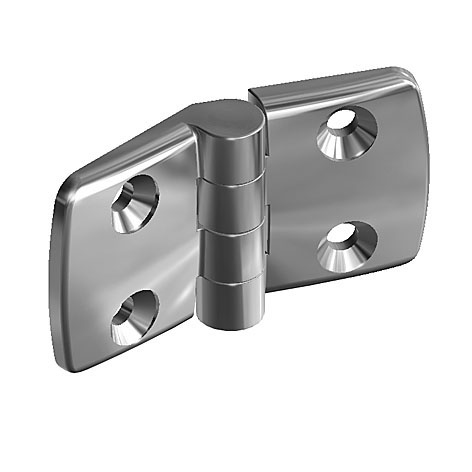

Stainless Steel Combi Hinge 45, Non-detachable

Version: Non-detachable Combination: 45 / 45 FAmax (N): 675 FRmax (N): 900 A1 (mm): 25.0 A2 (mm): 25.0 B1 (mm): 42.5 B2 (mm): 42.5

€0.00

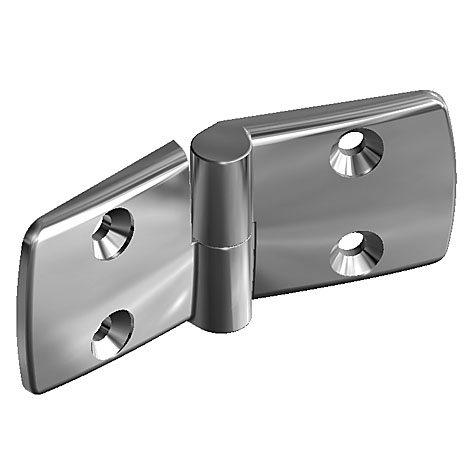

Stainless Steel Combi Hinge 60, Detachable

Version: L: Left Combination: 60 / 60 FAmax (N): 350 FRmax (N): 1200 A1 (mm): 32.5 A2 (mm): 32.5 B1 (mm): 56.5 B2 (mm): 56.5

€0.00

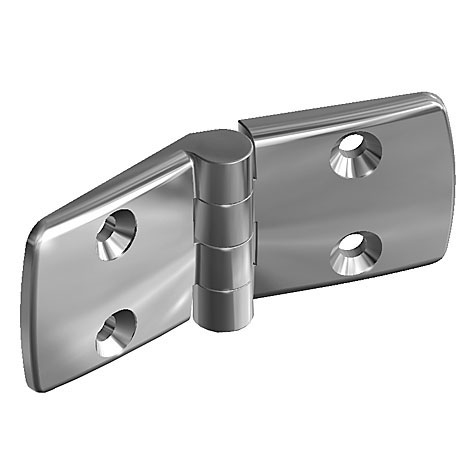

Stainless Steel Combi Hinge 60, Non-detachable

Version: Non-detachable Combination: 60 / 60 FAmax (N): 260 FRmax (N): 900 A1 (mm): 32.5 A2 (mm): 32.5 B1 (mm): 56.5 B2 (mm): 56.5

€0.00

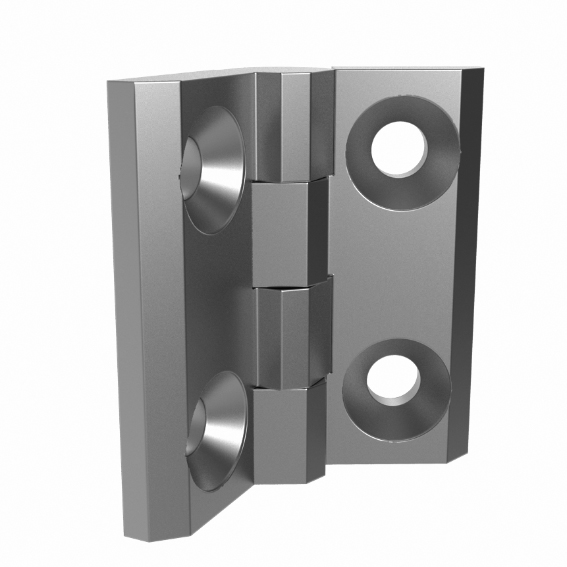

Stainless Steel Hinge 40 x 40

FRmax (N): 1200

Delivery Countries:WorldwideDescription:Hinge for heavy usageFastening:From the front, using countersunk screwsMaterial:Wings: Stainless steel SS316 Pin: Stainless steel SS316Surface:Plain

€0.00

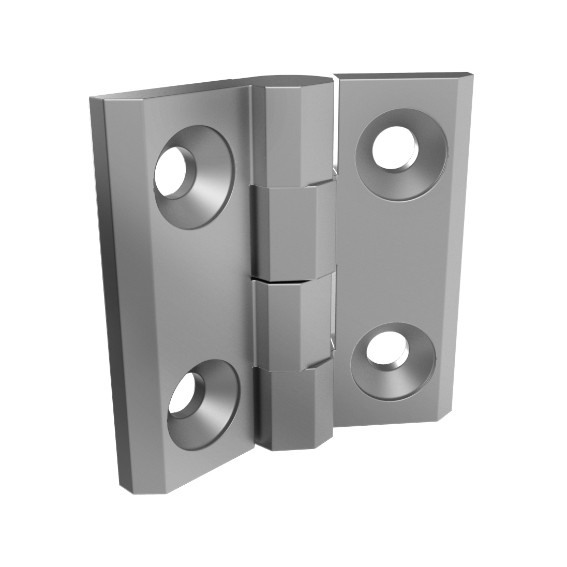

Stainless Steel Hinge 50 x 50

FAmax (N): 900 FRmax (N): 1.600

Delivery Countries:WorldwideDescription:Hinge for heavy usageFastening:From the front, using countersunk screwsMaterial:Wings: Stainless steel SS316 Pin: Stainless steel SS316Surface:Plain

€0.00

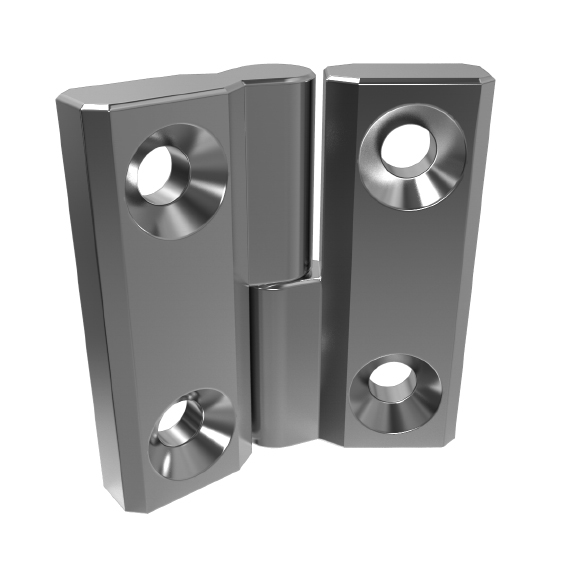

Stainless Steel Hinge 50 x 50 LR

FAmax (N): 600 FRmax (N): 1000

Delivery Countries:WorldwideDescription:Dual symmetrical layout enables right and left hand applicationFastening:From the front, using M6 countersunk screwsMaterial:Wings: Stainless steel SS316 Pin: Stainless steel SS316Surface:Plain

€0.00
