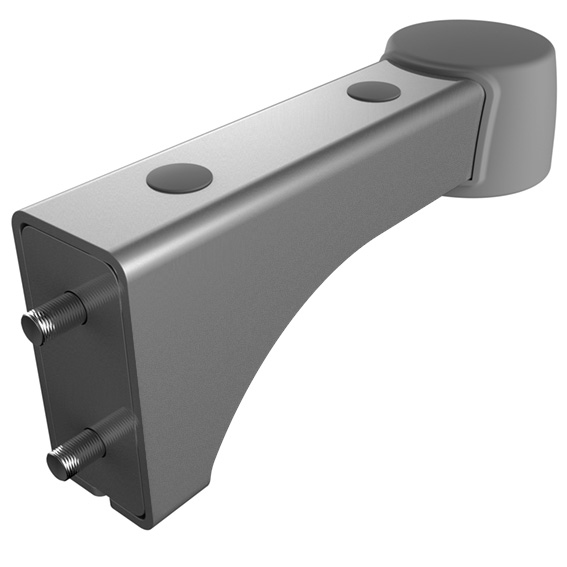

Color:Arm: Alu color Bumper: Gray ≈ RAL 7042 Cover cap: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To mount 360° rotating swivel casters with bolt hole pattern in the back - also with double system brake; higher stability against overturning due to lower center of gravity, icl. side impact protection; Swivel caster arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Steel Bumper: Plastic TPE, ≈ 70 Shore A Screw: Steel Cover cap: PlasticSet:1 caster arm, 1 bumper, 2 screw DIN EN ISO 7380 (DIN 34805) - M8 x 16, 1 screw DIN EN ISO 10642 (DIN 7991) - M10 x 25, 2 cover capSpecials:Other surfaces, other colors on requestSurface:Arm: Powder coated Screw: Zinc platedTip:Compatible Swivel Caster D80, D100 or D125 see 098S080xxx, 098S100xxx or 098S125xxx

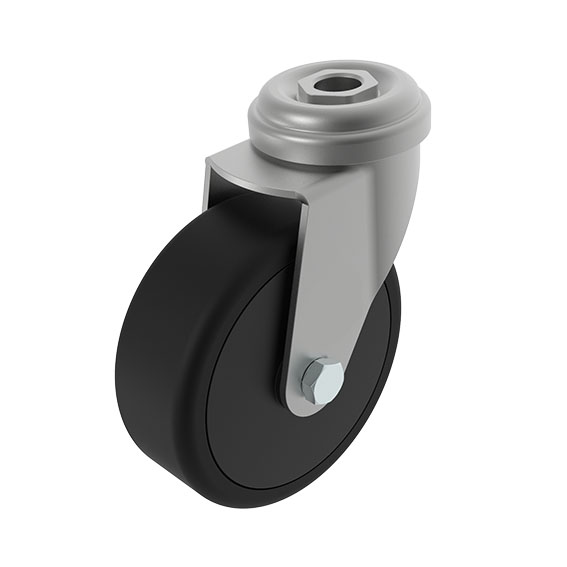

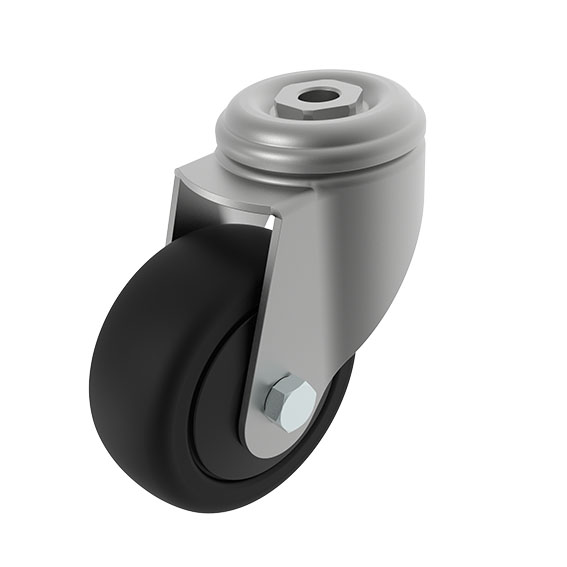

Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles or with an additional transport and base plateFastening:For end face mounting, a suitable thread must be cut into the core holeMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles or with an additional transport and base plateFastening:For end face mounting, a suitable thread must be cut into the core holeMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

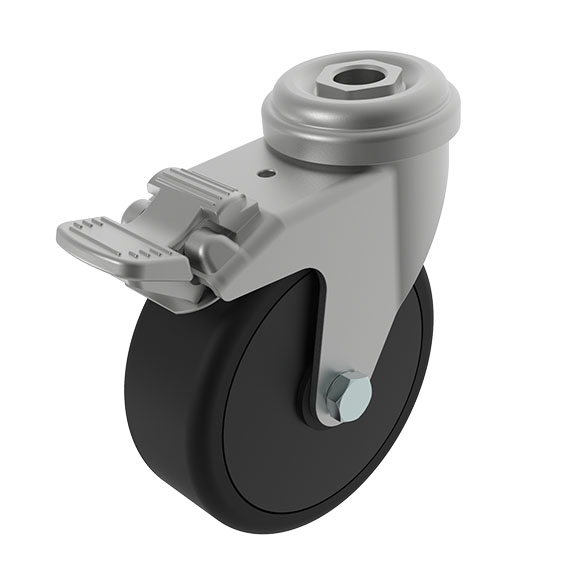

Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate S; no additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedTip:Compatible Adapter Plate for Swivel Casters Ø 80 / 100 / 125 see 098SA40N08

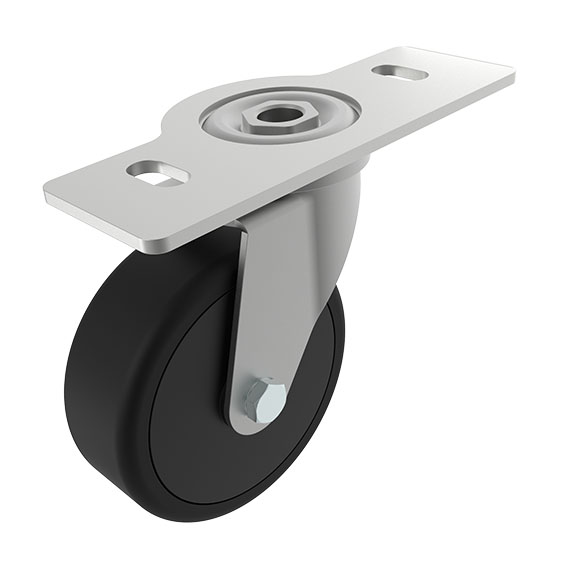

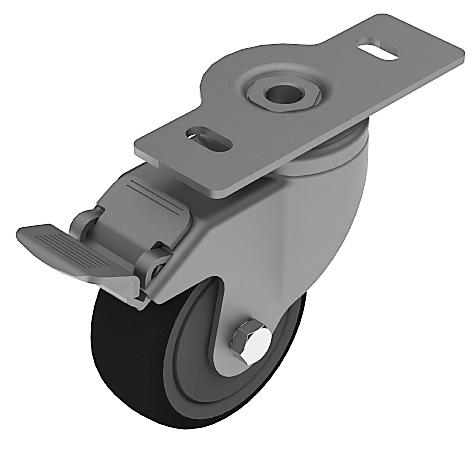

Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate needed; swivel caster either in standard version or as ESD electrostatical discharging versionMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

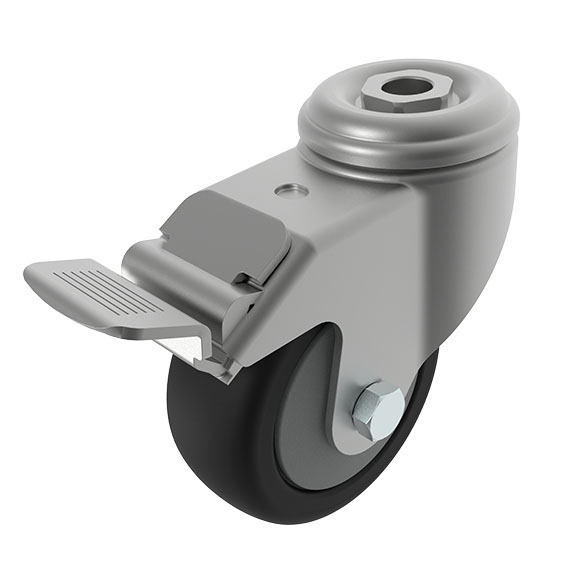

Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate S; no additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedTip:Compatible Adapter Plate for Swivel Casters Ø 80 / 100 / 125 see 098SA40N08
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate needed; swivel caster either in standard version or as ESD electrostatical discharging versionMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

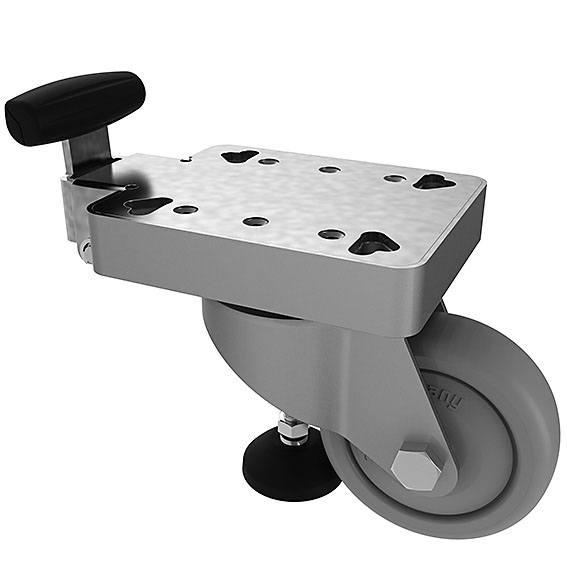

Color:Housing: Alu color Tread: See table Wheel body: See table Foot pedal: BlackDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate needed; Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the swivel caster housingMaterial:Die-cast aluminum / steel Thread: See table Wheel body: See table Mounting plate: Steel Leveling foot: Steel / zinc / TPE Foot pedal: Plastic PUR / steelSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated / zinc plated Mounting plate: Zinc plated Leveling foot: Zinc plated Foot pedal: Zinc plated

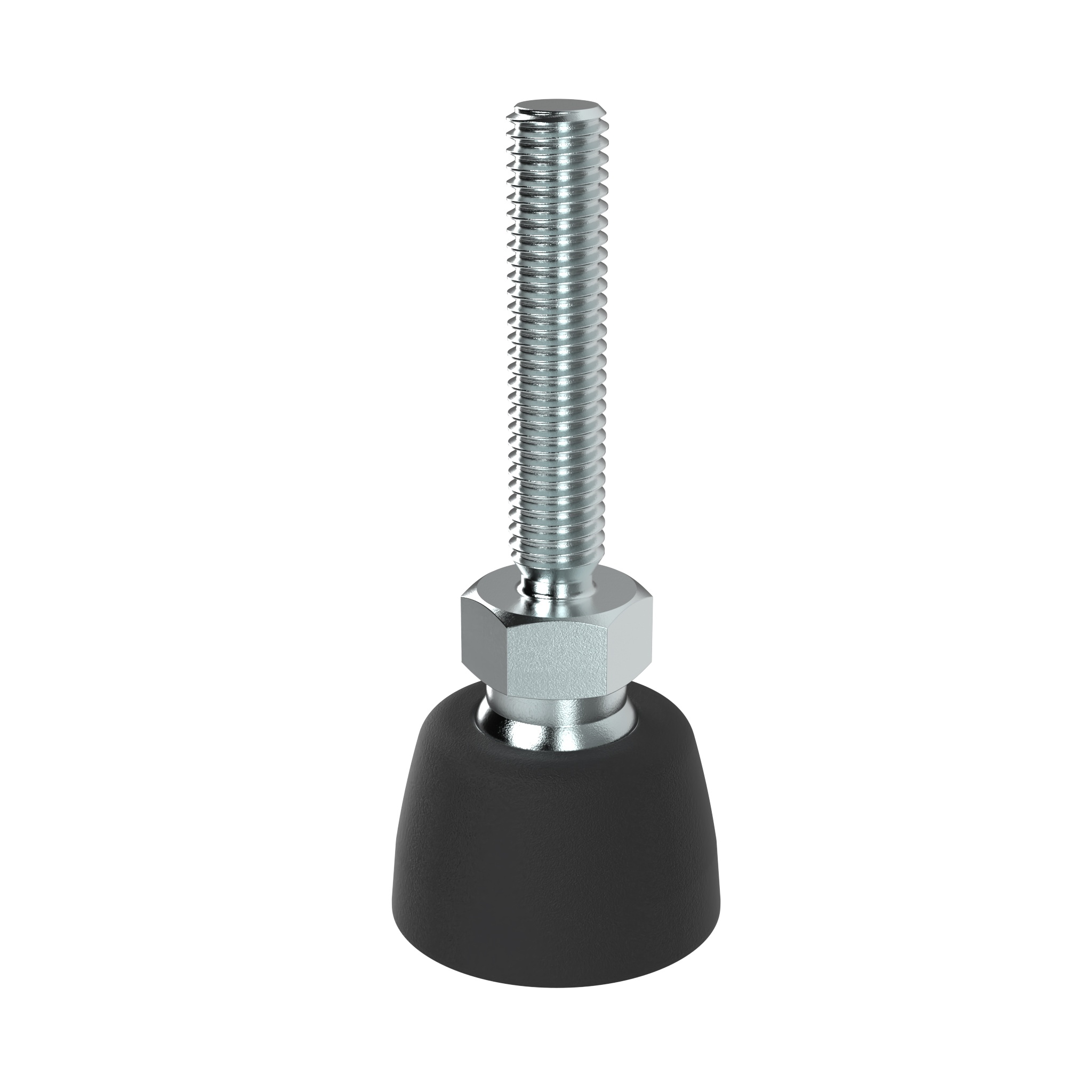

Color:Base: BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.Tip 2:*Bolt-down holes closed

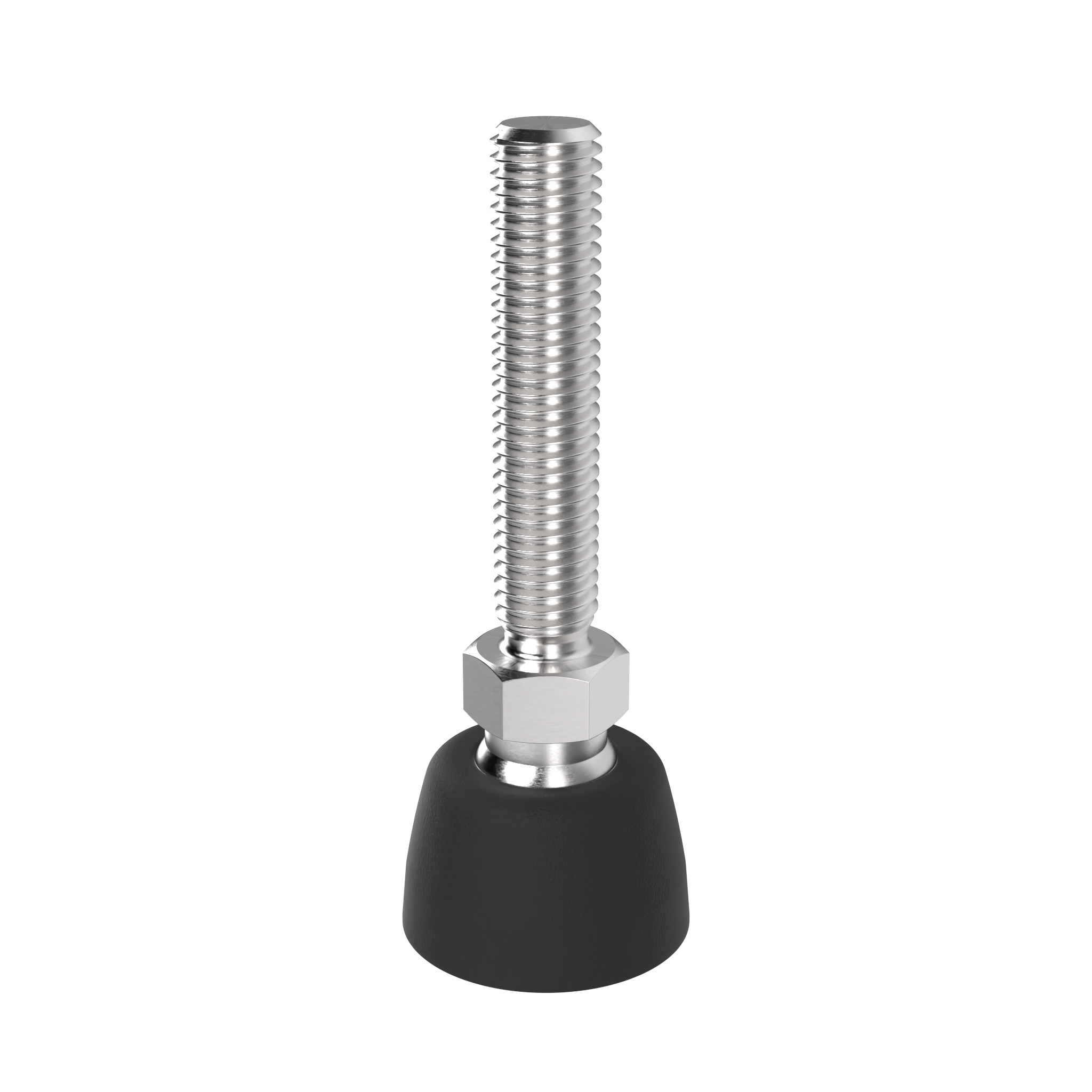

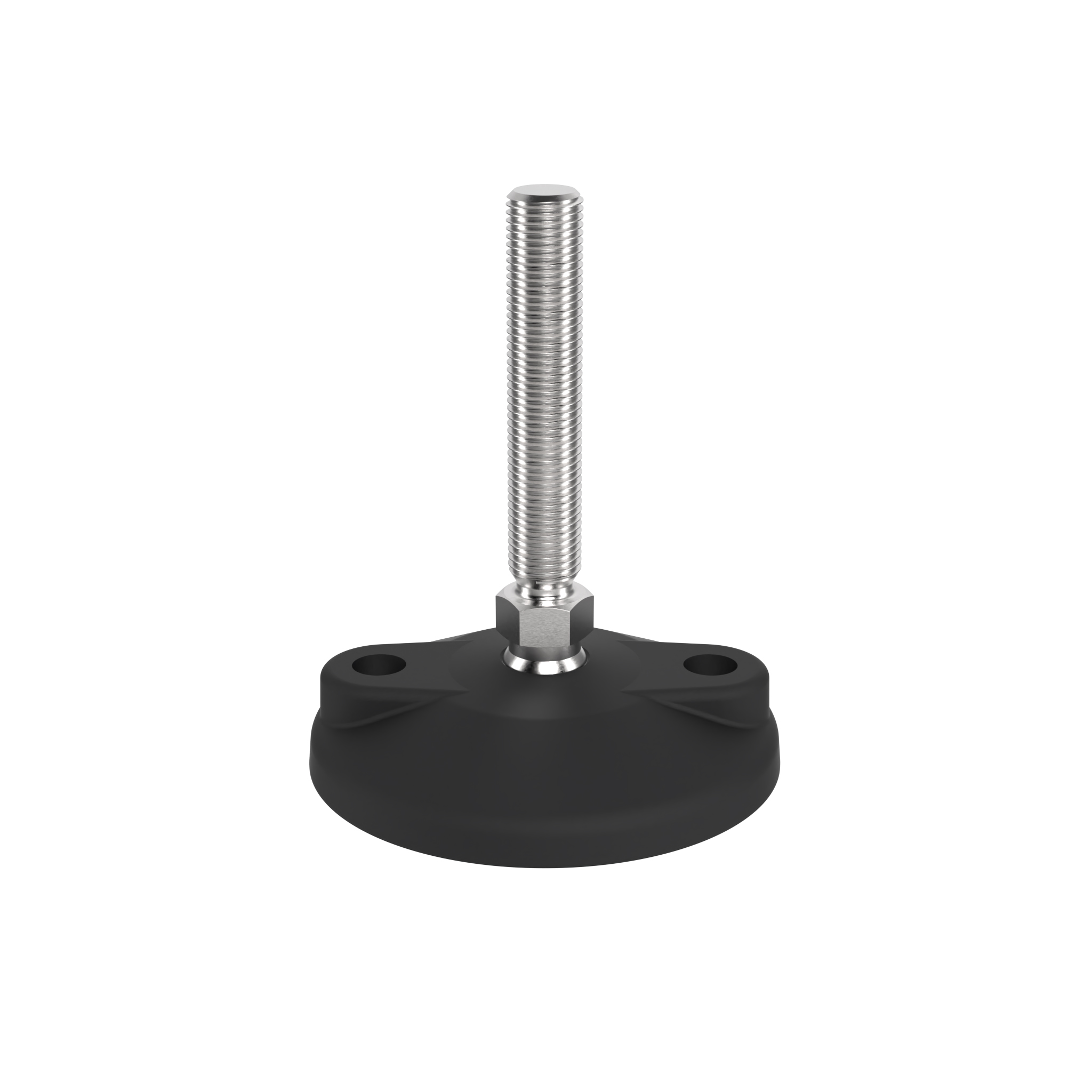

Color:Base: BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.
Color:Base: BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq., *Bolt-down holes closed

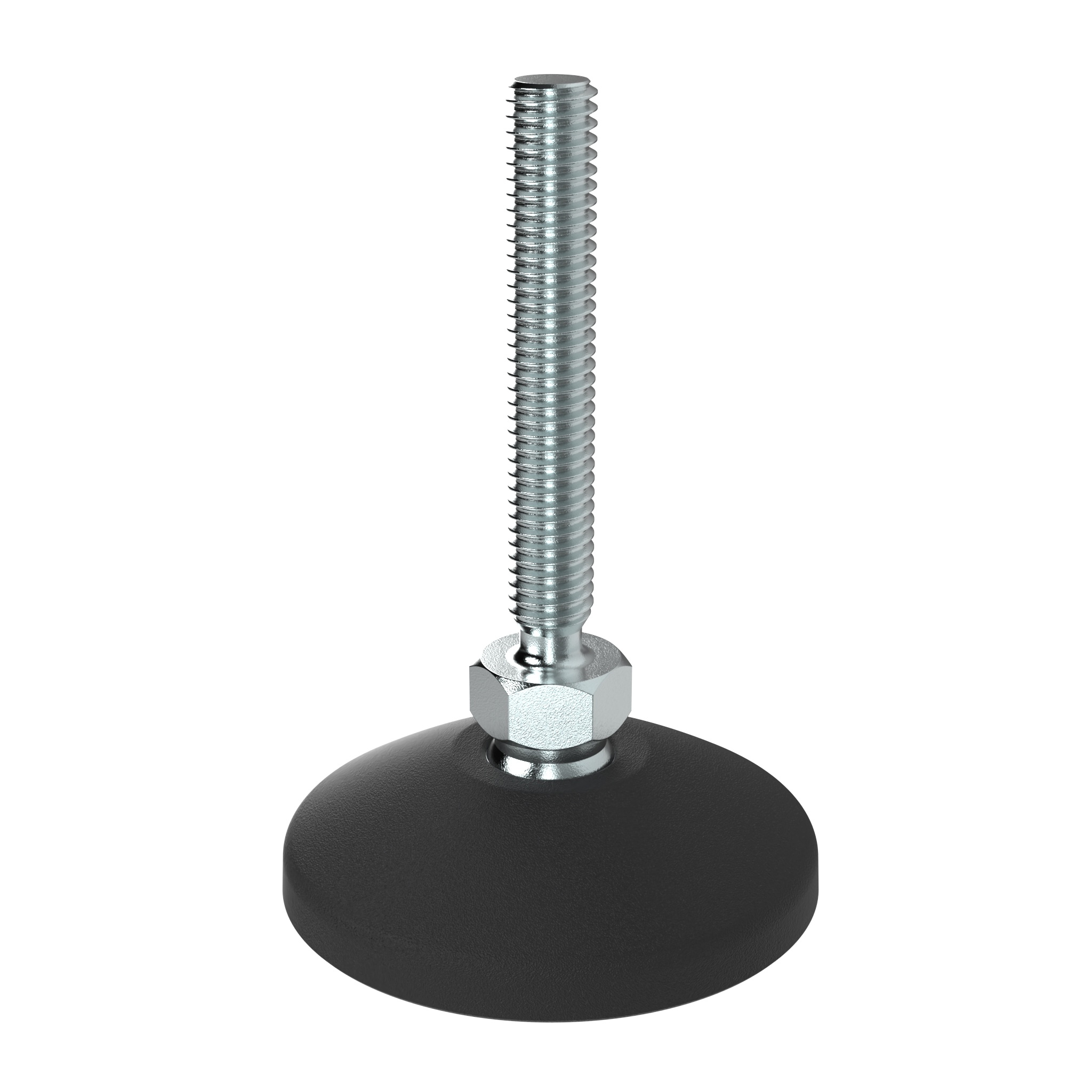

Color:Base: BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098MG020 et sq.
Color:Base: BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.

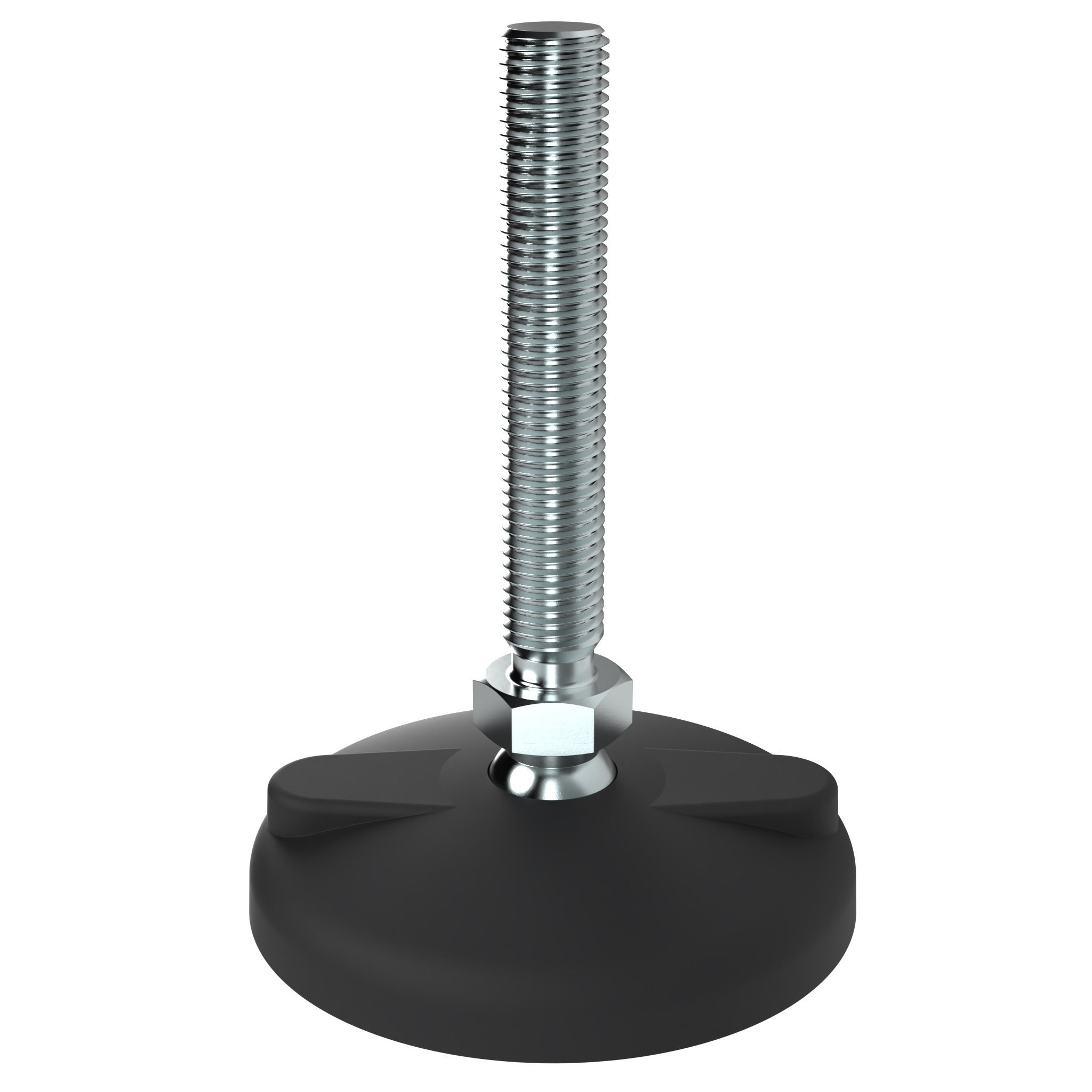

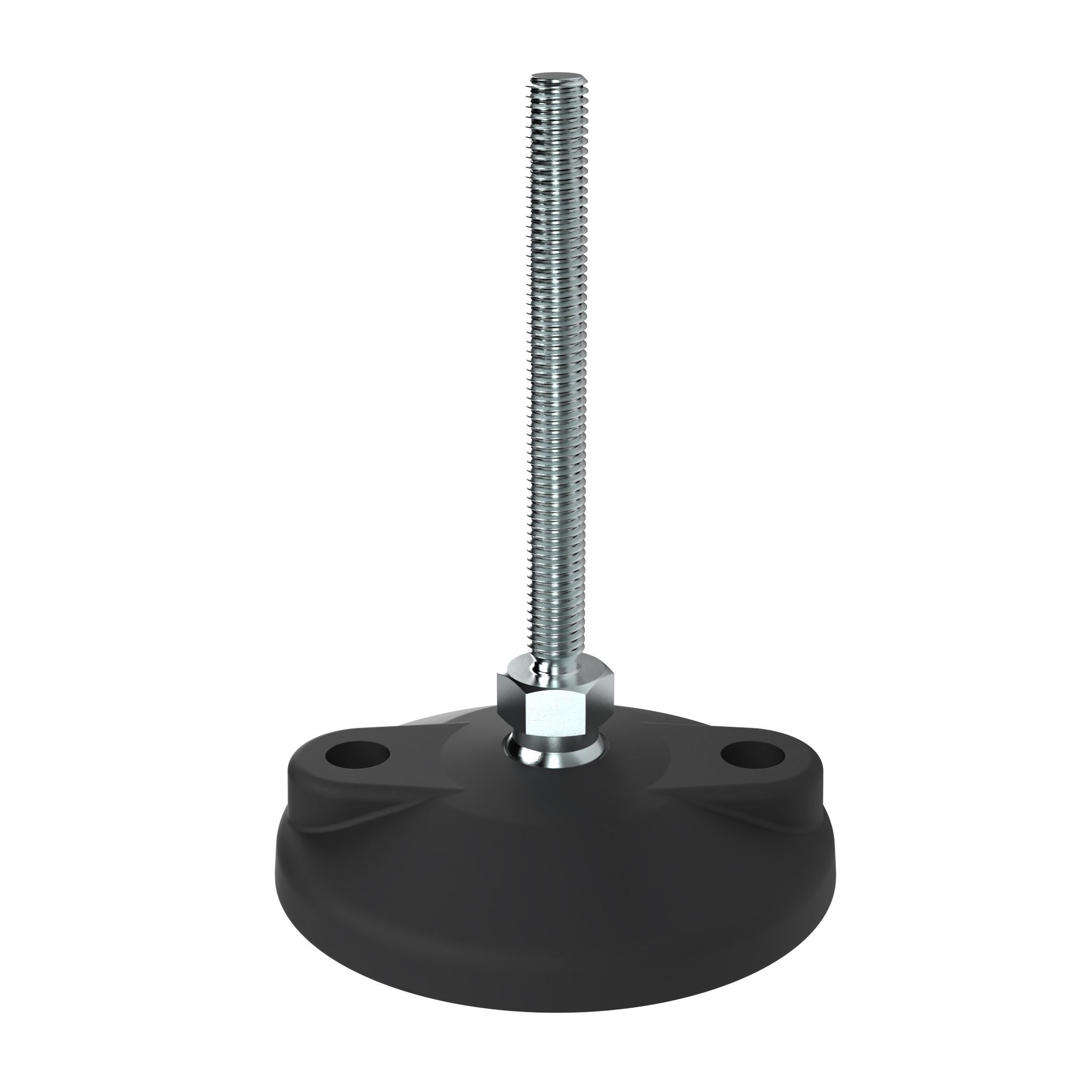

Color:Base: BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq., *Bolt-down holes closed

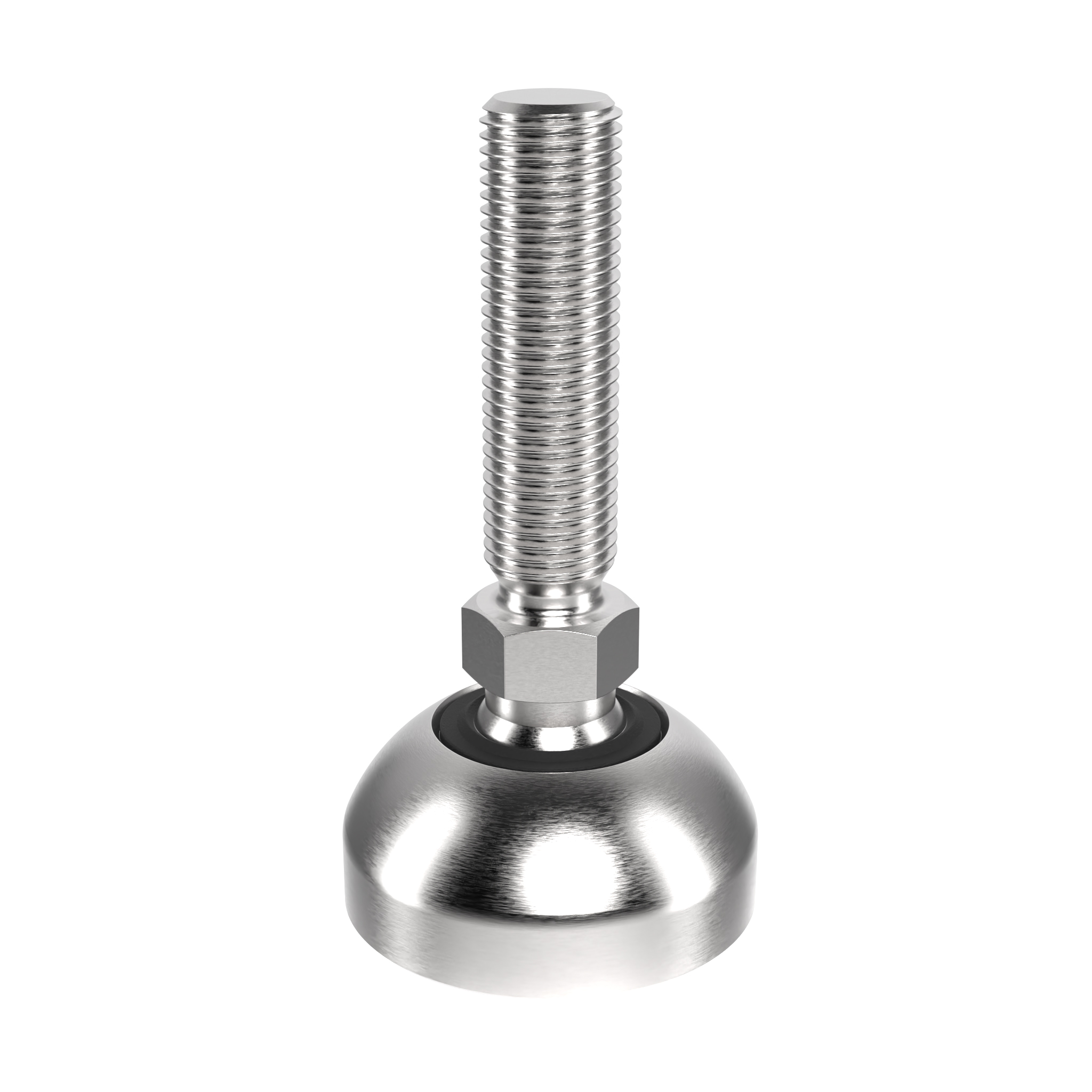

Delivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Stainless steel Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Plain Threaded rod: Plain Tip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.

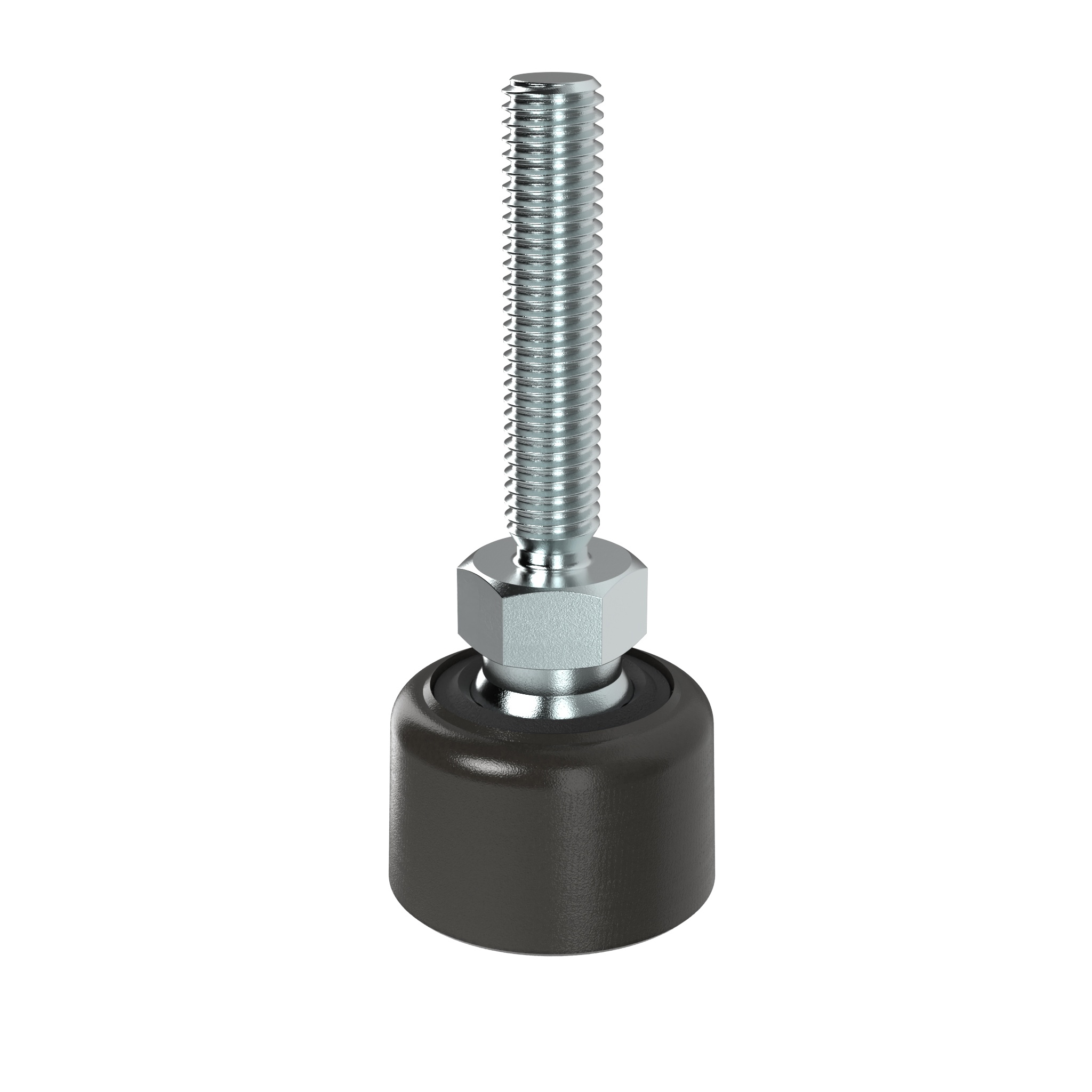

Color:Base: BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Base: Powder coated Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.

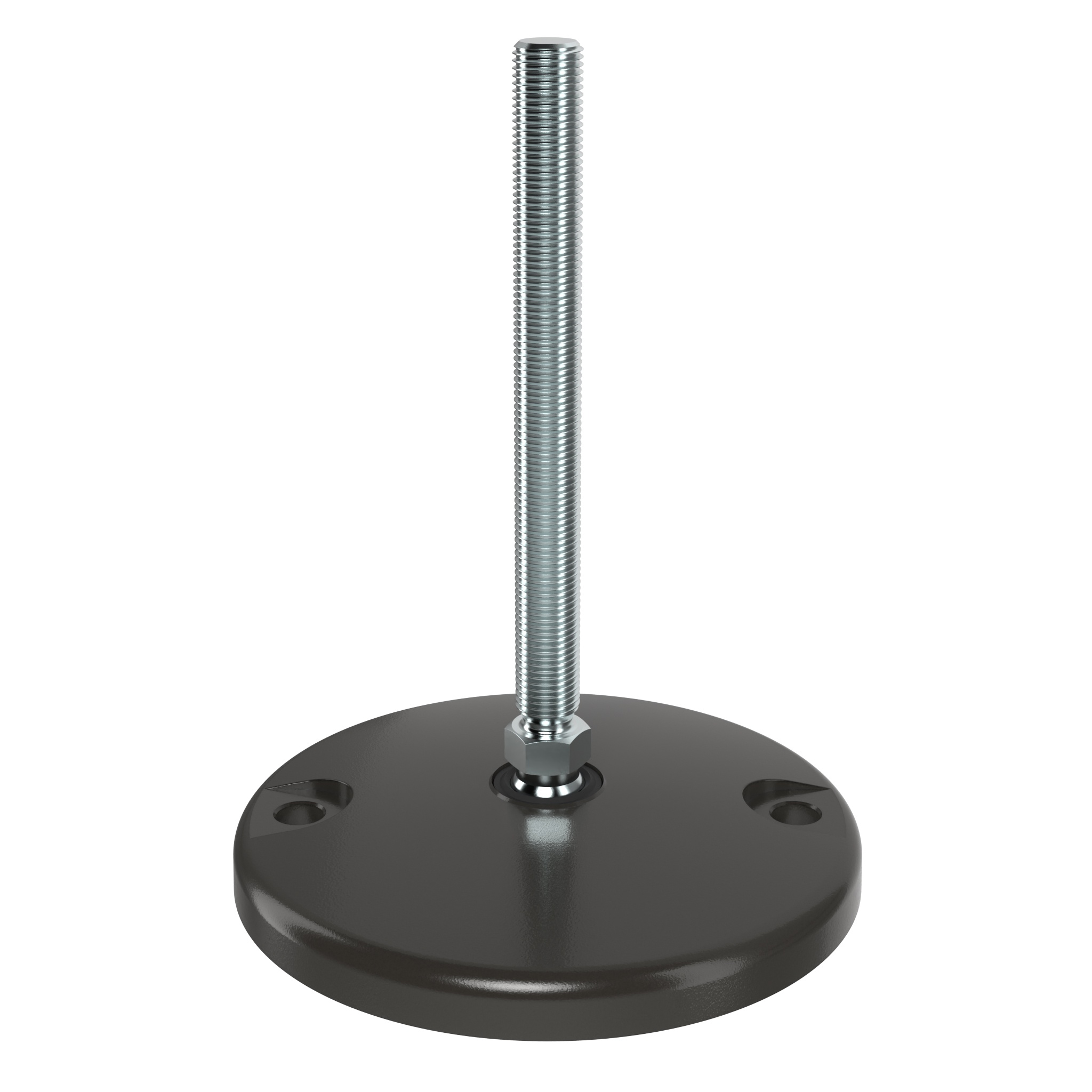

Color:Base: BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Base: Zinc die-cast Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Base: Powder coated Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.

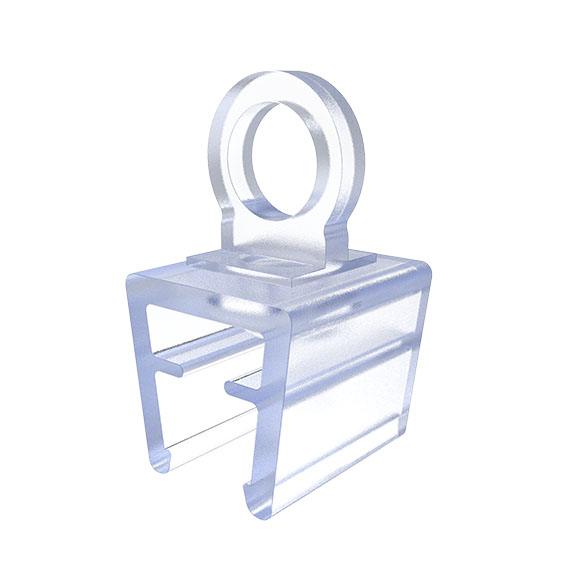

Color:Transparent (colorless)Delivery Countries:WorldwideDescription:Fast and easy hanging of message frames, Secure hanging due to closed loop 360° rotatableMaterial:Plastic PATip:Compatible Hanging Hook see 02042HH Compatible S-Hook see 02042SH Compatible Knotted Chain see 02042KC Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

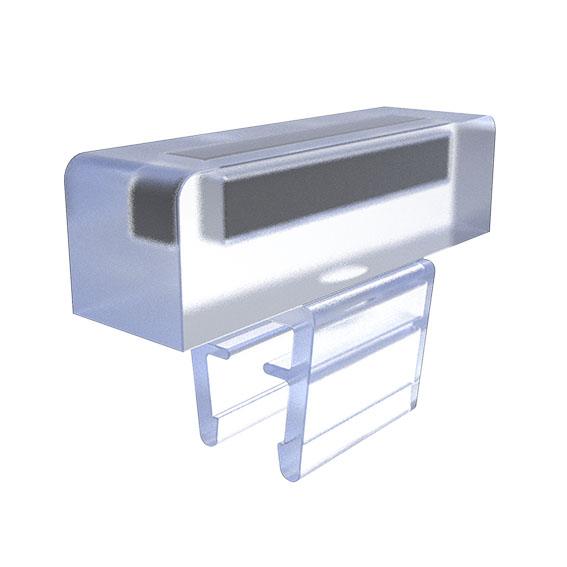

Color:Transparent (colorless)Delivery Countries:WorldwideDescription:For hanging message frames Fast and easy mounting with integrated magnet 360° rotatableMaterial:Plastic PATip:Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

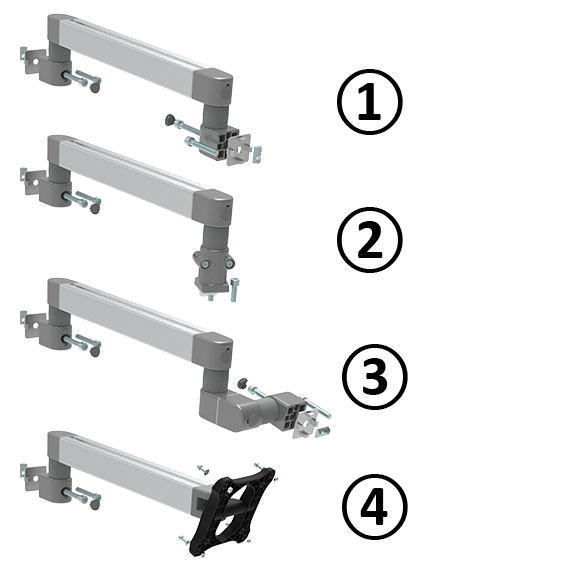

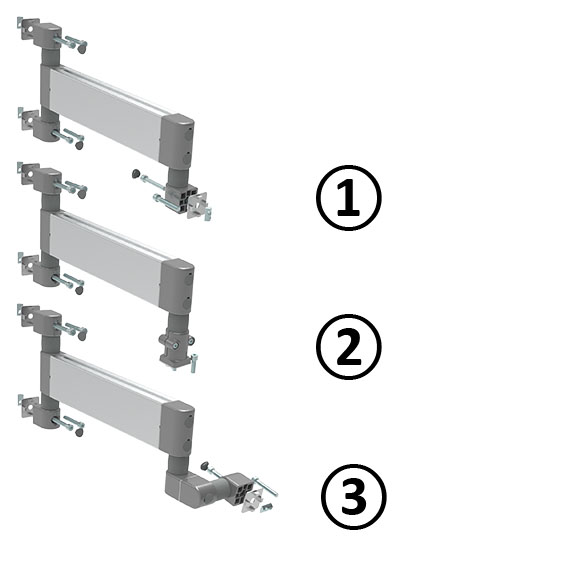

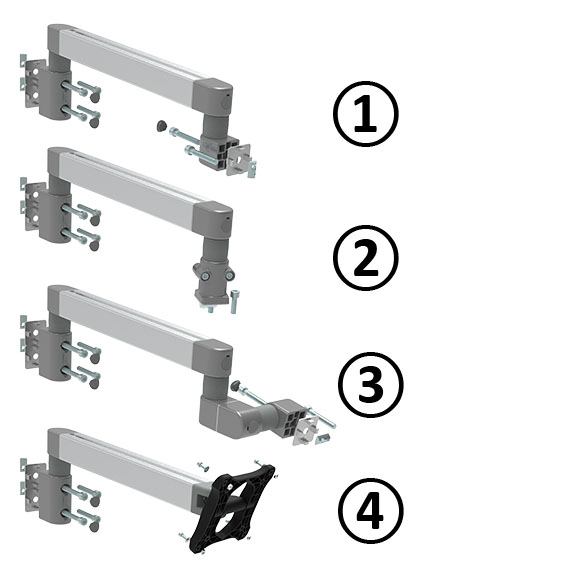

Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackDelivery Countries:WorldwideDescription:Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSet 1:1 system arm I40H 370 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 system arm I40H 370 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 system arm I40H 370 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 4:1 system arm I40H 370 with monitor mount 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washer 8-FSt, 2 centering plate, 2 T-slot nut - slot 8 - M8 1 assembly set for monitor: 4 screws DIN EN ISO 4762 (DIN 912) - M4 x 12, 4 washersSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated
Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackDelivery Countries:WorldwideDescription:Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSet 1:1 system arm I40L 370 with end friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Set 2:1 system arm I40L 370 with end friction joint 1 cover cap 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Set 3:1 system arm I40L 370 with double friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Set 4:1 system arm I40L 370 with monitor mount 1 cover cap 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 washer 8-FSt, 1 centering plate, 1 T-slot nut - slot 8 - M8 1 assembly set for monitor: 4 screws DIN EN ISO 4762 (DIN 912) - M4 x 12, 4 washersSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated
Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet 1:1 system arm I80H 370 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 system arm I80H 370 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 system arm I80H 370 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Surface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated

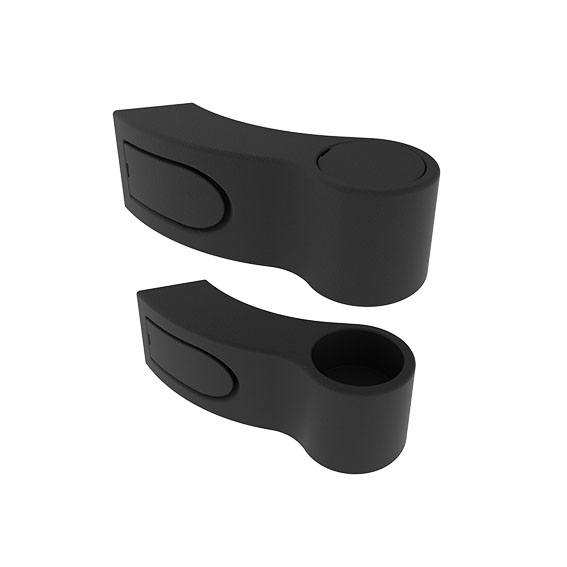

Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the front with hexagon screws, from the back with screws and with M8 nuts inserted into the cover capsMaterial:Plastic PA, glass ball reinforcedSpecials:Other colors on requestTip:Please note: 1 set = 2 piecesTip 2:Compatible Cover Cap for Comfort and System Handle (Set) see 092305

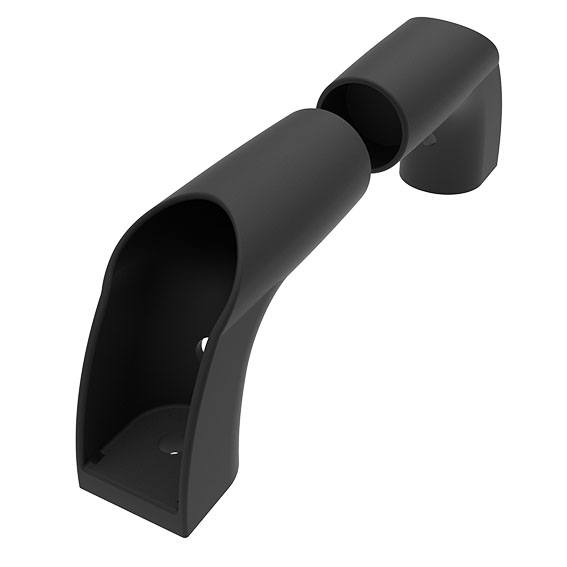

Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profiles, can be used as an end or middle pieceFastening:From the front, using M6 screwsMaterial:Plastic PA, glass fiber reinforcedSet:2 system handle legs 2 cover caps for screw-on point 2 cover caps for open hole in system handle leg as end pieceTip:Please note: 1 set = 2 pieces
