Connecting Systems

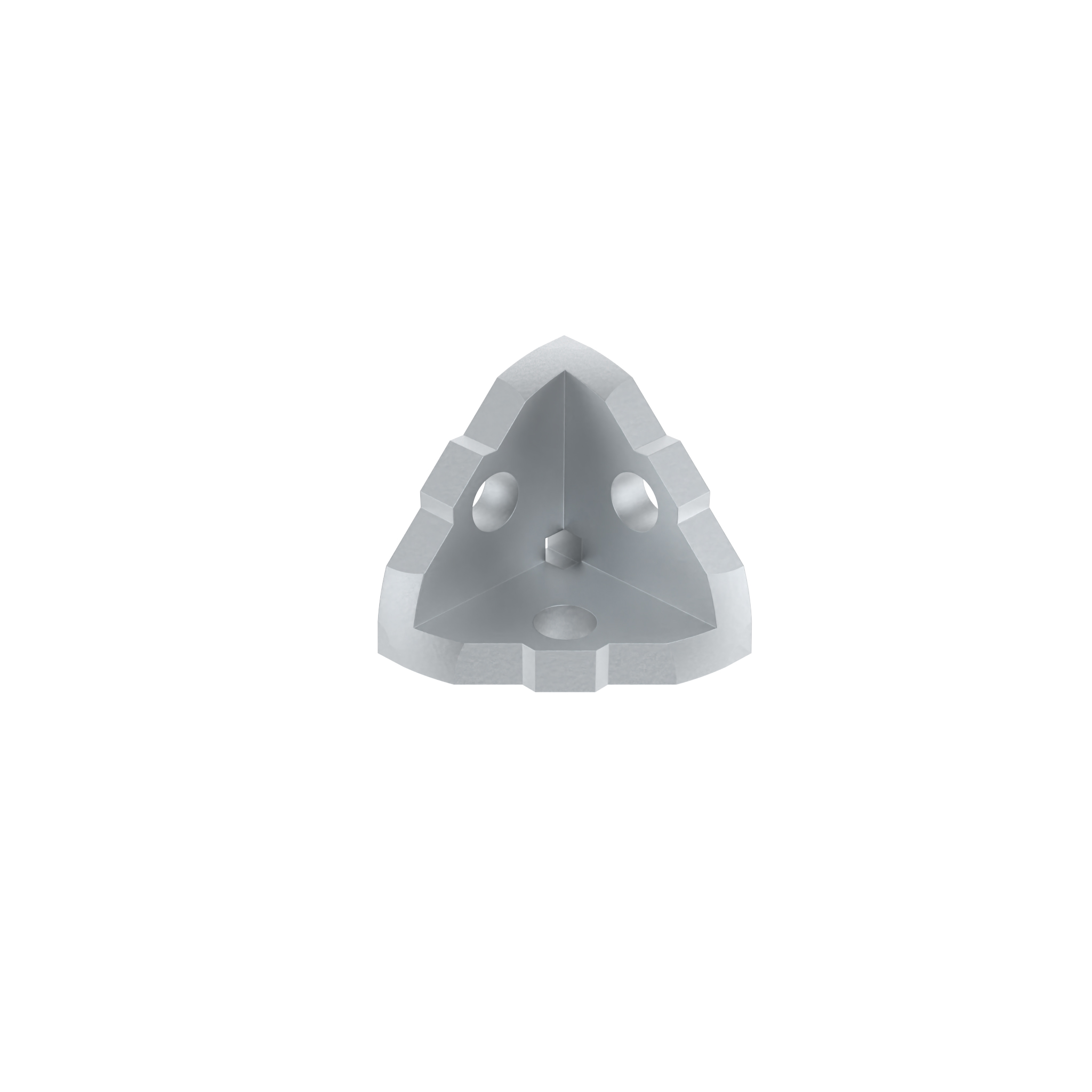

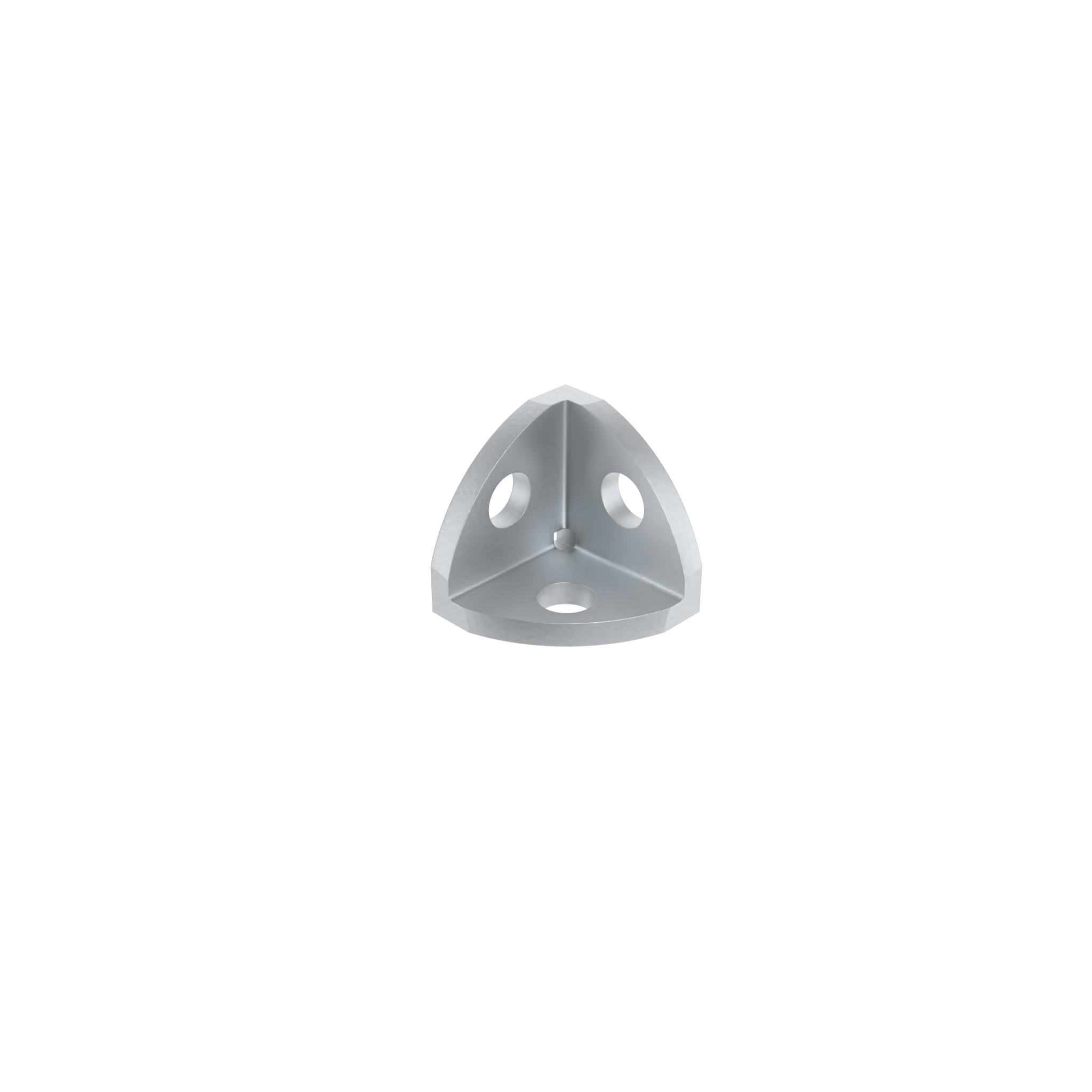

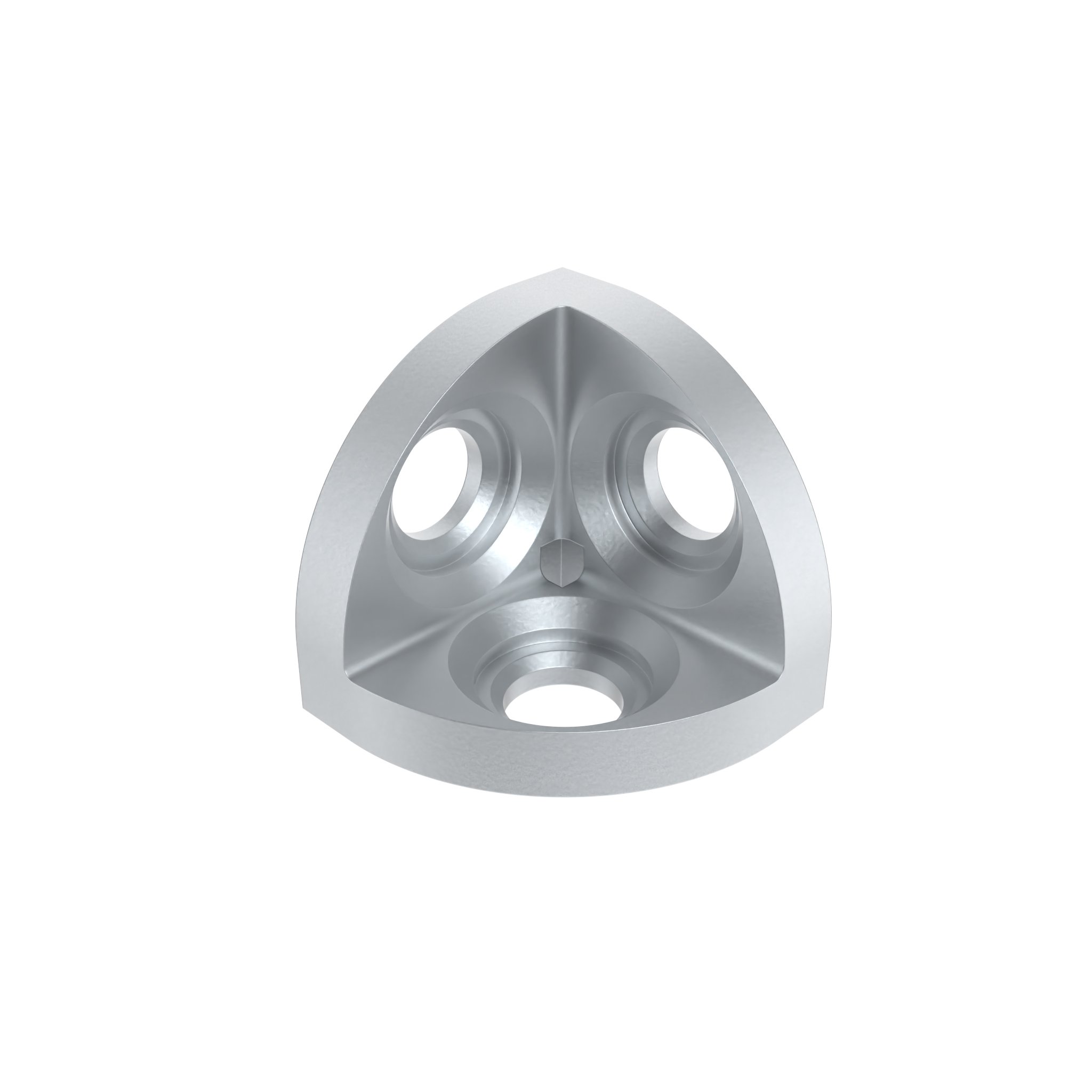

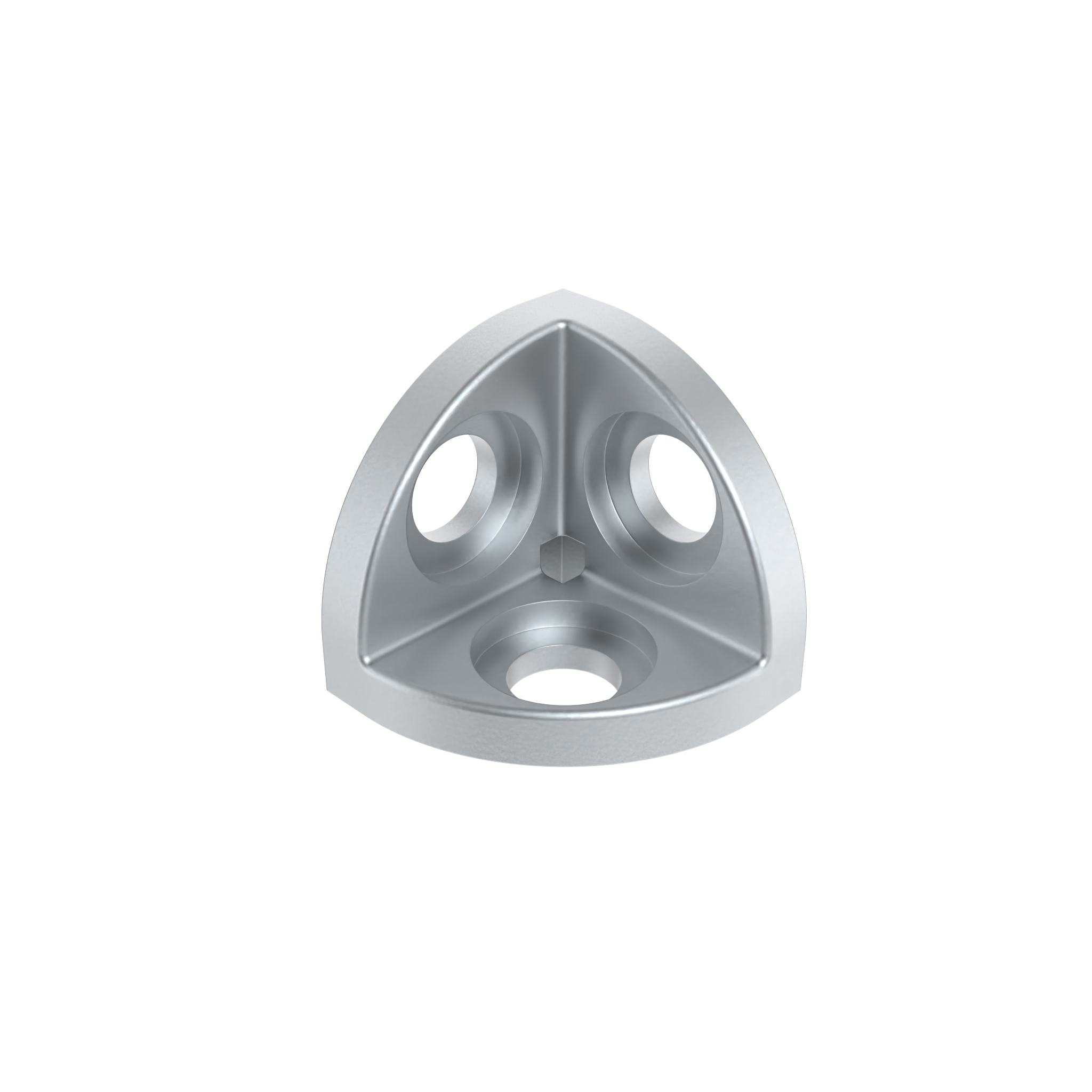

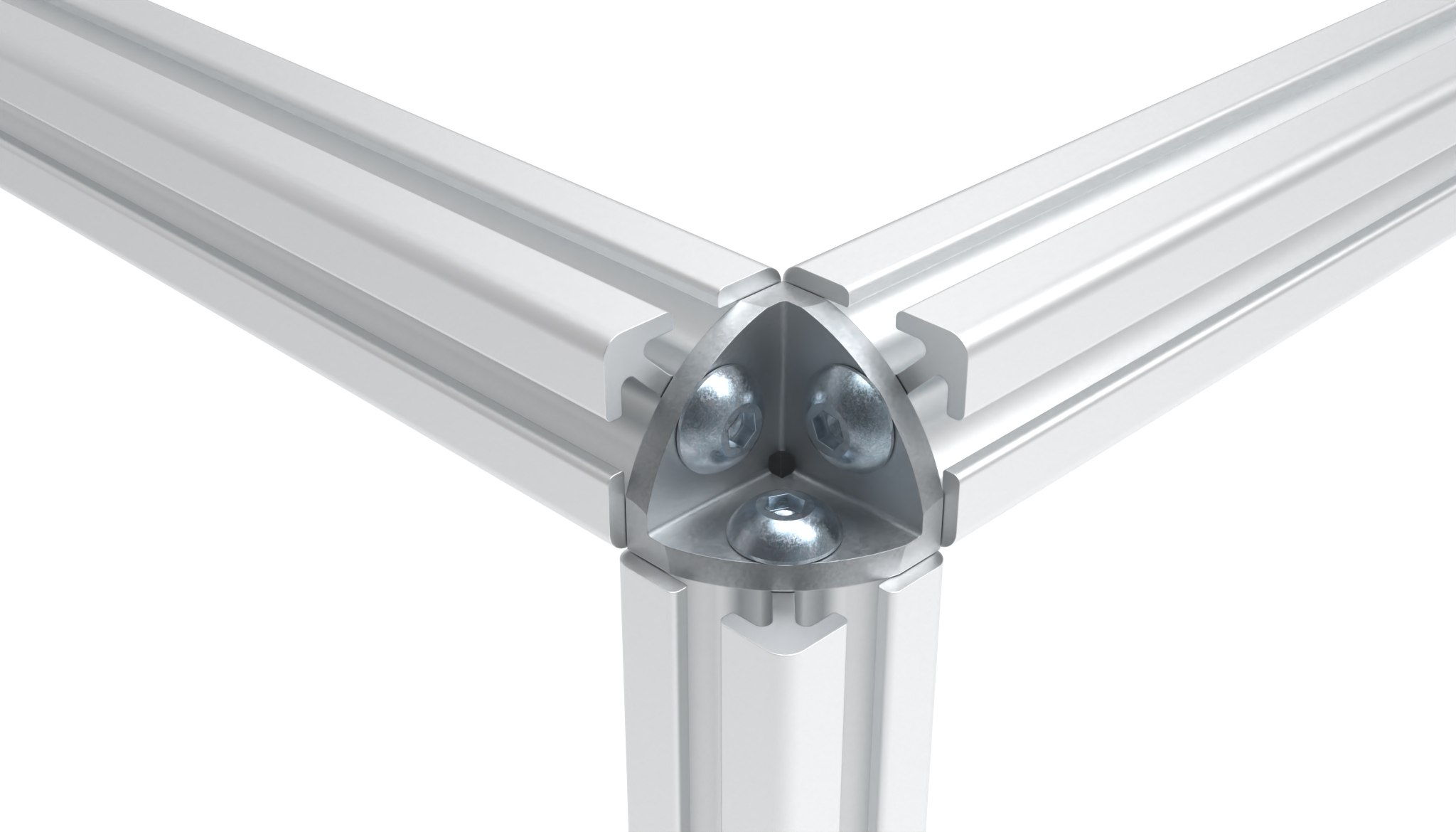

3-way Connection Angle 38 - 1.5"
Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesMaterial:Zinc die-castSurface:Plain
3-way Connection Angle B 20
Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesFastening:Countersunk screws M6 and S6Material:Zinc die-castSurface:Plain
3-way Connection Angle B 30
Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesFastening:Countersunk screws M8Material:Zinc die-castSurface:PlainTip:Compatible Countersunk Screw see 093S0825C
3-way Connection Angle B 40
Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesFastening:Flat head screw M12 or S12Material:Zinc die-castSurface:Plain
3-way Connection Angle B 45
Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesFastening:Countersunk screws M12Material:Zinc die-castSurface:Plain
3-way Connection Angle I 20
Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesFastening:Countersunk screws M5Material:Zinc die-castSurface:Plain
3-way Connection Angle I 30
Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesMaterial:Zinc die-castSurface:Plain
3-way Connection Angle I 40
Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesMaterial:Zinc die-castSurface:Plain

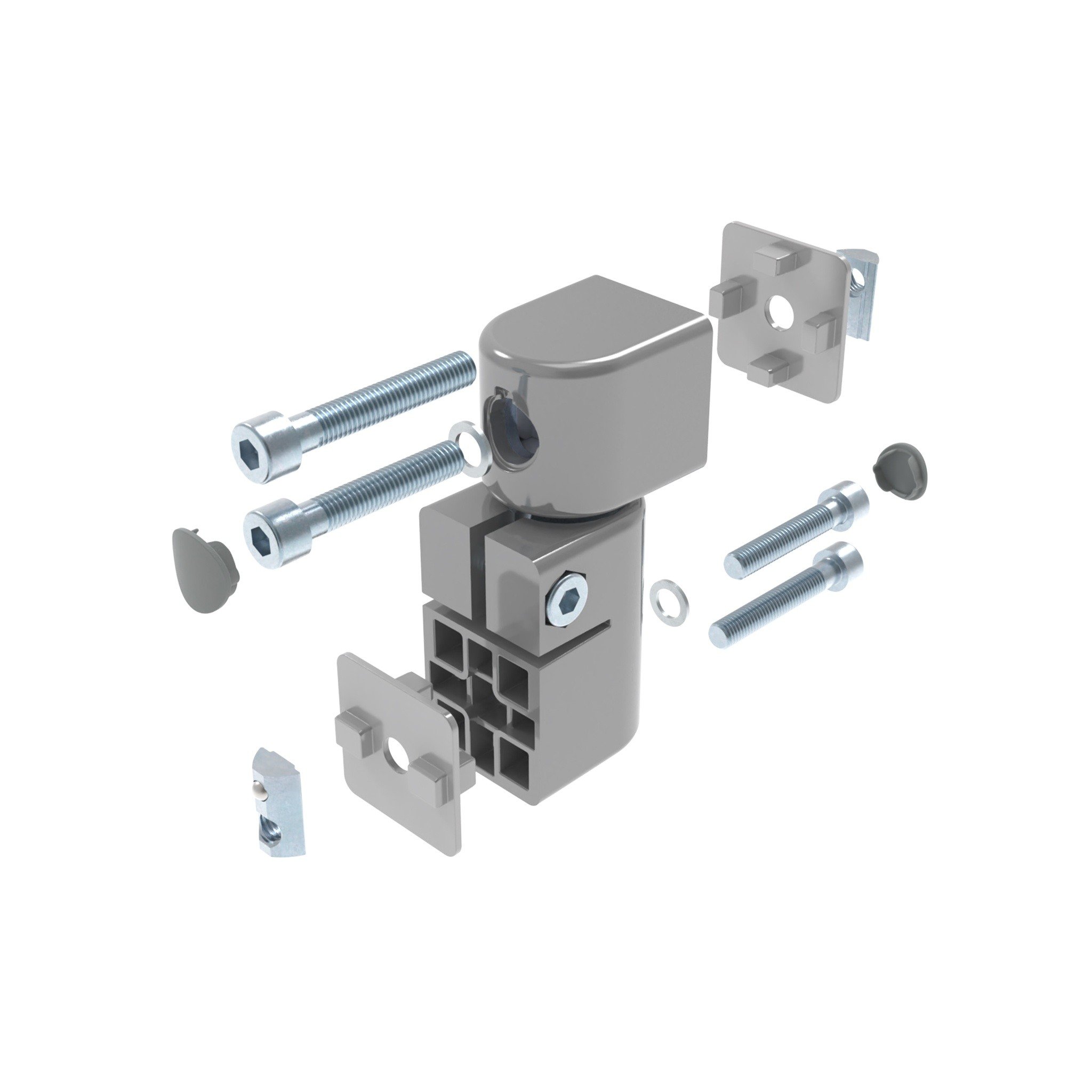

Adjustable Friction Joint B40L for System Arm (Set)
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Tip 2:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M840M1-
Adjustable Friction Joint I40L for System Arm (Set)
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M840M1-

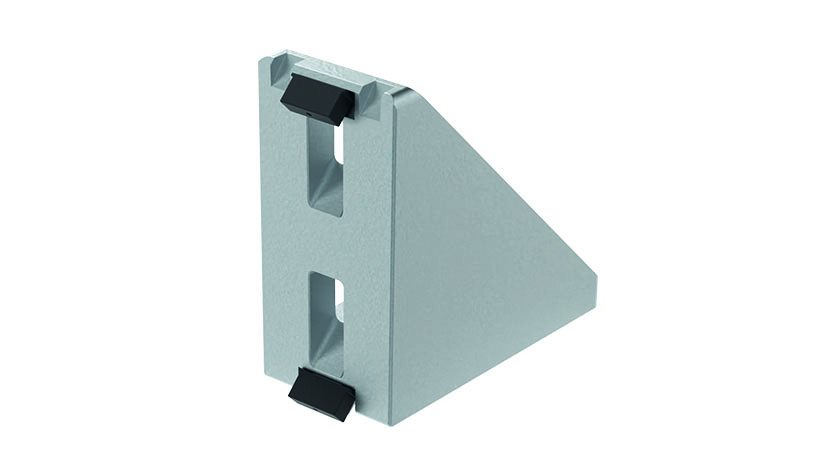

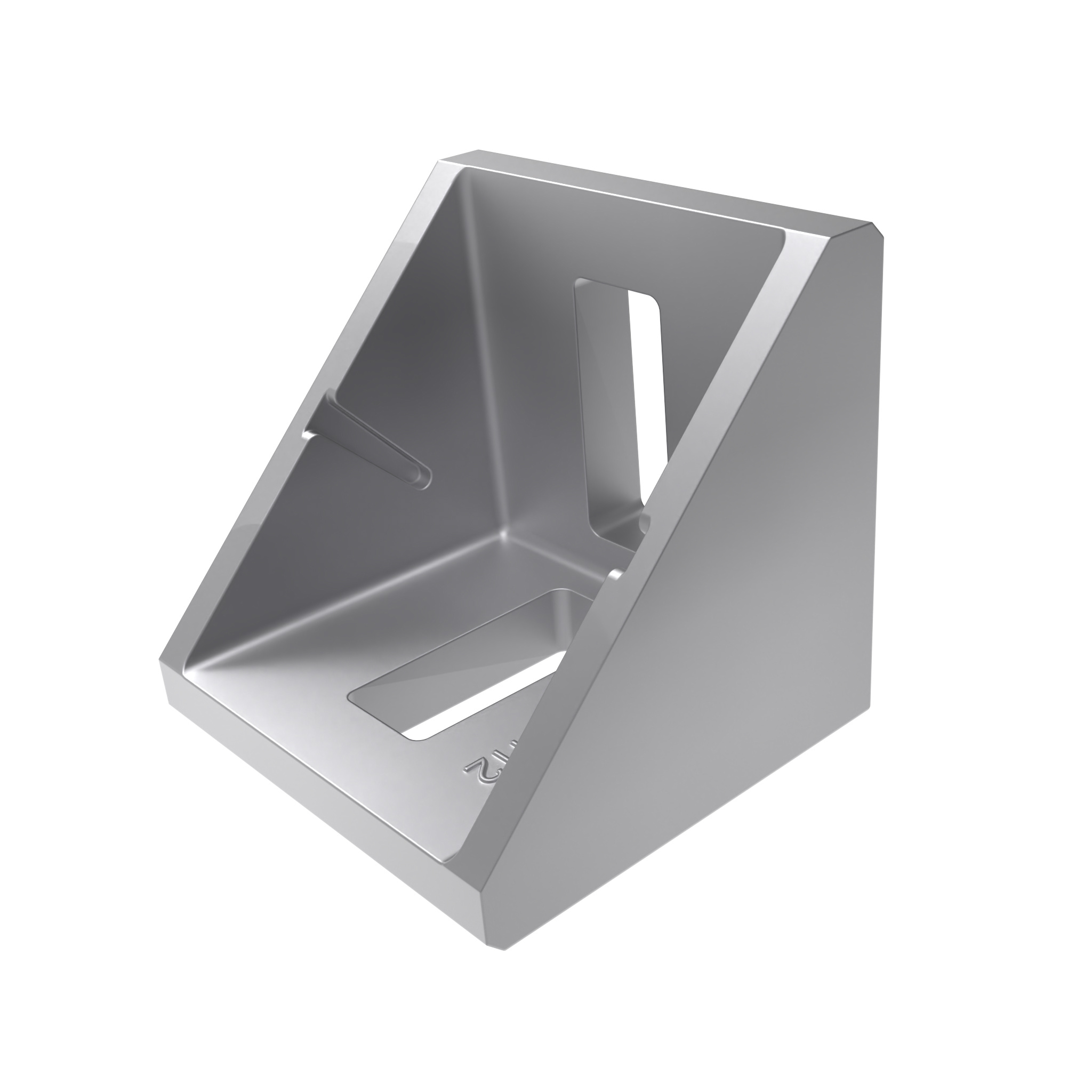

Alu Connection Angle 20
Assembly Set 1:2 hammer nuts - slot 6 - M4, 2 screws DIN 7984 - M4 x 8Assembly Set 2:4 hammer nuts - slot 6 - M4, 4 screws DIN EN ISO 7380-1 (DIN 34805-1) - M4 x 8Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA203

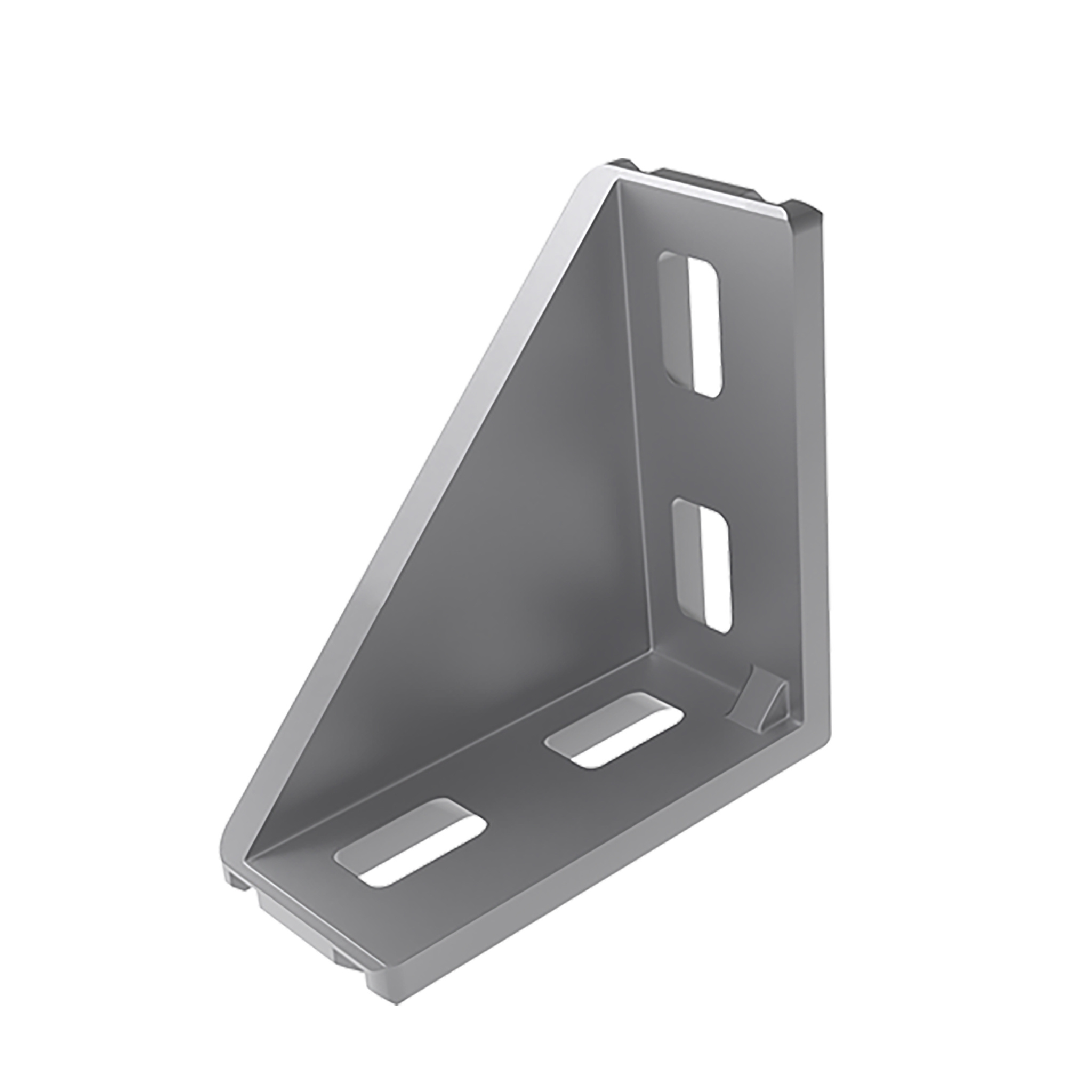

Alu Connection Angle 20 x 40
Assembly Set:4 hammer nuts - slot 6 - M4, 4 screws DIN EN ISO 7380-1 (DIN 34805-1) - M4 x 8Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA202
Alu Connection Angle 30
Assembly Set 1:2 hammer nuts - slot 8 - M6, 2 screws DIN 7984 - M6 x 14 Assembly Set 2:1 hammer nut - slot 8 - M6, 1 screw DIN 7984 - M6 x 14, 1 hammer nut - slot 10 - M6, 1 screw DIN 7984 - M6 x 18Assembly Set 3:2 hammer nuts - slot 10 - M6, 2 screws DIN 7984 - M6 x 18Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA303S02
Alu Connection Angle 30 x 60
Assembly Set:4 hammer nuts - slot 8 - M6, 4 screws DIN 7984 - M6 x 14Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA302
Alu Connection Angle 40
Assembly Set:2 hammer head screws - slot 10 - M8 x 20, 2 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA404
Alu Connection Angle 40 x 80
Assembly Set:4 hammer head screws - slot 10 - M8 x 25, 4 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA403

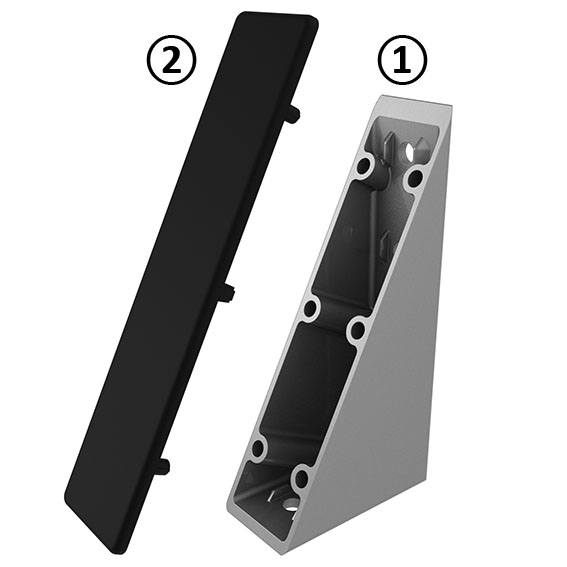

Alu Connection Angle 40 x 80 x 160 (Set)
Color:Angle: Alu color Cover cap: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSet:1 angle, 1 cover cap - plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 screws DIN EN ISO 7380 (DIN 34805) - M8 x 16 4 square washersSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Screws and T-nuts: Zinc plated
Alu Connection Angle 43 x 42
Assembly Set:2 hammer head screws - slot 10 - M8 x 25, 2 flange nuts M8Delivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Angle: Plain Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA422
Alu Connection Angle 45
Assembly Set:2 hammer head screws - slot 10 - M8 x 25, 2 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Flat Cover Cap see 093WA421S02
Alu Connection Angle 45 T
Assembly Set:2 hammer head screws - slot 10 - M8 x 25, 2 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain Assembly set: Zinc platedTip:Compatible Flat Cover Cap see 093WA421S02
Alu Connection Angle 45 x 90
Assembly Set:4 hammer head screws - M8 x 25, 4 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA451
Alu Connection Angle 60
Assembly Set 1:8 hammer nuts - slot 8 - M6, 8 screws DIN 7984 - M6 x 14Assembly Set 2:4 hammer nuts - slot 8 - M6, 4 screws DIN 7984 - M6 x 14, 1 hammer screw - slot 10 - M8 x 20, 1 flange nut - M8, 2 plastic adapers - slot 8 to slot 10Assembly Set 3:2 hammer head screws - M8 x 20, 2 flange nuts - M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA603
Alu Connection Angle 80
Assembly Set:8 hammer head screws - slot 10 - M8 x 25, 8 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA806
Alu Connection Angle 90
Assembly Set:8 hammer head screws - M8 x 25, 8 flange nuts M8Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA901
