Pivot Joints

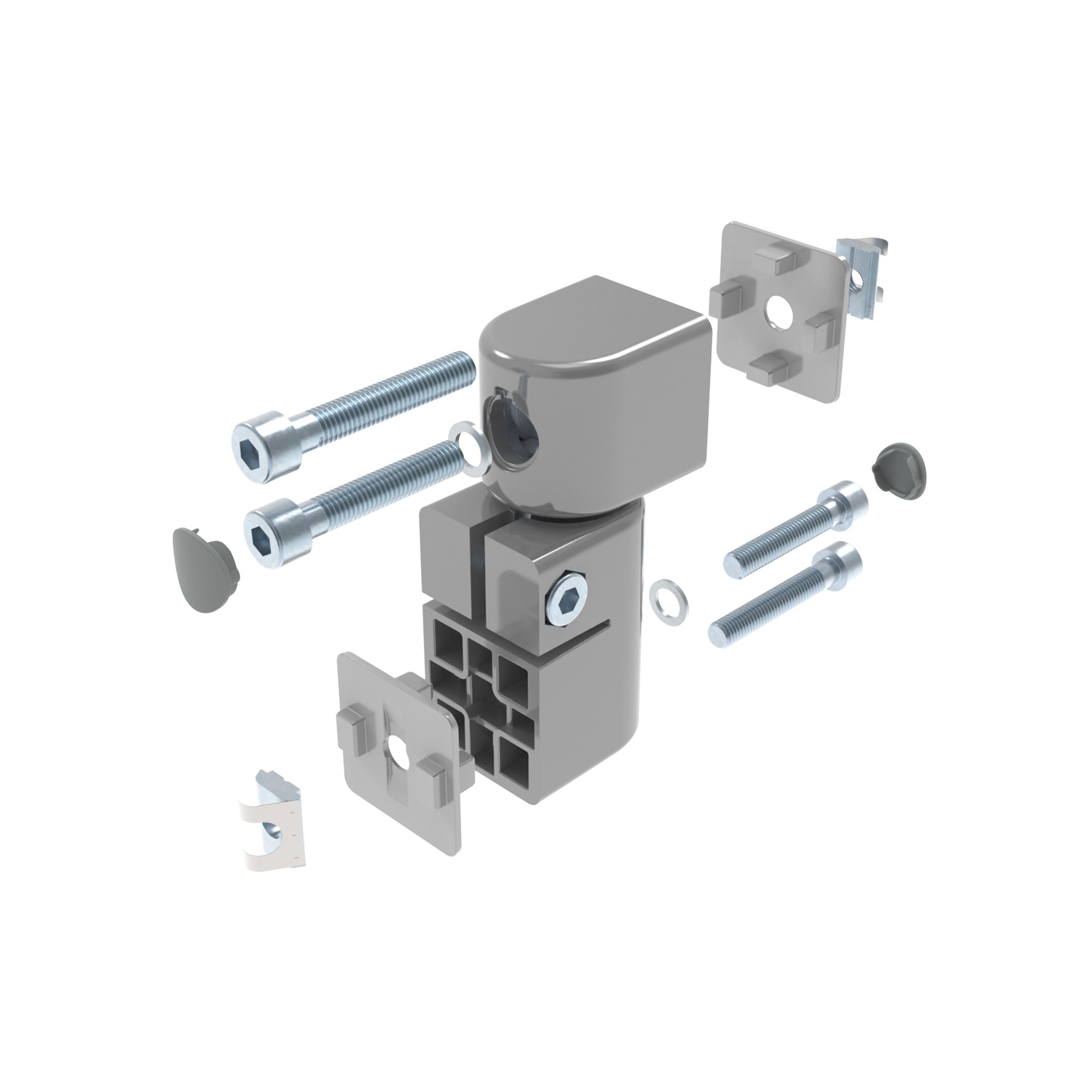

Adjustable Friction Joint B40L for System Arm (Set)
€0.00*
B (mm):
40.0
|
MAmax (Nm):
45.0
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Tip 2:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M0840MS01Zolltarifnummer:76169990990
Adjustable Friction Joint I40L for System Arm (Set)
€0.00*
B (mm):
40.0
|
MAmax (Nm):
45.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M0840MS01Zolltarifnummer:76169990990

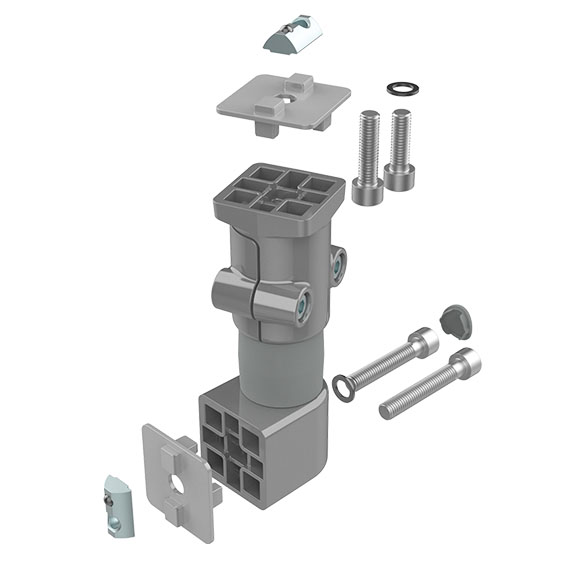

Anschluss-Friktionsgelenk I40L für Systemarm (Set)
€0.00*
B (mm):
40
|
MAmax (Nm):
45.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
|
W (Nm):
15.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 1 cover cap, 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

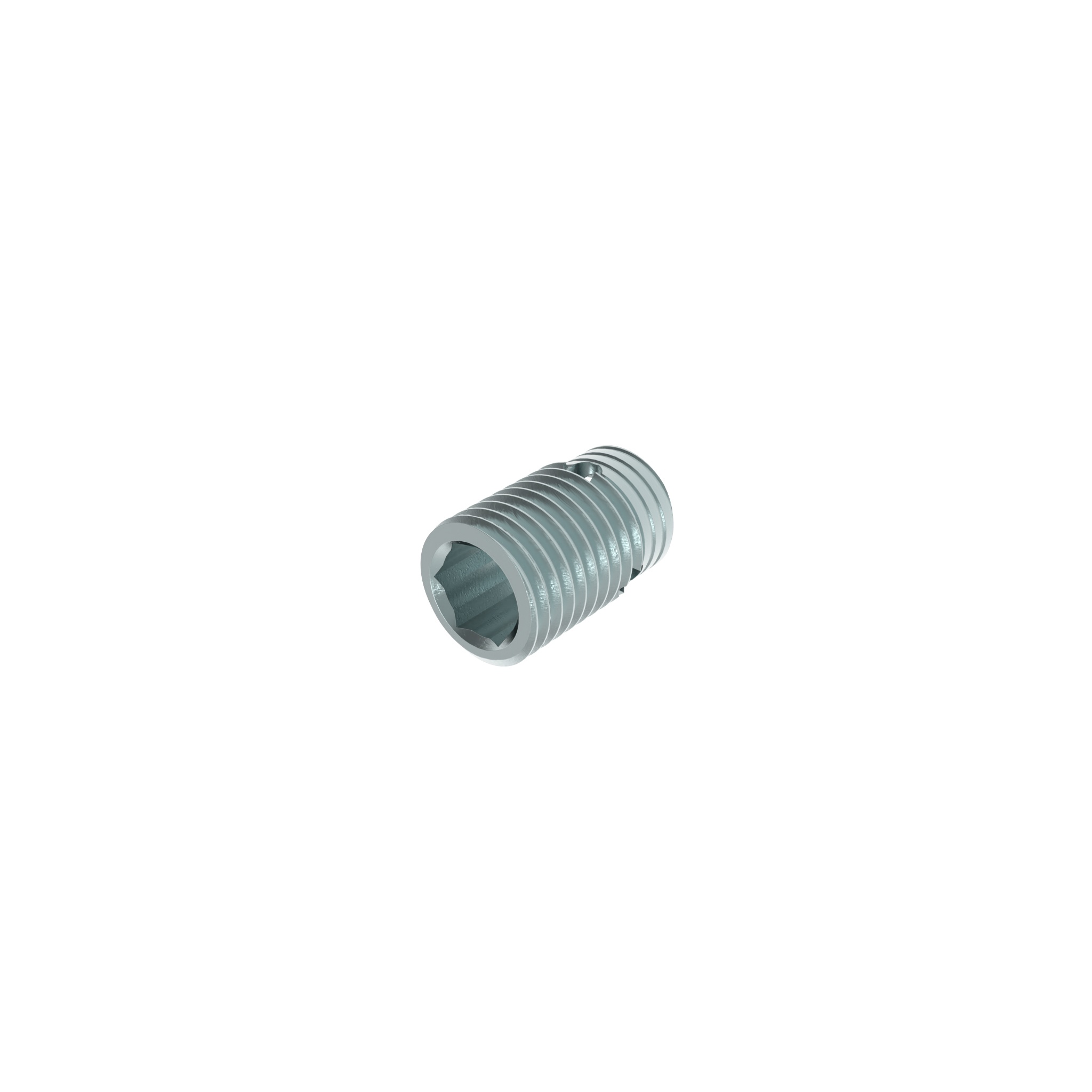

Cutting Bush with Shank
€0.00*
Material:
Steel
|
Surface:
Zinc plated
|
Version:
Cutting Bush with Shank
Delivery Countries:WorldwideDescription:For reduction from core hole 10.2 mm to M8 threadMaterial:SteelSurface:Zinc plated

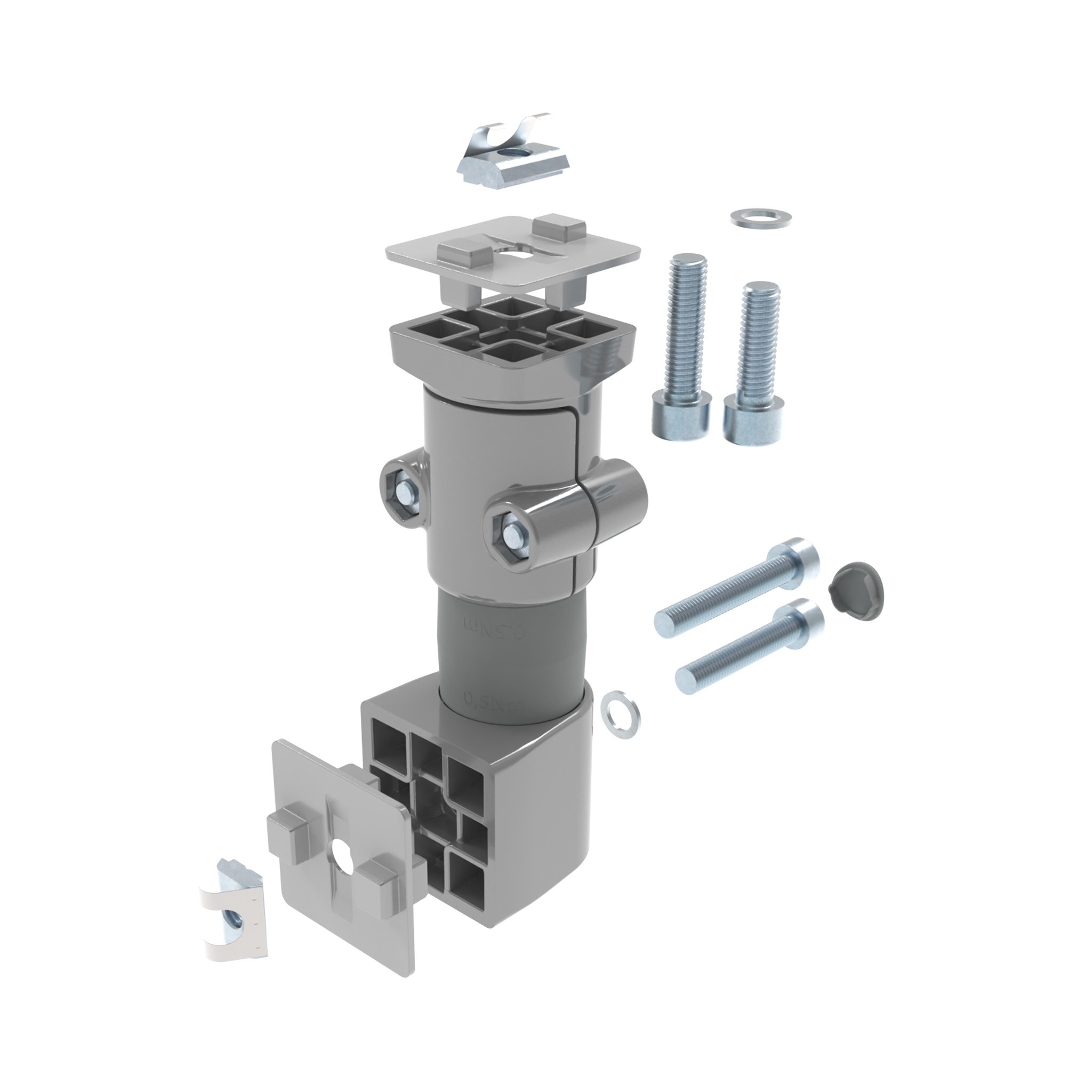

End Friction Joint B45-B40L for System Arm (Set)
€0.00*
B1 (mm):
45
|
B2 (mm):
40
|
MAmax (Nm):
45.0
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
|
W (Nm):
12.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 1 cover cap, 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 1 centering plate - slot 10 - 45 x 45, 1 centering plate - slot 10 - 40 x 40, 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169910990
End Friction Joint I80L for System Arm (Set)
€0.00*
L x B (mm):
80 x 40
|
MAmax (Nm):
70.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
|
W (Nm):
15.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 2 cover caps, 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

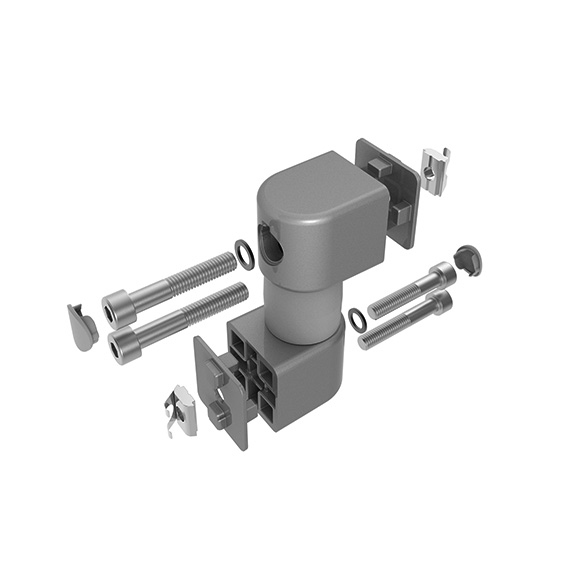

Friction Joint B40L for System Arm (Set)
€0.00*
B (mm):
40
|
MAmax (Nm):
45.0
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
|
W (Nm):
6.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Zolltarifnummer:76169990990

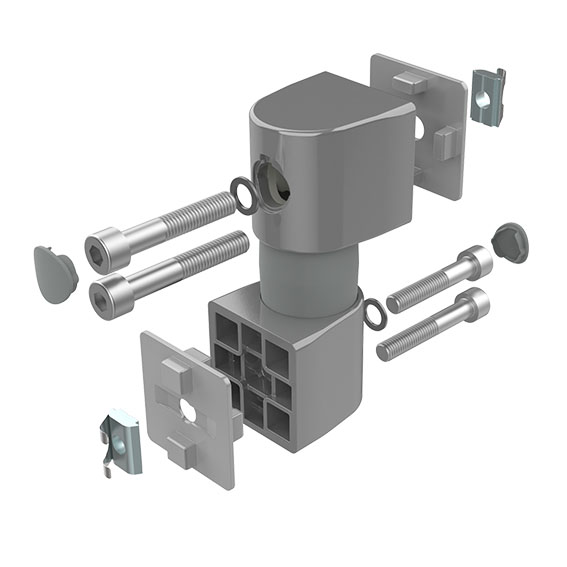

Friction Joint B45L for System Arm (Set)
€0.00*
B (mm):
45
|
MAmax (Nm):
45.0
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
|
W (Nm):
12.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Zolltarifnummer:76169990990
Friction Joint B80H for System Arm (Set)
€0.00*
B (mm):
40
|
L x B (mm):
80 x 40
|
MAmax (Nm):
200.0
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
|
W (Nm):
2x 3.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Zolltarifnummer:76169990990
Friction Joint B80L for System Arm (Set)
€0.00*
B (mm):
40
|
L x B (mm):
80 x 40
|
MAmax (Nm):
70.0
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
|
W (Nm):
15.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 10- M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Zolltarifnummer:76169990990

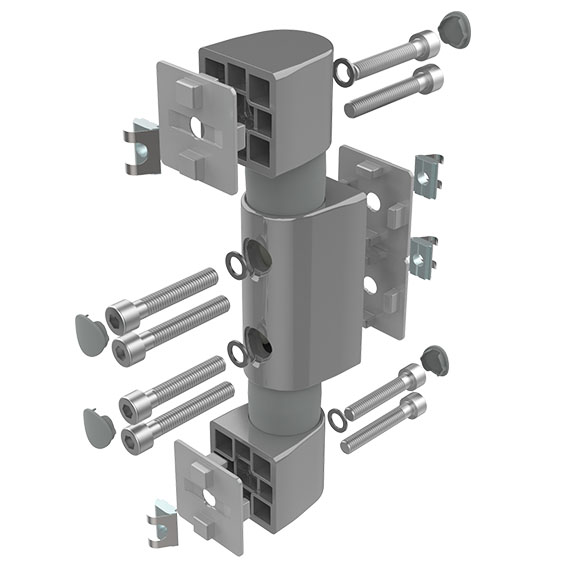

Friction Joint B90H for System Arm (Set)
€0.00*
B (mm):
45
|
L x B (mm):
90 x 45
|
MAmax (Nm):
200.0
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
|
W (Nm):
2x 3.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Zolltarifnummer:76169990990

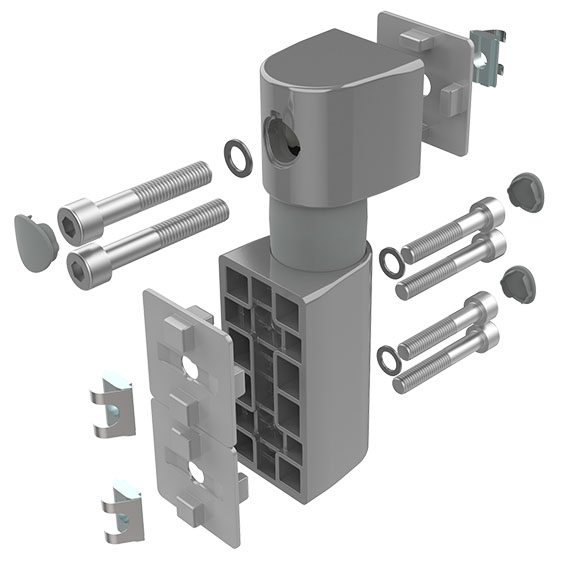

Friction Joint B90L for System Arm (Set)
€0.00*
B (mm):
45
|
L x B (mm):
90 x 45
|
MAmax (Nm):
70.0
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
|
W (Nm):
3.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 10- M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Zolltarifnummer:76169990990

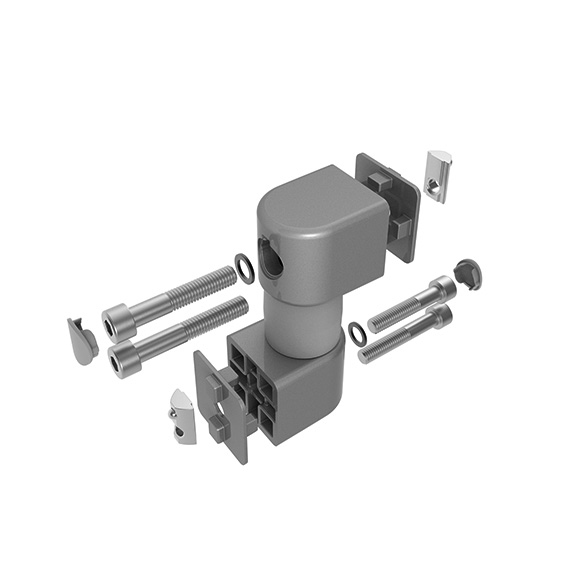

Friction Joint I40L for System Arm (Set)
€0.00*
B (mm):
40
|
MAmax (Nm):
45.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
|
W (Nm):
3.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

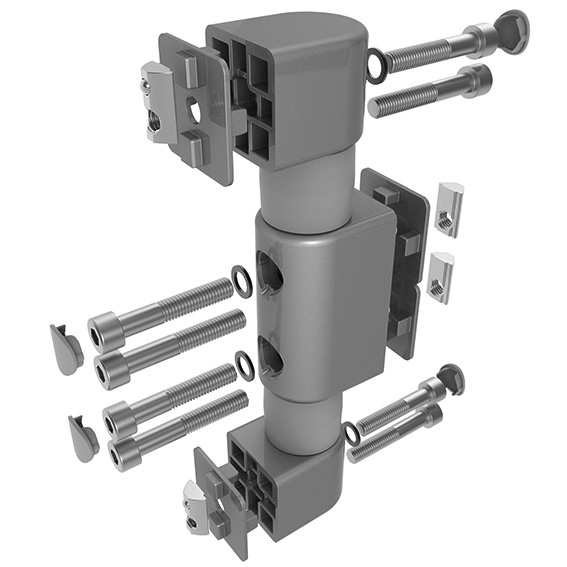

Friction Joint I80H for System Arm (Set)
€0.00*
B (mm):
40
|
L x B (mm):
80 x 40
|
MAmax (Nm):
200.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
|
W (Nm):
2x 15.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

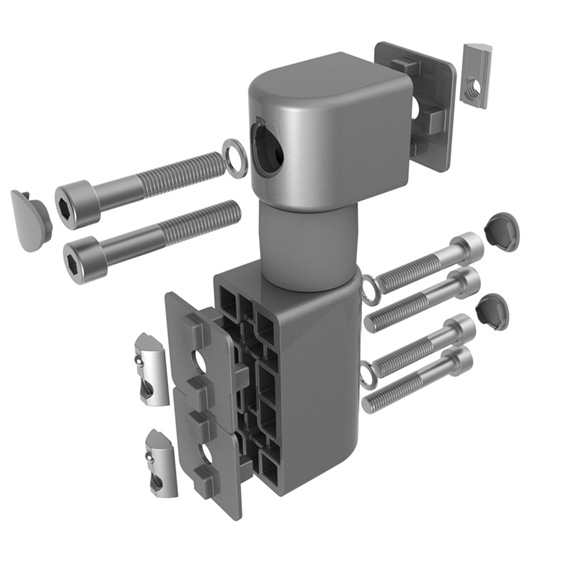

Friction Joint I80L for System Arm (Set)
€0.00*
B (mm):
40
|
L x B (mm):
80 x 40
|
MAmax (Nm):
75.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
|
W (Nm):
0.5
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN 912 - M8 x 45 (for T-slot nut) 3 screws DIN 912 - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

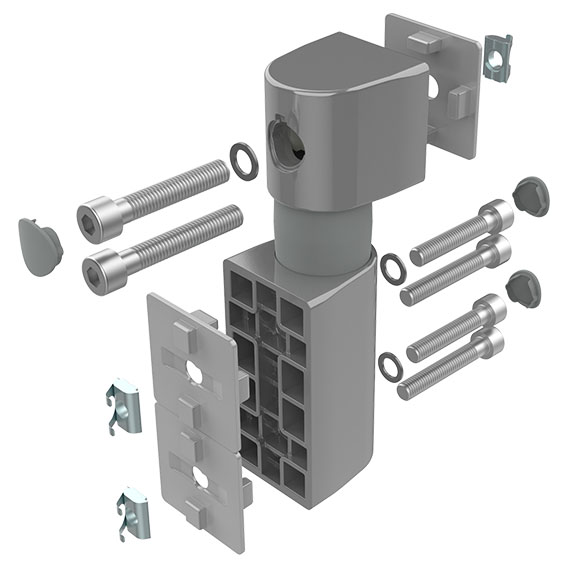

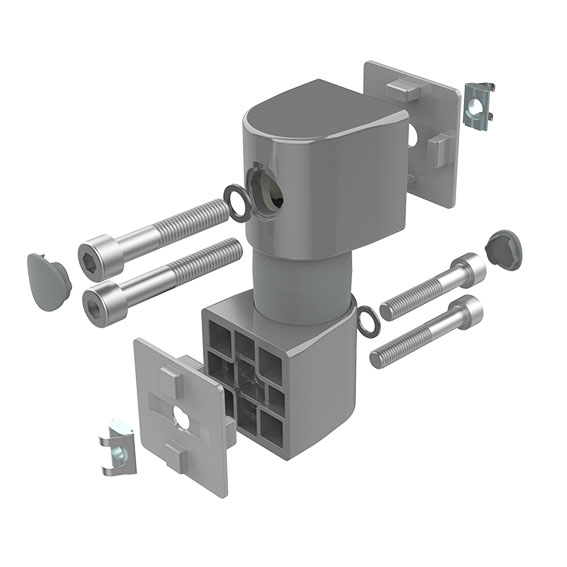

Friction Joint M45L for System Arm (Set)
€0.00*
B (mm):
45
|
MAmax (Nm):
45.0
|
R (mm):
2.5
|
Slot N (mm):
8
|
W (Nm):
3.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

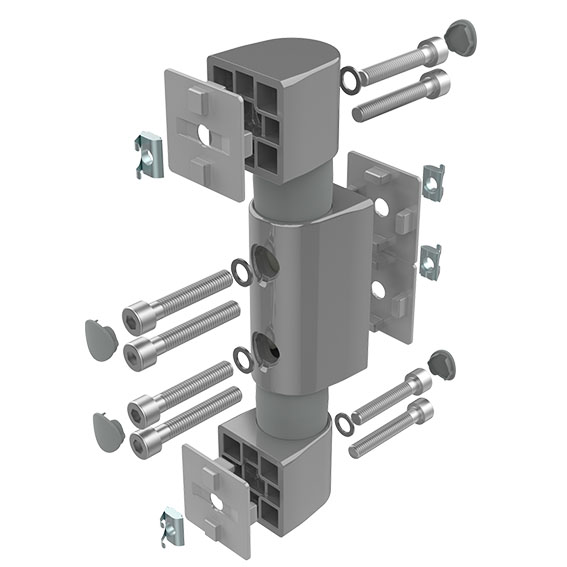

Friction Joint M90H for System Arm (Set)
€0.00*
B (mm):
45
|
L x B (mm):
90 x 45
|
MAmax (Nm):
200.0
|
R (mm):
2.5
|
Slot N (mm):
8
|
W (Nm):
2x 3.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990
Friction Joint M90L for System Arm (Set)
€0.00*
B (mm):
45
|
L x B (mm):
90 x 45
|
MAmax (Nm):
70.0
|
R (mm):
2.5
|
Slot N (mm):
8
|
W (Nm):
3.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN 912 - M8 x 45 (for T-slot nut) 3 screws DIN 912 - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990
Pivot Joint 180°, 1 Slot
€0.00*
B (mm):
45.6
|
D (mm):
45.0
|
E (mm):
42.0
|
G (mm):
45.0
|
Grid:
45
|
H (mm):
141.5
|
Slot N (mm):
8 / 10
|
ØF (mm):
8.5
|
ØS (mm):
8.5
Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles, with separate locating pinsMaterial:Joint: Aluminum die-cast Centering piece 5/6 and 6/8: Plastic PA Centering piece 8/10: Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Joint: Powder coated Centering piece: PlainZolltarifnummer:76169910990

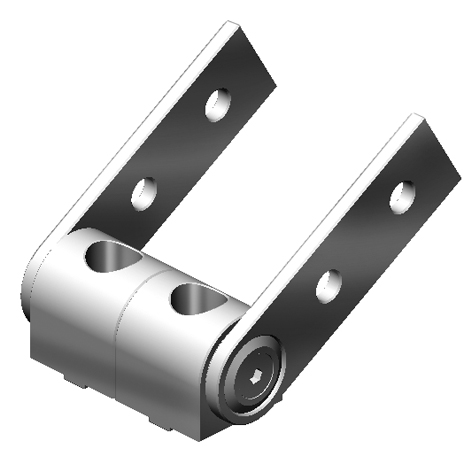

Pivot Joint 180°, 2 Slots
€0.00*
B (mm):
60.4
|
D (mm):
30.0
|
E (mm):
28.0
|
G (mm):
30.0
|
Grid:
30
|
H (mm):
86.0
|
Slot N (mm):
6 / 8
|
ØF (mm):
6.5
|
ØS (mm):
6.4
Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles, with separate locating pinsMaterial:Joint: Aluminum die-cast Centering piece 5/6 and 6/8: Plastic PA Centering piece 8/10: Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Joint: Powder coated Centering piece: PlainZolltarifnummer:76169910990

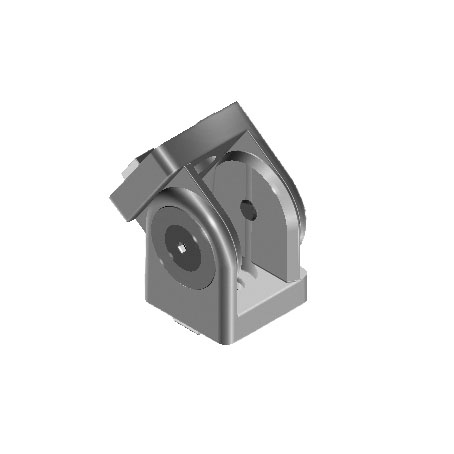

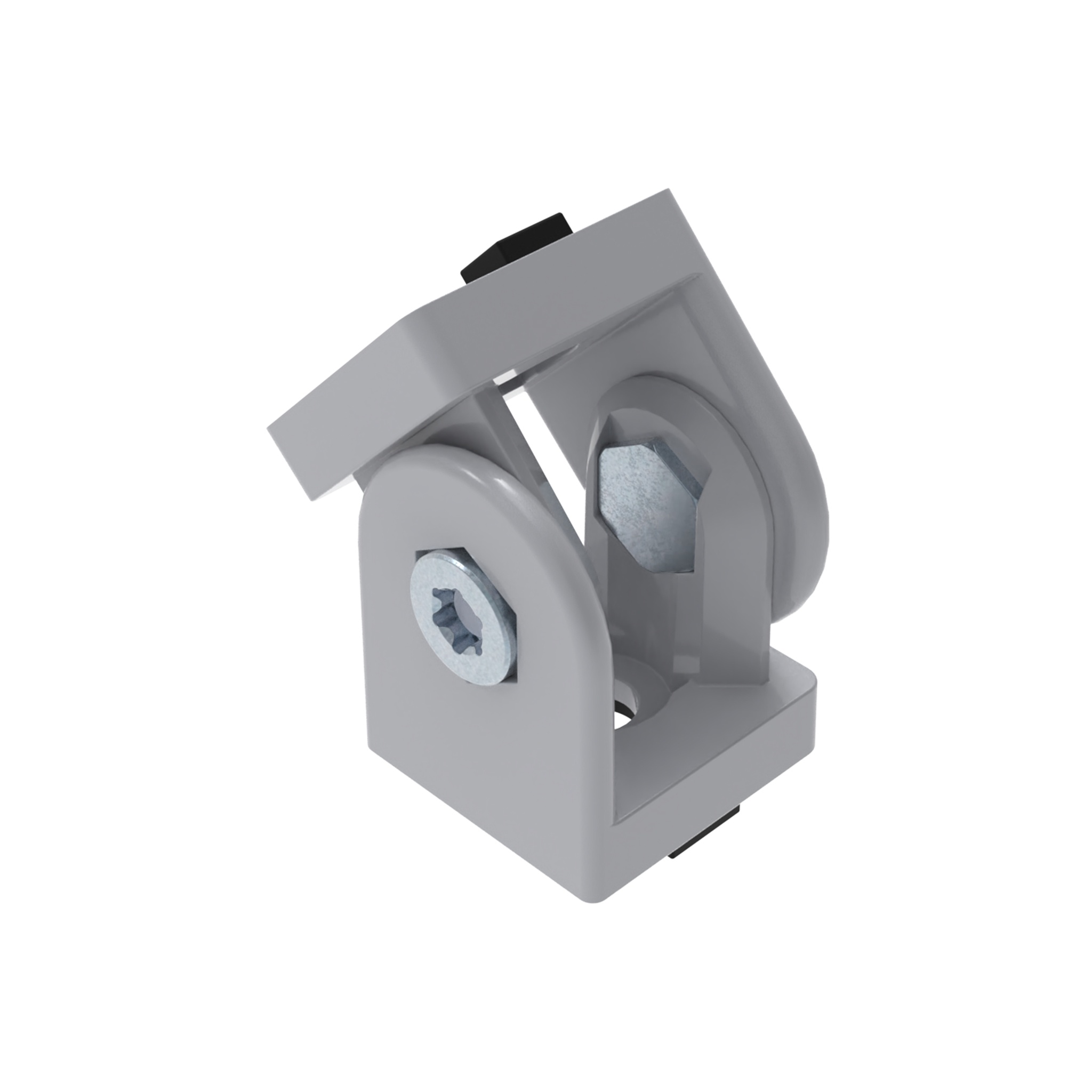

Pivot Joint 20
€0.00*
Opening Angle:
190°
|
Slot N (mm):
5 / 6
Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles or panels; with separate locating pins for slot 5 and slot 6; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminum die-castSurface:Powder coatedZolltarifnummer:76169910990

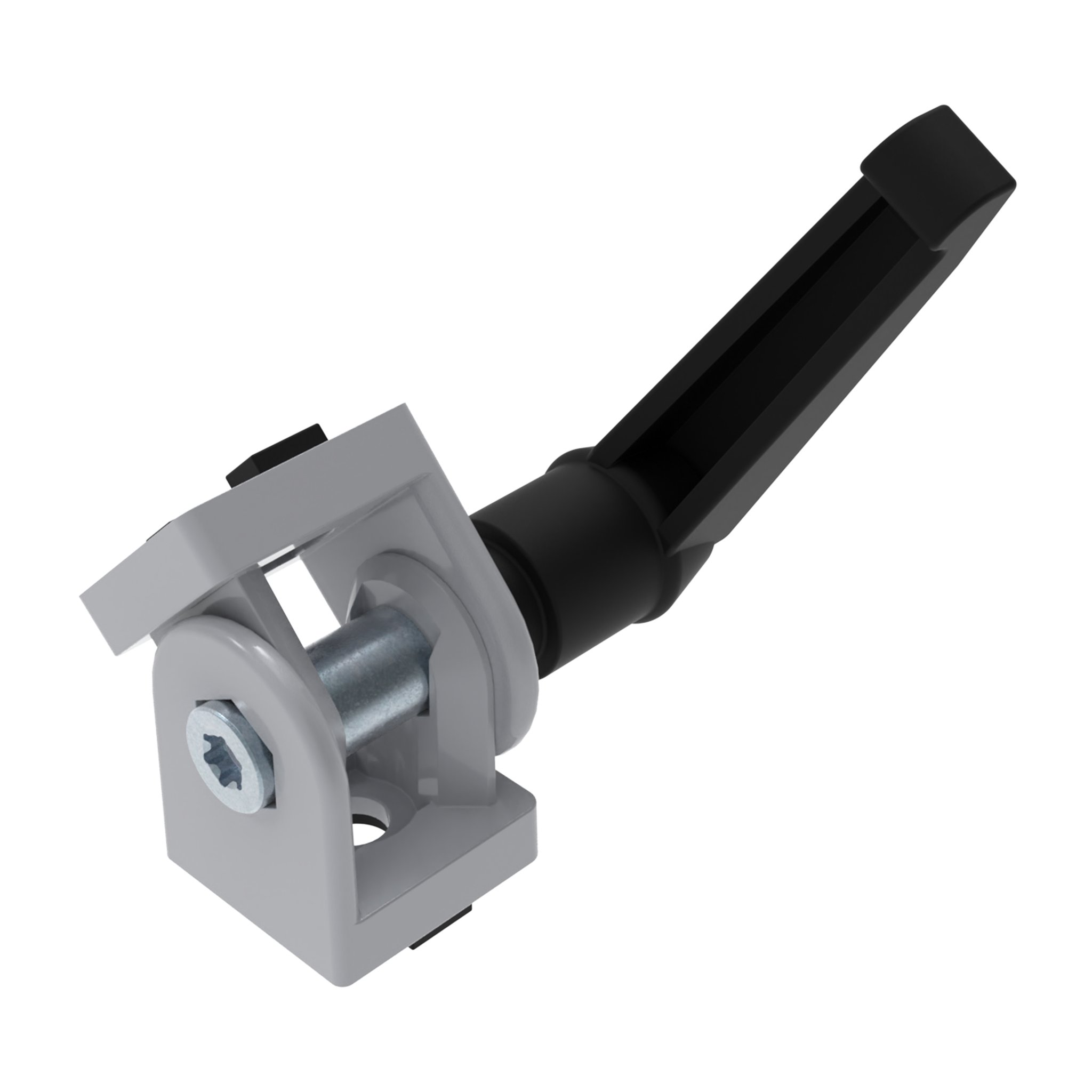

Pivot Joint 20 with Locking Lever
€0.00*
Opening Angle:
182°
|
Slot N (mm):
5 / 6
Color:Alu colorDelivery Countries:WorldwideDescription:For connection of two profiles or panels, with attachment at any angle, with separate slot fixing for slot 5 and slot 6; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Aluminum die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedSurface:Powder coatedZolltarifnummer:76169910990
Pivot Joint 20 x 40
€0.00*
Opening Angle:
154°
|
Slot N (mm):
5
Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles or panels; with separate locating pins for slot 5 and slot 6; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Powder coatedZolltarifnummer:76169910990
Pivot Joint 25 - 1"
€0.00*
Opening Angle:
190°
|
Slot N (mm):
-
Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles or panels; fixed locating pins for slot 6 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Powder coatedZolltarifnummer:79070000900
