Swivel Feet Ball Joint 15
Anti-slip Plate for Extended Swivel Feet 60 PA, Ball Joint 15
€0.00*
D1 (mm):
52.0
|
D2 (mm):
21.6
|
for Base:
60
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on request
Anti-slip Plate for Swivel Feet, Ball Joint 15
€0.00*
D (mm):
108
|
Version:
-
|
for Base:
*120
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestTip:* Also for bases with bolt down holes
Ball Joint with Female Thread for Swivel Feet, Ball Joint 15
€0.00*
Material:
Stainless steel
Delivery Countries:WorldwideDescription:To fix leveling feet using standard screwsMaterial:SteelSurface:Zinc plated
Base for Sealed Swivel Feet, Ball Joint 15
€0.00*
Base:
100
|
D (mm):
98.5
|
F1 (mm):
35.0
|
F2 (mm):
38.0
|
F3 (mm):
39.0
|
Fmax (N):
6860
Color:Anti-slip Plate: Light gray ≈ RAL 7035Delivery Countries:WorldwideDescription:Adjustable Pivot foot to equalize uneven floors; With integrated anti-slip plate; Including a sealing lip on the bottom that seals up to a slope of 8 degree with a possible max. of 20 degreeMaterial:Base: Stainless steel SS304 Anti-slip Plate: Plastic TPE, ≈ 75 Shore A, water and oil resistant (up to 60°C), with antibacterial and antimicrobial protectionSpecials:As factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq.
Base PA BDH for Swivel Feet, Ball Joint 15, Black
€0.00*
Base:
80
|
D (mm):
79
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8820
|
LK (mm):
55
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-slip Plate see 098DG030 et sq.; * Bolt-down holes closed

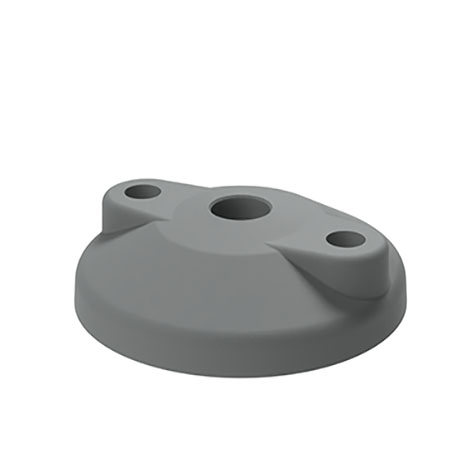

Base PA BDH for Swivel Feet, Ball Joint 15, Gray
€0.00*
Base:
*80
|
D (mm):
79
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8820
|
LK (mm):
55
|
Version:
without anti-slip plate
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-slip Plate see 098DG030 et sq.; * Bolt-down holes closed
Base PA for Swivel Feet, Ball Joint 15, Black
€0.00*
Base:
50
|
D (mm):
49
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8820
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.
Base PA for Swivel Feet, Ball Joint 15, Gray
€0.00*
Base:
100
|
D (mm):
99
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8820
|
Version:
without anti-slip plate
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.
Base SS BDH for Swivel Feet, Ball Joint 15
€0.00*
Base:
80
|
D (mm):
79
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
29400
|
LK (mm):
55
|
Version:
with anti-slip plate
Delivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Stainless steel SS303Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:PlainTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate see 098DG030
Base SS for Swivel Feet, Ball Joint 15
€0.00*
Base:
45
|
D (mm):
44
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
29400
|
Version:
with anti-slip plate
Delivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Stainless steel SS303Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:PlainTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate see 098DG030
Base ZN BDH for Swivel Feet, Ball Joint 15
€0.00*
Base:
100
|
D (mm):
99
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
34300
|
LK (mm):
74
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Zinc die-castSpecials:Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate see 098DG030
Base ZN for Swivel Feet, Ball Joint 15
€0.00*
Base:
60
|
D (mm):
59
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
29400
|
Version:
without anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Zinc die-castSpecials:Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.

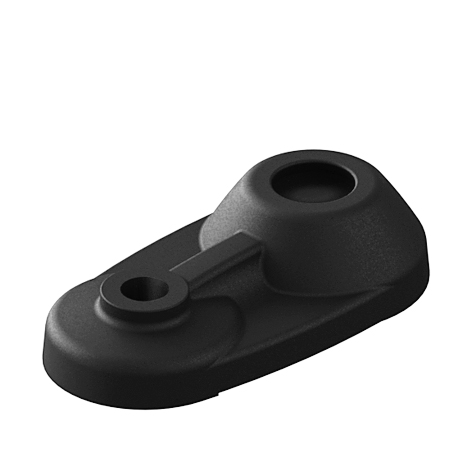

Extended Base 40 PA for Swivel Feet, Ball Joint 15
€0.00*
Base:
40
|
D (mm):
39
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
5880
|
Version:
without anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:Extended swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate see 098DG030

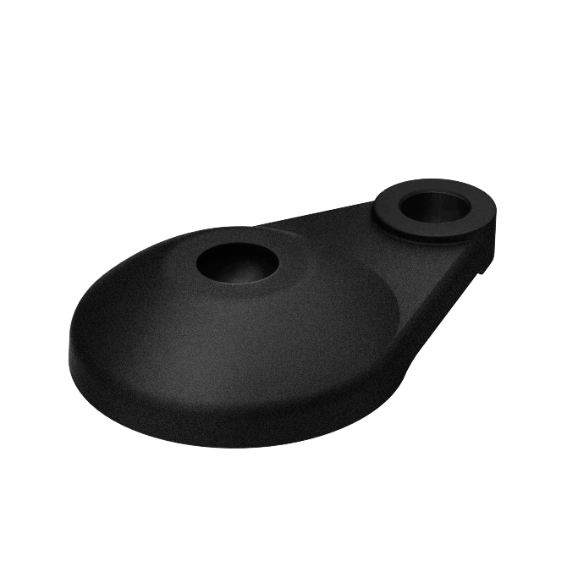

Extended Base 60 PA for Swivel Feet, Ball Joint 15
€0.00*
Base:
60
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8800
|
Version:
without anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:Extended swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate see 098DAG060

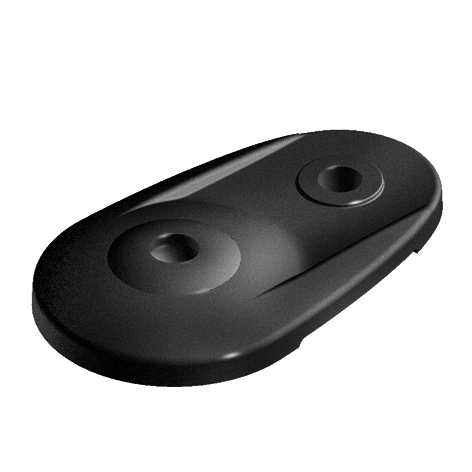

Extended Base 80 PA for Swivel Feet, Ball Joint 15
€0.00*
Base:
80
|
F1 (mm):
30.5
|
F2 (mm):
33.5
|
F3 (mm):
34.5
|
Fmax (N):
9800
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:Extended swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. or 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. or 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG080 and 098AG060

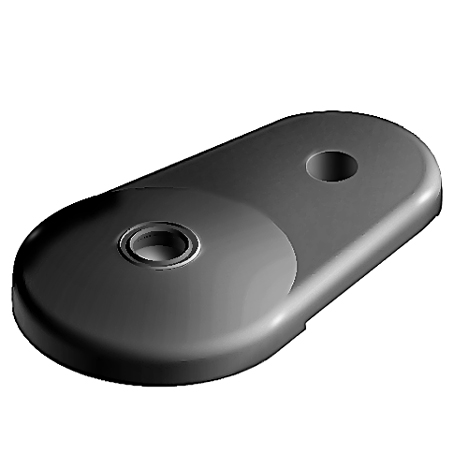

Extended Base 80 ZN for Swivel Feet, Ball Joint 15
€0.00*
Base:
80
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
29400
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:Extended swiveling leveling foot which can be fixed to the floorMaterial:Zinc die-castSpecials:Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate see 098DG030
Threaded Rod SS UNC for Swivel Feet, Ball Joint 15
€0.00*
Fmax (N):
3430
|
Material:
Stainless steel
|
SW (mm):
14 (9/16”)
|
UNC x L (in):
5/16-18 UNC x 1.5"
Delivery Countries:WorldwideDescription:Threaded rod for swiveling leveling feetMaterial:Stainless steel SS304Specials:Other lengths and sizes on requestSurface:Plain
Threaded Rod ST UNC for Swivel Feet, Ball Joint 15
€0.00*
Fmax (N):
7550
|
Material:
Steel
|
SW (mm):
14 (9/16”)
|
UNC x L (in):
-
Delivery Countries:WorldwideDescription:Threaded rod for swiveling leveling feetMaterial:SteelSpecials:Other lengths and sizes on requestSurface:Zinc plated

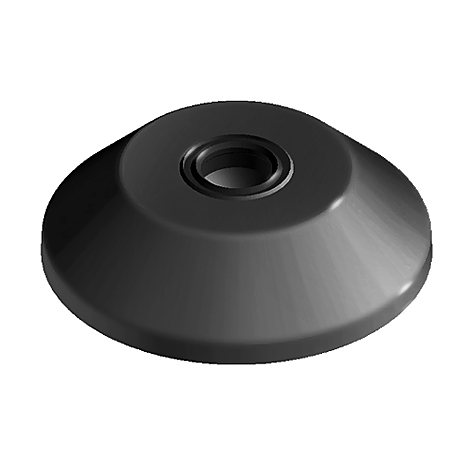

Trapezoid Base for Swivel Feet Ball Joint 15
€0.00*
Base:
80
|
D (mm):
76
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
29400
|
H (mm):
20
|
Version:
without anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Zinc die-castSpecials:Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate see 098DG030 f., Compatible Floor Mounting see 098BI060ZS
