Hinges

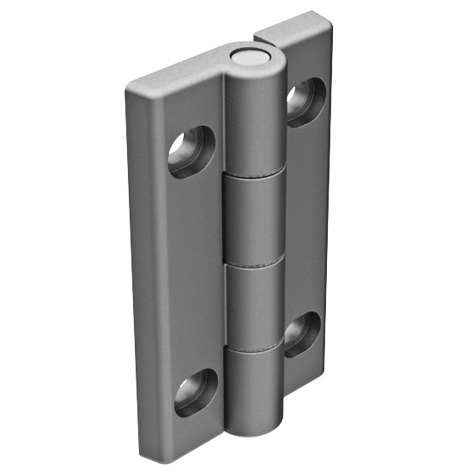

Heavy-duty Hinge
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:For panels and aluminum profiles, with bearing system for boltFastening:From the front, using socket head screws DIN 7984 - M6 or pan-head screws DIN EN ISO 7380 (34805) - M6Material:Wing: Aluminum die-cast Bolt: Stainless steel Bearings: PTFESurface:Wing: Laquered Bolt: Plain
Heavy-duty Plastic Hinge 30, Black
Assembly Set 1:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16, 2 hammer nuts slot 8 - M6Assembly Set 2:1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 16, 1 hammer nut slot 8 - M6, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 18, 1 hammer nut slot 10 - M6Color:Wings: BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; each side has two holes for centering boltsFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSpecials:ESD electrostatical discharging, other sizes, other colors on requestSurface:Bolt: Plain Assembly set: Zinc plated

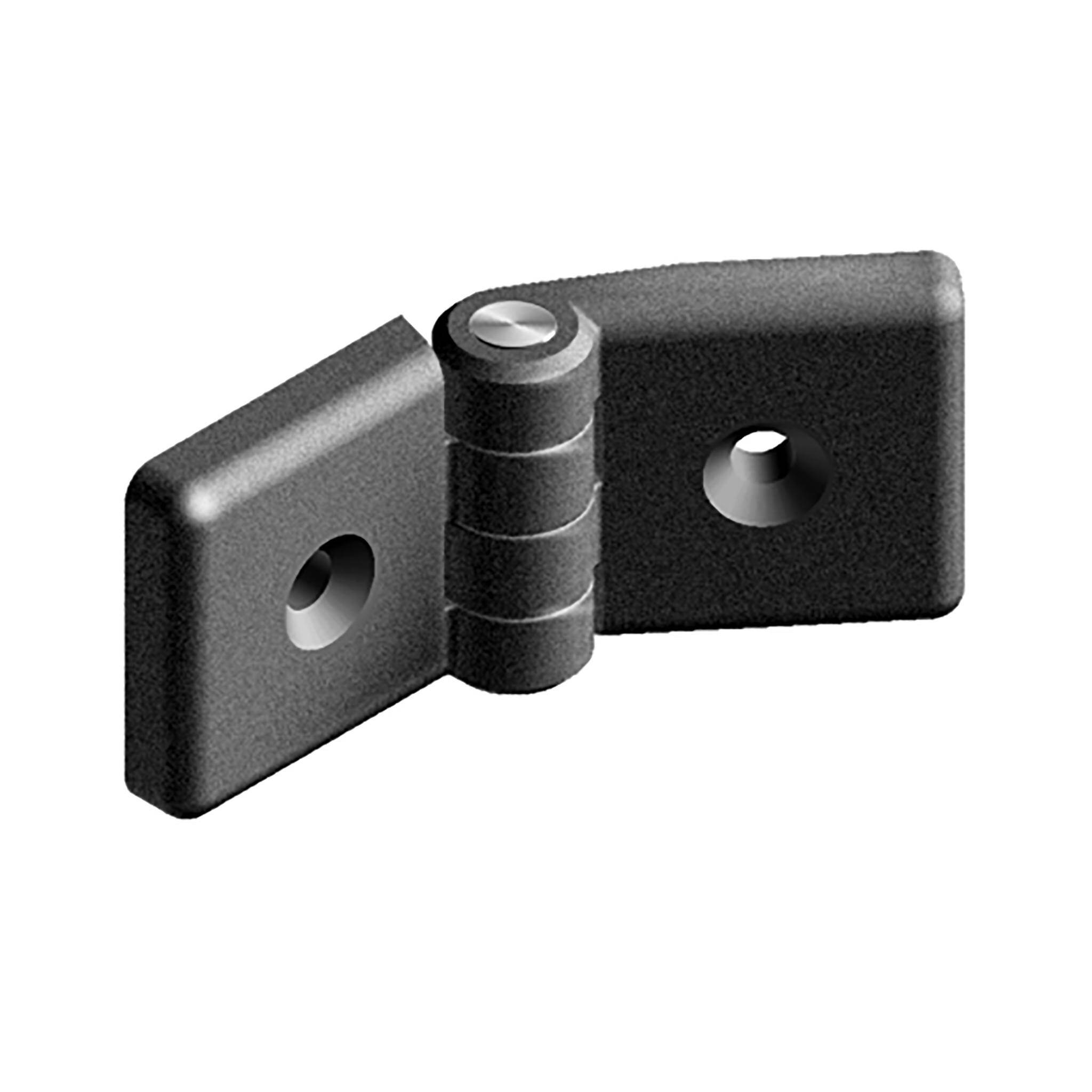

Heavy-duty Plastic Hinge 40, Black
Assembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Color:Wings: BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; each side has two holes for centering boltsFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSpecials:ESD electrostatical discharging, other sizes, other colors on requestSurface:Bolt: Plain Assembly set: Zinc plated
Heavy-duty Plastic Hinge 45
Assembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Color:Wings: BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; each side has two holes for centering boltsFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSpecials:ESD electrostatical discharging, other sizes, other colors on requestSurface:Bolt: Plain Assembly set: Zinc plated
Heavy-duty Plastic Hinge 60
Assembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Color:Wings: BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; each side has two holes for centering boltsFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSpecials:ESD electrostatical discharging, other sizes, other colors on requestSurface:Bolt: Plain Assembly set: Zinc plated

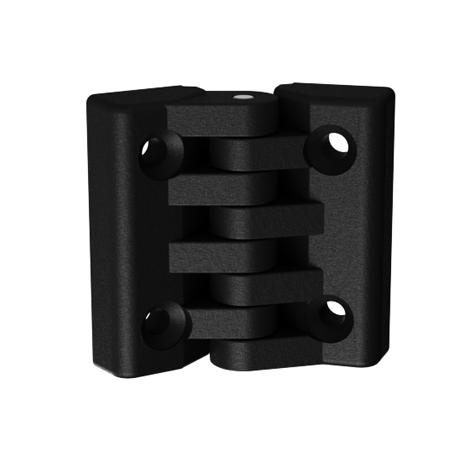

Heavy-duty Plastic Hinge 65 x 64
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on request

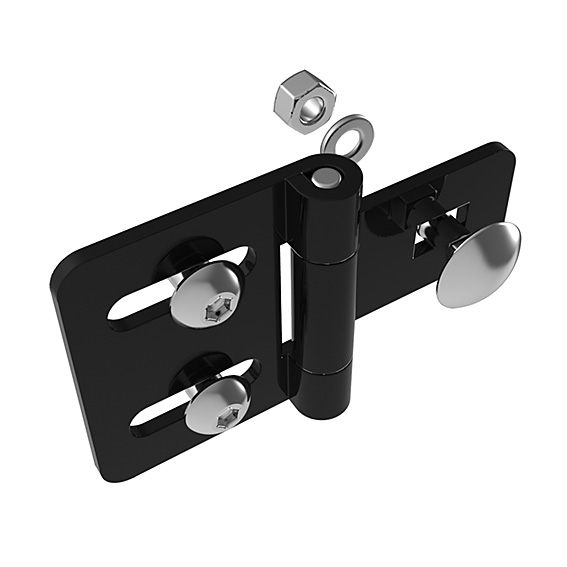

Light Metal Hinge (Set)
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:SteelSet:1 light metal hinge, 3 screws DIN EN ISO 7380 (34805) - M5 x 8, 1 screw DIN 903 - M5 x16, 1 nut - DIN EN ISO 4032 (DIN 934) - M5, 1 washer DIN EN ISO 7089 (DIN 125) Ø 5.3 - black zinc plated (RoHS compliant)Specials:Other surfaces, other colors on requestSurface:Powder coated
Light Plastic Hinge 35 - 40, Black
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 lens or socket head screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on request

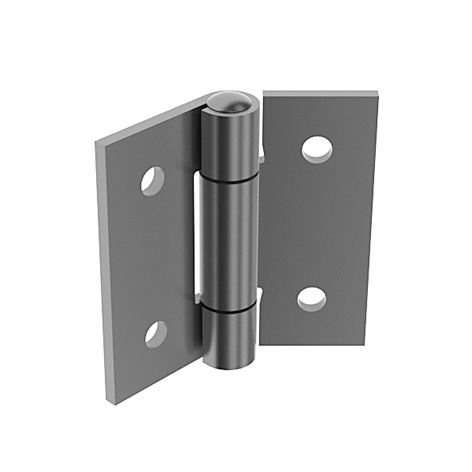

Light Stainless Steel Hinge
Assembly Set:4 pan-head screws DIN EN ISO 7380 (DIN 34805) - M4 x 6, 4 hammer nuts M4 - Nut 6Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M4 countersunk screwsMaterial:Wing: Stainless steel 1.4301 Bolt: Stainless steel 1.4301Surface:Plain

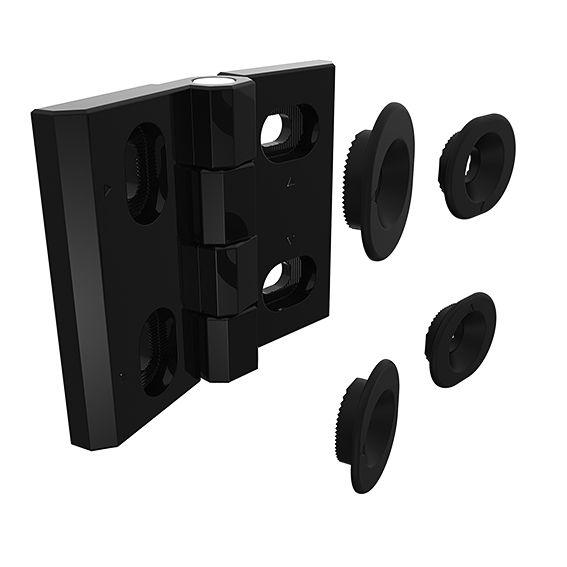

Metal Hinge 2D, Adjustable in Two Directions
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand application, adjustableFastening:From the front, using M6 countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated
Metal Hinge 2D, only Adjustable Horizontally
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand application, adjustableFastening:From the front, using M6 countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated

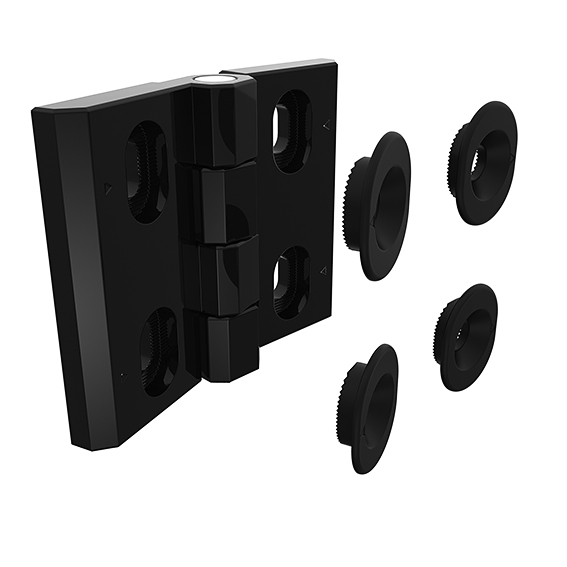

Metal Hinge 2D, only Adjustable Vertically
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand application, adjustableFastening:From the front, using M6 countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated

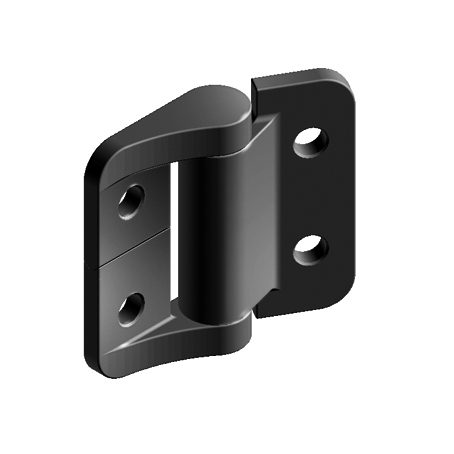

Metal Hinge 40 x 38 with Constant Friction
Color:BlackDelivery Countries:WorldwideDescription:For panels and aluminum profiles; keeps doors open at any angle; also supports lightweight horizontal doorsFastening:Using screws M4Material:Wings: Zinc die-cast Pin: Steel, lubricating grease, o-ringSurface:Urethane enamelTip:*+/- 20% of the nominal value up to 20.000 cycles

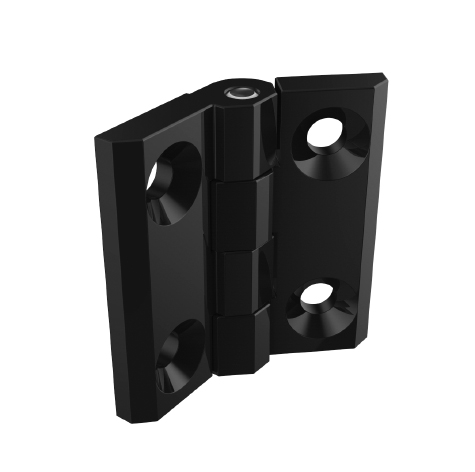

Metal Hinge 40 x 40
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand applicationFastening:From the front, using countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated
Metal Hinge 50 x 50
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand applicationFastening:From the front, using countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated

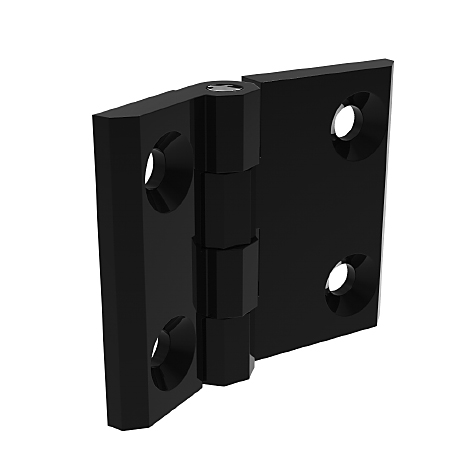

Metal Hinge 50 x 63
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand applicationFastening:From the front, using countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated

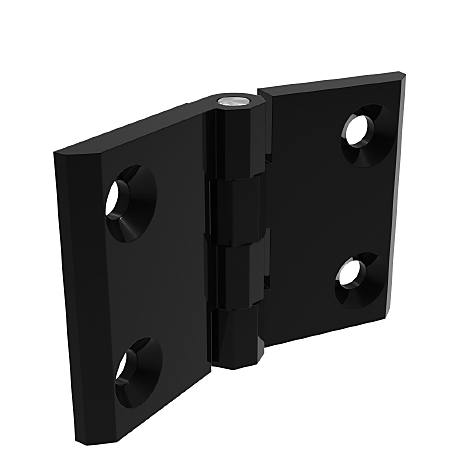

Metal Hinge 50 x 76
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand applicationFastening:From the front, using countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated

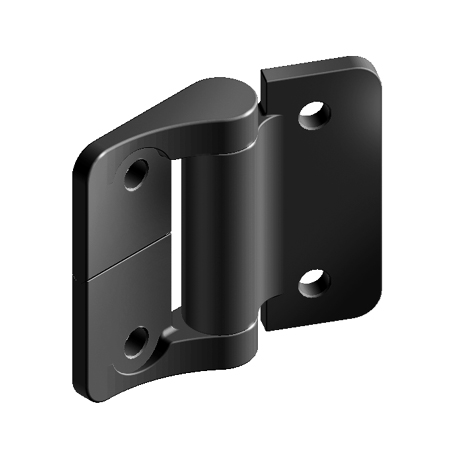

Metal Hinge 58 x 51 with Constant Friction
Color:BlackDelivery Countries:WorldwideDescription:For panels and aluminum profiles; keeps doors open at any angle; also supports lightweight horizontal doorsFastening:Using M5 screwsMaterial:Wings: Zinc die-cast Pin: Steel, lubricating grease, o-ringSurface:Urethane enamelTip:*+/- 20% of the nominal value up to 20.000 cycles

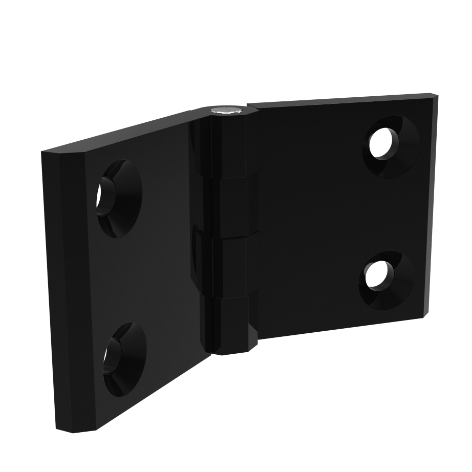

Metal Hinge 60 x 120
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand applicationFastening:From the front, using countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated

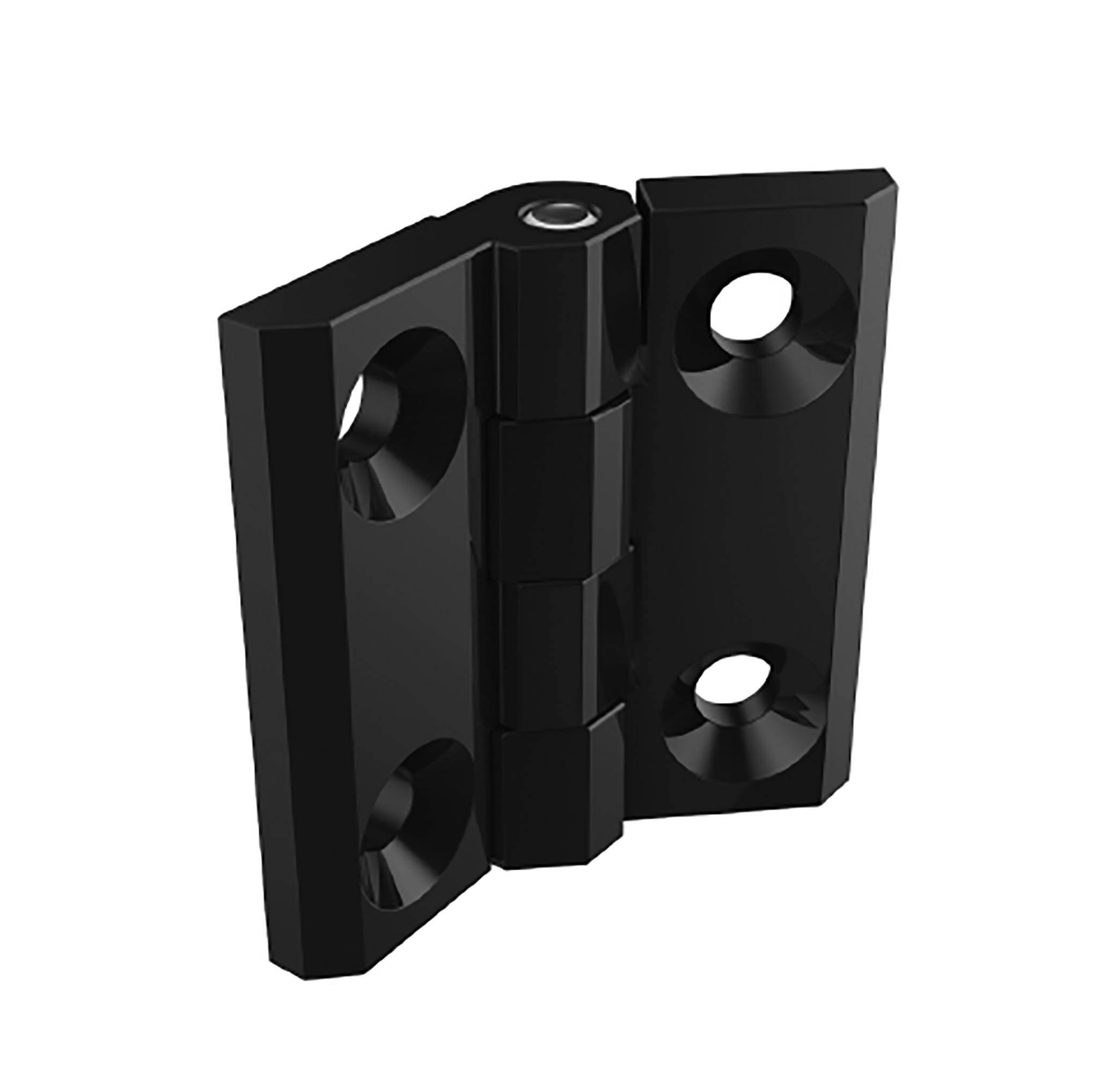

Metal Hinge 60 x 60
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand applicationFastening:From the front, using countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated

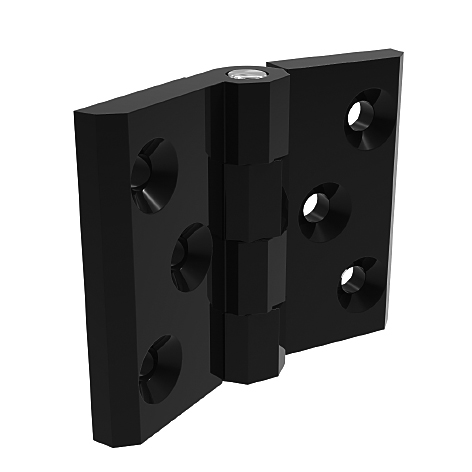

Metal Hinge 60 x 76
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand applicationFastening:From the front, using countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated

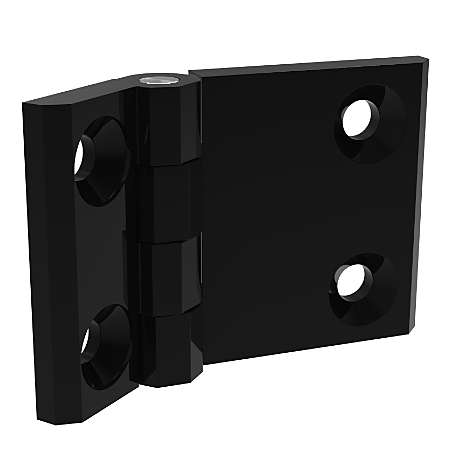

Metal Hinge 60 x 90
Color:BlackDelivery Countries:WorldwideDescription:Sturdy hinge for right and left hand applicationFastening:From the front, using countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coated

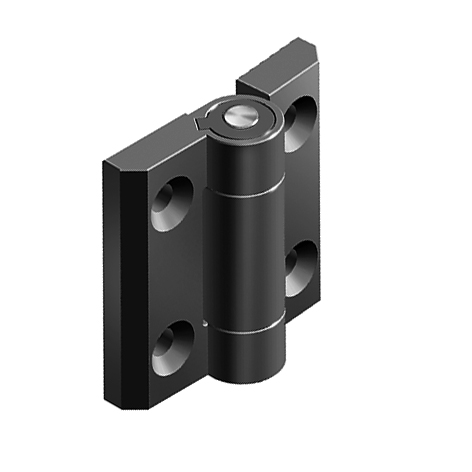

Metal Hinge with Positioning Function
Color:BlackDelivery Countries:WorldwideDescription:For panels and aluminum profiles; holds a door open at an angle of 85° or 175° or keeps it securely closed; also supports lightweight doorsFastening:From the front, using M6 countersunk screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedTip:*+/- 20% of the setting value

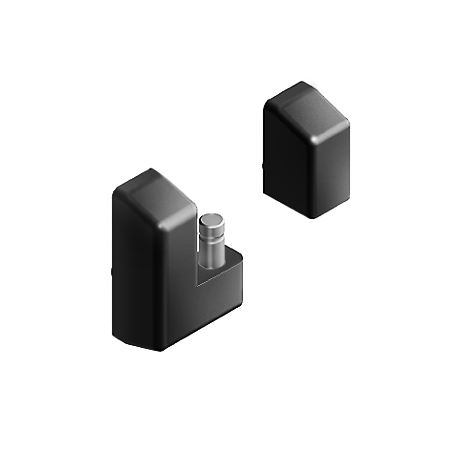

Mini Hinge
Color:BlackDelivery Countries:WorldwideDescription:Mini hinge for various applications, especially in limited spaceFastening:From the back, using M3 screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Laquered
