Hinges

Combi Hinges

FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.

To Product Portrait

Aluminum Die-cast Hinges

Aluminum Die-cast Hinges
Aluminum Hinges

Aluminum Hinges
Plastic Hinges

Plastic Hinges
Stainless Steel Hinges

Stainless Steel Hinges
Steel Hinges

Steel Hinges
Zinc Die-Cast Hinges

Zinc Die-Cast Hinges

Filter products

Stainless Steel Combi Hinge 30, Non-detachable

Stainless Steel Combi Hinge 30, Non-detachable

A1 (mm): 17.5 A2 (mm): 17.5 B1 (mm): 29.5 B2 (mm): 29.5 Combination: 30 / 30 FAmax (N): 575 Version: Non-detachable

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00

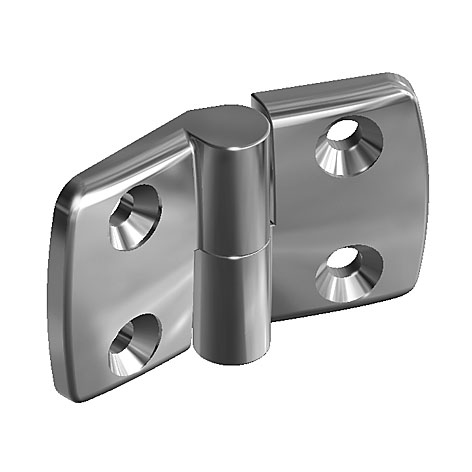

Stainless Steel Combi Hinge 40, Detachable

Stainless Steel Combi Hinge 40, Detachable

A1 (mm): 22.5 A2 (mm): 22.5 B1 (mm): 38.5 B2 (mm): 38.5 Combination: 40 / 40 FRmax (N): 1200 Version: L: Left

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00
Stainless Steel Combi Hinge 40, Non-detachable

Stainless Steel Combi Hinge 40, Non-detachable

A1 (mm): 22.5 A2 (mm): 22.5 B1 (mm): 38.5 B2 (mm): 38.5 Combination: 40 / 40 FAmax (N): 675 FRmax (N): 900 Version: Non-detachable

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00

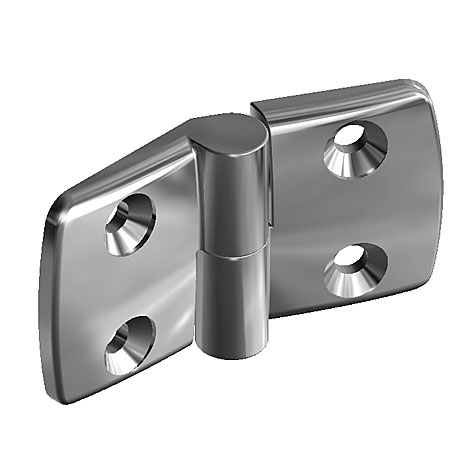

Stainless Steel Combi Hinge 45, Detachable

Stainless Steel Combi Hinge 45, Detachable

A1 (mm): 25.0 A2 (mm): 25.0 B1 (mm): 42.5 B2 (mm): 42.5 Combination: 45 / 45 FAmax (N): 450 FRmax (N): 1200 Version: R: Right

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00

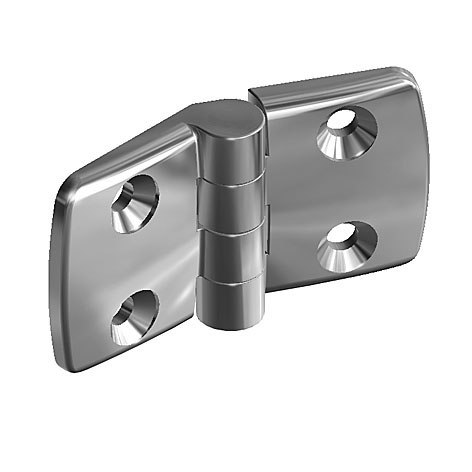

Stainless Steel Combi Hinge 45, Non-detachable

Stainless Steel Combi Hinge 45, Non-detachable

A1 (mm): 25.0 A2 (mm): 25.0 B1 (mm): 42.5 B2 (mm): 42.5 Combination: 45 / 45 FAmax (N): 675 FRmax (N): 900 Version: Non-detachable

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00

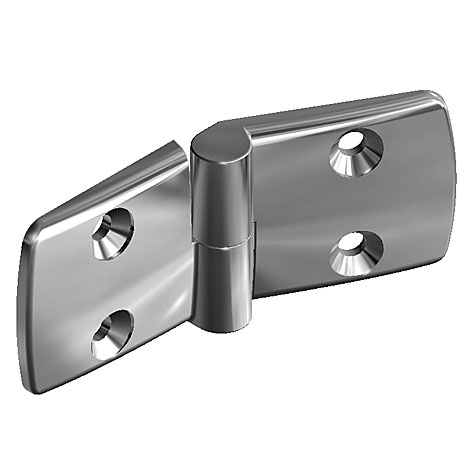

Stainless Steel Combi Hinge 60, Detachable

Stainless Steel Combi Hinge 60, Detachable

A1 (mm): 32.5 A2 (mm): 32.5 B1 (mm): 56.5 B2 (mm): 56.5 Combination: 60 / 60 FAmax (N): 350 FRmax (N): 1200 Version: L: Left

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00

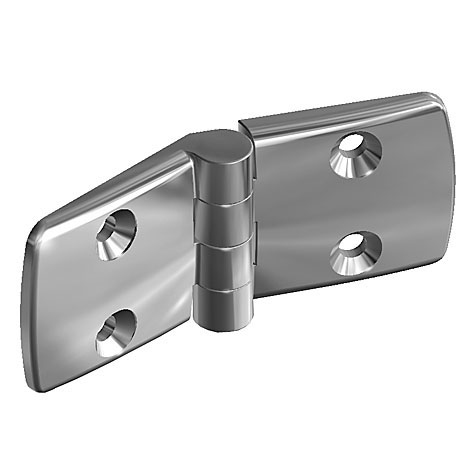

Stainless Steel Combi Hinge 60, Non-detachable

Stainless Steel Combi Hinge 60, Non-detachable

A1 (mm): 32.5 A2 (mm): 32.5 B1 (mm): 56.5 B2 (mm): 56.5 Combination: 60 / 60 FAmax (N): 260 FRmax (N): 900 Version: Non-detachable

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00

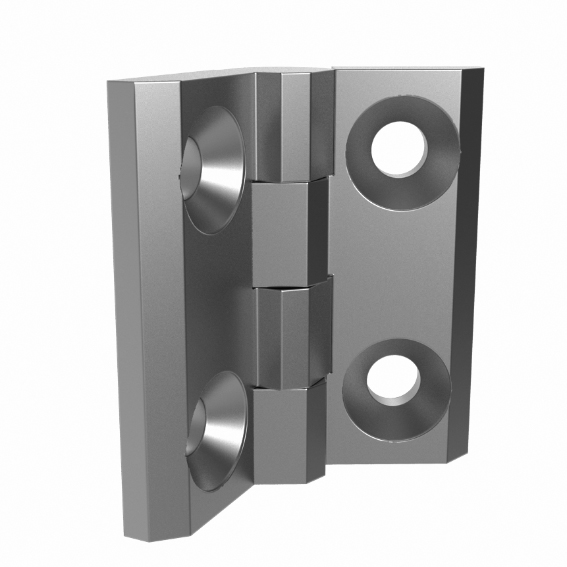

Stainless Steel Hinge 40 x 40

Stainless Steel Hinge 40 x 40

FRmax (N): 1200

Delivery Countries:WorldwideDescription:Hinge for heavy usageFastening:From the front, using countersunk screwsMaterial:Wings: Stainless steel SS316 Pin: Stainless steel SS316Surface:Plain

€0.00

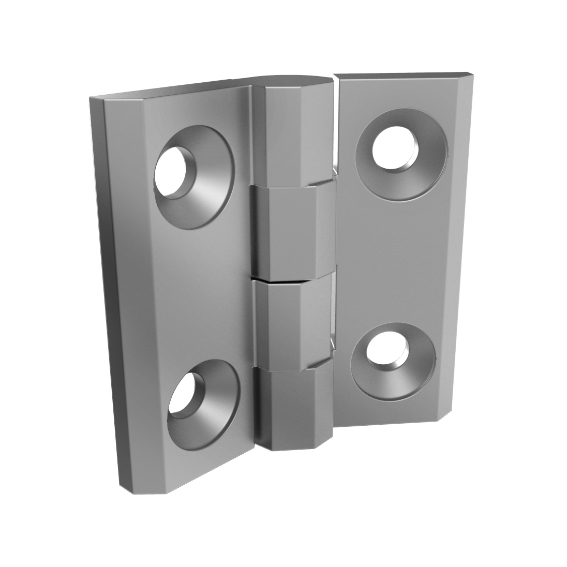

Stainless Steel Hinge 50 x 50

Stainless Steel Hinge 50 x 50

FAmax (N): 900 FRmax (N): 1.600

Delivery Countries:WorldwideDescription:Hinge for heavy usageFastening:From the front, using countersunk screwsMaterial:Wings: Stainless steel SS316 Pin: Stainless steel SS316Surface:Plain

€0.00

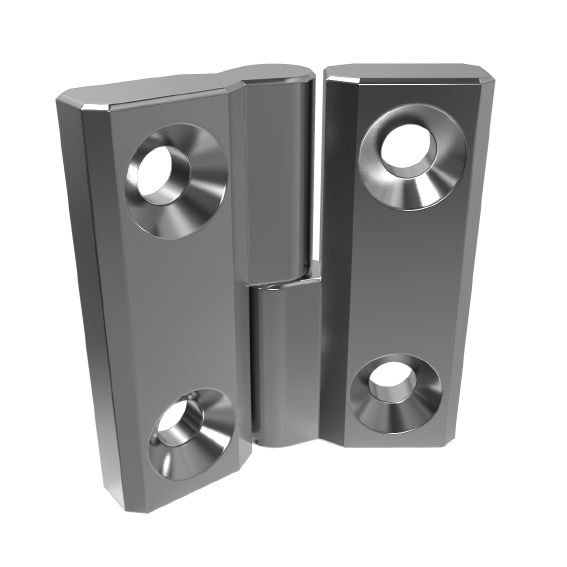

Stainless Steel Hinge 50 x 50 LR

Stainless Steel Hinge 50 x 50 LR

FAmax (N): 600 FRmax (N): 1000

Delivery Countries:WorldwideDescription:Dual symmetrical layout enables right and left hand applicationFastening:From the front, using M6 countersunk screwsMaterial:Wings: Stainless steel SS316 Pin: Stainless steel SS316Surface:Plain

€0.00

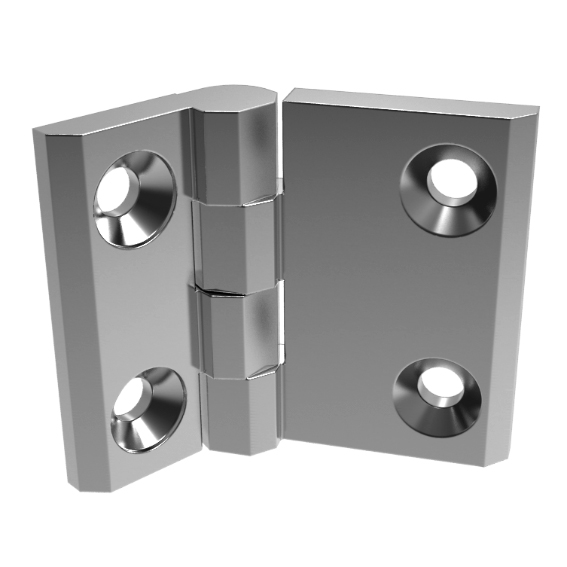

Stainless Steel Hinge 50 x 63

Stainless Steel Hinge 50 x 63

FAmax (N): 900 FRmax (N): 1600.0

Delivery Countries:WorldwideDescription:Hinge for heavy usageFastening:From the front, using countersunk screwsMaterial:Wings: Stainless steel SS316 Pin: Stainless steel SS316Surface:Plain

€0.00

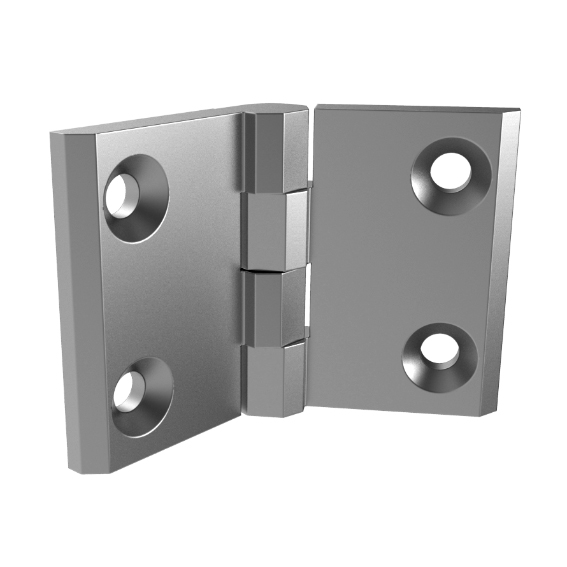

Stainless Steel Hinge 50 x 76

Stainless Steel Hinge 50 x 76

FAmax (N): 550 FRmax (N): 1000

Delivery Countries:WorldwideDescription:Hinge for heavy usageFastening:From the front, using countersunk screwsMaterial:Wings: Stainless steel SS316 Pin: Stainless steel SS316Surface:Plain

€0.00

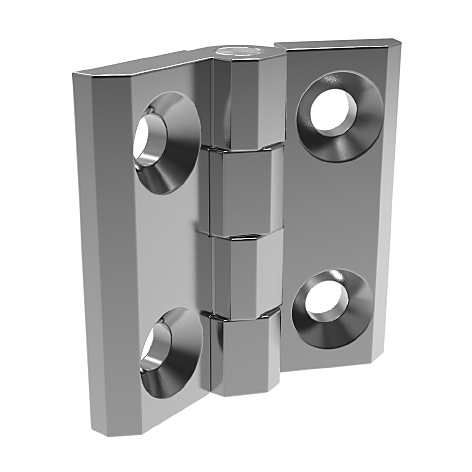

Stainless Steel Hinge 60 x 60

Stainless Steel Hinge 60 x 60

FAmax (N): 1200 FRmax (N): 2000

Delivery Countries:WorldwideDescription:Hinge for heavy usageFastening:From the front, using countersunk screwsMaterial:Wings: Stainless steel SS316 Pin: Stainless steel SS316Surface:Plain

€0.00

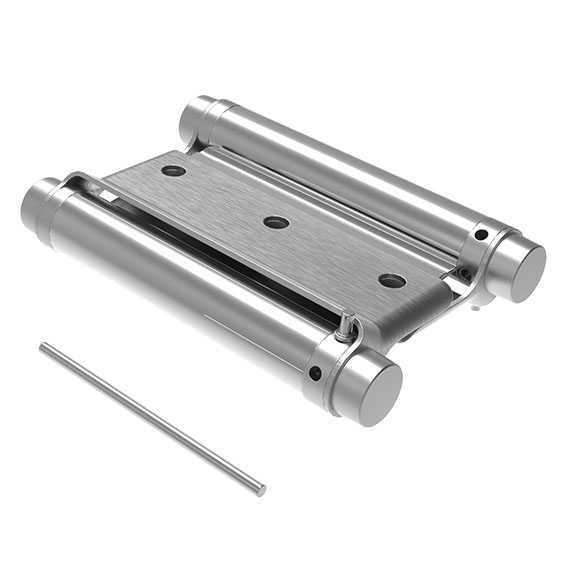

Swing Door Hinge SS 40 / 38 - 1.5"

Swing Door Hinge SS 40 / 38 - 1.5"

Delivery Countries:WorldwideDescription:To build self-closing passage doors, double action; use tension pin to adjust spring load and set it with retaining pinsFastening: From the back, using M6 screws Material:Hinge: Stainless steel SS201 Caps: Zinc die-cast Tension pin: Steel Retaining pins: SteelSurface:Caps: Chrome plated Tension pin: Zinc plated Retaining pins: Nickel plated

€0.00
System Hinge 30

System Hinge 30

FAmax (N): 350 FRmax (N): 400 Slot N (mm): 8

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, with cover capsFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request

€0.00
System Hinge 30 with Adjustable Friction

System Hinge 30 with Adjustable Friction

FAmax (N): 325 FRmax (N): 400 Friction Torque (Nm): 0-5 Slot N (mm): 6

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; to hold a door open at an angle at any angle; infinitely variable from 0 - 5 Nm hinge moment; also supports lightweight doorsFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request

€0.00

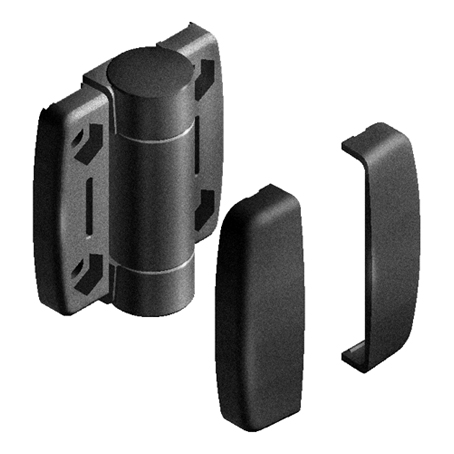

System Hinge 30 with Positioning Function

System Hinge 30 with Positioning Function

FAmax (N): 350 FRmax (N): 400 Slot N (mm): -

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, with cover caps; to hold a door open at an angle at 85° or 175° or to keep it securely closedFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request *+/- 25% of the setting value

€0.00
System Hinge 40

System Hinge 40

FAmax (N): 425 FRmax (N): 600 Slot N (mm): 8

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; with cover capsFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request

€0.00
System Hinge 40 with Adjustable Friction

System Hinge 40 with Adjustable Friction

FAmax (N): 425 FRmax (N): 600 Friction Torque (Nm): 0-5 Slot N (mm): 10

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; to hold a door open at an angle at any angle; infinitely variable from 0 - 5 Nm hinge moment; also supports lightweight doorsFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request

€0.00

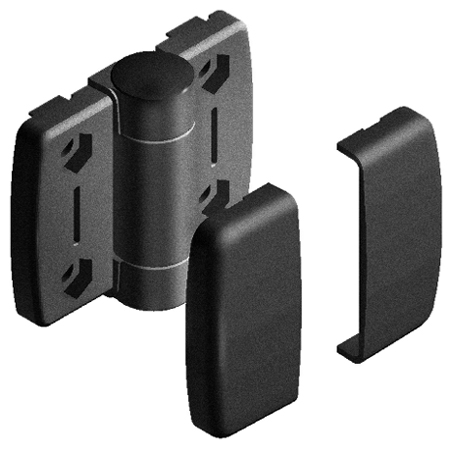

System Hinge 40 with Positioning Function

System Hinge 40 with Positioning Function

FAmax (N): 425 FRmax (N): 600 Slot N (mm): 8

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, with cover caps; to hold a door open at an angle at 85° or 175° or to keep it securely closedFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request *+/- 25% of the setting value

€0.00

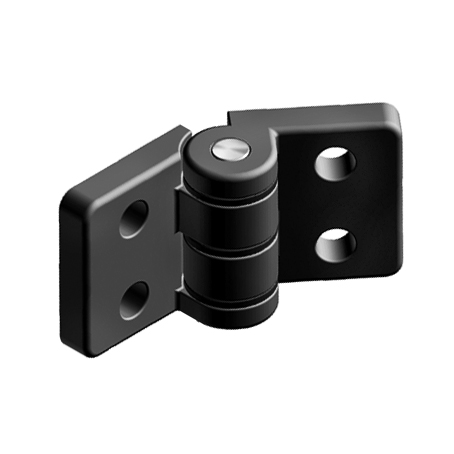

Zinc Die-Cast Hinge

Zinc Die-Cast Hinge

A1 (mm): 25.0 A2 (mm): 25.0 Combination: 45 / 45 FAmax (N): 650 FRmax (N): 1500 Slot N (mm): 10

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M8 screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSpecials:Other surfaces, other colors on requestSurface:Powder coated

€0.00

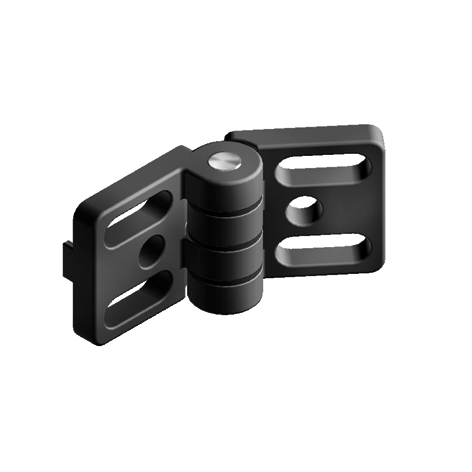

Zinc Die-Cast Hinge 30 EH

Zinc Die-Cast Hinge 30 EH

FAmax (N): 350 FRmax (N): 1000 Slot N (mm): 6

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSpecials:Other surfaces, other colors on requestSurface:Powder coated

€0.00

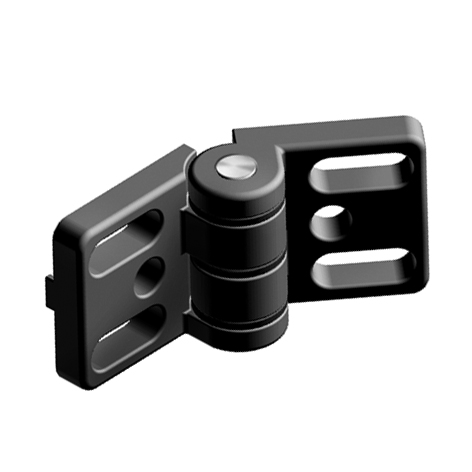

Zinc Die-Cast Hinge 40 EH

Zinc Die-Cast Hinge 40 EH

FRmax (N): 1200 Slot N (mm): 10

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M8 screwsMaterial:Wings: Zinc die-cast Axle: Stainless steelSpecials:Other surfaces, other colors on requestSurface:Powder coated

€0.00

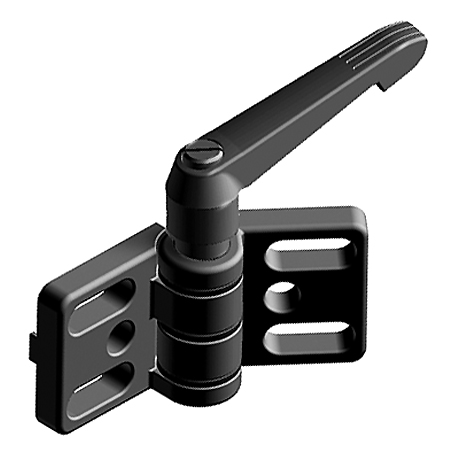

Zinc Die-Cast Hinge 40 EH with Locking Lever

Zinc Die-Cast Hinge 40 EH with Locking Lever

FRmax (N): 1200 Slot N (mm): 10

Color:BlackDelivery Countries:WorldwideDescription:For panels and aluminum profiles, can be locked in any positionFastening:From the front, using M8 screwsMaterial:Wings: Zinc die-cast KIPP locking lever: Plastic PA, glass fiber reinforced Mechanism: Steel, black zinc plated (RoHS conform)Specials:Other surfaces, other colors on requestSurface:Powder coated

€0.00
