Hinges

Combi Hinges

FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.

To Product Portrait

Aluminum Die-cast Hinges

Aluminum Die-cast Hinges
Aluminum Hinges

Aluminum Hinges
Plastic Hinges

Plastic Hinges
Stainless Steel Hinges

Stainless Steel Hinges
Steel Hinges

Steel Hinges
Zinc Die-Cast Hinges

Zinc Die-Cast Hinges

Filter products

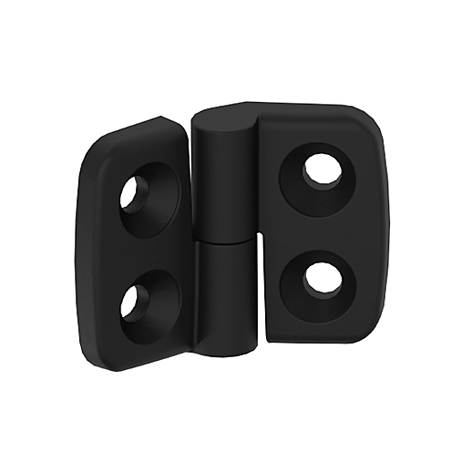

Plastic Combi Hinge 20 MINI, Detachable

Plastic Combi Hinge 20 MINI, Detachable

Combination: 20 / 20 Version: R: Right

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M4 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

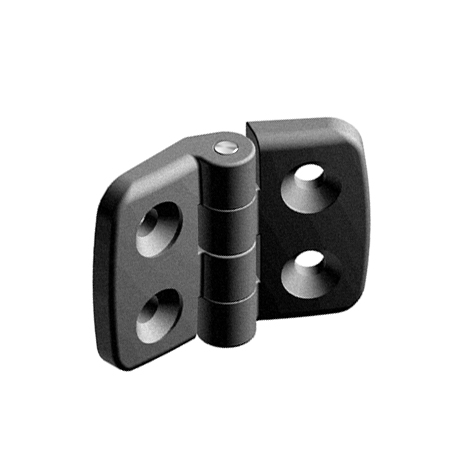

Plastic Combi Hinge 20 MINI, Non-detachable

Plastic Combi Hinge 20 MINI, Non-detachable

Combination: 20 / 20 FRmax (N): 400 Version: Non-detachable

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M4 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00
Plastic Combi Hinge 25, Detachable, Black

Plastic Combi Hinge 25, Detachable, Black

A1 (mm): 15.0 A2 (mm): 22.5 B1 (mm): 26.0 B2 (mm): 38.5 Combination: 25 / 40 FAmax (N): 350 FRmax (N): - Slot N (mm): - Version: L: Left

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

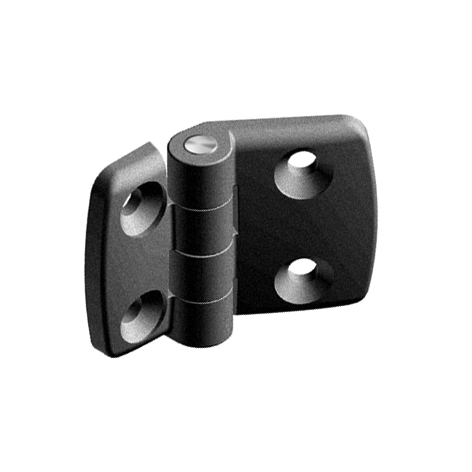

Plastic Combi Hinge 25, Non-detachable, Black

Plastic Combi Hinge 25, Non-detachable, Black

A1 (mm): 17.5 A2 (mm): 15.0 B1 (mm): 29.5 B2 (mm): 26.0 Combination: 30 / 25 FAmax (N): 400 FRmax (N): - Slot N (mm): - Version: Non-detachable

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

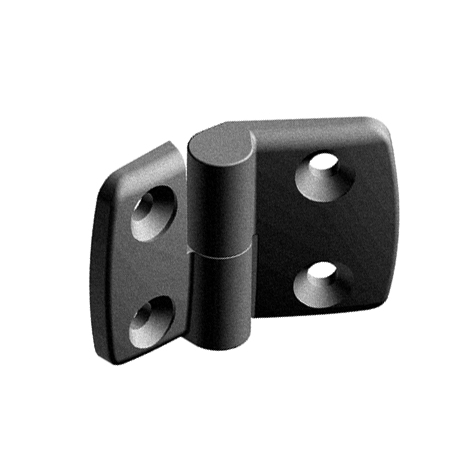

Plastic Combi Hinge 30, Detachable, Black

Plastic Combi Hinge 30, Detachable, Black

A1 (mm): 17.5 A2 (mm): 17.5 B1 (mm): 29.5 B2 (mm): 29.5 Combination: 30 / 30 FAmax (N): - FRmax (N): 750 Slot N (mm): - Version: L: Left

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

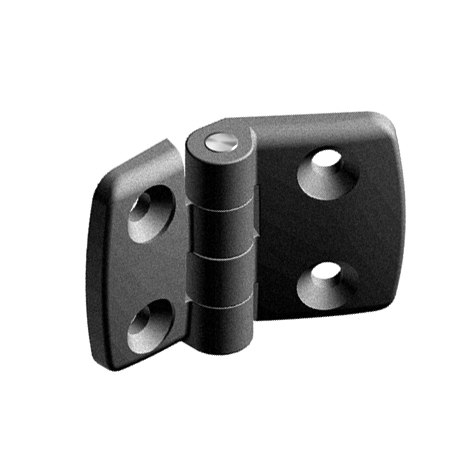

Plastic Combi Hinge 30, Non-detachable, Black

Plastic Combi Hinge 30, Non-detachable, Black

A1 (mm): 17.5 A2 (mm): 17.5 B1 (mm): 29.5 B2 (mm): 29.5 Combination: 30 / 30 FAmax (N): 400 FRmax (N): - Slot N (mm): 8 Version: Non-detachable

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

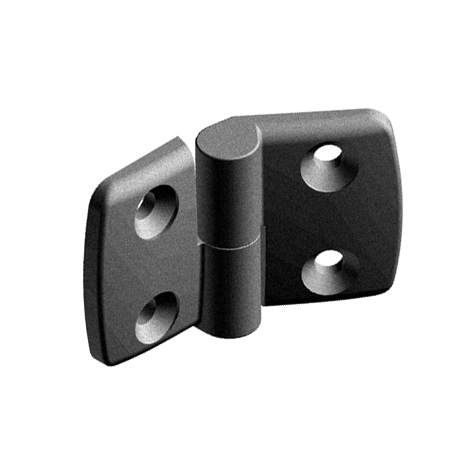

Plastic Combi Hinge 35, Detachable, Black

Plastic Combi Hinge 35, Detachable, Black

A1 (mm): 20.0 A2 (mm): 20.0 B1 (mm): 36.0 B2 (mm): 36.0 Combination: 35 / 35 FAmax (N): 400 FRmax (N): 750 Slot N (mm): 8 Version: R: Right

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

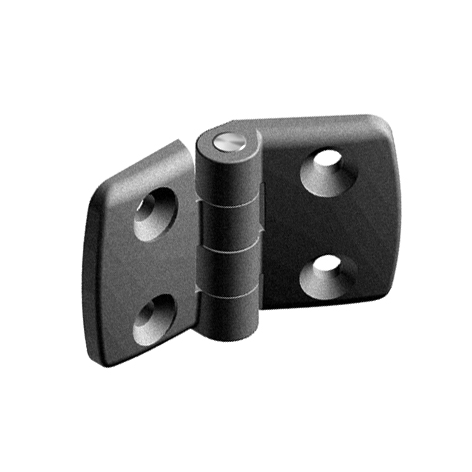

Plastic Combi Hinge 35, Non-detachable, Black

Plastic Combi Hinge 35, Non-detachable, Black

A1 (mm): 20.0 A2 (mm): 22.5 B1 (mm): 36.0 B2 (mm): 38.5 Combination: 35 / 40 FAmax (N): 450 FRmax (N): 750 Slot N (mm): - Version: Non-detachable

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

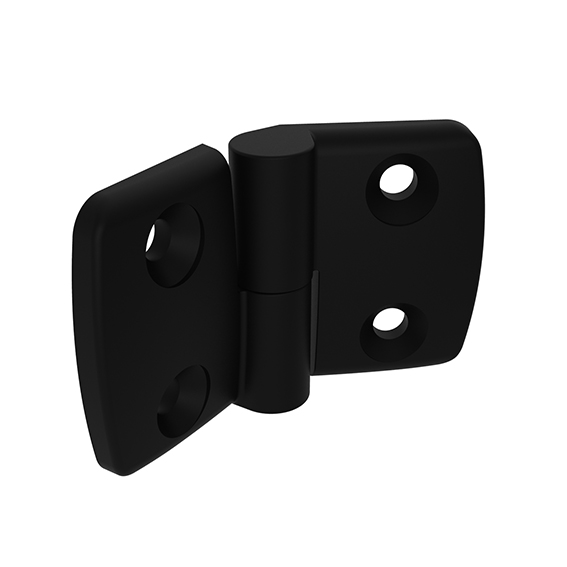

Plastic Combi Hinge 40, Detachable, Black

Plastic Combi Hinge 40, Detachable, Black

A1 (mm): 22.5 A2 (mm): 22.5 B1 (mm): 38.5 B2 (mm): 38.5 Combination: 40 / 40 FAmax (N): 350 FRmax (N): - Slot N (mm): - Version: R: Right

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

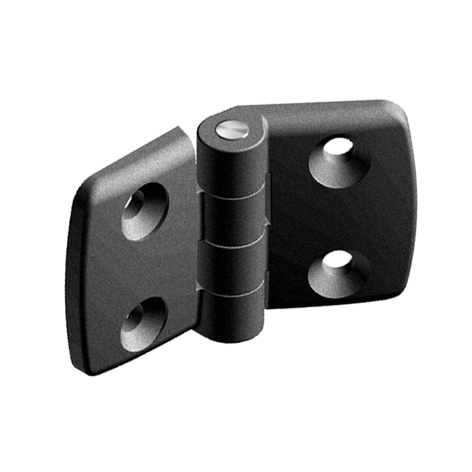

Plastic Combi Hinge 40, Non-detachable, Black

Plastic Combi Hinge 40, Non-detachable, Black

A1 (mm): 22.5 A2 (mm): 22.5 B1 (mm): 38.5 B2 (mm): 38.5 Combination: 40 / 40 FAmax (N): 450 FRmax (N): 750 Slot N (mm): - Version: Non-detachable

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

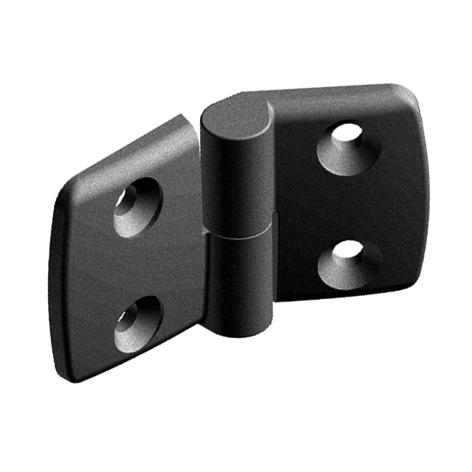

Plastic Combi Hinge 45, Detachable, Black

Plastic Combi Hinge 45, Detachable, Black

A1 (mm): 25.0 A2 (mm): 32.5 B1 (mm): 43.5 B2 (mm): 57.5 Combination: 45 / 60 FAmax (N): - FRmax (N): - Slot N (mm): - Version: L: Left

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

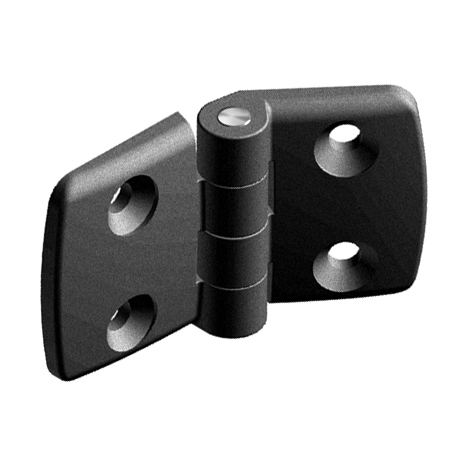

Plastic Combi Hinge 45, Non-detachable, Black

Plastic Combi Hinge 45, Non-detachable, Black

A1 (mm): 25.0 A2 (mm): 25.0 B1 (mm): 43.5 B2 (mm): 43.5 Combination: 45 / 45 FAmax (N): 450 FRmax (N): 750 Slot N (mm): 10 Version: Non-detachable

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

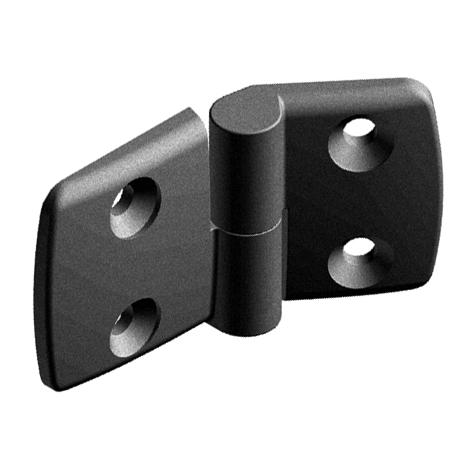

Plastic Combi Hinge 50, Detachable, Black

Plastic Combi Hinge 50, Detachable, Black

A1 (mm): 27.5 A2 (mm): 27.5 B1 (mm): 48.5 B2 (mm): 48.5 Combination: 50 / 50 FAmax (N): 320 FRmax (N): - Slot N (mm): - Version: L: Left

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

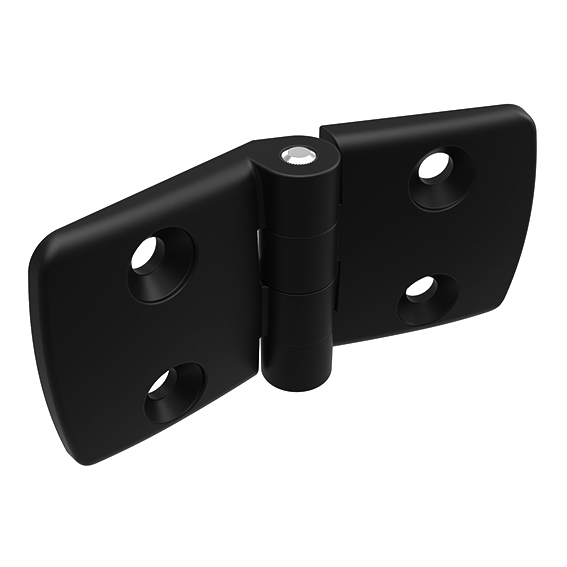

Plastic Combi Hinge 50, Non-detachable, Black

Plastic Combi Hinge 50, Non-detachable, Black

A1 (mm): 27.5 A2 (mm): 32.5 B1 (mm): 48.5 B2 (mm): 57.5 Combination: 50 / 60 FAmax (N): - FRmax (N): 850 Slot N (mm): - Version: Non-detachable

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

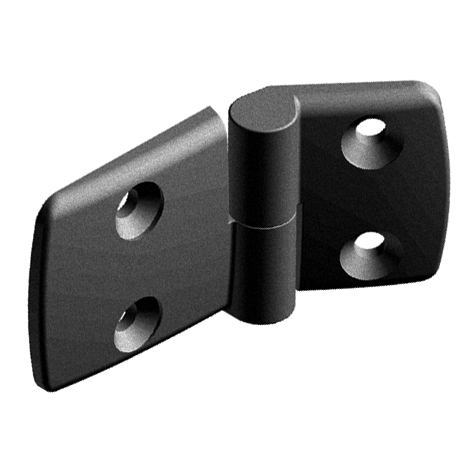

Plastic Combi Hinge 60, Detachable, Black

Plastic Combi Hinge 60, Detachable, Black

A1 (mm): 32.5 A2 (mm): 32.5 B1 (mm): 57.5 B2 (mm): 57.5 Combination: 60 / 60 FAmax (N): - FRmax (N): 900 Slot N (mm): 10 Version: L: Left

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00
Plastic Combi Hinge 60, Non-detachable, Black

Plastic Combi Hinge 60, Non-detachable, Black

A1 (mm): 32.5 A2 (mm): 32.5 B1 (mm): 57.5 B2 (mm): 57.5 Combination: 60 / 60 FAmax (N): 175 FRmax (N): 850 Slot N (mm): 10 Version: Non-detachable

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

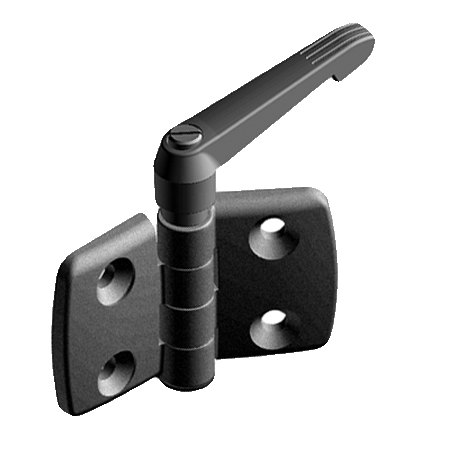

Plastic Combi Hinge with Locking Lever

Plastic Combi Hinge with Locking Lever

A1 (mm): 22.5 A2 (mm): 22.5 B1 (mm): 38.5 B2 (mm): 38.5 Combination: 40 / 40 FAmax (N): 450 FRmax (N): 750 Slot N (mm): 8 Version: Non-detachable

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; can be locked at any positionFastening:From the front, using M6 countersunk screwsMaterial:Hinge: Plastic PA, glass fiber reinforced KIPP locking lever: Plastic PA, glass fiber reinforced Mechanism: Steel, zinc plated (RoHS conform)Specials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request

€0.00

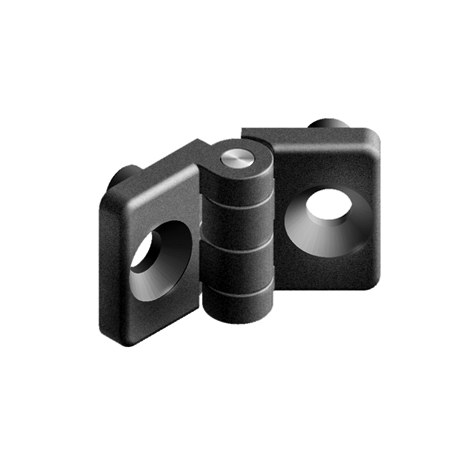

Plastic Hinge 20 MINI, Black

Plastic Hinge 20 MINI, Black

FRmax (N): 300 Slot N (mm): 6

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M5 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on request

€0.00
Plastic Hinge 32 x 100, Double, Black

Plastic Hinge 32 x 100, Double, Black

Slot N (mm): 8

Color:BlackDelivery Countries:WorldwideDescription:To connect aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on request

€0.00
Plastic Hinge 32 x 60, Black

Plastic Hinge 32 x 60, Black

Slot N (mm): 8 Version: R: Right

Color:BlackDelivery Countries:WorldwideDescription:To connect aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on request

€0.00

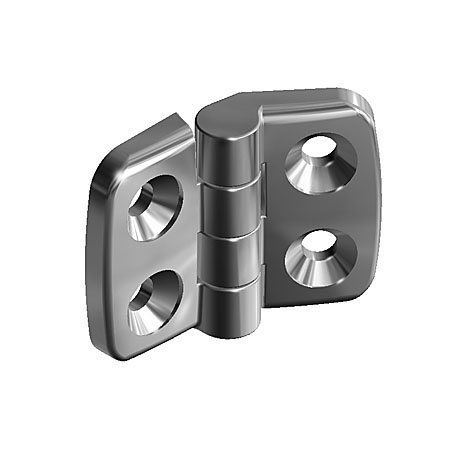

Stainless Steel Combi Hinge 20 MINI, Non-detachable

Stainless Steel Combi Hinge 20 MINI, Non-detachable

A1 (mm): 11.5 A2 (mm): 11.5 B1 (mm): 19.0 B2 (mm): 19.0 Combination: 20 / 20 FAmax (N): 450 Version: Non-detachable

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M4 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00

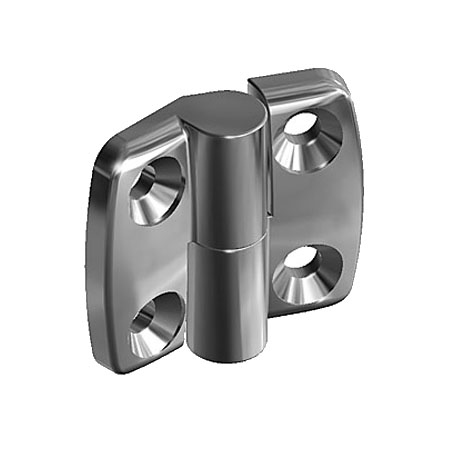

Stainless Steel Combi Hinge 25, Detachable

Stainless Steel Combi Hinge 25, Detachable

A1 (mm): 15.0 A2 (mm): 15.0 B1 (mm): 26.0 B2 (mm): 26.0 Combination: 25 / 25 FAmax (N): 625 FRmax (N): 900 Version: L: Left

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00
Stainless Steel Combi Hinge 25, Non-detachable

Stainless Steel Combi Hinge 25, Non-detachable

A1 (mm): 15.0 A2 (mm): 15.0 B1 (mm): 26.0 B2 (mm): 26.0 Combination: 25 / 25 FAmax (N): 560 Version: Non-detachable

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00

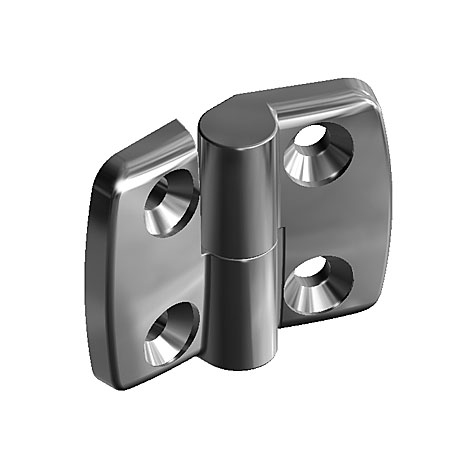

Stainless Steel Combi Hinge 30, Detachable

Stainless Steel Combi Hinge 30, Detachable

A1 (mm): 17.5 A2 (mm): 17.5 B1 (mm): 29.5 B2 (mm): 29.5 Combination: 30 / 30 FAmax (N): 710 FRmax (N): 1000 Version: R: Right

Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:Plain

€0.00
