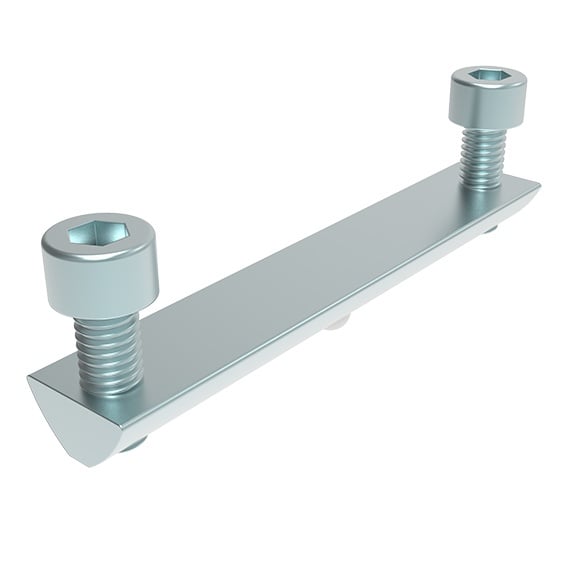

Double T-slot Nut I Slot 8 for Double Adapter D30 (Set)

M: M6 | Profile: I

Delivery Countries:WorldwideDescription:Roll-in double T-slot nutMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steel Screws: SteelSet:1 roll-in double T-slot nut I slot 8 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Surface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain Screws: Zinc-plated

€0.00*

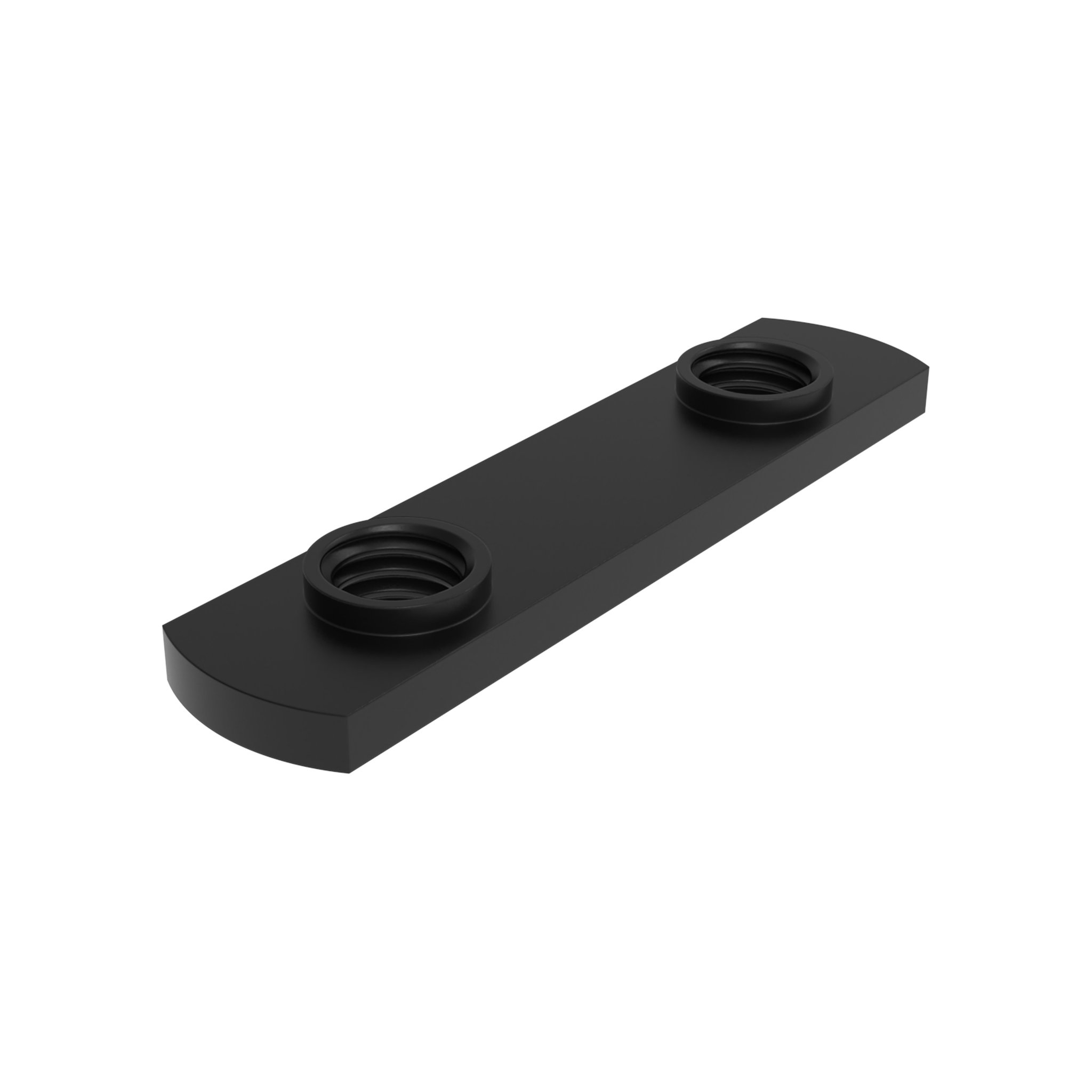

ECO Double T-nut

A (mm): 30.0 | B (mm): 15.0 | Grid: 30 | H (mm): 4.5 | L (mm): 50.0 | M: M6 | Material: Steel | Slot N (mm): 6 | h (mm): 1.5

Color:BlackDelivery Countries:North AmericaDescription:To fasten components to profilesMaterial:SteelSurface:Zinc plated

€0.00*

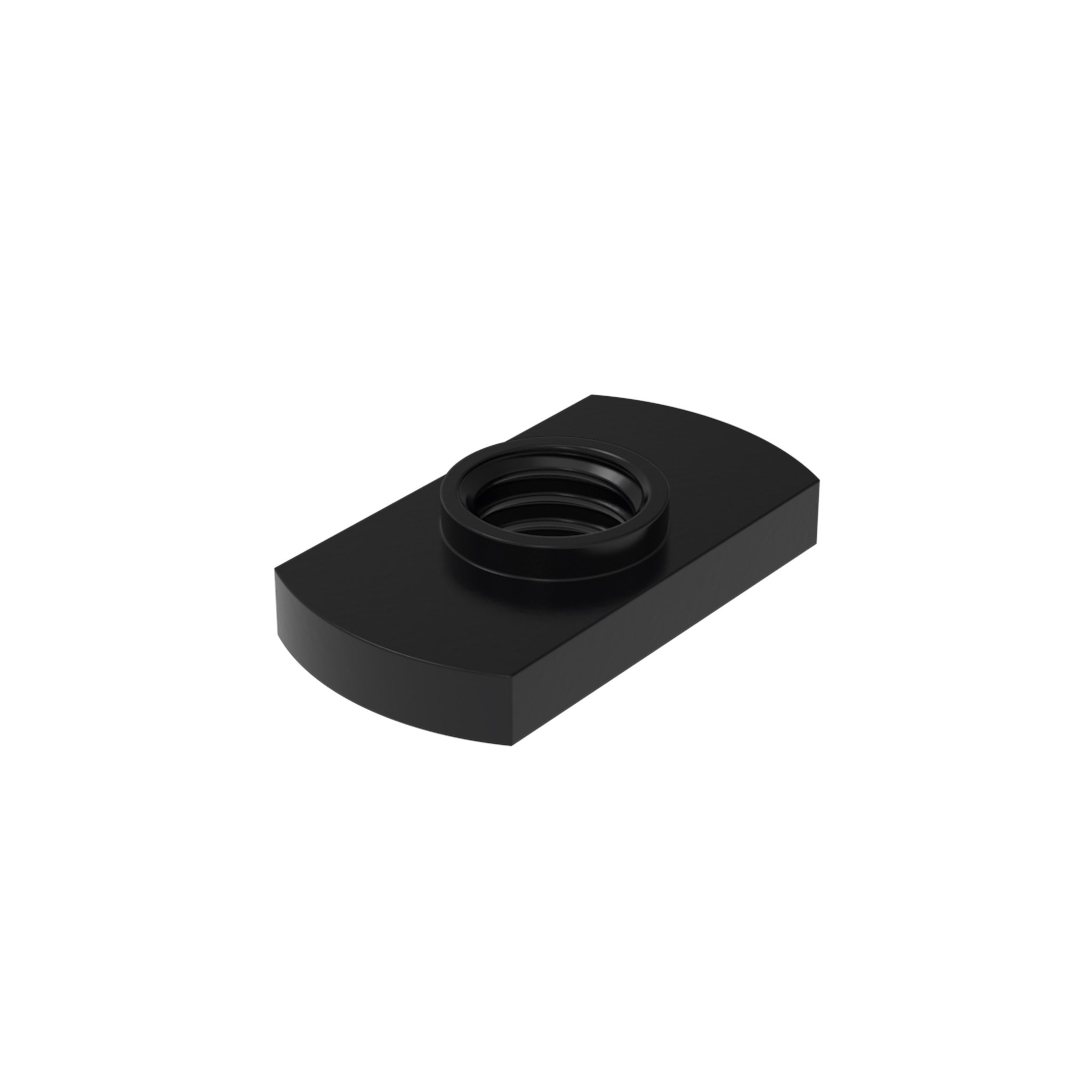

ECO T-nut Style A Centric

B (mm): 16.0 | Grid: 40 | H (mm): 5.0 | L (mm): 28.0 | M: M8 | Material: Steel | Slot N (mm): 8 | h (mm): 1.5

Color:BlackDelivery Countries:North AmericaDescription:To fasten components to profilesMaterial:SteelSurface:Zinc plated

€0.00*

ECO T-nut Style B Centric

B (mm): 11.0 (0.43") | Grid: 25.4 (1") | H (mm): 3.4 (0.13") | L (mm): 25.0 (0.98") | M: 1/4-20 UNC | Material: Steel | Slot N (mm): 6.5 (0.256") | h (mm): 1.0 (0.03")

Color:BlackDelivery Countries:North AmericaDescription:To fasten components to profilesMaterial:SteelSurface:Zinc plated

€0.00*

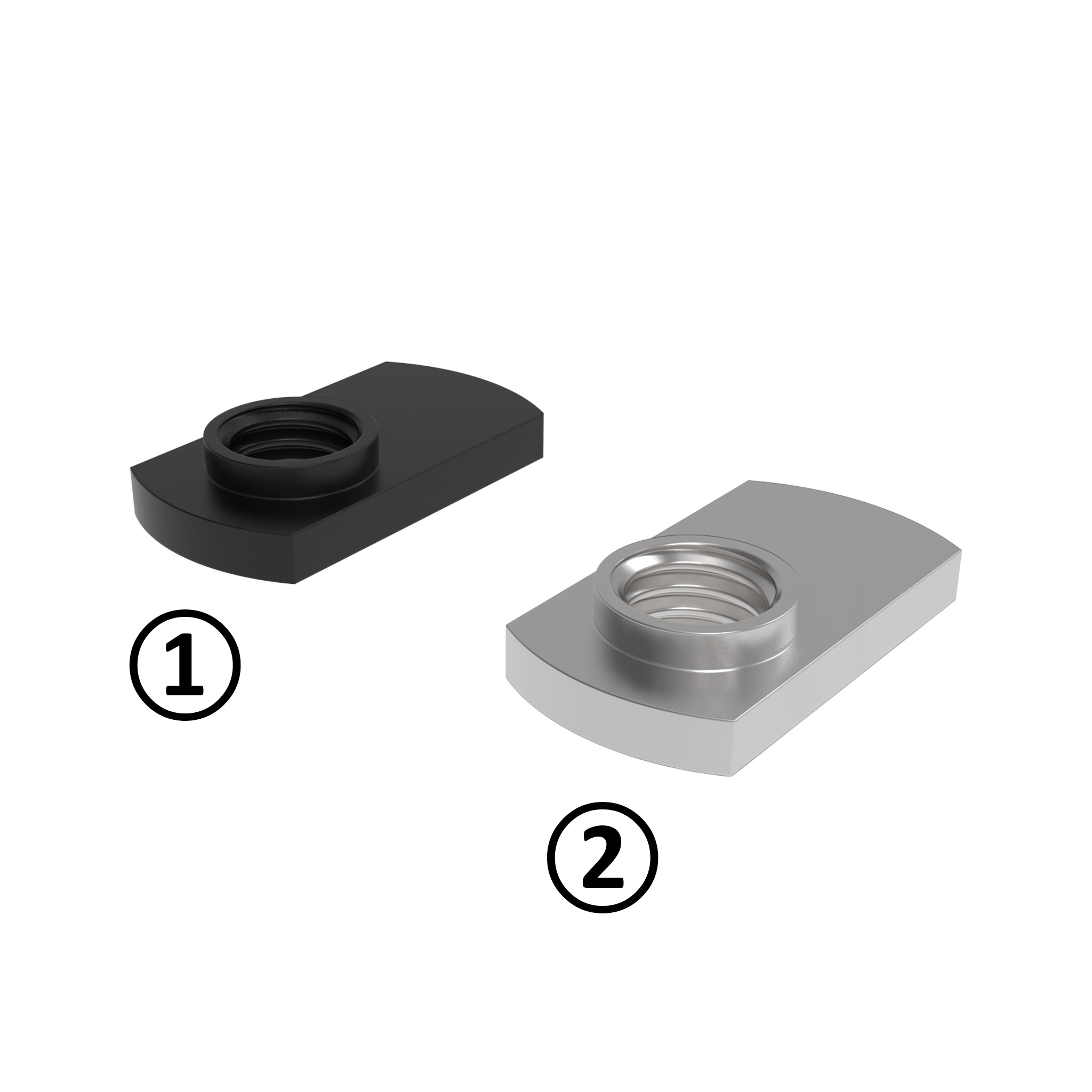

ECO T-nut Style C Eccentric

B (mm): 15.0 | F (mm): 8.0 | Fig.: ② | Grid: 30 | H (mm): 4.5 | L (mm): 20.5 | M: M6 | Material: Stainless steel | Slot N (mm): 6 | h (mm): 1.5

Color:Black, -Delivery Countries:North AmericaDescription:To fasten components to profilesMaterial:Steel / stainless steel SS304Surface:Zinc plated / plain

€0.00*

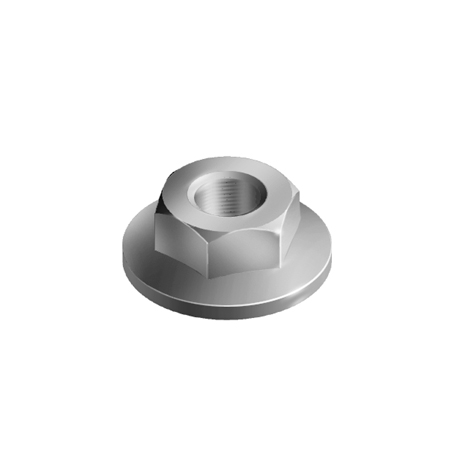

Flange Nut

D (mm): max.17.9 | H (mm): 7.9 | Material: Stainless steel | SW (mm): 13

Delivery Countries:WorldwideDescription:To be used in conjunction with a hammer head screwMaterial:Steel / stainless steelSurface:Zinc plated / plain

€0.00*

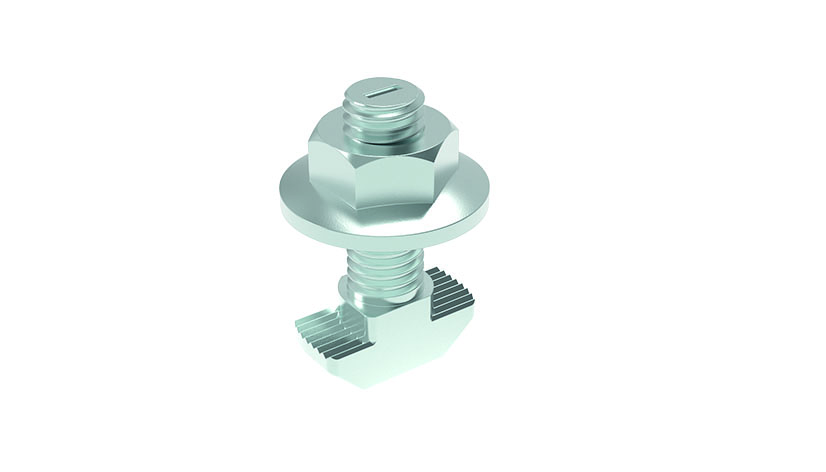

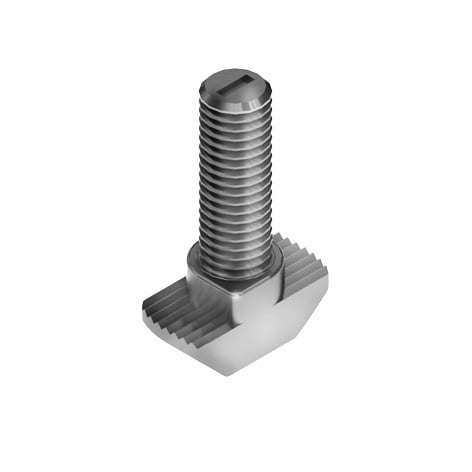

Hammer Head Screw Slot 10

B (mm): 9.7 | H (mm): 1.5 | Material: Steel | Profile: - | Size M x L (mm): *M8 x 30 | h (mm): 5.8

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Steel / stainless steel SS316Specials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plainTip:Compatible Flange Nut see 340ME154 * Made of hammer nut with glued threaded rod

€0.00*

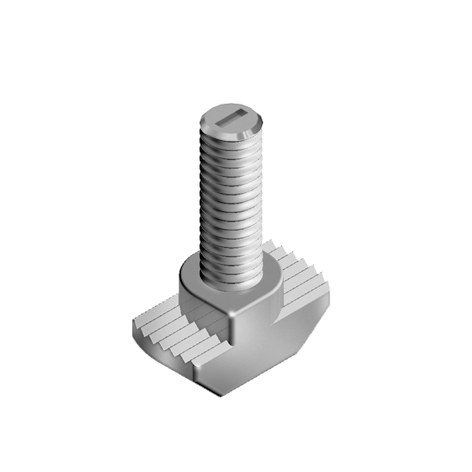

Hammer Head Screw Slot 8

H (mm): 1.5 | Material: Stainless steel | Profile: B | Size M x L (mm): *M6 x 40 | h (mm): 4.7

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Steel / stainless steel SS304Specials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plainTip:Compatible flange nut see 340ME154 * Made of hammer nut SS316 with glued threaded rod SS304

€0.00*

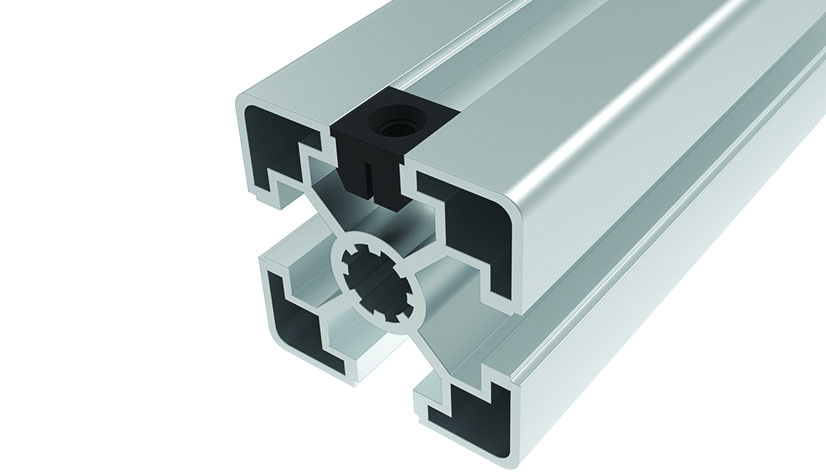

Hammer Nut PA Slot 8

Profile: I

Color:BlackDelivery Countries:WorldwideDescription:To fasten components to profiles; Thread being formed when a thread-cutting screw is turned into the plastic core hole, only suitable for low loadsMaterial:Plastic PA, glass fiber reinforced

€0.00*

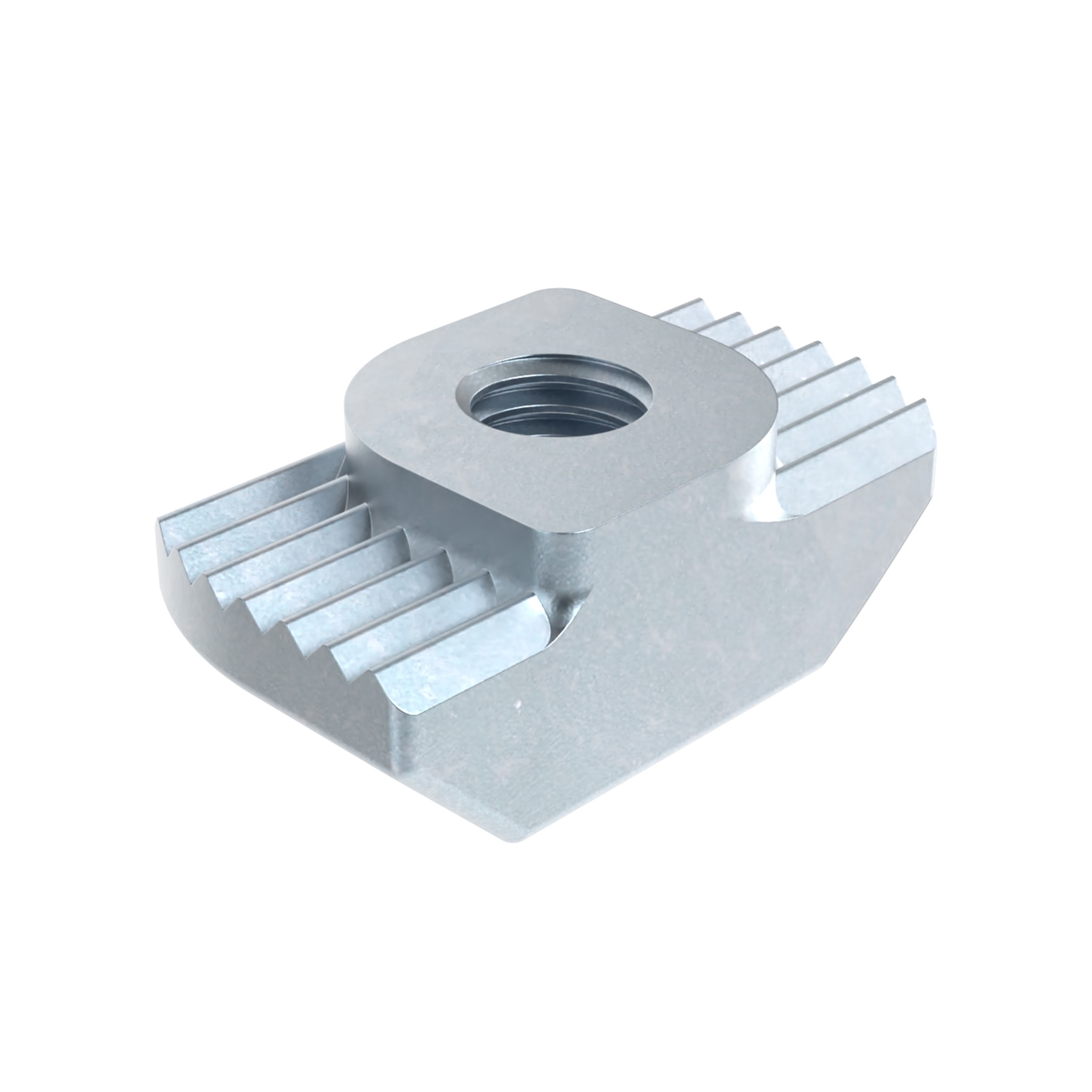

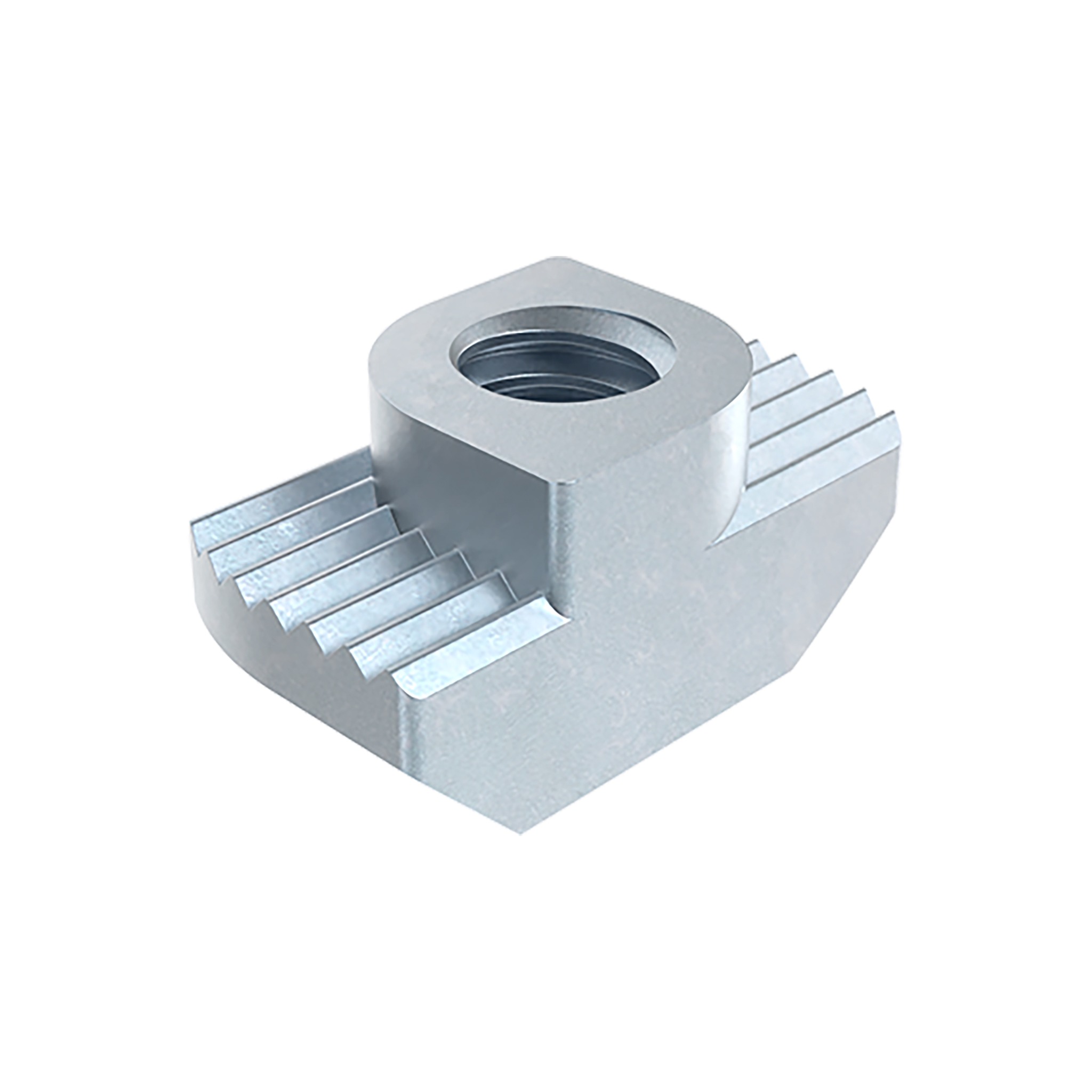

Hammer Nut Slot 10

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatic discharging connectionMaterial:Steel / stainless steelSpecials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: Zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plain

€0.00*

Hammer Nut Slot 10 with Turning Help

H (mm): 3.0 | M: M5 | Profile: B | Slot N (mm): 10

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection; with turning help: plastic thread locking dotMaterial:SteelSurface:Zinc plated

€0.00*

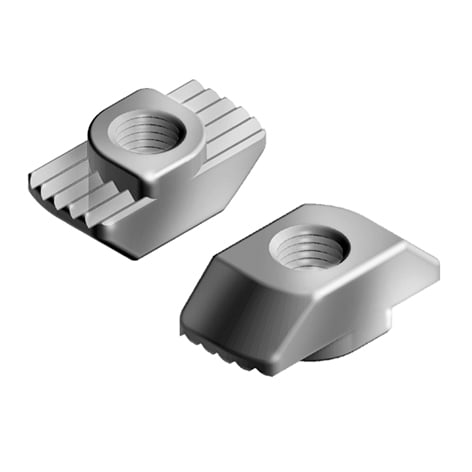

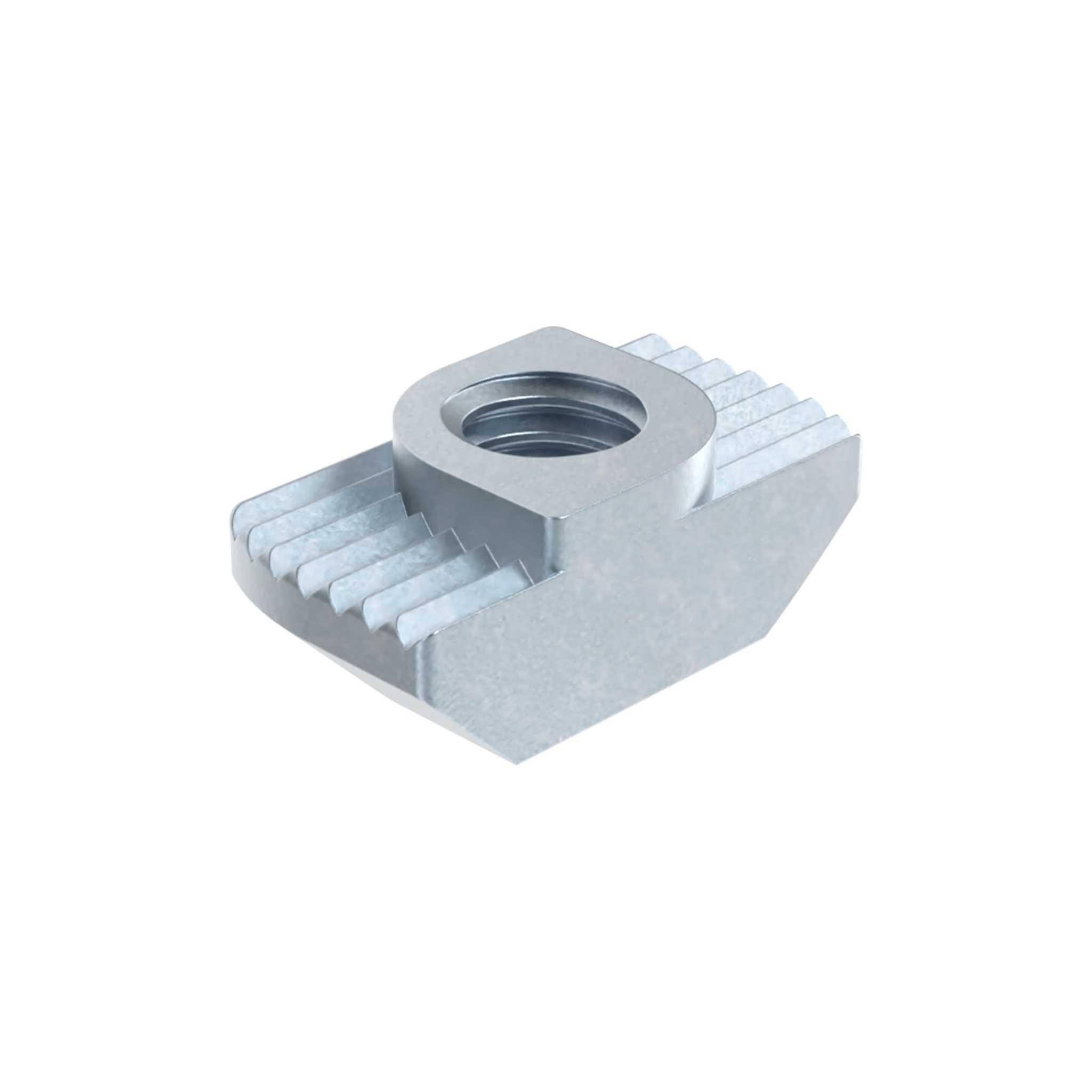

Hammer Nut Slot 6

H (mm): 1.0 | M: M4 | Material: Steel | Profile: B

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatic discharging connectionMaterial:Steel / stainless steel SS304Specials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plain

€0.00*

Hammer Nut Slot 8 with Turning Help, Step Height 1.5/3.0 mm

H (mm): 1.5 | M: M6 | Profile: B

€0.00*

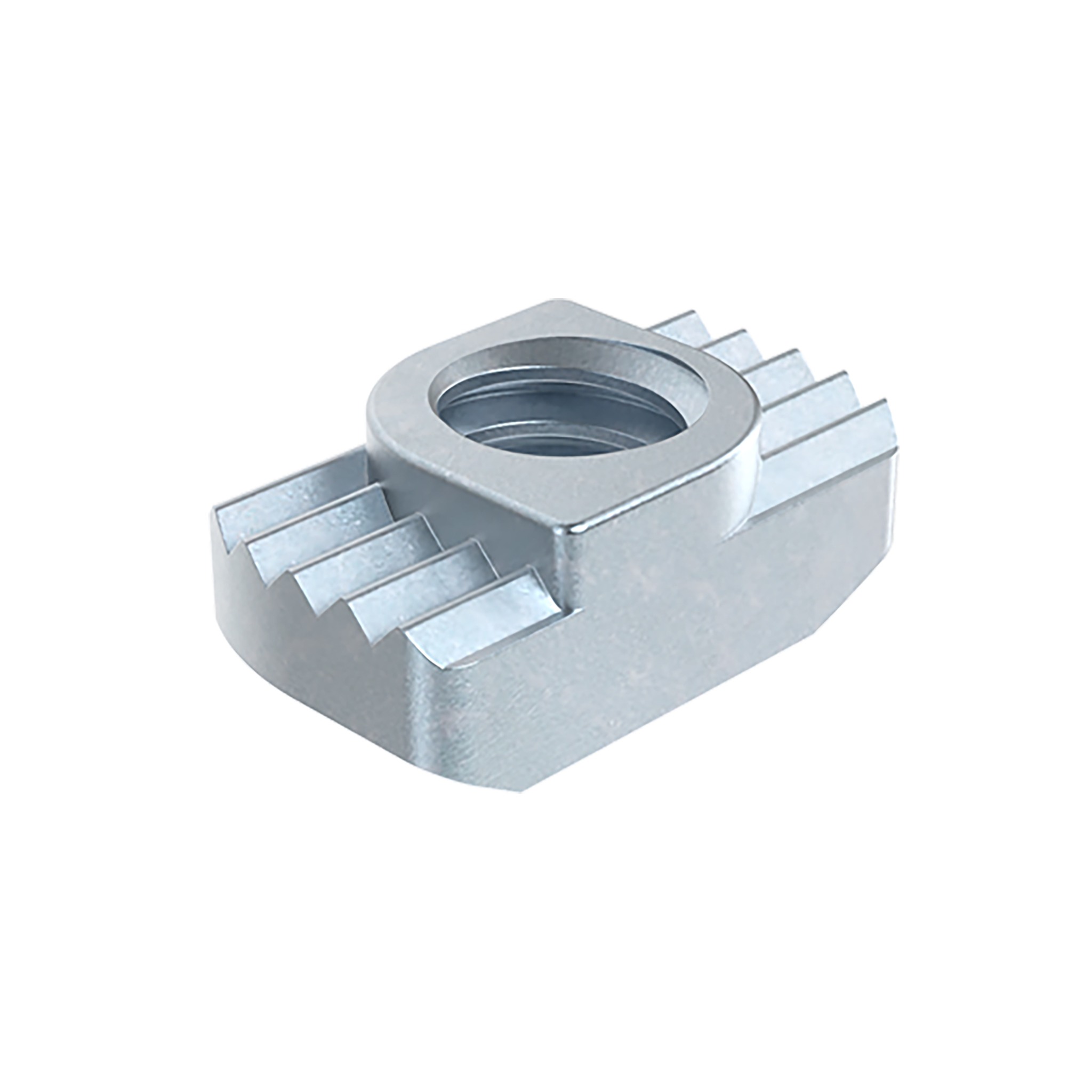

Hammer Nut Slot 8, Step Height 1.0 mm

H (mm): 1.0 | M: M6

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatic discharging connectionMaterial:SteelSpecials:Turning help: Thread pitch error or polyamide thread locking dot on request Surface: Zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated

€0.00*

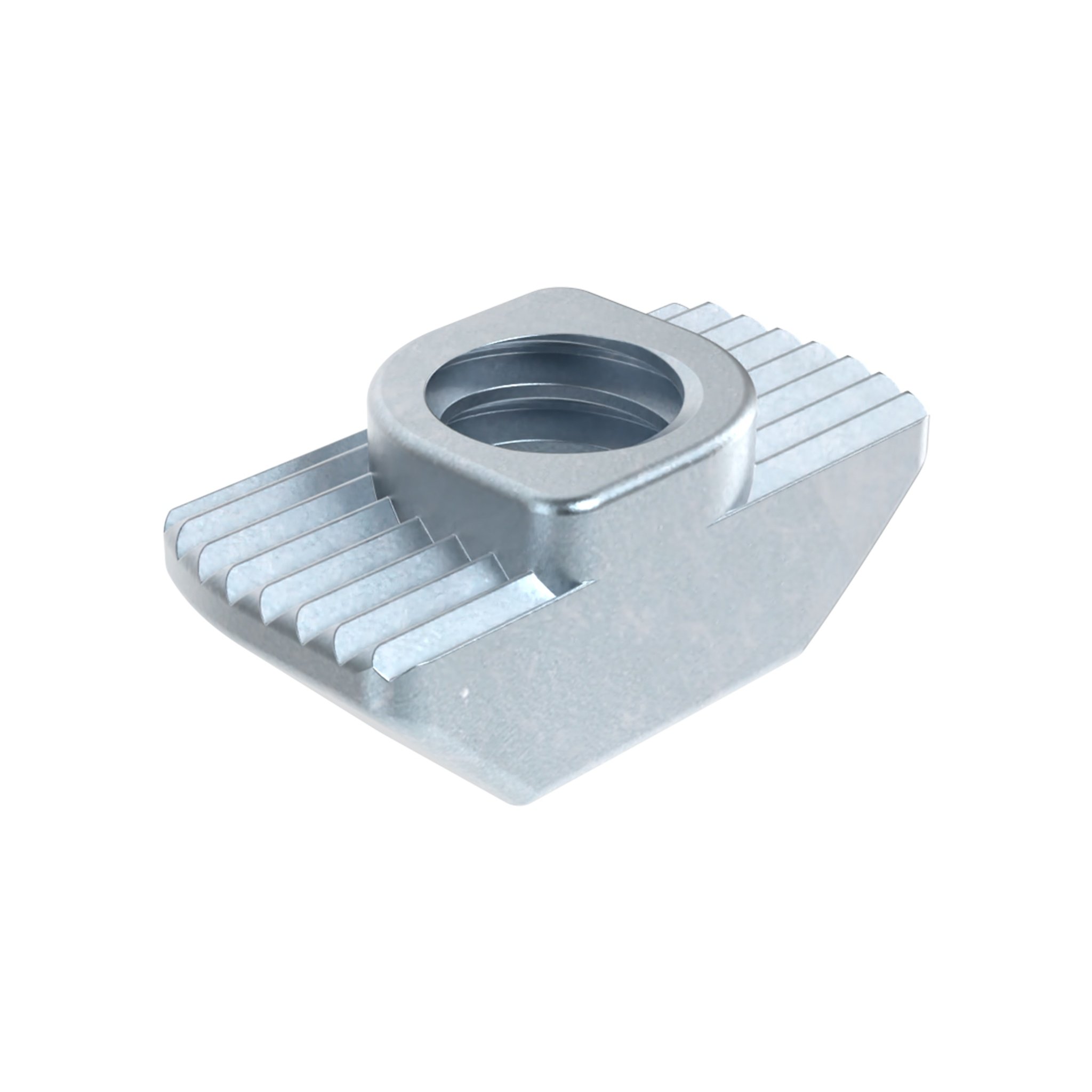

Hammer Nut Slot 8, Step Height 1.5/3.0 mm

H (mm): 1.5 | M: 1/4-20 UNC | Material: Steel | Profile: B | Slot N (mm): -

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatic discharging connectionMaterial:Steel / stainless steel SS304Specials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plain

€0.00*

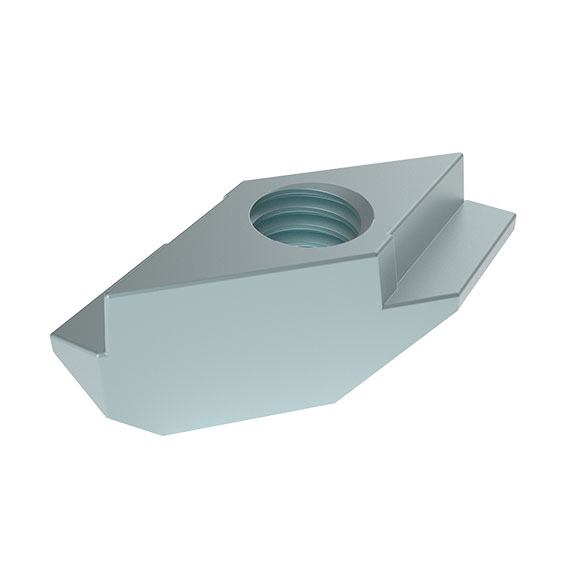

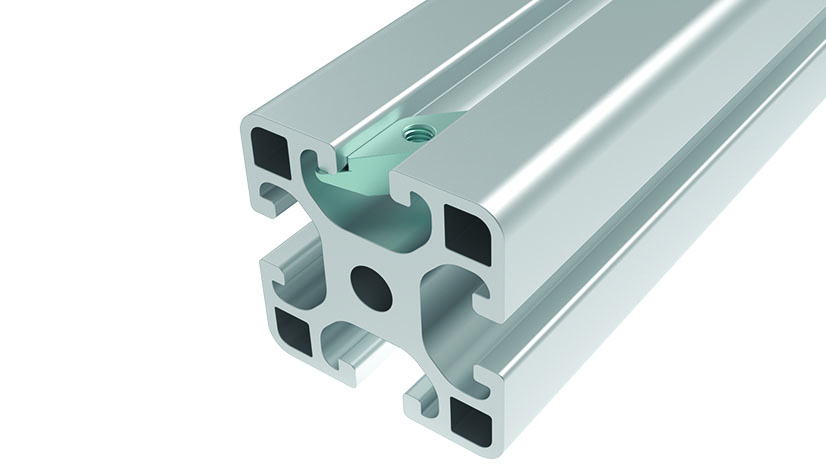

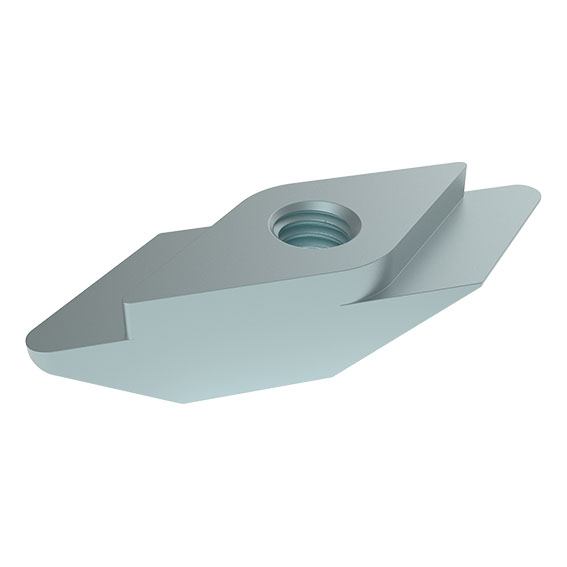

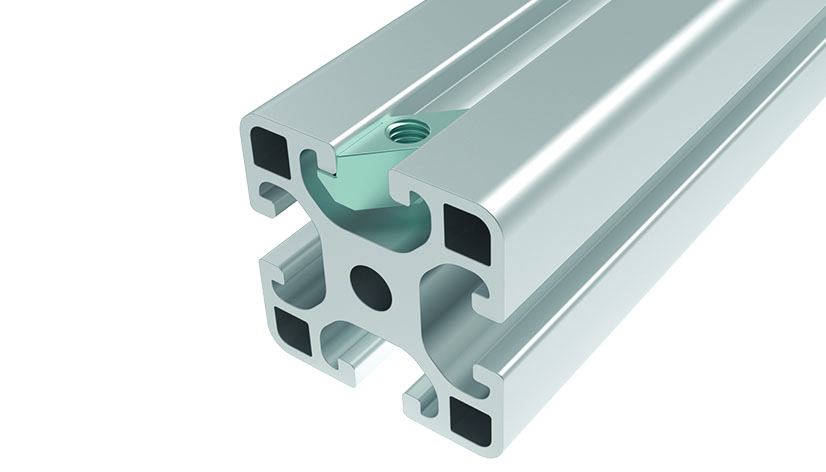

Rhombus Nut

A (mm): 6.0 | H (mm): 1.8 | M: M4 | Profile: B

Delivery Countries:WorldwideDescription:To fasten components to profiles, easy to insert, remains mobile in the slotMaterial:Zinc die-castSurface:Plain

€0.00*

Rhombus Nut with Locking

M: M4 | Profile: I

Delivery Countries:WorldwideDescription:To fasten components to profiles, locks by turning into the slotMaterial:Zinc die-castSurface:Plain

€0.00*

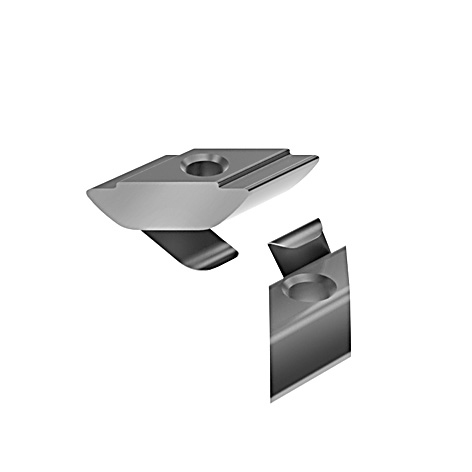

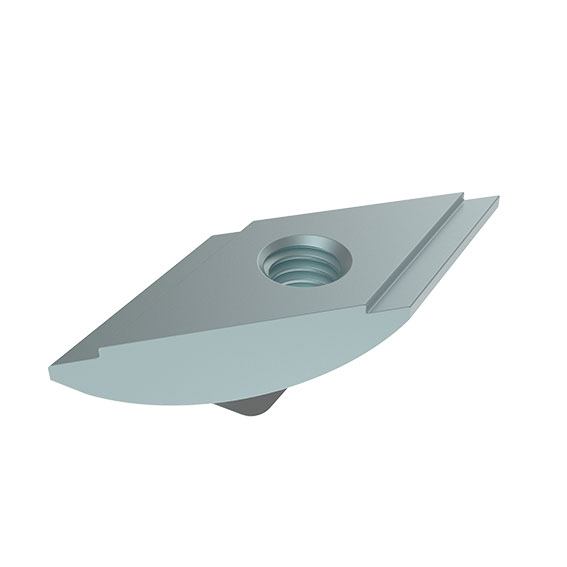

Rhombus T-slot Nut 10.8 x 3.6 mm with Spring Leaf

M: M5

Delivery Countries:WorldwideDescription:To fasten components to profiles, locks by turning into the slot; self-aligning, with spring leafMaterial:SteelSurface:Zinc plated

€0.00*

Rhombus T-slot Nut 12.5 x 6.0 mm with Spring Leaf

M: M4

Delivery Countries:WorldwideDescription:Self-aligning turn-in T-slot nut with spring leafMaterial:SteelSpecials:Other sizes on requestSurface:Zinc plated

€0.00*

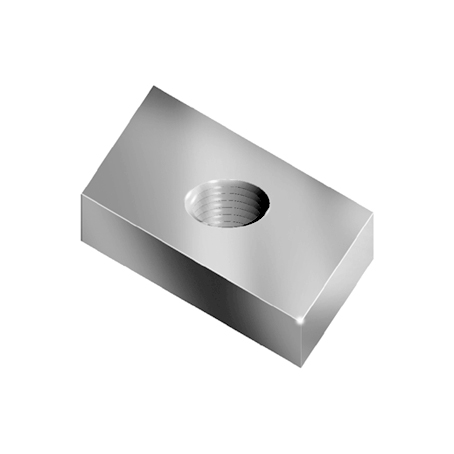

Rhombus Threaded Plate

Dimensions L x B x H (mm): 19 x 13 x 5 | M: M8 | Opening Angle: 30°

Delivery Countries:WorldwideDescription:To fasten components with a screwMaterial:SteelSurface:Zinc plated

€0.00*

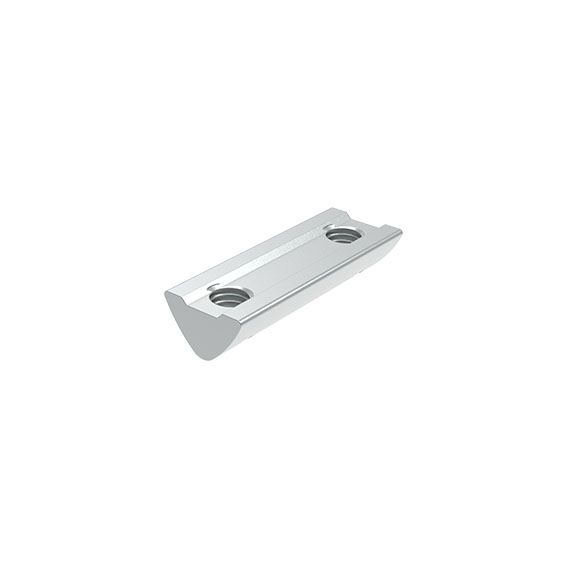

Roll-in Double T-slot Nut 10.5 x 5.6 mm

A (mm): 47.0 | L (mm): 58.0 | M: M6 | Profile: I

Delivery Countries:WorldwideDescription:Roll-in Double T-slot nut; ESD electrostatical discharging version with two notches on one front endMaterial:SteelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Zinc plated

€0.00*

Roll-In Double T-Slot Nut 13.7 x 7.0 mm

M: M6 | Profile: I

Delivery Countries:WorldwideDescription:Roll-in double T-slot nut with spring loaded ballMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain

€0.00*

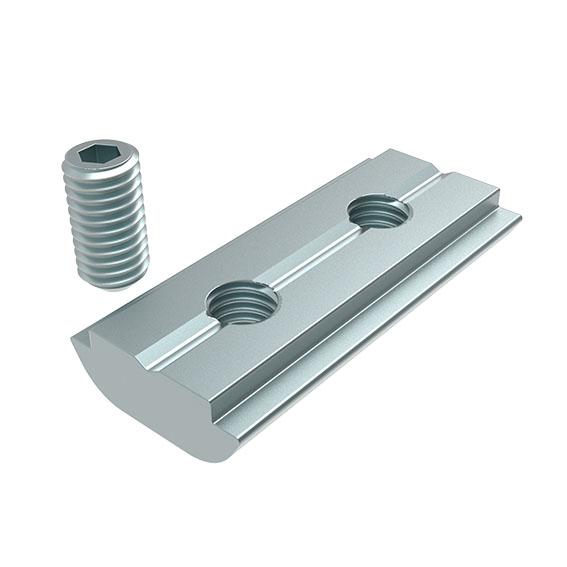

Roll-in Double T-slot Nut 14.0 x 5.2 mm (Set)

A (mm): 14.0 | L (mm): 30.0 | M: M5 | Profile: B

Delivery Countries:WorldwideDescription:Roll-in double T-slot nut, incl. 1 hexagon socket set screw for shake-proof fixation in all positionsMaterial:Double T-slot nut: Steel Hexagon socket set screw: SteelSet:1 roll-in double T-slot nut 14.0 x 5.2 mm 1 hexagon socket set screw DIN EN ISO 4029 (DIN 916) - M5 x 30Surface:Double T-slot nut: Zinc-plated Hexagon socket set screw: Zinc-plated

€0.00*

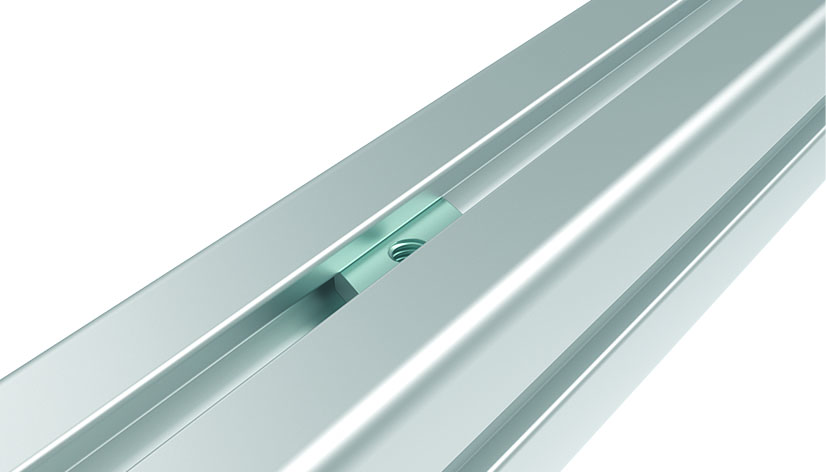

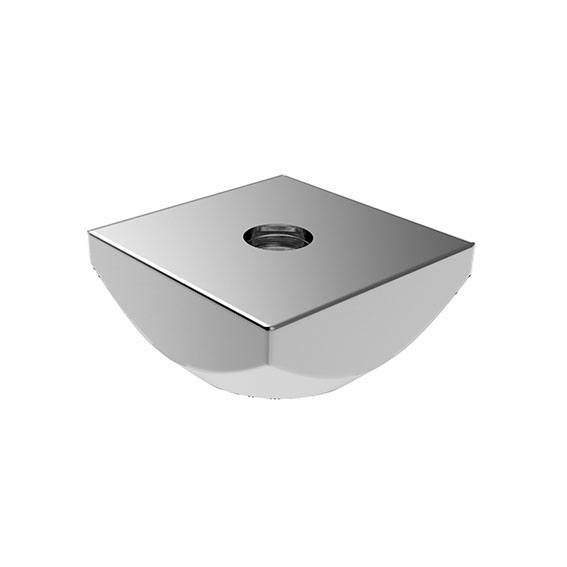

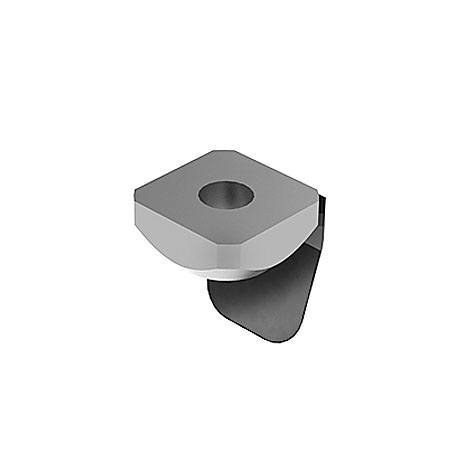

Roll-in Slot Nut 13.0 x 13.0 x 6.0 mm

M: M6

Delivery Countries:WorldwideDescription:Roll-in slot nutMaterial:SteelSurface:Zinc plated

€0.00*
