Latches

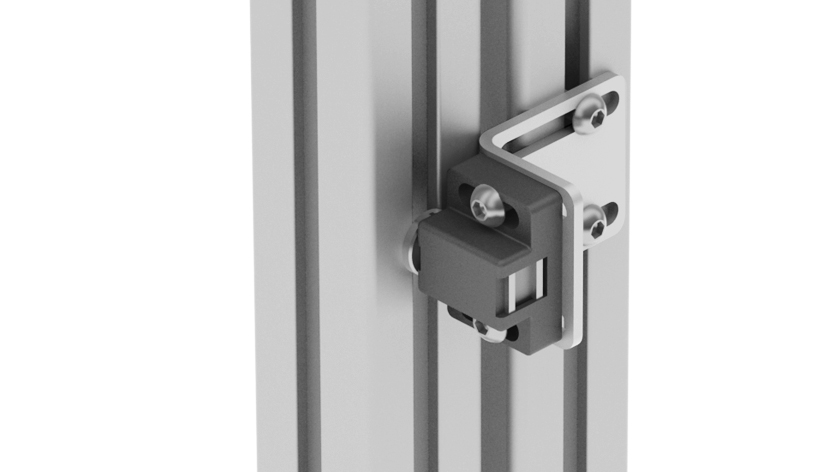

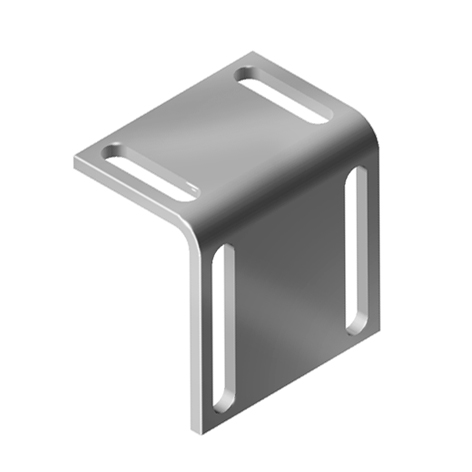

Angle Bracket for Ball Catch 30
€0.00*
Dimensions (mm):
50 x 50 x 35
Delivery Countries:WorldwideDescription:To position the ball catchMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

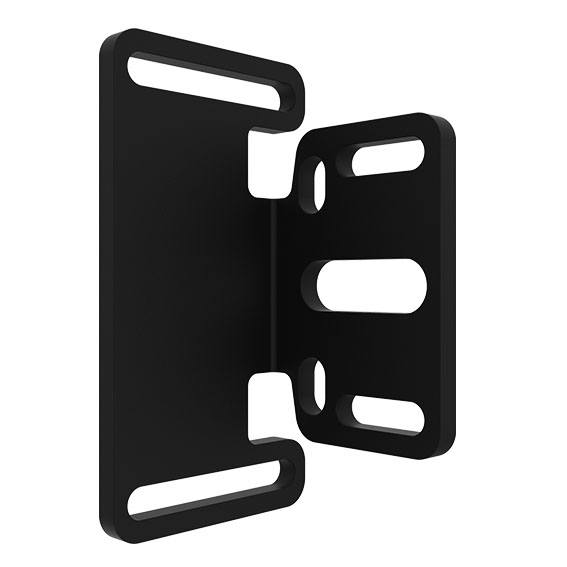

Angle Bracket for Ball Catch 30 / Safety Switch AZ 16
€0.00*
Profile:
I
Color:BlackDelivery Countries:WorldwideDescription:To flexibly position the housing or ball pin of the ball catch 30 or a safety switch Schmersal AZ 16Material:SteelSpecials:Other sizes, other surfaces on requestSurface:Powder coatedTip:Compatible Ball Catch 093043, 093043S02, 093045, 093045S03

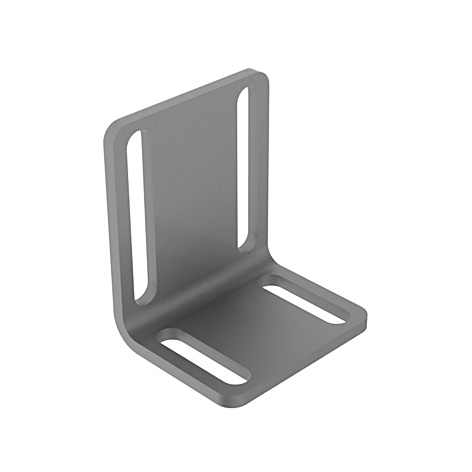

Angle Bracket for Magnetic Catch 30
€0.00*
Delivery Countries:WorldwideDescription:To versatile position the magnetic catch 30 Material:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

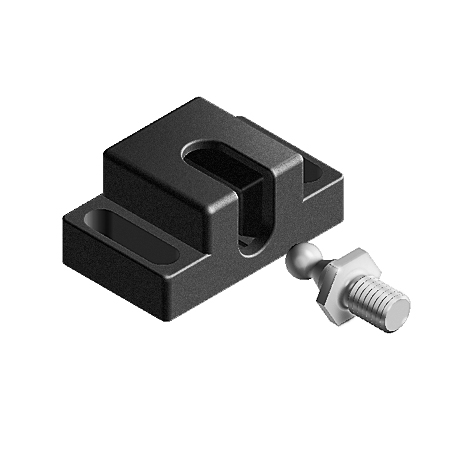

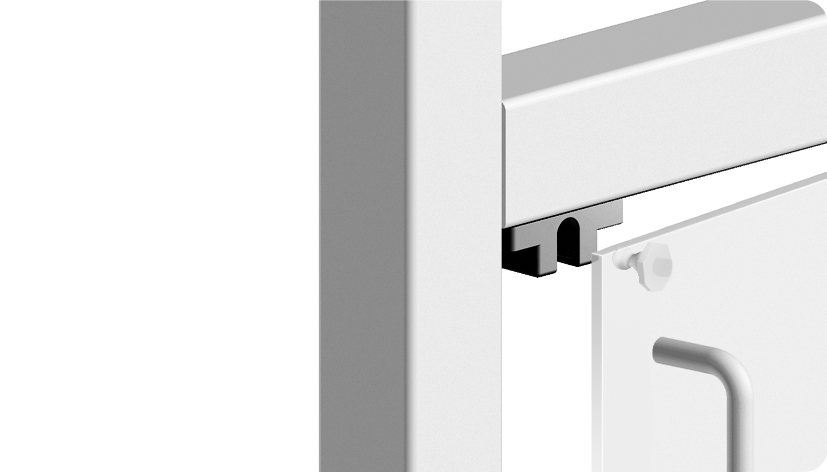

Ball Catch 30
€0.00*
Color:
Black
|
Counter Screw:
Stainless steel
|
Locking Force:
~ 40 N
|
Version:
Light
Color:Black, grayCounter Screw:M8 x 12, zinc plated steel / stainless steel SS 304Delivery Countries:WorldwideDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on request

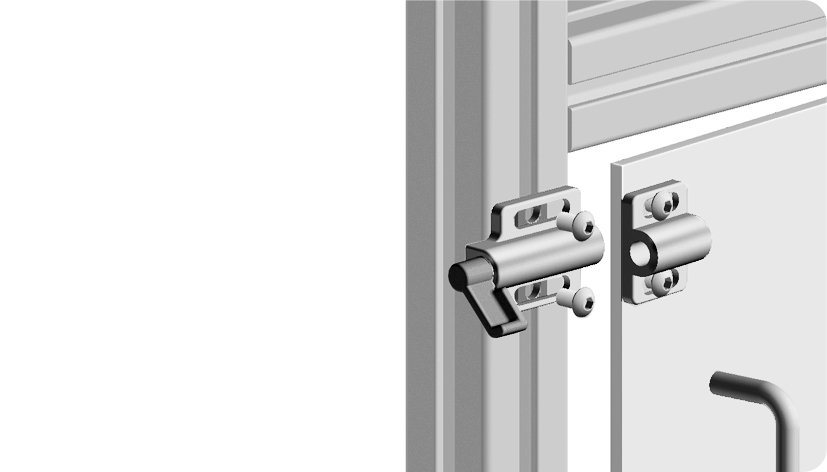

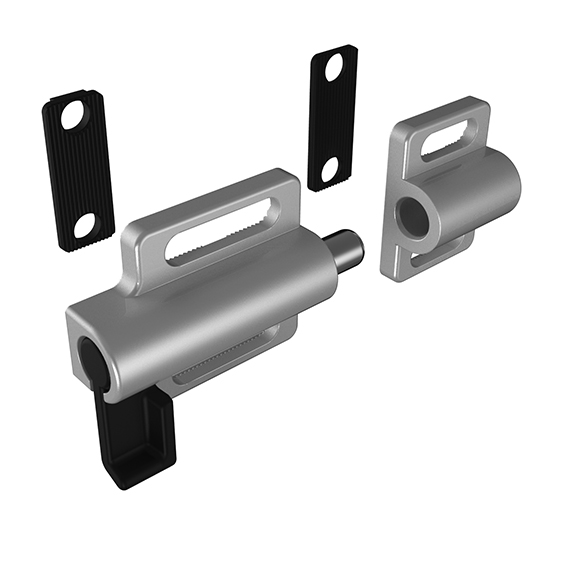

Door Latch
€0.00*
Slot N (mm):
8 / 10
Color:Housing: Alu color Handle: BlackDelivery Countries:WorldwideDescription:For easy closing of doors and flaps, with spring-loaded clamp; including separate slot fixation stripsMaterial:Housing: Zinc die-cast Pull handle: Plastic PA, Bolt: Stainless steelSurface:Powder coated

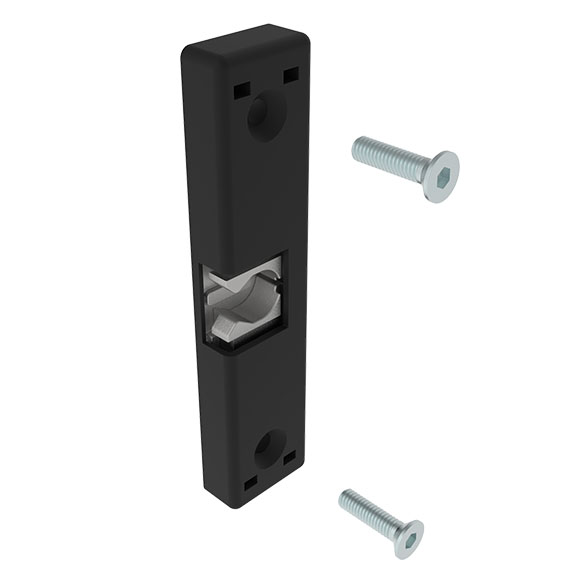

Door Latch (Set)
€0.00*
Locking Force:
≈ 50 N
Color:BlackCounter Screw:(not included in delivery) 1 cylinder head screw DIN EN ISO 4762 (DIN 912) - M6 - thread lengh depending on gap distance and slot depth, screw head dives competely into the door latchDelivery Countries:WorldwideDescription:Quick fastener for swing doors, to be mountend in a min. 12 mm gap between door and postMaterial:Door latch: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced 2 countersunk screws M4: SteelSet:1 door latch, 2 screws DIN EN ISO 10642 (DIN 7991) - M4 x 16Specials:Other materials, other colors on requestSurface:Door latch: Plain 2 countersunk screws M4: Zinc plated

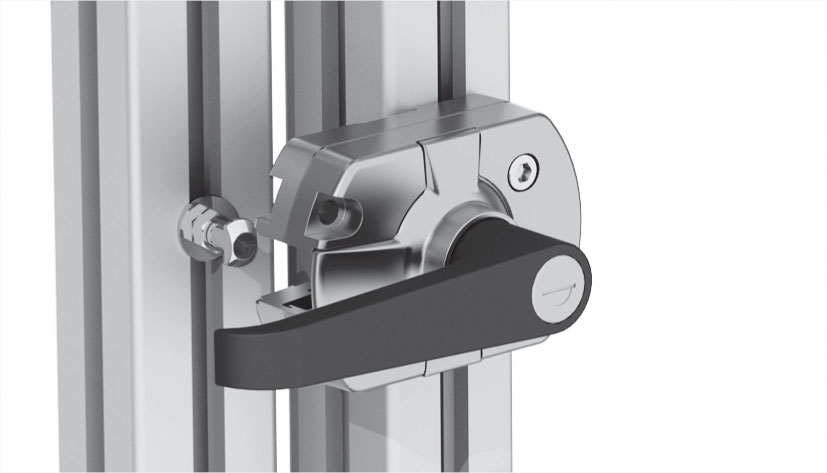

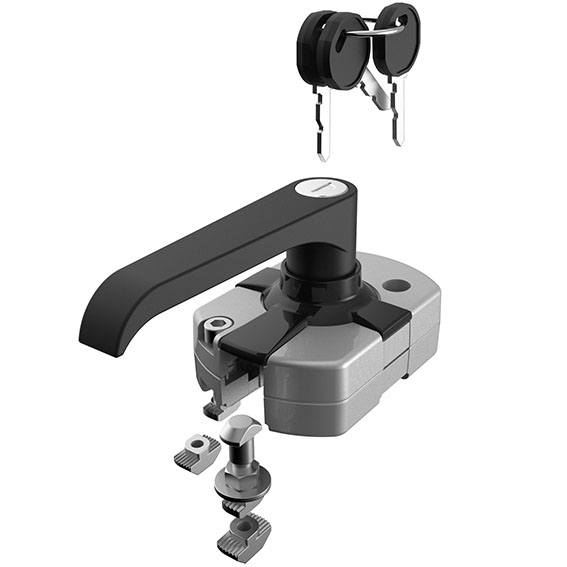

Door Lock (Set)
€0.00*
Lock:
Universal*
Color:Housing: Alu color Cross: Lack Handle: BlackDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of swing and sliding doors, no mechanical preparation needed for the assemblyMaterial:Housing: Aluminum die-cast Cross: Aluminum die-cast Handle: Zinc die-cast Fastening material: SteelSet:1 door lock, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 washer 6-FSt, 1 anchor - M6, 1 nut DIN EN ISO 4032 (DIN 934) - M6, 1 washer DIN EN ISO 7093 (DIN 9021) - 6.4, 3 hammer nut - slot 8 - M6, 3 hammer nut - slot 10 - M6Surface:Housing: Lacquered Cross: Powder coated Handle: Plastic coated Fastening material: Zinc platedTip:* Universal: One key fits all slam latches Unique: Each door lock has a different key ** With double-bitted key

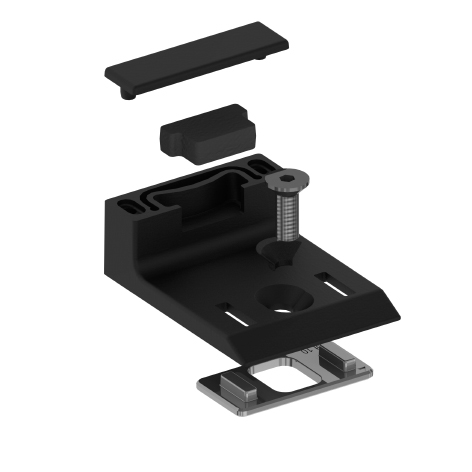

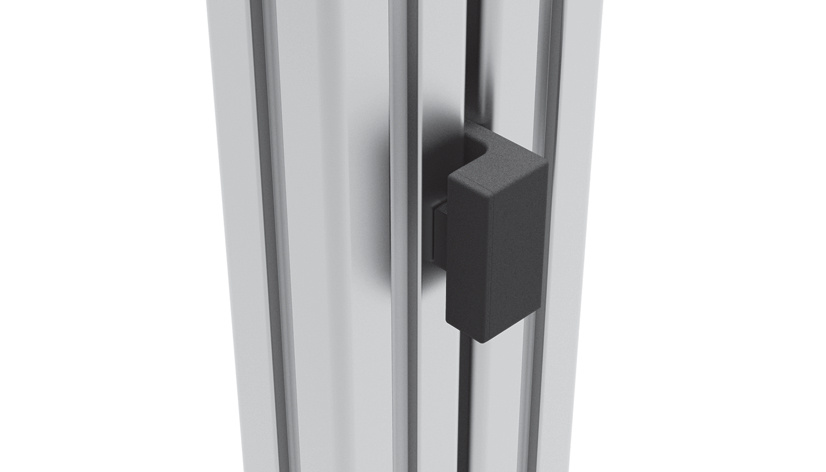

Door Stop with EPDM Damper (Set)
€0.00*
Slot N (mm):
8 / 10
Color:Door stop: Black Damper: Black Fixation element: BlackDelivery Countries:WorldwideDescription:Easy to mount stop for doors and flapsMaterial:Door stop: Plastic PA, glass fiber reinforced Damper: EPDM, ≈ 70 Shore A Locating pin: Zinc die-cast Screw: Steel Fixation element: Plastic PA, glass fiber reinforcedSet:1 Door stop with EPDM Damper 1 Locating pin 1 Screw DIN EN ISO 10642 (DIN 7991) - M5 x 14, 1 Fixation elementSpecials:Other colors on requestSurface:Locating pins: Plain Screw: Zinc plated

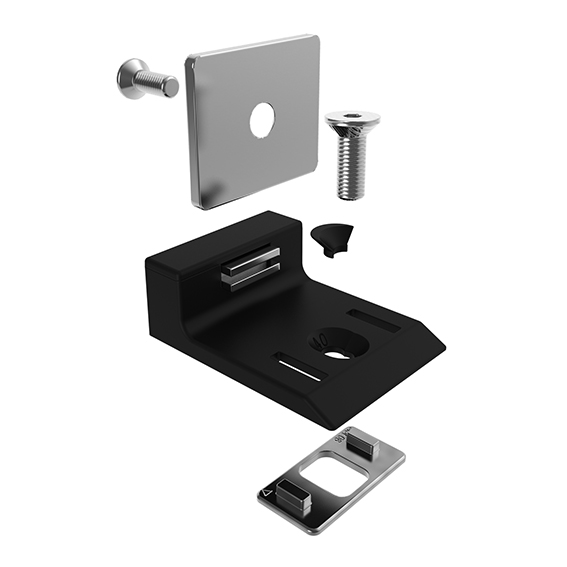

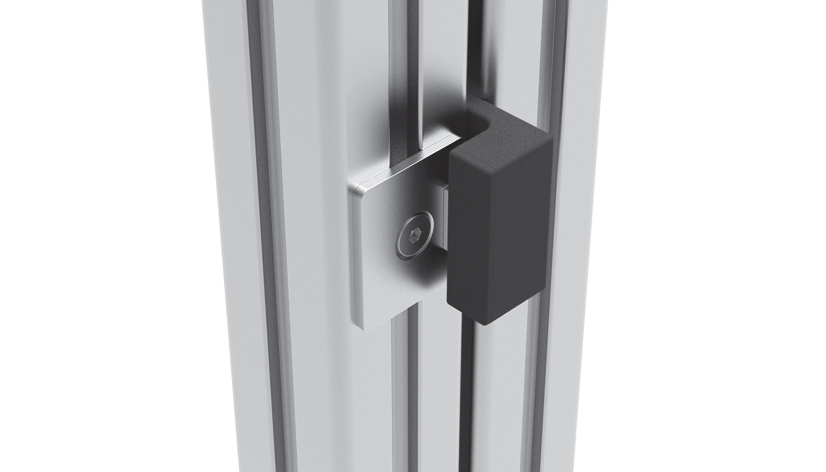

Door Stop with Magnetic Catch (Set)
€0.00*
Locking Force (N):
30
|
Slot N (mm):
8 / 10
Color:Door stop: Black Fixation element: BlackDelivery Countries:WorldwideDescription:Easy to mount stop for doors and flapsMaterial:Door stop: Plastic PA, glass fiber reinforced Magnet: Neodym Counter Plate: Steel Locating pin: Zinc die-cast Screws: Steel Fixation element: Plastic PA, glass fiber reinforcedSet:1 Door stop 1 Counter Plate 1 Locating pin 2 Screws DIN EN ISO 10642 (DIN 7991) - M5 x 14, 1 Fixation elementSpecials:Other colors on requestSurface:Magnet: Plain Counter Plate: Zinc plated Locating pins: Plain Screws: Zinc plated

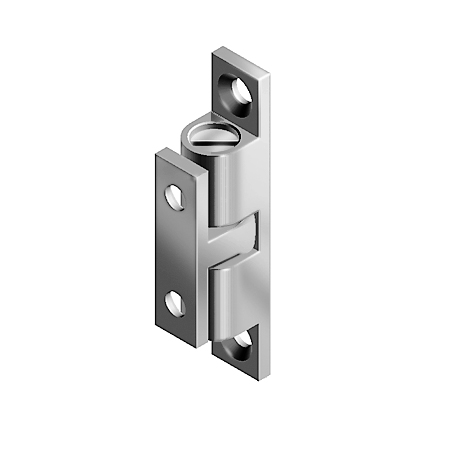

Double Ball Catch MS
€0.00*
A1 (mm):
49.0
|
A2 (mm):
29.5
|
B1 (mm):
8.8
|
B2 (mm):
7.9
|
C1 (mm):
40.0
|
C2 (mm):
20.0
|
D1 (mm):
13.0
|
D2 (mm):
10.8
|
Screw:
M3
Color:ChromeDelivery Countries:WorldwideDescription:Quick catch for doors, adjustable clamping force, 2 possible positions (sideways / from the front)Material:Body: Brass Threaded pin: Steel Spring: Stainless steel Ball: Stainless steelSurface:Chrome plated

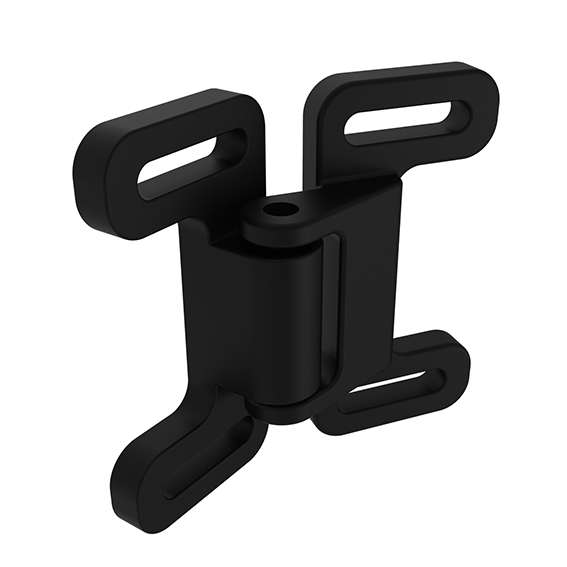

Double Ball Catch PA
€0.00*
Color:
Gray ≈ RAL 7004
|
ESD:
-
|
Locking Force (N):
25
Color:Black, grayDelivery Countries:WorldwideDescription:A quick locking device for doors and flaps with and without frameMaterial:Housing standard version: Plastic PA, glass fibre reinforced Housing ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Ball: Stainless steel Bushing: Steel, zinc platedSpecials:Other colors on request

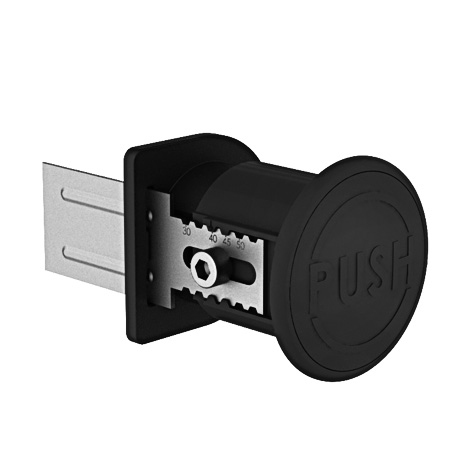

Emergency Opener for Slam Latch
€0.00*
P (mm):
30-50
|
Version:
Without safety catch
|
t (min.) (mm):
30
Color:Base part: Black Push button: Red ≈ RAL 3020Delivery Countries:WorldwideDescription:Inside emergency release for slam latches PRO and Compact; with or without safety catchMaterial:Base part: Plastic PA, glass fiber reinforced Push button: Plastic PA, glass fiber reinforced Unlocking plate: SteelSurface:Unlocking plate: Zinc platedTip:Recommendation for slide door latch Compact 0957415 et sq.: Emergency opener for slam latch with safety catch and an inside mounted handle; Not compatible with slam latch 0957101 et sq.

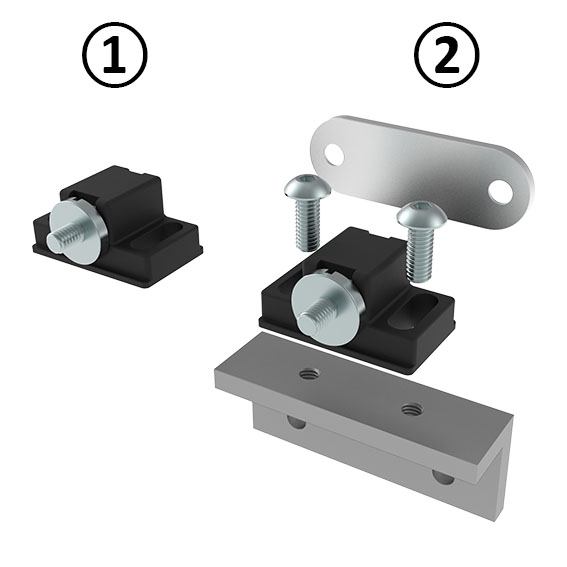

Magnetic Catch 20 (Set)
€0.00*
Fig.:
②
|
Locking Force:
Approx. 5 N front / 3 N back
|
Set:
Set 2
Color:Magnetic catch: BlackDelivery Countries:WorldwideDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsMaterial:Magnetic catch: Plastic PA, glass fiber reinforced Assembly set: Steel Angle bracket: AluminumSet 1:1 magentic catch 20, 1 pan head screw DIN 921 - M4 x 5Set 2:1 magentic catch 20, 1 counter plate 14 x 41 x 2 mm, 2 screws DIN EN ISO 7380 (DIN 34805) - M4 x 10, 1 angle bracketSpecials:ESD electrostatical discharging, other sizes, other colors on request

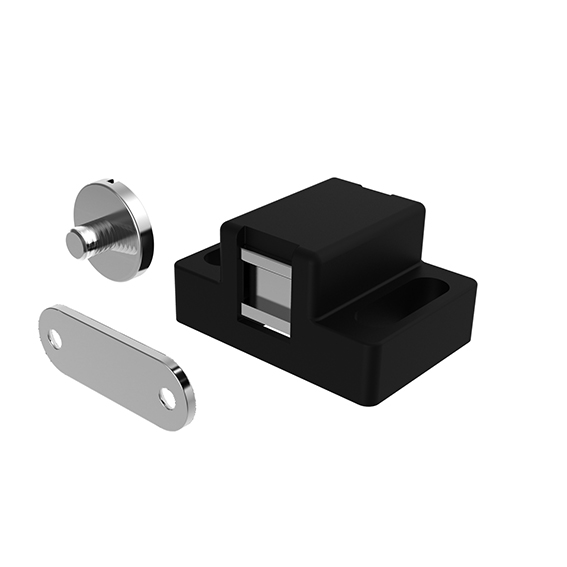

Magnetic Catch 30 (Set)
€0.00*
Color:
Black
|
Locking Force:
Approx. 20 N front / 10 N back
|
Set:
Set (2)
Color:V_Magnetic catch: Black, grayDelivery Countries:WorldwideDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsMaterial:Magnetic catch: Plastic PA, glass fiber reinforced Assembly set: SteelSet 1:1 magnetic catch 30, 1 flat head screw DIN 921 - M5 x 6Set 2:1 magnetic catch 30, 1 flat head screw DIN 921 - M5 x 6, 1 counter plate 14 x 41 x 2 mmSpecials:ESD electrostatical discharging, other sizes, other colors on requestSurface:Assembly set: Zinc plated

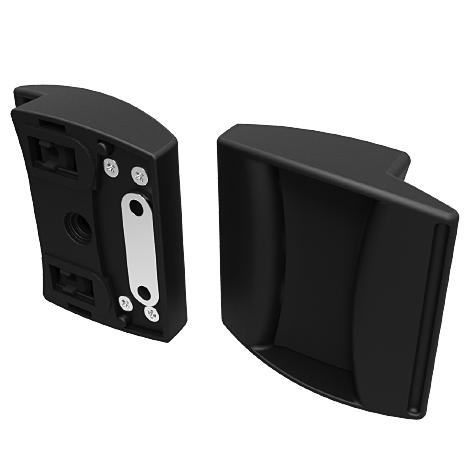

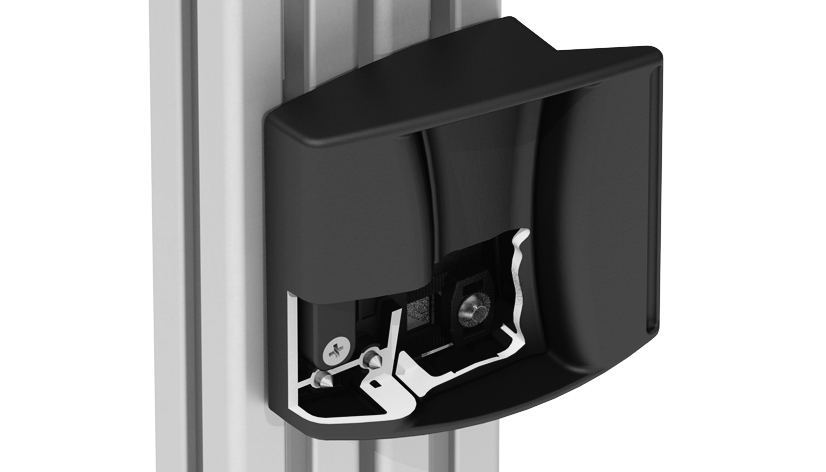

Magnetic Catch Handle COMPACT
€0.00*
Locking Force:
25 N
Color:Catch handle: Black Buffer: BlackDelivery Countries:WorldwideDescription:Quick fastener for doors; adjustableMaterial:Catch handle: Plastic PA, glass fiber reinforced Buffer: TPE, ≈ 90 Shore A Magnet: Neodymium Spring: Stainless steel Counter plate: SteelSpecials:Other colors on requestSurface:Spring: Plain Counter plate: Zinc plated

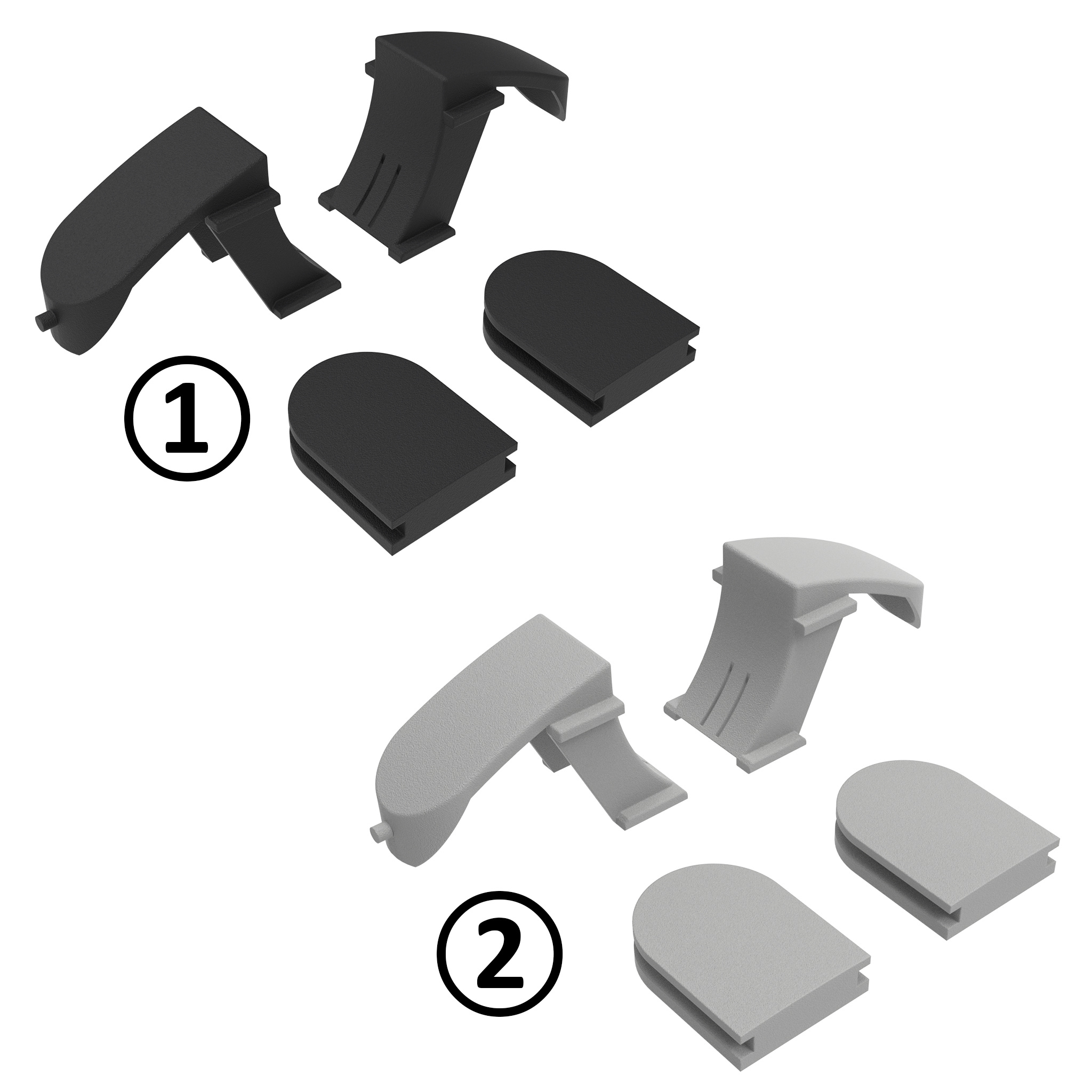

Replacement Cover Cap for Slam Latch COMPACT and Slide Door Latch COMPACT
€0.00*
Color:
Black
|
Fig.:
①
Color:Black, aluminum colorDelivery Countries:WorldwideDescription:To cover and protect the Slam Latch attachmentMaterial:Plastic PASurface:Powder coatedTip:Compatible Slam Latch Compact see 0957408 Compatible Slide Door Latch Compact see 0957415

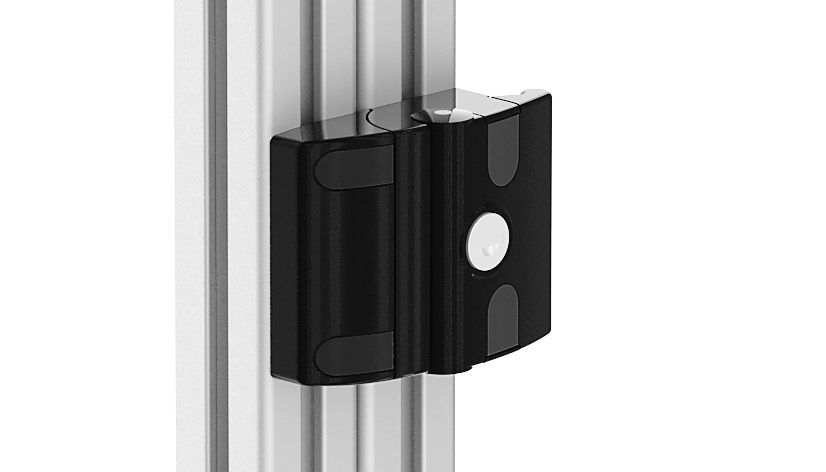

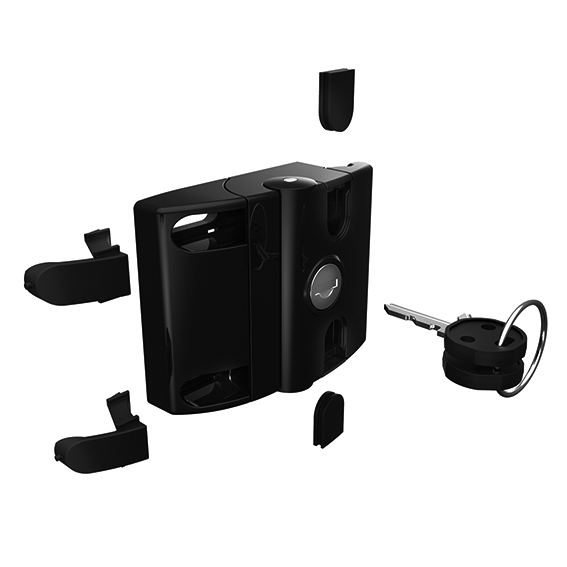

Slam Latch COMPACT
€0.00*
Color:
Black
|
Lock:
without
|
Version:
Black powder coated
Color:Black, aluminum colorDelivery Countries:WorldwideDescription:V_For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly; safe against disassembling in the locked positionMaterial:Aluminum die-castSurface:Powder coatedTip:* Universal: One key fits all slam latches Unique: Each slam latch has a different key; ** With double-bitted key Compatible Emergency Opener for Slam Latch see 0957409 et sq.Tip 2:Compatible Replacement Cover Cap (Set) see 0957408RS01

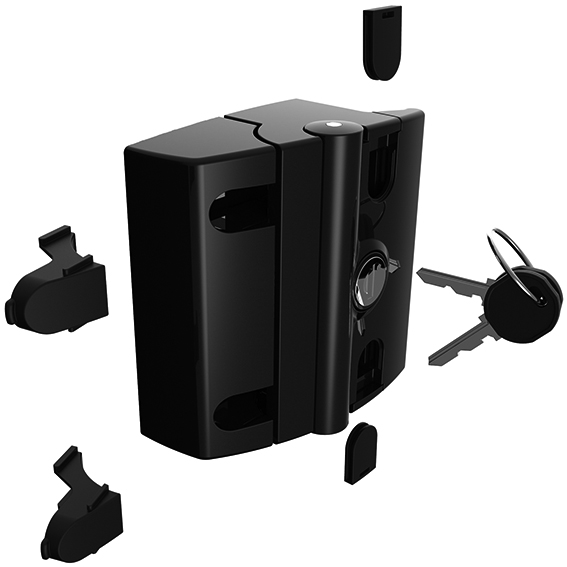

Slam Latch PRO
€0.00*
Lock:
without
Color:BlackDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly; Safe against disassembling in the locked positionMaterial:Aluminum die-castSurface:Powder coatedTip:* Universal: One key fits all slam latches Unique: Each slam latch has a different key Compatible Emergency Opener for Slam Latch see 0957409 et sq.; Compatible Replacement Cover Cap (Set) see 0957404RS01

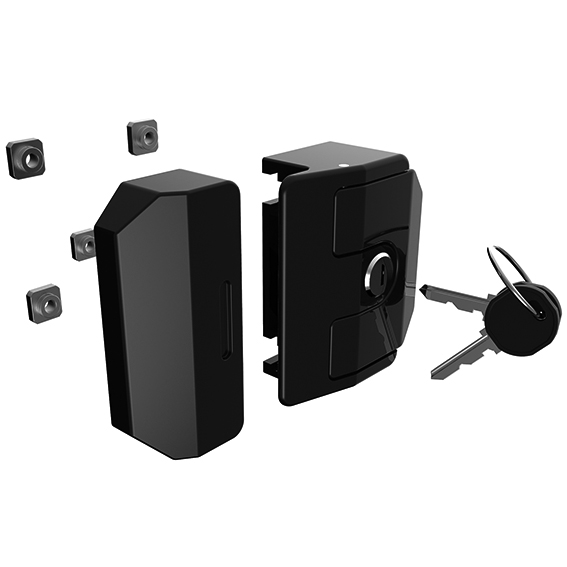

Slam Latch ZN
€0.00*
Lock:
Universal*
Color:BlackDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of doors and flapsMaterial:Zinc die-castSurface:Powder coatedTip:* Universal: One key fits all slam latches Unique: Each slam latch has a different key

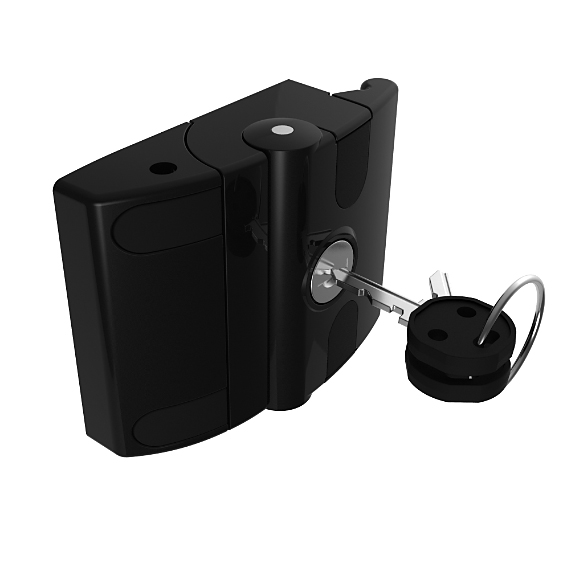

Slide Door Latch COMPACT
€0.00*
Color:
-
|
Fig.:
-
|
Lock:
without
|
Version:
-
Color:BlackDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of sliding doors, no mechanical preparation needed for the assembly; safe against disassembling in the locked positionMaterial:Aluminum die-castSurface:Powder coatedTip:* Universal: One key fits all slam latches Unique: Each slam latch has a different key Compatible Emergency Opener for Slam Latch with Safety Catch see 0957409S02, additional inside mounted handle recommended Compatible Replacement Cover Cap (Set) see 0957408RS01

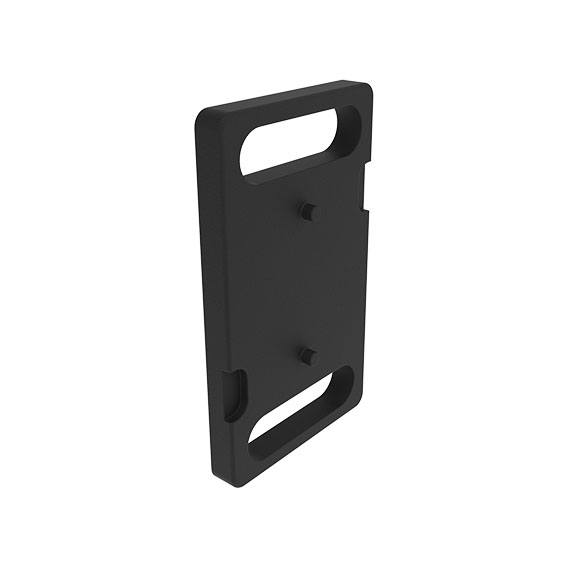

Spacer for Ball Catch 30
€0.00*
H (mm):
4.0
Color:BlackDelivery Countries:WorldwideDescription:To increase the distance to the aluminum profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on request

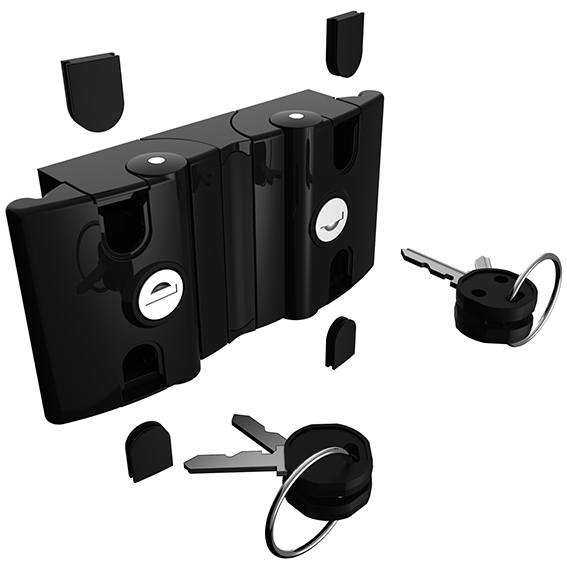

Twin Slam Latch COMPACT
€0.00*
Lock:
Universal*
|
Slot N (mm):
8 / 10
Color:BlackDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly; Safe against disassembling in the locked position; Provides selective access by use of a single post; With separate locating pins for slot 8 and slot 10Material:Aluminum die-castSpecials:Other combinations of slam latches on requestSurface:Powder coatedTip:* Universal: One key fits all slam latches Unique: Each slam latch has a different key Compatible Emergency Opener for Slam Latch see 0957409 et sq.; Compatible Replacement Cover Cap (Set) see 0957420RS01.
