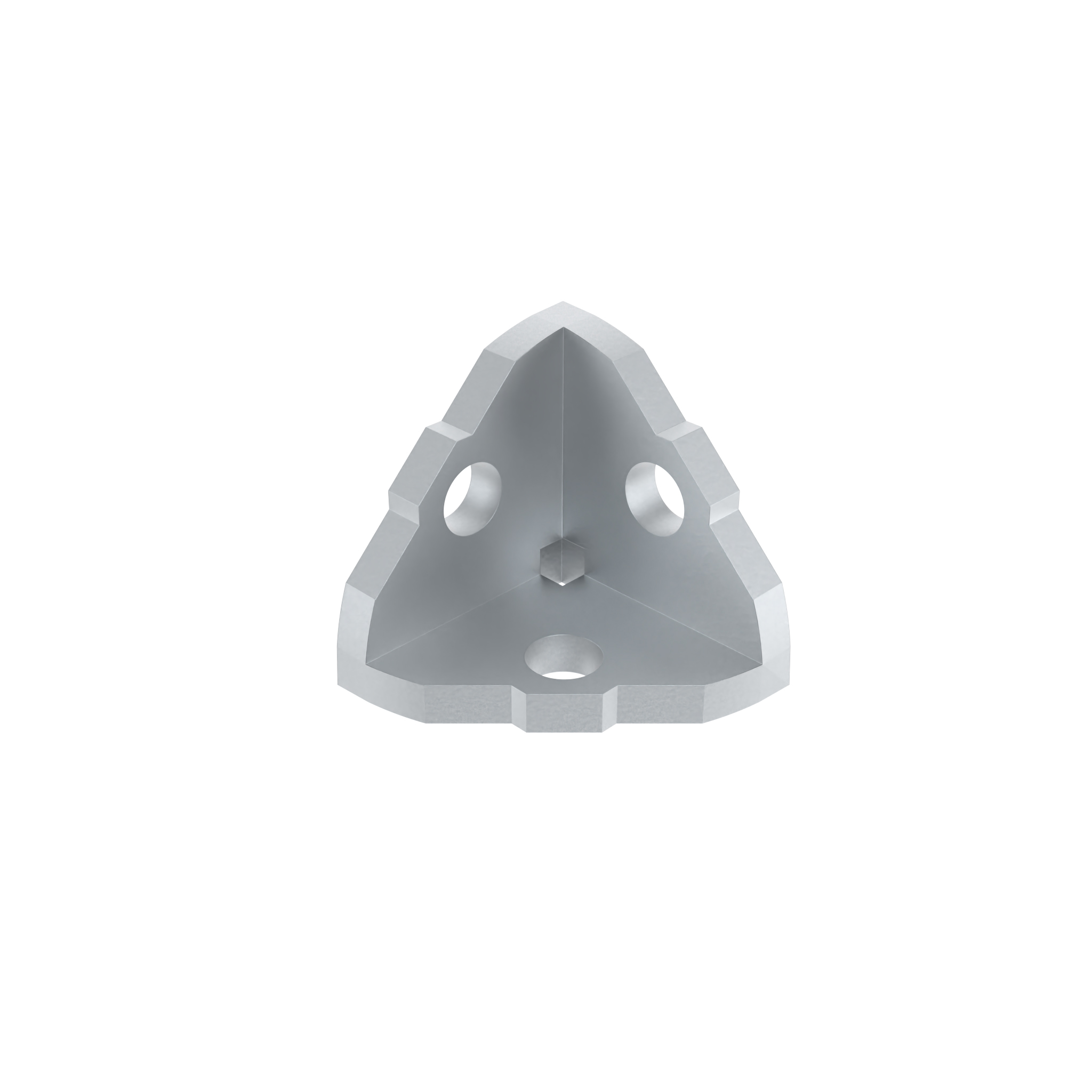

3-way Connection Angle 38 - 1.5"

Slot N (mm): 8 | for Screw: M8

Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesMaterial:Zinc die-castSurface:PlainZolltarifnummer:79070000900

€0.00*

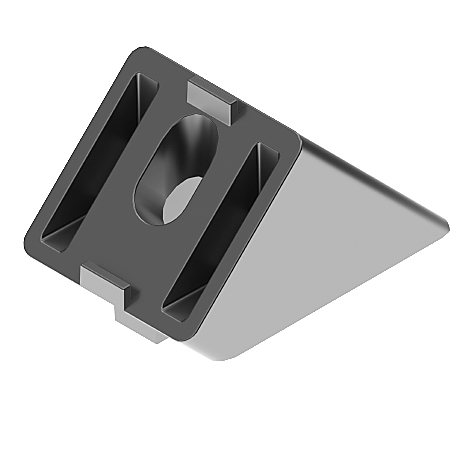

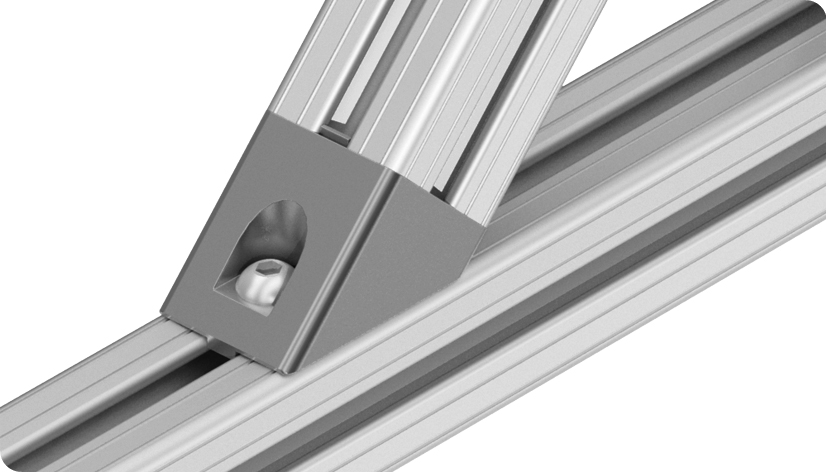

Angle Connector 25 - 1", 45°

Color: Alu color | Slot N (mm): 6.5 (0.256“) | Surface: Powder coated | for Screw: 1/4"-20

Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coatedZolltarifnummer:76169910990

€0.00*

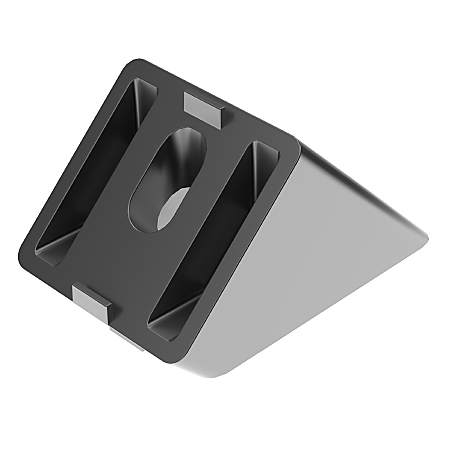

Angle Connector 38 - 1.5", 45°

Color: - | Slot N (mm): 8 | Surface: Plain | for Screw: 5/16"-18

€0.00*

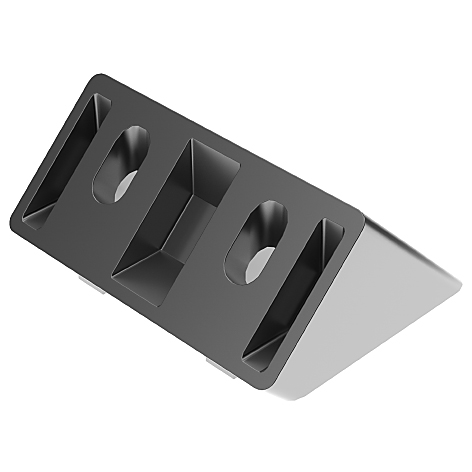

Angle Connector 76 x 38 - 3" x 1.5", 45°

Color: Alu color | Slot N (mm): 8 | Surface: Powder coated | for Screw: 5/16"-18

€0.00*

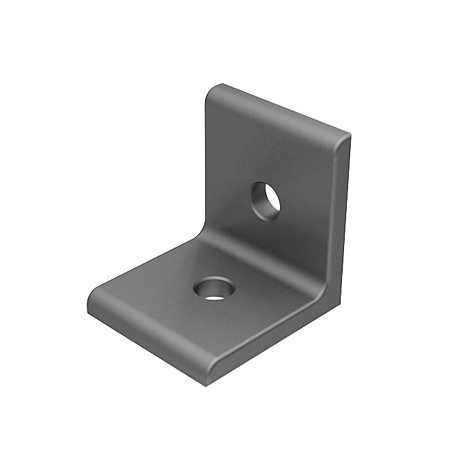

Connection Angle AL 2 Hole, 1 Slot Version

B (mm): 38.1 (1.5") | C (mm): 19.0 (0.75") | H (mm): 6.0 | L (mm): 38.1 (1.5") | Version: 38.1 - 1.5" | ØD (mm): 9.0

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:AnodizedZolltarifnummer:76169990990

€0.00*

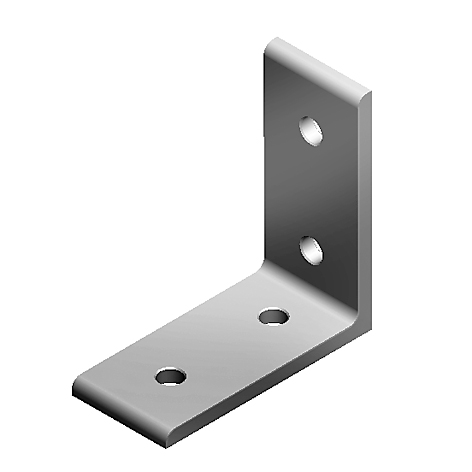

Connection Angle AL 4 Hole, 1 Slot Version

A (mm): 40.0 | B (mm): 36.0 | C (mm): 20.0 | H (mm): 6.0 | L (mm): 80.0 | Version: 40 / 80 | ØD (mm): 9.0

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:AnodizedZolltarifnummer:76169990990

€0.00*

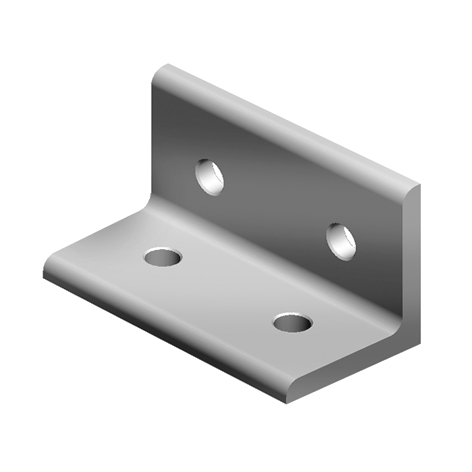

Connection Angle AL 4 Hole, 2 Slots Version

A (mm): 40.0 | B (mm): 76.0 | C (mm): 20.0 | H (mm): 6.0 | L (mm): 40.0 | Version: 80 / 40 | ØD (mm): 9.0

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:AnodizedZolltarifnummer:76169990990

€0.00*

Connection Angle AL 8 Hole, 2 Slots Version

A (mm): 30.0 | B (mm): 57.0 | C (mm): 15.0 | H (mm): 5.0 | L (mm): 60.0 | Version: 60 / 60 | ØD (mm): 7.0

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:AnodizedZolltarifnummer:76169990990

€0.00*

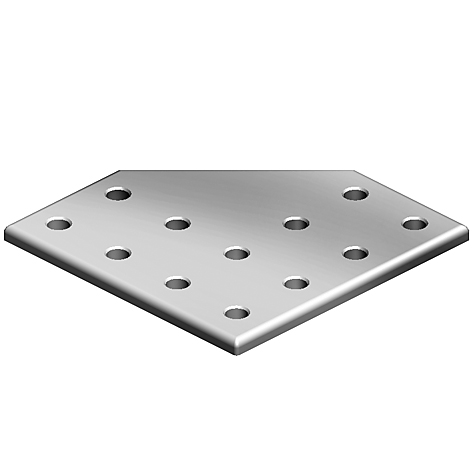

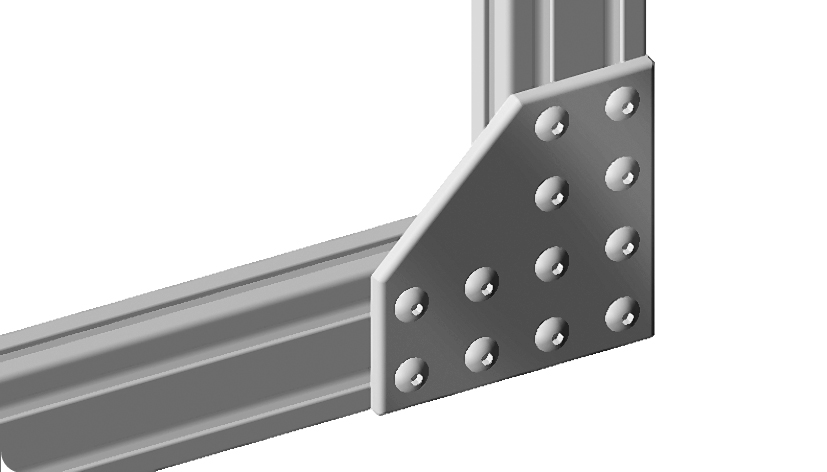

Connection Plate AL L 12 Hole, 2 Slots Version

A (mm): 30.0 | H (mm): 5.0 | L (mm): 118.5 | Version: 120 / 120 | ØD (mm): 7.0

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:AnodizedZolltarifnummer:76169990990

€0.00*

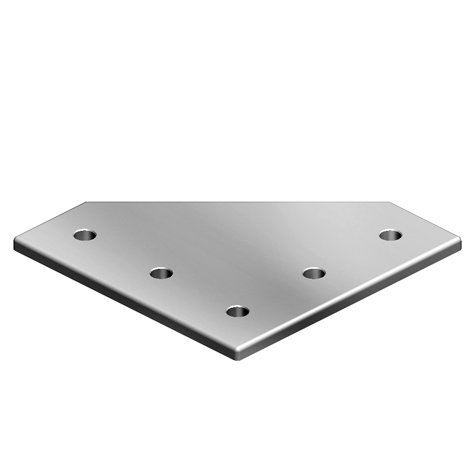

Connection Plate AL L 5 Hole, 1 Slot Version

A (mm): 30.0 | H (mm): 5.0 | L (mm): 88.5 | Version: 90 / 90 | ØD (mm): 7.0

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:AnodizedZolltarifnummer:76169990990

€0.00*

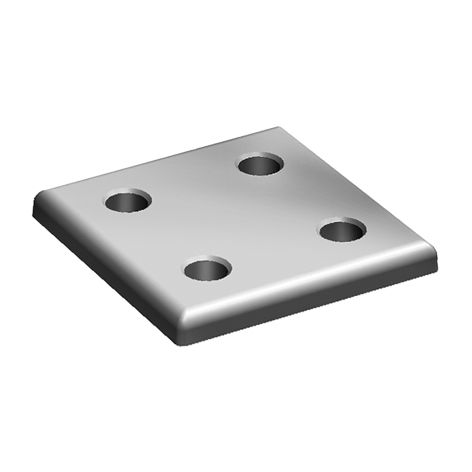

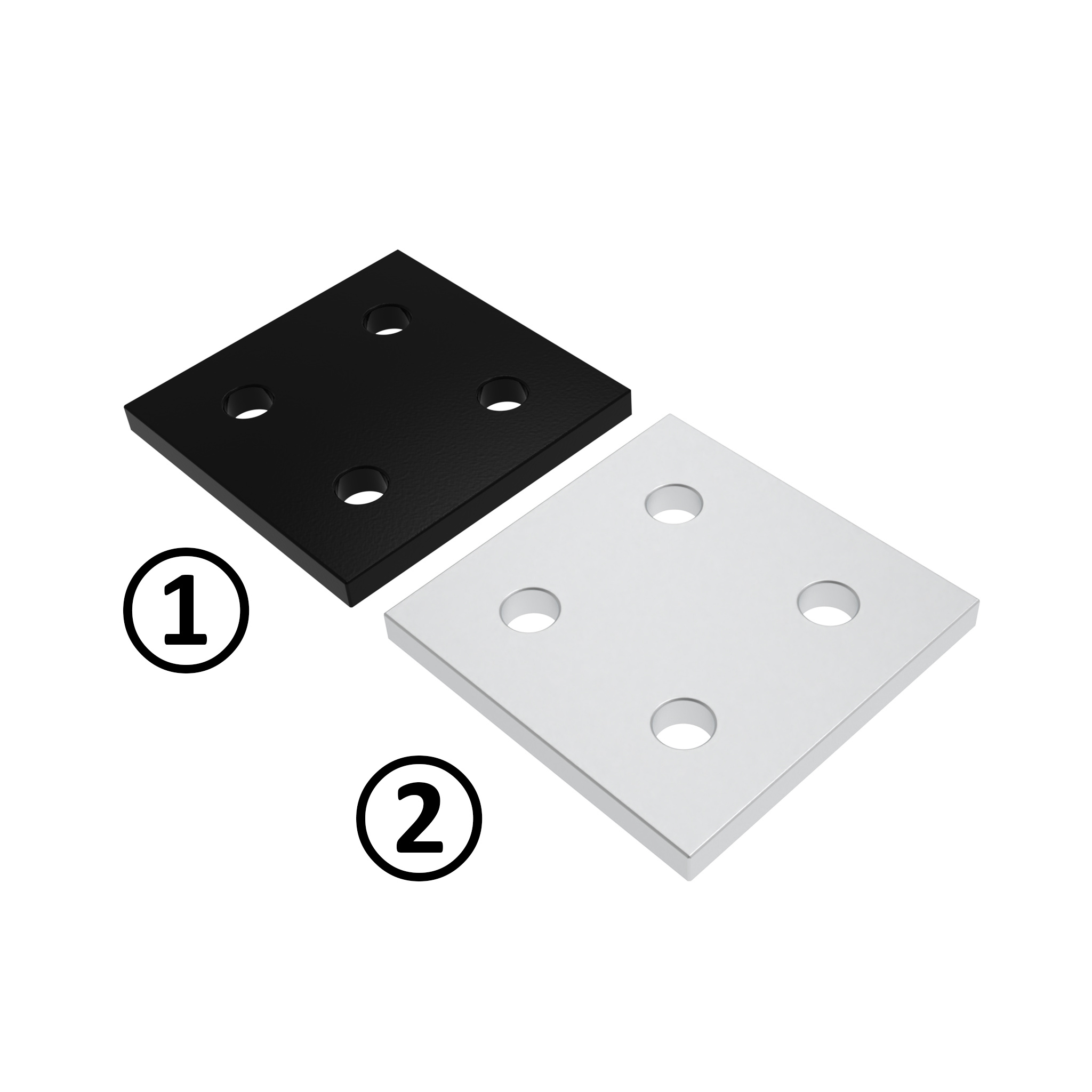

Connection Plate AL Quadrangular 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") | H (mm): 6.0 | L (mm): 72.0 (2.8") | Version: 76.2 / 76.2 - 3" / 3" | ØD (mm): 9.0

Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:AnodizedZolltarifnummer:76169990990

€0.00*

Connection Plate AL Rectangular 2 Hole, 1 Slot Version

A (mm): 30.0 | B (mm): 27.0 | H (mm): 5.0 | L (mm): 57.0 | Version: 30 / 60 | ØD (mm): 7.0

Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:AnodizedZolltarifnummer:76169990990

€0.00*

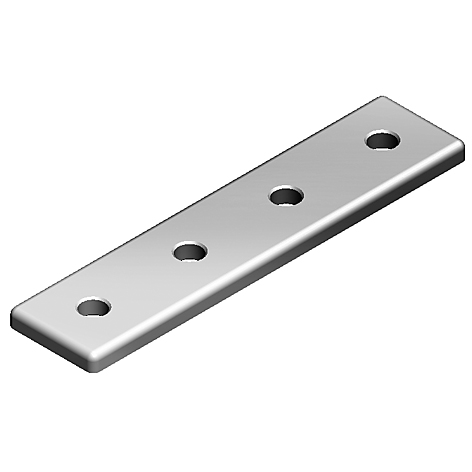

Connection Plate AL Rectangular 4 Hole, 1 Slot Version

A (mm): 20.0 | B (mm): 18.0 | H (mm): 4.0 | L (mm): 78.0 | Version: 20 / 80 | ØD (mm): 5.5

Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:AnodizedZolltarifnummer:76169990990

€0.00*

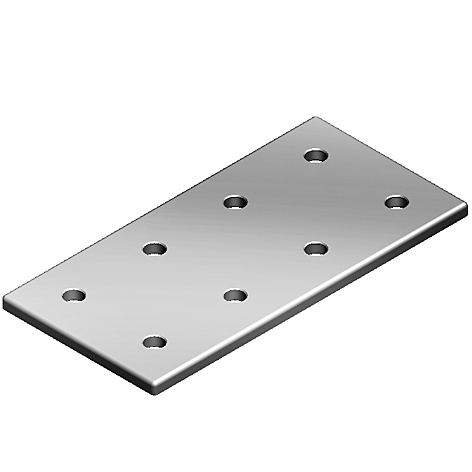

Connection Plate AL Rectangular 8 Hole, 2 Slots Version

A (mm): 20.0 | B (mm): 36.0 | H (mm): 4.0 | L (mm): 76.0 | Version: 40 / 80 | ØD (mm): 5.5

Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:AnodizedZolltarifnummer:76169990990

€0.00*

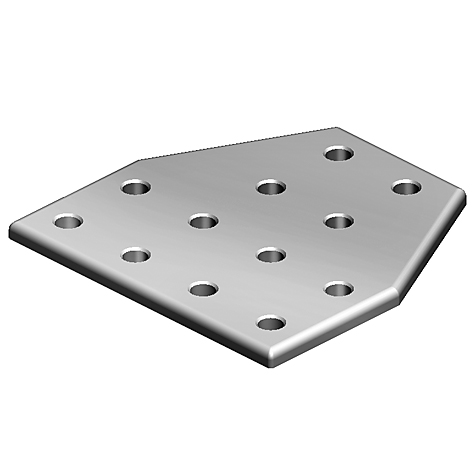

Connection Plate AL T 12 Hole, 2 Slots Version

A (mm): 25.4 (1") | H (mm): 4.0 | K (mm): 48.0 (1.89") | L (mm): 98.0 (3.858") | Version: 102 / 102 - 4" / 4" | ØD (mm): 7.0

Delivery Countries:WorldwideDescription:To tee connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:AnodizedZolltarifnummer:76169990990

€0.00*

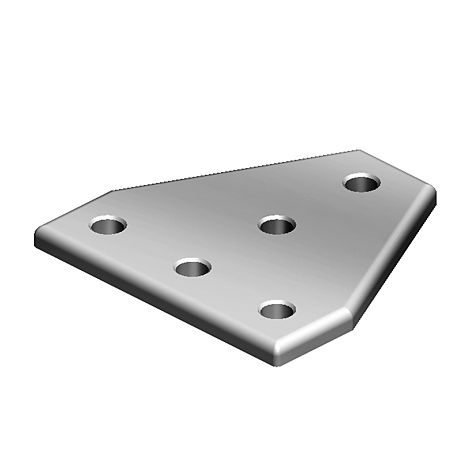

Connection Plate AL T 5 Hole, 1 Slot Version

A (mm): 45.0 | H (mm): 6.0 | K (mm): 41.0 | L (mm): 131.0 | Version: 135 / 135 | ØD (mm): 9.0

Delivery Countries:WorldwideDescription:To tee connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:Anodized

€0.00*

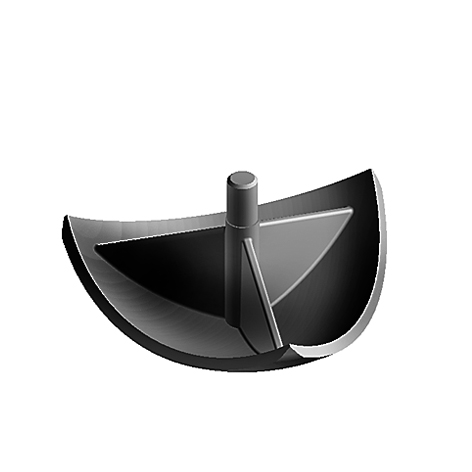

Cover Cap B 3-way Connection Angle 38 - 1.5"

Color:BlackDelivery Countries:WorldwideDescription:To cover the 3-way connection angleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestZolltarifnummer:39269097900

€0.00*

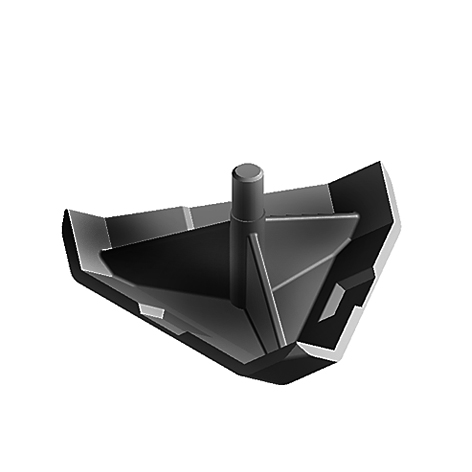

Cover Cap D 3-way Connection Angle 38 - 1.5"

Color:BlackDelivery Countries:WorldwideDescription:To cover the 3-way connection angleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestZolltarifnummer:39269097900

€0.00*

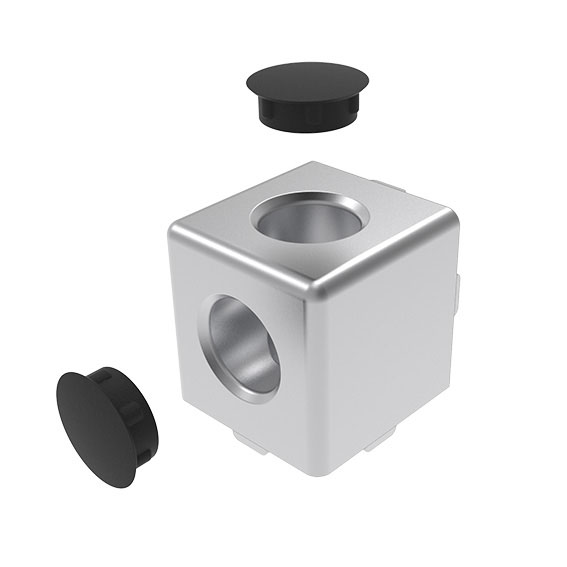

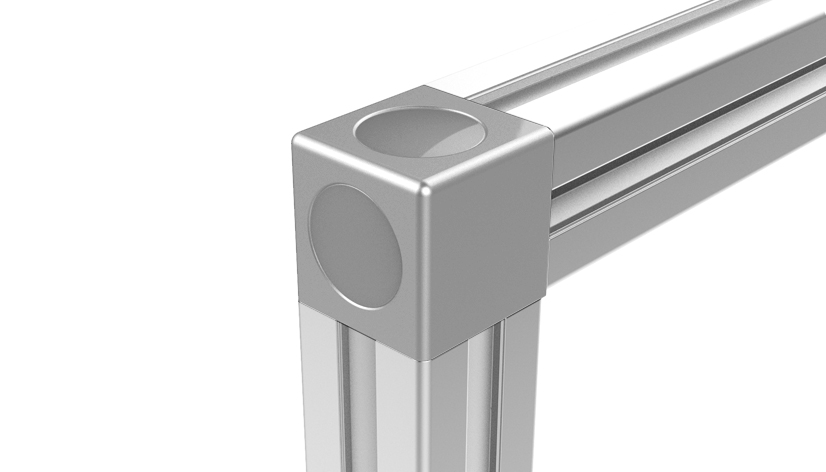

Cube Connector 25 - 1", 2D

D1 (mm): 12.0 | D2 (mm): 7.2 | L (mm): 25.4 (1") | R (mm): 2.0 | Slot N (mm): 6 | Version: Cover cap: alu color

Assembly Set 1:2 screws ISO 7380 - UNC 1/4-20x1"Color:Cube connector: Alu color Cover caps: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminium profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Powder coated Cover caps: Laquered Assembly set: Zinc platedZolltarifnummer:76169910990

€0.00*

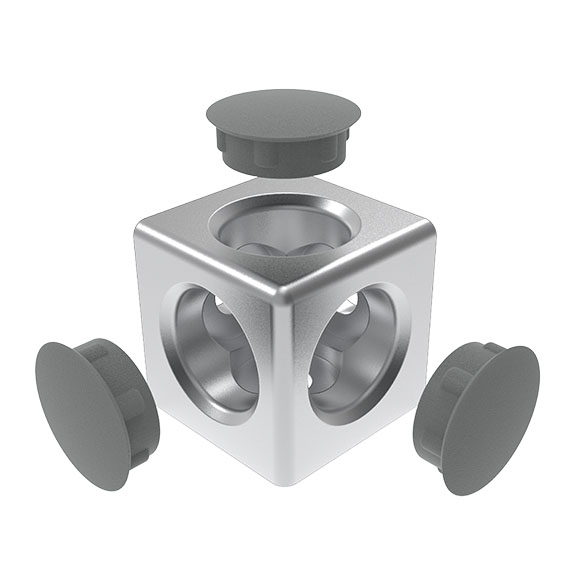

Cube Connector 25 - 1", 3D

D1 (mm): 12.0 | D2 (mm): 7.2 | L (mm): 25.4 (1") | R (mm): 2.0 | Slot N (mm): 6 | Version: Cover cap: alu color

Assembly Set:3 screws ISO 7380 - UNC 1/4-20x1"Color:Cube connector: Alu color Cover caps: Alu colorDelivery Countries:WorldwideDescription:To connect three aluminum profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Powder coated Cover caps: Laquered Assembly set: Zinc platedZolltarifnummer:76169910990

€0.00*

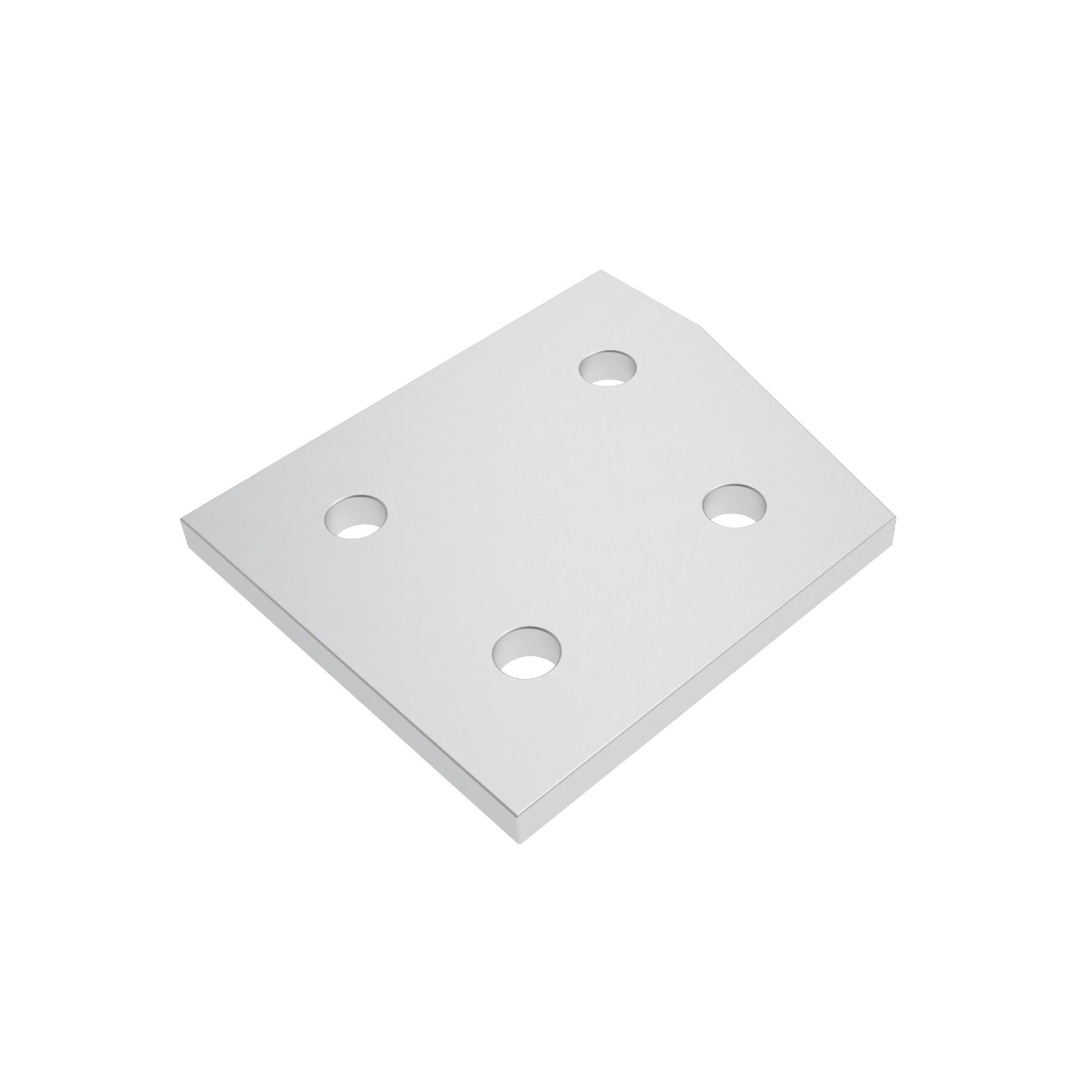

ECO Connection Plate AL 15° 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | K (mm): 23.98 (0.94") | K (mm): 74.9 (2.94") | L (mm): 88.9 (3.5") | Version: 76.2 / 88.9 - 3" / 3.5" | ØD (mm): 9.0 (0.35")

Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:AnodizedTip:Compatible ECO T-nut see 096E20M5S05 et sq.Zolltarifnummer:76169990990

€0.00*

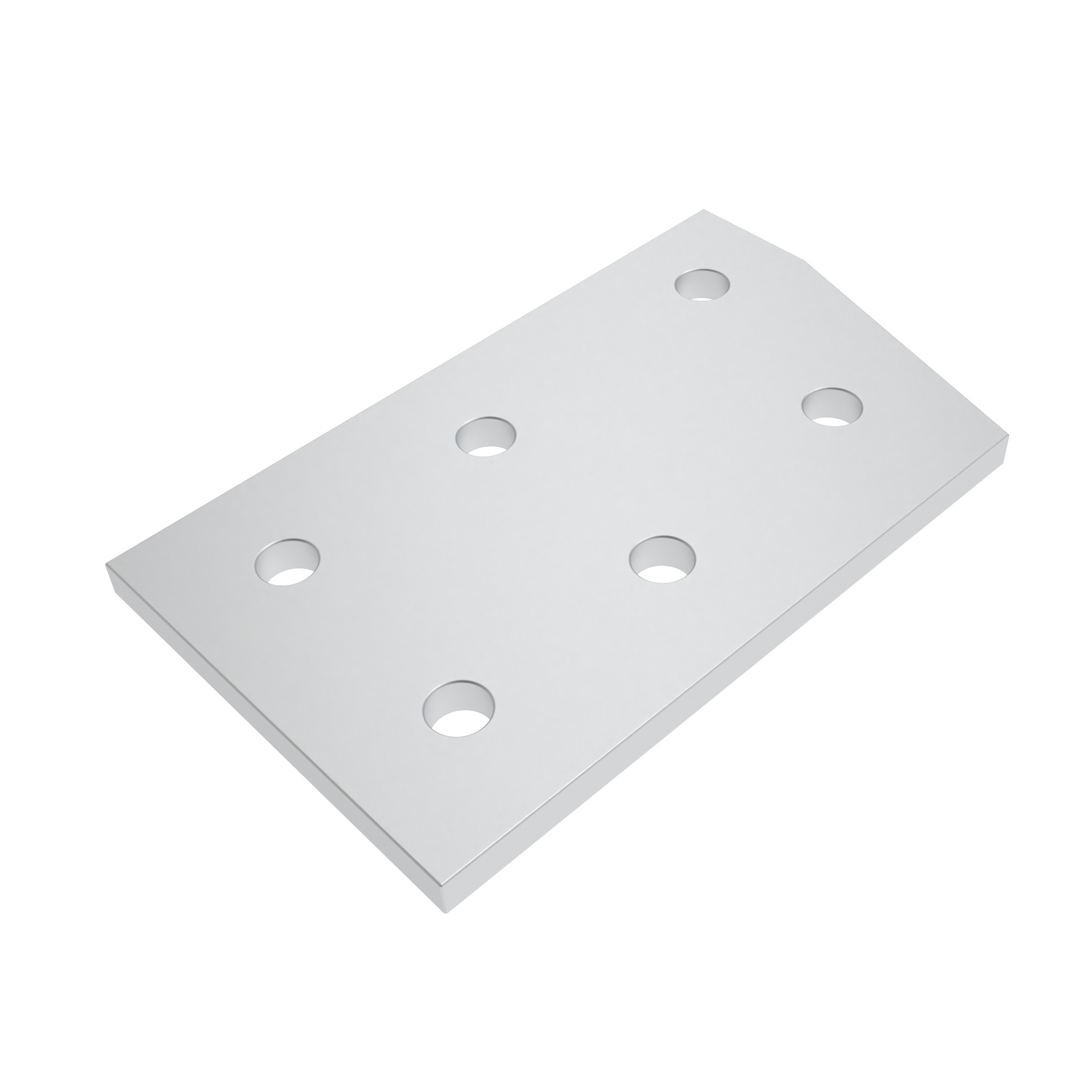

ECO Connection Plate AL 15° 6 Hole, 1 Slot x 2 Slots Version

A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | K (mm): 113.0 (4.44") | K (mm): 23.98 (0.94") | L (mm): 127 (5") | Version: 76.2 / 127 - 3" / 5" | ØD (mm): 9.0 (0.35")

Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:AnodizedTip:Compatible ECO T-nut see 096E20M5S05 et sq.Zolltarifnummer:76169990990

€0.00*

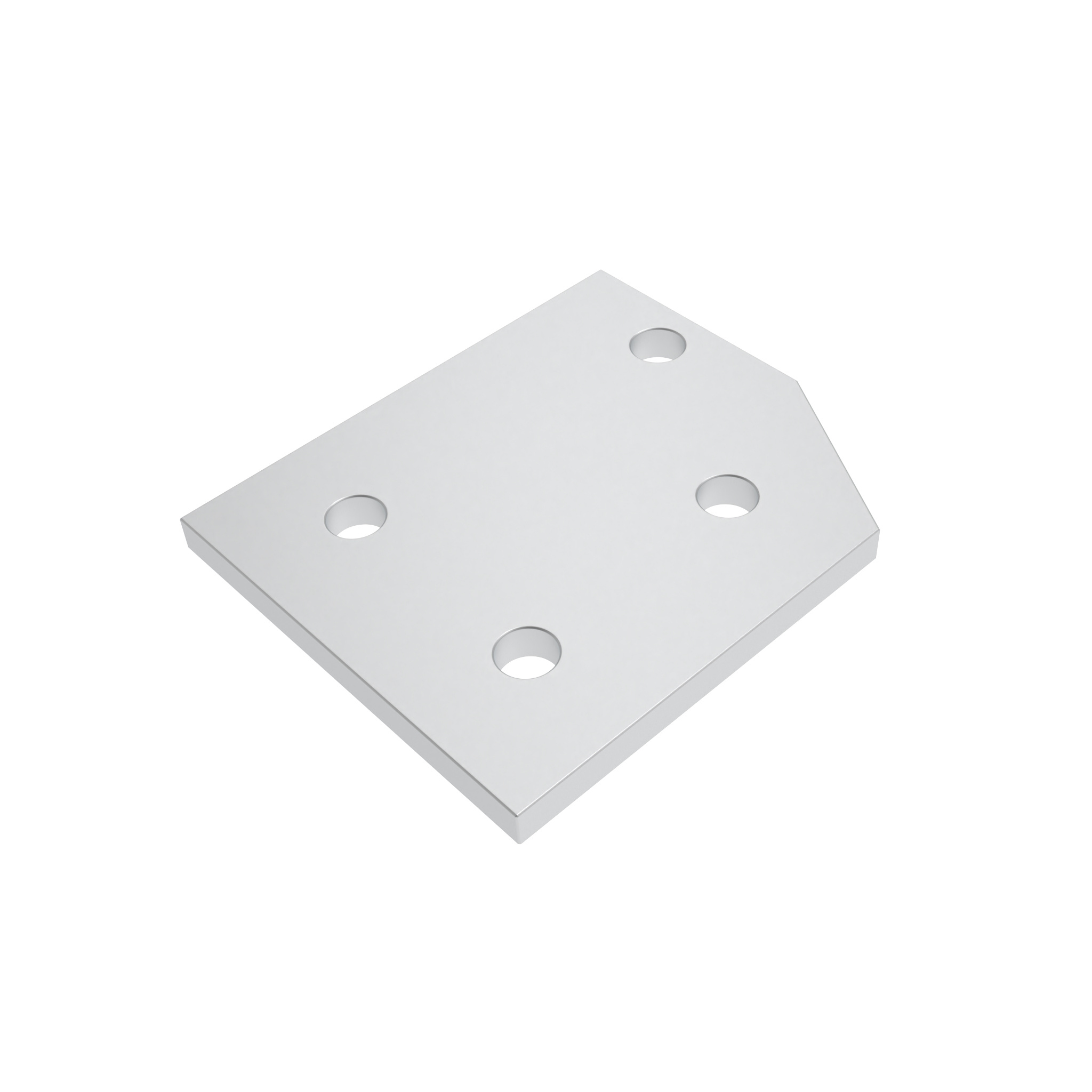

ECO Connection Plate AL 30° 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.3 (0.25") | K (mm): 45.36 (1.78") | K (mm): 71.09 (2.79") | L (mm): 88.9 (3.5") | Version: 76.2 / 88.9 - 3" / 3.5" | ØD (mm): 9.0 (0.35")

Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:AnodizedTip:Compatible ECO T-nut see 096E20M5S05 et sq.Zolltarifnummer:76169990990

€0.00*

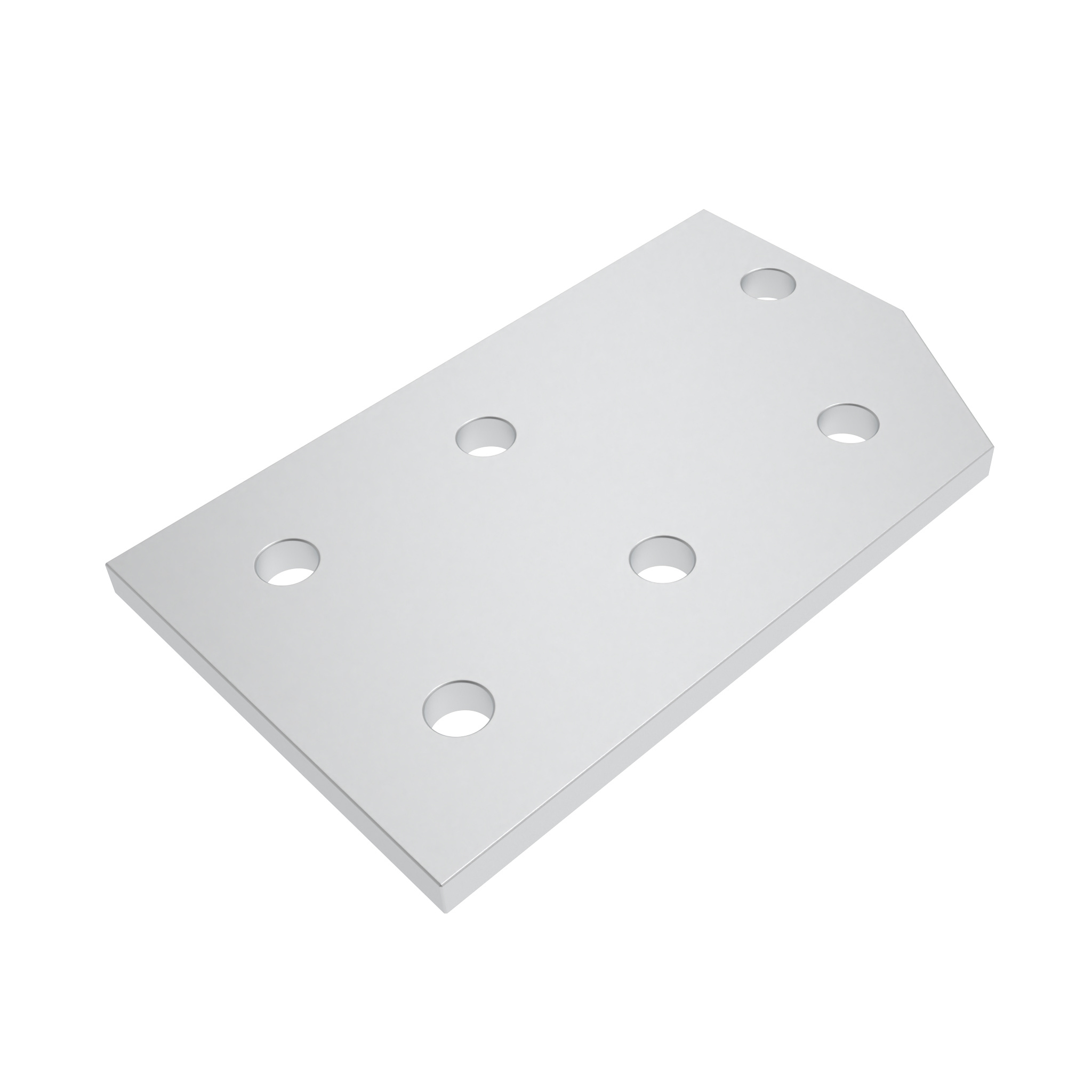

ECO Connection Plate AL 30° 6 Hole, 1 Slot x 2 Slots Version

A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | K (mm): 44.86 (1.76") | K (mm): 109.19 (4.29") | L (mm): 127 (5") | Version: 76.2 / 127 - 3" / 5" | ØD (mm): 8.89 (0.35")

Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:AnodizedTip:Compatible ECO T-nut see 096E20M5S05 et sq.Zolltarifnummer:76169990990

€0.00*
