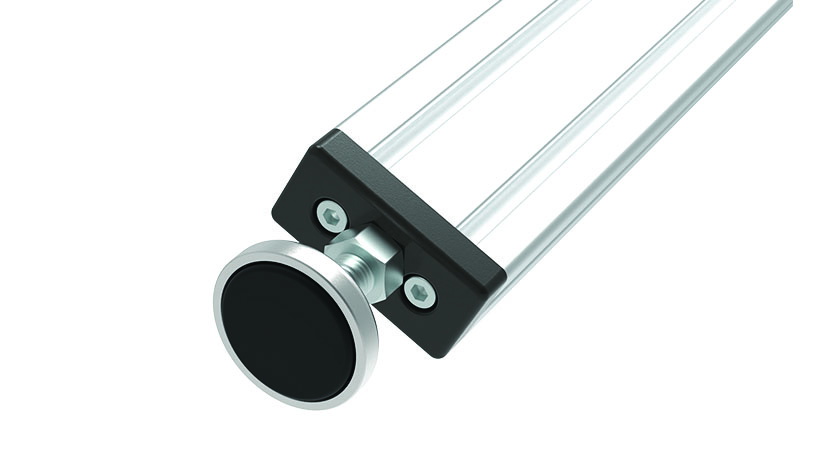

Leveling Feet
Anti-slip Plate for Bell Feet
€0.00*
D (mm):
97.3
|
ESD:
ESD electrostatical discharging
|
Version:
Black
|
for Base:
90
Color:Opaque, blackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Polyurethane, ≈ 70 - 80 Shore ASpecials:Other colors on requestZolltarifnummer:40169997900

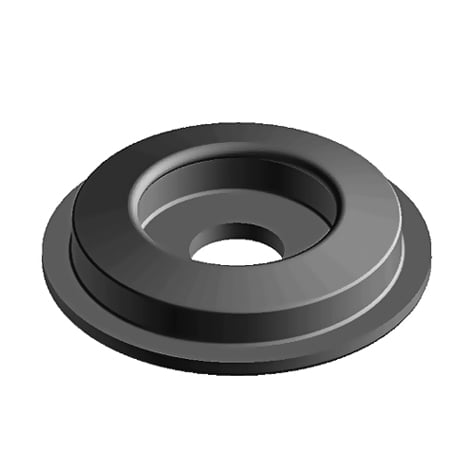

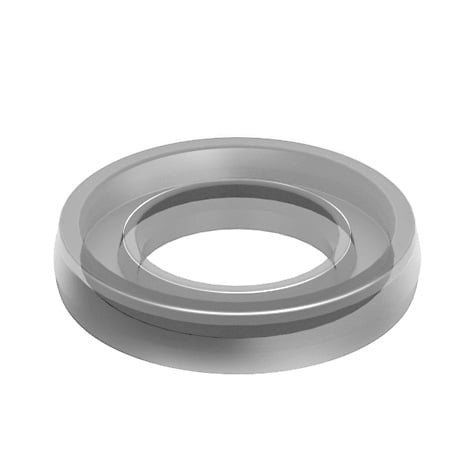

Anti-slip Plate for ECO Feet
€0.00*
D (mm):
38
|
for Base:
40
|
h (mm):
2.5
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestZolltarifnummer:40169997900

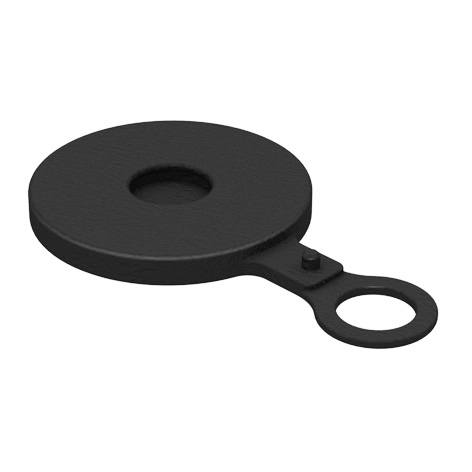

Anti-slip Plate for Extended Swivel Feet 60 PA, Ball Joint 15
€0.00*
D1 (mm):
52.0
|
D2 (mm):
21.6
|
for Base:
60
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestZolltarifnummer:40169997900

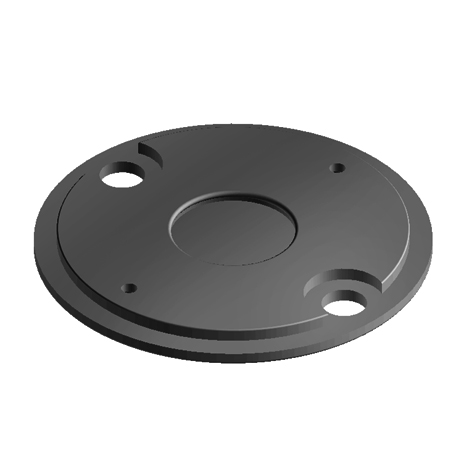

Anti-slip Plate for Heavy-duty Pivot Feet
€0.00*
D (mm):
174
|
d (mm):
17.0
|
for Base:
175
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestZolltarifnummer:40169997900

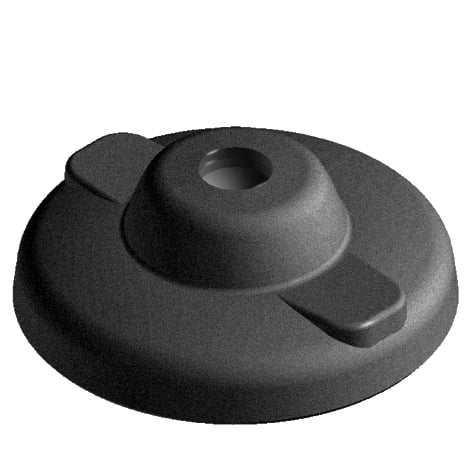

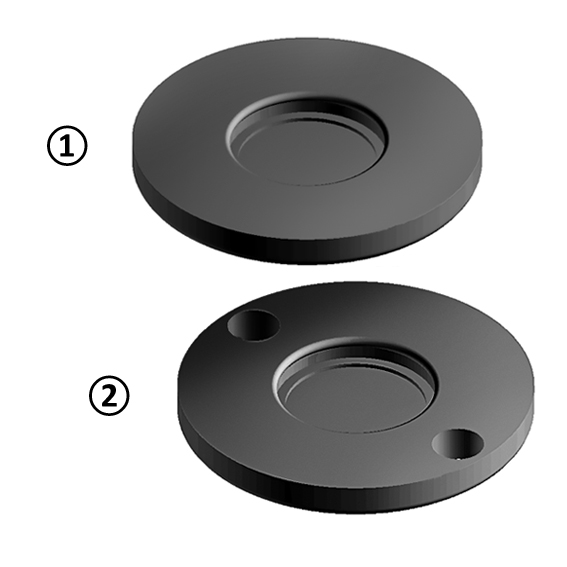

Anti-slip Plate for Pivot Feet
€0.00*
D (mm):
49
|
Fig.:
①
|
Version:
-
|
for Base:
60
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestTip:* Also for bases with bolt down holesZolltarifnummer:40169997900

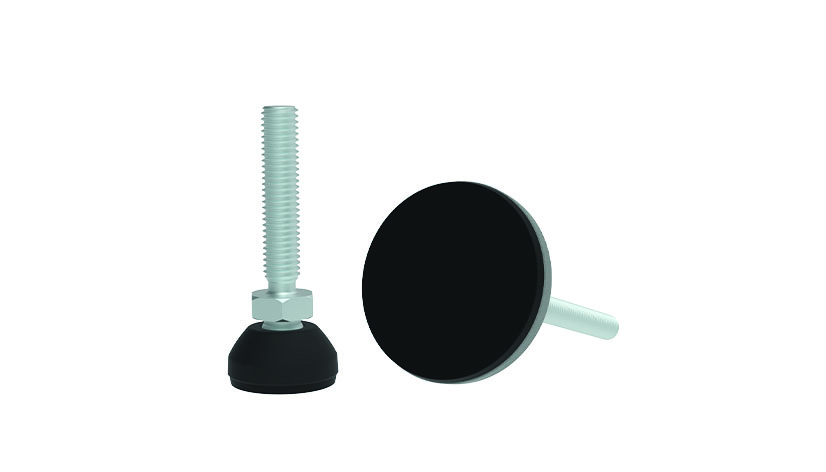

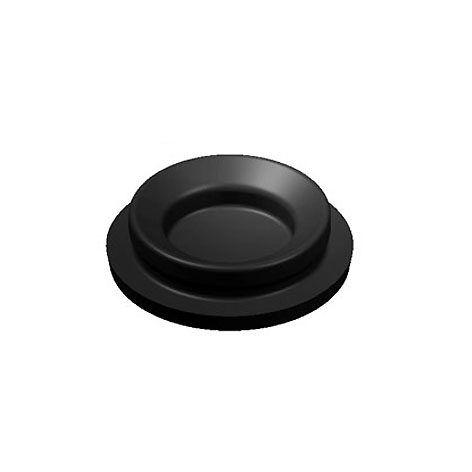

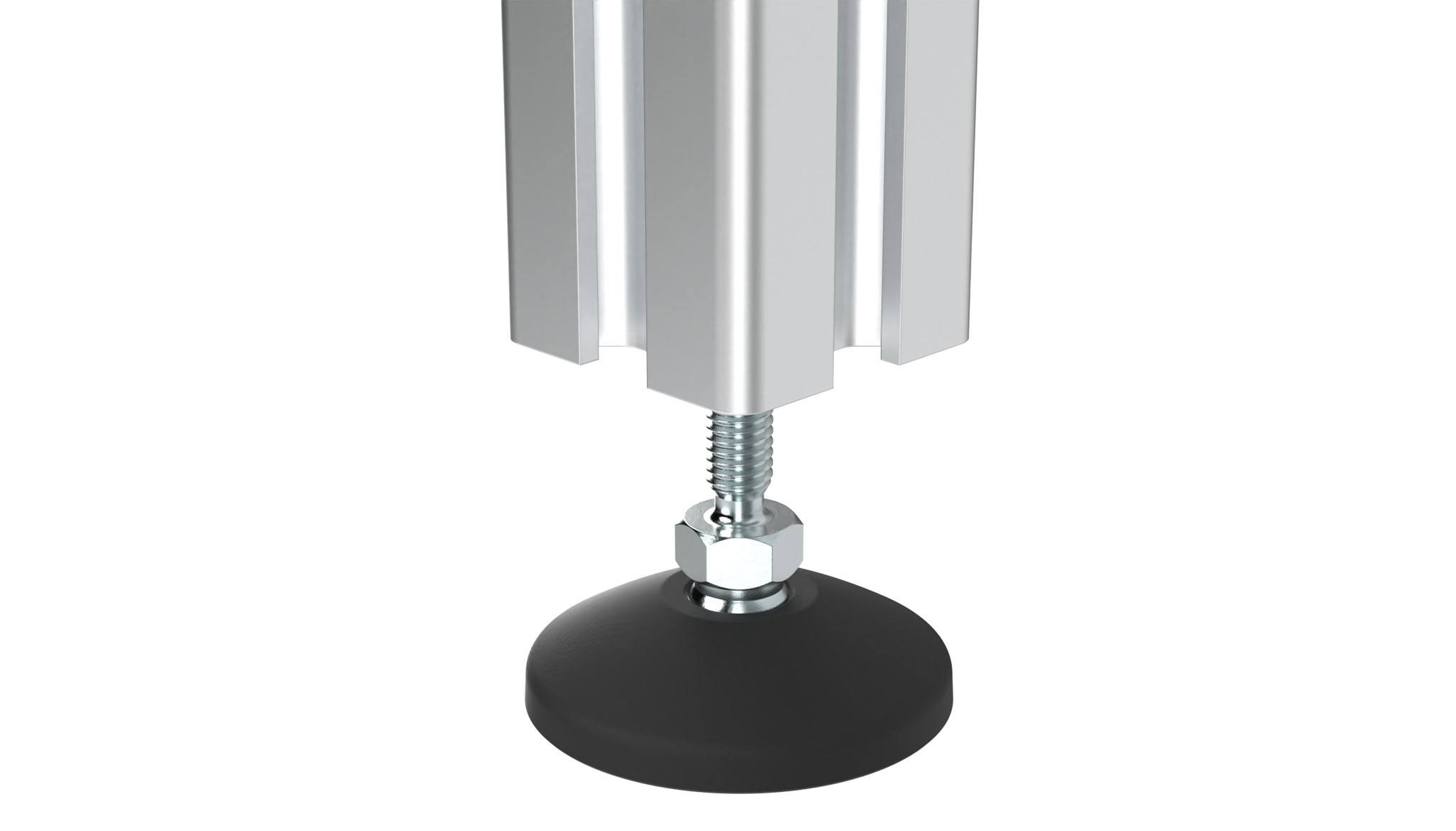

Anti-slip Plate for Swivel Feet, Ball Joint 10
€0.00*
D (mm):
23.5
|
for Base:
25
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestZolltarifnummer:40169997900

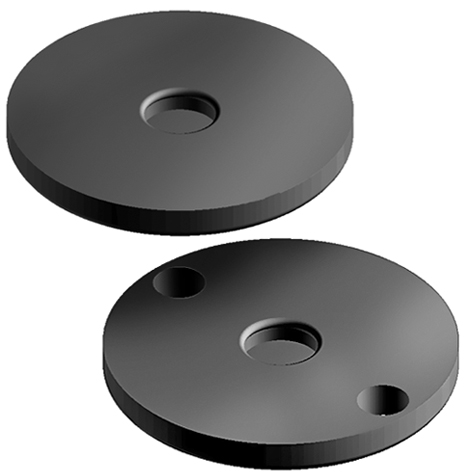

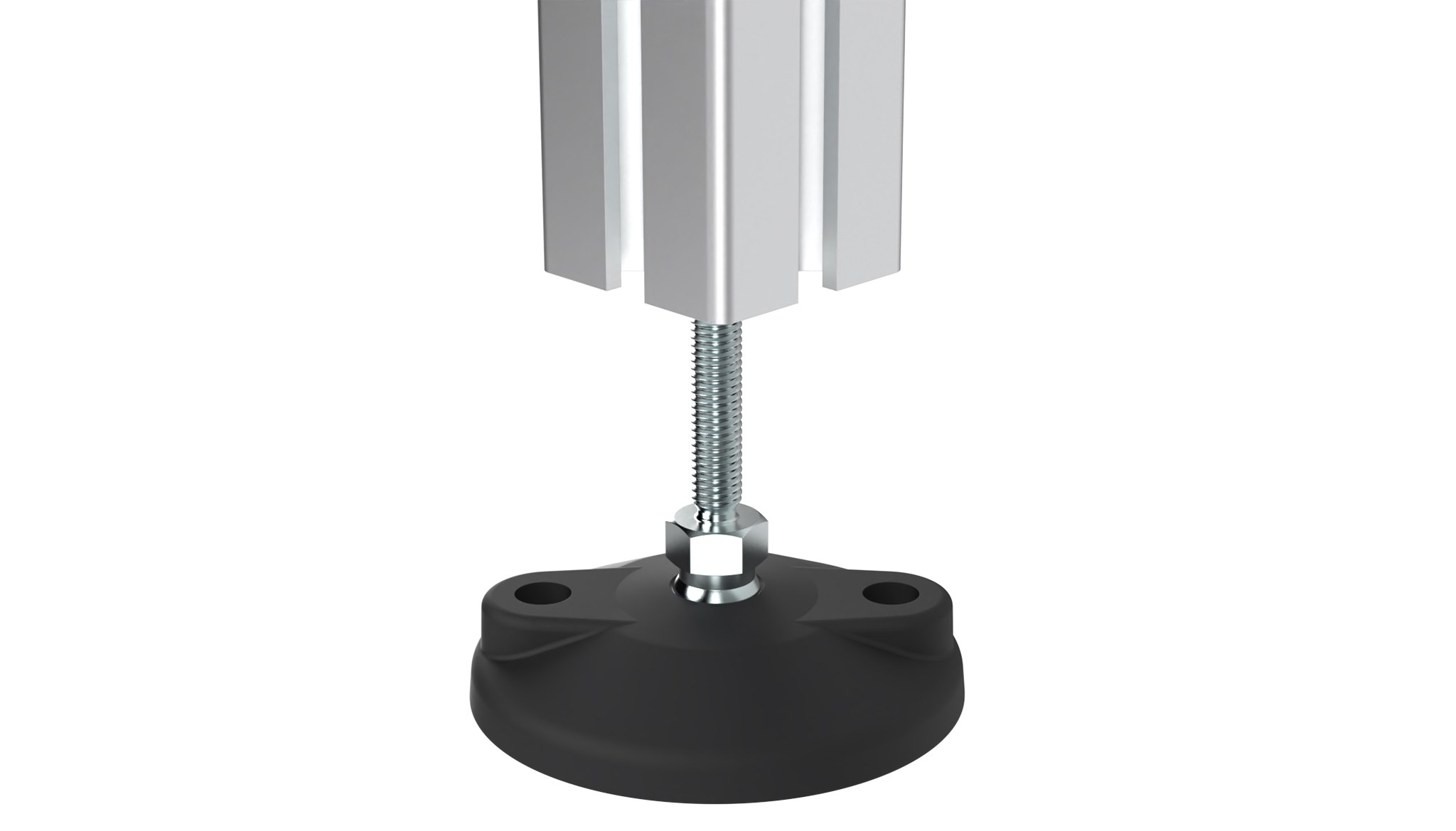

Anti-slip Plate for Swivel Feet, Ball Joint 15
€0.00*
D (mm):
108
|
Version:
-
|
for Base:
*120
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestTip:* Also for bases with bolt down holesZolltarifnummer:40169997900

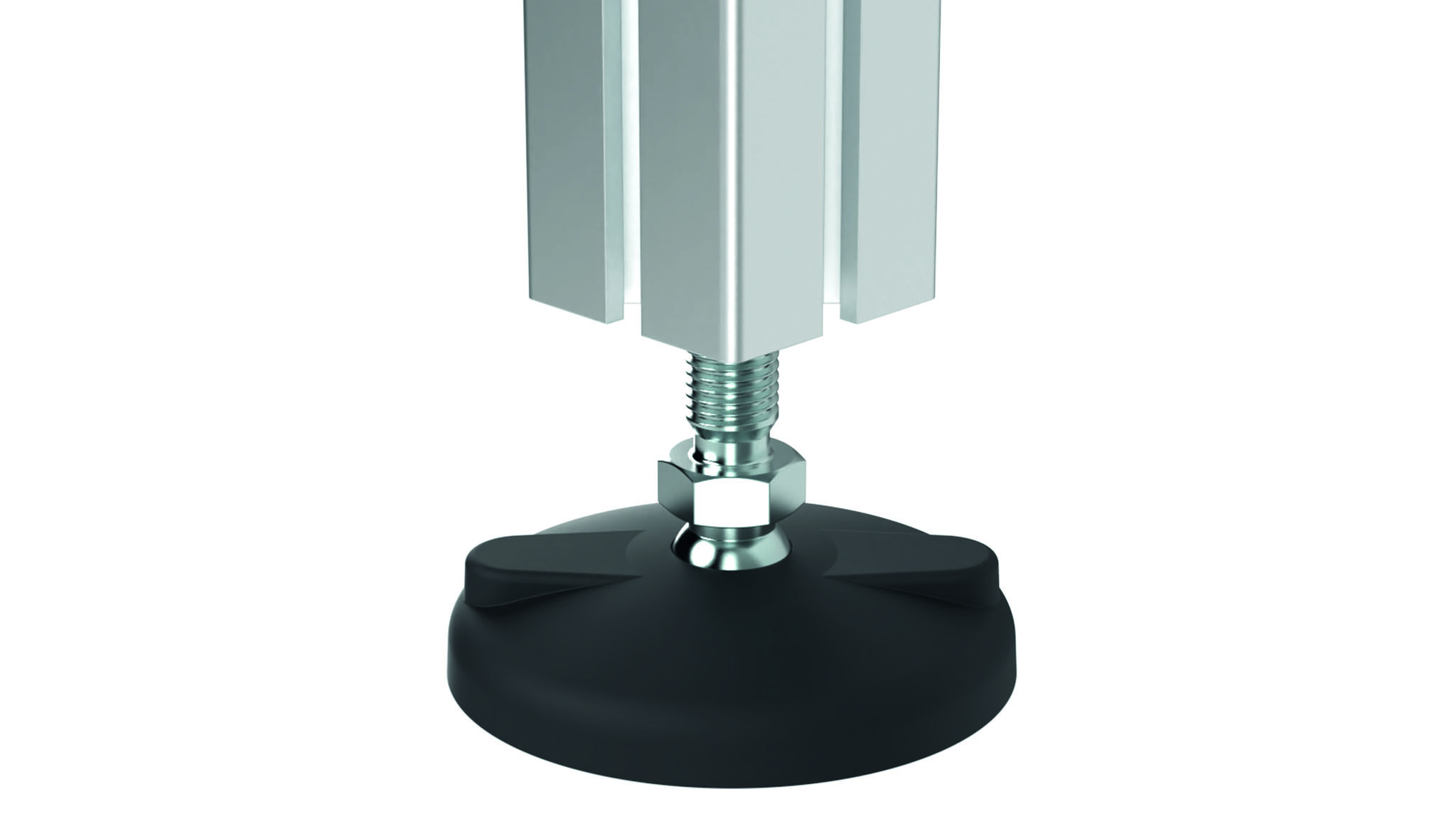

Anti-slip Plate for Swivel Feet, Ball Joint 22
€0.00*
D (mm):
50
|
for Base:
60
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestTip:* Also for bases with bolt down holesZolltarifnummer:40169997900

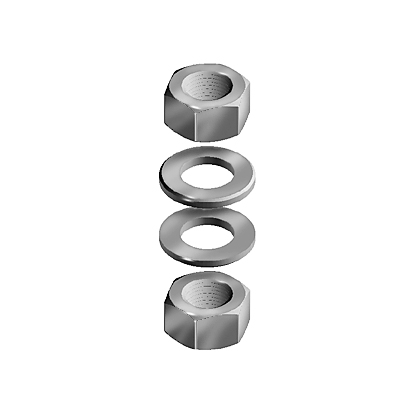

Assembling Set for Duck Feet (Set)
€0.00*
D (mm):
37
|
H (mm):
16
|
M:
M20
|
Material:
Steel
|
S (mm):
3
|
SW (mm):
30
Delivery Countries:WorldwideDescription:Assembling Set for Duck FeetMaterial:Steel / stainless steel A2Set:2x hexagon nut DIN EN ISO 4032 (DIN 934) 2x washer DIN EN ISO 7089 (DIN 125)Surface:Zinc plated / plainZolltarifnummer:73181699900

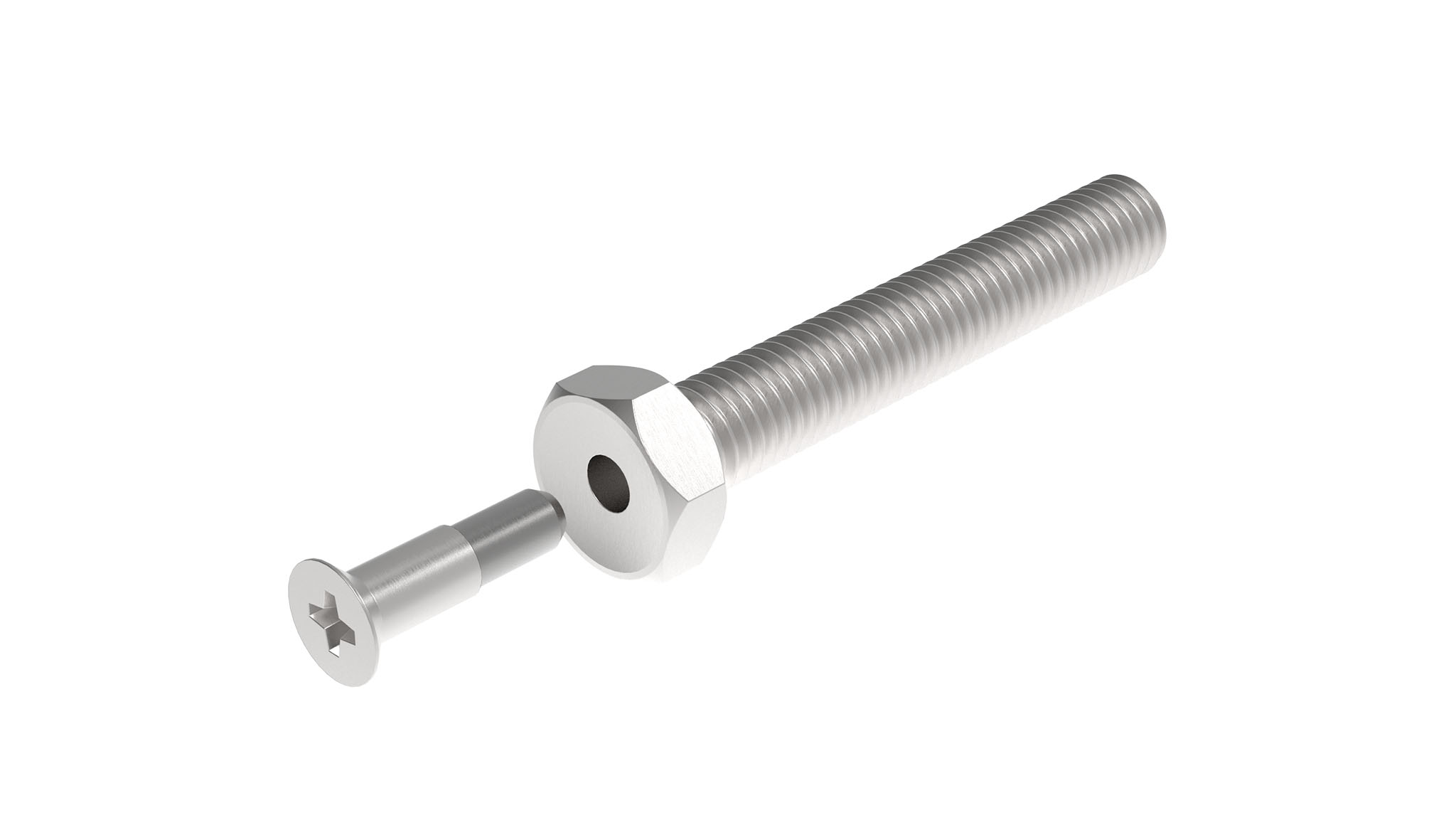

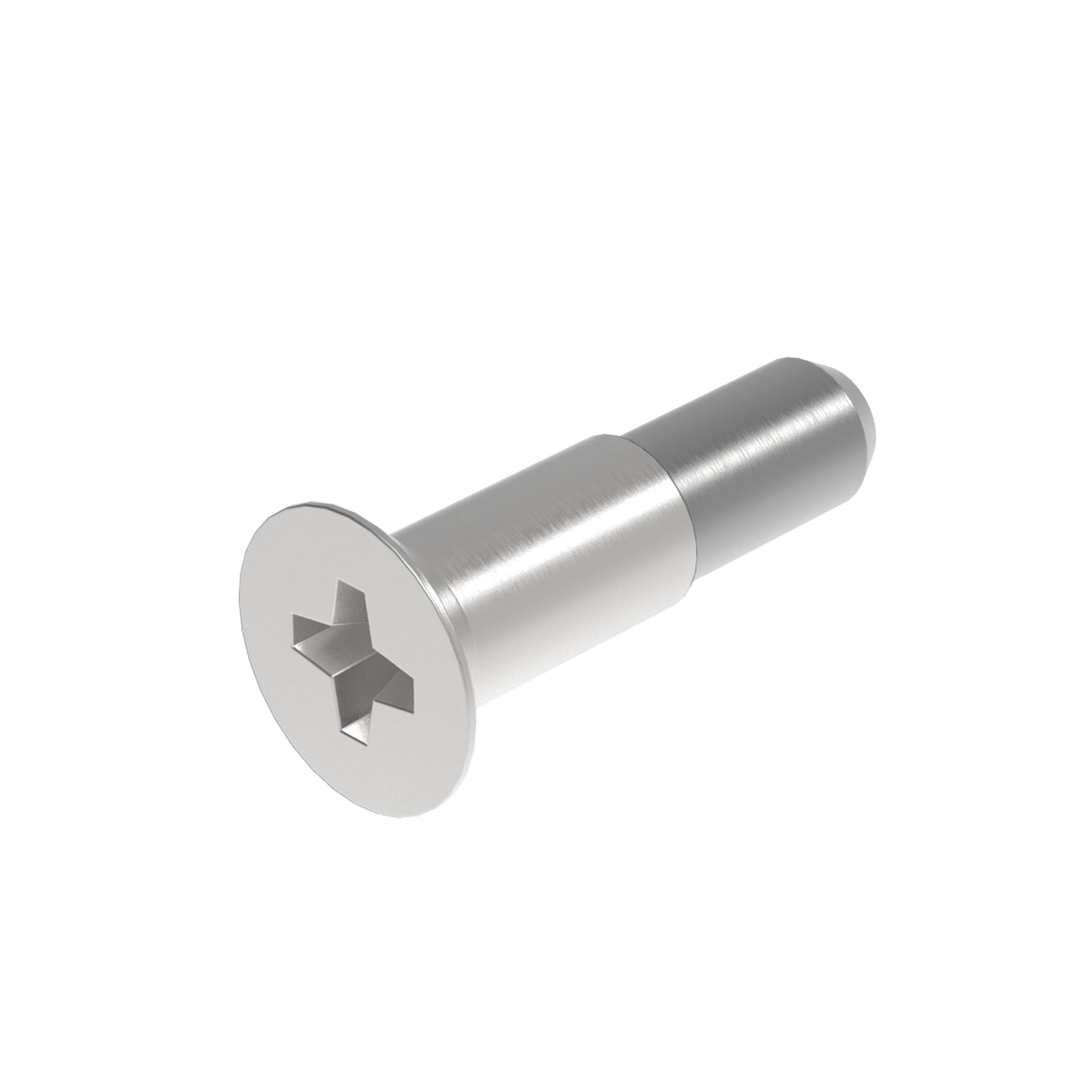

Assembly Pin for ECO Feet
€0.00*
Delivery Countries:WorldwideDescription:To assemble ECO feetMaterial:Stainless steel SS304Surface:PlainTip:Compatible threaded rod ST for ECO-Feet see 098EM08025M, Compatible threaded rod SS for ECO-Feet see 098EM08025EZolltarifnummer:73182900900

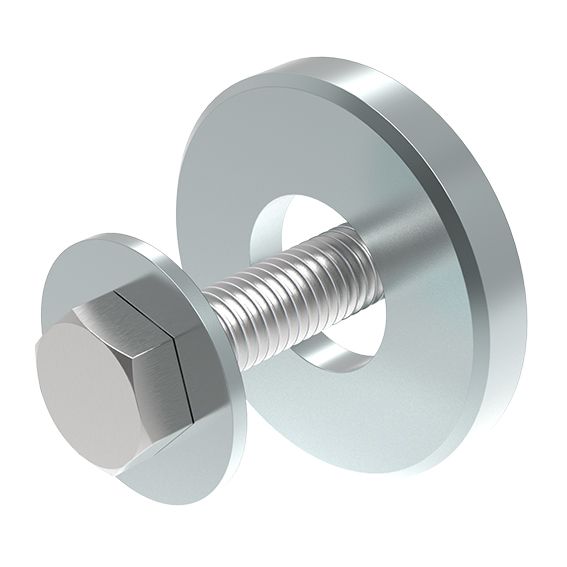

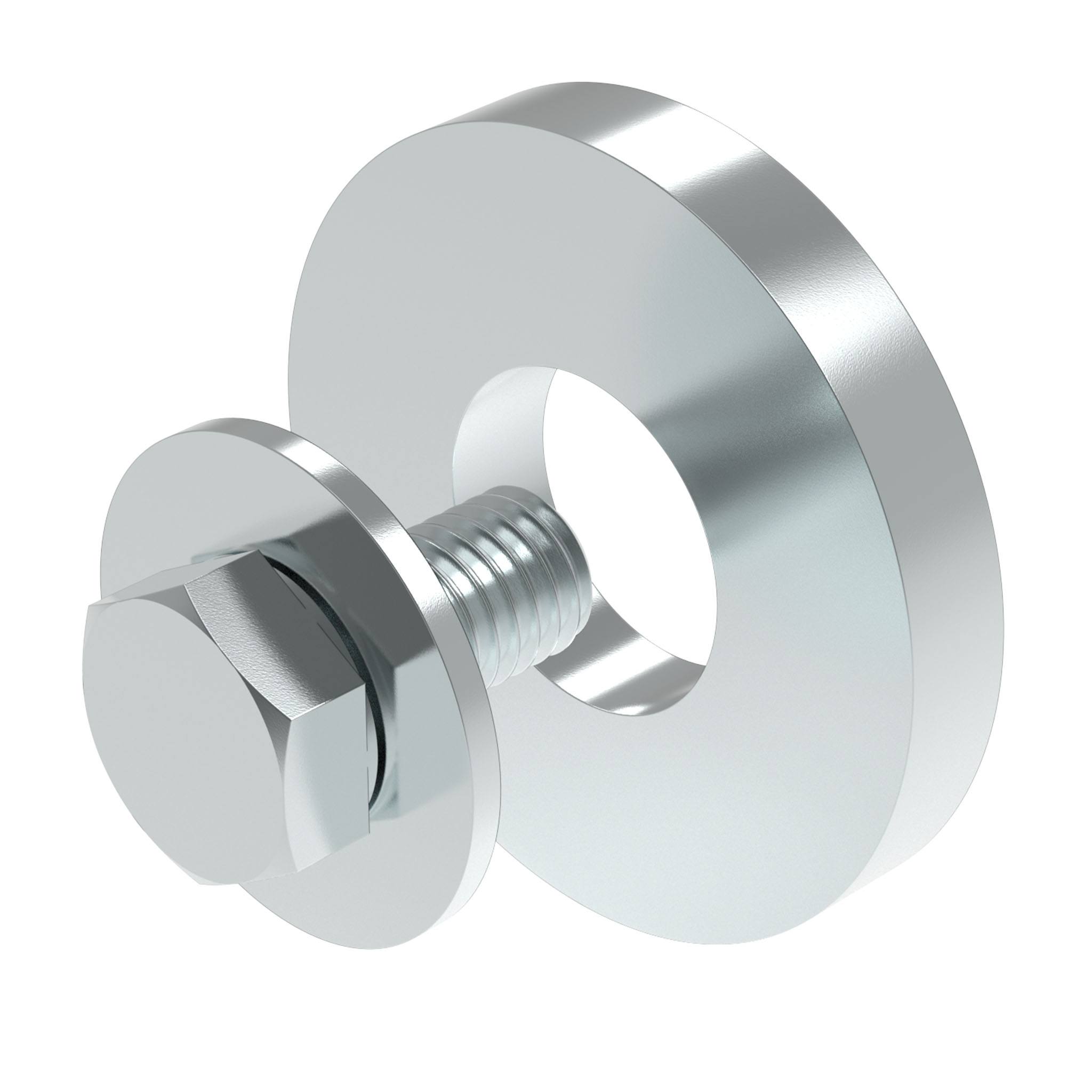

Assembly set for Heavy-duty Fixed Feet
€0.00*
Material:
Steel
Assembly Set 1:1 screw DIN 933 (ISO 4017) – M8 x 16 steel, zinc plated, 1 washer DIN 9021 – 8.4 - steel, zinc plated, 1 washer DIN 7349 – 17 - steel, zinc platedAssembly Set 2:1 screw DIN 933 (ISO 4017) – M8 x 16 stainless steel, 1 washer DIN 9021 – 8.4 - stainless steel, 1 washer DIN 7349 – 17 - stainless steelDelivery Countries:WorldwideDescription:To assemble heavy-duty fixed feetMaterial:Steel / stainless steelSurface:Zinc plated / plainTip:Compatible threaded rod ST for heavy-duty fixed feet see 098KM16100M, Compatible threaded rod SS for heavy-duty fixed feet see 098KM16100E

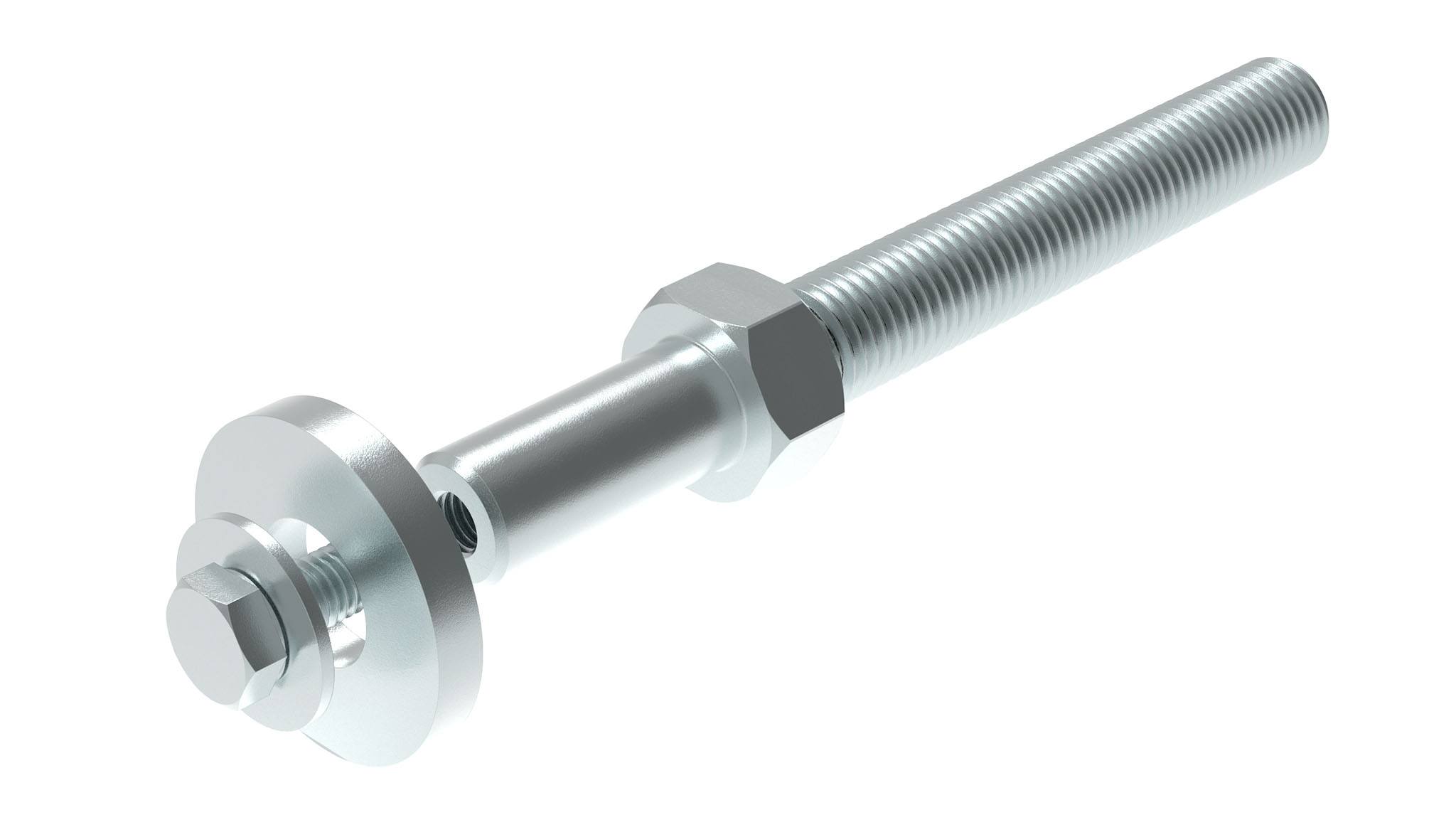

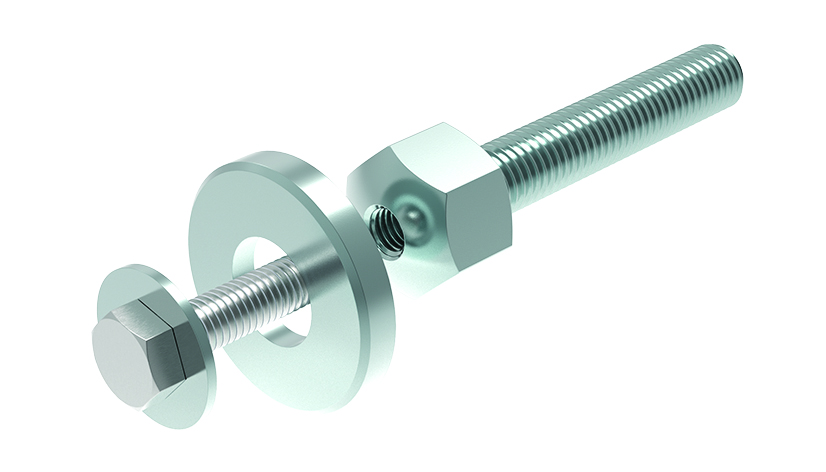

Assembly Set for Heavy-duty Pivot Feet
€0.00*
Material:
Stainless steel
Assembly Set 1:1 screw DIN 933 (ISO 4017) – M8 x 30 stainless steel, with polyamide thread locking dot, 1 washer DIN 9021 – 8.4 mm steel, zinc plated, 1 shaped washer – steel, zinc platedAssembly Set 2:1 screw DIN 933 (ISO 4017) – M8 x 30 stainless steel, with polyamide thread locking dot, 1 washer DIN 9021 – 8.4 stainless steel, 1 shaped washer – stainless steelDelivery Countries:WorldwideDescription:To assemble heavy-duty pivot feetMaterial:Steel / stainless steelSurface:Zinc plated / plainTip:Compatible threaded rod ST metric for pivot feet see 098AM12066M, Compatible threaded rod SS metric for pivot feet see 098AM12066E, Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M, Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3EZolltarifnummer:73181575900

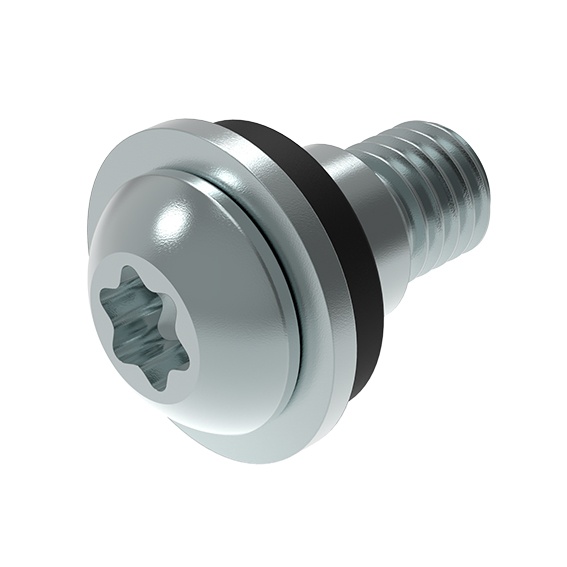

Assembly Set for Pivot Feet
€0.00*
Material:
Steel
Assembly Set 1:1 collar screw with shank - M8 x 18 - steel, zinc plated, 1 washer DIN 433 - 10.5 - steel, zinc plated, 1 bumper washer - rubber EPDMAssembly Set 2:1 collar screw with shank - M8 x 18 - stainless steel, 1 washer DIN 433 - 10.5 - stainless steel, 1 bumper washer - rubber EPDMDelivery Countries:WorldwideDescription:To assemble pivot feetMaterial:Steel / stainless steel, rubber EPMSurface:Zinc plated / plainTip:Compatible threaded rod ST metric for pivot feet see 098AM12066M, Compatible threaded rod SS metric for pivot feet see 098AM12066E, Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M, Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E

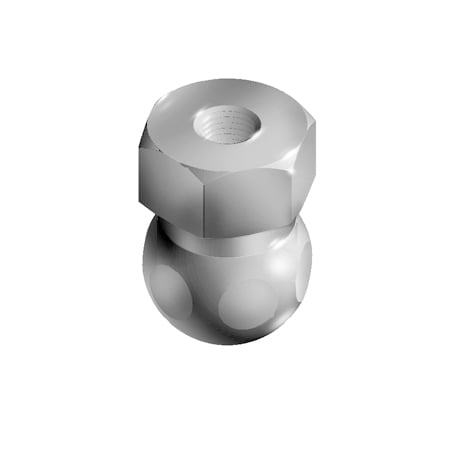

Ball Joint SS with Female Thread for Swivel Feet, Ball Joint 15
€0.00*
Material:
Stainless steel
Delivery Countries:WorldwideDescription:To fix leveling feet using standard screwsMaterial:Stainless steelSurface:Plain

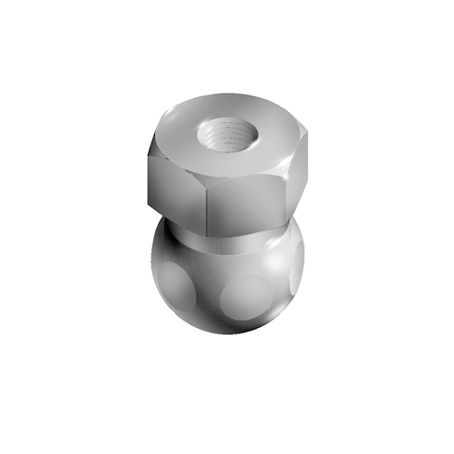

Ball Joint ST with Female Thread for Swivel Feet, Ball Joint 15
€0.00*
Material:
Steel
Delivery Countries:WorldwideDescription:To fix leveling feet using standard screwsMaterial:SteelSurface:Zinc plated

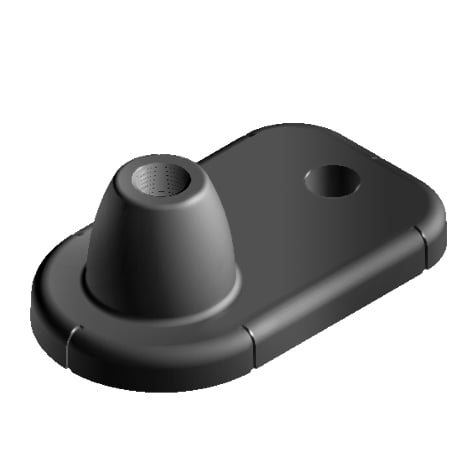

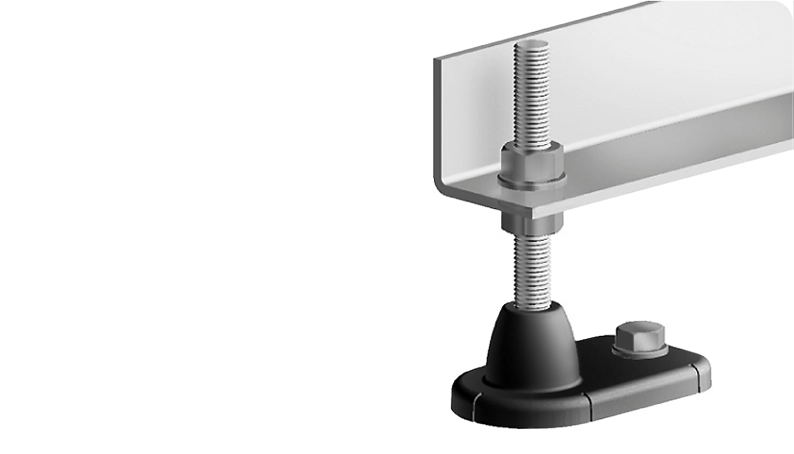

Base for Duck Feet M16
€0.00*
A (mm):
65
|
Fmax (N):
3920
|
L x B x H (mm):
119.5 x 70 x 45
|
M:
M16
Delivery Countries:WorldwideDescription:A strong and cost efficient leveling foot commonly used for conveyor systemsMaterial:Aluminum die-castSurface:PlainTip:Compatible Cover Caps see 098F01, please use 1 piece out of this setZolltarifnummer:76169910990
Base for Duck Feet M20
€0.00*
A (mm):
75
|
C (mm):
55
|
L x B x H (mm):
139.5 x 90 x 50
|
M:
M20
Delivery Countries:WorldwideDescription:A strong and cost efficient leveling foot commonly used for conveyor systemsMaterial:Aluminum die-castSurface:PlainTip:Compatible Cover Caps see 098F01, please use 1 piece out of this setZolltarifnummer:76169910990

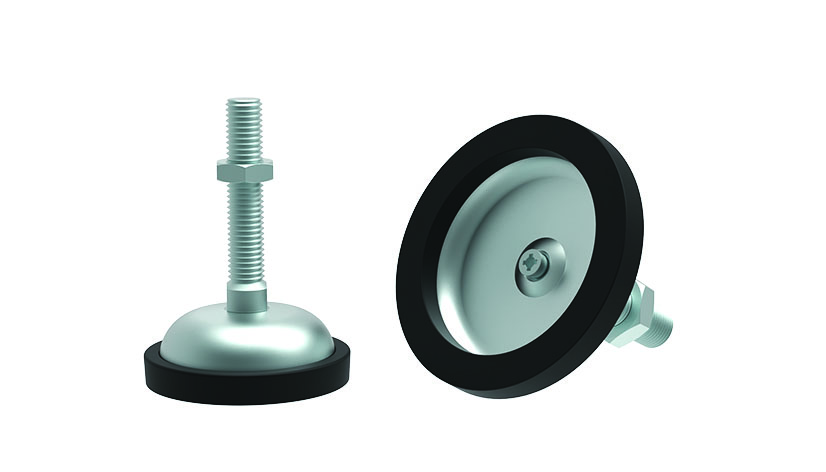

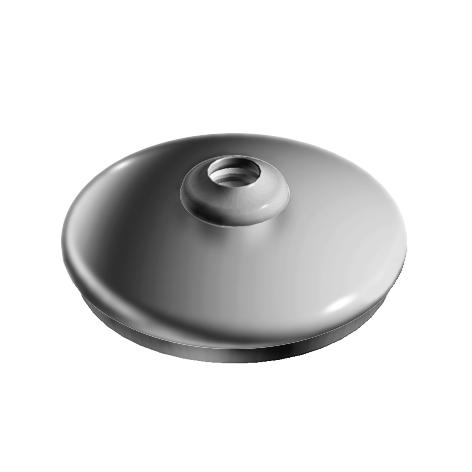

Base for Sealed Swivel Feet, Ball Joint 15
€0.00*
Base:
100
|
D (mm):
98.5
|
F1 (mm):
35.0
|
F2 (mm):
38.0
|
F3 (mm):
39.0
|
Fmax (N):
6860
Color:Anti-slip Plate: Light gray ≈ RAL 7035Delivery Countries:WorldwideDescription:Adjustable Pivot foot to equalize uneven floors; With integrated anti-slip plate; Including a sealing lip on the bottom that seals up to a slope of 8 degree with a possible max. of 20 degreeMaterial:Base: Stainless steel SS304 Anti-slip Plate: Plastic TPE, ≈ 75 Shore A, water and oil resistant (up to 60°C), with antibacterial and antimicrobial protectionSpecials:As factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq.Zolltarifnummer:73269098900

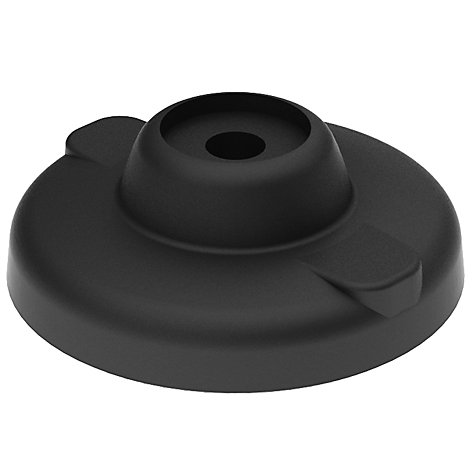

Base PA BDH for Heavy-duty Pivot Feet
€0.00*
Base:
125
|
D (mm):
125
|
F (mm):
57.5
|
Fmax (N):
17650
|
H (mm):
44
|
LK (mm):
96
|
Version:
without anti-slip plate
|
d (mm):
13.4
|
h (mm):
24
Color:BlackDelivery Countries:WorldwideDescription:A heavy-duty leveling foot for strong positioning on slightly uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate 098AG125BZolltarifnummer:39269097900

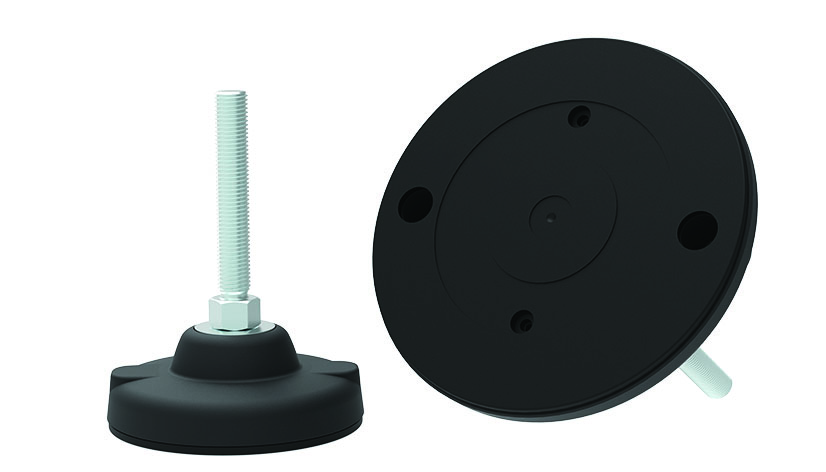

Base PA BDH for Heavy-duty Swivel Feet, Ball Joint 22
€0.00*
Base:
175
|
D (mm):
175
|
F (mm):
63.5
|
Fmax (N):
24500
|
H (mm):
46
|
LK (mm):
135
|
Version:
with anti-slip plate
|
d (mm):
17.0
|
h (mm):
22
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for a strong positioning Of heavy machinery on uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098CM16066M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG125BZolltarifnummer:39269097900

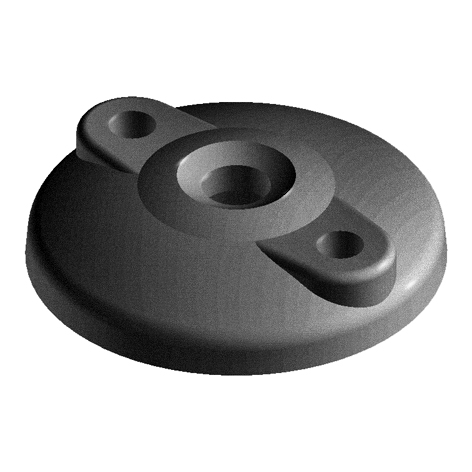

Base PA BDH for Pivot Feet
€0.00*
Base:
100
|
D (mm):
99
|
Fmax (N):
11770
|
LK (mm):
74
|
Version:
without anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050; * Bolt-down holes closedZolltarifnummer:39269097900

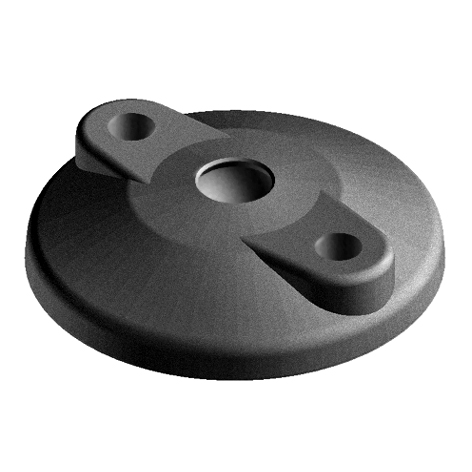

Base PA BDH for Swivel Feet, Ball Joint 15, Black
€0.00*
Base:
80
|
D (mm):
79
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8820
|
LK (mm):
55
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-slip Plate see 098DG030 et sq.; * Bolt-down holes closedZolltarifnummer:39269097900
Base PA BDH for Swivel Feet, Ball Joint 15, Gray
€0.00*
Base:
*80
|
D (mm):
79
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8820
|
LK (mm):
55
|
Version:
without anti-slip plate
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-slip Plate see 098DG030 et sq.; * Bolt-down holes closedZolltarifnummer:39269097900

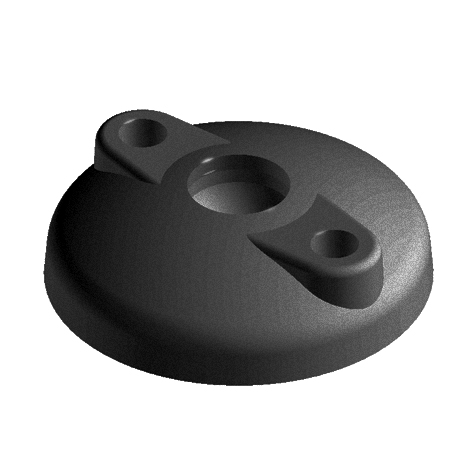

Base PA BDH for Swivel Feet, Ball Joint 22
€0.00*
Base:
*100
|
D (mm):
99
|
F (mm):
38.5
|
Fmax (N):
8820
|
LK (mm):
74
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098CM16066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098DG030; * Bolt-down holes closedZolltarifnummer:39269097900
