D28, Tubular Frame Components

Filter products

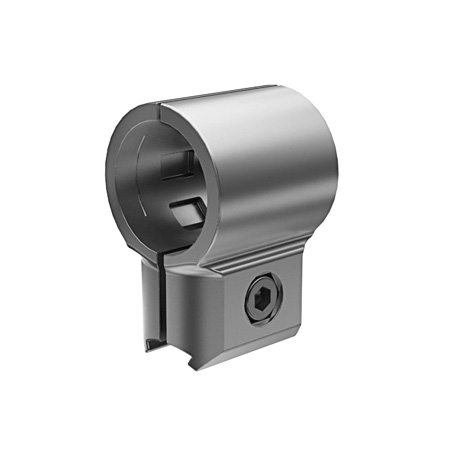

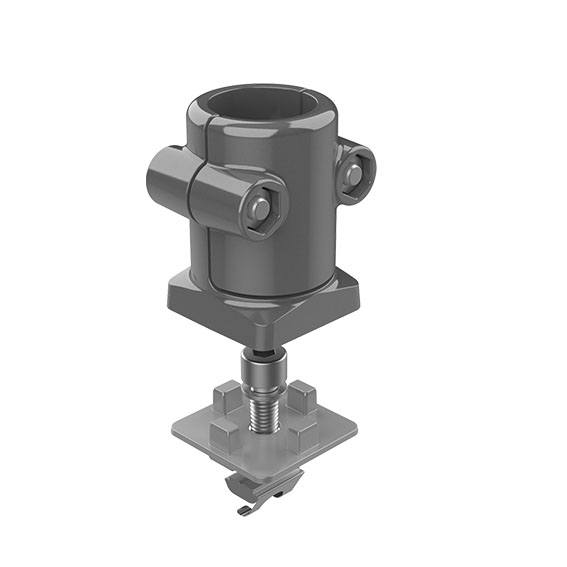

Adapter Piece D28 - 40 M8 (Set)
Adapter Piece D28 - 40 M8 (Set)
B (mm): 40 | Profile: B | R (mm): 3.0 | Slot N (mm): 10
Color:Adapter piece: Alu color Centering plate: Alu colorDelivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)Material:Adapter piece: Alu die-cast Centering plate: Alu die-cast Screws: Steel Washer: Steel T-slot nut: SteelSet:1 adapter piece 1 centering plate 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut) 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole) 1 washer 8-FSt 1 T-slot nut - slot 10 - M8Surface:Adapter piece: Laquered Centering plate: Laquered Screws: Zinc plated Washer: Zinc plated T-slot nut: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

€0.00*

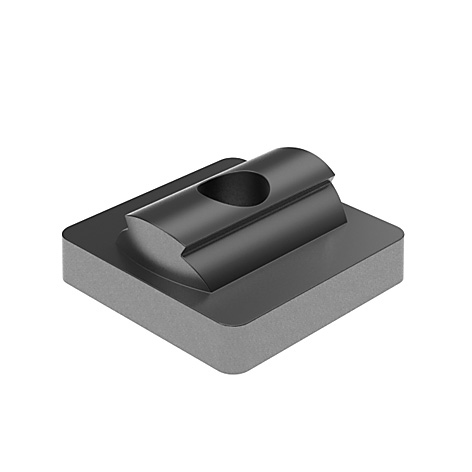

Adapter Plate D28 (Set)
Adapter Plate D28 (Set)
A (mm): 45.0 | ESD: ESD electrostatical discharging | R (mm): 3.0 | Slot N (mm): 8 / 10
Delivery Countries:WorldwideDescription:To connect tubular frame profiles with slot 8 or 10 aluminum profilesMaterial:Adapter plates: Aluminum die-cast Centering piece: Zinc die-castSet:1 adapter plate, 2 locating pins for slot 8 and 10Surface:PlainTip:Compatible Connector see 099RV2890LS01, 099RV28KS01, 099RV2845S01 - 099RV2890QS01 * Compatible Cutting Bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

€0.00*

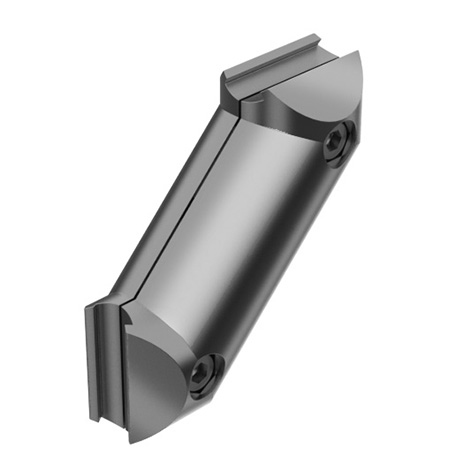

Angle Connector 2D28 (Set)
Angle Connector 2D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

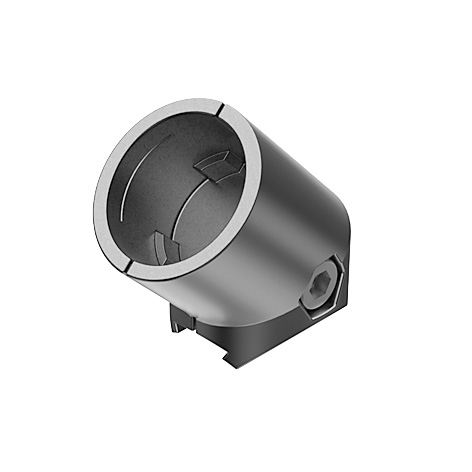

Angle Connector D28, 45° (Set)
Angle Connector D28, 45° (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profileswith Ø 28 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D28 ,45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

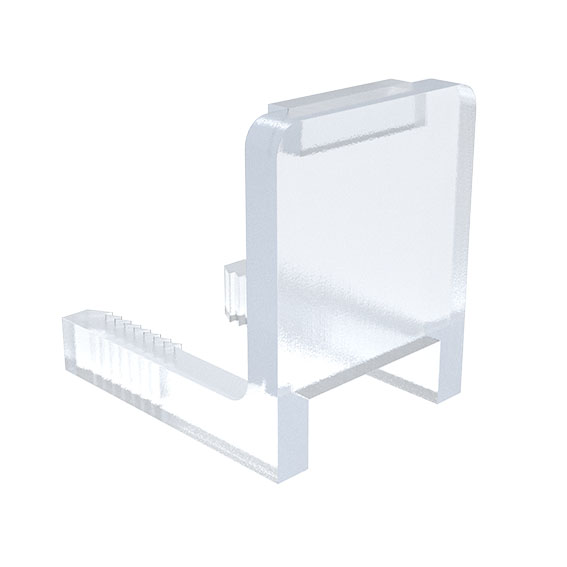

Clip clamp , for Vario Clamping Blocks
Clip clamp , for Vario Clamping Blocks
Color:Transparent (colorless)Delivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PCTip:Compatible Vario Clamping Blocks see 094523M6, 094522M6CS and 094524M6

€0.00*

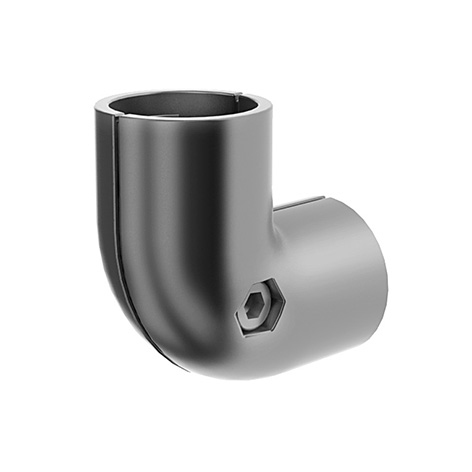

Corner Connector 2D28 (Set)
Corner Connector 2D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for corner connector 2D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

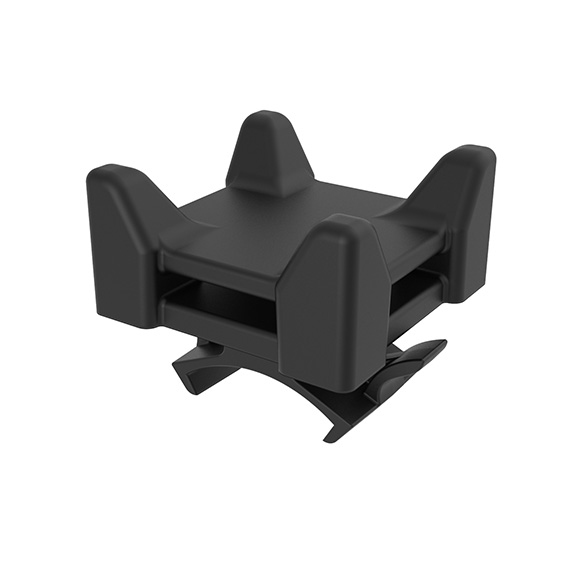

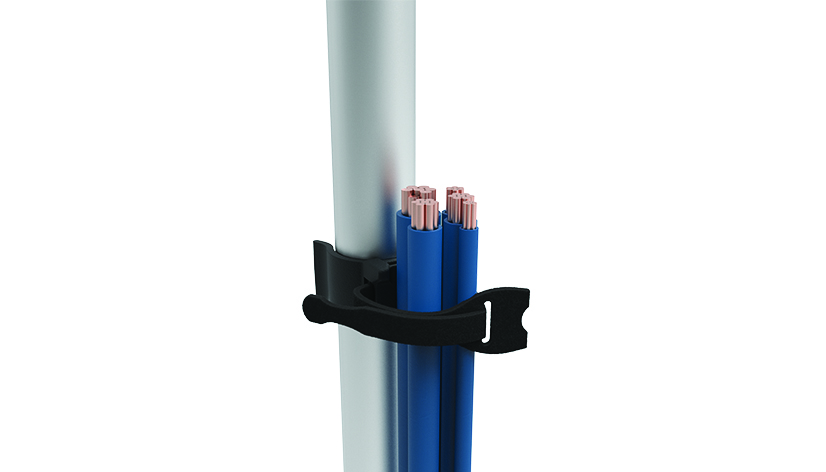

Cross Cable Binder Block D28
Cross Cable Binder Block D28
Color:BlackDelivery Countries:WorldwideDescription:To fasten cables and tubes parallel to the slot, simple click-in assemblyMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Velcro® strap for Cross Cable Binder Block D28 see 340ME8200KL

€0.00*

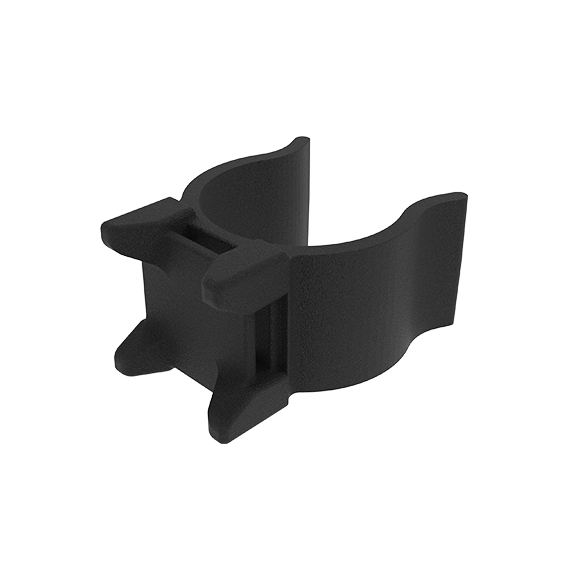

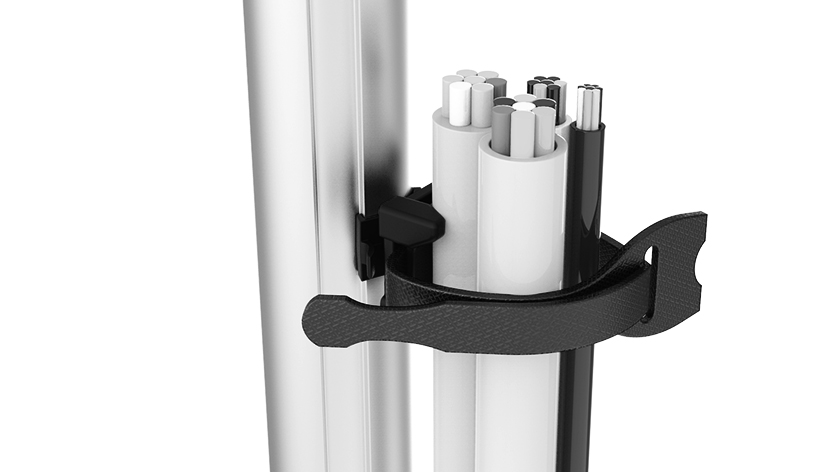

Cross Cable Binder Block D28 Universal
Cross Cable Binder Block D28 Universal
Color:BlackDelivery Countries:WorldwideDescription:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plastic PA, carbon fiber reinforced

€0.00*

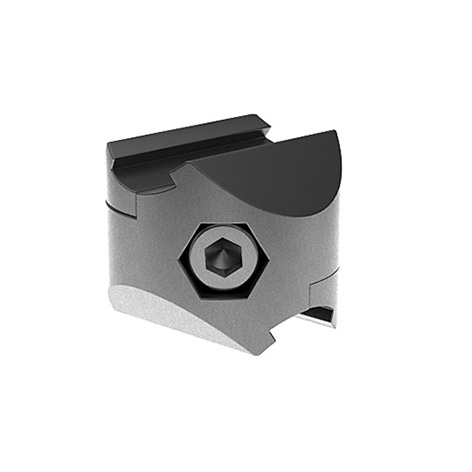

Cross Connector D28 (Set)
Cross Connector D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To cross connect two tubular frame profileswith Ø 28 mm outer diameter; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

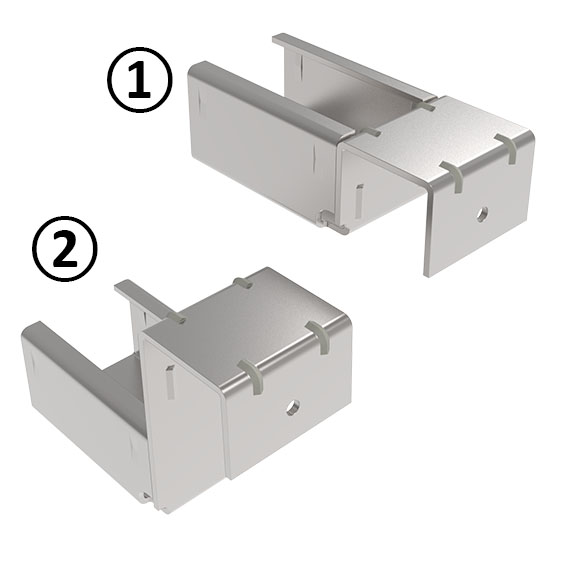

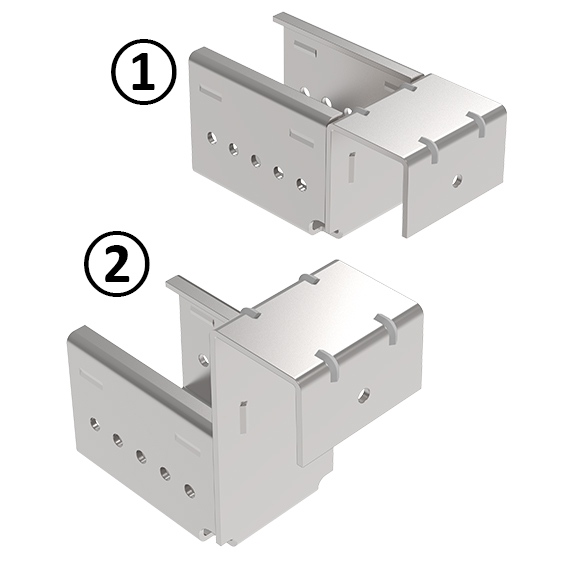

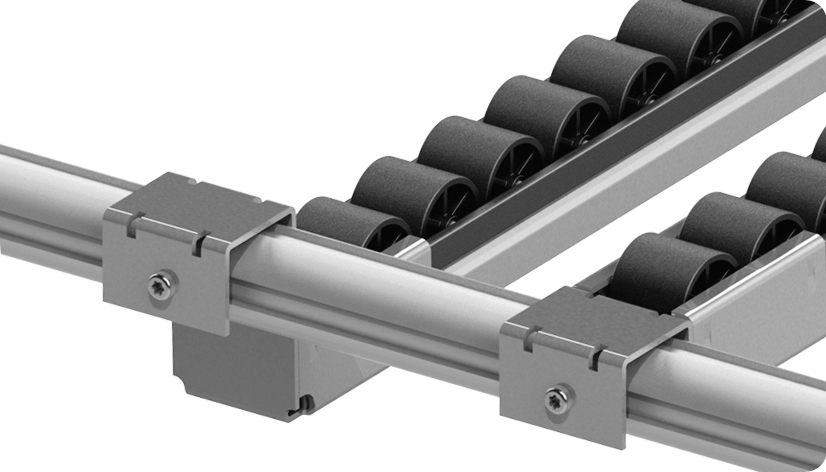

Holding Bracket AL D28
Holding Bracket AL D28
Fig.: ① | Version: Without end stop
Assembly Set:5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Delivery Countries:WorldwideDescription:To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

€0.00*
Holding Bracket XST D28
Holding Bracket XST D28
Fig.: ② | Version: With end stop
Delivery Countries:WorldwideDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

€0.00*

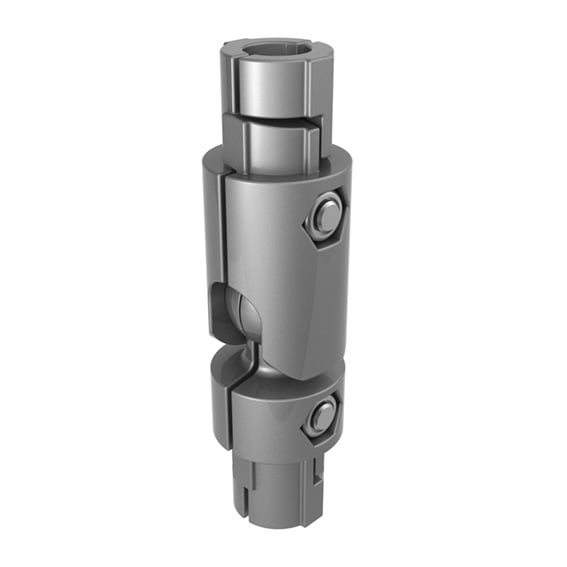

Inner Ball Butt Connector D28 (Set)
Inner Ball Butt Connector D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for inner ball butt connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

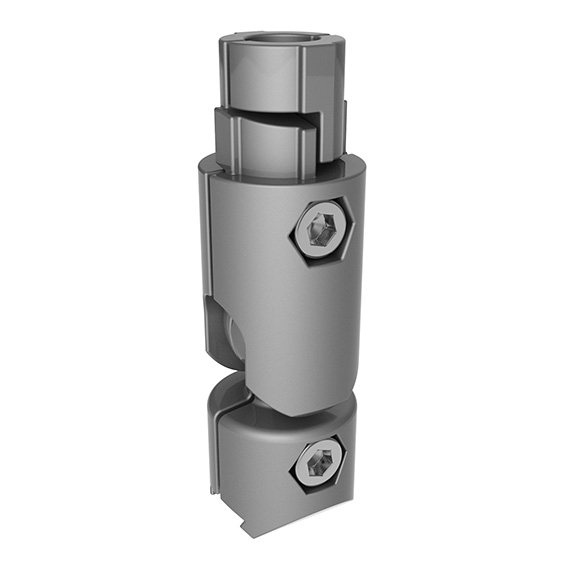

Inner Ball Connector D28 (Set)
Inner Ball Connector D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for inner ball butt T-connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

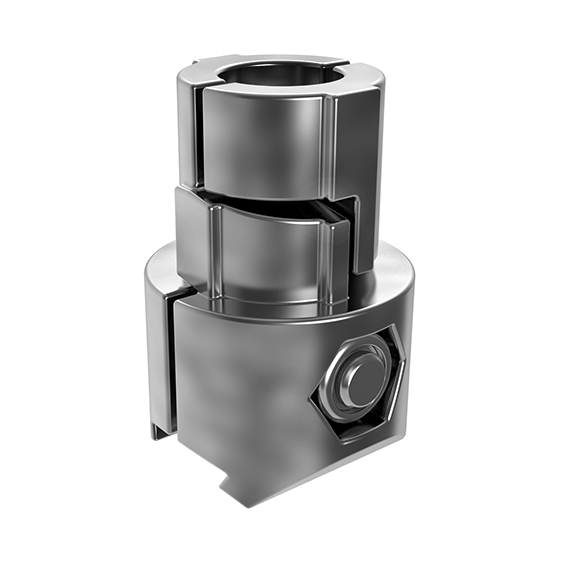

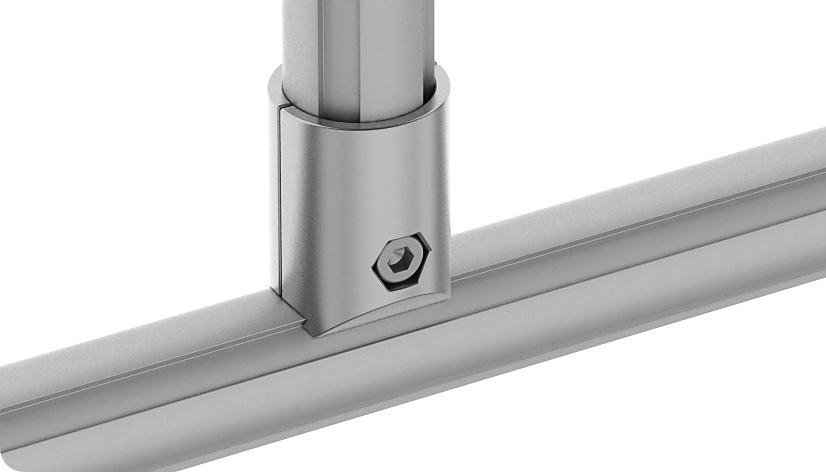

Inner T-Connector D28 (Set)
Inner T-Connector D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for inner T-connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

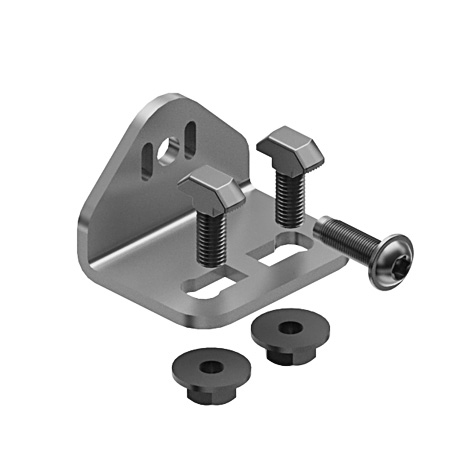

Mounting Bracket 60 x 47, D28 (Set)
Mounting Bracket 60 x 47, D28 (Set)
ESD: ESD electrostatical discharging | Profile: B
Delivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; adjustable by slotted holesMaterial:SteelSet:1 mounting bracket, 1 self-tapping screw S8 x 25 - hexalobular Socket T40, 2 hammer head screws - Nut 10 - M8 x 20, 2 flange nuts M8Surface:Zinc plated

€0.00*

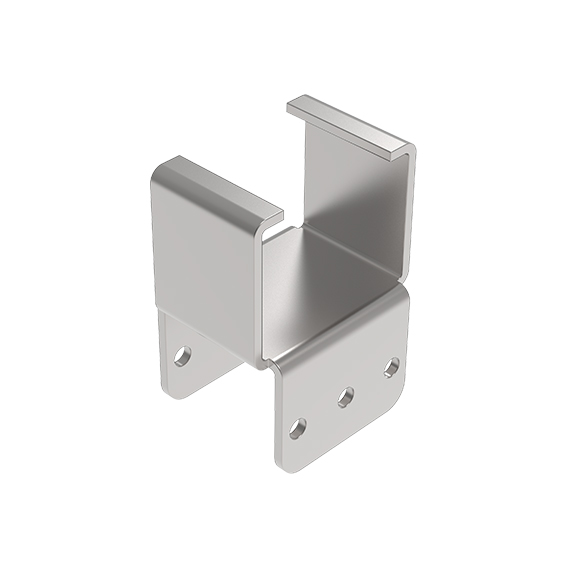

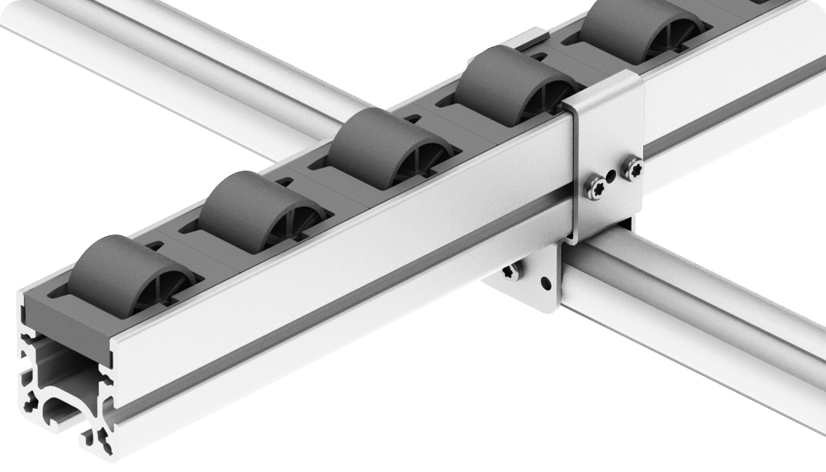

Mounting Bracket AL D28
Mounting Bracket AL D28
Version: -
Assembly Set:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Delivery Countries:WorldwideDescription:To mount and support an AL roller track profile on a crossing tubular frame profilewith Ø 28 mm outer diameterMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

€0.00*

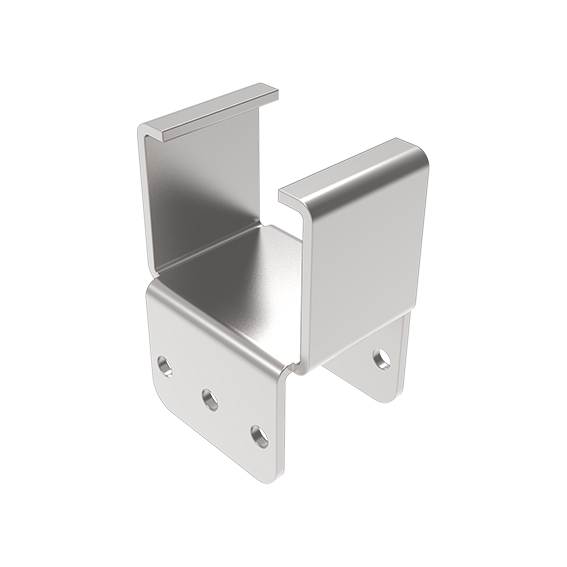

Mounting Bracket XST D28
Mounting Bracket XST D28
Assembly Set:2 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Delivery Countries:WorldwideDescription:To mount and support an roller track XST or a guiding rail XST central on a crossing tubular frame profile with Ø 28 mm outer diameterMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

€0.00*

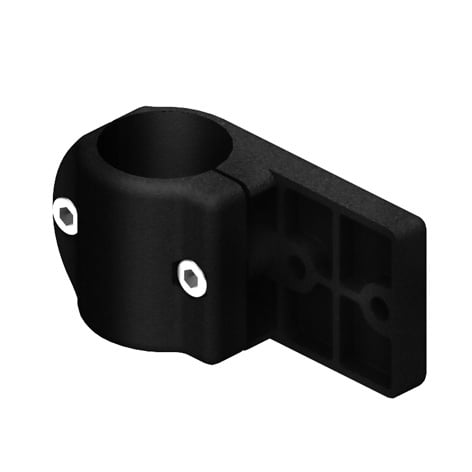

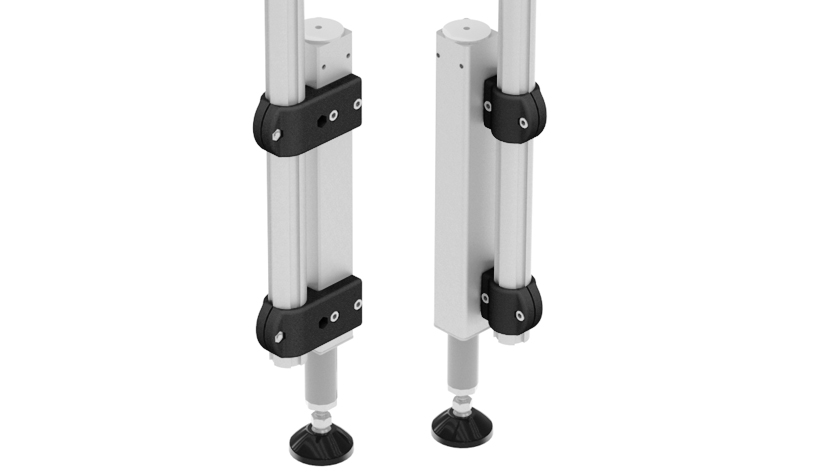

Mounting Clamp D28 (Set)
Mounting Clamp D28 (Set)
Color:Mounting clamp: BlackDelivery Countries:WorldwideDescription:To laterally connect a tubular frame profilewith Ø 28 mm outer diameter to an aluminum profile, hole spacing compatible with Ergoswiss® lift cylindersMaterial:Connector: Zinc die-cast Assembly set: SteelSet:2 components for mounting clamp D28, 2 screws DIN EN ISO 4762 (DIN 912) - M5 x 16, 2 screws DIN EN ISO 4762 (DIN 912) - M5 x 10, 2 nuts DIN EN ISO 4032 (DIN 934) - M5Surface:Mounting clamp: Powder coated Assembly set: Zinc plated

€0.00*

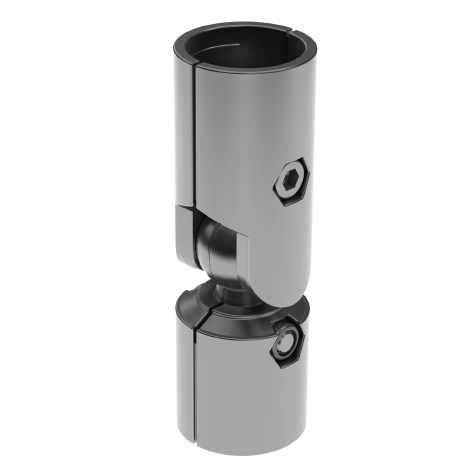

Outer Ball Butt Connector D28 (Set)
Outer Ball Butt Connector D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball butt connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

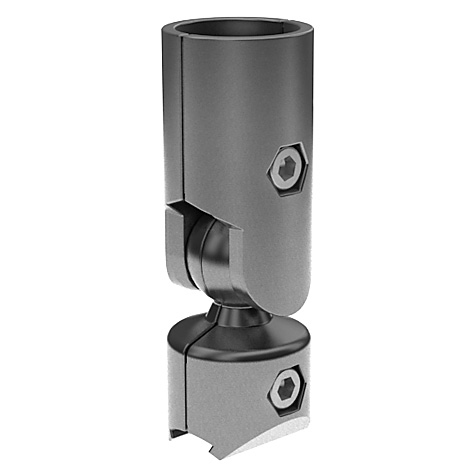

Outer Ball Connector D28 (Set)
Outer Ball Connector D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

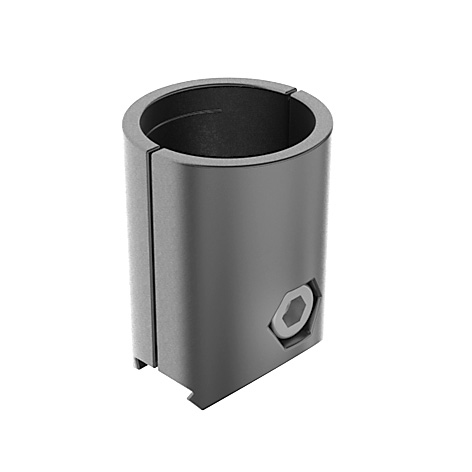

Outer T-Connector D28 (Set)
Outer T-Connector D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for outer T-connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*
Parallel Clamp D28 (Set)
Parallel Clamp D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To parallelly connect a tube or a tubular frame profile to a tubular frame profile with Ø 28 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for parallel clamp D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

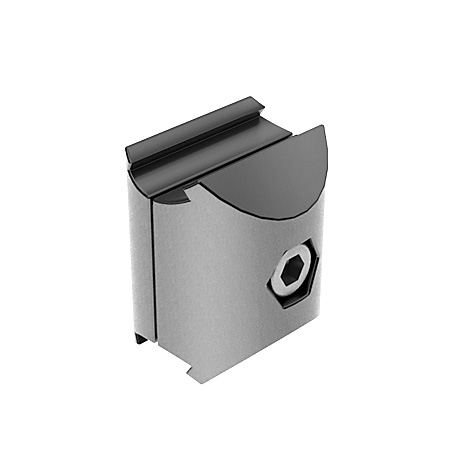

Parallel Connector D28 (Set)
Parallel Connector D28 (Set)
ESD: ESD electrostatical discharging
Delivery Countries:WorldwideDescription:To parallelly connect two tubular frame profileswith Ø 28 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for parallel connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

€0.00*

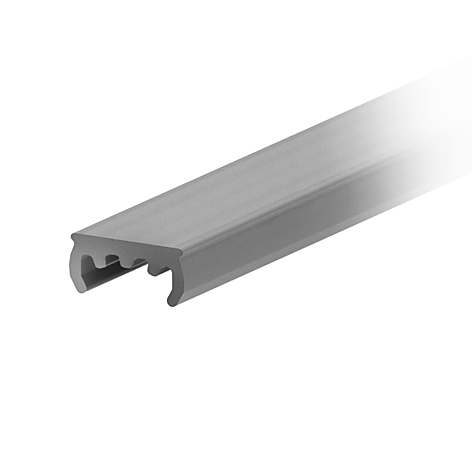

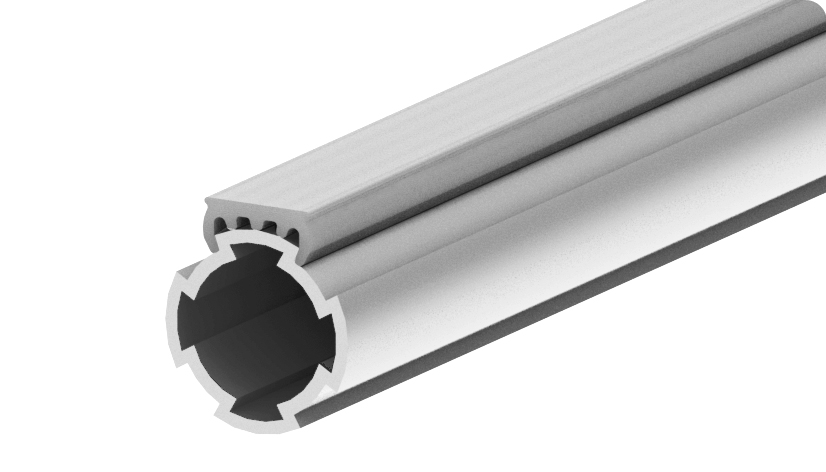

Slide Rail D28
Slide Rail D28
Color: Gray ≈ RAL 7035 | Profile: B

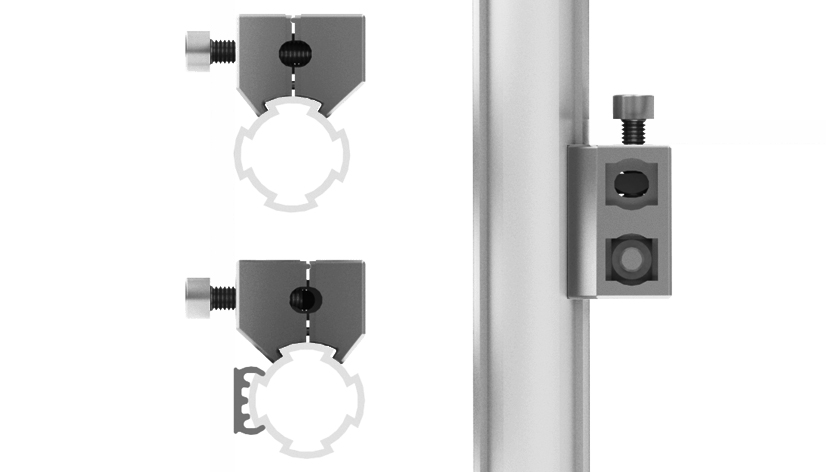

Color:GrayDelivery Countries:WorldwideDescription:To build simple slipways by clipping on a tubular frame profile with Ø 28 mm outer diameter; also applicable as support strip for the mouting of panels with vario block AL D28Material:Plastic PVC-UTip:Compatible Vario Block see 094AD28

€0.00*
