Swivel and Fixed Casters

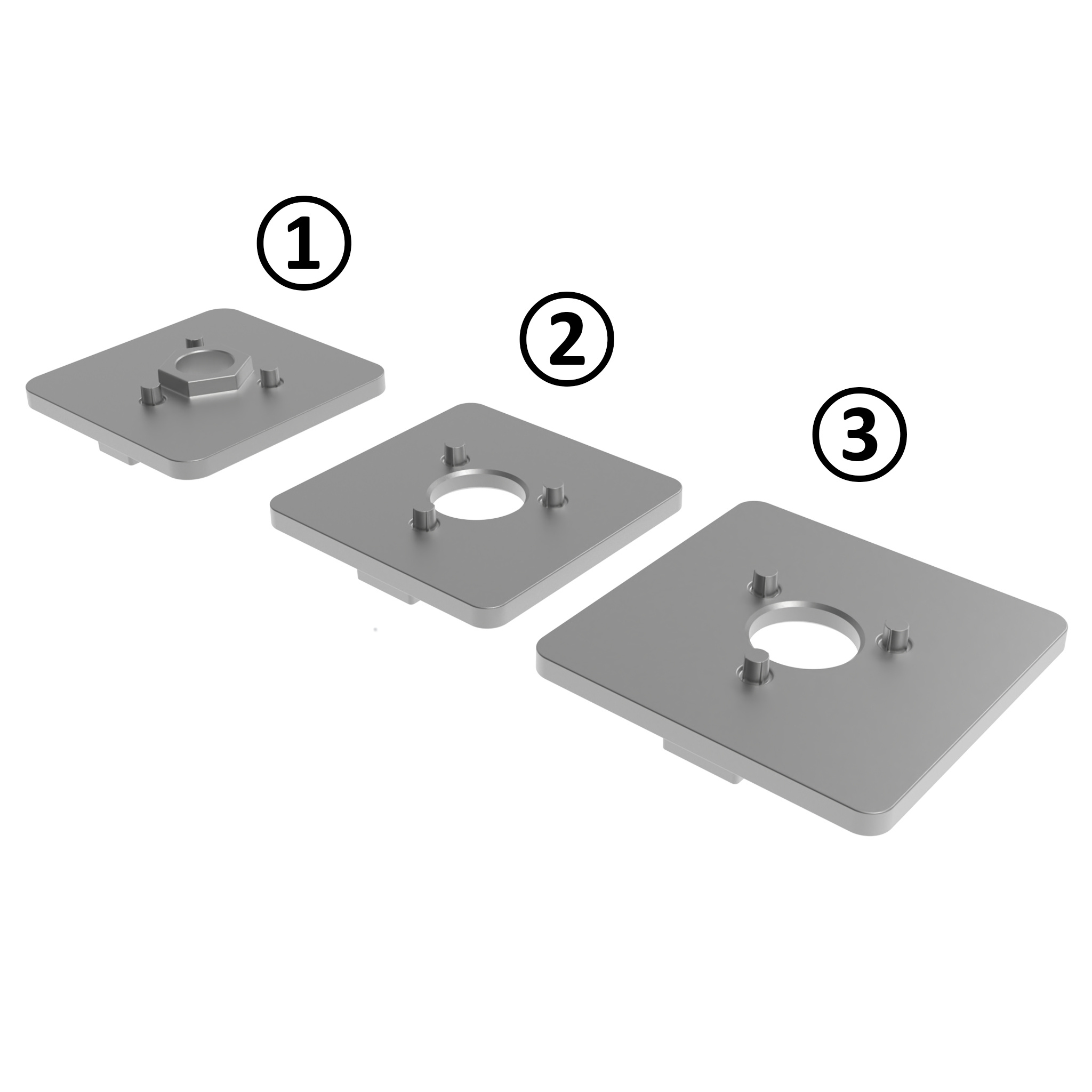

Adapter Plate for Fixed Casters Ø 80 / 100 / 125
€0.00*
Fig.:
③
|
Profile Width:
45
|
Slot N (mm):
10
Color:Alu colorDelivery Countries:WorldwideDescription:For positive-locking and anti-twist installation of fixed casters to aluminum profilesMaterial:Zinc die-castSurface:Powder coatedTip:Compatible Fixed Caster Ø 80 / 100 / 125 see 098F080TN

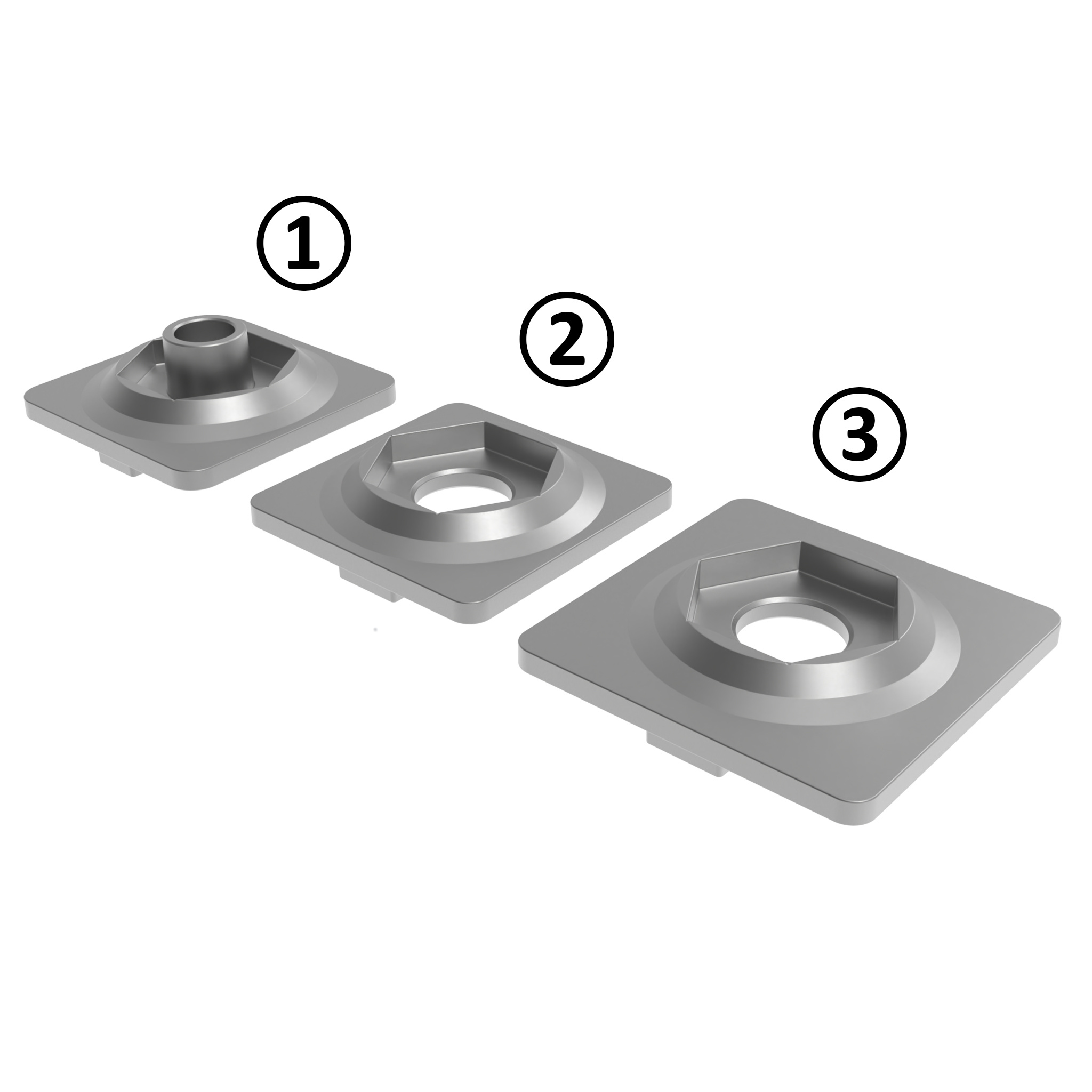

Adapter Plate for Swivel Casters Ø 80 / 100 / 125
€0.00*
Fig.:
③
|
Profile Width:
45
|
Slot N (mm):
10
Color:Alu colorDelivery Countries:WorldwideDescription:For positive-locking and anti-twist installation of swivel casters to aluminum profilesMaterial:Zinc die-castSurface:Powder coatedTip:Compatible Swivel Caster Ø 80 / 100 / 125 see 098S080TN, 098S080TDN
Bockrolle mit Hebefuss
€0.00*
D (mm):
100
|
Fixed Caster Tread:
Solid rubber, black
|
H (mm):
145
|
Max. Load (N):
2000
|
Wheel Body:
PA, black
Color:Housing: Alu color Tread: See table Wheel body: See table Foot pedal: BlackDelivery Countries:WorldwideDescription:Reliable and quiet fixed caster, trackless With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang No additional transport and base plate needed; Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the fixed caster housingMaterial:Die-cast aluminum / steel Thread: See table Wheel body: See table Mounting plate: Steel Leveling foot: Steel / zinc / TPE Foot pedal: Plastic PUR / steelSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated / zinc plated Mounting plate: Zinc plated Leveling foot: Zinc plated Foot pedal: Zinc plated

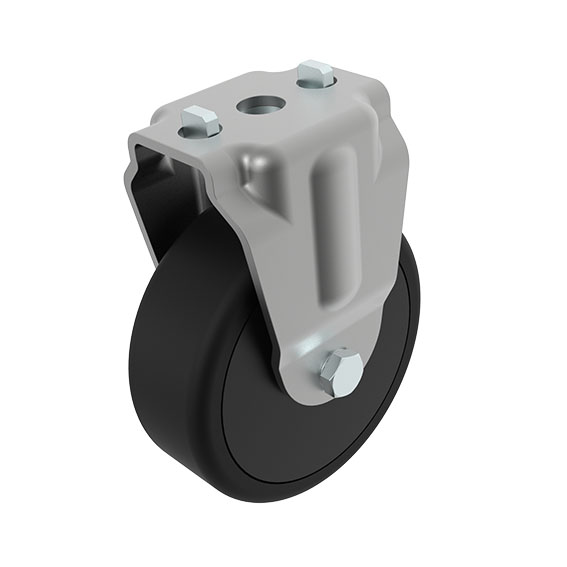

Fixed Caster Ø 75
€0.00*
D (mm):
75
|
ESD:
-
|
Fixed Caster Tread:
PP, gray
|
H (mm):
98
|
Max. Load (N):
700
|
Wheel Body:
TPE, gray ≈ RAL 7001
Color:Housing: Alu color Tread: See table Wheel body: GrayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles, with optional locating pin slot 8 secured against rotationMaterial:Housing: Steel Tread: See table Wheel body: See table Locating pin: SteelSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated Locating pin: Zinc plated

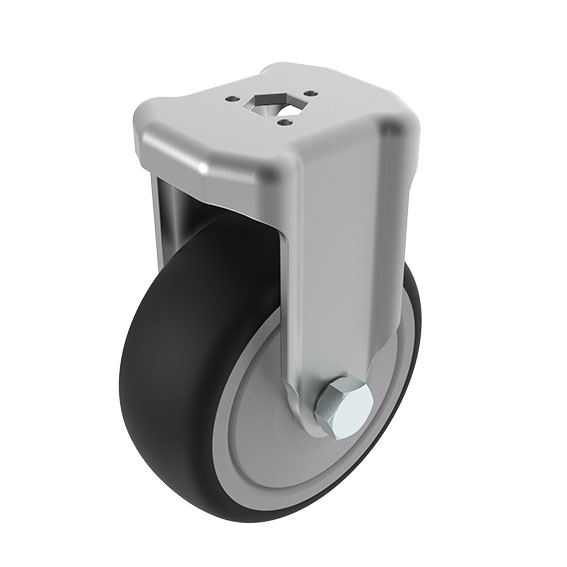

Fixed Caster Ø 80 / 100 / 125
€0.00*
Bearing:
Ball bearing
|
D (mm):
125
|
ESD:
-
|
Fixed Caster Tread:
TPU, gray ≈ RAL 7024
|
H (mm):
158
|
Max. Load (N):
1200
|
Wheel Body:
PA, gray
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet fixed caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate F; no additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedTip:Compatible Adapter Plate for Fixed Casters Ø 80 / 100 / 125 see 098FA40N08

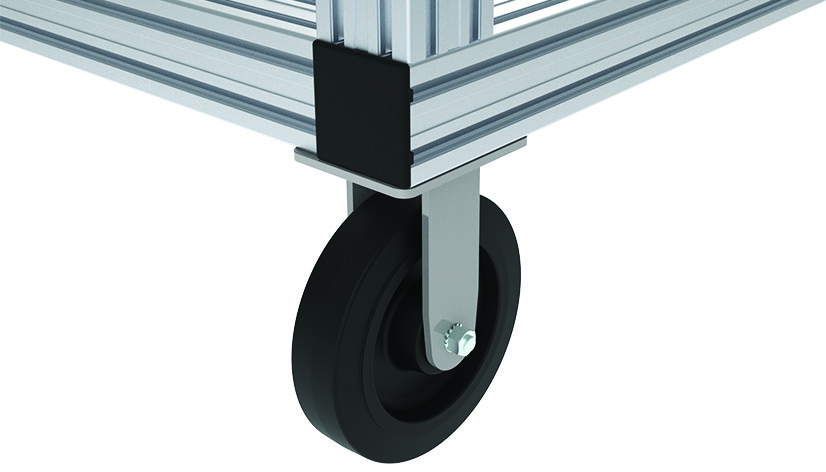

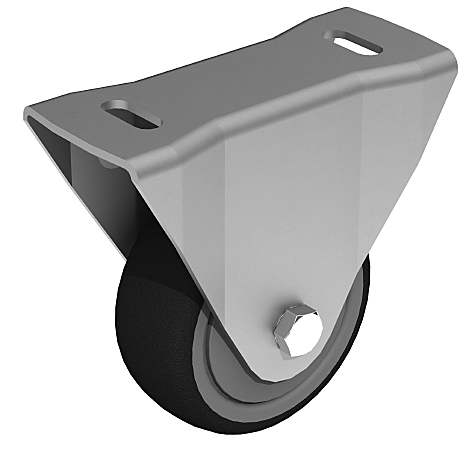

Fixed Caster Ø 80 / 100 / 125 with Mounting Plate 40 / 45
€0.00*
Bearing:
Ball bearing
|
D (mm):
125
|
ESD:
ESD
|
Fixed Caster Tread:
TPU, gray ≈ RAL 7024
|
H (mm):
161
|
Max. Load (N):
1200
|
Wheel Body:
PA, black
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet fixed caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles 38 - 1.5", 40 mm and 45 mm without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

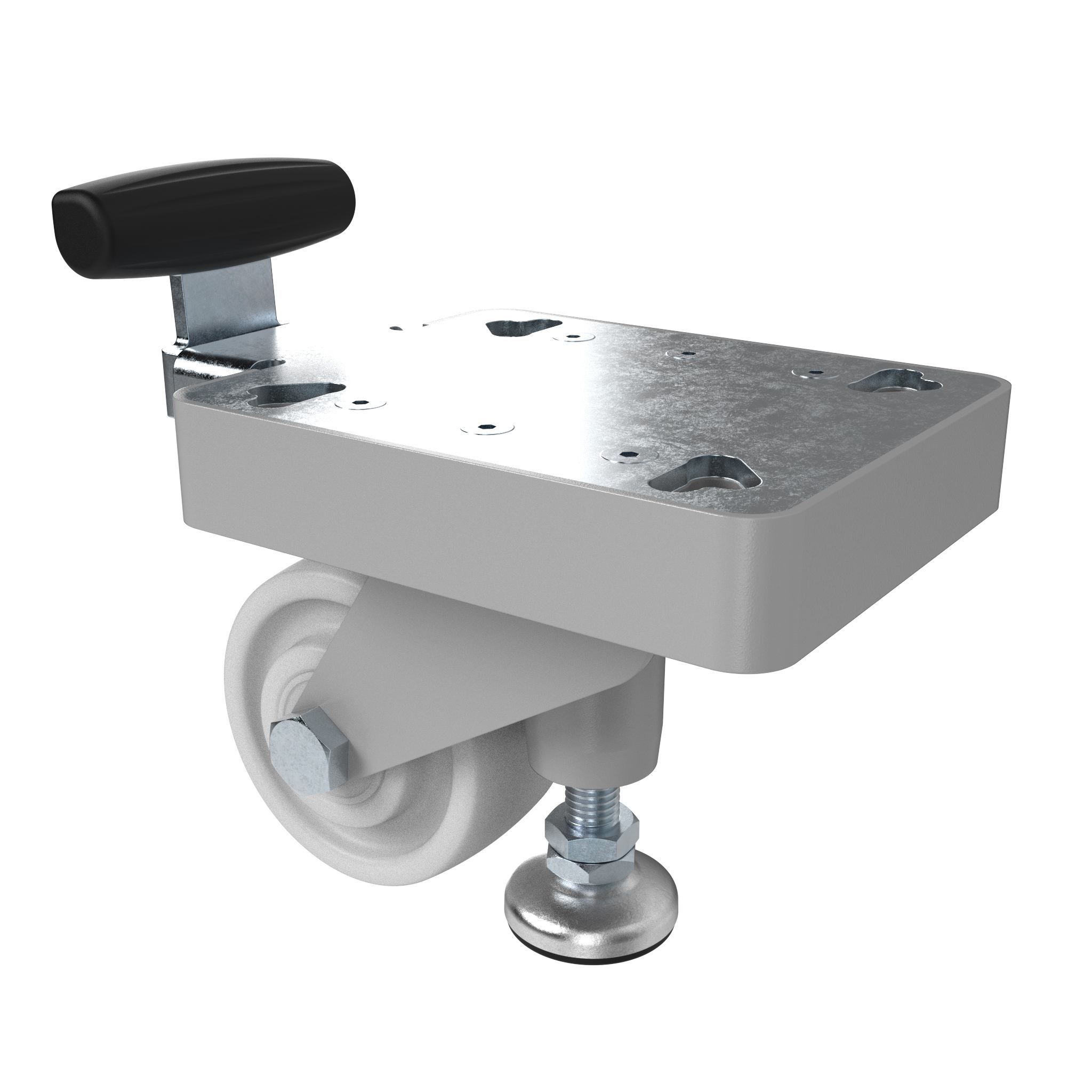

Fixed Caster with Lifting Foot
€0.00*
D (mm):
100
|
ESD:
ESD
|
Fixed Caster Tread:
PU, black
|
H (mm):
145
|
Max. Load (N):
1300
|
Wheel Body:
PA, gray ≈ RAL 7001
Color:Housing: Alu color Tread: See table Wheel body: See table Foot pedal: BlackDelivery Countries:WorldwideDescription:Reliable and quiet fixed caster, trackless With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang No additional transport and base plate needed; Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the fixed caster housingMaterial:Die-cast aluminum / steel Thread: See table Wheel body: See table Mounting plate: Steel Leveling foot: Steel / zinc / TPE Foot pedal: Plastic PUR / steelSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated / zinc plated Mounting plate: Zinc plated Leveling foot: Zinc plated Foot pedal: Zinc platedZolltarifnummer:73269098900

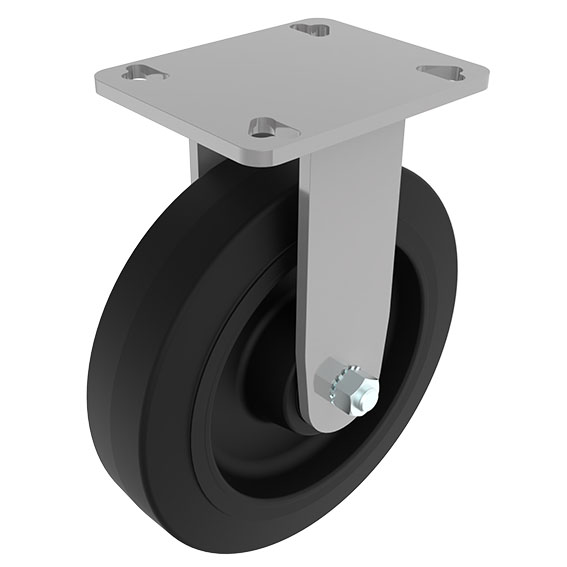

Heavy-duty Fixed Caster Ø 200 with Mounting Plate 40 / 45
€0.00*
B (mm):
50
|
D (mm):
200
|
ESD:
ESD
|
Fixed Caster Tread:
PU, gray
|
H (mm):
235
|
Max. Load (N):
7800
|
Wheel Body:
Aluminum, gray
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet fixed caster, trackless With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang No additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

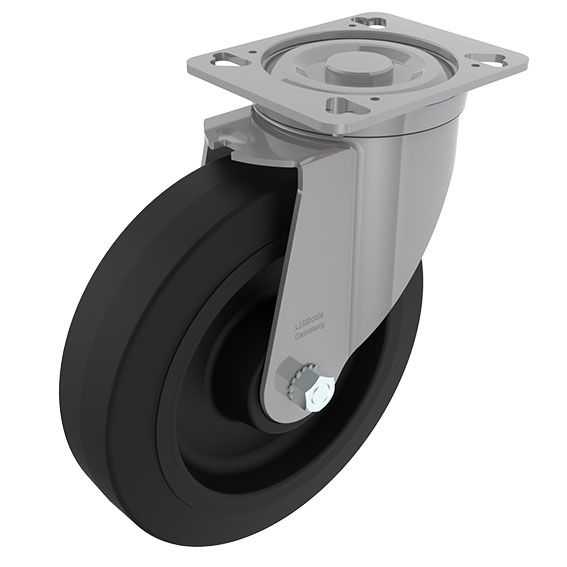

Heavy-duty Swivel Caster Ø 200 with Mounting Plate 40 / 45
€0.00*
B (mm):
50
|
D (mm):
200
|
ESD:
-
|
H (mm):
235
|
Max. Load (N):
7800
|
Swivel Caster Tread:
PU, yellow
|
Wheel Body:
Aluminum, gray
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

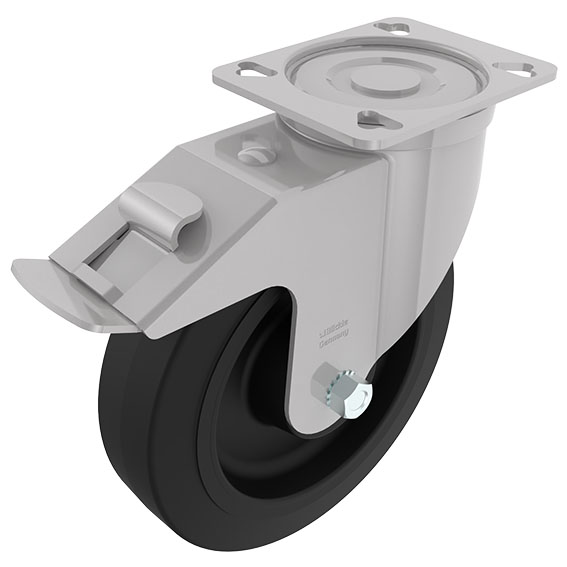

Heavy-duty Swivel Caster Ø 200 with System Brake and Mounting Plate 40 / 45
€0.00*
B (mm):
40
|
D (mm):
200
|
ESD:
ESD
|
H (mm):
235
|
Max. Load (N):
3100
|
Swivel Caster Tread:
TPU, dark gray
|
Wheel Body:
PA, gray
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedZolltarifnummer:73269098900
Lenkrolle mit Hebefuss
€0.00*
D (mm):
80
|
H (mm):
125.0
|
Max. Load (N):
1700
|
Swivel Caster Tread:
Solid rubber, black
|
Wheel Body:
PA, black
Color:Housing: Alu color Tread: See table Wheel body: See table Foot pedal: BlackDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate needed; Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the swivel caster housingMaterial:Die-cast aluminum / steel Thread: See table Wheel body: See table Mounting plate: Steel Leveling foot: Steel / zinc / TPE Foot pedal: Plastic PUR / steelSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated / zinc plated Mounting plate: Zinc plated Leveling foot: Zinc plated Foot pedal: Zinc plated

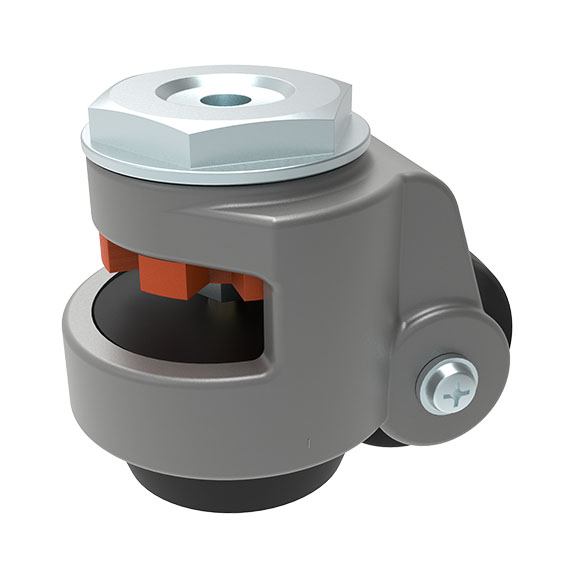

Leveling Caster with Bolt Hole Thread (Set)
€0.00*
D (mm):
50
|
H (mm):
84
|
Max. Load per Lifting Unit (kg):
250 (M8/M12) 250 (M12/M12)
|
SW 1:
11
|
SW 2:
46
Color:Housing: White aluminum ≈ RAL 9006 Adjustment wheel: Orange ≈ RAL 2004 Stamp: Black Roller: BlackDelivery Countries:WorldwideDescription:Reliable leveling caster with bolt hole thread M12 For fixation to transport and base plates, threaded sleeves or threaded bushes; Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrenchMaterial:Bolt hole plate: Steel Housing: Aluminum die-cast Adjustment wheel: Plastic PA Stamp: Rubber NBR Roller: Plastic PASet:1 leveling casters with bolt hole thread 1 double threaded bolts M8/M12 1 double threaded bolts M12/M12 1 open-end wrenchSurface:Bolt hole plate: Zinc plated Housing: Powder coatedTip:Compatible Transport and Base Plates with thread M8 or M12 on request

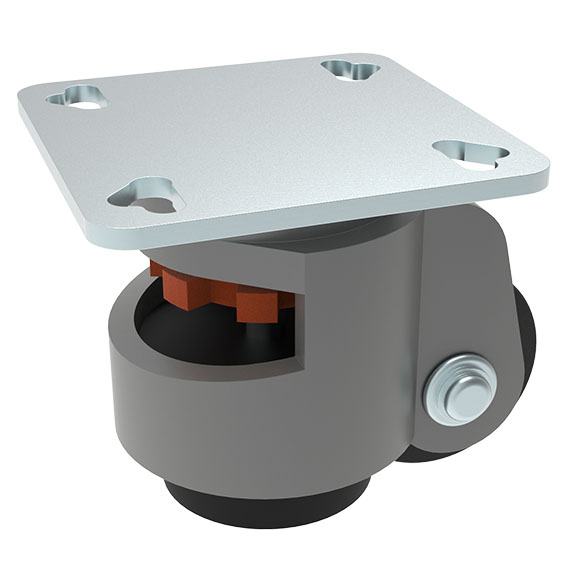

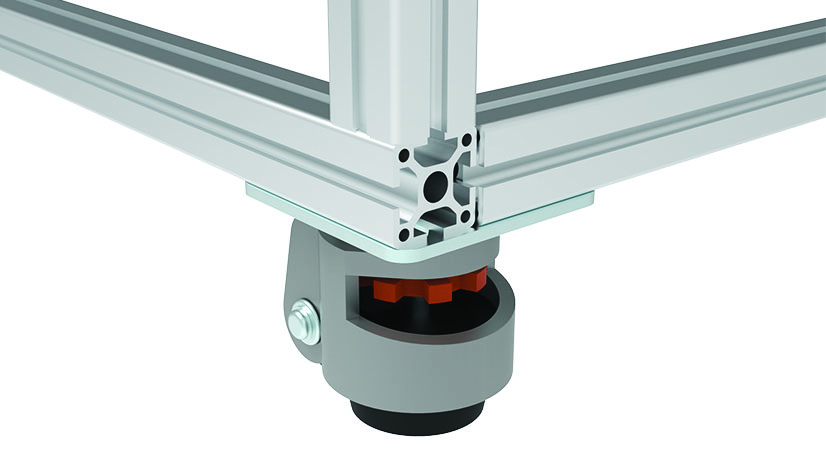

Leveling Caster with Mounting Plate 40 / 45
€0.00*
D (mm):
62
|
H (mm):
103
|
Max. Load (kg):
500
|
SW 1:
12
Color:Housing: White aluminum ≈ RAL 9006 Adjustment wheel: Orange ≈ RAL 2004 Stamp: Black Roller: BlackDelivery Countries:WorldwideDescription:Reliable leveling caster with integrated mounting plate For fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate needed; Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrenchMaterial:Mounting plate: Steel Housing: Aluminum die-cast Adjustment wheel: Plastic PA Stamp: Rubber NBR Roller: Plastic PASurface:Mounting plate: Zinc plated Housing: Powder coated
Schwerlast-Lenkrolle Ø 200 mit Doppelfeststeller und Anschraubplatte 40 / 45
€0.00*
B (mm):
40
|
D (mm):
200
|
H (mm):
235
|
Max. Load (N):
4900
|
Swivel Caster Tread:
TPU, dark gray
|
Wheel Body:
PA, gray
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

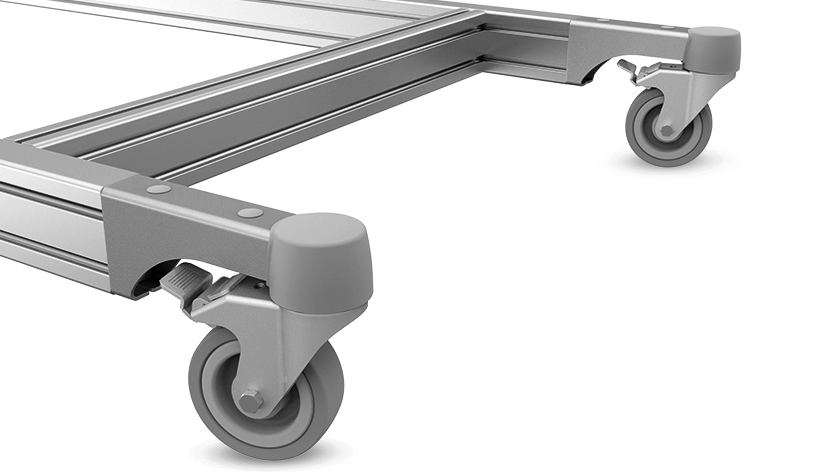

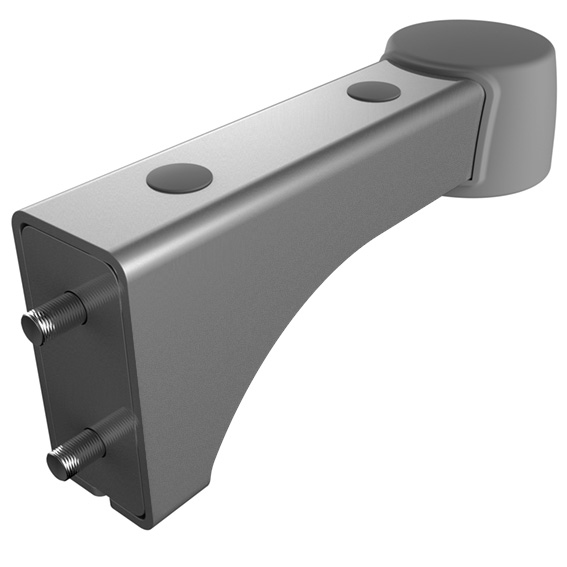

Swivel Caster Arm I 40 x 80 (Set)
€0.00*
Profile:
I
Color:Arm: Alu color Bumper: Gray ≈ RAL 7042 Cover cap: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To mount 360° rotating swivel casters with bolt hole pattern in the back - also with double system brake; higher stability against overturning due to lower center of gravity, icl. side impact protection; Swivel caster arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Steel Bumper: Plastic TPE, ≈ 70 Shore A Screw: Steel Cover cap: PlasticSet:1 caster arm, 1 bumper, 2 screw ISO 7380 - M8 x 16, 1 screw DIN 7991 - M10 x 25, 2 cover capSpecials:Other surfaces, other colors on requestSurface:Arm: Powder coated Screw: Zinc platedTip:Compatible Swivel Caster D80, D100 or D125 see 098S080xxx, 098S100xxx or 098S125xxx

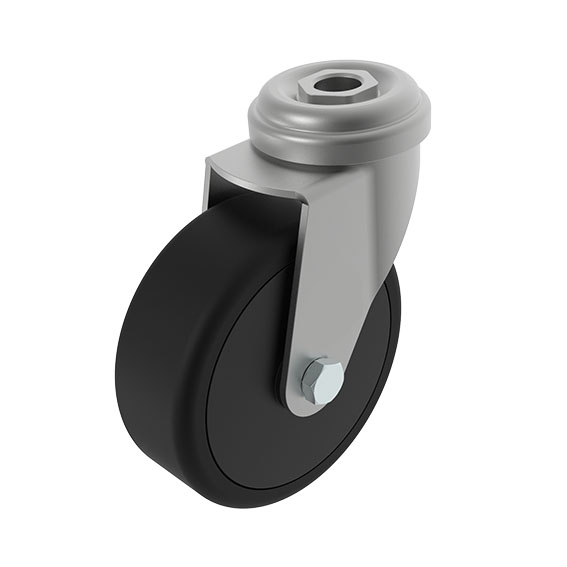

Swivel Caster Ø 75
€0.00*
D (mm):
75
|
ESD:
ESD
|
H (mm):
98
|
Max. Load (N):
490
|
Swivel Caster Tread:
TPE, gray ≈ RAL 7031
|
Wheel Body:
PP, black
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles or with an additional transport and base plateMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

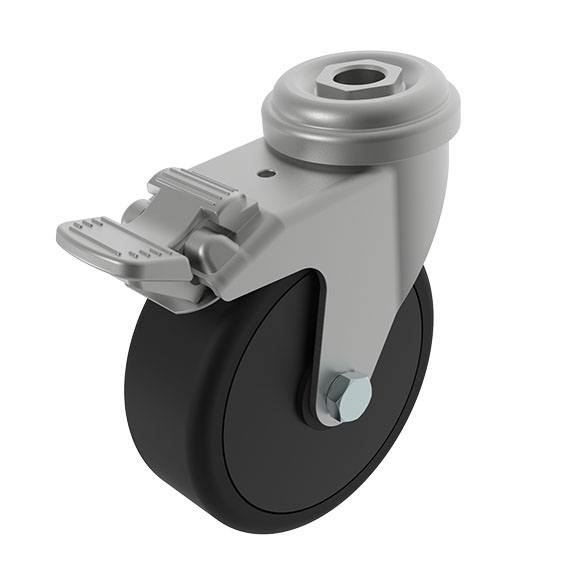

Swivel Caster Ø 75 with System Brake
€0.00*
D (mm):
75
|
ESD:
ESD
|
H (mm):
98
|
Max. Load (N):
490
|
Swivel Caster Tread:
TPE, gray ≈ RAL 7031
|
Wheel Body:
PP, black
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles or with an additional transport and base plateMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

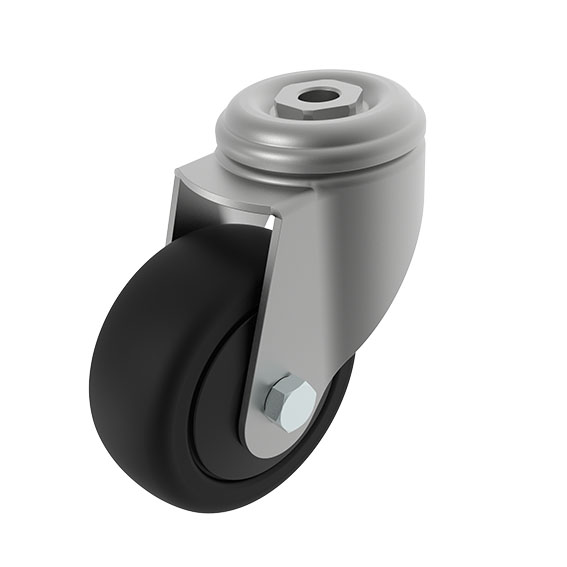

Swivel Caster Ø 80 / 100 / 125
€0.00*
D (mm):
100
|
ESD:
ESD
|
H (mm):
133
|
Max. Load (N):
700
|
Swivel Caster Tread:
TPE, gray ≈ RAL 7031
|
Wheel Body:
PP, black
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate S; no additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedTip:Compatible Adapter Plate for Swivel Casters Ø 80 / 100 / 125 see 098SA40N08

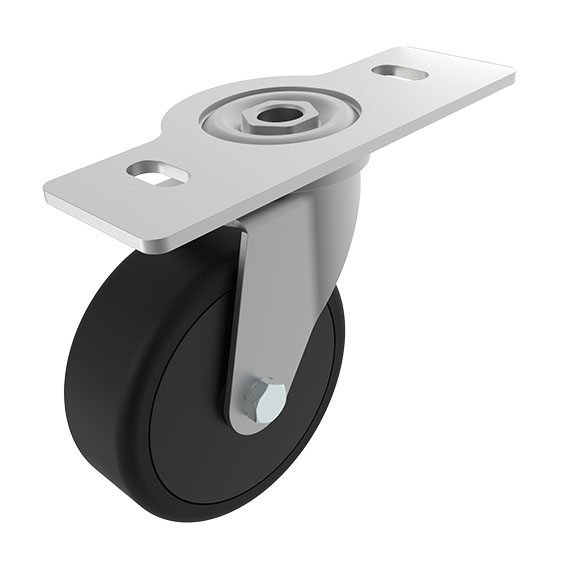

Swivel Caster Ø 80 / 100 / 125 with Mounting Plate 40 / 45
€0.00*
D (mm):
80
|
ESD:
-
|
H (mm):
111
|
Max. Load (N):
800
|
Swivel Caster Tread:
Solid rubber, gray ≈ RAL 7001
|
Wheel Body:
PA, black
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate needed; swivel caster either in standard version or as ESD electrostatical discharging versionMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

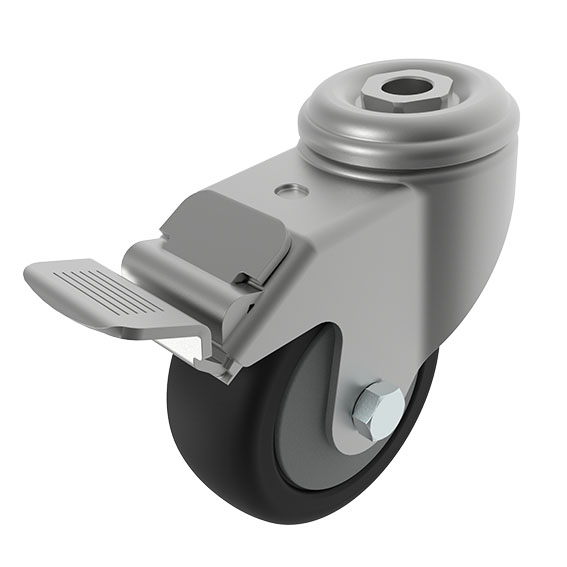

Swivel Caster Ø 80 / 100 / 125 with System Brake
€0.00*
Bearing:
Ball bearing
|
D (mm):
125
|
ESD:
ESD
|
H (mm):
158
|
Max. Load (N):
800
|
Swivel Caster Tread:
TPE, gray ≈ RAL 7031
|
Wheel Body:
PP, black
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate S; no additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coatedTip:Compatible Adapter Plate for Swivel Casters Ø 80 / 100 / 125 see 098SA40N08

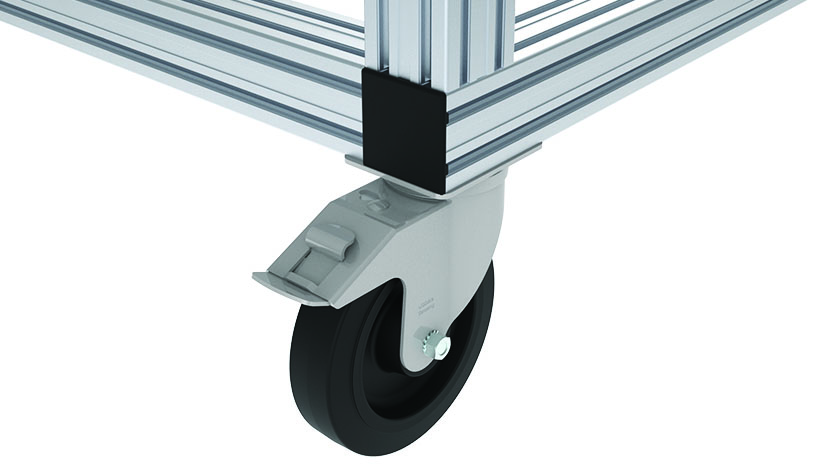

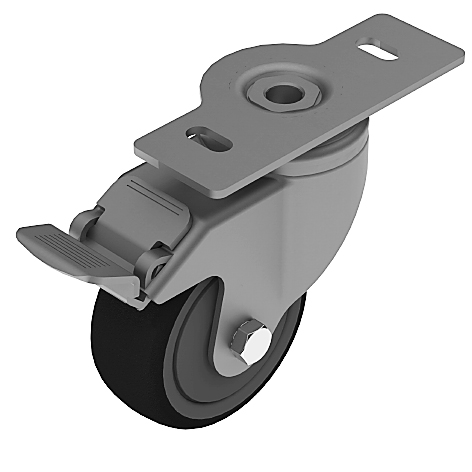

Swivel Caster Ø 80 / 100 / 125 with System Brake and Mounting Plate 40 / 45
€0.00*
Bearing:
Ball bearing
|
D (mm):
100
|
ESD:
-
|
H (mm):
136
|
Max. Load (N):
1100
|
Swivel Caster Tread:
Solid rubber, gray ≈ RAL 7001
|
Wheel Body:
PA, black
Color:Housing: Alu color Tread: See table Wheel body: Black, grayDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; integrated mounting plate for asymmetric fixation to aluminum profiles without overhang; compatible with all swivel and fixed casters due to consistent height level; no additional transport and base plate needed; swivel caster either in standard version or as ESD electrostatical discharging versionMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated

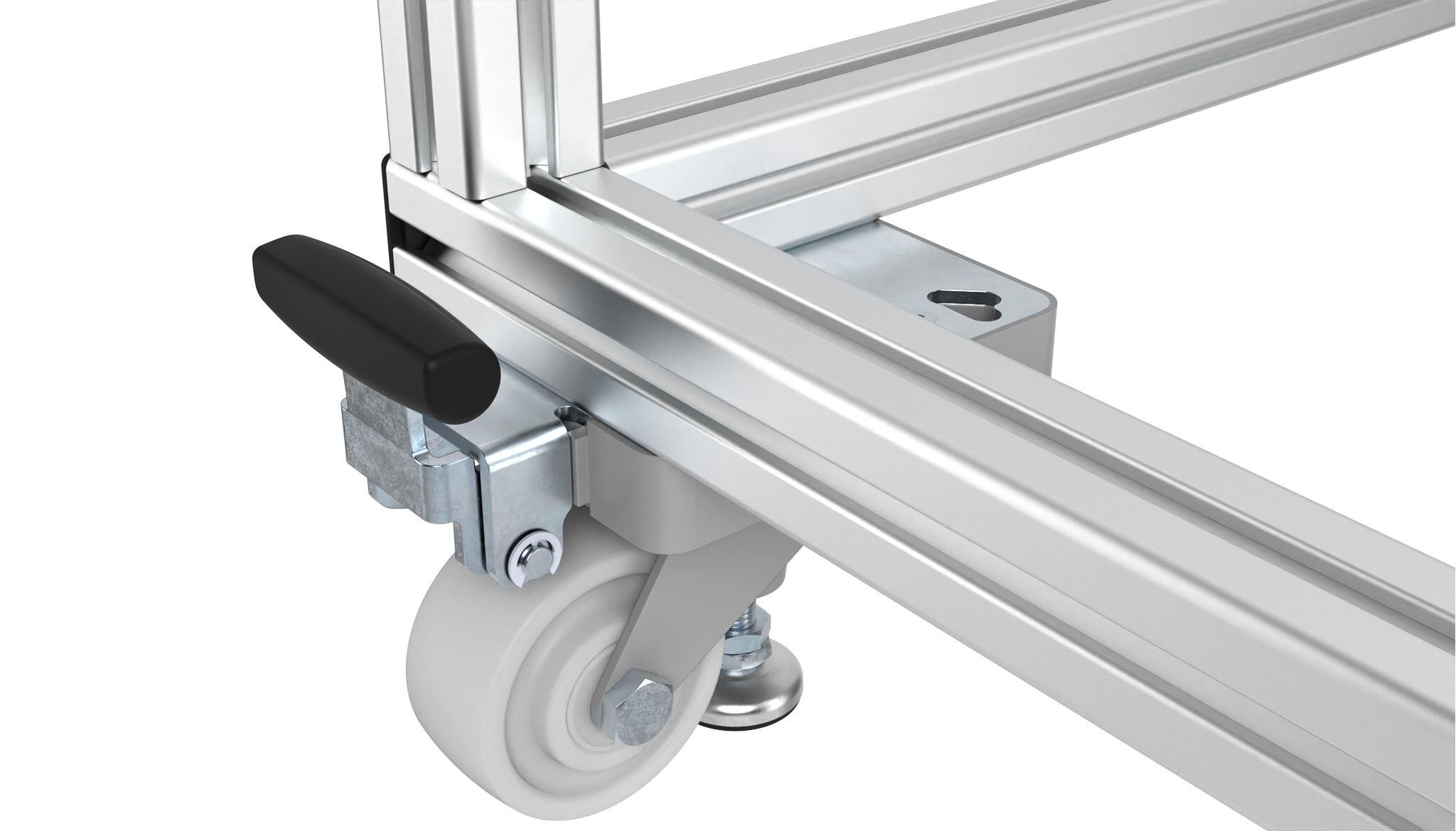

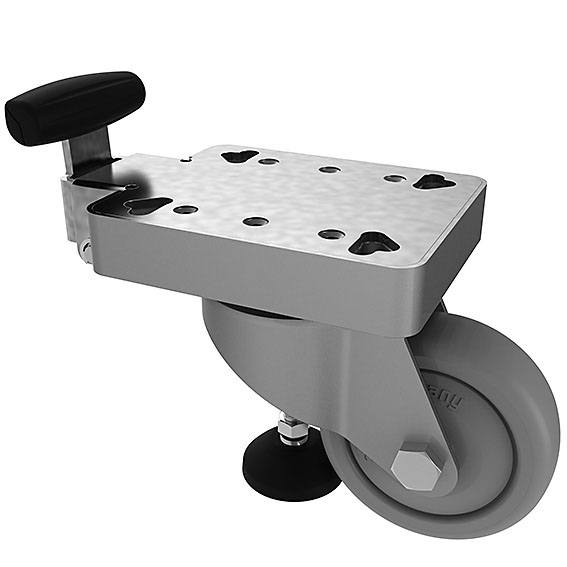

Swivel Caster with Lifting Foot
€0.00*
D (mm):
80
|
ESD:
ESD
|
H (mm):
125.0
|
Max. Load (N):
1000
|
Swivel Caster Tread:
PU, black
|
Wheel Body:
PA, gray ≈ RAL 7001
Color:Housing: Alu color Tread: See table Wheel body: See table Foot pedal: BlackDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate needed; Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the swivel caster housingMaterial:Die-cast aluminum / steel Thread: See table Wheel body: See table Mounting plate: Steel Leveling foot: Steel / zinc / TPE Foot pedal: Plastic PUR / steelSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated / zinc plated Mounting plate: Zinc plated Leveling foot: Zinc plated Foot pedal: Zinc plated
