Floor Elements

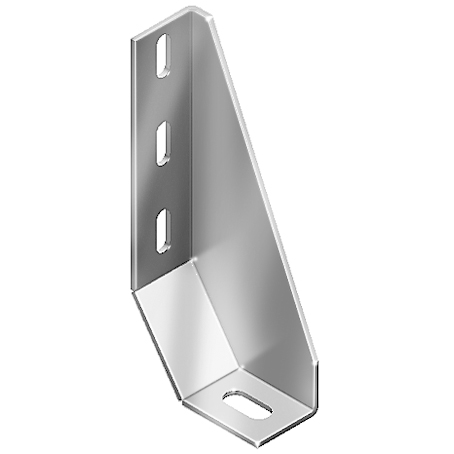

Floor Bracket ST 200
Color:Black, -Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated / powder coated

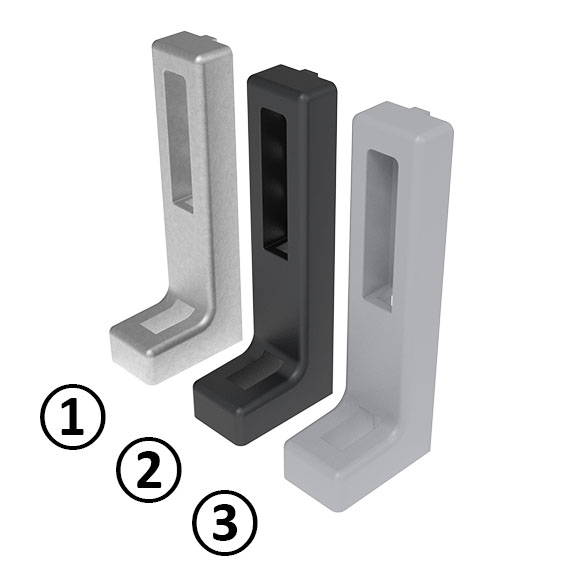

Floor Bracket ZN 120
Assembly Set:1 T-slot nut - Nut 6 - M6, 1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 60Color:Black, alu color, -Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:Floor bracket: Zinc die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Floor bracket: Plain / powder coated Assembly set: Zinc plated

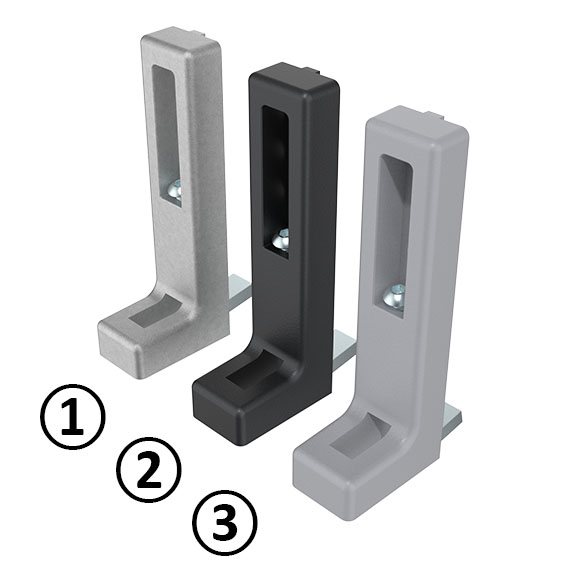

Floor Bracket ZN 120, Adjustable (Set)
Assembly Set:1 T-slot nut - Nut 6 - M6, 1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 60Color:Black, alu color, -Delivery Countries:WorldwideDescription:To fix aluminum profiles to the floor vertically adjustable; with adjustment screw and threaded plateMaterial:Floor bracket: Zinc die-cast Assembly set: SteelSet:1 floor bracket 120, 1 adjusting screw, 1 adjusting plateSpecials:Other surfaces, other colors on requestSurface:Floor bracket: Plain / powder coated Assembly set: Zinc plated
Floor Bracket ZN 160
Assembly Set:1 T-slot nut - Nut 8 - M8, 1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 80Color:Black, alu color, -Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:Floor bracket: Zinc die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Floor bracket: Plain / powder coated Assembly set: Zinc plated

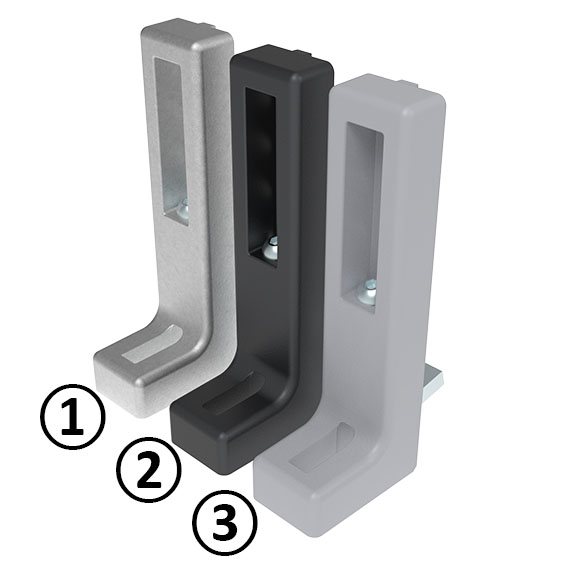

Floor Bracket ZN 160, Adjustable (Set)
Assembly Set:1 T-slot nut - Nut 8 - M8, 1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 80Color:Black, alu color, -Delivery Countries:WorldwideDescription:To fix aluminum profiles to the floor vertically adjustable; with adjustment screw and threaded plateMaterial:Floor bracket: Zinc die-cast Assembly set: SteelSet:1 floor bracket 160, 1 adjusting screw, 1 adjusting plateSpecials:Other surfaces, other colors on requestSurface:Floor bracket: Plain / powder coated Assembly set: Zinc plated

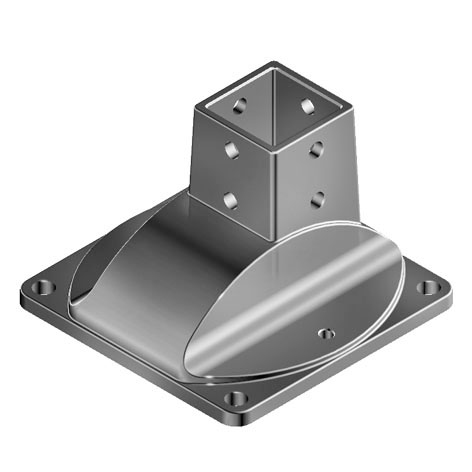

Floor Mount Base
Delivery Countries:WorldwideDescription:To mount aluminum profiles as postsMaterial:Aluminum die-castSurface:PlainTip:Compatible Double T-Slot Nut for Floor Mount Base see 096060S54
Floor Mounting for Base of Trapezoid Foot
Color:BlackDelivery Countries:WorldwideDescription:To securely fix the trapezoid leveling foot to the floor - can be mounted afterwardMaterial:Zinc die-castSurface:Powder coatedTip:Compatible Trapezoid Base see 098DI060ZS and 098AI060ZS
Foot Console 45 / 60 - 120
Delivery Countries:WorldwideDescription:To mount aluminum profiles as postsMaterial:Aluminum die-castSurface:PlainTip:Compatible Hammer Screw see 096HK1045M0830 Compatible Flange Nut see 340ME154
Foot Console 45 / 90 - 150
Delivery Countries:WorldwideDescription:To mount aluminum profiles as postsMaterial:Aluminum die-castSurface:PlainTip:Compatible Hammer Screw see 096HK1045M0830; Compatible Flange Nut see 340ME154
Foot Console ST 40 / 45 - 110
Color:Alu colorDelivery Countries:WorldwideDescription:To mount aluminum profiles as postsMaterial:SteelSurface:Powder coatedTip:Compatible Hammer Screw Slot 8 see 096HK0830M0820 Compatible Hammer Screw Slot 10 see 096HK1030M0820 Compatible Flange Nut M8 see 340ME154
Foot Plate 45 / 60 / 90 - 135
Delivery Countries:WorldwideDescription:To mount aluminum profiles as postsMaterial:Aluminum die-castSurface:PlainTip:Compatible Self Forming Screw 093S1230T Compatible Connecting Screw 093M1230 and 093M1230T
Heavy-duty Fixed Caster Ø 200 with Mounting Plate 40 / 45
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet fixed caster, trackless With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang No additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated
Heavy-duty Pivot Foot, PA / ST - BDH
Color:Base: BlackDelivery Countries:WorldwideDescription:A heavy-duty leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG125B et sq.
Heavy-duty Swivel Caster Ø 200 with Mounting Plate 40 / 45
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated
Heavy-duty Swivel Caster Ø 200 with System Brake and Mounting Plate 40 / 45
Color:Housing: Alu color Tread: See table Wheel body: See tableDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate neededMaterial:Housing: Steel Tread: See table Wheel body: See tableSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated
Hydraulic Lift Caster (Set)
Delivery Countries:WorldwideDescription:Lift castor system for a fast and flexible placing of plants or assembling tables; gear transmission ratio: 10:1Material:Housing: Aluminum die-cast with PTFE bearing Roller: Plastic PA with ball bearing Roller housing: Zinc plated steelSet:4 lifting units 1 hydraulic drive unit 4 hydraulic pipes at each 5 m, pre-filledSpecials:Other sets on requestTip:*Positioned centered
Leveling Caster with Bolt Hole Thread (Set)
Color:Housing: White aluminum ≈ RAL 9006 Adjustment wheel: Orange ≈ RAL 2004 Stamp: Black Roller: BlackDelivery Countries:WorldwideDescription:Reliable leveling caster with bolt hole thread M12 For fixation to transport and base plates, threaded sleeves or threaded bushes; Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrenchMaterial:Bolt hole plate: Steel Housing: Aluminum die-cast Adjustment wheel: Plastic PA Stamp: Rubber NBR Roller: Plastic PASet:1 leveling casters with bolt hole thread 1 double threaded bolts M8/M12 1 double threaded bolts M12/M12 1 open-end wrenchSurface:Bolt hole plate: Zinc plated Housing: Powder coatedTip:Compatible Transport and Base Plates with thread M8 or M12 on request
Leveling Caster with Mounting Plate 40 / 45
Color:Housing: White aluminum ≈ RAL 9006 Adjustment wheel: Orange ≈ RAL 2004 Stamp: Black Roller: BlackDelivery Countries:WorldwideDescription:Reliable leveling caster with integrated mounting plate For fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate needed; Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrenchMaterial:Mounting plate: Steel Housing: Aluminum die-cast Adjustment wheel: Plastic PA Stamp: Rubber NBR Roller: Plastic PASurface:Mounting plate: Zinc plated Housing: Powder coated
Leveling Foot Bracket 80/90 x 100
Assembly Set:2 centering pieces - slot 8 to slot 10Color:Alu colorDelivery Countries:WorldwideDescription:For height-adjustable mounting of leveling feet on the side of the profile frame, for small floor distance and low center of gravityMaterial:Leveling foot bracket: Aluminum die-cast Centering piece: Zinc die-castSurface:Leveling foot bracket: Powder coated Centering piece: Plain
Nut DIN 439 for Threaded Rods
Delivery Countries:WorldwideDescription:Flat jam nuts DIN EN ISO 4035 (DIN 439) for threaded rodsMaterial:Steel / stainless steelSurface:Zinc plated / plain
Nut DIN 934 for Threaded Rods
Delivery Countries:WorldwideDescription:Jam nuts DIN EN ISO 4032 (DIN 934) for threaded rodsMaterial:Steel / stainless steelSurface:Zinc plated / plain
Pivot Foot, PA / SS
Color:Base: BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.
Pivot Foot, PA / ST
Color:Base: BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.
Pivot Foot, PA / ST - BDH
Color:Base: BlackDelivery Countries:WorldwideDescription:A leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq., *Bolt-down holes closed
