Floor Elements

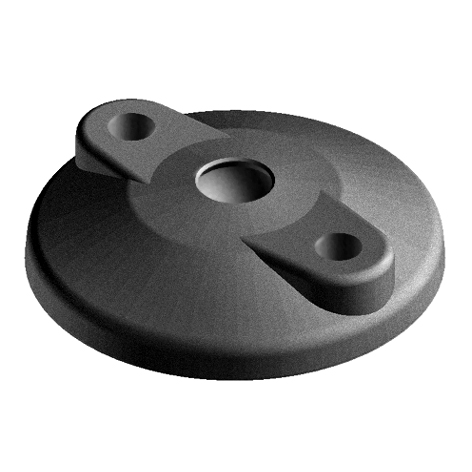

Base PA BDH for Swivel Feet, Ball Joint 15, Black
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-slip Plate see 098DG030 et sq.; *Bolt-down holes closed

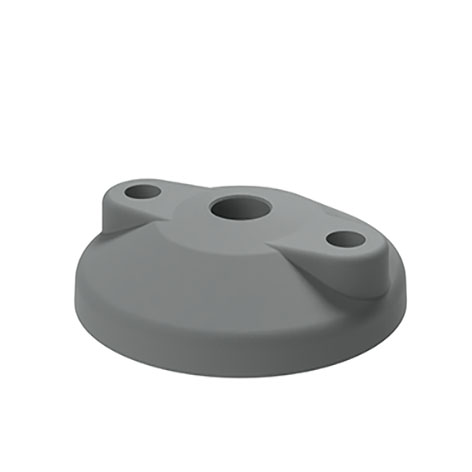

Base PA BDH for Swivel Feet, Ball Joint 15, Gray
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-slip Plate see 098DG030 et sq.; *Bolt-down holes closed

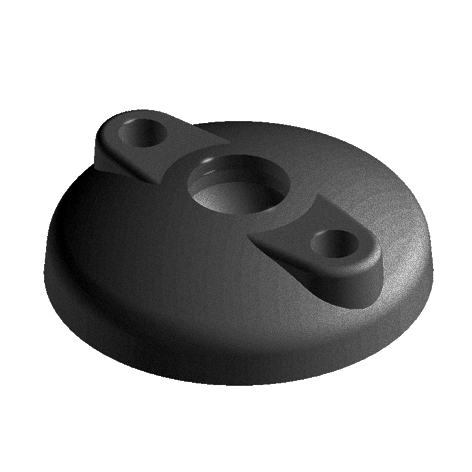

Base PA BDH for Swivel Feet, Ball Joint 22
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098CM16066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098DG030; *Bolt-down holes closed

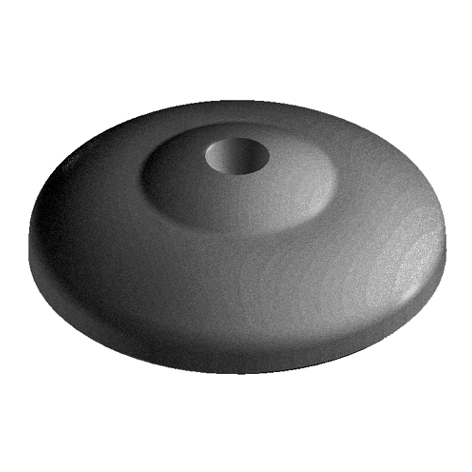

Base PA for ECO Feet
Color:BlackDelivery Countries:WorldwideDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on requestTip:Compatible Threaded Rod see 098EM08025M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip-Plate see 098EG030; (ECO feet are provided factory assembled)

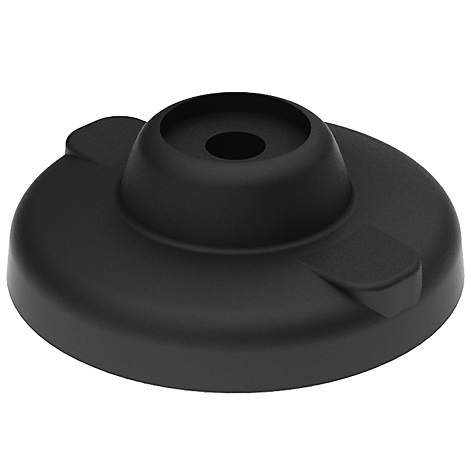

Base PA for Heavy-duty Fixed Feet
Color:BlackDelivery Countries:WorldwideDescription:Leveling foot for a strong positioning of heavy machinery on the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098KM16100M, Compatible Nut see 4DIN439BM5 et sq. Compatible Anti-Slip Plate see 098AG125B

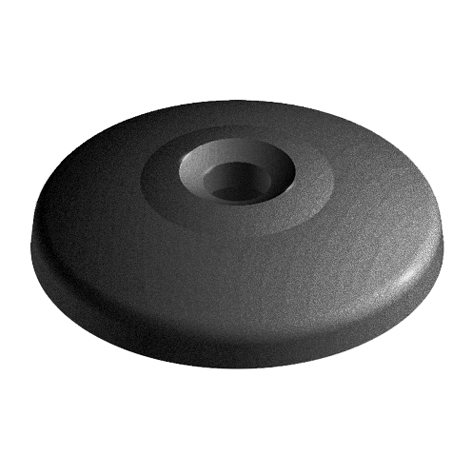

Base PA for Pivot Feet
Color:BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050

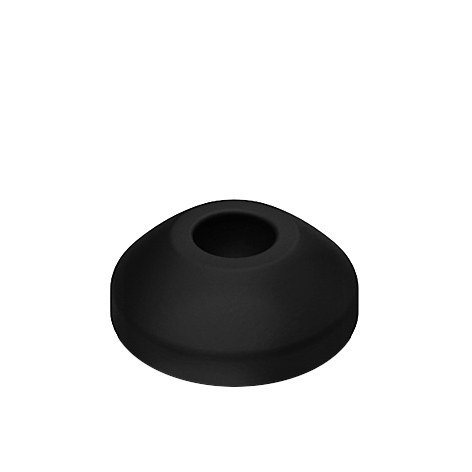

Base PA for Swivel Feet, Ball Joint 10
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request; As factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098MM05020M et sq., Compatible Nut see 4DIN439BM5M et sq. und 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098MG020 et sq.

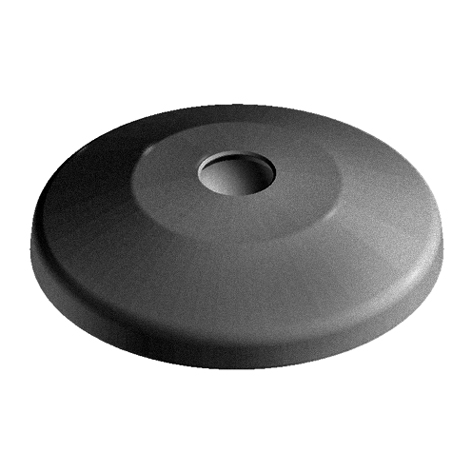

Base PA for Swivel Feet, Ball Joint 15, Black
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.

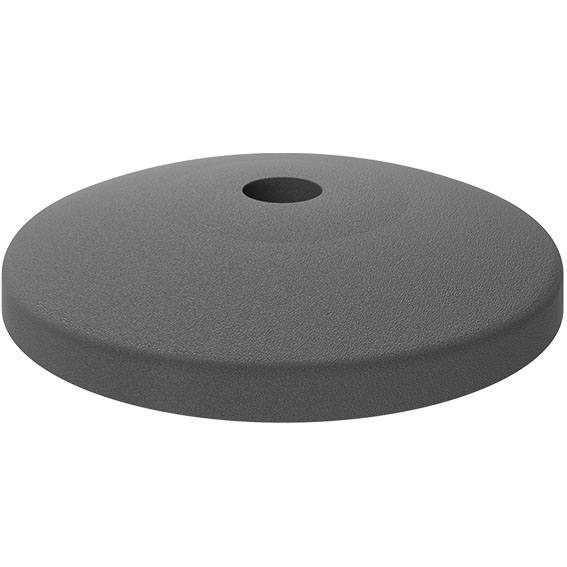

Base PA for Swivel Feet, Ball Joint 15, Gray
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.

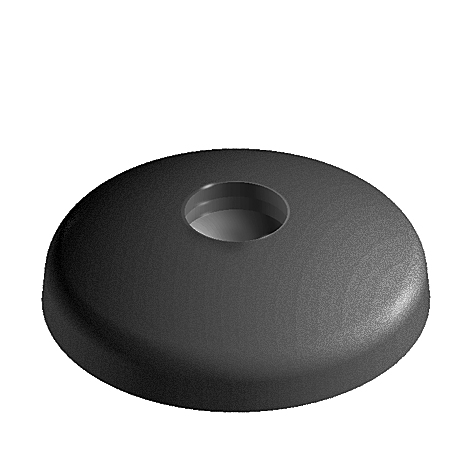

Base PA for Swivel Feet, Ball Joint 22
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098CM16066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate 098DG030

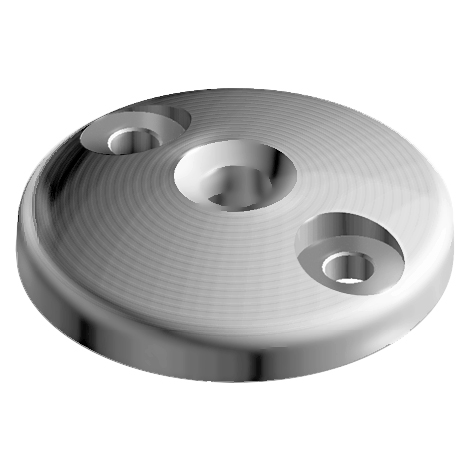

Base SS BDH for Pivot Feet
Delivery Countries:WorldwideDescription:A leveling foot which can be fixed to the floorMaterial:Stainless steel SS303Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:PlainTip:Compatible Threaded Rod see 098AM12066E, Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate 098AG050

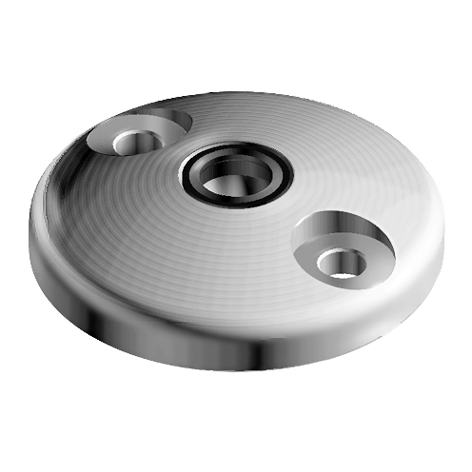

Base SS BDH for Swivel Feet, Ball Joint 15
Delivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Stainless steel SS303Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:PlainTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate see 098DG030

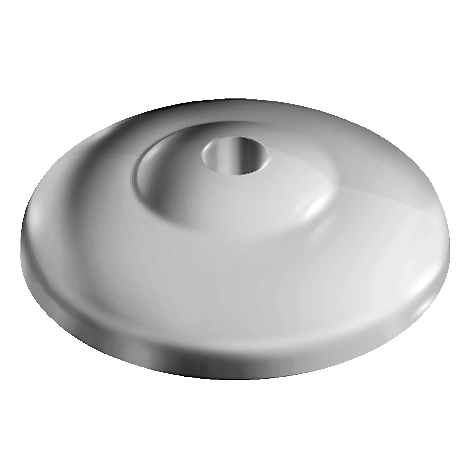

Base SS for ECO Feet
Delivery Countries:WorldwideDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Stainless steel SS316Specials:Other sizes, glued anti-slip plate on requestSurface:PlainTip:Compatible Threaded Rod see 098EM08025E, Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip-Plate see 098EG030; (ECO feet are provided factory assembled)

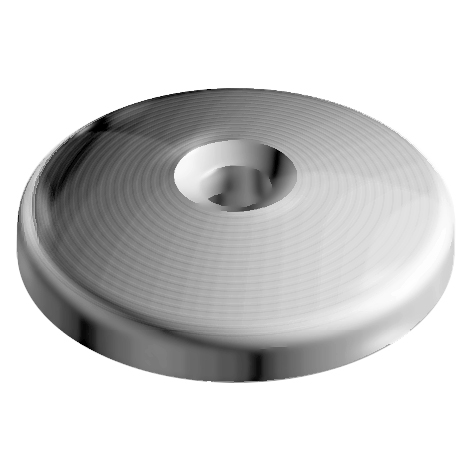

Base SS for Pivot Feet
Delivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Stainless steel SS303Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:PlainTip:Compatible Threaded Rod see 098AM12066E, Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate 098AG050

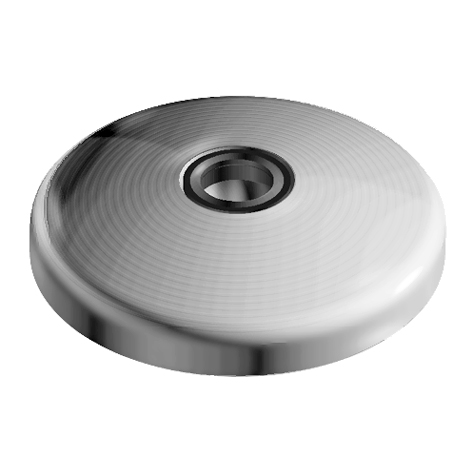

Base SS for Swivel Feet, Ball Joint 15
Delivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Stainless steel SS303Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:PlainTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate see 098DG030

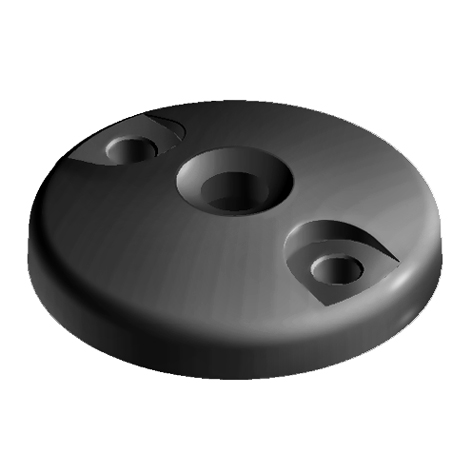

Base ZN BDH for Pivot Feet
Color:BlackDelivery Countries:WorldwideDescription:A leveling foot which can be fixed to the floorMaterial:Zinc die-castSpecials:Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050

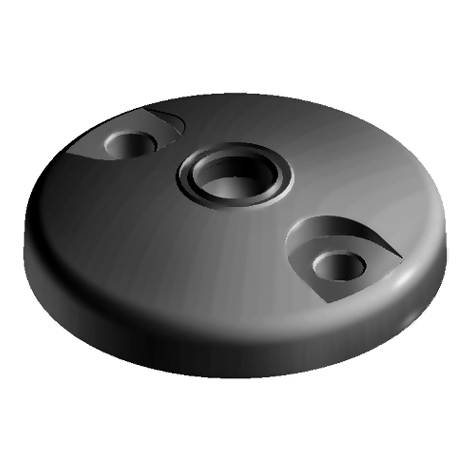

Base ZN BDH for Swivel Feet, Ball Joint 15
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Zinc die-castSpecials:Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate see 098DG030
Base ZN for ECO Feet
Color:Black, -Delivery Countries:WorldwideDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc die-castSpecials:Other surfaces, other sizes, other colors, glued anti-slip plate on requestSurface:Powder coated / zinc platedTip:Compatible Threaded Rod see 098EM08025M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip-Plate see 098EG030; (ECO feet are provided factory assembled)

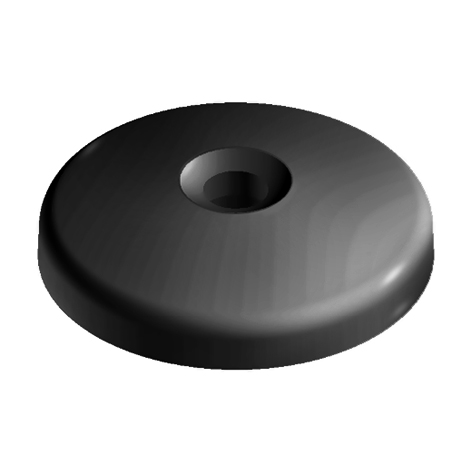

Base ZN for Pivot Feet
Color:BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc die-castSpecials:Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050

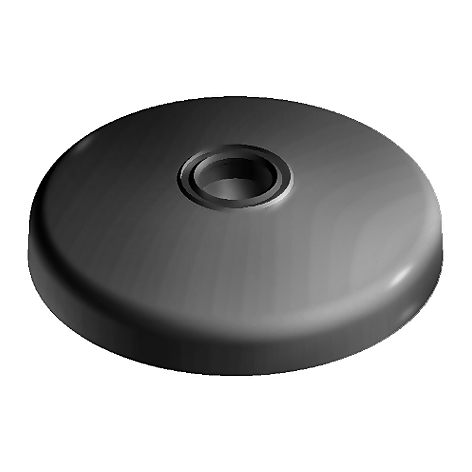

Base ZN for Swivel Feet, Ball Joint 15
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Zinc die-castSpecials:Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.

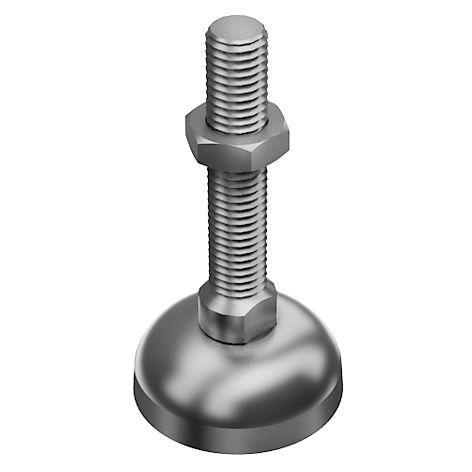

Bell Foot
Delivery Countries:WorldwideDescription:A leveling foot for slightly uneven floors, ESD electrostatical discharging, with nut DIN EN ISO 4035 (DIN 439); Factory assembledMaterial:SteelSurface:Zinc platedTip:Compatible Anti-Slip Plate see 098ABG045

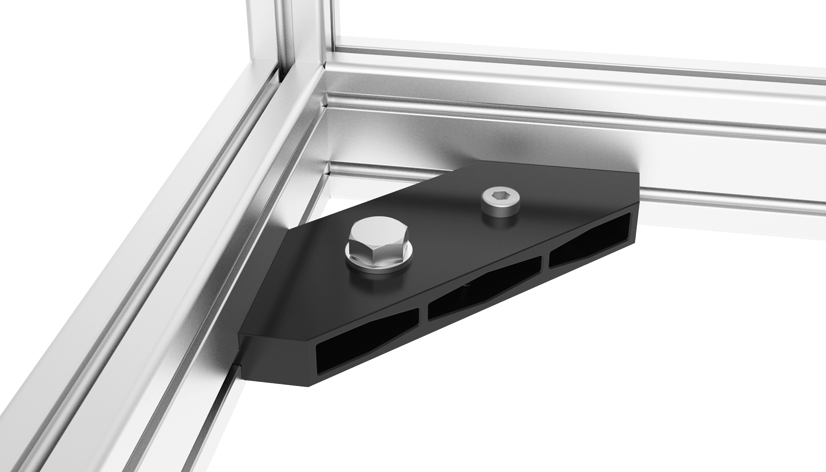

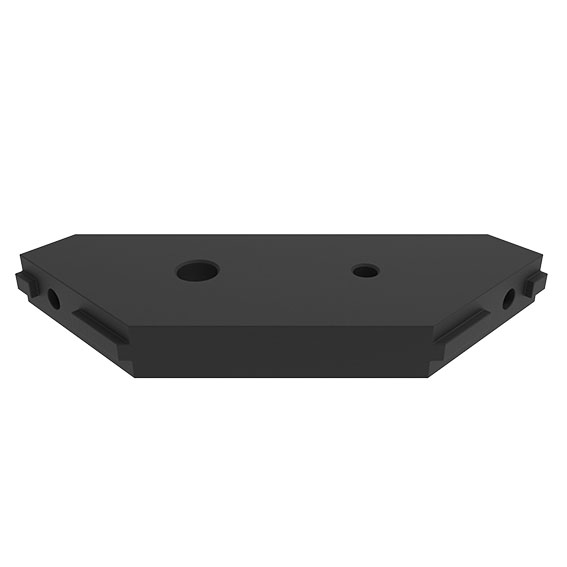

Bracing Plate 90°
Color:BlackDelivery Countries:WorldwideDescription:The Bracing Plate is used for leveling and floor mounting of machine frames. Material:Aluminum die-castSurface:Powder coated

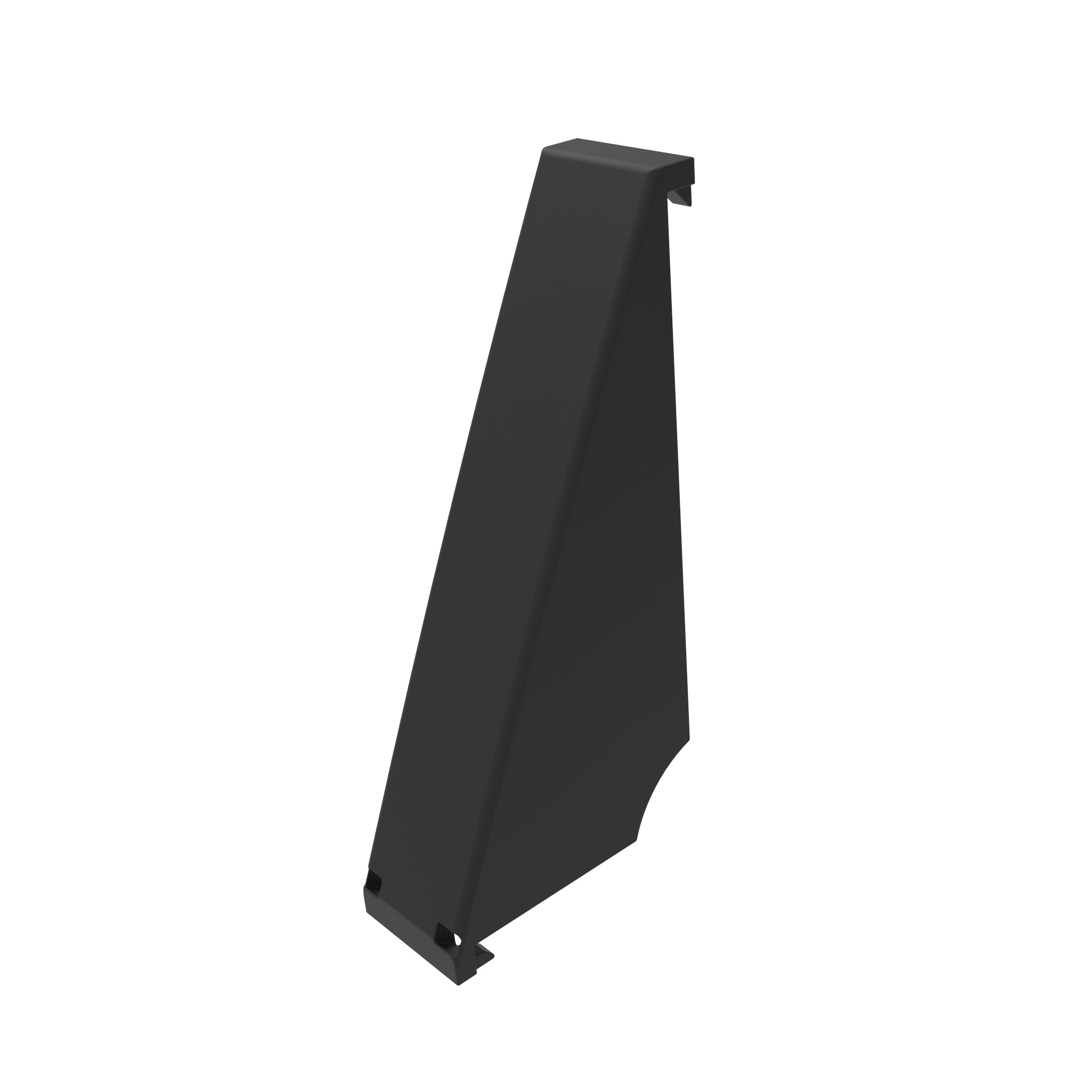

Cover Cap for Floor Bracket AL 30
Color:BlackDelivery Countries:WorldwideDescription:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Floor Bracket AL 30 see 093W1171L

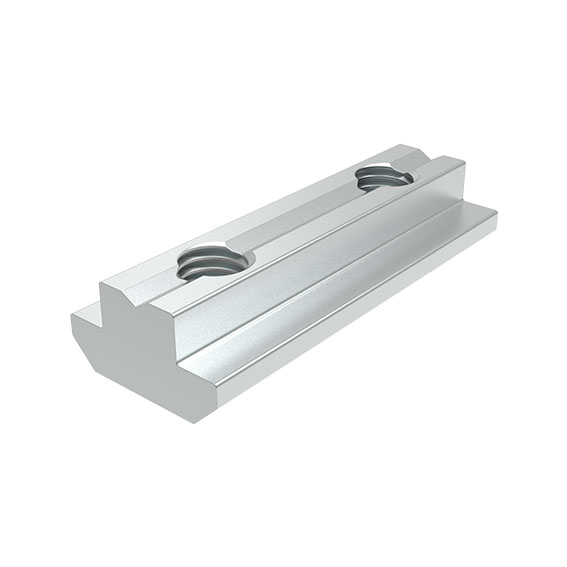

Double T-slot Nut for Floor Mount Base
Delivery Countries:WorldwideDescription:Compatible Double T-Slot Nut for Floor Mount Base see 096060S54Material:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: PlainTip:Compatible Floor Mount Base see 098G38150A
