Floor Elements

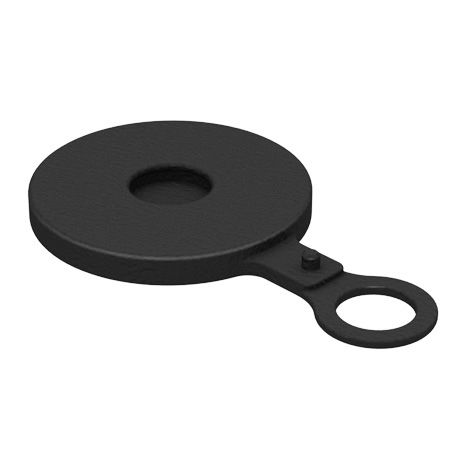

Anti-slip Plate for Extended Swivel Feet 60 PA, Ball Joint 15
€0.00*
D1 (mm):
52.0
|
D2 (mm):
21.6
|
for Base:
60
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestZolltarifnummer:40169997900

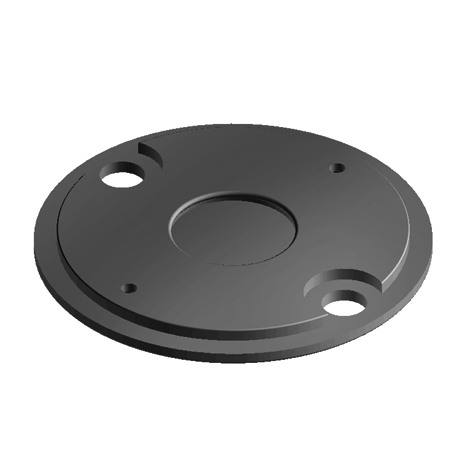

Anti-slip Plate for Heavy-duty Pivot Feet
€0.00*
D (mm):
174
|
d (mm):
17.0
|
for Base:
175
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestZolltarifnummer:40169997900

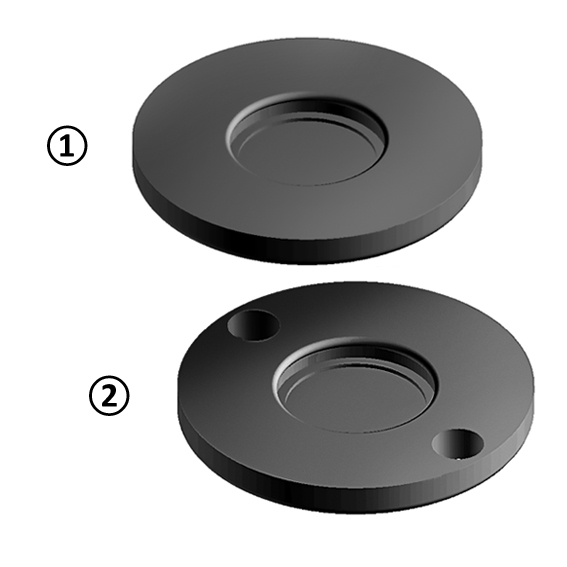

Anti-slip Plate for Pivot Feet
€0.00*
D (mm):
49
|
Fig.:
①
|
Version:
-
|
for Base:
60
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestTip:* Also for bases with bolt down holesZolltarifnummer:40169997900

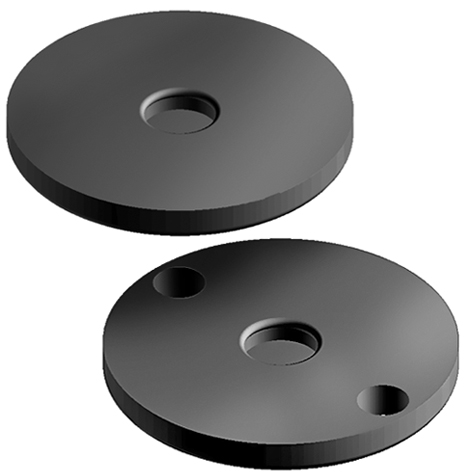

Anti-slip Plate for Swivel Feet, Ball Joint 15
€0.00*
D (mm):
108
|
Version:
-
|
for Base:
*120
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestTip:* Also for bases with bolt down holesZolltarifnummer:40169997900

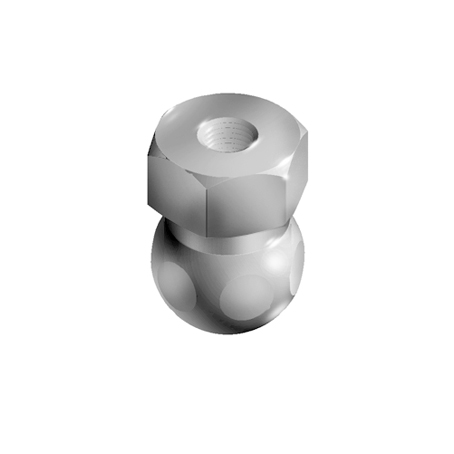

Ball Joint with Female Thread for Swivel Feet, Ball Joint 15
€0.00*
Material:
Stainless steel
Delivery Countries:WorldwideDescription:To fix leveling feet using standard screwsMaterial:SteelSurface:Zinc plated

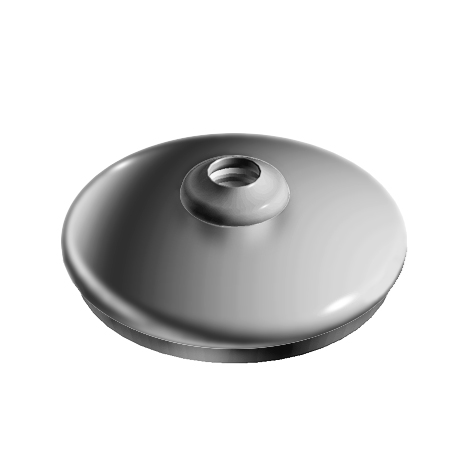

Base for Sealed Swivel Feet, Ball Joint 15
€0.00*
Base:
100
|
D (mm):
98.5
|
F1 (mm):
35.0
|
F2 (mm):
38.0
|
F3 (mm):
39.0
|
Fmax (N):
6860
Color:Anti-slip Plate: Light gray ≈ RAL 7035Delivery Countries:WorldwideDescription:Adjustable Pivot foot to equalize uneven floors; With integrated anti-slip plate; Including a sealing lip on the bottom that seals up to a slope of 8 degree with a possible max. of 20 degreeMaterial:Base: Stainless steel SS304 Anti-slip Plate: Plastic TPE, ≈ 75 Shore A, water and oil resistant (up to 60°C), with antibacterial and antimicrobial protectionSpecials:As factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq.Zolltarifnummer:73269098900

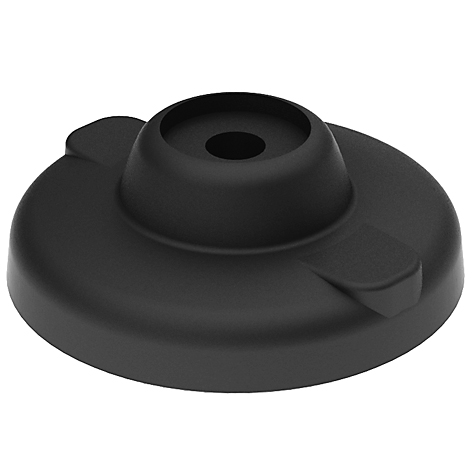

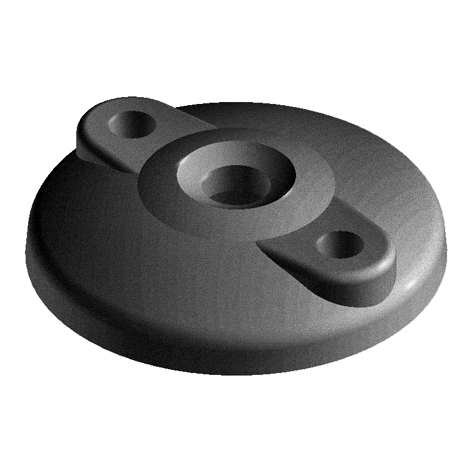

Base PA BDH for Heavy-duty Pivot Feet
€0.00*
Base:
125
|
D (mm):
125
|
F (mm):
57.5
|
Fmax (N):
17650
|
H (mm):
44
|
LK (mm):
96
|
Version:
without anti-slip plate
|
d (mm):
13.4
|
h (mm):
24
Color:BlackDelivery Countries:WorldwideDescription:A heavy-duty leveling foot for strong positioning on slightly uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate 098AG125BZolltarifnummer:39269097900
Base PA BDH for Pivot Feet
€0.00*
Base:
100
|
D (mm):
99
|
Fmax (N):
11770
|
LK (mm):
74
|
Version:
without anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050; * Bolt-down holes closedZolltarifnummer:39269097900

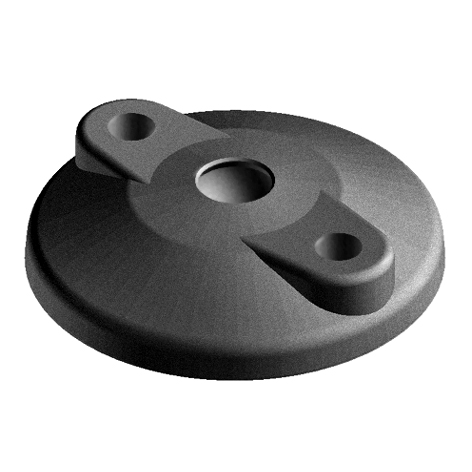

Base PA BDH for Swivel Feet, Ball Joint 15, Black
€0.00*
Base:
80
|
D (mm):
79
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8820
|
LK (mm):
55
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-slip Plate see 098DG030 et sq.; * Bolt-down holes closedZolltarifnummer:39269097900

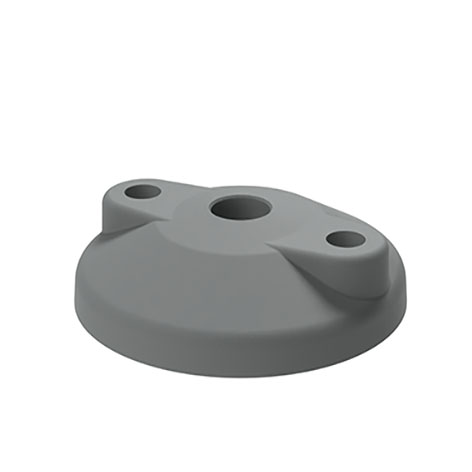

Base PA BDH for Swivel Feet, Ball Joint 15, Gray
€0.00*
Base:
*80
|
D (mm):
79
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8820
|
LK (mm):
55
|
Version:
without anti-slip plate
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-slip Plate see 098DG030 et sq.; * Bolt-down holes closedZolltarifnummer:39269097900

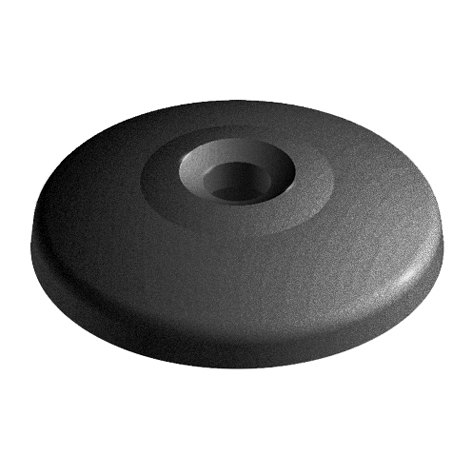

Base PA for Pivot Feet
€0.00*
Base:
100
|
D (mm):
99
|
Fmax (N):
11770
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050Zolltarifnummer:39269097900

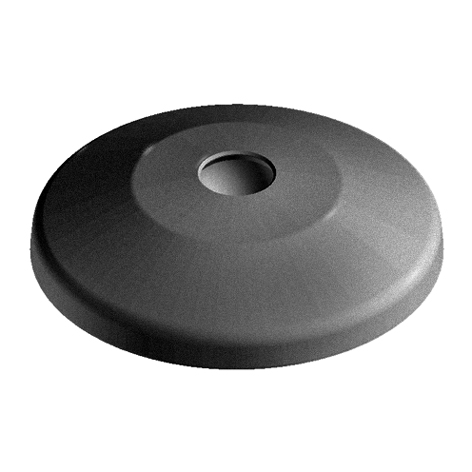

Base PA for Swivel Feet, Ball Joint 15, Black
€0.00*
Base:
50
|
D (mm):
49
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8820
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.Zolltarifnummer:39269097900

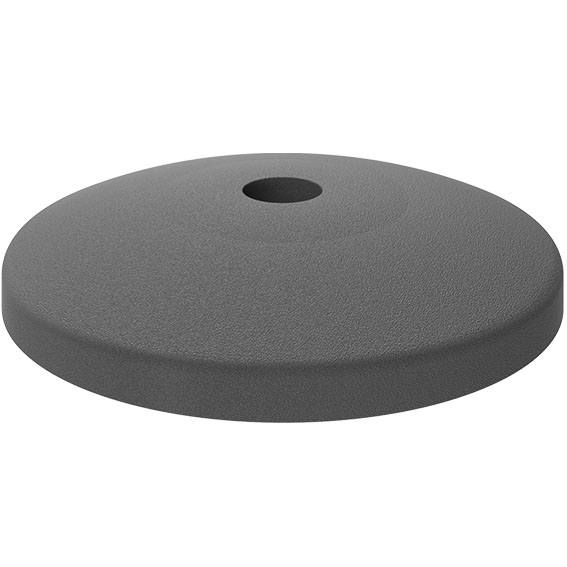

Base PA for Swivel Feet, Ball Joint 15, Gray
€0.00*
Base:
100
|
D (mm):
99
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8820
|
Version:
without anti-slip plate
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.Zolltarifnummer:39269097900

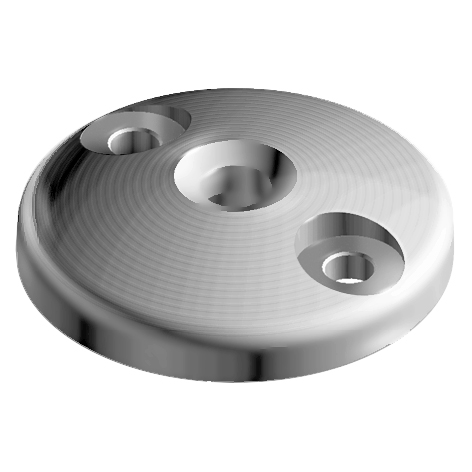

Base SS BDH for Pivot Feet
€0.00*
Base:
120
|
D (mm):
119
|
Fmax (N):
34300
|
LK (mm):
94
|
Version:
with anti-slip plate
Delivery Countries:WorldwideDescription:A leveling foot which can be fixed to the floorMaterial:Stainless steel SS303Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:PlainTip:Compatible Threaded Rod see 098AM12066E, Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate 098AG050Zolltarifnummer:73269098900

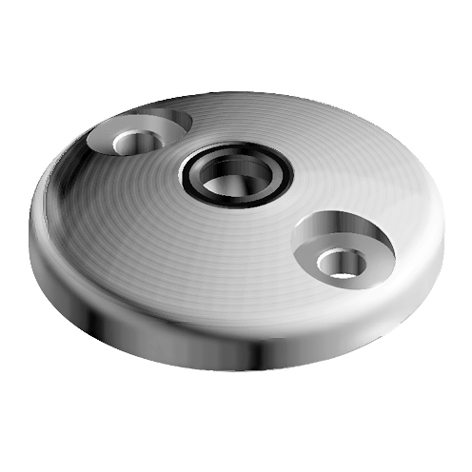

Base SS BDH for Swivel Feet, Ball Joint 15
€0.00*
Base:
80
|
D (mm):
79
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
29400
|
LK (mm):
55
|
Version:
with anti-slip plate
Delivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Stainless steel SS303Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:PlainTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate see 098DG030Zolltarifnummer:73269098900

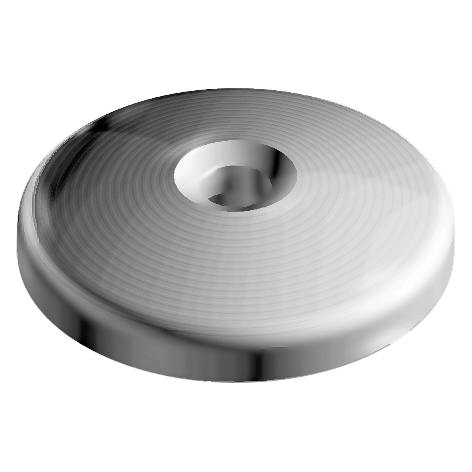

Base SS for Pivot Feet
€0.00*
Base:
120
|
D (mm):
119
|
Fmax (N):
44100
|
Version:
without anti-slip plate
Delivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Stainless steel SS303Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:PlainTip:Compatible Threaded Rod see 098AM12066E, Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate 098AG050Zolltarifnummer:73269098900

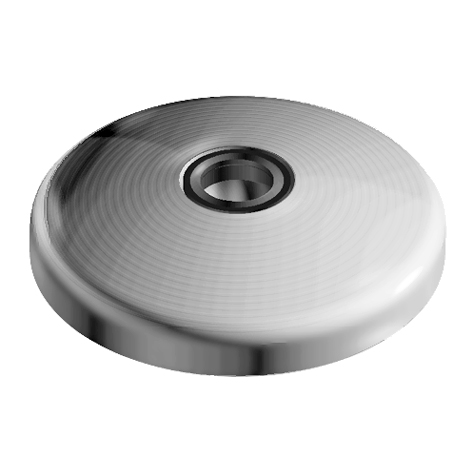

Base SS for Swivel Feet, Ball Joint 15
€0.00*
Base:
45
|
D (mm):
44
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
29400
|
Version:
with anti-slip plate
Delivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Stainless steel SS303Specials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:PlainTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq., Compatible Anti-Slip Plate see 098DG030Zolltarifnummer:73269098900

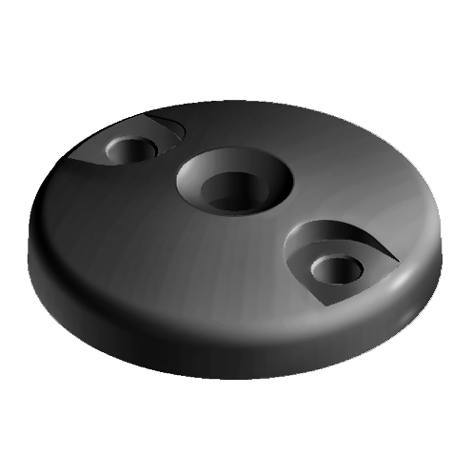

Base ZN BDH for Pivot Feet
€0.00*
Base:
60
|
D (mm):
59
|
Fmax (N):
29400
|
LK (mm):
40
|
Version:
without anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A leveling foot which can be fixed to the floorMaterial:Zinc die-castSpecials:Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050Zolltarifnummer:79070000900
Base ZN BDH for Swivel Feet, Ball Joint 15
€0.00*
Base:
100
|
D (mm):
99
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
34300
|
LK (mm):
74
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Zinc die-castSpecials:Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate see 098DG030Zolltarifnummer:79070000900
Base ZN for Pivot Feet
€0.00*
Base:
80
|
D (mm):
79
|
Fmax (N):
34300
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc die-castSpecials:Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050Zolltarifnummer:79070000900
Base ZN for Swivel Feet, Ball Joint 15
€0.00*
Base:
60
|
D (mm):
59
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
29400
|
Version:
without anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Zinc die-castSpecials:Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.Zolltarifnummer:79070000900
Extended Base 40 PA for Swivel Feet, Ball Joint 15
€0.00*
Base:
40
|
D (mm):
39
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
5880
|
Version:
without anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:Extended swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate see 098DG030Zolltarifnummer:39269097900
Extended Base 60 PA for Swivel Feet, Ball Joint 15
€0.00*
Base:
60
|
F1 (mm):
29.5
|
F2 (mm):
32.5
|
F3 (mm):
33.5
|
Fmax (N):
8800
|
Version:
without anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:Extended swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate see 098DAG060Zolltarifnummer:39269097900
Extended Base 80 PA for Swivel Feet, Ball Joint 15
€0.00*
Base:
80
|
F1 (mm):
30.5
|
F2 (mm):
33.5
|
F3 (mm):
34.5
|
Fmax (N):
9800
|
Version:
with anti-slip plate
Color:BlackDelivery Countries:WorldwideDescription:Extended swiveling leveling foot which can be fixed to the floorMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025M et sq. or 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. or 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG080 and 098AG060Zolltarifnummer:39269097900
