Combi Hinges
Aluminum Die-cast Combi Hinge 25, Detachable, Alu Color
€0.00*
A1 (mm):
15.0
|
A2 (mm):
15.0
|
B1 (mm):
26.0
|
B2 (mm):
26.0
|
Combination:
25 / 25
|
FAmax (N):
250
|
FRmax (N):
410
|
Version:
R: Right
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color
€0.00*
A1 (mm):
15.0
|
A2 (mm):
17.5
|
B1 (mm):
26.0
|
B2 (mm):
29.5
|
Combination:
25 / 30
|
FAmax (N):
225
|
FRmax (N):
325
|
Version:
Non-detachable
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 30, Detachable, Alu Color
€0.00*
A1 (mm):
17.5
|
A2 (mm):
17.5
|
B1 (mm):
29.5
|
B2 (mm):
29.5
|
Combination:
30 / 30
|
FAmax (N):
280
|
FRmax (N):
450
|
Version:
R: Right
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 30, Non-detachable, Alu Color
€0.00*
A1 (mm):
17.5
|
A2 (mm):
27.5
|
B1 (mm):
29.5
|
B2 (mm):
48.5
|
Combination:
30 / 50
|
FAmax (N):
250
|
FRmax (N):
400
|
Version:
Non-detachable
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color
€0.00*
A1 (mm):
20.0
|
A2 (mm):
20.0
|
B1 (mm):
36.0
|
B2 (mm):
36.0
|
Combination:
35 / 35
|
FAmax (N):
250
|
FRmax (N):
-
|
Version:
L: Left
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color
€0.00*
A1 (mm):
20.0
|
A2 (mm):
22.5
|
B1 (mm):
36.0
|
B2 (mm):
38.5
|
Combination:
35 / 40
|
FAmax (N):
250
|
FRmax (N):
400
|
Version:
Non-detachable
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 40, Detachable, Alu Color
€0.00*
A1 (mm):
15.0
|
A2 (mm):
22.5
|
B1 (mm):
26.0
|
B2 (mm):
38.5
|
Combination:
40 / 25
|
FAmax (N):
250
|
FRmax (N):
410
|
Version:
R: Right
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 40, Non-detachable, Alu Color
€0.00*
A1 (mm):
22.5
|
A2 (mm):
32.5
|
B1 (mm):
38.5
|
B2 (mm):
57.5
|
Combination:
40 / 60
|
FAmax (N):
-
|
FRmax (N):
400
|
Version:
Non-detachable
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color
€0.00*
A1 (mm):
25.0
|
A2 (mm):
17.5
|
B1 (mm):
43.5
|
B2 (mm):
29.5
|
Combination:
45 / 30
|
FAmax (N):
280
|
FRmax (N):
450
|
Version:
L: Left
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 45, Non-detachable, Alu Color
€0.00*
A1 (mm):
25.0
|
A2 (mm):
27.5
|
B1 (mm):
43.5
|
B2 (mm):
48.5
|
Combination:
45 / 50
|
FAmax (N):
250
|
FRmax (N):
400
|
Version:
Non-detachable
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color
€0.00*
A1 (mm):
27.5
|
A2 (mm):
17.5
|
B1 (mm):
48.5
|
B2 (mm):
29.5
|
Combination:
50 / 30
|
FAmax (N):
280
|
FRmax (N):
450
|
Version:
L: Left
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 50, Non-detachable, Alu Color
€0.00*
A1 (mm):
27.5
|
A2 (mm):
27.5
|
B1 (mm):
48.5
|
B2 (mm):
48.5
|
Combination:
50 / 50
|
FAmax (N):
250
|
FRmax (N):
400
|
Version:
Non-detachable
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 60, Detachable, Alu Color
€0.00*
A1 (mm):
25.0
|
A2 (mm):
32.5
|
B1 (mm):
43.5
|
B2 (mm):
57.5
|
Combination:
60 / 45
|
FAmax (N):
-
|
FRmax (N):
550
|
Version:
R: Right
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900
Aluminum Die-cast Combi Hinge 60, Non-detachable, Alu Color
€0.00*
A1 (mm):
32.5
|
A2 (mm):
32.5
|
B1 (mm):
57.5
|
B2 (mm):
57.5
|
Combination:
60 / 60
|
FRmax (N):
400
|
Version:
Non-detachable
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

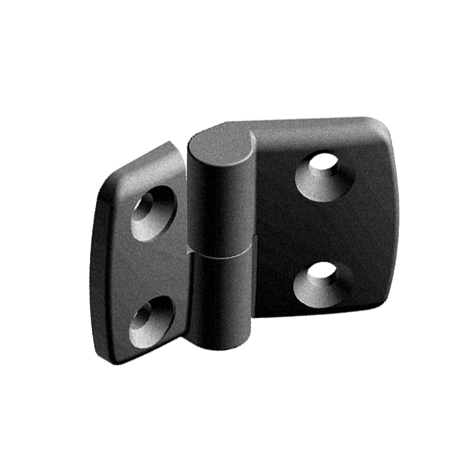

Plastic Combi Hinge 25, Detachable, Black
€0.00*
A1 (mm):
15.0
|
A2 (mm):
22.5
|
B1 (mm):
26.0
|
B2 (mm):
38.5
|
Combination:
25 / 40
|
FAmax (N):
350
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

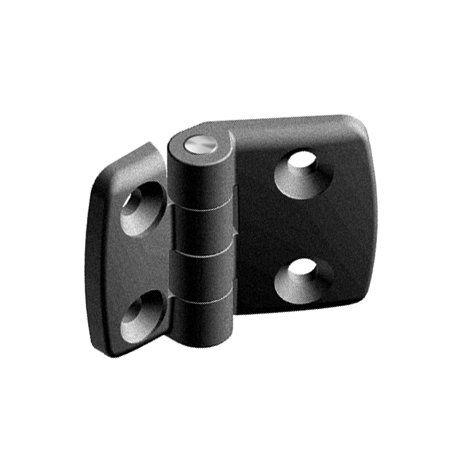

Plastic Combi Hinge 25, Non-detachable, Black
€0.00*
A1 (mm):
17.5
|
A2 (mm):
15.0
|
B1 (mm):
29.5
|
B2 (mm):
26.0
|
Combination:
30 / 25
|
FAmax (N):
400
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900
Plastic Combi Hinge 30, Detachable, Black
€0.00*
A1 (mm):
17.5
|
A2 (mm):
17.5
|
B1 (mm):
29.5
|
B2 (mm):
29.5
|
Combination:
30 / 30
|
FAmax (N):
-
|
FRmax (N):
750
|
Slot N (mm):
-
|
Version:
L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900
Plastic Combi Hinge 30, Non-detachable, Black
€0.00*
A1 (mm):
17.5
|
A2 (mm):
17.5
|
B1 (mm):
29.5
|
B2 (mm):
29.5
|
Combination:
30 / 30
|
FAmax (N):
400
|
FRmax (N):
-
|
Slot N (mm):
8
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900
Plastic Combi Hinge 35, Detachable, Black
€0.00*
A1 (mm):
20.0
|
A2 (mm):
20.0
|
B1 (mm):
36.0
|
B2 (mm):
36.0
|
Combination:
35 / 35
|
FAmax (N):
400
|
FRmax (N):
750
|
Slot N (mm):
8
|
Version:
R: Right
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900
Plastic Combi Hinge 35, Non-detachable, Black
€0.00*
A1 (mm):
20.0
|
A2 (mm):
22.5
|
B1 (mm):
36.0
|
B2 (mm):
38.5
|
Combination:
35 / 40
|
FAmax (N):
450
|
FRmax (N):
750
|
Slot N (mm):
-
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

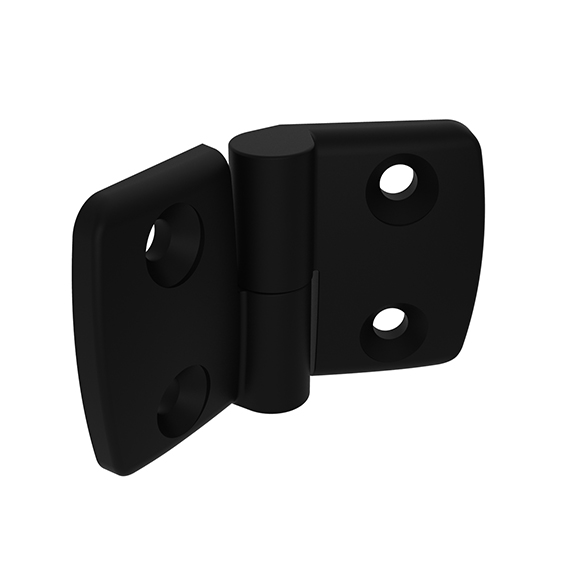

Plastic Combi Hinge 40, Detachable, Black
€0.00*
A1 (mm):
22.5
|
A2 (mm):
22.5
|
B1 (mm):
38.5
|
B2 (mm):
38.5
|
Combination:
40 / 40
|
FAmax (N):
350
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
R: Right
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

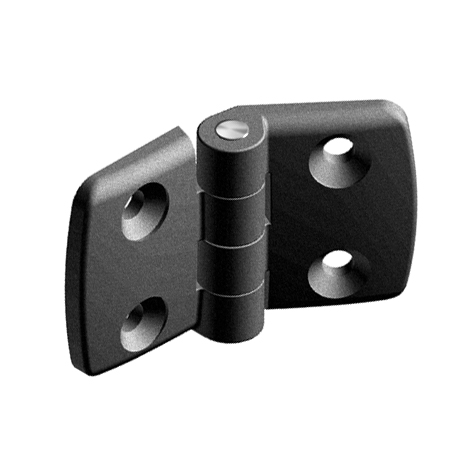

Plastic Combi Hinge 40, Non-detachable, Black
€0.00*
A1 (mm):
22.5
|
A2 (mm):
22.5
|
B1 (mm):
38.5
|
B2 (mm):
38.5
|
Combination:
40 / 40
|
FAmax (N):
450
|
FRmax (N):
750
|
Slot N (mm):
-
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

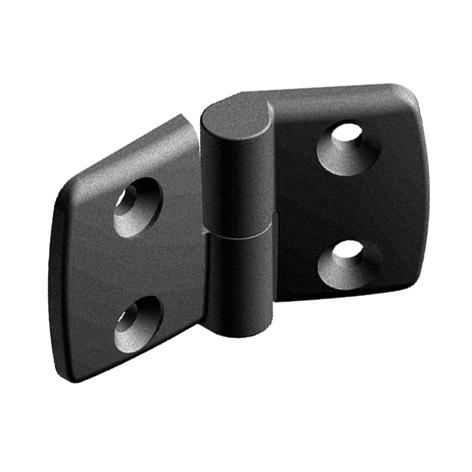

Plastic Combi Hinge 45, Detachable, Black
€0.00*
A1 (mm):
25.0
|
A2 (mm):
32.5
|
B1 (mm):
43.5
|
B2 (mm):
57.5
|
Combination:
45 / 60
|
FAmax (N):
-
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900
Plastic Combi Hinge 45, Non-detachable, Black
€0.00*
A1 (mm):
25.0
|
A2 (mm):
25.0
|
B1 (mm):
43.5
|
B2 (mm):
43.5
|
Combination:
45 / 45
|
FAmax (N):
450
|
FRmax (N):
750
|
Slot N (mm):
10
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900
