Connection Plates

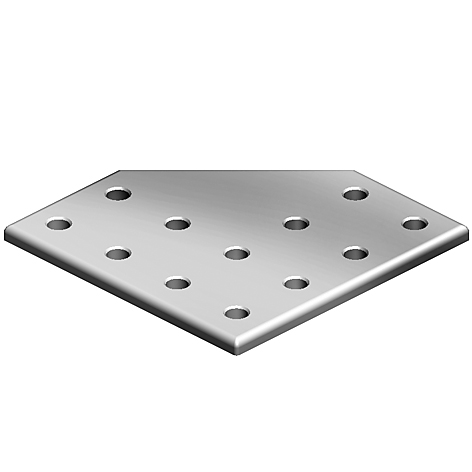

Connection Plate AL L 12 Hole, 2 Slots Version
€0.00*
A (mm):
30.0
|
H (mm):
5.0
|
L (mm):
118.5
|
Version:
120 / 120
|
ØD (mm):
7.0
Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:Anodized
Connection Plate AL L 5 Hole, 1 Slot Version
€0.00*
A (mm):
30.0
|
H (mm):
5.0
|
L (mm):
88.5
|
Version:
90 / 90
|
ØD (mm):
7.0
Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:Anodized
Connection Plate AL Quadrangular 4 Hole, 1 Slot Version
€0.00*
A (mm):
38.1 (1.5")
|
H (mm):
6.0
|
L (mm):
72.0 (2.8")
|
Version:
76.2 / 76.2 - 3" / 3"
|
ØD (mm):
9.0
Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:Anodized

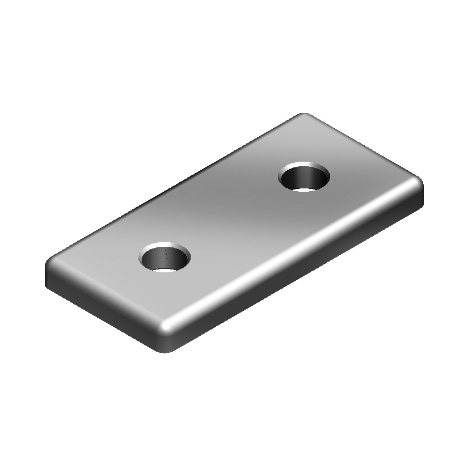

Connection Plate AL Rectangular 2 Hole, 1 Slot Version
€0.00*
A (mm):
30.0
|
B (mm):
27.0
|
H (mm):
5.0
|
L (mm):
57.0
|
Version:
30 / 60
|
ØD (mm):
7.0
Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:Anodized

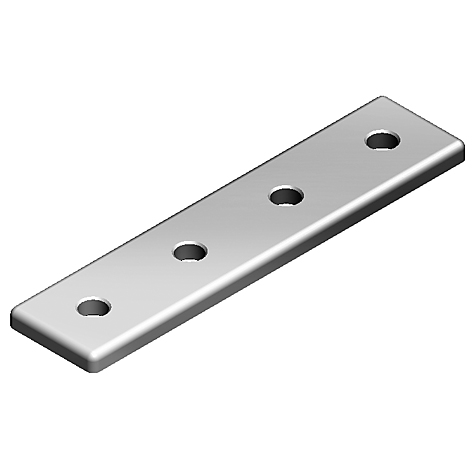

Connection Plate AL Rectangular 4 Hole, 1 Slot Version
€0.00*
A (mm):
20.0
|
B (mm):
18.0
|
H (mm):
4.0
|
L (mm):
78.0
|
Version:
20 / 80
|
ØD (mm):
5.5
Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:Anodized
Connection Plate AL Rectangular 8 Hole, 2 Slots Version
€0.00*
A (mm):
20.0
|
B (mm):
36.0
|
H (mm):
4.0
|
L (mm):
76.0
|
Version:
40 / 80
|
ØD (mm):
5.5
Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:Anodized

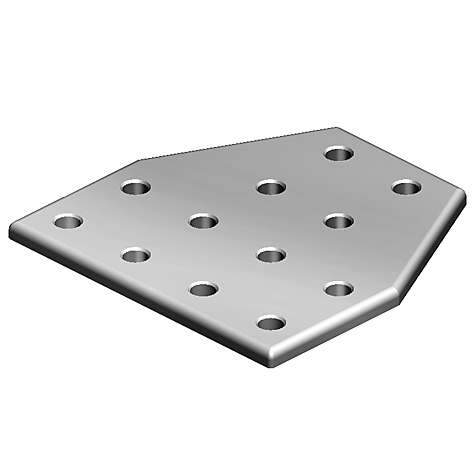

Connection Plate AL T 12 Hole, 2 Slots Version
€0.00*
A (mm):
25.4 (1")
|
H (mm):
4.0
|
K (mm):
48.0 (1.89")
|
L (mm):
98.0 (3.858")
|
Version:
102 / 102 - 4" / 4"
|
ØD (mm):
7.0
Delivery Countries:WorldwideDescription:To tee connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:Anodized

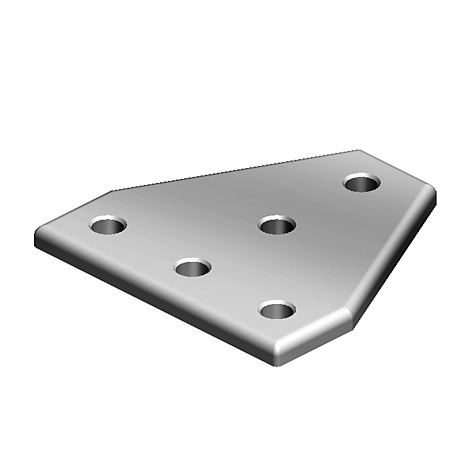

Connection Plate AL T 5 Hole, 1 Slot Version
€0.00*
A (mm):
45.0
|
H (mm):
6.0
|
K (mm):
41.0
|
L (mm):
131.0
|
Version:
135 / 135
|
ØD (mm):
9.0
Delivery Countries:WorldwideDescription:To tee connect two aluminum profilesMaterial:AluminumSpecials:Other surfaces, other colors on requestSurface:Anodized
Connection Plate I120 M (Set)
€0.00*
Profile:
I
|
Slot N (mm):
8
Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angle, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and counter sunk nuts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts 4 cover capsSpecials:Other surfaces, other colors on requestSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated
Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set)
€0.00*
Profile:
I
|
Slot N (mm):
8
Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angle or parallel, direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts in 90° turnable inserts 2 cover capsSpecials:Other surfaces, other colors on requestSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated
Connection Plate ST 100
€0.00*
Slot N (mm):
10
|
for Screw:
M8
Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated
Connection Plate ST Rectangular 2 Hole, 1 Slot Version
€0.00*
A (mm):
40.0
|
B (mm):
40.0
|
Color:
Black
|

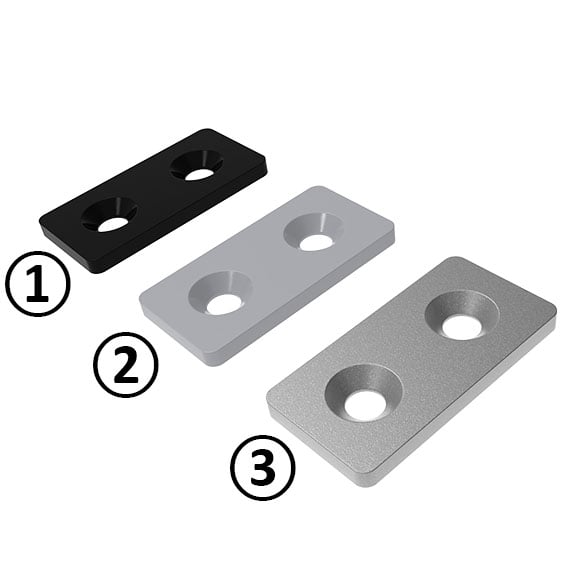

Fig.:
①
|
H (mm):
5.0
|
L (mm):
80.0
|
Surface:
Powder coated
|
for Screw:
2x M8
Color:Black, alu color, -Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Powder coated / zinc plated

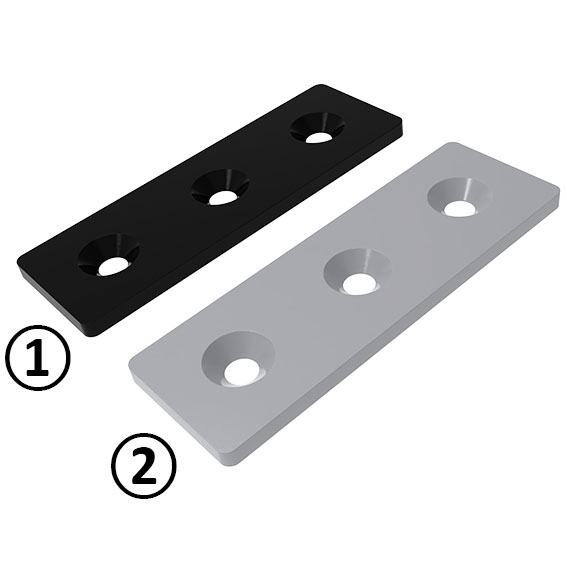

Connection Plate ST Rectangular 3 Hole, 1 Slot Version
€0.00*
A (mm):
2x 40.0
|
B (mm):
40.0
|
Color:
Alu color
|
Fig.:
②
|
H (mm):
5.0
|
L (mm):
120.0
|
Surface:
Powder coated
|
for Screw:
3x M8
Color:Black, aluminum colorDelivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Powder coated

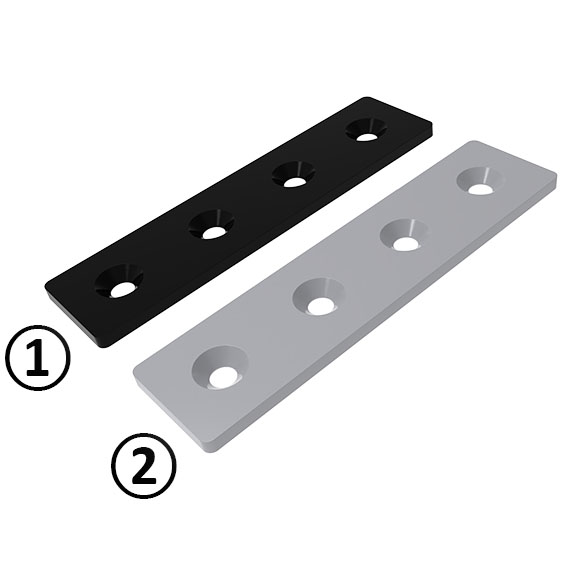

Connection Plate ST Rectangular 4 Hole, 1 Slot Version
€0.00*
A (mm):
3x 40.0
|
B (mm):
40.0
|
Color:
Black
|
Fig.:
①
|
H (mm):
5.0
|
L (mm):
160.0
|
Surface:
Powder coated
|
for Screw:
4x M5
Color:Black, aluminum colorDelivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Powder coated
ECO Connection Plate AL 15° 4 Hole, 1 Slot Version
€0.00*
A (mm):
38.1 (1.5")
|
B (mm):
76.2 (3")
|
H (mm):
6.35 (0.25")
|
K (mm):
23.98 (0.94")
|
K (mm):
74.9 (2.94")
|
L (mm):
88.9 (3.5")
|
Version:
76.2 / 88.9 - 3" / 3.5"
|
ØD (mm):
9.0 (0.35")
Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:Anodized

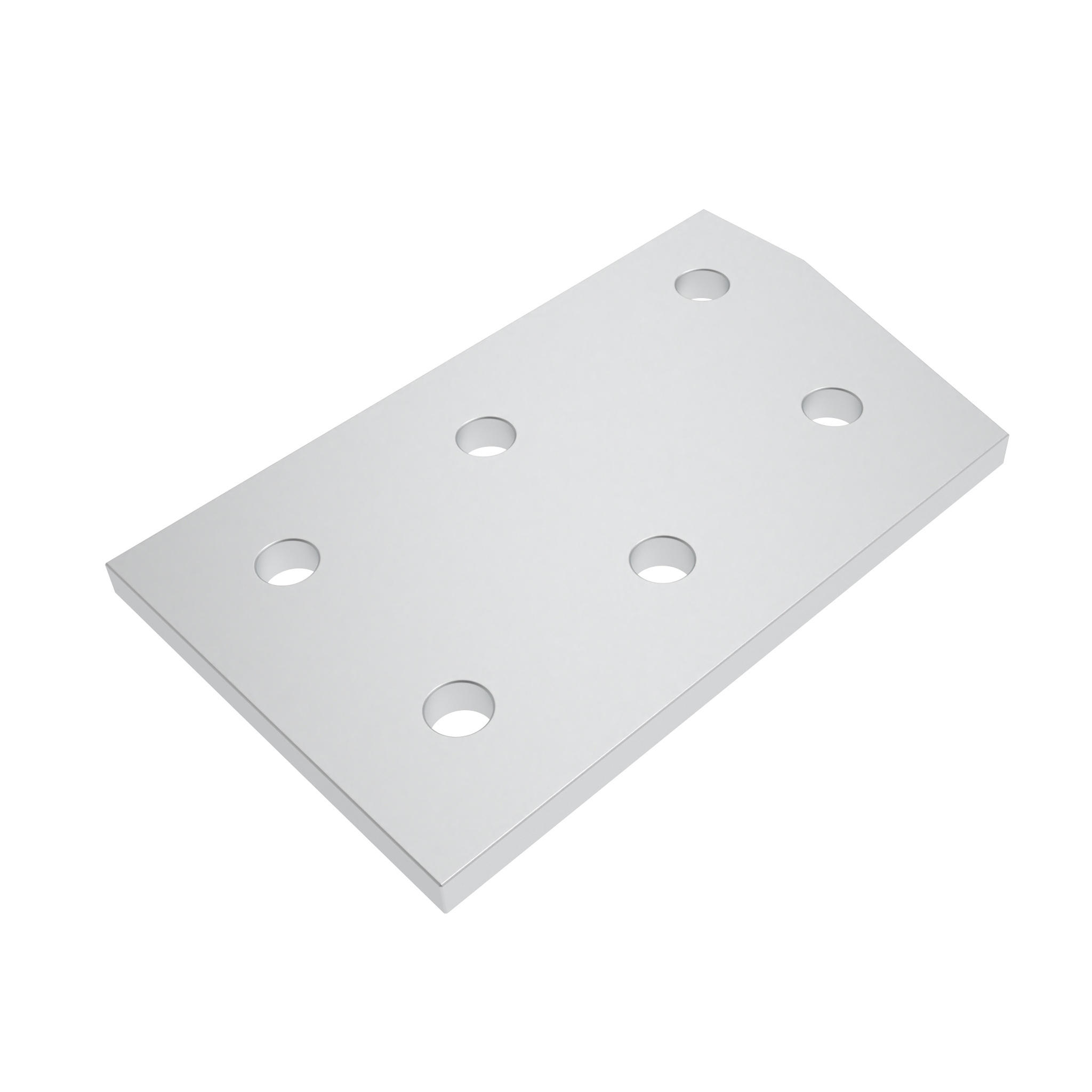

ECO Connection Plate AL 15° 6 Hole, 1 Slot x 2 Slots Version
€0.00*
A (mm):
38.1 (1.5")
|
B (mm):
76.2 (3")
|
H (mm):
6.35 (0.25")
|
K (mm):
113.0 (4.44")
|
K (mm):
23.98 (0.94")
|
L (mm):
127 (5")
|
Version:
76.2 / 127 - 3" / 5"
|
ØD (mm):
9.0 (0.35")
Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:Anodized

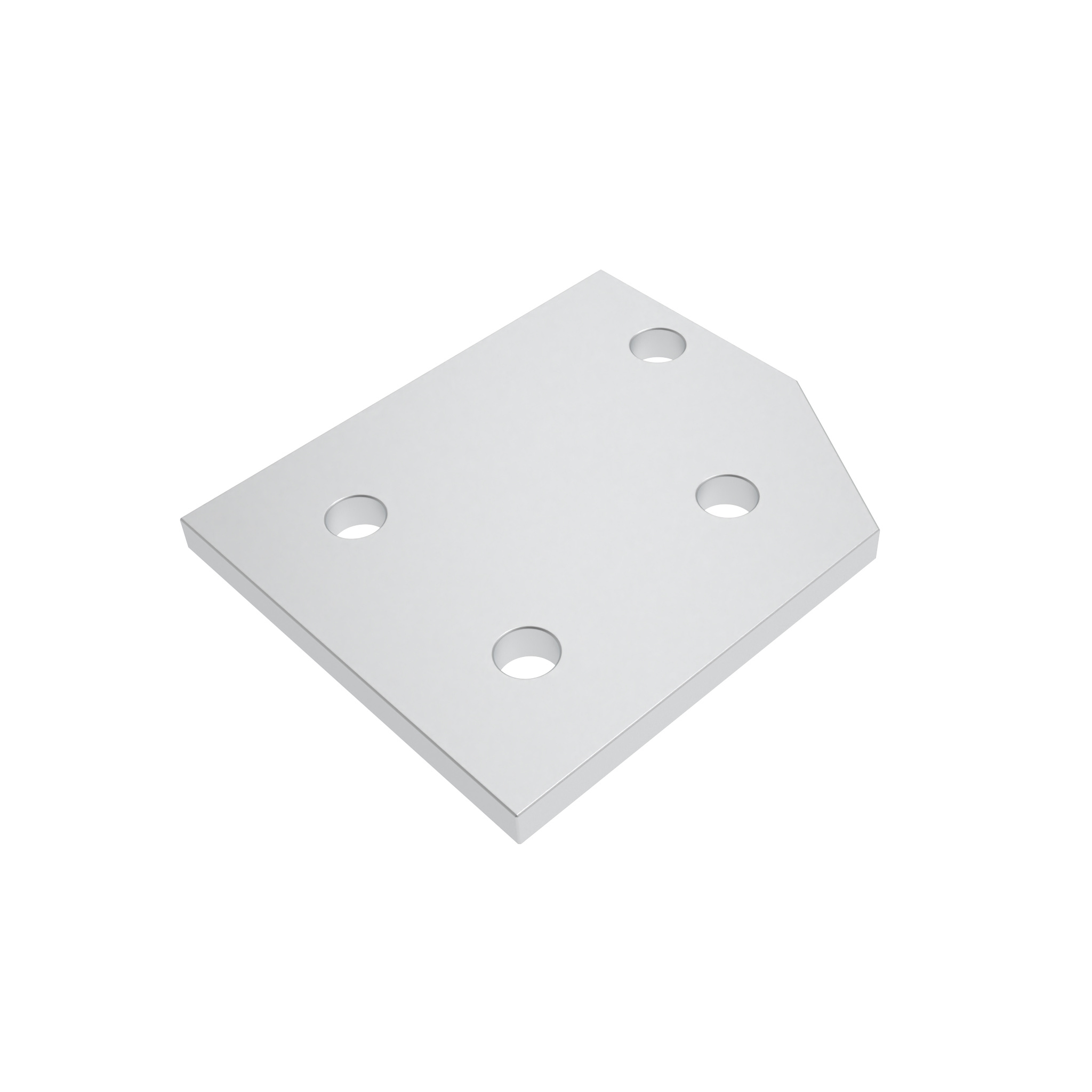

ECO Connection Plate AL 30° 4 Hole, 1 Slot Version
€0.00*
A (mm):
38.1 (1.5")
|
B (mm):
76.2 (3")
|
H (mm):
6.3 (0.25")
|
K (mm):
45.36 (1.78")
|
K (mm):
71.09 (2.79")
|
L (mm):
88.9 (3.5")
|
Version:
76.2 / 88.9 - 3" / 3.5"
|
ØD (mm):
9.0 (0.35")
Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:Anodized
ECO Connection Plate AL 30° 6 Hole, 1 Slot x 2 Slots Version
€0.00*
A (mm):
38.1 (1.5")
|
B (mm):
76.2 (3")
|
H (mm):
6.35 (0.25")
|
K (mm):
44.86 (1.76")
|
K (mm):
109.19 (4.29")
|
L (mm):
127 (5")
|
Version:
76.2 / 127 - 3" / 5"
|
ØD (mm):
8.89 (0.35")
Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:Anodized

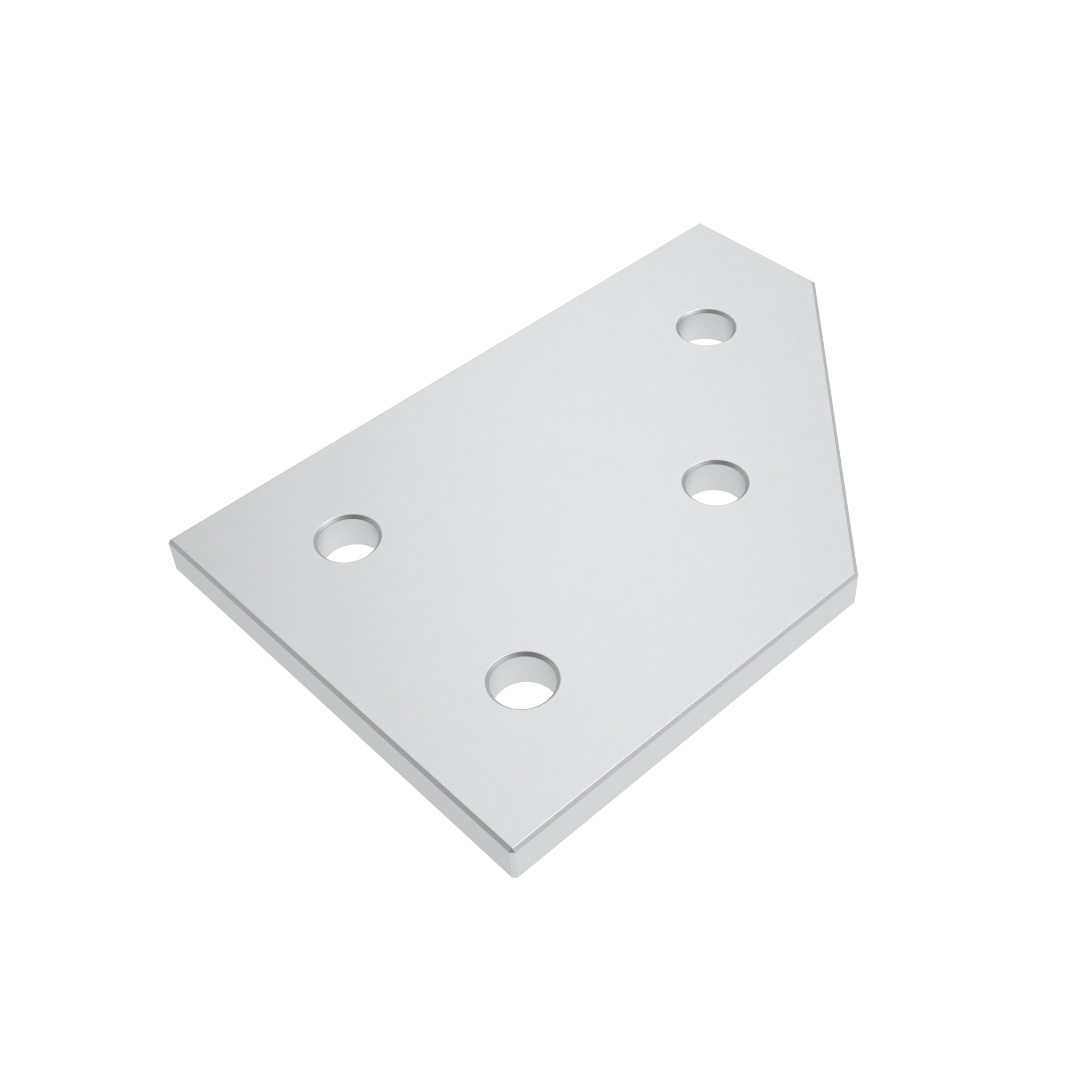

ECO Connection Plate AL 45° 4 Hole, 1 Slot Version
€0.00*
A (mm):
38.1 (1.5")
|
B (mm):
76.2 (3")
|
H (mm):
6.3 (0.25")
|
K (mm):
25.95 (1.06")
|
K (mm):
65.05 (2.56")
|
L (mm):
114.3 (4.5")
|
Version:
76.2 / 114.3 - 3" / 4.5"
|
ØD (mm):
9.0 (0.35")
Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:Anodized

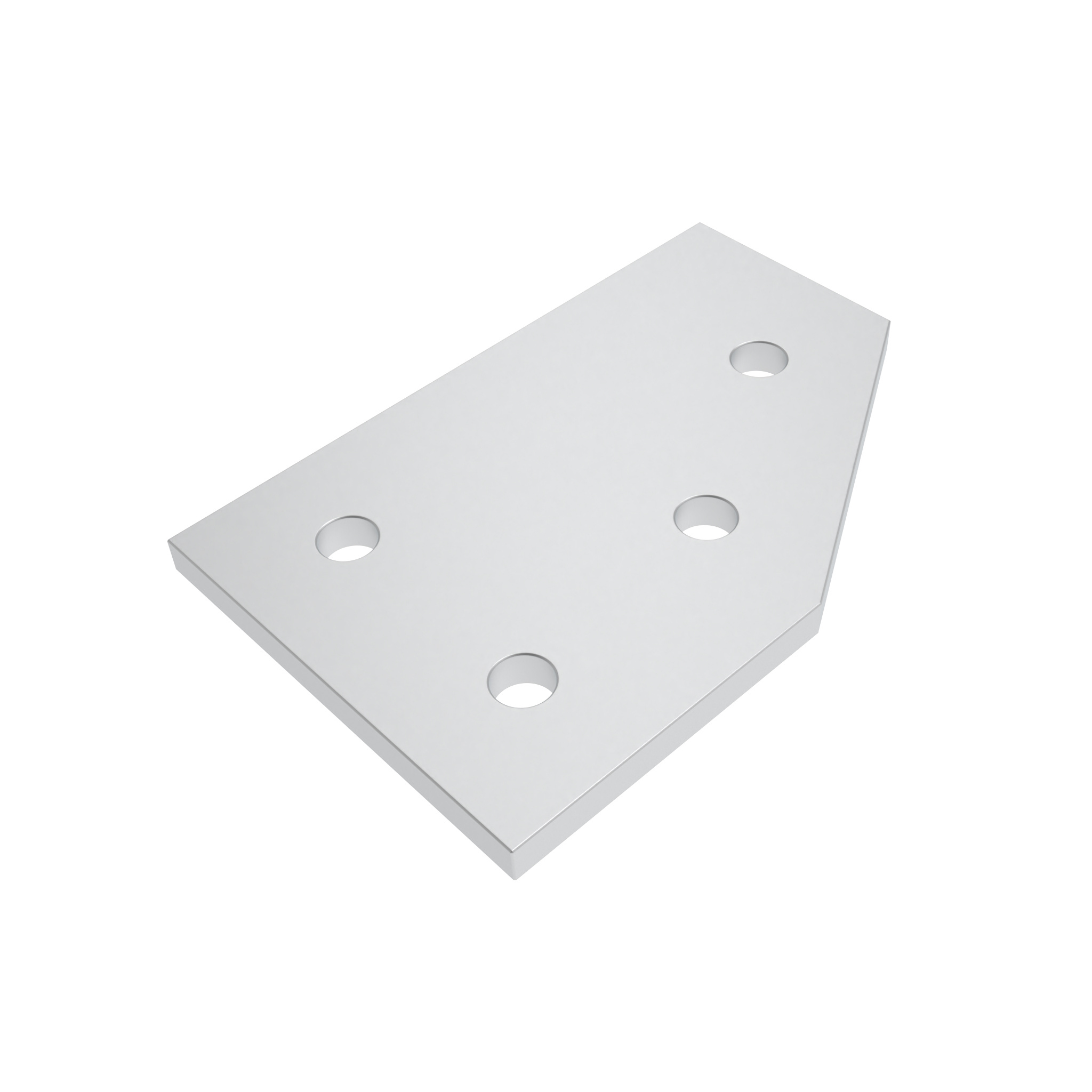

ECO Connection Plate AL 60° 4 Hole, 1 Slot Version
€0.00*
A (mm):
38.1 (1.5")
|
B (mm):
76.2 (3")
|
H (mm):
6.35 (0.25")
|
K (mm):
43.21 (1.7")
|
K (mm):
57.15 (2.25")
|
L (mm):
114.3 (4.5")
|
Version:
76.2 / 114.3 - 3" / 4.5"
|
ØD (mm):
9.0 (0.35")
Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:Anodized

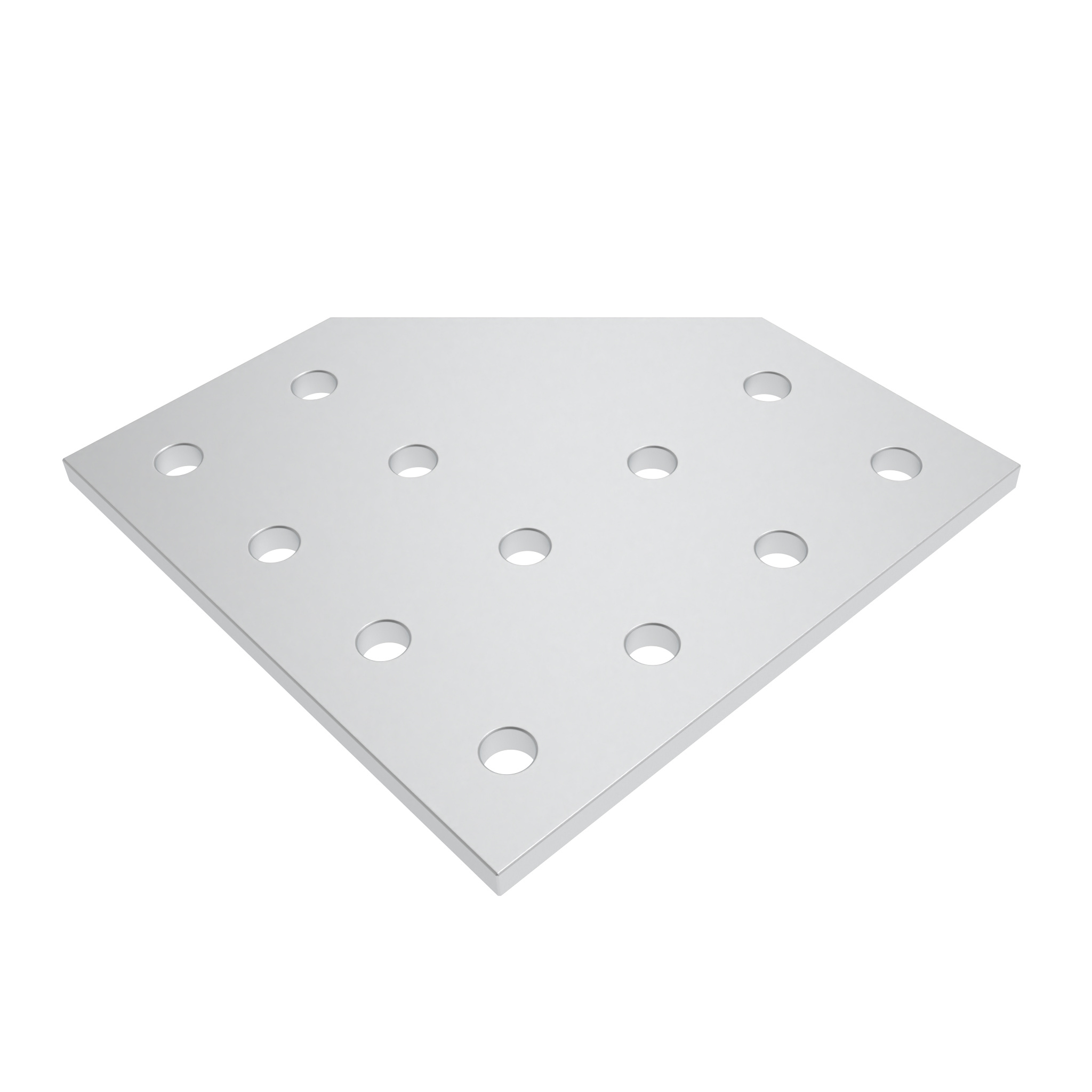

ECO Connection Plate AL L 12 Hole, 2 Slots Version
€0.00*
A (mm):
25.4 (1")
|
B (mm):
101.6 (4")
|
H (mm):
4.8 (0.19")
|
K (mm):
51.0 (2.00")
|
L (mm):
101.6 (4")
|
Version:
102 / 102 - 4" / 4"
|
ØD (mm):
7.0 (0.27")
Delivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:Anodized
ECO Connection Plate AL L 4 Hole, 1 Slot Version
€0.00*
A (mm):
38.1 (1.5")
|
B (mm):
76.2 (3")
|
Color:
-
|
Fig.:
②
|
H (mm):
6.35 (0.25")
|
K (mm):
38.0 (1.49")
|
L (mm):
114.3 (4.5")
|
Surface:
Anodized
|
Version:
76.2 / 114.3 - 3" / 4.5"
|
ØD (mm):
9.0 (0.35")
Color:BlackDelivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:Powder coated / anodized
ECO Connection Plate AL L 5 Hole, 1 Slot Version
€0.00*
A (mm):
25.4 (1")
|
B (mm):
76.2 (3")
|
Color:
Black
|

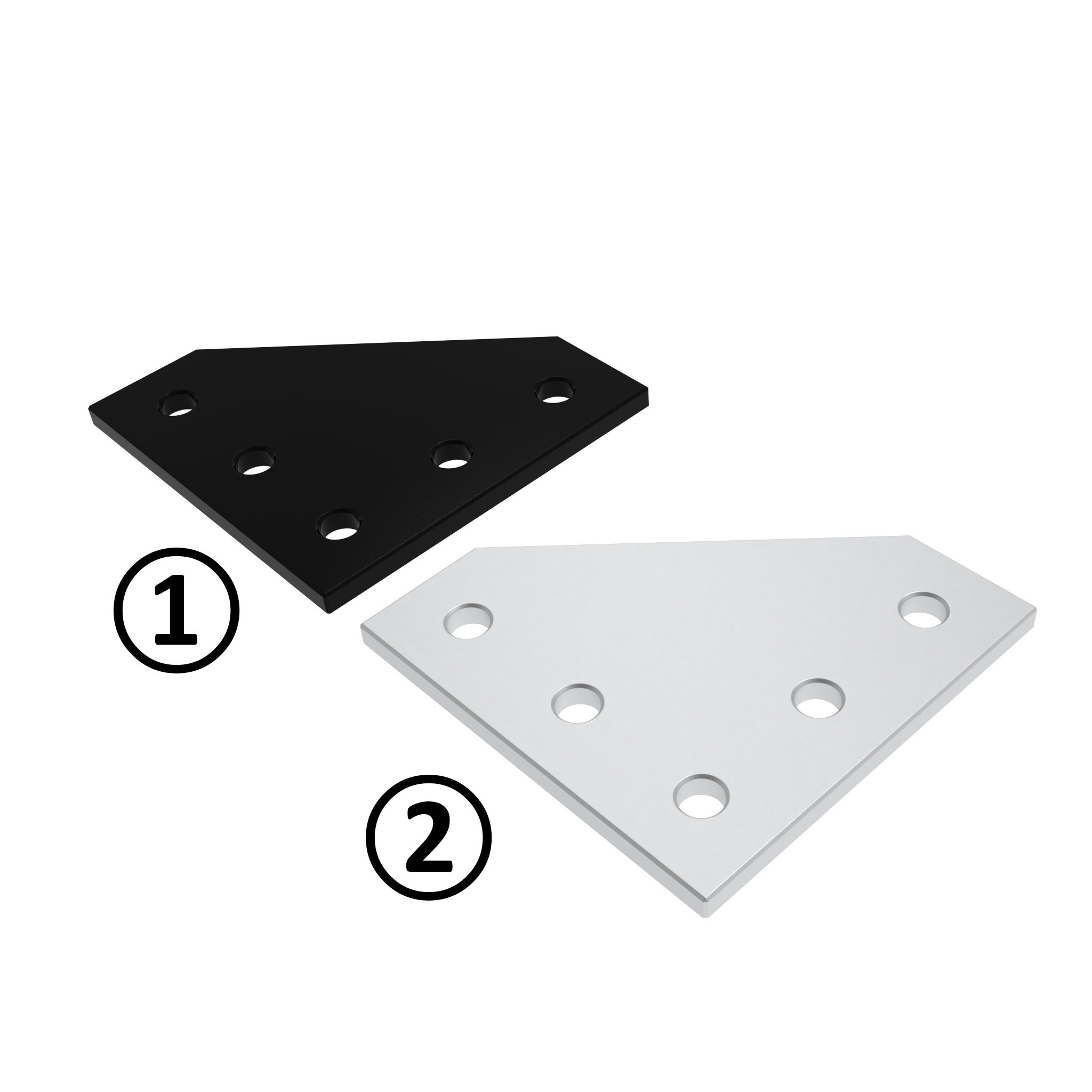

Fig.:
①
|
H (mm):
4.8 (0.19")
|
K (mm):
25.0 (0.98")
|
L (mm):
76.2 (3")
|
Surface:
Powder coated
|
Version:
76.2 / 76.2 - 3" / 3"
|
ØD (mm):
7.0 (0.27")
Color:BlackDelivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:Powder coated / anodized
ECO Connection Plate AL L 5 Hole, 1 Slot Version Light
€0.00*
A (mm):
25.4 (1")
|
B (mm):
76.2 (3")
|
Color:
Black
|
Fig.:
①
|
H (mm):
4.8 (0.19")
|
K (mm):
25.0 (0.98")
|
L (mm):
76.2 (3")
|
Surface:
Powder coated
|
Version:
76.2 / 76.2 - 3" / 3"
|
ØD (mm):
7.0 (0.27")
Color:BlackDelivery Countries:North AmericaDescription:To connect two aluminum profilesMaterial:AluminumSurface:Powder coated / anodized
